◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11718 - FVM AUST/NZ EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30A - GEAR SHIFTER AND QUADRANT BOX ▶
2-30A — GEAR SHIFTER AND QUADRANT BOX (#169858) — 147 parça

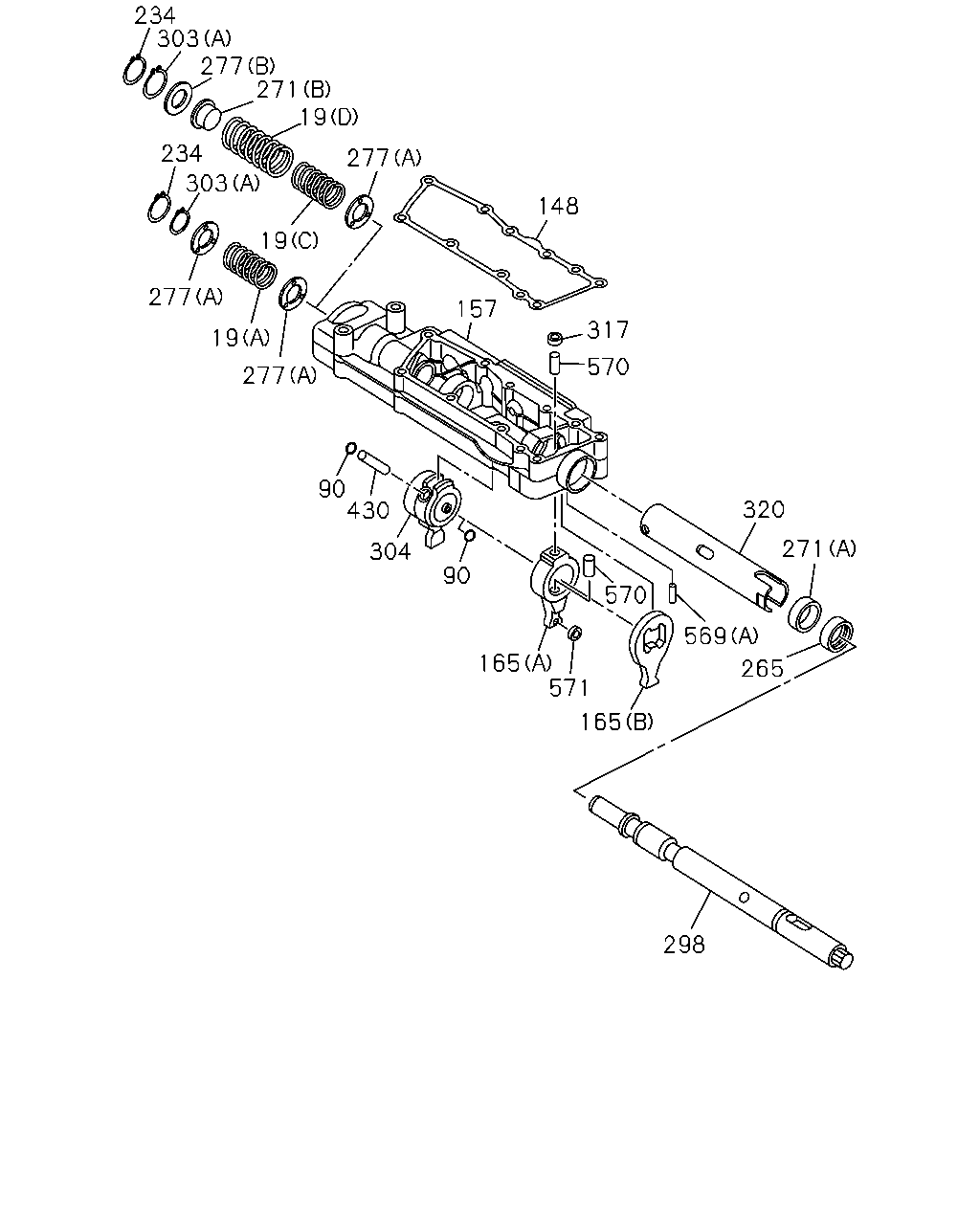

çizim 500628
234 303 277 19 271 277 148 317 570 157 320 271 569 570 265 165 571 165 90 304 430 90 277 19 277 19 303 234 298
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
COUNTRY NEW ZEALAND(CX6) (A) 		1-33539-089-0 01 1 1511-
19 SPRING; COIL COMP
(B) 		1-33539-090-0 01 1 1511-
19 SPRING; COIL COMP
EXC. COUNTRY NEW ZEALAND(CX6) (D) 		1-33539-092-0 01 1 1511-
19 SPRING; COIL COMP
EXC. COUNTRY NEW ZEALAND(CX6) (C) 		1-33539-093-0 01 1 1511-
90 RING; SNAP,SHIFT ROD 1-33529-109-0 01 1 1511-
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		1-33544-056-0 01 1 1511-
157 BOX; QUAD,TRANS 1-33549-445-0 01 1 1511-
165 LEVER; SHIFT
(B) 		1-33549-325-0 01 1 1511-
165 LEVER; SHIFT
(A) 		1-33549-450-0 01 1 1511-
234 RING; SNAP 1-44519-224-0 01 1 1511-
265 SEAL; OIL,SHIFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-544-0 01 1 1511-
271 BUSHING; QUAD BOX
(A) 		1-33549-318-0 01 1 1511-
271 BUSHING; QUAD BOX
EXC. COUNTRY NEW ZEALAND(CX6) (B) 		1-33539-113-0 01 1 1511-
277 PLATE; SPRING SEAT
COUNTRY NEW ZEALAND(CX6) (A) 		1-33539-107-0 02 1 1511-
277 PLATE; SPRING SEAT
EXC. COUNTRY NEW ZEALAND(CX6) (A) 		1-33539-107-0 01 1 1511-
277 PLATE; SPRING SEAT
EXC. COUNTRY NEW ZEALAND(CX6) (B) 		1-33539-110-0 01 1 1511-
298 SHAFT; SHIFT LEVER 1-33522-204-0 01 1 1511-
303 RING; SNAP,SHAFT
(A) 		1-33539-040-0 01 1 1511-
303 RING; SNAP,SHAFT
(B) 		1-33549-461-0 01 1 1511-
304 BLOCK; SHIFT SHAFT 1-33549-448-0 01 1 1511-
317 BUSHING; LEVER 1-33549-322-0 01 1 1511-
320 SHAFT; LEVER 1-33549-447-0 01 1 1511-
430 PIN; SPR,SHIFT ROD 1-33549-449-0 01 1 1511-
569 PIN; QUADRANT BOX
(A) 		1-33529-106-0 01 1 1511-
569 PIN; QUADRANT BOX
(B) 		1-33549-452-0 01 1 1511-
569 PIN; QUADRANT BOX
(C) 		1-33549-468-0 01 1 1511-
570 PIN; SHIFT LEVER 1-33529-117-0 02 1 1511-
571 ROLLER; LEVER 1-33549-324-0 01 1 1511-

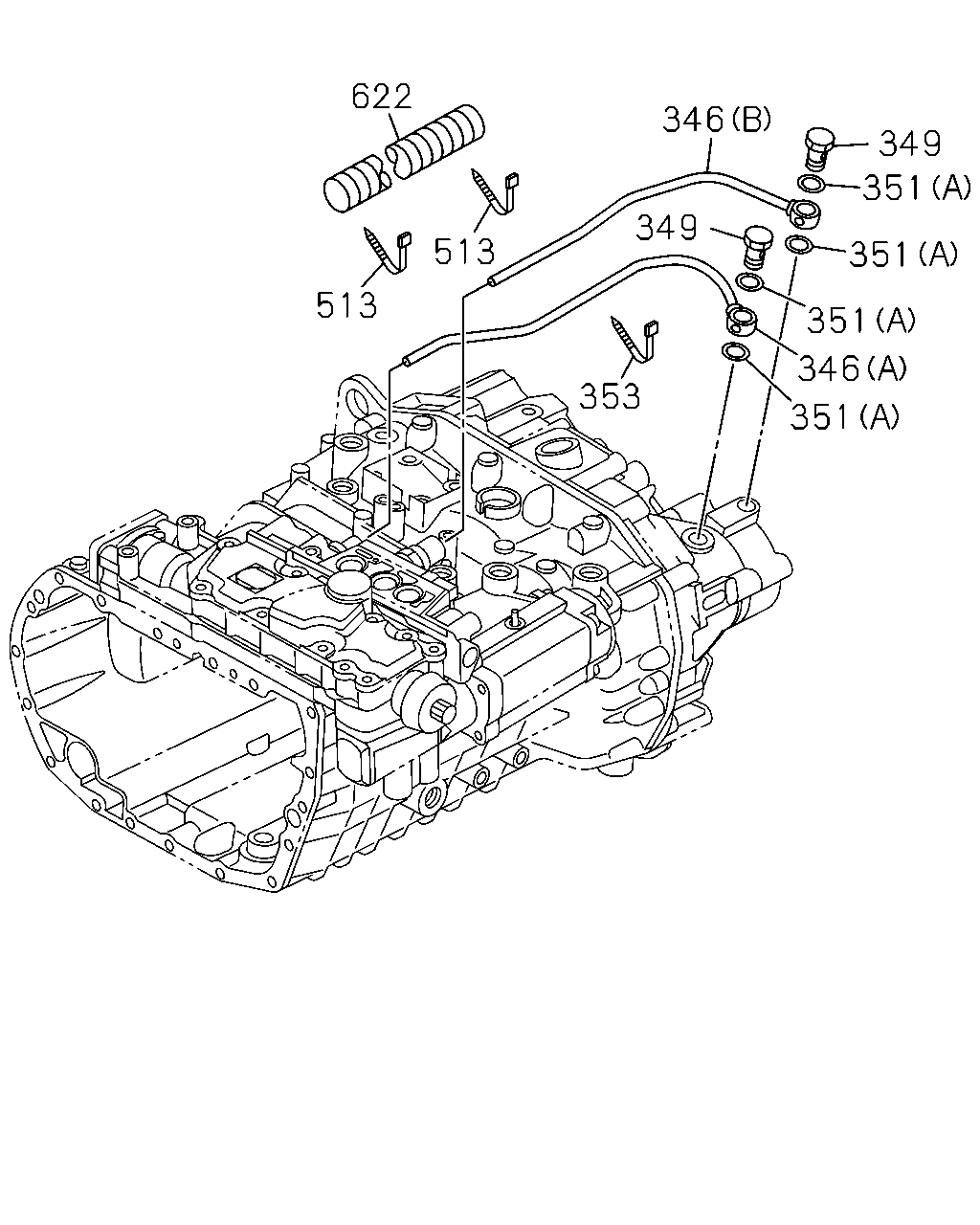

çizim 500629
622 513 513 353 349 346 349 351 351 351 346 351
BalonParca AdiParca NoAdetTipApplied Date
346 HOSE; AIR
(A) 		1-33549-473-0 01 1 1511-
346 HOSE; AIR
(B) 		1-33549-474-0 01 1 1511-
349 BOLT; EYE,AIR HOSE
M14 		1-33549-592-0 02 1 1511-
351 GASKET; CONNECTOR
(B) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1511-
351 GASKET; CONNECTOR
(A) 		1-33549-578-0 04 1 1511-
351 GASKET; CONNECTOR
(C) ID=12.2 		8-98251-344-0 02 1 1511-
353 CLIP; AIR HOSE 1-33549-530-0 02 1 1511-
513 CLIP; BAND
L=250 		5-09707-030-1 05 1 1511-
622 TUBE; CORRUGATE
L=100 ID=22 L=350 		1-83129-017-0 01 1 1511-

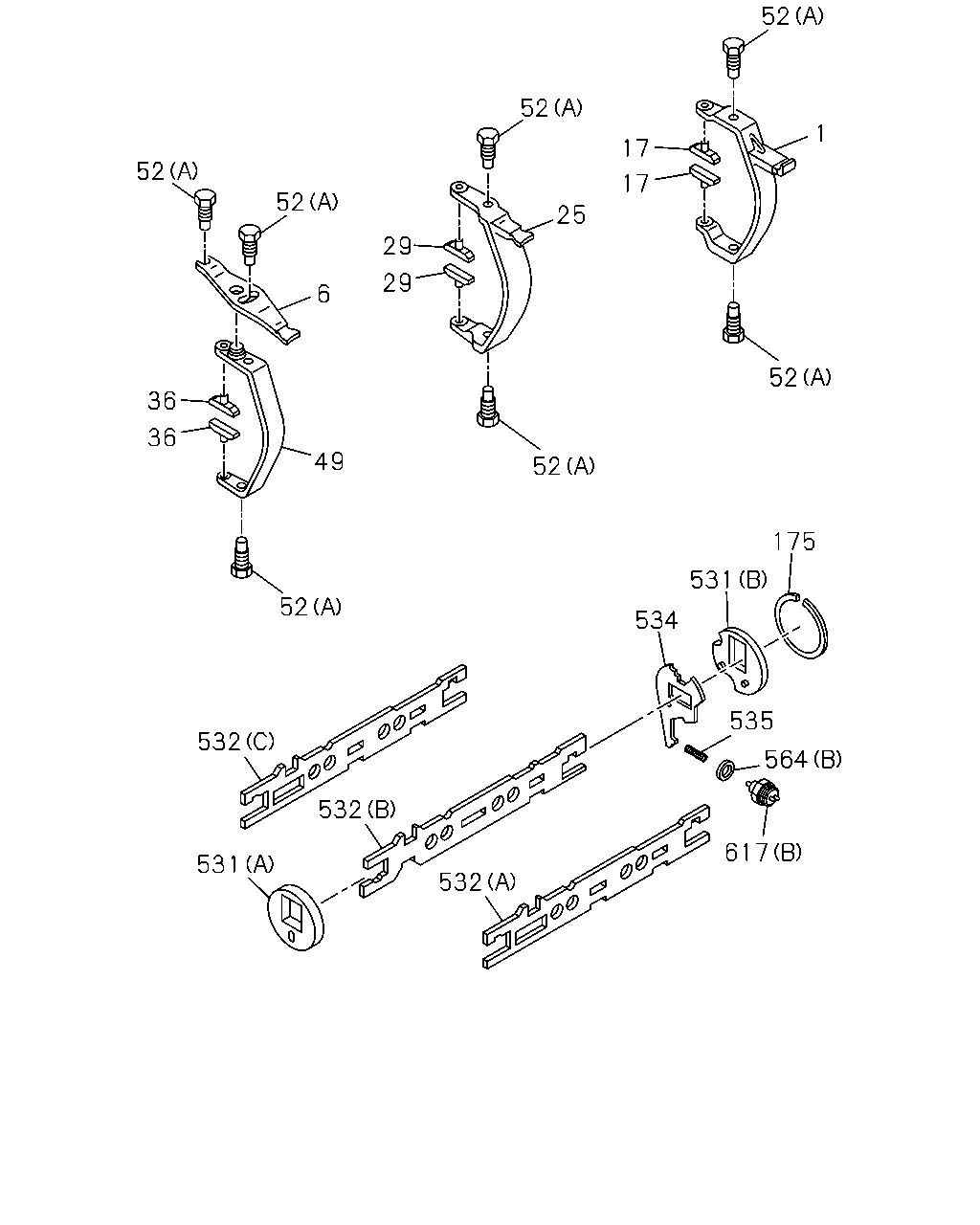

çizim 500640
52 1 17 17 52 52 25 29 29 52 49 36 36 52 52 6 52 532 531 532 532 617 564 535 531 534 175
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV 1-33511-657-0 01 1 1511-
6 LEVER; RELAY 1-33511-658-0 01 1 1511-
17 BLOCK; SHIFT,1ST & REV 1-33519-172-0 02 1 1511-
25 ARM; SHIFT,2ND & 3RD 1-33511-642-0 01 1 1511-
29 BLOCK; SHIFT,2ND & 3RD 1-33519-081-0 02 1 1511-
36 BLOCK; SHIFT,4TH & 5TH 1-33519-170-0 02 1 1511-
49 ARM; SHIFT,4TH & 5TH 1-33511-640-0 01 1 1511-
52 BOLT; SHIFT ARM
(A) 		1-33519-190-0 07 1 1511-
52 BOLT; SHIFT ARM
(B) 		1-33519-196-0 02 1 1511-
175 RING; STOPPER,SHIFT LEVER 1-33539-103-0 01 1 1511-
531 PLATE; BEARING
(A) 		1-33539-044-0 01 1 1511-
531 PLATE; BEARING
(B) 		1-33539-047-0 01 1 1511-
532 PLATE; SHIFT FORK
(A) 		1-33531-492-0 01 1 1511-
532 PLATE; SHIFT FORK
(B) 		1-33531-493-0 01 1 1511-
532 PLATE; SHIFT FORK
(C) 		1-33531-494-0 01 1 1511-
534 LEVER; LOCK,SHIFT PLATE 1-33539-087-0 01 1 1511-
535 SPRING; LEVER 1-33539-049-0 01 1 1511-
564 SEAL; RING
(B) 		1-33549-578-0 01 1 1511-
564 SEAL; RING
(A) T=2.0 		1-82449-010-0 01 1 1511-
617 PLUG
(A) 		1-33119-619-0 01 1 1511-
617 PLUG
(B) 		1-33539-109-0 01 1 1511-

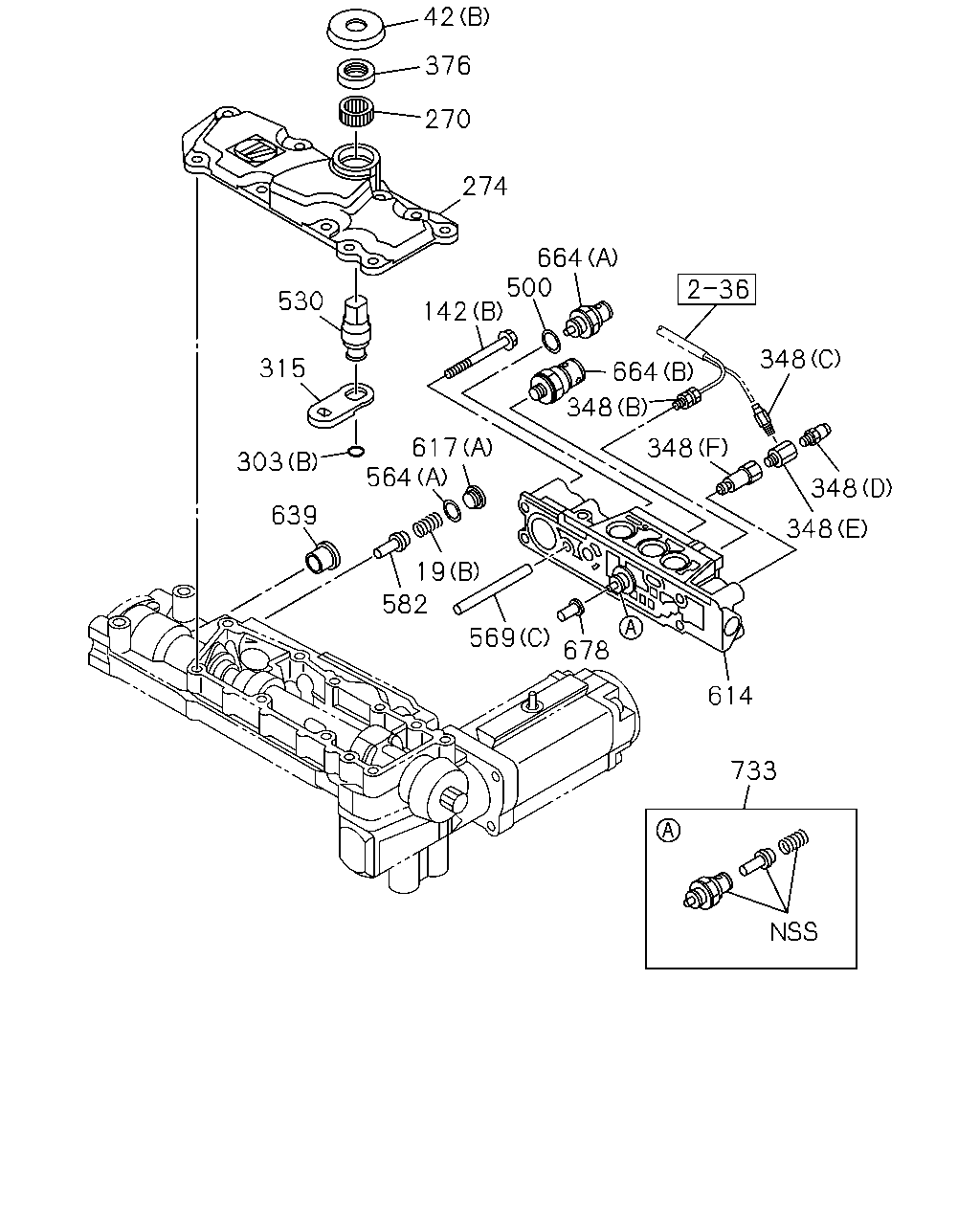

çizim 500642
42 270 376 274 664 500 142 530 315 303 639 564 617 348 664 348 19 582 569 678 614 733 348 348 348
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
COUNTRY NEW ZEALAND(CX6) (A) 		1-33539-089-0 01 1 1511-
19 SPRING; COIL COMP
(B) 		1-33539-090-0 01 1 1511-
19 SPRING; COIL COMP
EXC. COUNTRY NEW ZEALAND(CX6) (D) 		1-33539-092-0 01 1 1511-
19 SPRING; COIL COMP
EXC. COUNTRY NEW ZEALAND(CX6) (C) 		1-33539-093-0 01 1 1511-
42 CAP; QUAD BOX
(A) 		1-33549-548-0 01 1 1511-
42 CAP; QUAD BOX
(B) 		1-33549-619-0 01 1 1511-
142 BOLT; QUAD BOX
(A) M8X80 		1-33549-614-0 13 1 1511-
142 BOLT; QUAD BOX
(B) M8X70 		1-33549-616-0 05 1 1511-
270 BEARING; NEEDLE,QUAD BOX 1-33549-459-0 01 1 1511-
274 COVER; SHAFT,QUAD BOX 1-33549-477-0 01 1 1511-
303 RING; SNAP,SHAFT
(A) 		1-33539-040-0 01 1 1511-
303 RING; SNAP,SHAFT
(B) 		1-33549-461-0 01 1 1511-
315 LEVER; SELECT 1-33549-458-0 01 1 1511-
348 CONNECTOR; AIR HOSE
(A) PT1/4 		1-09654-396-0 01 1 1511-
348 CONNECTOR; AIR HOSE
(B) 		1-09660-466-0 01 1 1511-
348 CONNECTOR; AIR HOSE
(C) 		1-09661-174-0 01 1 1511-
348 CONNECTOR; AIR HOSE
(D) 		1-09661-481-0 01 1 1511-
348 CONNECTOR; AIR HOSE
(E) 		8-94338-417-0 01 1 1511-
348 CONNECTOR; AIR HOSE
(F) 		8-98068-125-0 01 1 1511-
376 SEAL; OIL 1-33549-462-0 01 1 1511-
500 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 1511-
530 SHAFT; SELECT 1-33549-460-0 01 1 1511-
564 SEAL; RING
(B) 		1-33549-578-0 01 1 1511-
564 SEAL; RING
(A) T=2.0 		1-82449-010-0 01 1 1511-
569 PIN; QUADRANT BOX
(A) 		1-33529-106-0 01 1 1511-
569 PIN; QUADRANT BOX
(B) 		1-33549-452-0 01 1 1511-
569 PIN; QUADRANT BOX
(C) 		1-33549-468-0 01 1 1511-
582 BOLT; SPRING GUIDE 1-33549-471-0 01 1 1511-
614 VALVE ASM 1-33549-549-0 01 1 1511-
617 PLUG
(A) 		1-33119-619-0 01 1 1511-
617 PLUG
(B) 		1-33539-109-0 01 1 1511-
639 CAP 1-33549-576-0 01 1 1511-
664 SWITCH
(A) 		1-33119-627-0 01 1 1511-
664 SWITCH
(B) 		1-33549-470-0 01 1 1511-
678 TAPPET 1-33549-466-0 01 1 1511-
733 REPAIR KIT 1-33549-617-0 01 1 1511-

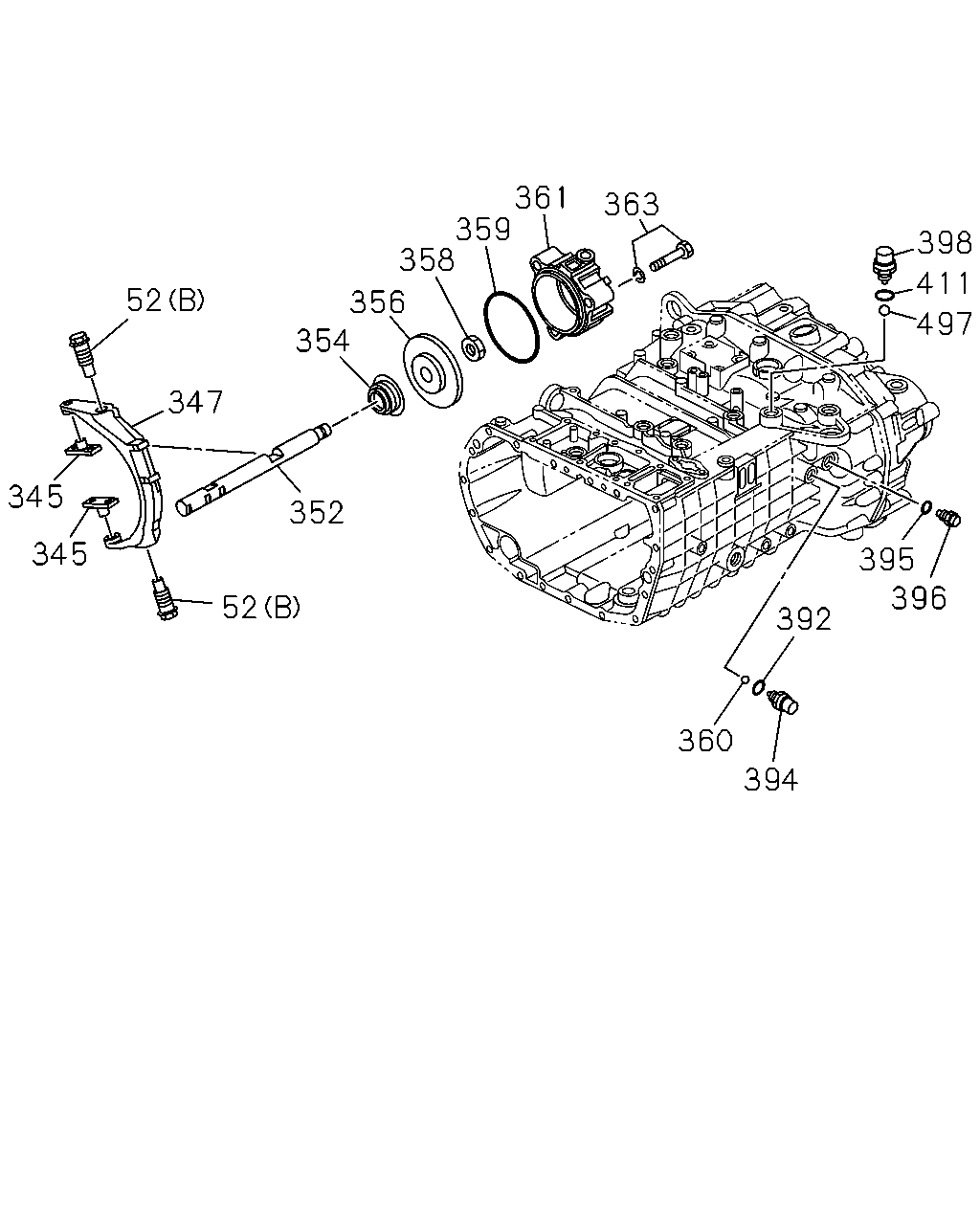

çizim 500661
398 497 411 395 396 392 360 394 52 352 345 345 347 52 354 356 358 359 361 363
BalonParca AdiParca NoAdetTipApplied Date
52 BOLT; SHIFT ARM
(A) 		1-33519-190-0 07 1 1511-
52 BOLT; SHIFT ARM
(B) 		1-33519-196-0 02 1 1511-
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-095-0 02 1 1511-
347 ARM; SHIFT,RANGE CHANGE 1-33511-529-0 01 1 1511-
352 ROD; SHIFT,RANGE CHANGE 1-33531-497-0 01 1 1511-
354 SEAL; AIR CYL 1-33519-045-0 01 1 1511-
356 PISTON; AIR CYL 1-33519-197-0 01 1 1511-
358 NUT; SHIFT ROD 1-33519-188-0 01 1 1511-
359 GASKET; AIR CYL 1-33519-093-0 01 1 1511-
360 BALL; AIR CYL 1-33119-252-0 01 1 1511-
361 CYLINDER; AIR,SHIFT 1-33519-092-0 01 1 1511-
363 BOLT; AIR CYL
M10X70 		1-33119-616-0 03 1 1511-
392 GASKET; PLUG & SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 1511-
394 SWITCH; RANGE CHANGE 1-33119-627-0 01 1 1511-
395 GASKET; PLUNGER 1-33549-497-0 01 1 1511-
396 PLUNGER; SHIFT ROD 1-33519-189-0 01 1 1511-
398 SWITCH; REV LAMP 1-38119-062-0 01 1 1511-
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-249-0 01 1 1511-
497 BALL; SWITCH 1-33119-252-0 01 1 1511-

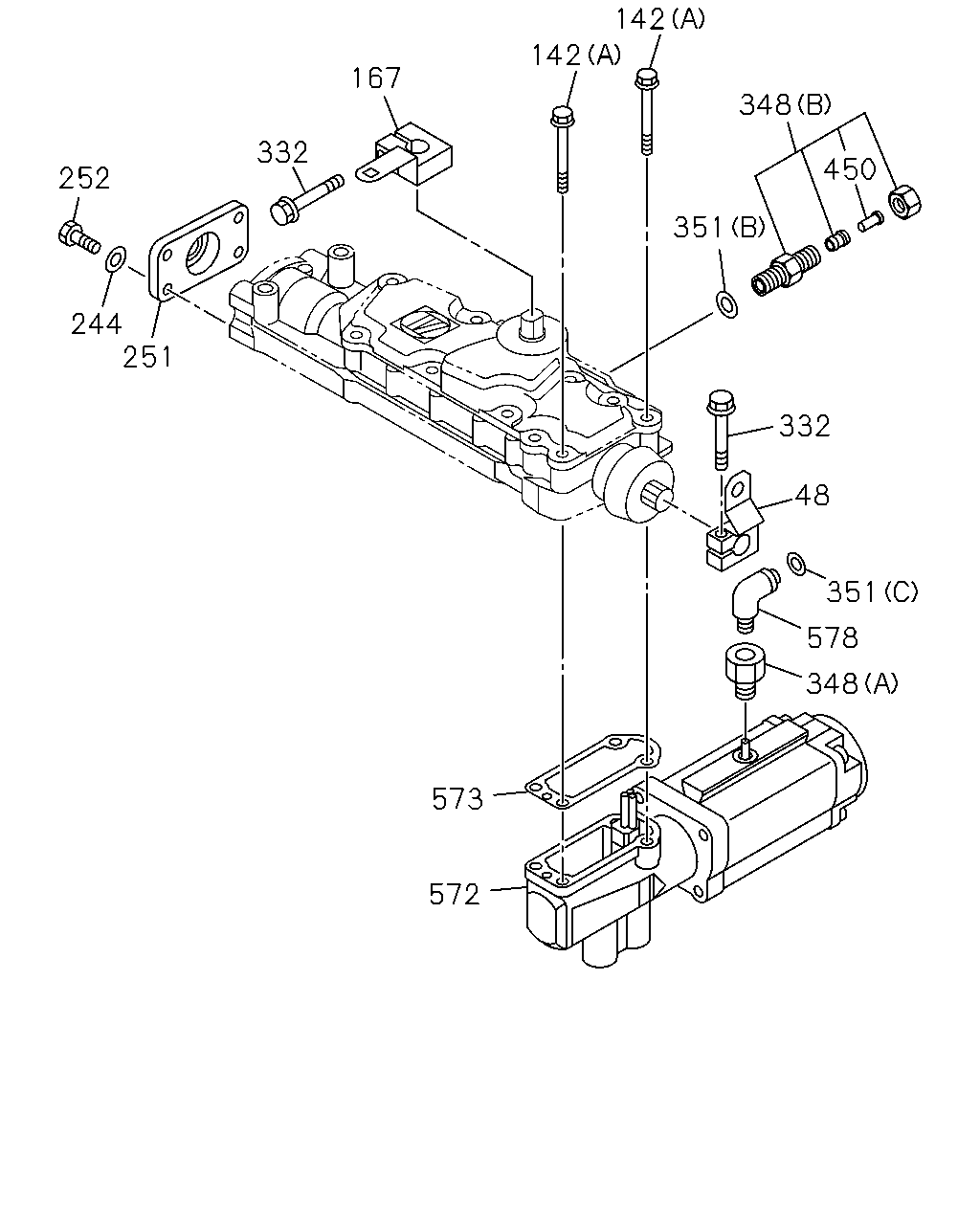

çizim 500666
572 573 348 578 351 48 332 351 450 348 142 142 167 332 252 244 251
BalonParca AdiParca NoAdetTipApplied Date
48 LEVER; 4TH,SHIFT 1-33651-827-1 01 1 1511-
142 BOLT; QUAD BOX
(A) M8X80 		1-33549-614-0 13 1 1511-
142 BOLT; QUAD BOX
(B) M8X70 		1-33549-616-0 05 1 1511-
167 LEVER; SELECT,EXTERNAL 1-33651-831-1 01 1 1511-
244 WASHER; LK,COVER 1-33549-583-0 04 1 1511-
251 COVER; SIDE 1-33549-590-0 01 1 1511-
252 BOLT; SIDE COVER
M8X20 		1-33549-591-0 04 1 1511-
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28650-840-0 02 1 1511-
348 CONNECTOR; AIR HOSE
(A) PT1/4 		1-09654-396-0 01 1 1511-
348 CONNECTOR; AIR HOSE
(B) 		1-09660-466-0 01 1 1511-
348 CONNECTOR; AIR HOSE
(C) 		1-09661-174-0 01 1 1511-
348 CONNECTOR; AIR HOSE
(D) 		1-09661-481-0 01 1 1511-
348 CONNECTOR; AIR HOSE
(E) 		8-94338-417-0 01 1 1511-
348 CONNECTOR; AIR HOSE
(F) 		8-98068-125-0 01 1 1511-
351 GASKET; CONNECTOR
(B) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1511-
351 GASKET; CONNECTOR
(A) 		1-33549-578-0 04 1 1511-
351 GASKET; CONNECTOR
(C) ID=12.2 		8-98251-344-0 02 1 1511-
450 INSERT; SHIFT ARM
ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 1511-
572 SERVO UNIT; GEAR SHIFT 1-33549-331-0 01 1 1511-
573 GASKET; SERVO UNIT 1-33549-332-0 01 1 1511-
578 CONNECTOR
DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 1511-

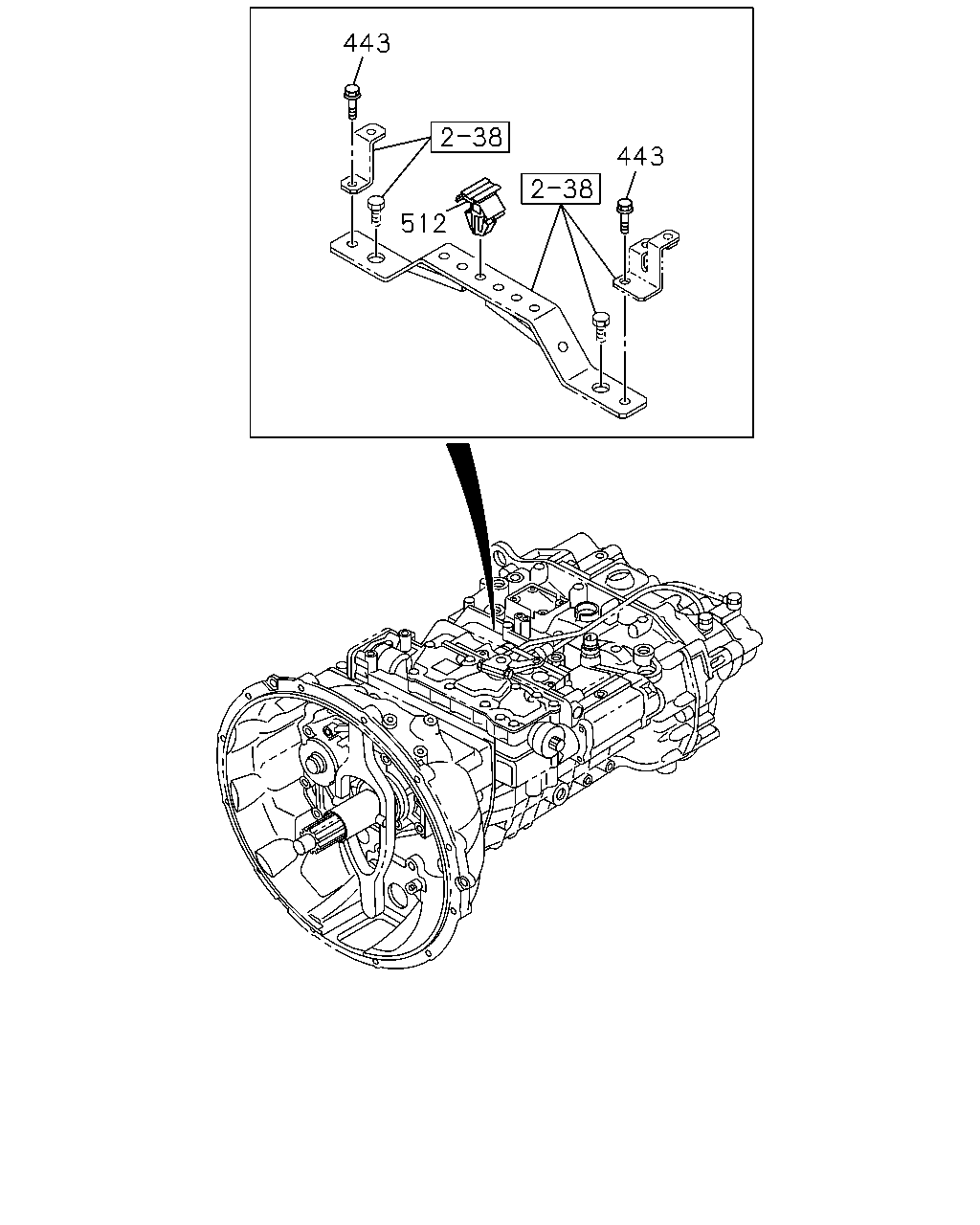

çizim 500836
443 512 443
BalonParca AdiParca NoAdetTipApplied Date
443 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1511-
512 CLIP; PIPE
OD=9 H=6 		1-09709-178-0 05 1 1511-

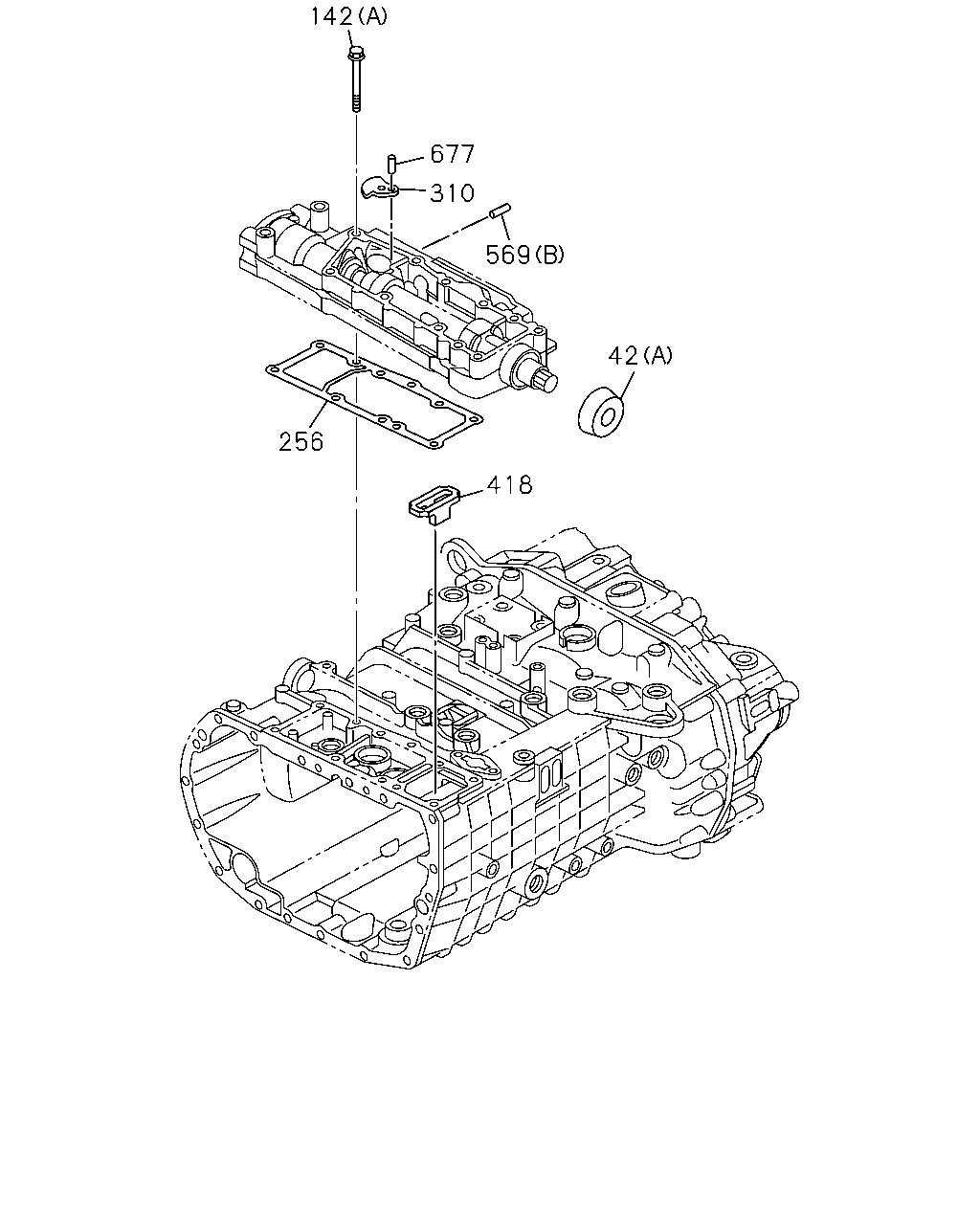

çizim 500838
142 677 569 310 42 418 256
BalonParca AdiParca NoAdetTipApplied Date
42 CAP; QUAD BOX
(A) 		1-33549-548-0 01 1 1511-
42 CAP; QUAD BOX
(B) 		1-33549-619-0 01 1 1511-
142 BOLT; QUAD BOX
(A) M8X80 		1-33549-614-0 13 1 1511-
142 BOLT; QUAD BOX
(B) M8X70 		1-33549-616-0 05 1 1511-
256 GASKET; QUAD BOX TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33542-062-0 01 1 1511-
310 PLATE; LOCK,SHIFT LEVER 1-33549-453-0 01 1 1511-
418 PIECE; DIST,QUAD BOX 1-33549-454-0 01 1 1511-
569 PIN; QUADRANT BOX
(A) 		1-33529-106-0 01 1 1511-
569 PIN; QUADRANT BOX
(B) 		1-33549-452-0 01 1 1511-
569 PIN; QUADRANT BOX
(C) 		1-33549-468-0 01 1 1511-
677 PIN; PLATE 1-33549-452-0 01 1 1511-
