◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11718 - FVM AUST/NZ EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26A - MANUAL TRANSMISSION GEAR ▶
2-26A — MANUAL TRANSMISSION GEAR (#169857) — 191 parça

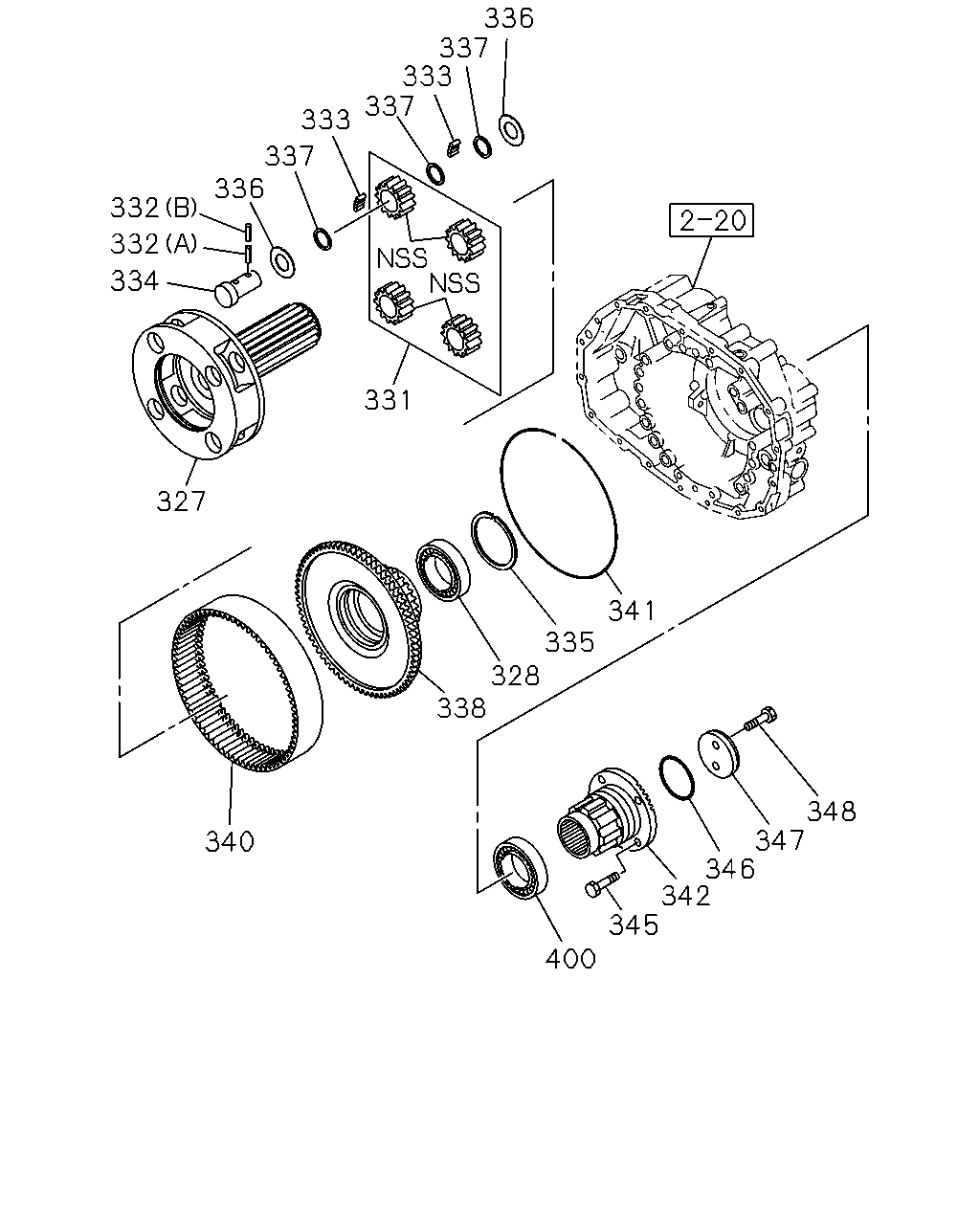

çizim 500107
348 347 346 342 345 400 341 335 328 338 331 327 340 334 332 332 336 337 333 337 333 337 336
BalonParca AdiParca NoAdetTipApplied Date
327 CARRIER; PLANETARY GEAR 1-33231-338-0 01 1 1511-
328 BEARING; CARRIER 1-33339-094-0 01 1 1511-
331 GEAR SET; PLANETARY 1-33239-350-0 01 1 1511-
332 PIN; LOCK,SHAFT
(A) 		1-33239-178-0 04 1 1511-
332 PIN; LOCK,SHAFT
(B) 		1-33239-179-0 04 1 1511-
333 ROLLER; PLANETARY GEAR 1-33239-232-0 AR 1 1511-
334 SHAFT; PLANETARY GEAR 1-33239-359-0 04 1 1511-
335 RING; SNAP,BEARING
T=2.50 		1-33339-075-0 01 1 1511-
335 RING; SNAP,BEARING
T=2.40 		1-33339-076-0 01 1 1511-
335 RING; SNAP,BEARING
T=2.30 		1-33339-077-0 01 1 1511-
335 RING; SNAP,BEARING
T=2.20 		1-33339-078-0 01 1 1511-
335 RING; SNAP,BEARING
T=2.10 		1-33339-079-0 01 1 1511-
335 RING; SNAP,BEARING
T=2.00 		1-33339-080-0 01 1 1511-
336 WASHER; THRUST,PLANETARY GEAR 1-33239-174-0 08 1 1511-
337 WASHER; PLANETARY GEAR,INNER 1-33239-176-0 12 1 1511-
338 CARRIER; RING GEAR 1-33331-275-0 01 1 1511-
340 GEAR; RING 1-33339-099-0 01 1 1511-
341 WIRE; LOCK,CARRIER 1-33339-096-0 01 1 1511-
342 FLANGE; OUTPUT 1-37243-429-0 01 1 1511-
345 BOLT; FLANGE TO YOKE 1-37249-147-0 04 1 1511-
346 GASKET; FLANGE 1-37249-156-0 01 1 1511-
347 WASHER; FLANGE 1-09509-060-0 01 1 1511-
348 BOLT; SHAFT 1-37249-215-0 02 1 1511-
400 BEARING; OUTPUT SHAFT RR 1-33139-212-0 01 1 1511-
çizim 500109
339 126 66 42 324 66 339 408 408 323
BalonParca AdiParca NoAdetTipApplied Date
42 SLEEVE 1-33262-195-0 01 1 1511-
66 RING; BLOCK,SYN 1-33339-069-0 02 1 1511-
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 1511-
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 1511-
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 1511-
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 1511-
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 1511-
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 1511-
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 1511-
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 1511-
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 1511-
323 INSERT
(B) 		1-33263-027-0 09 1 1511-
323 INSERT
(A) 		1-33263-030-0 06 1 1511-
324 HUB; CLU 1-33261-230-0 01 1 1511-
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-632-0 01 1 1511-
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-649-0 01 1 1511-
408 SPRING
(B) 		1-33269-038-0 09 1 1511-
408 SPRING
(C) 		1-33269-039-0 09 1 1511-
408 SPRING
(A) 		1-33269-042-0 06 1 1511-

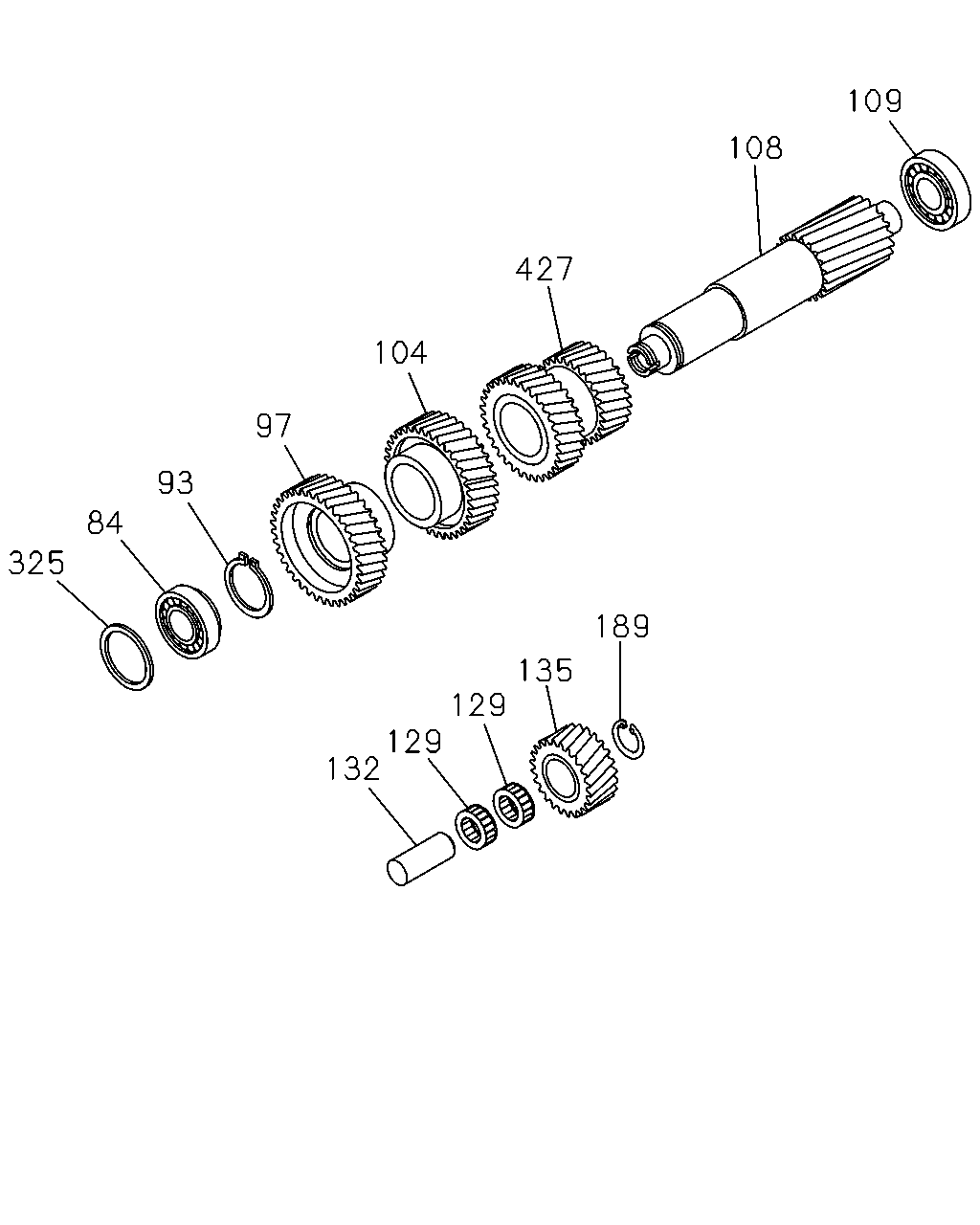

çizim 500111
189 135 129 129 132 97 93 84 325 104 427 108 109
BalonParca AdiParca NoAdetTipApplied Date
84 BEARING; COUNTER SHAFT,FRT 1-33312-016-0 01 1 1511-
93 RING; SNAP,COUNTER FRT BRG
T=2.0 		1-33319-251-0 01 1 1511-
93 RING; SNAP,COUNTER FRT BRG
T=2.5 		1-33319-252-0 01 1 1511-
93 RING; SNAP,COUNTER FRT BRG
T=2.4 		1-33319-253-0 01 1 1511-
93 RING; SNAP,COUNTER FRT BRG
T=2.3 		1-33319-254-0 01 1 1511-
93 RING; SNAP,COUNTER FRT BRG
T=2.2 		1-33319-255-0 01 1 1511-
93 RING; SNAP,COUNTER FRT BRG
T=2.1 		1-33319-256-0 01 1 1511-
93 RING; SNAP,COUNTER FRT BRG
T=2.6 		1-33319-264-0 01 1 1511-
97 GEAR; 5TH,COUNTER 1-33338-398-0 01 1 1511-
104 GEAR; 4TH,COUNTER 1-33338-397-0 01 1 1511-
108 SHAFT; COUNTER 1-33311-347-0 01 1 1511-
109 BEARING; COUNTER SHAFT,RR 1-33312-006-0 01 1 1511-
129 BEARING; NEEDLE,IDLER 1-33369-026-0 02 1 1511-
132 SHAFT; REV 1-33351-024-0 01 1 1511-
135 GEAR; REV IDLER 1-33361-096-0 01 1 1511-
189 RING; SNAP,REV,GEAR 1-44519-224-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98080-571-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.60 		8-98080-572-0 01 1 1511-
427 GEAR; 2ND & 3RD,COUNTER 1-33332-132-0 01 1 1511-
çizim 500645
325 1 3 301
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS 1-33215-036-0 01 1 1511-
3 BEARING; TOP GEAR SHAFT 1-33219-320-0 01 1 1511-
301 SHIM; TOP GEAR SHAFT
T=1.80 		1-33139-039-0 01 1 1511-
301 SHIM; TOP GEAR SHAFT
T=1.70 		1-33139-041-0 01 1 1511-
301 SHIM; TOP GEAR SHAFT
T=1.60 		1-33139-042-0 01 1 1511-
301 SHIM; TOP GEAR SHAFT
T=1.50 		1-33139-043-0 01 1 1511-
301 SHIM; TOP GEAR SHAFT
T=1.40 		1-33139-045-0 01 1 1511-
301 SHIM; TOP GEAR SHAFT
T=1.30 		1-33139-046-0 01 1 1511-
301 SHIM; TOP GEAR SHAFT
T=1.20 		1-33139-047-0 01 1 1511-
301 SHIM; TOP GEAR SHAFT
T=1.10 		1-33139-050-0 01 1 1511-
301 SHIM; TOP GEAR SHAFT
T=1.45 		1-33139-201-0 01 1 1511-
301 SHIM; TOP GEAR SHAFT
T=1.55 		1-33139-202-0 01 1 1511-
301 SHIM; TOP GEAR SHAFT
T=1.15 		1-33139-204-0 01 1 1511-
301 SHIM; TOP GEAR SHAFT
T=1.25 		1-33139-205-0 01 1 1511-
301 SHIM; TOP GEAR SHAFT
T=1.35 		1-33139-206-0 01 1 1511-
301 SHIM; TOP GEAR SHAFT
T=2.30 		1-33139-223-0 01 1 1511-
301 SHIM; TOP GEAR SHAFT
T=2.25 		1-33139-224-0 01 1 1511-
301 SHIM; TOP GEAR SHAFT
T=2.20 		1-33139-225-0 01 1 1511-
301 SHIM; TOP GEAR SHAFT
T=2.15 		1-33139-226-0 01 1 1511-
301 SHIM; TOP GEAR SHAFT
T=2.10 		1-33139-227-0 01 1 1511-
301 SHIM; TOP GEAR SHAFT
T=2.05 		1-33139-228-0 01 1 1511-
301 SHIM; TOP GEAR SHAFT
T=2.00 		1-33139-229-0 01 1 1511-
301 SHIM; TOP GEAR SHAFT
T=1.95 		1-33139-230-0 01 1 1511-
301 SHIM; TOP GEAR SHAFT
T=1.90 		1-33139-231-0 01 1 1511-
301 SHIM; TOP GEAR SHAFT
T=1.85 		1-33139-232-0 01 1 1511-
301 SHIM; TOP GEAR SHAFT
T=1.75 		1-33139-233-0 01 1 1511-
301 SHIM; TOP GEAR SHAFT
T=1.65 		1-33139-234-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98080-571-0 01 1 1511-
325 SHIM; COUNTER SHAFT BRG
T=1.60 		8-98080-572-0 01 1 1511-
çizim 501629
330 393 59 314 126 68 70 67 311 306 41 429 49 49 50 315 41 323 408 316 44 36 33 32 18 27 313 82 230 30 317 233 408 21 233 569 16 306 9
BalonParca AdiParca NoAdetTipApplied Date
9 CLUTCH; DOG,TOP GEAR 1-33265-631-0 01 1 1511-
16 BEARING; PILOT,MAINSHAFT 1-33239-212-0 01 1 1511-
18 RING; SNAP,CLU HUB
T=2.4 		1-33259-054-0 01 1 1511-
18 RING; SNAP,CLU HUB
T=2.3 		1-33259-060-0 01 1 1511-
18 RING; SNAP,CLU HUB
T=2.2 		1-33259-061-0 01 1 1511-
18 RING; SNAP,CLU HUB
T=2.1 		1-33259-062-0 01 1 1511-
18 RING; SNAP,CLU HUB
T=2.0 		1-33259-063-0 01 1 1511-
18 RING; SNAP,CLU HUB
T=1.9 		1-33259-064-0 01 1 1511-
21 HUB; CLU,4TH & 5TH 1-33261-295-0 01 1 1511-
27 BEARING; 4TH GEAR 1-33259-128-0 02 1 1511-
30 GEAR; 4TH,MAINSHAFT 1-33251-436-0 01 1 1511-
32 COLLAR; 3RD GEAR 1-33259-140-0 01 1 1511-
33 BEARING; NEEDLE,3RD GEAR 1-33259-127-0 01 1 1511-
36 GEAR; 3RD,MAINSHAFT 1-33252-478-0 01 1 1511-
41 RING; BLOCK,2ND & 3RD 1-33265-498-0 02 1 1511-
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-303-0 01 1 1511-
49 BEARING; NEEDLE,2ND GEAR 1-33259-126-0 02 1 1511-
50 GEAR; 2ND,MAINSHAFT 1-33251-448-0 01 1 1511-
59 GEAR; REV MAINSHAFT 1-33257-101-0 01 1 1511-
67 HUB; CLU,1ST TO REV 1-33259-135-0 01 1 1511-
68 SLEEVE; 1ST TO REV 1-33259-049-0 01 1 1511-
70 GEAR; 1ST,MAINSHAFT 1-33251-434-0 01 1 1511-
82 SHAFT; MAIN,TRANS 1-33231-337-0 01 1 1511-
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 1511-
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 1511-
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 1511-
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 1511-
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 1511-
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 1511-
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 1511-
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 1511-
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 1511-
230 SLEEVE; 4TH TO 5TH 1-33262-239-0 01 1 1511-
233 RING; BLOCK 4TH TO 5TH 1-33269-096-0 02 1 1511-
306 RING; SNAP,MAINSHAFT
(A) T=2.95 		1-33319-066-0 01 1 1511-
306 RING; SNAP,MAINSHAFT
(A) T=2.90 		1-33319-067-0 01 1 1511-
306 RING; SNAP,MAINSHAFT
(A) T=2.85 		1-33319-068-0 01 1 1511-
306 RING; SNAP,MAINSHAFT
(A) T=2.80 		1-33319-069-0 01 1 1511-
306 RING; SNAP,MAINSHAFT
(A) T=2.75 		1-33319-070-0 01 1 1511-
306 RING; SNAP,MAINSHAFT
(A) T=2.70 		1-33319-071-0 01 1 1511-
306 RING; SNAP,MAINSHAFT
(A) T=2.65 		1-33319-072-0 01 1 1511-
306 RING; SNAP,MAINSHAFT
(A) T=2.60 		1-33319-073-0 01 1 1511-
306 RING; SNAP,MAINSHAFT
(A) T=2.55 		1-33319-074-0 01 1 1511-
306 RING; SNAP,MAINSHAFT
(A) T=2.50 		1-33319-075-0 01 1 1511-
306 RING; SNAP,MAINSHAFT
(A) T=2.45 		1-33319-076-0 01 1 1511-
306 RING; SNAP,MAINSHAFT
(B) T=2.5 		1-43319-021-0 01 1 1511-
306 RING; SNAP,MAINSHAFT
(B) T=2.4 		1-43319-101-0 01 1 1511-
306 RING; SNAP,MAINSHAFT
(B) T=2.3 		1-43319-102-0 01 1 1511-
306 RING; SNAP,MAINSHAFT
(B) T=2.0 		1-43319-103-0 01 1 1511-
306 RING; SNAP,MAINSHAFT
(B) T=2.1 		1-43319-104-0 01 1 1511-
306 RING; SNAP,MAINSHAFT
(B) T=2.2 		1-43319-105-0 01 1 1511-
311 PIPE; MAINSHAFT 1-33239-349-0 01 1 1511-
313 BEARING; NEEDLE,LOW GEAR 1-33259-124-0 01 1 1511-
314 BEARING; NEEDLE,REV GEAR 1-33259-125-0 01 1 1511-
315 CLUTCH; DOG,2ND GEAR 1-33265-629-0 01 1 1511-
316 CLUTCH; DOG,3RD GEAR 1-33265-629-0 01 1 1511-
317 CLUTCH; DOG,4TH GEAR 1-33265-630-0 01 1 1511-
323 INSERT
(B) 		1-33263-027-0 09 1 1511-
323 INSERT
(A) 		1-33263-030-0 06 1 1511-
330 GEAR; SUN 1-33259-134-0 01 1 1511-
393 BEARING; MAINSHAFT END 1-33259-104-0 01 1 1511-
408 SPRING
(B) 		1-33269-038-0 09 1 1511-
408 SPRING
(C) 		1-33269-039-0 09 1 1511-
408 SPRING
(A) 		1-33269-042-0 06 1 1511-
429 SLEEVE; 2ND & 3RD 1-33262-244-0 01 1 1511-
569 DAM; OIL 1-33269-097-0 01 1 1511-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
