◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11718 - FVM AUST/NZ EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07A - CLUTCH BOOSTER; MINIPACK ▶
2-07A — CLUTCH BOOSTER; MINIPACK (#169852) — 50 parça

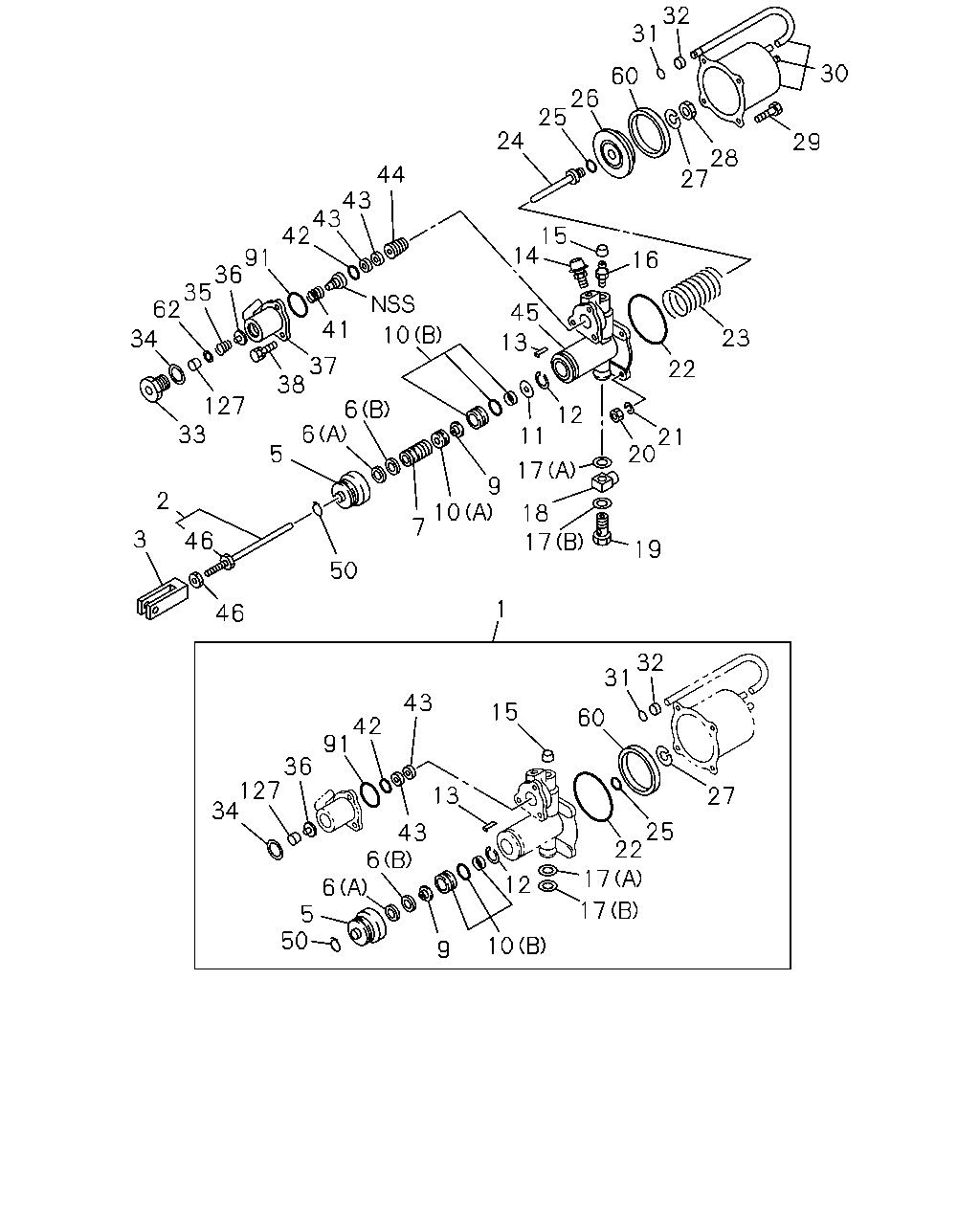

çizim 501494
30 29 28 27 32 31 60 26 25 24 16 23 22 21 20 19 17 17 18 11 12 13 45 14 15 44 43 43 42 91 36 35 62 34 127 33 38 37 41 6 6 10 5 2 3 46 46 50 7 10 9 32 27 60 25 22 17 17 31 1 43 42 91 36 127 34 50 6 5 6 13 43 12 10 9 15
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-31829-606-0 01 1 1511-
2 ROD; PUSH,CLU BOOSTER 1-31824-240-0 01 1 1511-
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-1 01 1 1511-
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 1511-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-032-0 01 1 1511-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-033-0 01 1 1511-
7 PISTON; CLU BOOSTER 1-31821-064-0 01 1 1511-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 1511-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 1511-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 1511-
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1511-
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 1511-
13 PIN; SPR 1-31829-109-0 01 1 1511-
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1511-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1511-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1511-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1511-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1511-
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1511-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1511-
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1511-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1511-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 1511-
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 1511-
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 1511-
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 1511-
26 PISTON; SHELL,CLU BOOSTER 1-31821-084-0 01 1 1511-
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 1511-
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 1511-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1511-
30 SHELL; CYL,CLU BOOSTER 1-31811-124-0 01 1 1511-
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1511-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1511-
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 1511-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1511-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1511-
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1511-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 1511-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1511-
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 1511-
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 1511-
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1511-
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 1511-
45 PLATE; END,CLU BOOSTER 1-31811-149-0 01 1 1511-
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1511-
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 1511-
60 GASKET; SHELL,CLU BOOSTER 1-31829-544-0 01 1 1511-
62 RETAINER; POPPET 1-31829-489-0 01 1 1511-
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1511-
127 FILTER; POPPET 1-31829-495-0 01 1 1511-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
