◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11718 - FVM AUST/NZ EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#169846) — 86 parça

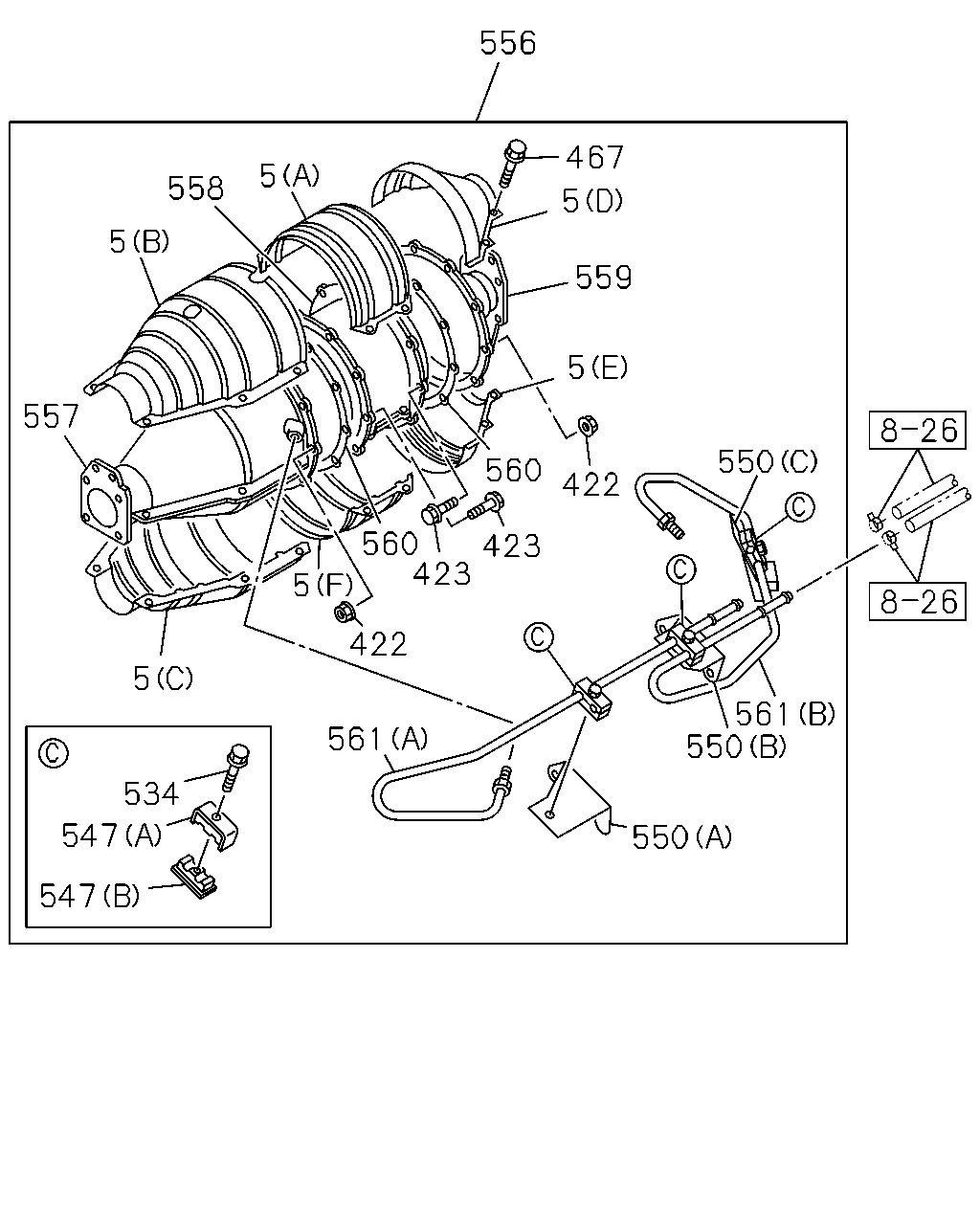

çizim 500764
550 550 550 561 422 423 423 422 561 560 5 560 5 559 5 467 556 5 558 5 557 5 534 547 547
BalonParca AdiParca NoAdetTipApplied Date A B
5 PROTECTOR; HEAT
(B) 		8-97611-098-0 01 1 1511- ● ●
5 PROTECTOR; HEAT
(C) 		8-97611-099-0 01 1 1511- ● ●
5 PROTECTOR; HEAT
(A) 		8-97611-100-0 01 1 1511- ● ●
5 PROTECTOR; HEAT
(F) 		8-97611-101-0 01 1 1511- ● ●
5 PROTECTOR; HEAT
(D) 		8-97611-102-0 01 1 1511- ● ●
5 PROTECTOR; HEAT
(E) 		8-97611-103-0 01 1 1511- ● ●
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 1511- ● ●
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 1511- ● ●
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 1511- ● ●
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 1511- ● ●
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 1511- ● ●
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 1511- ● ●
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 1511- ● ●
550 BRACKET; DPD
(A) 		8-97611-096-0 01 1 1511- ● ●
550 BRACKET; DPD
(B) 		8-97611-097-0 01 1 1511- ● ●
556 DPD ASM 8-97622-899-4 01 1 1511- ● ●
557 CATALYST ASM 8-97608-054-6 01 1 1511- ● ●
558 FILTER ASM 8-97608-056-2 01 1 1511- ● ●
559 COVER; RR 8-97622-903-0 01 1 1511- ● ●
560 GASKET; DPD 8-97611-092-0 02 1 1511- ● ●
561 PIPE; DPD
(A) 		8-97622-904-0 01 1 1511- ● ●
561 PIPE; DPD
(B) 		8-97622-905-0 01 1 1511- ● ●

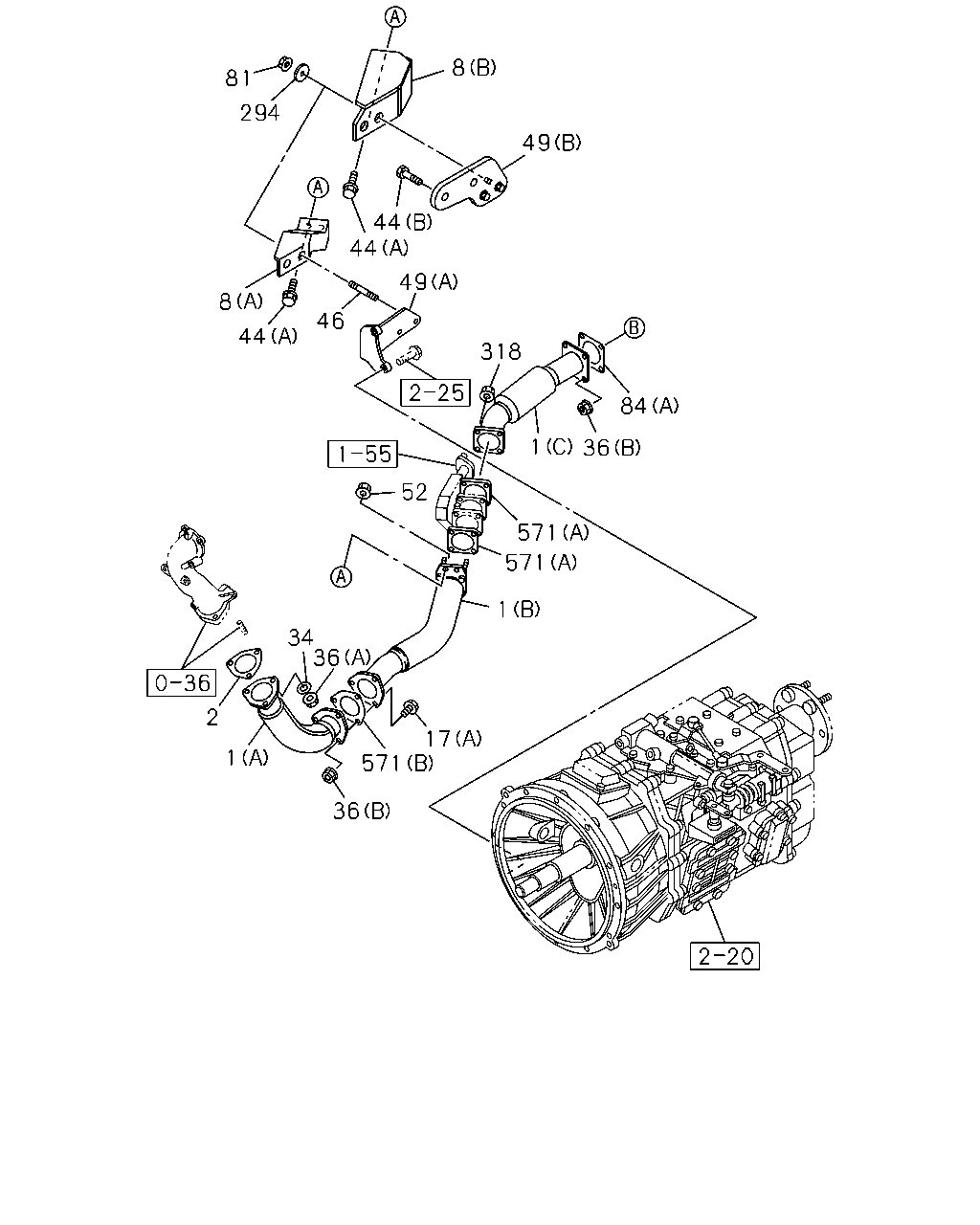

çizim 500772
8 49 81 294 44 44 49 318 84 36 1 46 8 44 571 571 52 34 36 2 1 571 17 36 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
(C) 		8-98099-921-0 01 1 1511- ● ●
1 PIPE; EXH
(A) 		8-98215-406-0 01 1 1511- ● ●
1 PIPE; EXH
(B) 		8-98221-117-0 01 1 1511- ● ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 1511- ● ●
8 BRACKET; EXH PIPE
ALLISON MD3560P A/T(Y3B) (B) 		8-98149-834-0 01 1 1511- ●
8 BRACKET; EXH PIPE
ZF9S1110 M/T(Y5E) (A) 		8-98120-522-0 01 1 1511- ● ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1511- ● ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1511- ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 1511- ● ●
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 1511- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 1511- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1511- ● ●
44 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) (B) M16X45 		9-92361-645-0 02 1 1511- ●
44 BOLT; BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 1511- ● ●
44 BOLT; BRKT
(A) M10X35 FLANGE 		0-28651-035-0 08 1 1511- ● ●
46 BOLT; BRKT,EXH PIPE
ZF9S1110 M/T(Y5E) M10X25 L=40 		0-44011-025-0 02 1 1511- ● ●
49 BRACKET; EXH PIPE TO TRANS
ALLISON MD3560P A/T(Y3B) (B) 		8-98149-833-0 01 1 1511- ●
49 BRACKET; EXH PIPE TO TRANS
ZF9S1110 M/T(Y5E) (A) 		8-98120-497-0 01 1 1511- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1511- ● ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 02 1 1511- ● ●
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 1511- ● ●
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 1511- ● ●
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 1511- ● ●

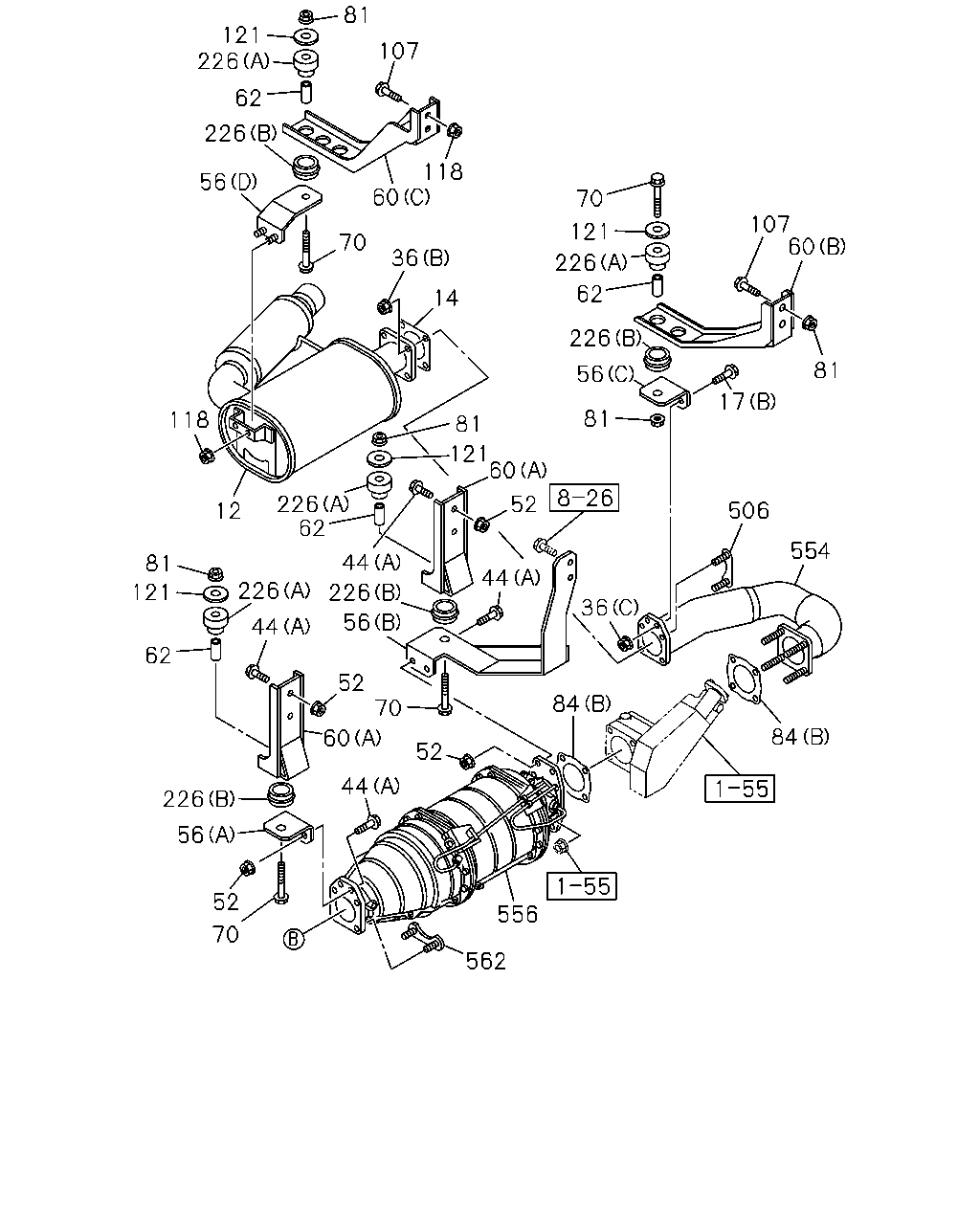

çizim 501659
81 121 226 62 226 56 107 118 60 70 36 14 70 121 226 62 226 56 81 107 60 81 17 506 554 84 556 84 36 52 60 121 81 118 12 226 62 44 226 56 226 44 81 121 62 226 56 52 70 44 60 70 52 52 44 562
BalonParca AdiParca NoAdetTipApplied Date A B
12 SILENCER ASM; EXH 8-98070-098-2 01 1 1511- ● ●
14 GASKET; SILENCER TO EXH PIPE 1-22116-042-0 01 1 1511- ● ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1511- ● ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1511- ● ●
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 1511- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 1511- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1511- ● ●
44 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) (B) M16X45 		9-92361-645-0 02 1 1511- ●
44 BOLT; BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 1511- ● ●
44 BOLT; BRKT
(A) M10X35 FLANGE 		0-28651-035-0 08 1 1511- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98071-227-0 01 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98071-231-0 01 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98072-104-0 01 1 1511- ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98071-228-1 01 1 1511- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98072-708-0 01 1 1511- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 02 1 1511- ● ●
62 TUBE; DIST,BRKT
L=39 		8-98060-852-0 04 1 1511- ● ●
70 BOLT; BRKT
M10X70 FLANGE 		0-28051-070-0 04 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1511- ● ●
84 GASKET; EXH PIPE
(B) ID=85.8 		1-22116-043-0 02 1 1511- ● ●
107 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 04 1 1511- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 04 1 1511- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 04 1 1511- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 04 1 1511- ● ●
506 BRACKET; STUD 1-22134-214-0 02 1 1511- ● ●
554 PIPE; EXH,SILENCER 8-98085-262-0 01 1 1511- ● ●
556 DPD ASM 8-97622-899-4 01 1 1511- ● ●
562 PLATE; STUD,BOLT
M12X35 		1-22131-963-0 02 1 1511- ● ●
