1-41 — FUEL PIPING; CHASSIS (#169844) — 85 parça

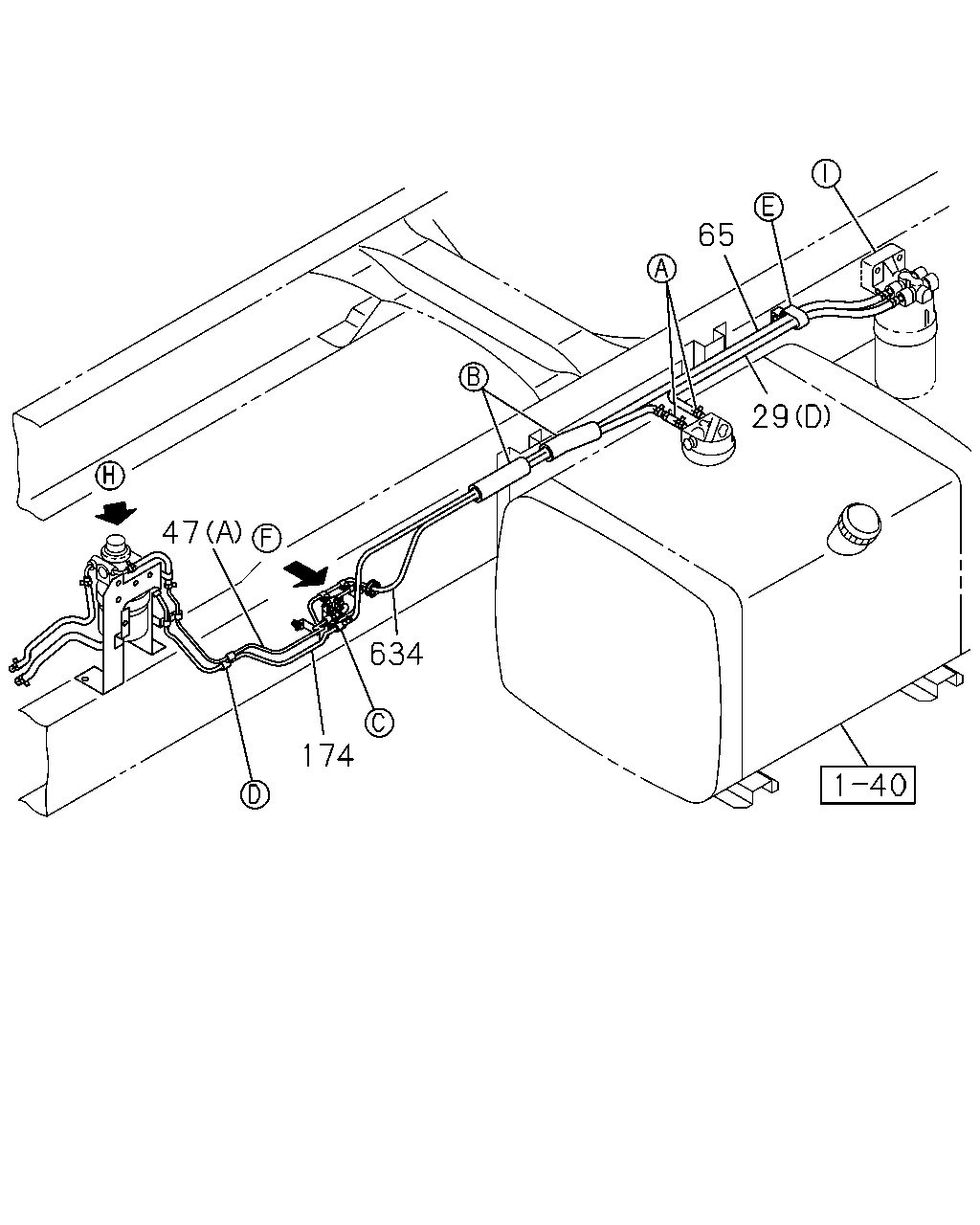

çizim 500562
29 65 634 47 174
BalonParca AdiParca NoAdetTipApplied Date A B
29 HOSE; FUEL
(C) L=60 SERVICED BY L=3000 		0-01259-300-0 01 1 1511- ● ●
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 1511- ● ●
29 HOSE; FUEL
(A) 		8-98156-579-0 01 1 1511- ● ●
29 HOSE; FUEL
(D) L=920 		8-98232-244-0 01 1 1511- ● ●
47 PIPE; FUEL,RETURN
(C) 		8-98009-438-1 01 1 1511- ● ●
47 PIPE; FUEL,RETURN
(B) L=787 		8-98127-647-0 01 1 1511- ● ●
47 PIPE; FUEL,RETURN
(A) L=688 		8-98129-921-0 01 1 1511- ● ●
65 HOSE; FUEL,DELIVERY PIPE
L=1620 		8-98232-241-0 01 1 1511- ● ●
174 PIPE; FUEL,FEED,FRT
L=685 		8-98129-920-0 01 1 1511- ● ●
634 HOSE; RUBBER RETURN
L=700 SERVICED BY L=3000 		0-01558-300-0 01 1 1511- ● ●

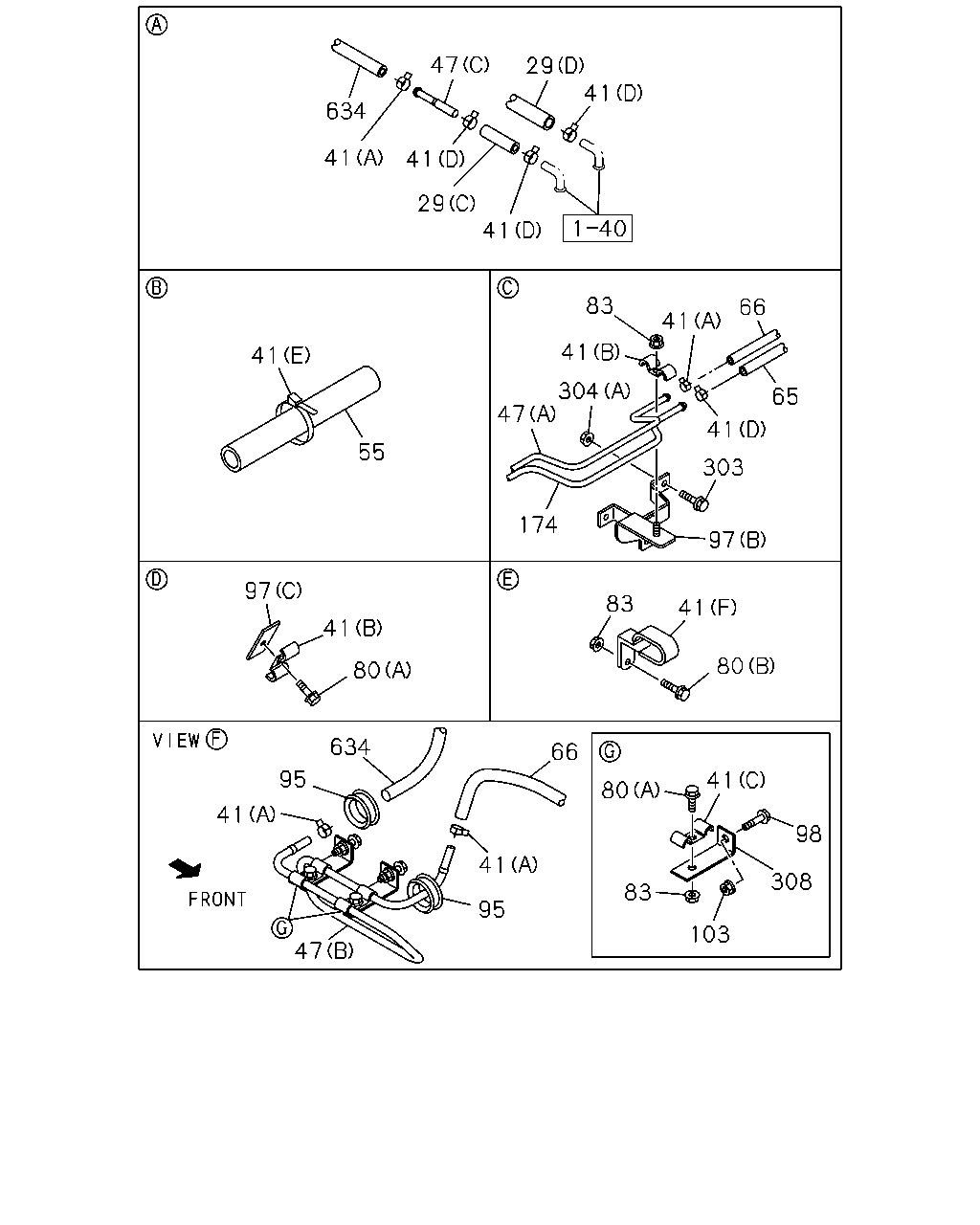

çizim 501709
103 308 98 83 41 80 66 80 41 83 97 303 41 65 66 41 83 41 47 304 174 95 41 47 41 634 95 80 41 97 55 41 41 29 41 41 29 47 634 41
BalonParca AdiParca NoAdetTipApplied Date A B
29 HOSE; FUEL
(C) L=60 SERVICED BY L=3000 		0-01259-300-0 01 1 1511- ● ●
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 1511- ● ●
29 HOSE; FUEL
(A) 		8-98156-579-0 01 1 1511- ● ●
29 HOSE; FUEL
(D) L=920 		8-98232-244-0 01 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 04 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=9 & 9 L=17 & 17 		1-09700-651-0 02 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(F) ID=24 & 24 L=49 		1-09701-018-0 01 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1511- ● ●
47 PIPE; FUEL,RETURN
(C) 		8-98009-438-1 01 1 1511- ● ●
47 PIPE; FUEL,RETURN
(B) L=787 		8-98127-647-0 01 1 1511- ● ●
47 PIPE; FUEL,RETURN
(A) L=688 		8-98129-921-0 01 1 1511- ● ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1511- ● ●
65 HOSE; FUEL,DELIVERY PIPE
L=1620 		8-98232-241-0 01 1 1511- ● ●
66 HOSE; FUEL,RETURN PIPE
L=180 SERVICED BY L=3000 		0-01558-300-0 01 1 1511- ● ●
80 BOLT; CLIP,FUEL TANK
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
80 BOLT; CLIP,FUEL TANK
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
80 BOLT; CLIP,FUEL TANK
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1511- ● ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 03 1 1511- ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=25 		1-09332-011-1 02 1 1511- ● ●
97 BRACKET; CLIP
(C) L=50 		1-47475-299-2 01 1 1511- ● ●
97 BRACKET; CLIP
(A) 		8-98053-654-0 01 1 1511- ● ●
97 BRACKET; CLIP
(B) 		8-98129-922-0 01 1 1511- ● ●
98 BOLT; BRKT,FUEL PIPE
M8X30 FLANGE 		0-28650-830-0 02 1 1511- ● ●
103 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
174 PIPE; FUEL,FEED,FRT
L=685 		8-98129-920-0 01 1 1511- ● ●
303 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1511- ● ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 1511- ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
308 BRACKET; FUEL PIPE
L=75 		1-47478-323-0 02 1 1511- ● ●
634 HOSE; RUBBER RETURN
L=700 SERVICED BY L=3000 		0-01558-300-0 01 1 1511- ● ●

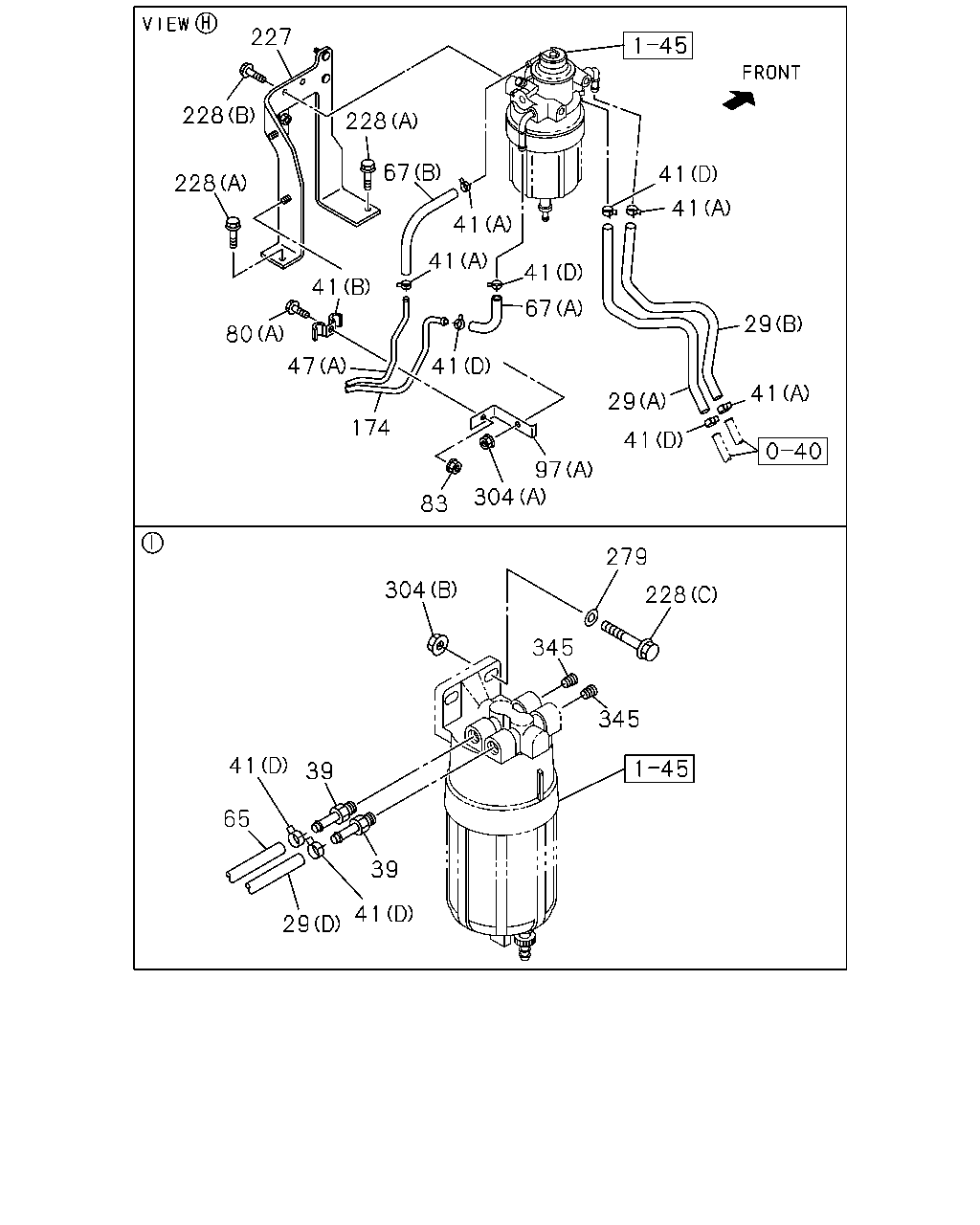

çizim 501969
227 228 228 228 41 80 47 174 83 304 97 41 29 41 29 41 41 41 67 41 41 41 67 304 279 228 345 345 41 65 29 39 39 41
BalonParca AdiParca NoAdetTipApplied Date A B
29 HOSE; FUEL
(C) L=60 SERVICED BY L=3000 		0-01259-300-0 01 1 1511- ● ●
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 1511- ● ●
29 HOSE; FUEL
(A) 		8-98156-579-0 01 1 1511- ● ●
29 HOSE; FUEL
(D) L=920 		8-98232-244-0 01 1 1511- ● ●
39 PIPE; FUEL
NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 04 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=9 & 9 L=17 & 17 		1-09700-651-0 02 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(F) ID=24 & 24 L=49 		1-09701-018-0 01 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1511- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1511- ● ●
47 PIPE; FUEL,RETURN
(C) 		8-98009-438-1 01 1 1511- ● ●
47 PIPE; FUEL,RETURN
(B) L=787 		8-98127-647-0 01 1 1511- ● ●
47 PIPE; FUEL,RETURN
(A) L=688 		8-98129-921-0 01 1 1511- ● ●
65 HOSE; FUEL,DELIVERY PIPE
L=1620 		8-98232-241-0 01 1 1511- ● ●
67 HOSE; FUEL,DELIVERY
(B) L=210 SERVICED BY L=3000 		0-01558-300-0 01 1 1511- ● ●
67 HOSE; FUEL,DELIVERY
(A) L=110 SERVICED BY L=3000 		0-01859-300-0 01 1 1511- ● ●
80 BOLT; CLIP,FUEL TANK
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
80 BOLT; CLIP,FUEL TANK
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
80 BOLT; CLIP,FUEL TANK
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1511- ● ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 03 1 1511- ● ●
97 BRACKET; CLIP
(C) L=50 		1-47475-299-2 01 1 1511- ● ●
97 BRACKET; CLIP
(A) 		8-98053-654-0 01 1 1511- ● ●
97 BRACKET; CLIP
(B) 		8-98129-922-0 01 1 1511- ● ●
174 PIPE; FUEL,FEED,FRT
L=685 		8-98129-920-0 01 1 1511- ● ●
227 BRACKET; FUEL SEDIMENTER 8-98044-366-3 01 1 1511- ● ●
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1511- ● ●
228 BOLT; BRKT,SEDIMENTER
(C) M10X60 FLANGE 		0-28051-060-0 02 1 1511- ● ●
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
279 WASHER
ID=10.5 OD=26 		0-91614-710-0 02 1 1511- ● ●
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 1511- ● ●
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
345 PLUG
NPTF3/8-18 		8-97329-623-0 02 1 1511- ● ●
