5-01 — FRAME AND OTHER PARTS
(#16981) — 55 parça
Tümü
A - WHEEL BASE 3900MM
B - WHEEL BASE 4200MM
C - WHEEL BASE 4600MM
D - WHEEL BASE 5000MM
◀

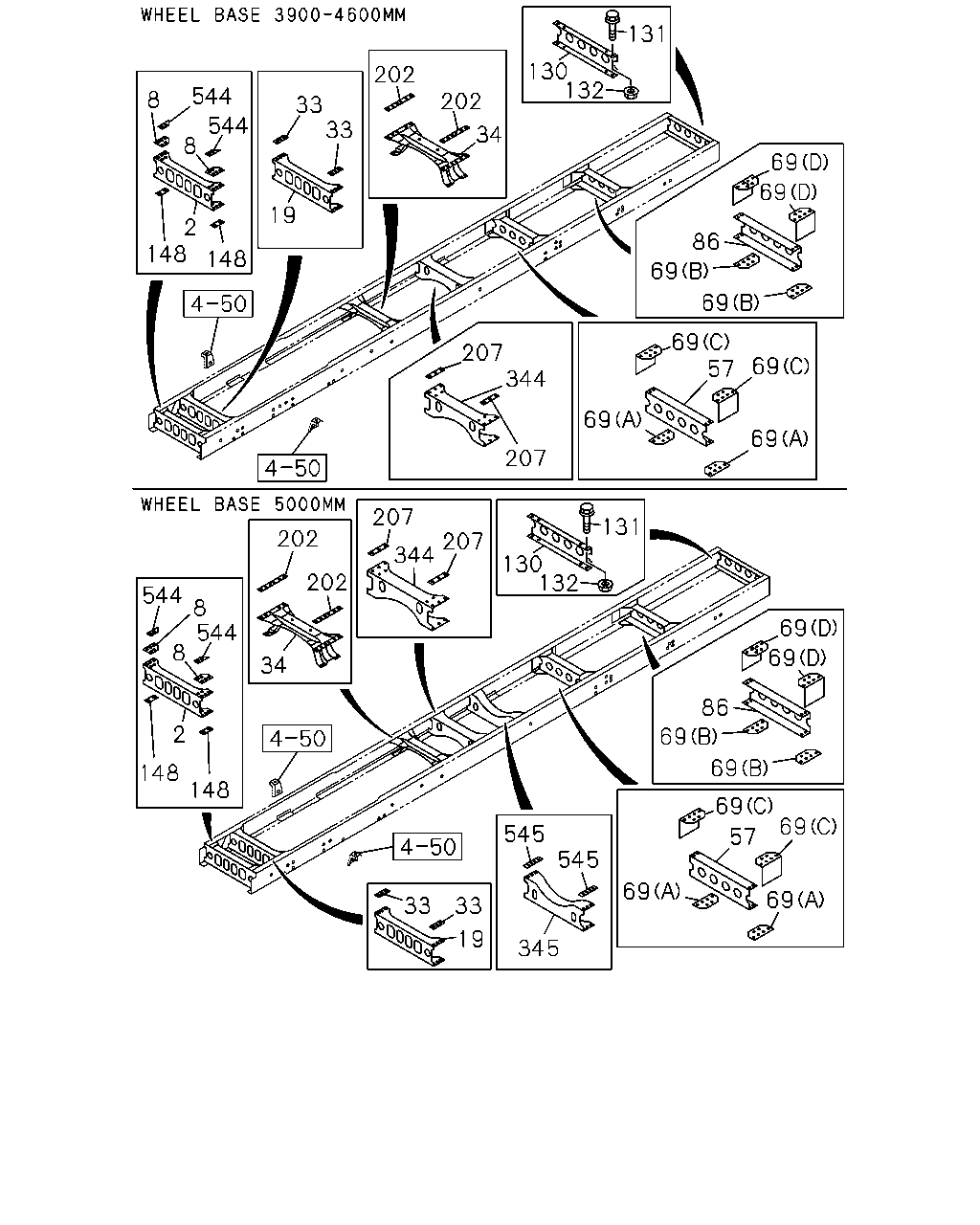

[501A] CROSS MEMBER (23 parça)

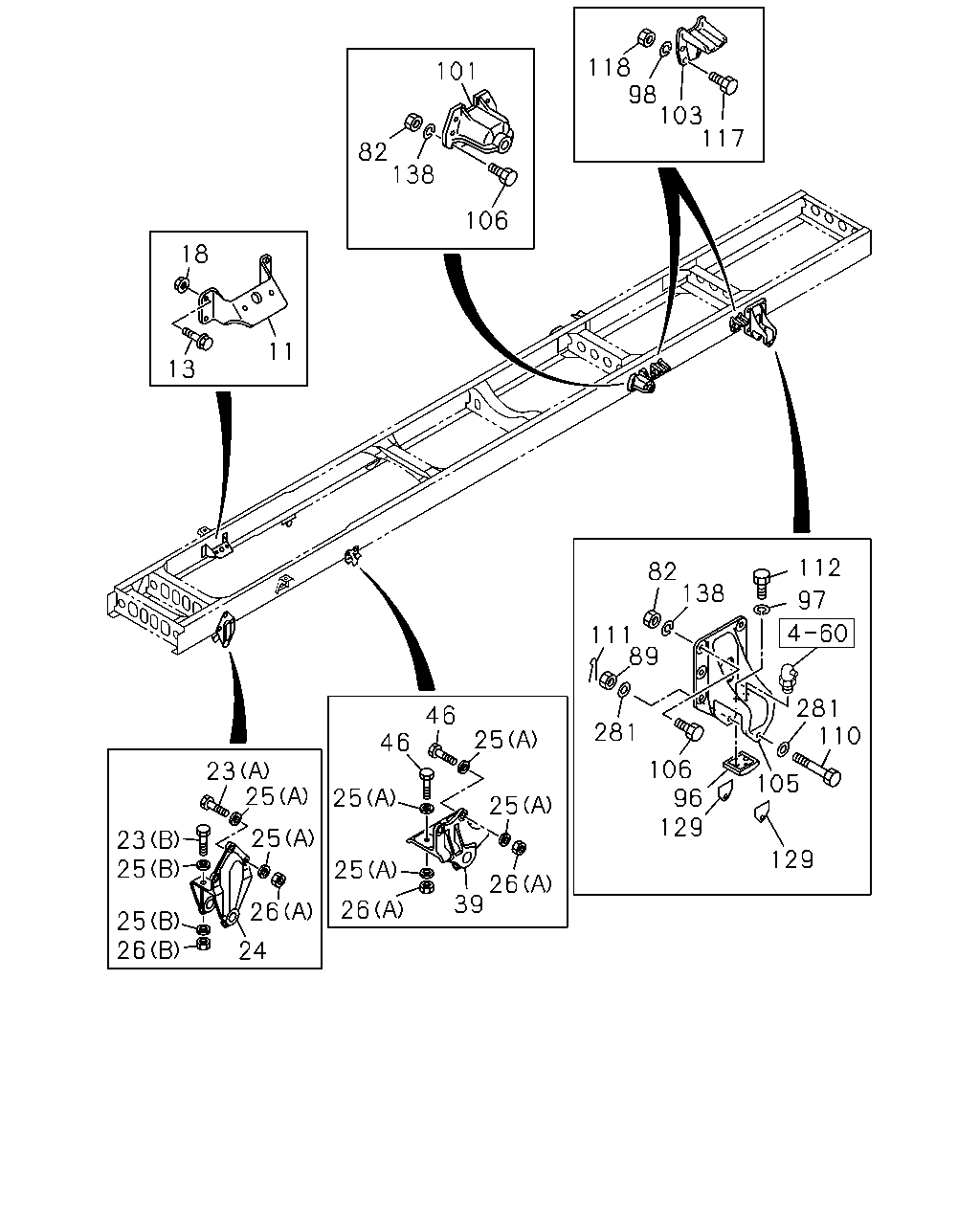

[501A] BRACKET AND OTHER PARTS (32 parça)
▶
131
130
132
202
544
8
202
33
33
544
34
8
69
69
19
2
148
86
148
69
69
69
57
207
344
69
69
69
207
207
131
202
207
344
130
132
202
544
8
544
69
69
8
34
86
2
69
69
148
148
69
69
545
57
545
69
69
33
33
19
345
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
2
MEMBER; CROSS,1ST
8-97610-852-7
01
1
1110-
●
●
●
●
8
GUSSET; 1ST C/MBR
8-97611-027-0
02
1
1110-
●
●
●
●
19
MEMBER; CROSS,2ND
8-97610-853-5
01
1
1110-
●
●
●
●
33
SPACER; 2ND C/MBR,UPR
8-97611-040-0
02
1
1110-
●
●
●
●
34
MEMBER; CROSS,3RD
8-97610-854-2
01
1
1110-
●
●
●
●
57
MEMBER; CROSS,RR SUSP FRT
8-97610-858-5
01
1
1110-
●
●
●
●
69
GUSSET; RR SUSP,UPR
(A)
8-97610-865-0
02
1
1110-
●
●
●
●
69
GUSSET; RR SUSP,UPR
(B)
8-97610-866-0
02
1
1110-
●
●
●
●
69
GUSSET; RR SUSP,UPR
(C)
8-97619-800-0
01
1
1110-
●
●
●
●
69
GUSSET; RR SUSP,UPR
(C)
8-97619-801-0
01
1
1110-
●
●
●
●
69
GUSSET; RR SUSP,UPR
(D)
8-97619-802-0
01
1
1110-
●
●
●
●
69
GUSSET; RR SUSP,UPR
(D)
8-97619-803-0
01
1
1110-
●
●
●
●
86
MEMBER; CROSS,RR SUSP RR
8-97610-858-5
01
1
1110-
●
●
●
●
130
MEMBER; CROSS,END
8-97610-869-1
01
1
1110-
●
●
●
●
131
BOLT; END C/MBR
M12X30 W/LK WASHER
0-50541-230-0
04
1
1110-
●
●
●
●
132
NUT; END C/MBR
M12
0-91110-512-0
04
1
1110-
●
●
●
●
148
SPACER; C/MBR
8-97611-039-0
02
1
1110-
●
●
●
●
202
SPACER; 3RD C/MBR
8-97610-872-0
02
1
1110-
●
●
●
●
207
SPACER; 4TH C/MBR
0.25KG
8-97611-244-0
02
1
1110-
●
●
●
●
344
MEMBER; CROSS,4TH
8-97611-238-1
01
1
1110-
●
●
●
●
345
MEMBER; CROSS,5TH
8-97611-238-1
01
1
1110-
●
544
PLATE; CAB FRT MTG
8-97611-030-0
02
1
1110-
●
●
●
●
545
SPACER; 5TH C/MBR
0.24KG
8-97611-245-0
02
1
1110-
●
118
98
103
117
101
82
138
106
18
11
13
112
82
138
97
111
89
281
110
46
281
25
46
106
96
129
23
25
25
105
25
25
23
25
129
25
26
39
26
26
25
26
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
11
BRACKET; ENG MTG
8-97619-549-0
02
1
1110-
●
●
●
●
13
BOLT; BRKT,ENG MTG
M12X35 FLANGE
0-28661-235-0
08
1
1110-
●
●
●
●
18
NUT; BRKT,ENG MTG
M12 FLANGE
0-91180-212-0
08
1
1110-
●
●
●
●
23
BOLT; BRKT,SPR
(A) M14X50
0-20951-450-0
06
1
1110-
●
●
●
●
23
BOLT; BRKT,SPR
(B) M16X60
0-20951-660-0
04
1
1110-
●
●
●
●
24
BRACKET; FRT SPR,FRT
8-98018-840-0
01
1
1110-
●
●
●
●
24
BRACKET; FRT SPR,FRT
8-98018-841-0
01
1
1110-
●
●
●
●
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1110-
●
●
●
●
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
28
1
1110-
●
●
●
●
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
14
1
1110-
●
●
●
●
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
1110-
●
●
●
●
39
BRACKET; FRT SPR,RR
8-98043-648-0
01
1
1110-
●
●
●
●
39
BRACKET; FRT SPR,RR
8-98043-649-0
01
1
1110-
●
●
●
●
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
08
1
1110-
●
●
●
●
82
NUT; BRKT
M14
0-91110-514-0
24
1
1110-
●
●
●
●
89
NUT; LEAF SPR STOPPER
M14 SLOTTED
0-91116-514-0
02
1
1110-
●
●
●
●
96
PAD; RR SPR
1-53359-047-0
02
1
1110-
●
●
●
●
97
WASHER; LK,PAD
ID=14.2
0-91510-514-0
04
1
1110-
●
●
●
●
98
WASHER; LK,STOPPER
ID=14.2
0-91510-814-0
16
1
1110-
●
●
●
●
101
BRACKET; RR SPR,FRT
1-53353-078-1
02
1
1110-
●
●
●
●
103
STOPPER; SUB SPR
1-53356-057-0
04
1
1110-
●
●
●
●
105
BRACKET; RR SPR,RR
1-53354-064-1
02
1
1110-
●
●
●
●
106
BOLT; BRKT
M14X50
0-20951-450-0
24
1
1110-
●
●
●
●
110
BOLT; LEAF SPR STOPPER
1-09000-007-0
02
1
1110-
●
●
●
●
111
PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28
0-81123-028-0
02
1
1110-
●
●
●
●
112
BOLT; PAD
M14X35
0-20851-435-0
04
1
1110-
●
●
●
●
117
BOLT; STOPPER
M14X50
0-20951-450-0
16
1
1110-
●
●
●
●
118
NUT; STOPPER
M14
0-91110-514-0
16
1
1110-
●
●
●
●
129
SHIM; SIDE
T=4.5
1-53359-061-1
02
1
1110-
●
●
●
●
129
SHIM; SIDE
T=3.2
1-53359-062-1
02
1
1110-
●
●
●
●
138
WASHER; LK,BRKT
ID=14.2
0-91510-814-0
24
1
1110-
●
●
●
●
281
WASHER; LEAF SPR STOPPER
0-91610-614-0
04
1
1110-
●
●
●
●
