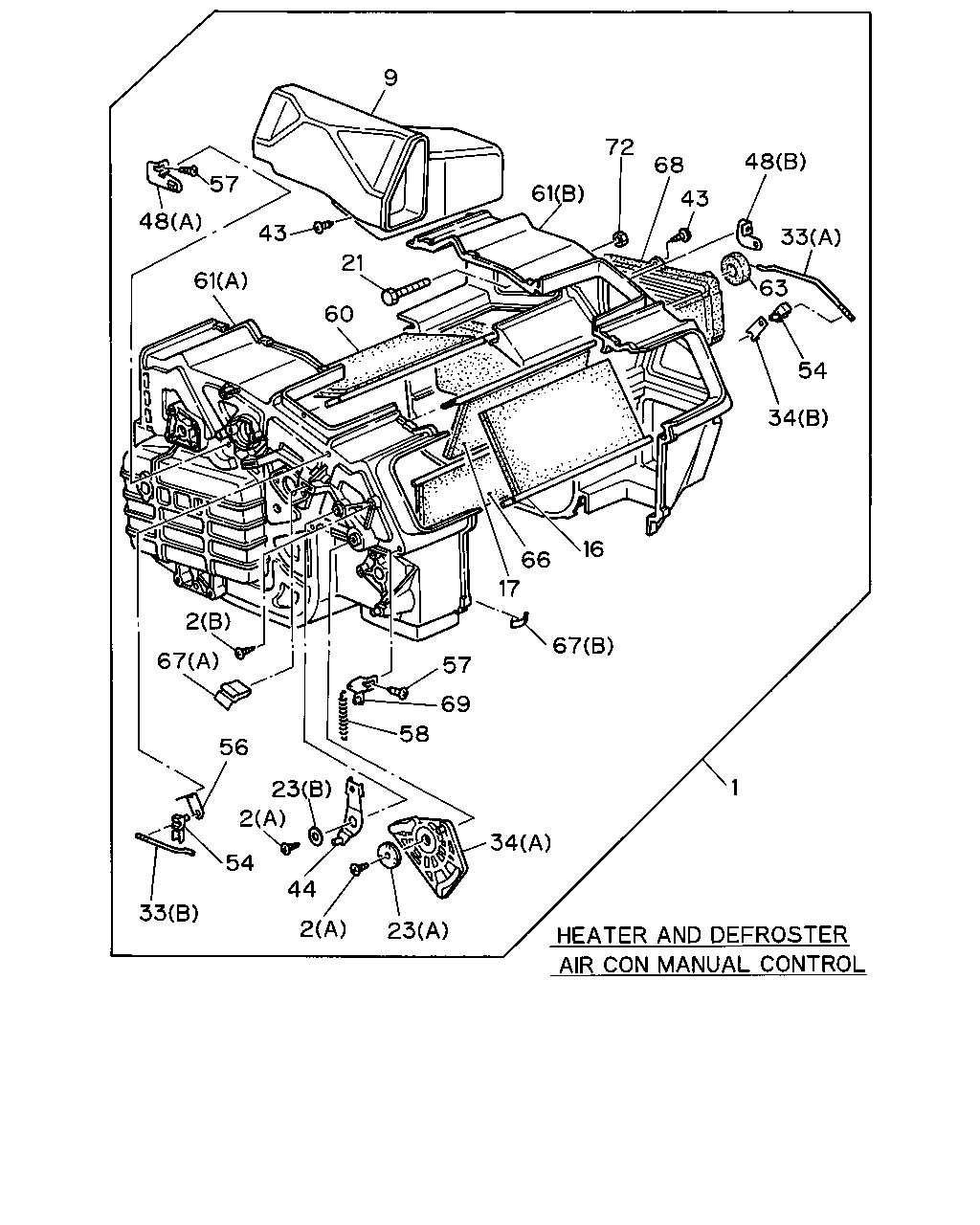

8-60 — HEATER UNIT; FRONT (#1698) — 71 parça

9 57 48 43 61 21 60 61 72 68 48 43 33 63 54 34 16 66 17 67 2 67 56 57 69 58 23 2 54 33 44 2 23 34 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	HEATER UNIT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>	1-83511-095-6	01	1	9207-	●	●	●	●	●
1	HEATER UNIT VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-83511-103-3	01	1	9207-	●	●	●	●	●
2	SCREW; LEVER (A)	1-83579-133-0	02	1	9207-	●	●	●	●	●
2	SCREW; LEVER (B)	8-94248-820-0	01	1	9207-	●	●	●	●	●
2	SCREW; LEVER VENTILATOR&DEFROSTER WO/HEATER<SAZ> (C)	1-83579-157-0	01	1	9207-	●	●	●	●	●
9	DUCT; HTR UNIT	1-83563-104-0	01	1	9207-	●	●	●	●	●
16	SHUTTER; HTR UNIT,CENTER UPR	1-83564-225-0	01	1	9207-	●	●	●	●	●
17	SHUTTER; HTR UNIT,CENTER	1-83564-226-0	01	1	9207-	●	●	●	●	●
21	BOLT; CASE,HTR UNIT	1-15619-060-0	03	1	9207-	●	●	●	●	●
23	WASHER; LEVER (B)	1-83579-095-0	01	1	9207-	●	●	●	●	●
23	WASHER; LEVER (A)	8-94129-950-0	01	1	9207-	●	●	●	●	●
33	ROD; SHUTTER LEVER (B)	1-83579-155-0	01	1	9207-	●	●	●	●	●
33	ROD; SHUTTER LEVER HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (A)	1-83579-373-0	01	1	9207-	●	●	●	●	●
34	LEVER; SHUTTER,HTR UNIT (A)	1-83564-198-0	01	1	9207-	●	●	●	●	●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (B)	1-83564-163-0	01	1	9207-	●	●	●	●	●
43	SCREW; CASE,HTR UNIT	8-94248-807-0	03	1	9207-	●	●	●	●	●
44	LEVER; SHUTTER,HTR UNIT	1-83564-199-0	01	1	9207-	●	●	●	●	●
48	LEVER; HTR UNIT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (A)	1-83564-161-0	01	1	9207-	●	●	●	●	●
48	LEVER; HTR UNIT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (B)	1-83564-162-0	01	1	9207-	●	●	●	●	●
54	CLIP; SHUTTER LEVER HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>	1-83574-143-0	02	1	9207-	●	●	●	●	●
54	CLIP; SHUTTER LEVER VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-83574-143-0	01	1	9207-	●	●	●	●	●
56	LEVER; SHUTTER,HTR UNIT	1-83564-197-0	01	1	9207-	●	●	●	●	●
57	SCREW; LEVER HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>	5-83571-160-0	05	1	9207-	●	●	●	●	●
57	SCREW; LEVER VENTILATOR&DEFROSTER WO/HEATER<SAZ>	5-83571-160-0	02	1	9207-	●	●	●	●	●
58	SPRING; HTR LEVER	1-83579-196-0	01	1	9207-	●	●	●	●	●
60	DOOR; MIX,HTR UNIT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>	1-83564-228-0	01	1	9207-	●	●	●	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (B)	1-83564-299-0	01	1	9207-	●	●	●	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (A)	1-83564-301-0	01	1	9207-	●	●	●	●	●
61	CASE; HTR UNIT VENTILATOR&DEFROSTER WO/HEATER<SAZ> (B)	1-83564-160-0	01	1	9207-	●	●	●	●	●
61	CASE; HTR UNIT VENTILATOR&DEFROSTER WO/HEATER<SAZ> (A)	1-83564-219-0	01	1	9207-	●	●	●	●	●
63	LINING; HTR UNIT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>	1-83579-237-0	02	1	9207-	●	●	●	●	●
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>	1-83564-227-0	01	1	9207-	●	●	●	●	●
67	CLIP; HTR UNIT (B)	1-83574-148-0	10	1	9207-	●	●	●	●	●
67	CLIP; HTR UNIT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (A)	1-83574-149-0	02	1	9207-	●	●	●	●	●
67	CLIP; HTR UNIT VENTILATOR&DEFROSTER WO/HEATER<SAZ> (A)	1-83574-149-0	01	1	9207-	●	●	●	●	●
68	CORE; HTR UNIT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>	1-83562-066-0	01	1	9207-	●	●	●	●	●
69	LEVER; SHUTTER,HTR UNIT	1-83564-164-0	01	1	9207-	●	●	●	●	●
72	NUT; CASE,HTR UNIT	9-88410-525-0	03	1	9207-	●	●	●	●	●

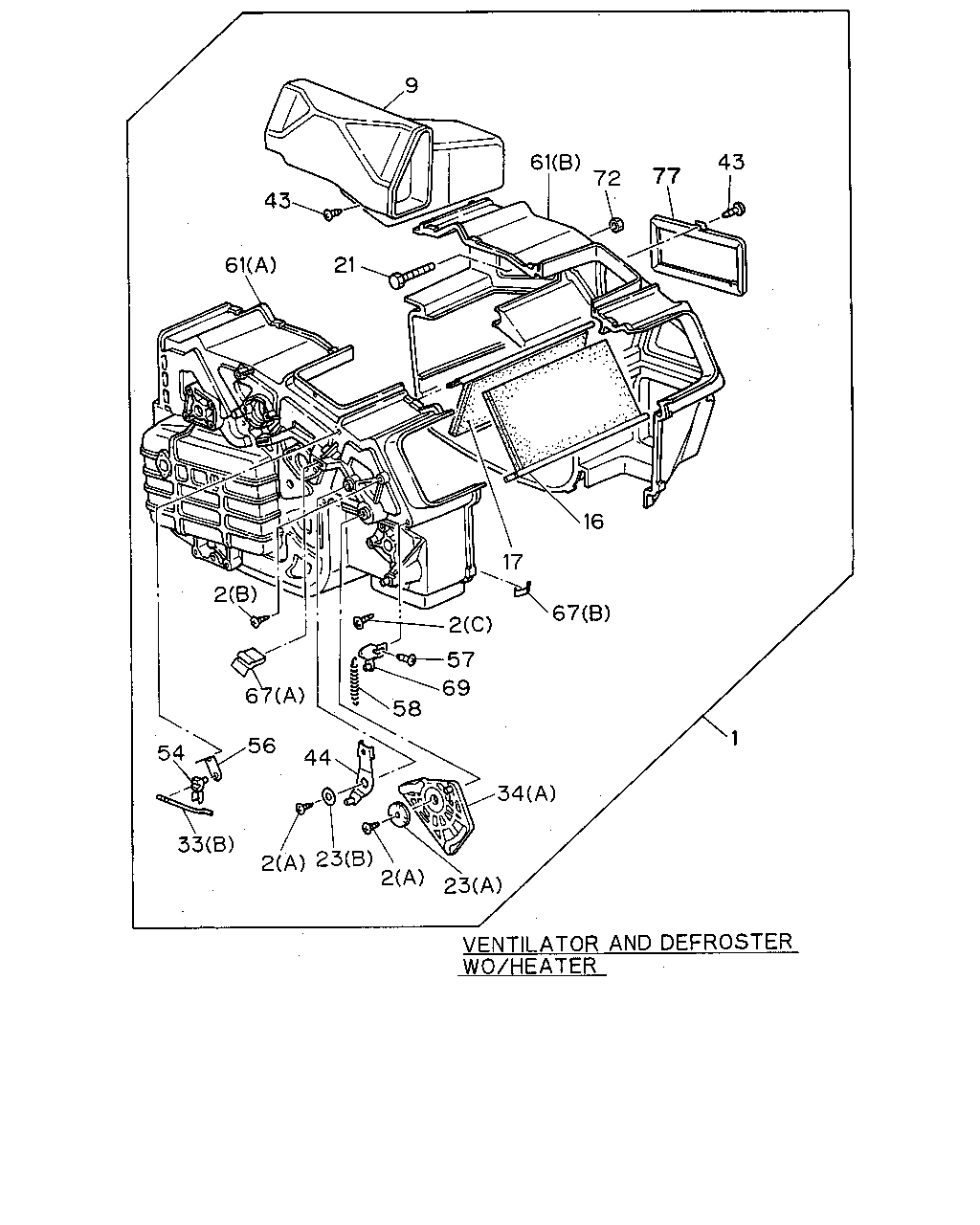

9 61 72 77 43 43 61 21 16 17 2 67 54 56 33 44 2 23 2 23 34 58 69 57 2 67 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	HEATER UNIT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>	1-83511-095-6	01	1	9207-	●	●	●	●	●
1	HEATER UNIT VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-83511-103-3	01	1	9207-	●	●	●	●	●
2	SCREW; LEVER (A)	1-83579-133-0	02	1	9207-	●	●	●	●	●
2	SCREW; LEVER (B)	8-94248-820-0	01	1	9207-	●	●	●	●	●
2	SCREW; LEVER VENTILATOR&DEFROSTER WO/HEATER<SAZ> (C)	1-83579-157-0	01	1	9207-	●	●	●	●	●
9	DUCT; HTR UNIT	1-83563-104-0	01	1	9207-	●	●	●	●	●
16	SHUTTER; HTR UNIT,CENTER UPR	1-83564-225-0	01	1	9207-	●	●	●	●	●
17	SHUTTER; HTR UNIT,CENTER	1-83564-226-0	01	1	9207-	●	●	●	●	●
21	BOLT; CASE,HTR UNIT	1-15619-060-0	03	1	9207-	●	●	●	●	●
23	WASHER; LEVER (B)	1-83579-095-0	01	1	9207-	●	●	●	●	●
23	WASHER; LEVER (A)	8-94129-950-0	01	1	9207-	●	●	●	●	●
33	ROD; SHUTTER LEVER (B)	1-83579-155-0	01	1	9207-	●	●	●	●	●
33	ROD; SHUTTER LEVER HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (A)	1-83579-373-0	01	1	9207-	●	●	●	●	●
34	LEVER; SHUTTER,HTR UNIT (A)	1-83564-198-0	01	1	9207-	●	●	●	●	●
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (B)	1-83564-163-0	01	1	9207-	●	●	●	●	●
43	SCREW; CASE,HTR UNIT	8-94248-807-0	03	1	9207-	●	●	●	●	●
44	LEVER; SHUTTER,HTR UNIT	1-83564-199-0	01	1	9207-	●	●	●	●	●
54	CLIP; SHUTTER LEVER HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>	1-83574-143-0	02	1	9207-	●	●	●	●	●
54	CLIP; SHUTTER LEVER VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-83574-143-0	01	1	9207-	●	●	●	●	●
56	LEVER; SHUTTER,HTR UNIT	1-83564-197-0	01	1	9207-	●	●	●	●	●
57	SCREW; LEVER HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60>	5-83571-160-0	05	1	9207-	●	●	●	●	●
57	SCREW; LEVER VENTILATOR&DEFROSTER WO/HEATER<SAZ>	5-83571-160-0	02	1	9207-	●	●	●	●	●
58	SPRING; HTR LEVER	1-83579-196-0	01	1	9207-	●	●	●	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (B)	1-83564-299-0	01	1	9207-	●	●	●	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (A)	1-83564-301-0	01	1	9207-	●	●	●	●	●
61	CASE; HTR UNIT VENTILATOR&DEFROSTER WO/HEATER<SAZ> (B)	1-83564-160-0	01	1	9207-	●	●	●	●	●
61	CASE; HTR UNIT VENTILATOR&DEFROSTER WO/HEATER<SAZ> (A)	1-83564-219-0	01	1	9207-	●	●	●	●	●
67	CLIP; HTR UNIT (B)	1-83574-148-0	10	1	9207-	●	●	●	●	●
67	CLIP; HTR UNIT HEATER & DEFROSTER<C41>,AIR CONDITIONER MANUAL CONTROL<C60> (A)	1-83574-149-0	02	1	9207-	●	●	●	●	●
67	CLIP; HTR UNIT VENTILATOR&DEFROSTER WO/HEATER<SAZ> (A)	1-83574-149-0	01	1	9207-	●	●	●	●	●
69	LEVER; SHUTTER,HTR UNIT	1-83564-164-0	01	1	9207-	●	●	●	●	●
72	NUT; CASE,HTR UNIT	9-88410-525-0	03	1	9207-	●	●	●	●	●
77	COVER; HTR CASE VENTILATOR&DEFROSTER WO/HEATER<SAZ>	1-83579-275-0	01	1	9207-	●	●	●	●	●
