8-60 — HEATER UNIT; FRONT (#169798) — 148 parça

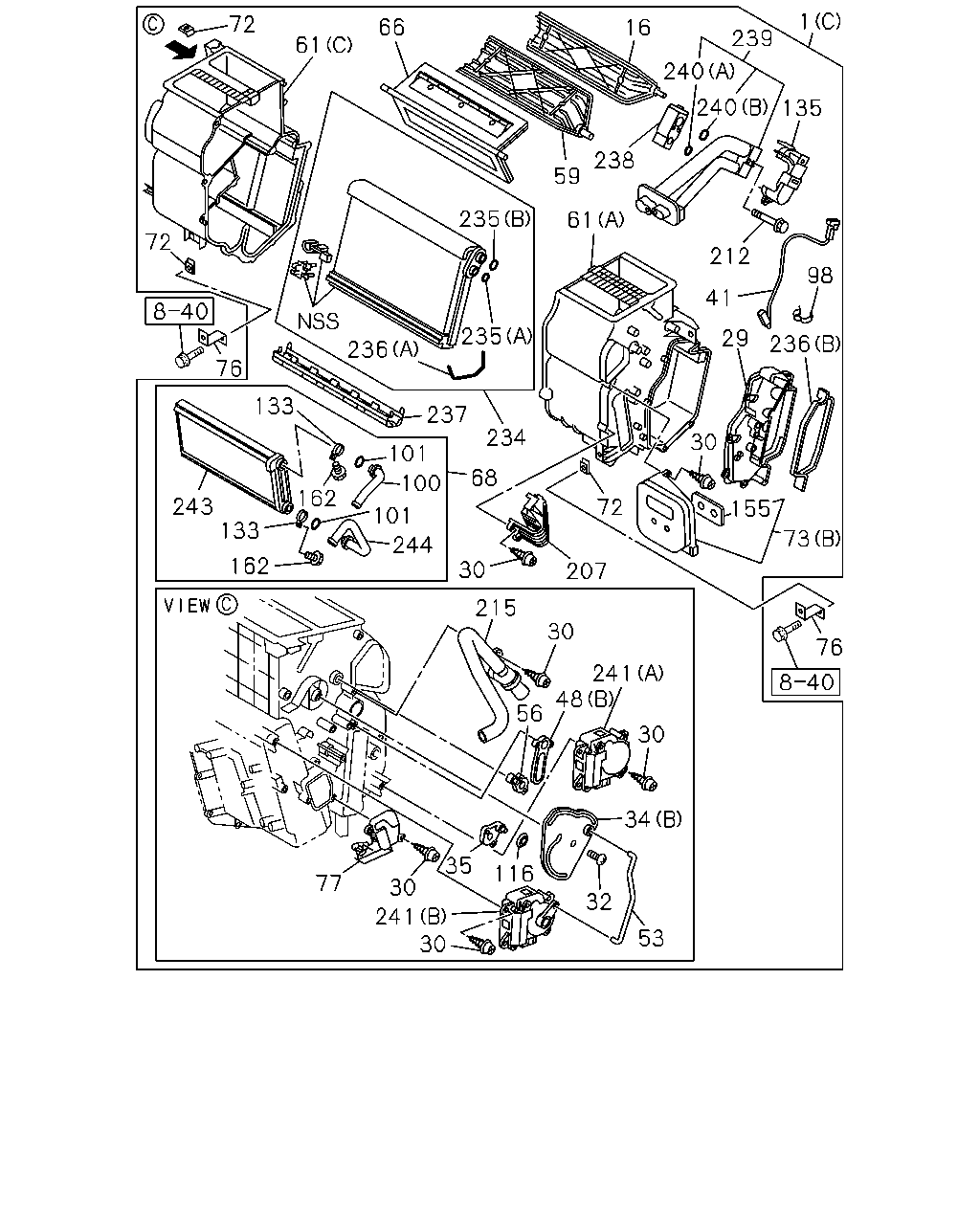

çizim 501387
72 61 66 16 239 1 240 240 135 238 59 235 61 212 98 41 29 236 30 72 76 133 237 236 235 234 72 155 73 207 30 68 101 100 162 243 133 162 101 244 215 30 241 48 56 30 34 35 77 30 116 32 241 30 53 76
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98021-972-4 01 1 1511- ● ●
1 HEATER UNIT
FULLAUTO AIR CONDITIONER(C68) (C) 		8-98021-973-4 01 1 1511- ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98062-756-1 01 1 1511- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-98047-387-0 01 1 1511- ● ●
29 COVER; HTR UNIT 8-98074-119-0 01 1 1511- ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 1511- ● ●
30 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING 		8-97957-708-0 31 1 1511- ● ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 25 1 1511- ● ●
32 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M4X16 		8-98047-416-0 01 1 1511- ● ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 		8-98047-416-0 03 1 1511- ● ●
34 LEVER; SHUTTER,HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-467-0 01 1 1511- ● ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-389-0 01 1 1511- ● ●
35 LEVER; SHUTTER,HTR UNIT 8-98047-392-0 01 1 1511- ● ●
41 THERMOSTAT; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-98047-475-0 01 1 1511- ● ●
48 LEVER; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-468-0 01 1 1511- ● ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-391-0 01 1 1511- ● ●
53 ROD; SHUTTER LEVER
FULLAUTO AIR CONDITIONER(C68) 		8-98047-469-0 01 1 1511- ● ●
56 LEVER; SHUTTER,HTR UNIT 8-98047-393-0 01 1 1511- ● ●
59 SHUTTER; HTR UNIT,SIDE 8-98047-386-0 01 1 1511- ● ●
61 CASE; HTR UNIT
(A) 		8-98047-376-0 01 1 1511- ● ●
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (C) 		8-98047-465-0 01 1 1511- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-375-0 01 1 1511- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 8-98047-385-0 01 1 1511- ● ●
68 CORE; HTR UNIT 8-98047-380-0 01 1 1511- ● ●
72 NUT; CASE,HTR UNIT
M6 		8-98047-428-0 03 1 1511- ● ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98074-118-0 01 1 1511- ● ●
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98072-542-0 01 1 1511- ● ●
76 BRACKET; HTR UNIT 8-98009-742-1 02 1 1511- ● ●
77 COVER; HTR CASE 8-98047-414-0 01 1 1511- ● ●
98 CLIP; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-98047-477-0 01 1 1511- ● ●
100 PIPE; CORE,HTR UNIT 8-98072-528-0 01 1 1511- ● ●
101 GASKET; CORE,HTR UNIT 8-98072-531-0 02 1 1511- ● ●
116 BUSHING; LEVER
FULLAUTO AIR CONDITIONER(C68) 		8-98045-897-0 01 1 1511- ● ●
133 CLIP; PIPE 8-98072-530-0 02 1 1511- ● ●
135 COVER; HTR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-384-0 01 1 1511- ● ●
155 GROMMET; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-431-0 01 1 1511- ● ●
162 SCREW; CLIP FIX 8-98072-529-0 02 1 1511- ● ●
207 CLAMP; HTR UNIT 8-98047-379-0 01 1 1511- ● ●
212 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X61 		8-98047-415-0 02 1 1511- ● ●
215 DUCT ASM; SUB
FULLAUTO AIR CONDITIONER(C68) 		8-98047-476-0 01 1 1511- ● ●
234 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98074-116-1 01 1 1511- ● ●
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=11.7 		8-97095-907-0 01 1 1511- ● ●
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=14.5 		8-97095-908-0 01 1 1511- ● ●
236 GASKET; HEATER
(A) 		8-98047-420-0 01 1 1511- ● ●
236 GASKET; HEATER
(B) 		8-98047-421-0 01 1 1511- ● ●
237 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-382-0 01 1 1511- ● ●
238 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-383-0 01 1 1511- ● ●
239 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98074-115-0 01 1 1511- ● ●
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=7.4 		8-97095-906-0 01 1 1511- ● ●
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=14.5 		8-97095-908-0 01 1 1511- ● ●
241 MOTOR ASM; SERVO
FULLAUTO AIR CONDITIONER(C68) (A) 		8-98047-473-0 01 1 1511- ● ●
241 MOTOR ASM; SERVO
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-474-0 01 1 1511- ● ●
243 CORE 8-98048-508-0 01 1 1511- ● ●
244 PIPE; INLET 8-98048-510-0 01 1 1511- ● ●

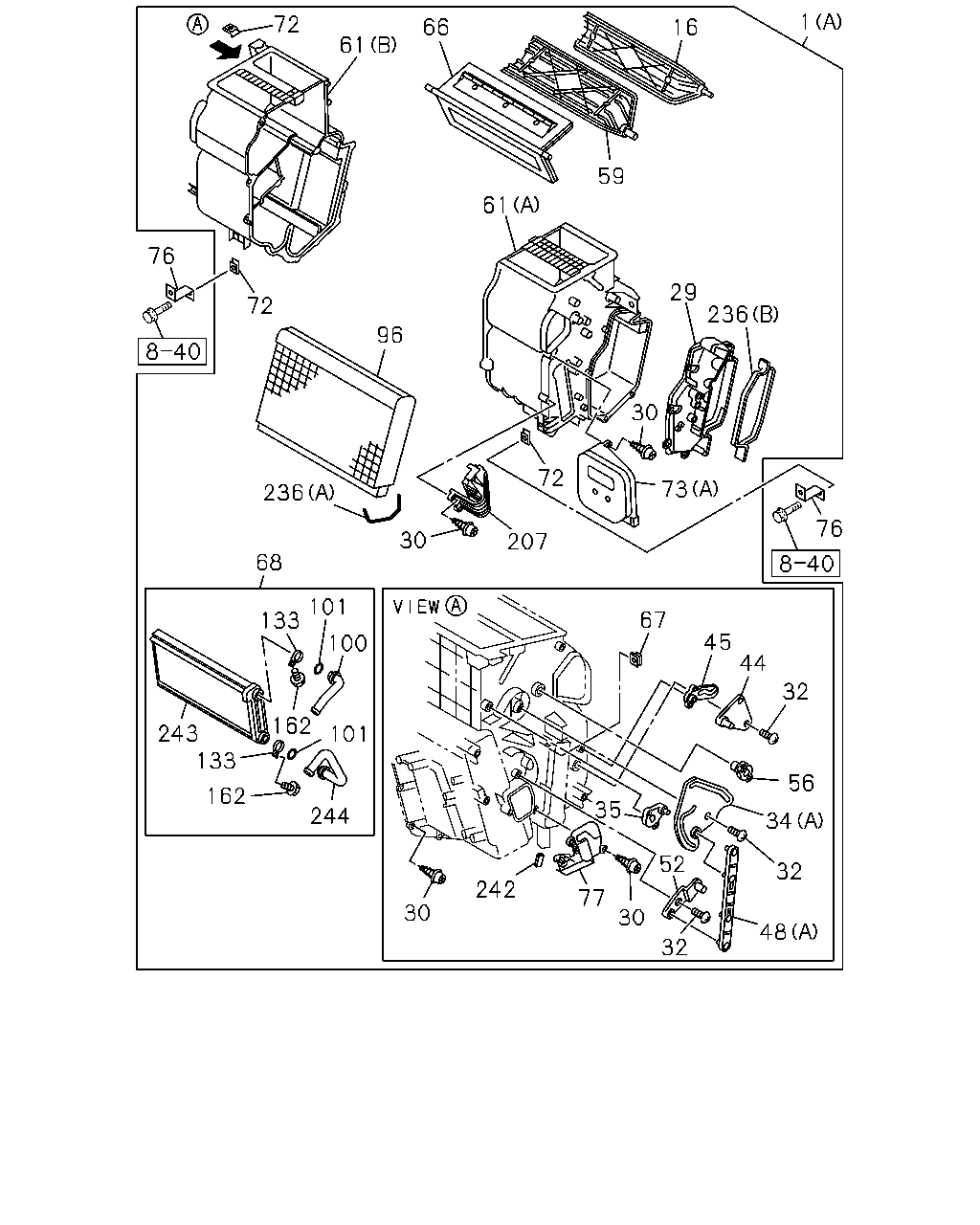

çizim 501585
32 48 32 34 56 32 44 45 67 35 52 77 242 30 207 30 68 101 100 101 244 162 133 243 133 76 73 72 236 96 61 29 236 30 59 66 61 72 16 1 76 72 30 162
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98021-972-4 01 1 1511- ● ●
1 HEATER UNIT
FULLAUTO AIR CONDITIONER(C68) (C) 		8-98021-973-4 01 1 1511- ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98062-756-1 01 1 1511- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-98047-387-0 01 1 1511- ● ●
29 COVER; HTR UNIT 8-98074-119-0 01 1 1511- ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 1511- ● ●
30 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING 		8-97957-708-0 31 1 1511- ● ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 25 1 1511- ● ●
32 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M4X16 		8-98047-416-0 01 1 1511- ● ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 		8-98047-416-0 03 1 1511- ● ●
34 LEVER; SHUTTER,HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-467-0 01 1 1511- ● ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-389-0 01 1 1511- ● ●
35 LEVER; SHUTTER,HTR UNIT 8-98047-392-0 01 1 1511- ● ●
44 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-394-0 01 1 1511- ● ●
45 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-395-0 01 1 1511- ● ●
48 LEVER; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-468-0 01 1 1511- ● ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-391-0 01 1 1511- ● ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-390-0 01 1 1511- ● ●
56 LEVER; SHUTTER,HTR UNIT 8-98047-393-0 01 1 1511- ● ●
59 SHUTTER; HTR UNIT,SIDE 8-98047-386-0 01 1 1511- ● ●
61 CASE; HTR UNIT
(A) 		8-98047-376-0 01 1 1511- ● ●
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (C) 		8-98047-465-0 01 1 1511- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-375-0 01 1 1511- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 8-98047-385-0 01 1 1511- ● ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 02 1 1511- ● ●
68 CORE; HTR UNIT 8-98047-380-0 01 1 1511- ● ●
72 NUT; CASE,HTR UNIT
M6 		8-98047-428-0 03 1 1511- ● ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98074-118-0 01 1 1511- ● ●
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98072-542-0 01 1 1511- ● ●
76 BRACKET; HTR UNIT 8-98009-742-1 02 1 1511- ● ●
77 COVER; HTR CASE 8-98047-414-0 01 1 1511- ● ●
96 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1511- ● ●
100 PIPE; CORE,HTR UNIT 8-98072-528-0 01 1 1511- ● ●
101 GASKET; CORE,HTR UNIT 8-98072-531-0 02 1 1511- ● ●
133 CLIP; PIPE 8-98072-530-0 02 1 1511- ● ●
162 SCREW; CLIP FIX 8-98072-529-0 02 1 1511- ● ●
207 CLAMP; HTR UNIT 8-98047-379-0 01 1 1511- ● ●
236 GASKET; HEATER
(A) 		8-98047-420-0 01 1 1511- ● ●
236 GASKET; HEATER
(B) 		8-98047-421-0 01 1 1511- ● ●
242 GASKET; CASE
HEATER & DEFROSTER(C41) 		8-98048-816-0 01 1 1511- ● ●
243 CORE 8-98048-508-0 01 1 1511- ● ●
244 PIPE; INLET 8-98048-510-0 01 1 1511- ● ●

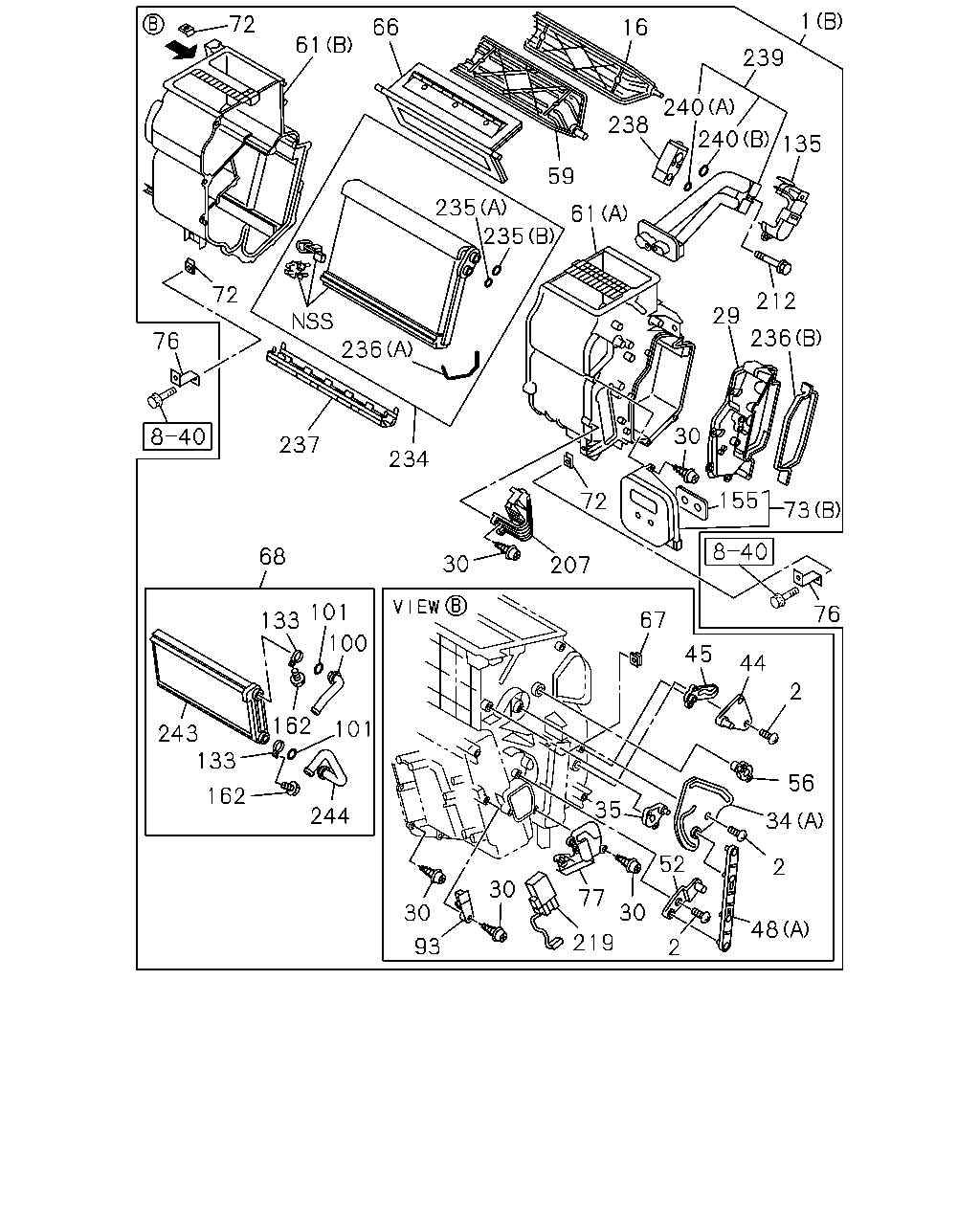

çizim 501778
72 61 66 16 1 239 240 238 59 240 135 235 235 72 76 236 61 212 29 236 30 237 234 68 30 207 72 155 73 76 67 101 133 100 243 162 101 133 162 244 45 44 2 56 34 35 30 30 77 52 2 30 48 93 219 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98021-972-4 01 1 1511- ● ●
1 HEATER UNIT
FULLAUTO AIR CONDITIONER(C68) (C) 		8-98021-973-4 01 1 1511- ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98062-756-1 01 1 1511- ● ●
2 SCREW; LEVER
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 		8-98047-416-0 03 1 1511- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-98047-387-0 01 1 1511- ● ●
29 COVER; HTR UNIT 8-98074-119-0 01 1 1511- ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING 		8-97957-708-0 27 1 1511- ● ●
30 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING 		8-97957-708-0 31 1 1511- ● ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 25 1 1511- ● ●
34 LEVER; SHUTTER,HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-467-0 01 1 1511- ● ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-389-0 01 1 1511- ● ●
35 LEVER; SHUTTER,HTR UNIT 8-98047-392-0 01 1 1511- ● ●
44 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-394-0 01 1 1511- ● ●
45 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-395-0 01 1 1511- ● ●
48 LEVER; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-468-0 01 1 1511- ● ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98047-391-0 01 1 1511- ● ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-390-0 01 1 1511- ● ●
56 LEVER; SHUTTER,HTR UNIT 8-98047-393-0 01 1 1511- ● ●
59 SHUTTER; HTR UNIT,SIDE 8-98047-386-0 01 1 1511- ● ●
61 CASE; HTR UNIT
(A) 		8-98047-376-0 01 1 1511- ● ●
61 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (C) 		8-98047-465-0 01 1 1511- ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98047-375-0 01 1 1511- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 8-98047-385-0 01 1 1511- ● ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-417-0 02 1 1511- ● ●
68 CORE; HTR UNIT 8-98047-380-0 01 1 1511- ● ●
72 NUT; CASE,HTR UNIT
M6 		8-98047-428-0 03 1 1511- ● ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98074-118-0 01 1 1511- ● ●
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98072-542-0 01 1 1511- ● ●
76 BRACKET; HTR UNIT 8-98009-742-1 02 1 1511- ● ●
77 COVER; HTR CASE 8-98047-414-0 01 1 1511- ● ●
93 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-427-0 01 1 1511- ● ●
100 PIPE; CORE,HTR UNIT 8-98072-528-0 01 1 1511- ● ●
101 GASKET; CORE,HTR UNIT 8-98072-531-0 02 1 1511- ● ●
133 CLIP; PIPE 8-98072-530-0 02 1 1511- ● ●
135 COVER; HTR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-384-0 01 1 1511- ● ●
155 GROMMET; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-431-0 01 1 1511- ● ●
162 SCREW; CLIP FIX 8-98072-529-0 02 1 1511- ● ●
207 CLAMP; HTR UNIT 8-98047-379-0 01 1 1511- ● ●
212 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X61 		8-98047-415-0 02 1 1511- ● ●
219 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98047-429-0 01 1 1511- ● ●
234 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98074-116-1 01 1 1511- ● ●
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=11.7 		8-97095-907-0 01 1 1511- ● ●
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=14.5 		8-97095-908-0 01 1 1511- ● ●
236 GASKET; HEATER
(A) 		8-98047-420-0 01 1 1511- ● ●
236 GASKET; HEATER
(B) 		8-98047-421-0 01 1 1511- ● ●
237 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-382-0 01 1 1511- ● ●
238 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98047-383-0 01 1 1511- ● ●
239 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98074-115-0 01 1 1511- ● ●
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=7.4 		8-97095-906-0 01 1 1511- ● ●
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=14.5 		8-97095-908-0 01 1 1511- ● ●
243 CORE 8-98048-508-0 01 1 1511- ● ●
244 PIPE; INLET 8-98048-510-0 01 1 1511- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
