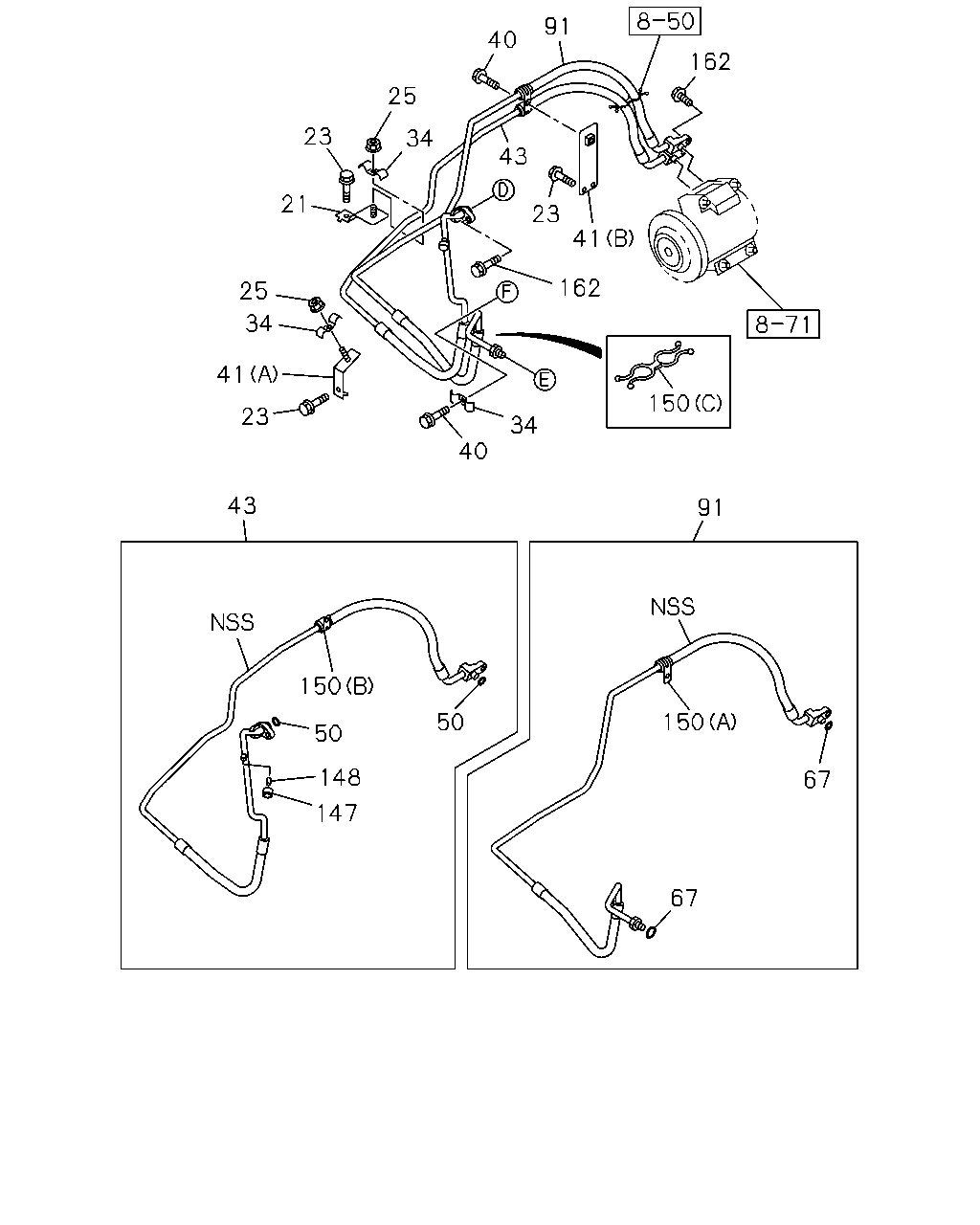

8-52 — PIPING; AIR CONDITIONING (#169797) — 31 parça

158 116 158 27 171 156 27 27 174 158 116 12 116 202 33 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98041-329-0	01	1	1511-	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=9 H=20 L=20	0-95207-308-0	01	1	1511-	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=16 H=24 L=20	0-95207-315-0	01	1	1511-	●	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	1511-	●	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X16 FLANGE	0-28650-616-0	02	1	1511-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=7.4	8-97095-906-0	02	1	1511-	●	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=11.7	8-97095-907-0	01	1	1511-	●	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98151-702-0	01	1	1511-	●	●
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X25 FLANGE	0-28050-625-0	03	1	1511-	●	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) CAP MARK H	8-97095-911-0	01	1	1511-	●	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98041-331-0	01	1	1511-	●	●
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	1-83564-391-0	01	1	1511-	●	●

67 67 150 91 50 150 50 148 147 43 23 41 34 25 21 23 25 34 43 23 162 41 162 91 40 34 40 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98010-187-0	01	1	1511-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 FLANGE	0-28650-825-0	01	1	1511-	●	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 FLANGE	0-28650-825-0	03	1	1511-	●	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98043-673-0	03	1	1511-	●	●
40	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 FLANGE	0-28650-825-0	02	1	1511-	●	●
41	BRACKET; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98010-188-1	01	1	1511-	●	●
41	BRACKET; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98032-049-0	01	1	1511-	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98052-989-2	01	1	1511-	●	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=14.5	8-97095-908-0	02	1	1511-	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=11.7	8-97095-907-0	02	1	1511-	●	●
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98052-990-2	01	1	1511-	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) CAP MARK L	1-83539-331-0	01	1	1511-	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97095-909-0	01	1	1511-	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	1-83574-249-0	01	1	1511-	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	1-83574-264-0	01	1	1511-	●	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-94423-042-0	01	1	1511-	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X25 FLANGE	0-28050-625-0	03	1	1511-	●	●
