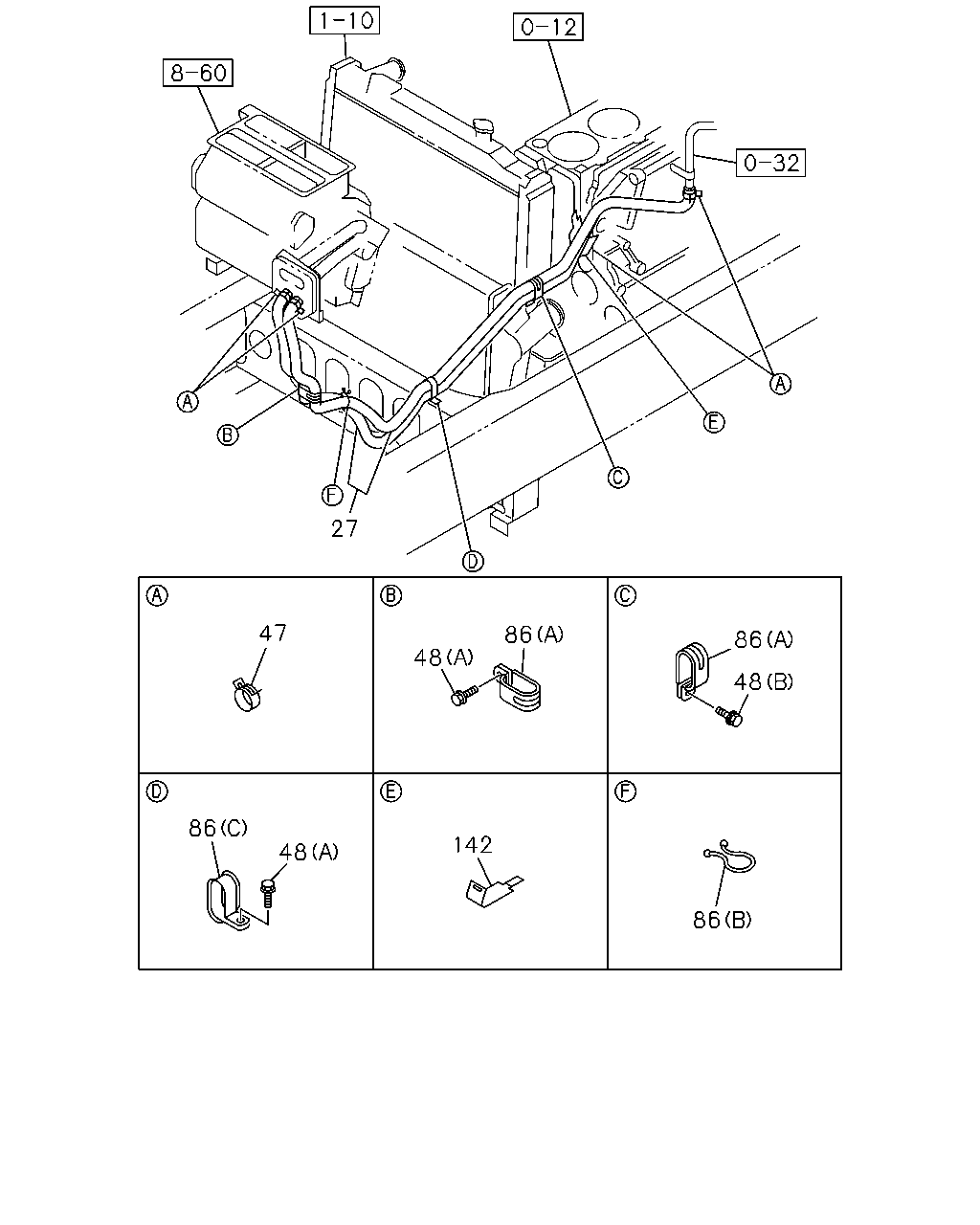

8-45 — HEATER PIPING (#169795) — 14 parça
çizim 503248
27 47 86 48 142 86 48 86 86 48
BalonParca AdiParca NoAdetTipApplied Date A B
27 HOSE; WATER,HTR UNIT TO WATER PIPE 8-98163-393-0 01 1 1511- ● ●
47 CLAMP; WATER HOSE,HTR
ID=22 		8-97359-141-0 04 1 1511- ● ●
48 BOLT; CLIP FIX
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ●
48 BOLT; CLIP FIX
(B) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 1511- ● ●
86 CLIP; HTR HOSE
(A) ID=24X2 L=25 		1-09700-710-0 02 1 1511- ● ●
86 CLIP; HTR HOSE
(C) 		8-98029-677-0 01 1 1511- ● ●
86 CLIP; HTR HOSE
EXC. HEATER & DEFROSTER(C41) (B) 		8-94463-508-0 01 1 1511- ● ●
142 CLIP; BAND
L=170 		8-98166-021-0 01 1 1511- ● ●
çizim 503455
27 63 56 103 56 56 103 56 63 63
BalonParca AdiParca NoAdetTipApplied Date A B
27 HOSE; WATER,HTR UNIT TO WATER PIPE 8-98163-393-0 01 1 1511- ● ●
56 CLAMP; HTR HOSE
ID=22 		8-97359-141-0 04 1 1511- ● ●
63 HOSE; WATER
(A) 		8-98117-223-0 01 1 1511- ● ●
63 HOSE; WATER
(B) 		8-98117-224-0 01 1 1511- ● ●
63 HOSE; WATER
(C) 		8-98117-225-0 01 1 1511- ● ●
103 CONNECTOR; HOSE 9-09703-048-0 02 1 1511- ● ●
