8-40 — HEATER SYSTEM (#169794) — 31 parça

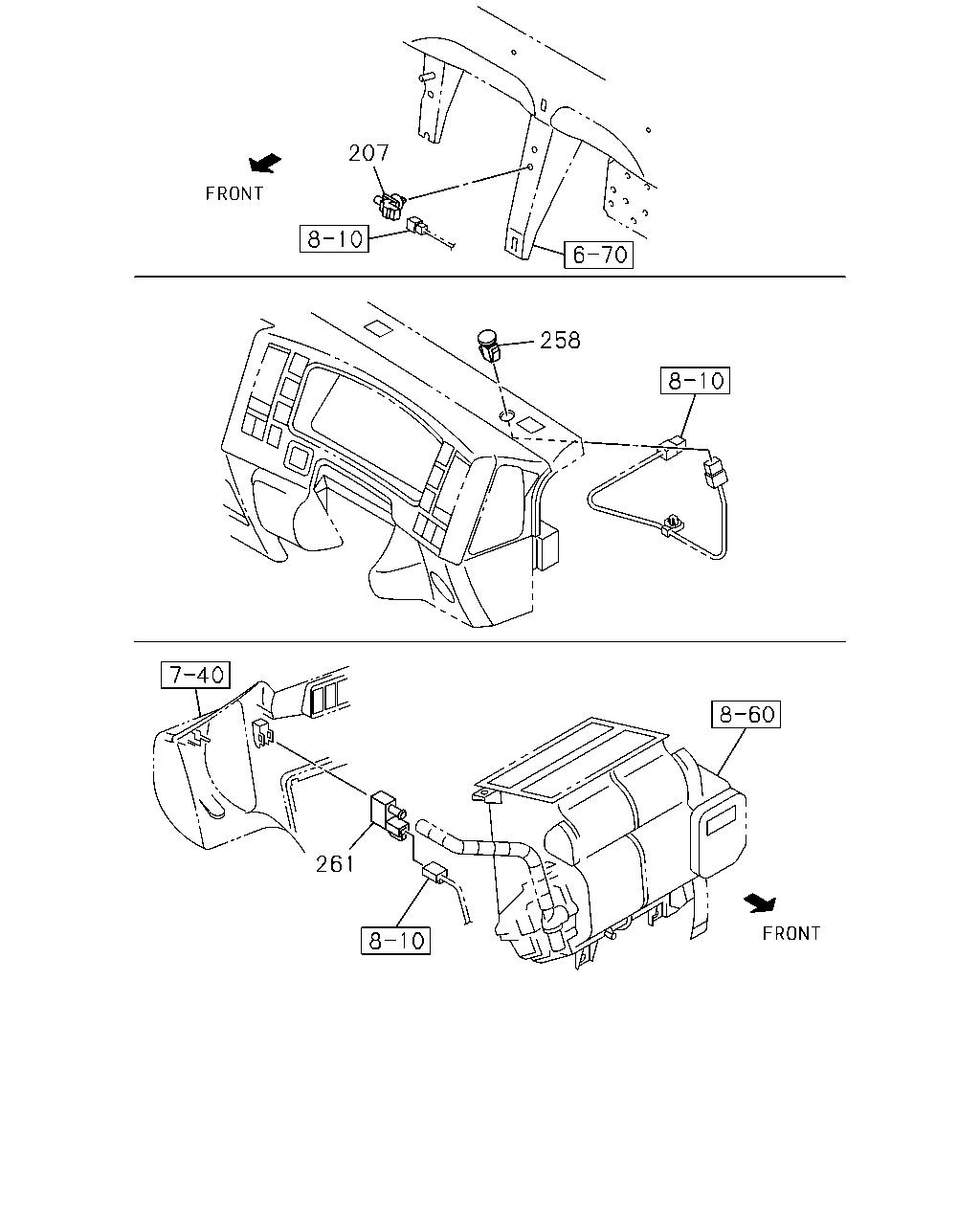

çizim 500969
207 258 261
BalonParca AdiParca NoAdetTipApplied Date A B
207 SENSOR; AMBIENT
FULLAUTO AIR CONDITIONER(C68) 		8-98008-687-0 01 1 1511- ● ●
258 SENSOR; SUN
FULLAUTO AIR CONDITIONER(C68) 		8-97386-826-0 01 1 1511- ● ●
261 SENSOR; IN CAR
FULLAUTO AIR CONDITIONER(C68) 		8-97386-701-0 01 1 1511- ● ●

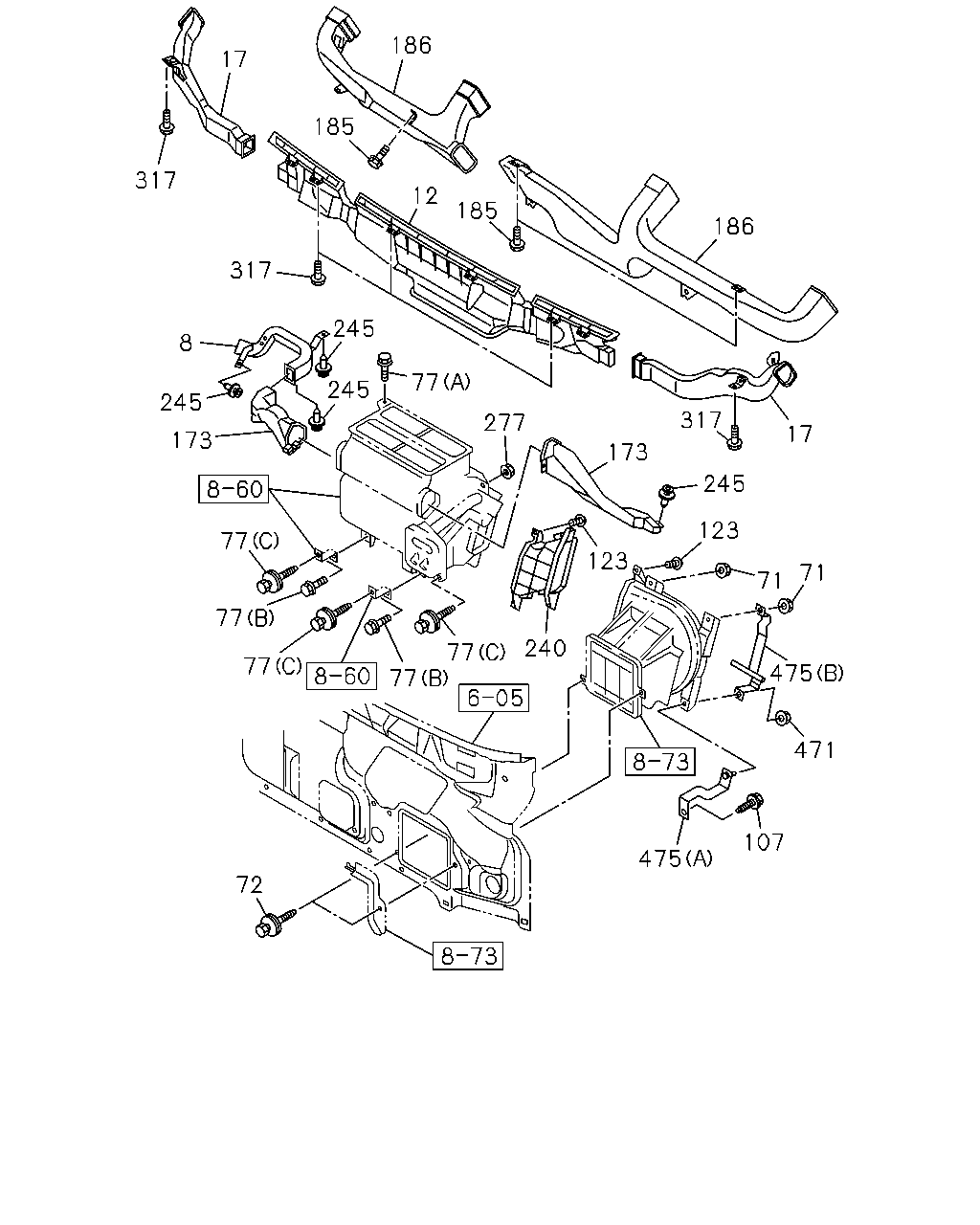

çizim 501025
17 186 317 185 12 185 186 317 8 245 245 77 245 173 277 173 317 17 71 245 77 77 77 77 77 240 123 123 71 475 471 475 107 72
BalonParca AdiParca NoAdetTipApplied Date A B
8 DUCT; HTR AIR,DRIVER FOOT 8-98290-098-0 01 1 1511- ● ●
12 NOZZLE; DEFROSTER 8-98040-009-3 01 1 1511- ● ●
17 NOZZLE; DEFROSTER,SIDE 8-98040-018-1 01 1 1511- ● ●
17 NOZZLE; DEFROSTER,SIDE 8-98040-013-1 01 1 1511- ● ●
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE 		0-91180-106-0 02 1 1511- ● ●
72 BOLT; BLOWER UNIT
M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 1511- ● ●
77 BOLT; HTR UNIT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1511- ● ●
77 BOLT; HTR UNIT
(B) M6X20 FLANGE 		0-28650-620-0 02 1 1511- ● ●
77 BOLT; HTR UNIT
(C) M6X20 W/LK&PL WASHER 		8-98081-175-0 03 1 1511- ● ●
107 BOLT; STAY,HTR UNIT
M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1511- ● ●
123 SCREW; DUCT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1511- ● ●
173 DUCT; FOOT,HTR 8-97585-506-2 01 1 1511- ● ●
173 DUCT; FOOT,HTR 8-98290-097-0 01 1 1511- ● ●
185 SCREW; VENT DUCT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1511- ● ●
186 DUCT; VENTILATOR 8-98285-574-0 01 1 1511- ● ●
186 DUCT; VENTILATOR 8-98285-571-0 01 1 1511- ● ●
240 DUCT; AIR,HTR 8-98041-402-1 01 1 1511- ● ●
245 CLIP; FOOT DUCT 8-98056-059-0 04 1 1511- ● ●
277 NUT; HTR
M6 FLANGE 		0-91180-106-0 01 1 1511- ● ●
317 SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1511- ● ●
471 NUT; BLOWER
M6 FLANGE 		0-91180-106-0 01 1 1511- ● ●
475 BRACKET; BLOWER
(A) 		8-98043-500-1 01 1 1511- ● ●
475 BRACKET; BLOWER
(B) 		8-98165-379-0 01 1 1511- ● ●
çizim 503150
223 50 476 206 407
BalonParca AdiParca NoAdetTipApplied Date A B
50 VALVE ASM; HTR 8-98080-998-1 01 1 1511- ● ●
206 GROMMET; A/C PIPE TO BLOWER UNIT 8-98019-649-0 01 1 1511- ● ●
223 GROMMET; SCREW
D=7.9X7.9 L=20 M5 		8-94441-539-0 01 1 1511- ● ●
407 JOINT; HOSE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98041-758-0 01 1 1511- ● ●
476 SCREW; VALVE
M5X16 TAPPING HEXALOBULAR 		8-98062-675-0 01 1 1511- ● ●
