◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11717 - FVR AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#169793) — 94 parça

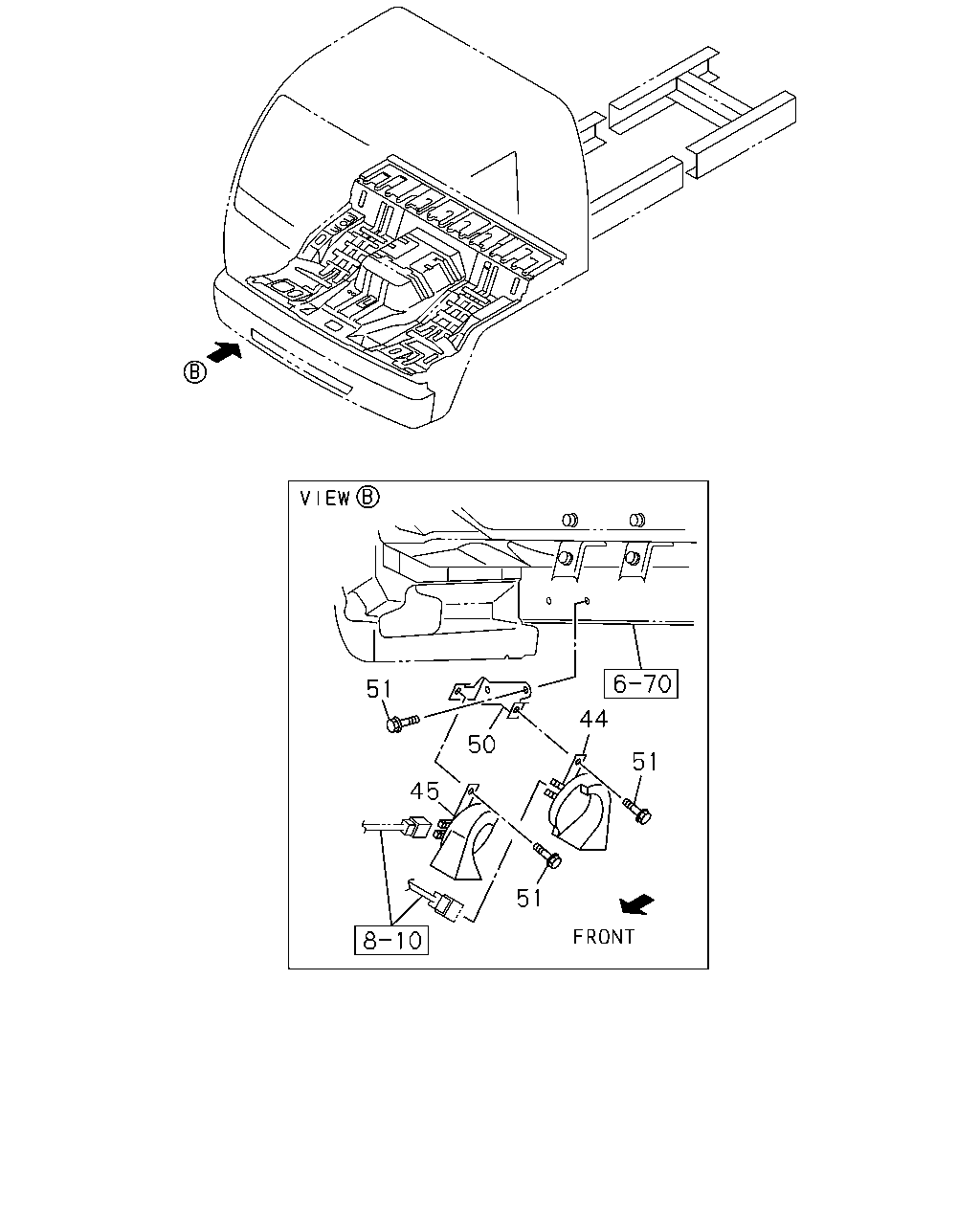

çizim 501463
50 51 45 51 44 51
BalonParca AdiParca NoAdetTipApplied Date A B
44 HORN; HIGH NOTE 8-97611-677-2 01 1 1511- ● ●
45 HORN; LOW NOTE 8-97611-676-2 01 1 1511- ● ●
50 BRACKET; HORN 8-97613-300-2 01 1 1511- ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 04 1 1511- ● ●
çizim 501637
531 115
BalonParca AdiParca NoAdetTipApplied Date A B
115 RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1511- ● ●
115 RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO 		8-98005-631-1 01 1 1511- ● ●
531 RELAY; MAIN
24V 30A MITSUBA 		8-98259-779-0 01 1 1511- ● ●

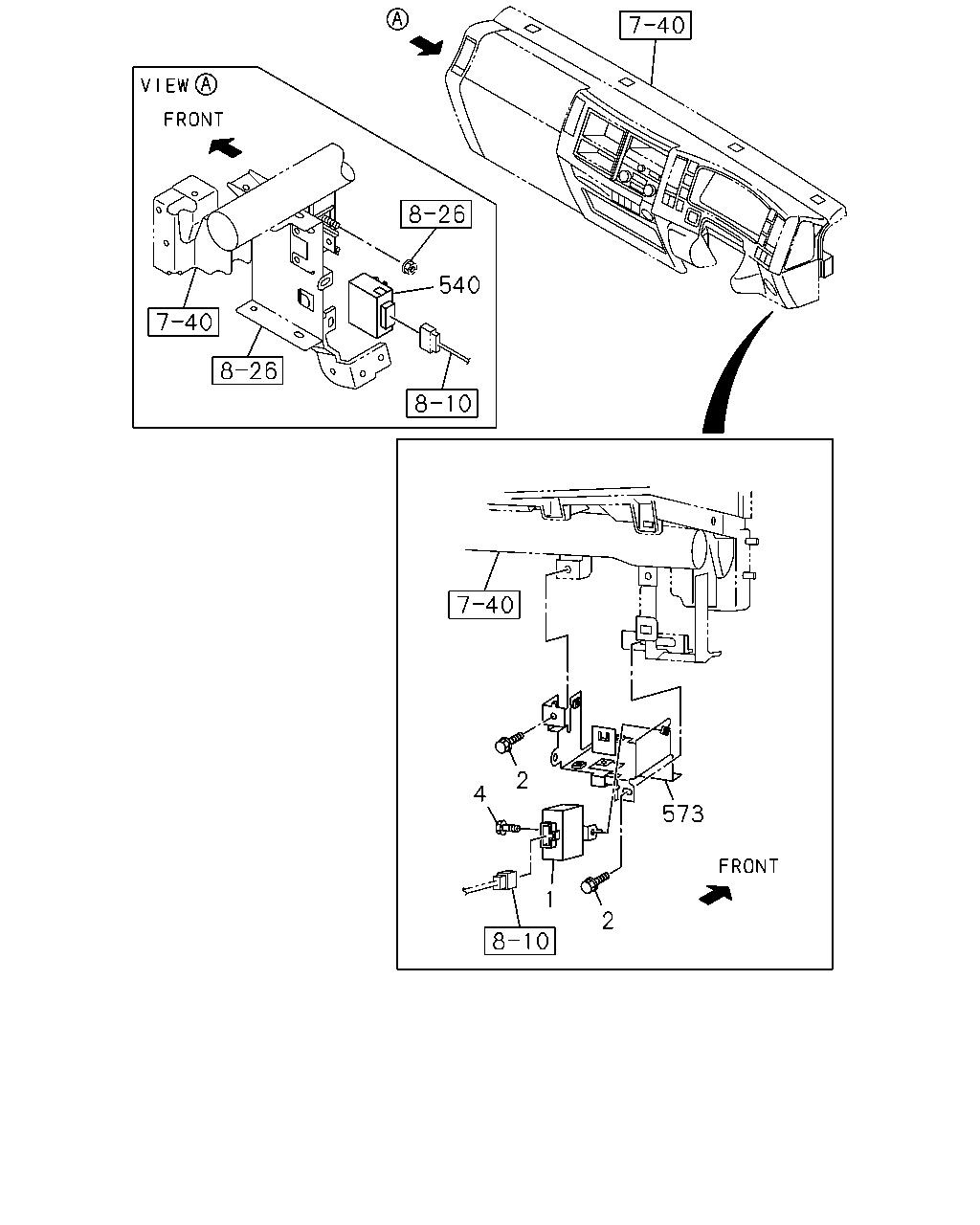

çizim 501880
540 2 4 2 573 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER 8-98025-533-1 01 1 1511- ● ●
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 1511- ● ●
4 SCREW; FLASHER UNIT
BOLT M6X16 FLANGE 		0-28650-616-0 01 1 1511- ● ●
540 RELAY; WIPER INTERVAL 8-98233-976-0 01 1 1511- ● ●
573 BRACKET; FLASHER UNIT 8-97609-984-5 01 1 1511- ● ●

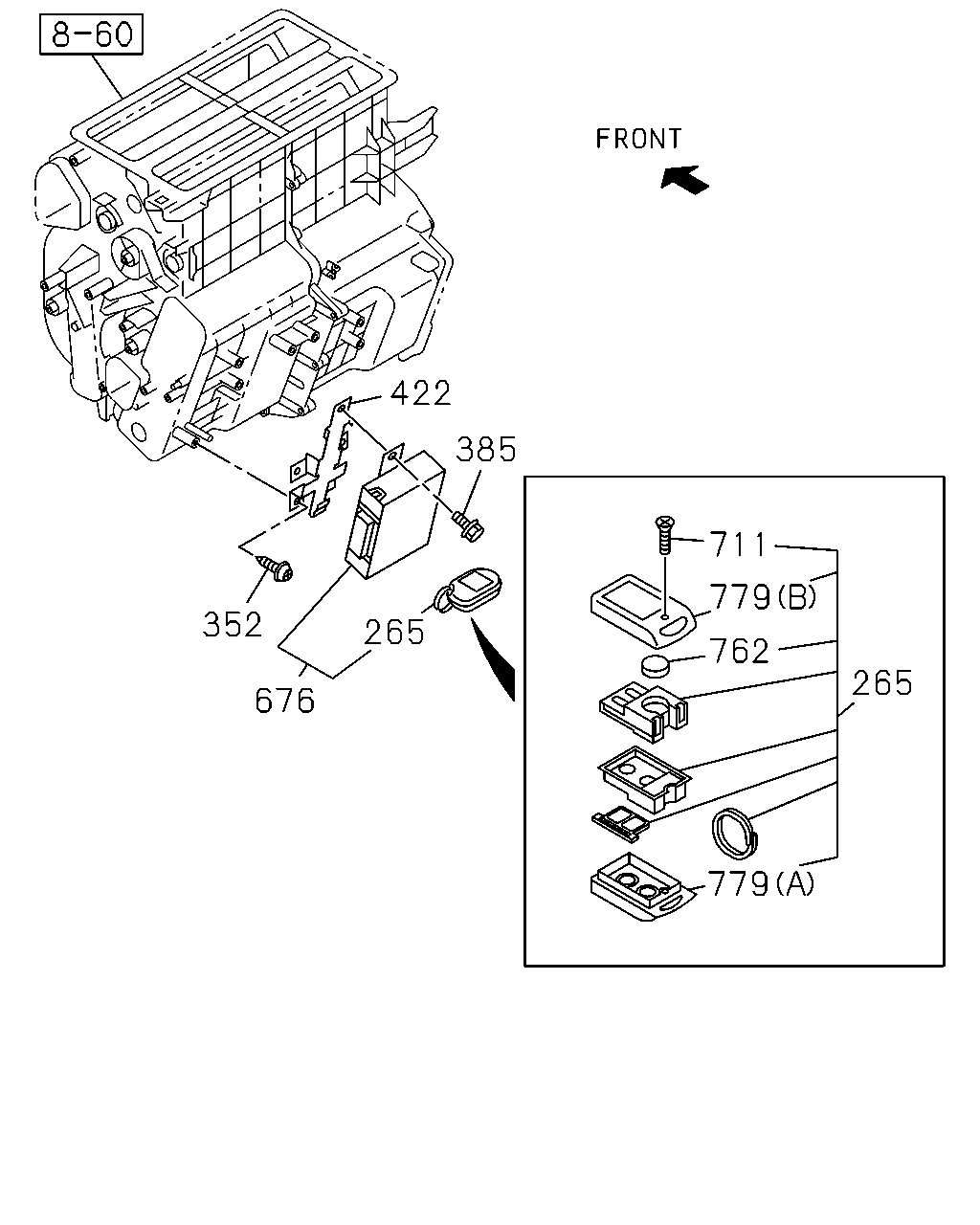

çizim 501881
422 711 762 265 779 265 676 352 779 385
BalonParca AdiParca NoAdetTipApplied Date A B
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98218-236-0 02 1 1511- ● ●
352 SCREW; BRKT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1511- ● ●
385 BOLT; CONT UNIT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1511- ● ●
422 BRACKET; CONT UNIT 8-98055-281-1 01 1 1511- ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98218-231-0 01 1 1511- ● ●
711 SCREW; TRANSMITTER
M2X5 		8-98218-239-0 02 1 1511- ● ●
762 BATTERY 8-98078-061-0 02 1 1511- ● ●
779 COVER; TRANSMITTER
(A) 		8-98218-240-0 02 1 1511- ● ●
779 COVER; TRANSMITTER
(B) 		8-98218-243-0 02 1 1511- ● ●

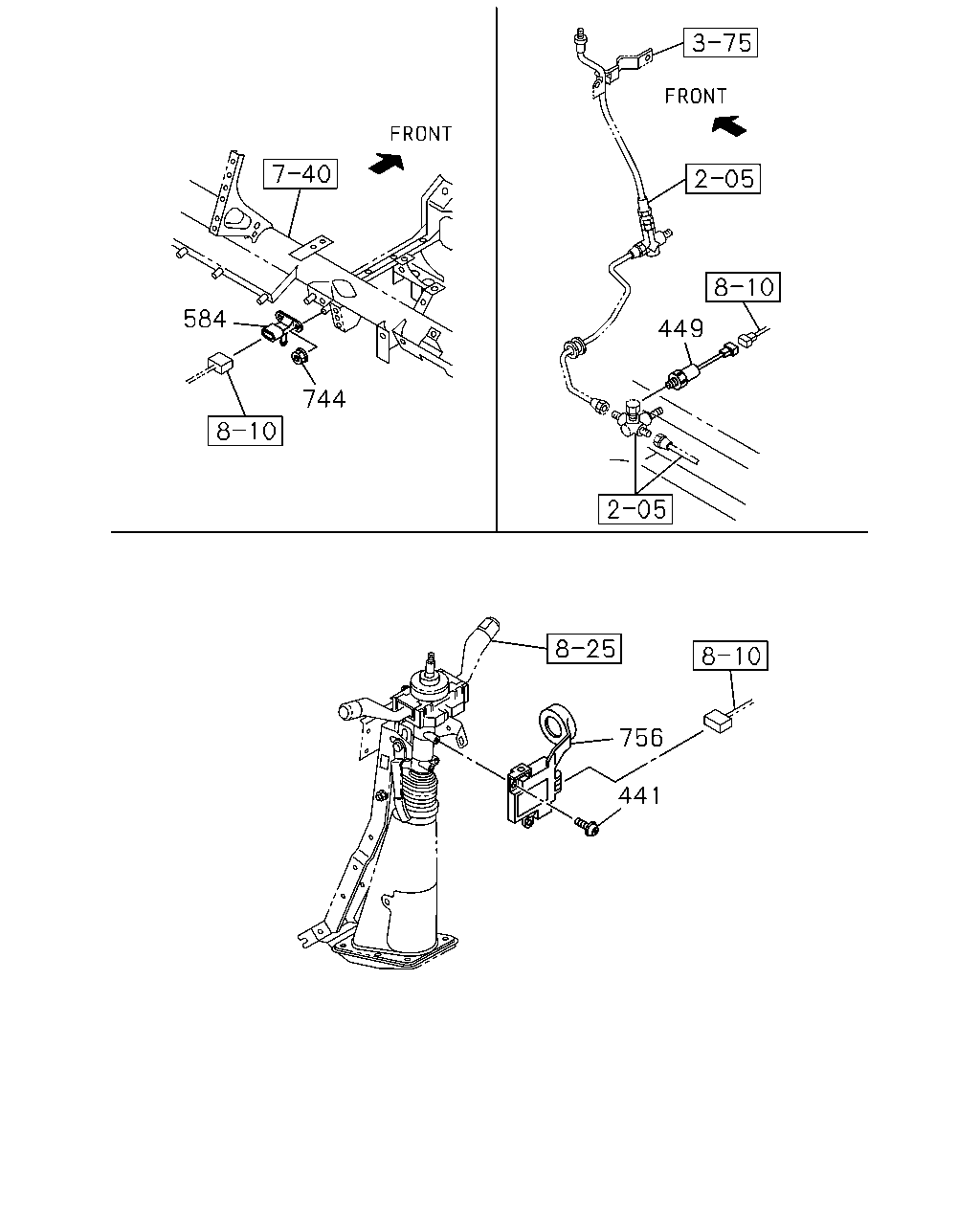

çizim 503245
584 744 449 756 441
BalonParca AdiParca NoAdetTipApplied Date A B
441 SCREW; CONT UNIT
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 1511- ● ●
449 SWITCH; OIL PRESS,CLUTCH
H.S.A SYSTEM<6EP> 		1-82410-143-1 01 1 1511- ● ●
584 SENSOR; PRESSURE 8-98020-514-0 01 1 1511- ● ●
744 NUT; SENSOR
M6 FLANGE 		0-91180-106-0 02 1 1511- ● ●
756 CONTROL UNIT; IMMOBILIZER 8-98158-127-0 01 1 1511- ● ●

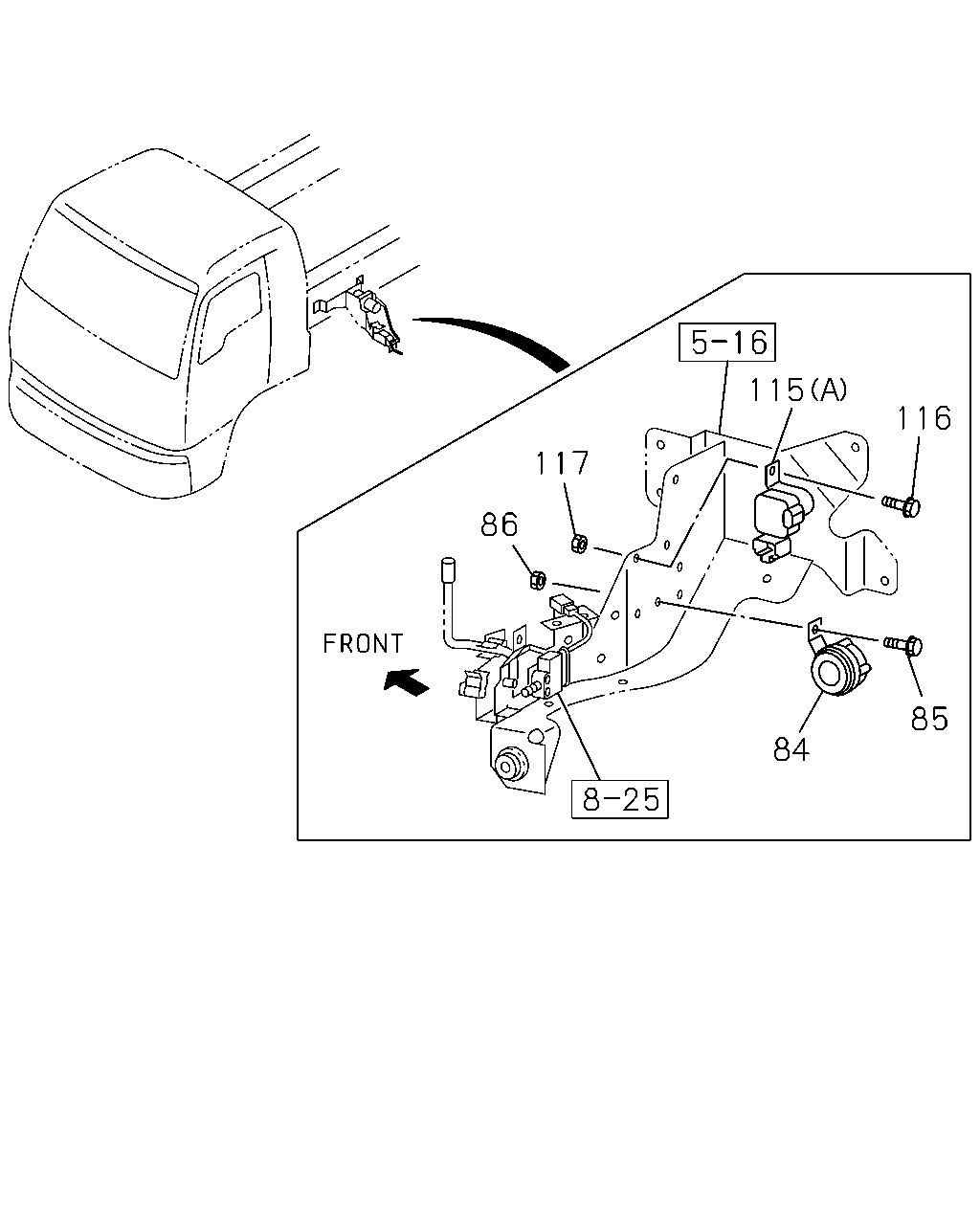

çizim 503344
86 117 115 116 85 84
BalonParca AdiParca NoAdetTipApplied Date A B
84 BUZZER; POWER CAB TILT
METRO DENSO 		8-98069-860-0 01 1 1511- ● ●
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ●
86 NUT; BUZZER
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
115 RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1511- ● ●
115 RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO 		8-98005-631-1 01 1 1511- ● ●
116 BOLT; RELAY FIX
M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
117 NUT; RELAY FIX
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●

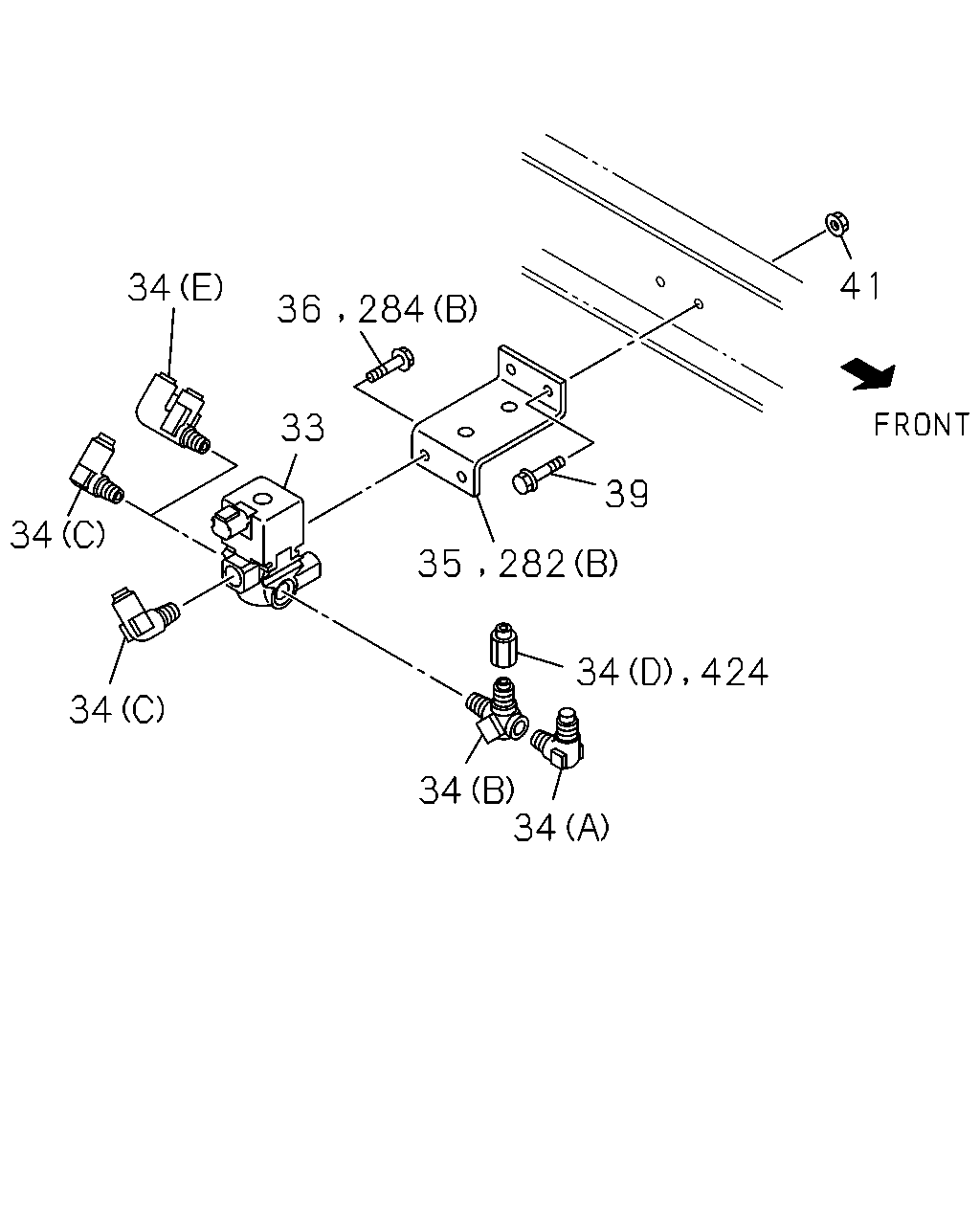

çizim 503426
284 36 33 34 34 34 34 34 34 424 39 282 35 41
BalonParca AdiParca NoAdetTipApplied Date A B
33 VALVE; MAG,PTO CONT
PTO ZF TRANS RR(BDM) CATALYSIS CONTROL<6MZ> 		1-82563-871-2 01 1 1511- ● ●
34 CONNECTOR; MAG VLV,INL PORT
PTO ZF TRANS RR(BDM) CATALYSIS CONTROL<6MZ> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1511- ● ●
34 CONNECTOR; MAG VLV,INL PORT
PTO ZF TRANS RR(BDM) CATALYSIS CONTROL<6MZ> (B) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1511- ● ●
34 CONNECTOR; MAG VLV,INL PORT
WHEEL BASE 4200MM(42W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL<6MZ> (C) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1511- ● ●
34 CONNECTOR; MAG VLV,INL PORT
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL<6MZ> (C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1511- ●
34 CONNECTOR; MAG VLV,INL PORT
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL<6MZ> (D) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1511- ●
34 CONNECTOR; MAG VLV,INL PORT
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL<6MZ> (E) DIN13X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1511- ●
35 BRACKET; MAG VLV,PTO CONT
WHEEL BASE 4200MM(42W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL<6MZ> 		8-98154-633-0 01 1 1511- ● ●
36 BOLT; MAG VLV,PTO CONT
WHEEL BASE 4200MM(42W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL<6MZ> M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
39 BOLT; BRKT,MAG VLV
6HK1-TCS ENG(80L) M8X35 FLANGE 		0-28650-835-0 02 1 1511- ● ●
39 BOLT; BRKT,MAG VLV
PTO ZF TRANS RR(BDM) CATALYSIS CONTROL<6MZ> M8X35 FLANGE 		0-28650-835-0 02 1 1511- ● ●
41 NUT; BRKT,MAG VLV
6HK1-TCS ENG(80L) M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
41 NUT; BRKT,MAG VLV
PTO ZF TRANS RR(BDM) CATALYSIS CONTROL<6MZ> M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
282 BRACKET; MAG VLV
WHEEL BASE 4200MM(42W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-98101-296-0 01 1 1511- ●
282 BRACKET; MAG VLV
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO ZF TRANS RR(BDM) (B) 		8-98154-633-0 01 1 1511- ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL<6MZ> (B) 		8-98154-633-0 01 1 1511- ●
284 BOLT; MAG VLV
WHEEL BASE 4200MM(42W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM> (A) M6X50 FLANGE 		0-28050-650-0 01 1 1511- ●
284 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL<6MZ> (B) M8X20 FLANGE 		0-28650-820-0 02 1 1511- ●
424 ADAPTER
WHEEL BASE 4200MM(42W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL<6MZ> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1511- ●
424 ADAPTER
WHEEL BASE 4200MM(42W) PTO ZF TRANS RR(BDM) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1511- ●

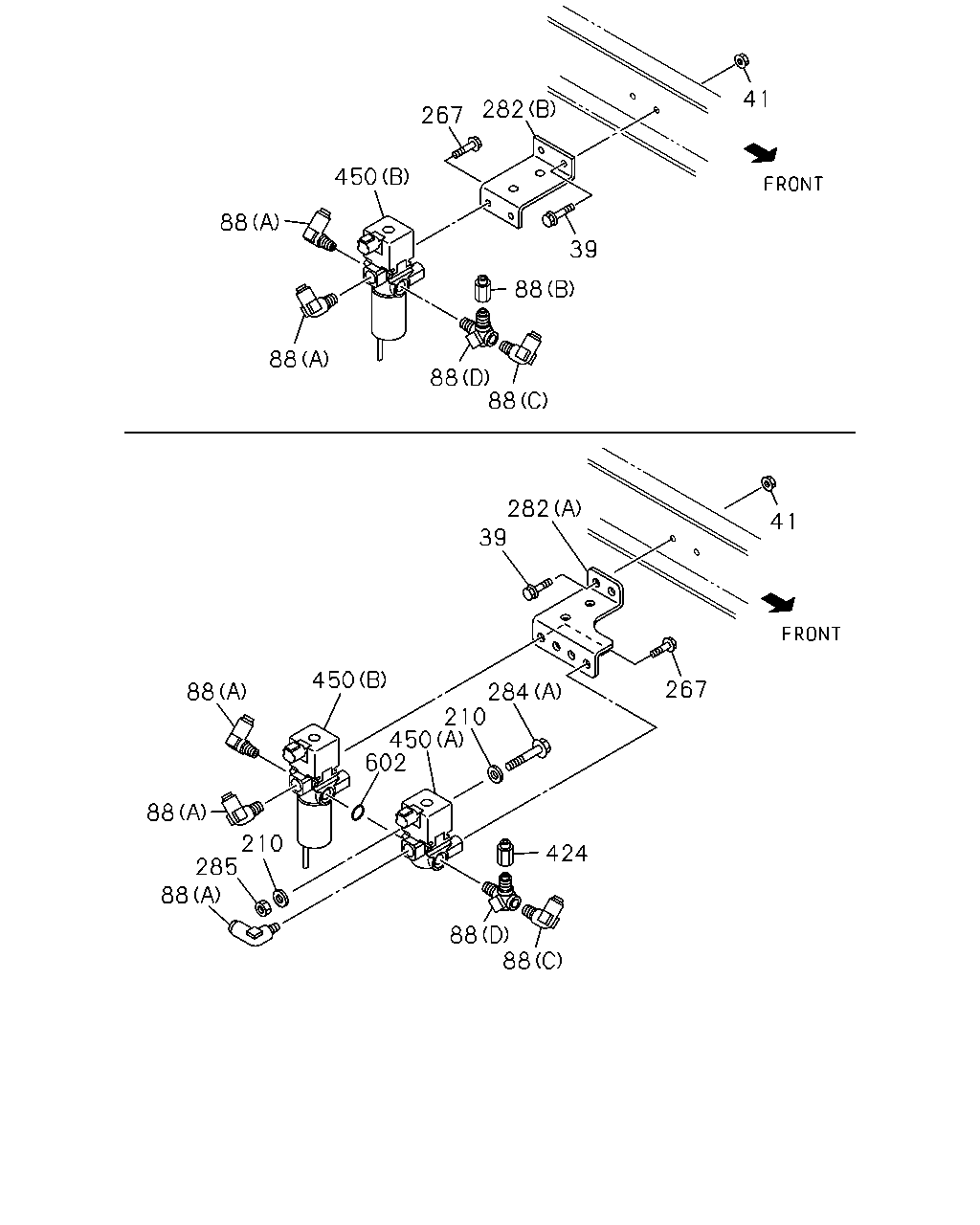

çizim 503484
267 282 450 88 88 88 88 39 88 41 41 282 39 450 88 88 285 88 210 602 210 267 284 424 88 88 450
BalonParca AdiParca NoAdetTipApplied Date A B
39 BOLT; BRKT,MAG VLV
6HK1-TCS ENG(80L) M8X35 FLANGE 		0-28650-835-0 02 1 1511- ● ●
39 BOLT; BRKT,MAG VLV
PTO ZF TRANS RR(BDM) CATALYSIS CONTROL<6MZ> M8X35 FLANGE 		0-28650-835-0 02 1 1511- ● ●
41 NUT; BRKT,MAG VLV
6HK1-TCS ENG(80L) M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
41 NUT; BRKT,MAG VLV
PTO ZF TRANS RR(BDM) CATALYSIS CONTROL<6MZ> M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1511- ● ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1511- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) CATALYSIS CONTROL WITH DPD<8JM> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1511- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) CATALYSIS CONTROL WITH DPD<8JM> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1511- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1511- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO ZF TRANS RR(BDM) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1511- ●
210 WASHER; PL,BRKT
WHEEL BASE 4200MM(42W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM> 		1-82569-266-0 02 1 1511- ●
267 BOLT; VLV TO BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) CATALYSIS CONTROL WITH DPD<8JM> M8X20 FLANGE 		0-28650-820-0 02 1 1511- ●
282 BRACKET; MAG VLV
WHEEL BASE 4200MM(42W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-98101-296-0 01 1 1511- ●
282 BRACKET; MAG VLV
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO ZF TRANS RR(BDM) (B) 		8-98154-633-0 01 1 1511- ●
282 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL<6MZ> (B) 		8-98154-633-0 01 1 1511- ●
284 BOLT; MAG VLV
WHEEL BASE 4200MM(42W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM> (A) M6X50 FLANGE 		0-28050-650-0 01 1 1511- ●
284 BOLT; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL<6MZ> (B) M8X20 FLANGE 		0-28650-820-0 02 1 1511- ●
285 NUT; MAG VLV
WHEEL BASE 4200MM(42W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM> M6 FLANGE 		0-91180-106-0 01 1 1511- ●
424 ADAPTER
WHEEL BASE 4200MM(42W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL<6MZ> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1511- ●
424 ADAPTER
WHEEL BASE 4200MM(42W) PTO ZF TRANS RR(BDM) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1511- ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) (A) 		1-82563-871-2 01 1 1511- ● ●
450 VALVE; MAG
WHEEL BASE 4200MM(42W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM> (A) 		1-82563-871-2 01 1 1511- ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97633-075-0 01 1 1511- ●
602 GASKET; MAG VLV
WHEEL BASE 4200MM(42W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM> ID=16.8 		9-09565-117-0 01 1 1511- ●
çizim 503514
305 289 765 40 741 450 741 88
BalonParca AdiParca NoAdetTipApplied Date A B
40 BRACKET; MAG VLV
ZF9S1110 M/T(Y5E) 		8-98057-863-0 01 1 1511- ● ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1511- ● ●
88 CONNECTOR; MAG VLV
WHEEL BASE 4200MM(42W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 1511- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) CATALYSIS CONTROL WITH DPD<8JM> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1511- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) CATALYSIS CONTROL WITH DPD<8JM> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1511- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1511- ●
88 CONNECTOR; MAG VLV
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO ZF TRANS RR(BDM) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1511- ●
289 BOLT
ZF9S1110 M/T(Y5E) M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
305 NUT; FILTER
ZF9S1110 M/T(Y5E) M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) (A) 		1-82563-871-2 01 1 1511- ● ●
450 VALVE; MAG
WHEEL BASE 4200MM(42W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM> (A) 		1-82563-871-2 01 1 1511- ●
450 VALVE; MAG
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97633-075-0 01 1 1511- ●
741 CONNECTOR; NYLON TUBE
ZF9S1110 M/T(Y5E) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1511- ● ●
765 BOLT; VLV
ZF9S1110 M/T(Y5E) M8X30 FLANGE 		0-28650-830-0 02 1 1511- ● ●

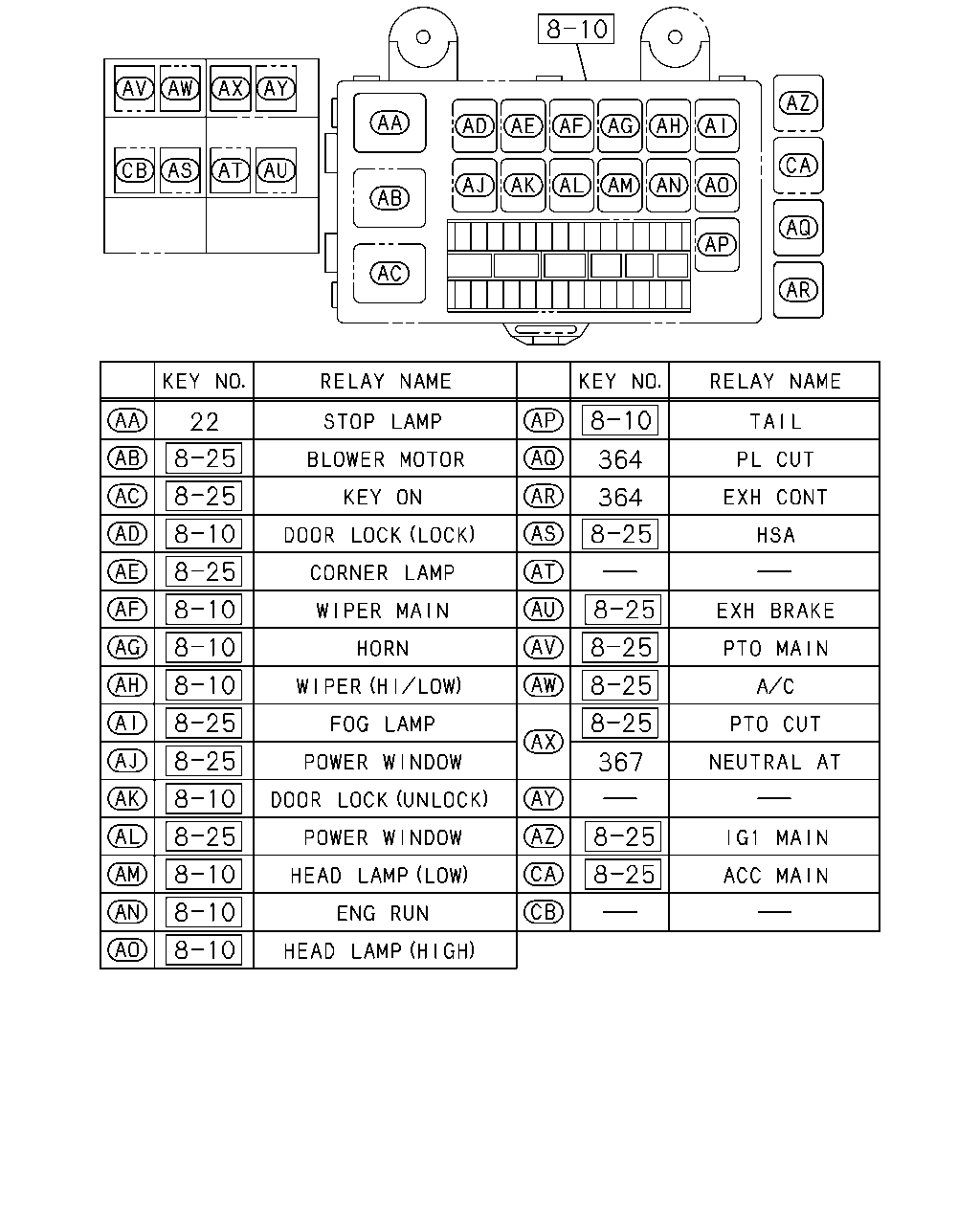

çizim 503516
22 364 364 367
BalonParca AdiParca NoAdetTipApplied Date A B
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1511- ● ●
364 RELAY; AUTO CRUISE OFF
A/T<X9D> 24V 10A PANASONIC 		8-97173-035-1 03 1 1511- ● ●
367 RELAY; NEUTRAL
A/T<X9D> 24V 10A PANASONIC 		8-97173-035-1 01 1 1511- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
