◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11717 - FVR AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#169787) — 160 parça

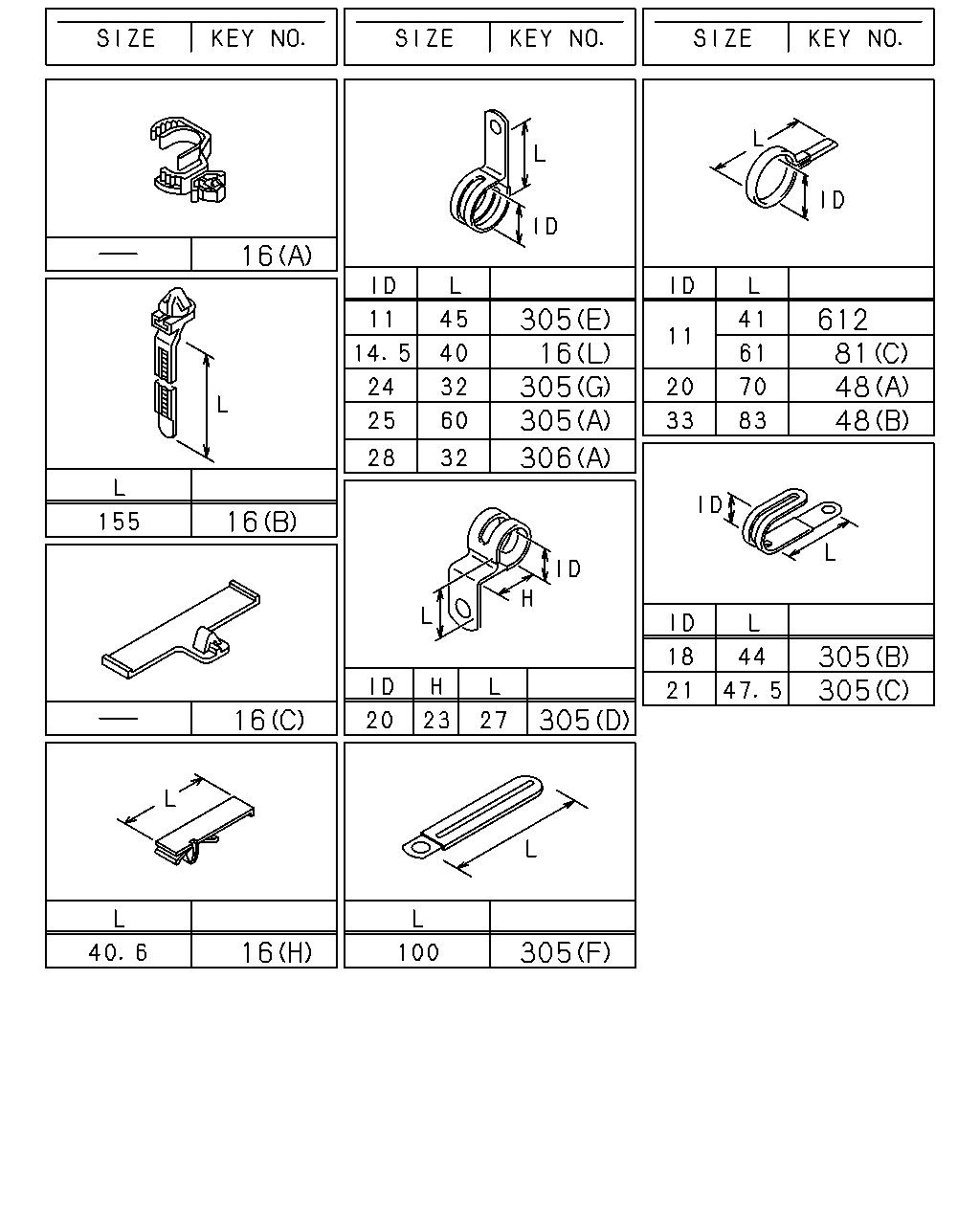

çizim 503140
16 16 16 16 305 16 305 305 306 305 305 612 48 48 305 305 81
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(J) ID=11X2 L=16 		0-95325-025-0 01 1 1511- ●
16 CLIP; HARNESS
(K) ID=11 L=16 		0-95235-025-0 02 1 1511- ● ●
16 CLIP; HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 1511- ● ●
16 CLIP; HARNESS
(F) ID=15 H=30 L=30 		1-09700-832-0 02 1 1511- ● ●
16 CLIP; HARNESS
(I) ID=5-12 L=14.5 		1-09987-221-0 02 1 1511- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1511- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1511- ● ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1511- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1511- ● ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=16X2 L=50 		0-95325-586-0 01 1 1511- ● ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L) ID=14.5 L=40 		1-09701-014-0 01 1 1511- ● ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) ID=19 L=32 		0-95235-866-0 02 1 1511- ● ●
16 CLIP; HARNESS
(J) ID=11X2 L=16 		0-95325-025-0 02 1 1511- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 01 1 1511- ● ●
48 CLIP; FRAME HARNESS
(B) ID=33 L=83 		1-09701-291-0 01 1 1511- ● ●
48 CLIP; FRAME HARNESS
(C) L=140 		5-09707-031-1 02 1 1511- ● ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=9 L=20 		0-95234-835-0 01 1 1511- ● ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) ID=9 H=20 L=25 		1-09701-073-0 01 1 1511- ● ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> (B) L=250 		5-09707-030-1 01 1 1511- ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=11 L=61 		1-09700-484-0 01 1 1511- ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6 		1-09709-178-0 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1511- ● ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(G) ID=24 L=32 		1-09700-766-1 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(H) ID=19 H=33 L=45 		1-09701-045-0 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(E) ID=11 L=45 		8-94296-897-1 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(F) L=100 		8-94443-021-1 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(L) L=140 		8-97122-360-0 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1511- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=21 L=47.5 		8-94178-108-0 01 1 1511- ● ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 1511- ● ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1511- ● ●
612 CLIP; HARNESS DPD
ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD<8JM> ID=11 L=41 		1-09700-403-0 01 1 1511- ●

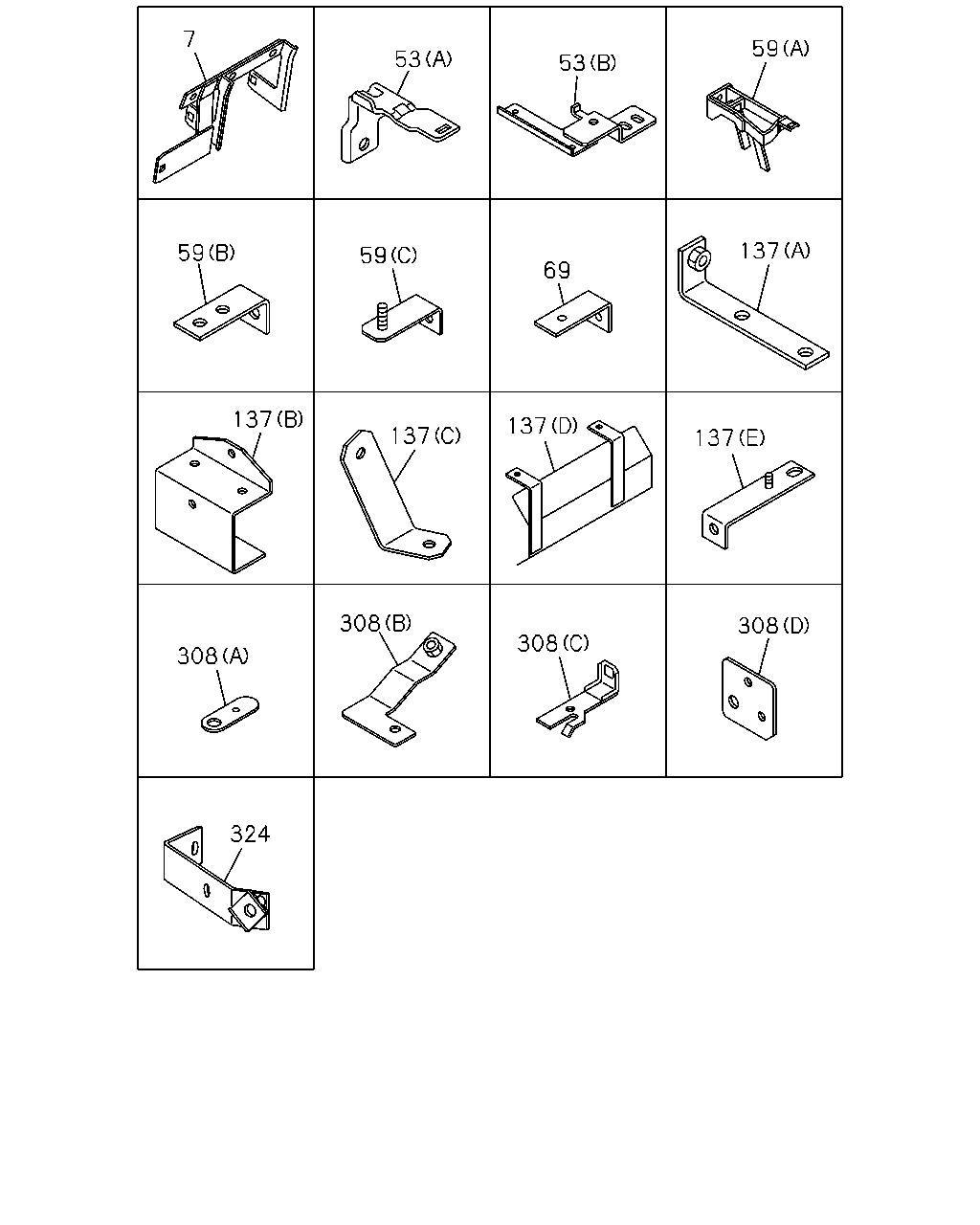

çizim 503206
7 53 53 59 59 59 69 137 137 137 137 137 308 308 308 308 324
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1511- ● ●
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1511- ● ●
53 BRACKET; HARNESS
EXC. CATALYSIS CONTROL<6MZ> (B) 		8-97620-485-0 01 1 1511- ● ●
59 BRACKET; FRAME HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CATALYSIS CONTROL WITH DPD<8JM> (B) L=62 		1-21464-170-2 01 1 1511- ●
59 BRACKET; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=62 		1-21464-170-2 01 1 1511- ●
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 1511- ● ●
59 BRACKET; FRAME HARNESS
(C) 		8-98306-304-0 01 1 1511- ● ●
69 BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=55 		1-47475-304-0 01 1 1511- ● ●
137 BRACKET; HARNESS CLAMP
(B) 		8-97609-797-1 02 1 1511- ● ●
137 BRACKET; HARNESS CLAMP
(C) 		8-97614-728-1 01 1 1511- ● ●
137 BRACKET; HARNESS CLAMP
(E) 		8-97624-013-0 01 1 1511- ● ●
137 BRACKET; HARNESS CLAMP
(D) 		8-98255-001-0 01 1 1511- ● ●
137 BRACKET; HARNESS CLAMP
(A) 		1-82698-140-0 01 1 1511- ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1511- ● ●
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 1511- ● ●
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 1511- ● ●
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 1511- ● ●
324 BRACKET; CLIP 8-98210-921-1 01 1 1511- ● ●
324 BRACKET; CLIP 8-98210-922-1 01 1 1511- ● ●

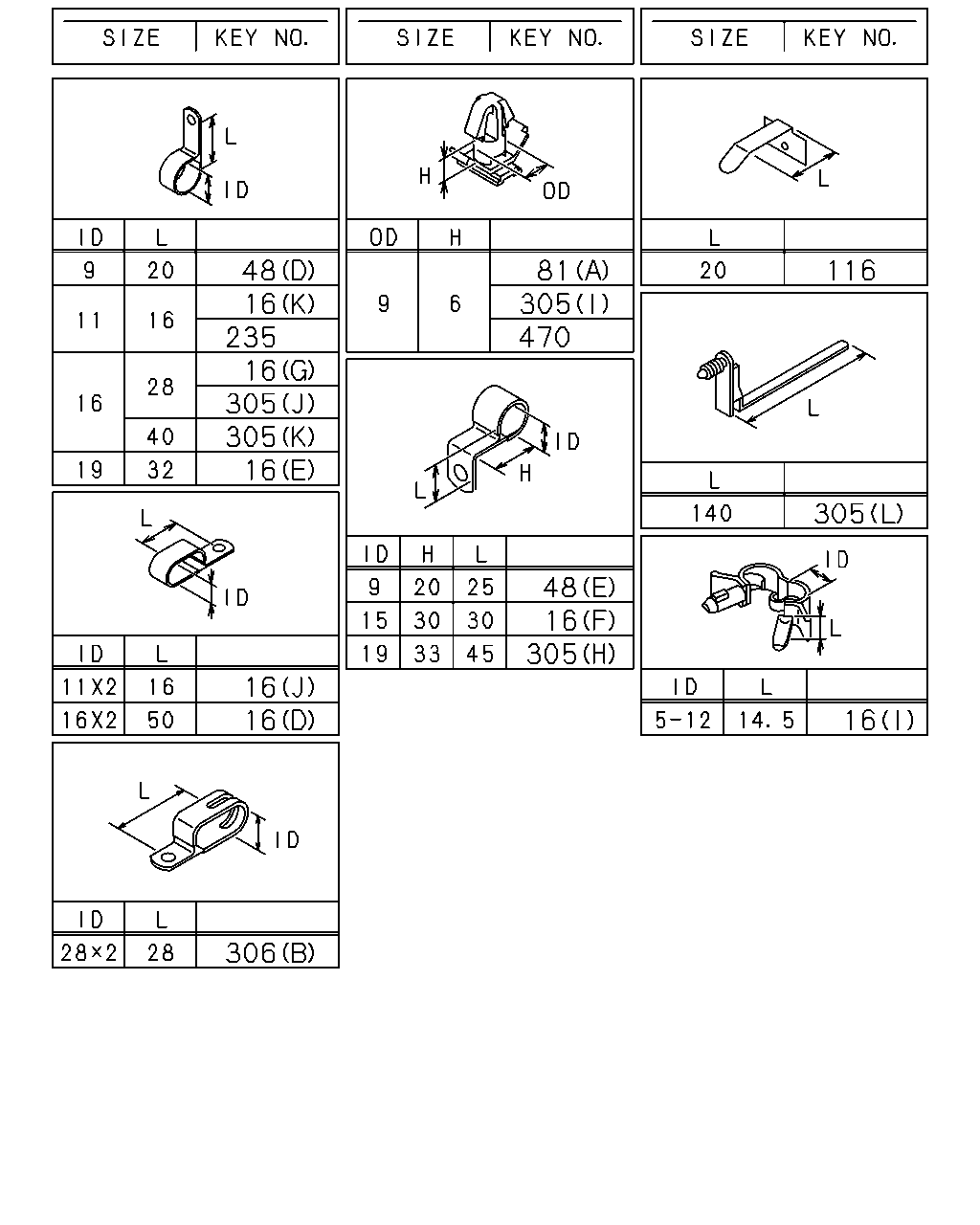

çizim 503333
48 235 305 16 16 16 305 16 16 306 81 470 305 48 305 116 305 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(J) ID=11X2 L=16 		0-95325-025-0 01 1 1511- ●
16 CLIP; HARNESS
(K) ID=11 L=16 		0-95235-025-0 02 1 1511- ● ●
16 CLIP; HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 1511- ● ●
16 CLIP; HARNESS
(F) ID=15 H=30 L=30 		1-09700-832-0 02 1 1511- ● ●
16 CLIP; HARNESS
(I) ID=5-12 L=14.5 		1-09987-221-0 02 1 1511- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1511- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1511- ● ●
16 CLIP; HARNESS
(H) L=40.6 		8-97229-357-0 02 1 1511- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1511- ● ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=16X2 L=50 		0-95325-586-0 01 1 1511- ● ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L) ID=14.5 L=40 		1-09701-014-0 01 1 1511- ● ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) ID=19 L=32 		0-95235-866-0 02 1 1511- ● ●
16 CLIP; HARNESS
(J) ID=11X2 L=16 		0-95325-025-0 02 1 1511- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 01 1 1511- ● ●
48 CLIP; FRAME HARNESS
(B) ID=33 L=83 		1-09701-291-0 01 1 1511- ● ●
48 CLIP; FRAME HARNESS
(C) L=140 		5-09707-031-1 02 1 1511- ● ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=9 L=20 		0-95234-835-0 01 1 1511- ● ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) ID=9 H=20 L=25 		1-09701-073-0 01 1 1511- ● ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> (B) L=250 		5-09707-030-1 01 1 1511- ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=11 L=61 		1-09700-484-0 01 1 1511- ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6 		1-09709-178-0 01 1 1511- ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 1511- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=11 L=16 		0-95235-025-0 02 1 1511- ● ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1511- ● ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(G) ID=24 L=32 		1-09700-766-1 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(H) ID=19 H=33 L=45 		1-09701-045-0 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(E) ID=11 L=45 		8-94296-897-1 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(F) L=100 		8-94443-021-1 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(L) L=140 		8-97122-360-0 01 1 1511- ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1511- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=21 L=47.5 		8-94178-108-0 01 1 1511- ● ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 1511- ● ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1511- ● ●
470 CLIP; HARNESS,LICENSE LAMP
COUNTRY NEW ZEALAND(CX6) OD=9 H=6 		1-09709-178-0 01 1 1511- ● ●
çizim 503471
48 81 491 14 1 1 530 538 503 178
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 1511- ● ●
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1511- ● ●
14 CLIP; BAND,HARNESS
6HK1-TCC ENG(81L) ALLISON MD3060P A/T(Y4G) L=250 		8-98216-430-0 15 1 1511- ● ●
14 CLIP; BAND,HARNESS
6HK1-TCS ENG(80L) ALLISON MD3060P A/T(Y4G) L=250 		8-98216-430-0 14 1 1511- ● ●
14 CLIP; BAND,HARNESS
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) L=250 		8-98216-430-0 14 1 1511- ● ●
14 CLIP; BAND,HARNESS
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) L=250 		8-98216-430-0 13 1 1511- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 01 1 1511- ● ●
48 CLIP; FRAME HARNESS
(B) ID=33 L=83 		1-09701-291-0 01 1 1511- ● ●
48 CLIP; FRAME HARNESS
(C) L=140 		5-09707-031-1 02 1 1511- ● ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) ID=9 L=20 		0-95234-835-0 01 1 1511- ● ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) ID=9 H=20 L=25 		1-09701-073-0 01 1 1511- ● ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> (B) L=250 		5-09707-030-1 01 1 1511- ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=11 L=61 		1-09700-484-0 01 1 1511- ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6 		1-09709-178-0 01 1 1511- ● ●
178 GROMMET; HARNESS
ID=28 OD=35 T=25 		1-09332-011-1 01 1 1511- ● ●
178 GROMMET; HARNESS
ID=28 OD=35 T=25 		1-09332-011-1 01 1 1511- ● ●
491 CLIP; BAND,HTR HOSE & HARNESS
A/T<X9D> L=250 		5-09707-030-1 07 1 1511- ● ●
503 CONNECTOR
6HK1-TCC ENG(81L) 		1-82690-668-0 01 1 1511- ● ●
503 CONNECTOR
HEATER & DEFROSTER(C41) 		1-82690-668-0 01 1 1511- ● ●
530 SEAL; HARNESS
AIR BAG DRIVER & PASSENGER(AK5) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 180X40 		1-72498-019-1 03 1 1511- ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1511- ● ●
530 SEAL; HARNESS
A/T<X9D> 180X40 		1-72498-019-1 01 1 1511- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1511- ● ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1511- ● ●

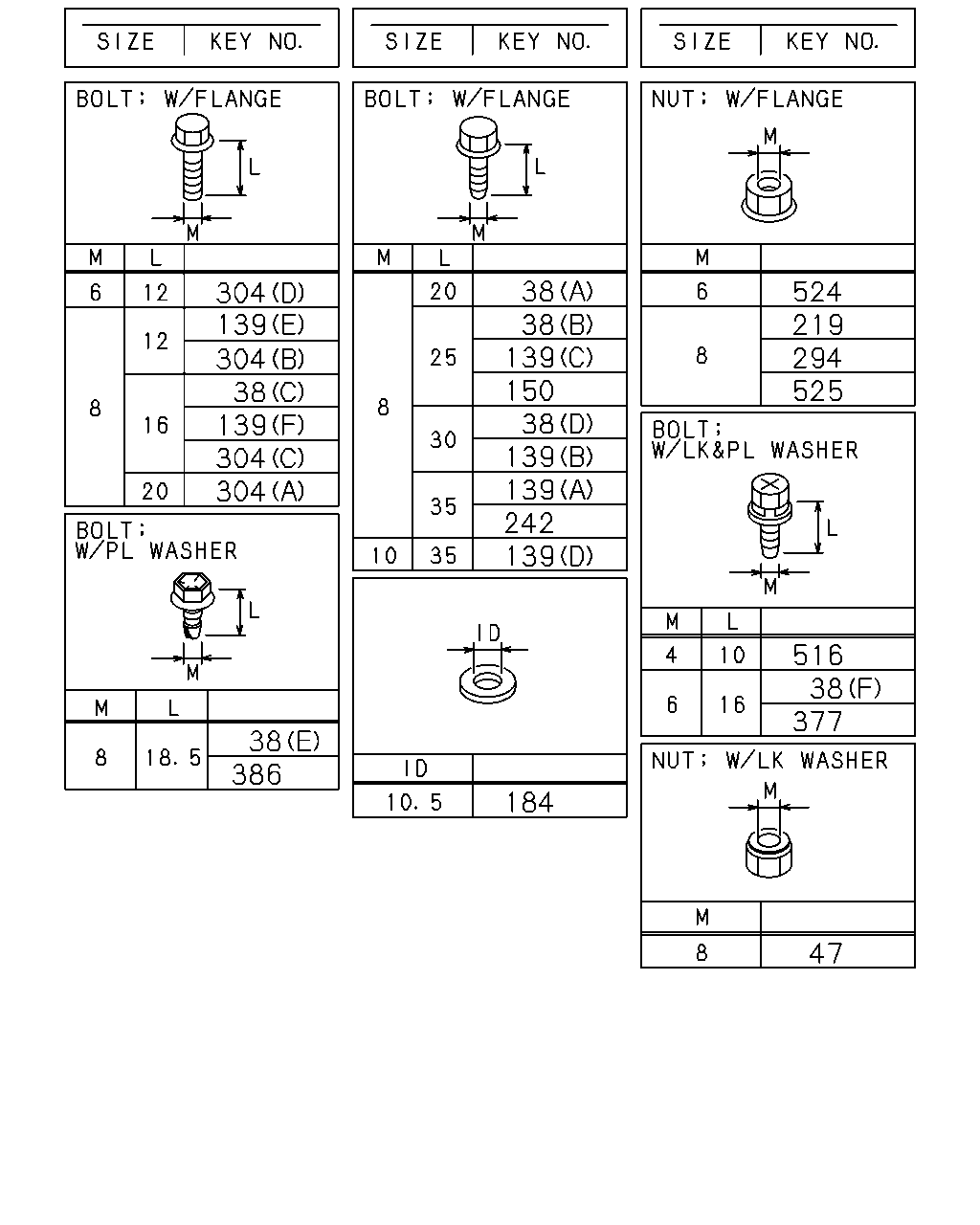

çizim 503502
304 304 139 38 304 139 304 38 386 38 139 38 38 150 139 242 139 139 184 524 294 219 525 516 38 377 47
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1511- ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 02 1 1511- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
38 BOLT; CLIP,HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1511- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 1511- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 1511- ● ●
38 BOLT; CLIP,HARNESS
ALLISON MD3060P A/T(Y4G) (F) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 1511- ● ●
38 BOLT; CLIP,HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1511- ● ●
38 BOLT; CLIP,HARNESS
(E) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1511- ● ●
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1511- ● ●
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) M8X35 FLANGE 		0-28650-835-0 01 1 1511- ●
139 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X35 FLANGE 		0-28650-835-0 01 1 1511- ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1511- ● ●
139 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 03 1 1511- ● ●
139 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 01 1 1511- ● ●
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X25 FLANGE 		0-28650-825-0 01 1 1511- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1511- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 1511- ● ●
139 BOLT; BRKT
(D) M10X35 FLANGE 		0-28651-035-0 01 1 1511- ● ●
139 BOLT; BRKT
(F) M8X16 FLANGE 		0-28050-816-0 02 1 1511- ●
150 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1511- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
242 BOLT; BRKT,HARNESS
EXC. CATALYSIS CONTROL<6MZ> M8X35 FLANGE 		0-28650-835-0 01 1 1511- ● ●
294 NUT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CATALYSIS CONTROL WITH DPD<8JM> M8 FLANGE 		0-91180-108-0 01 1 1511- ●
294 NUT
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 1511- ●
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 04 1 1511- ● ●
304 BOLT; ENG HARNESS CLIP
(D) M6X12 FLANGE 		0-28050-612-0 01 1 1511- ● ●
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 02 1 1511- ● ●
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 03 1 1511- ● ●
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1511- ● ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1511- ● ●
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1511- ● ●
516 BOLT; HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1511- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1511- ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 03 1 1511- ● ●
525 NUT; CLIP
T=8.5 M8 FLANGE 		5-09440-010-0 01 1 1511- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
