Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#169786) — 313 parça

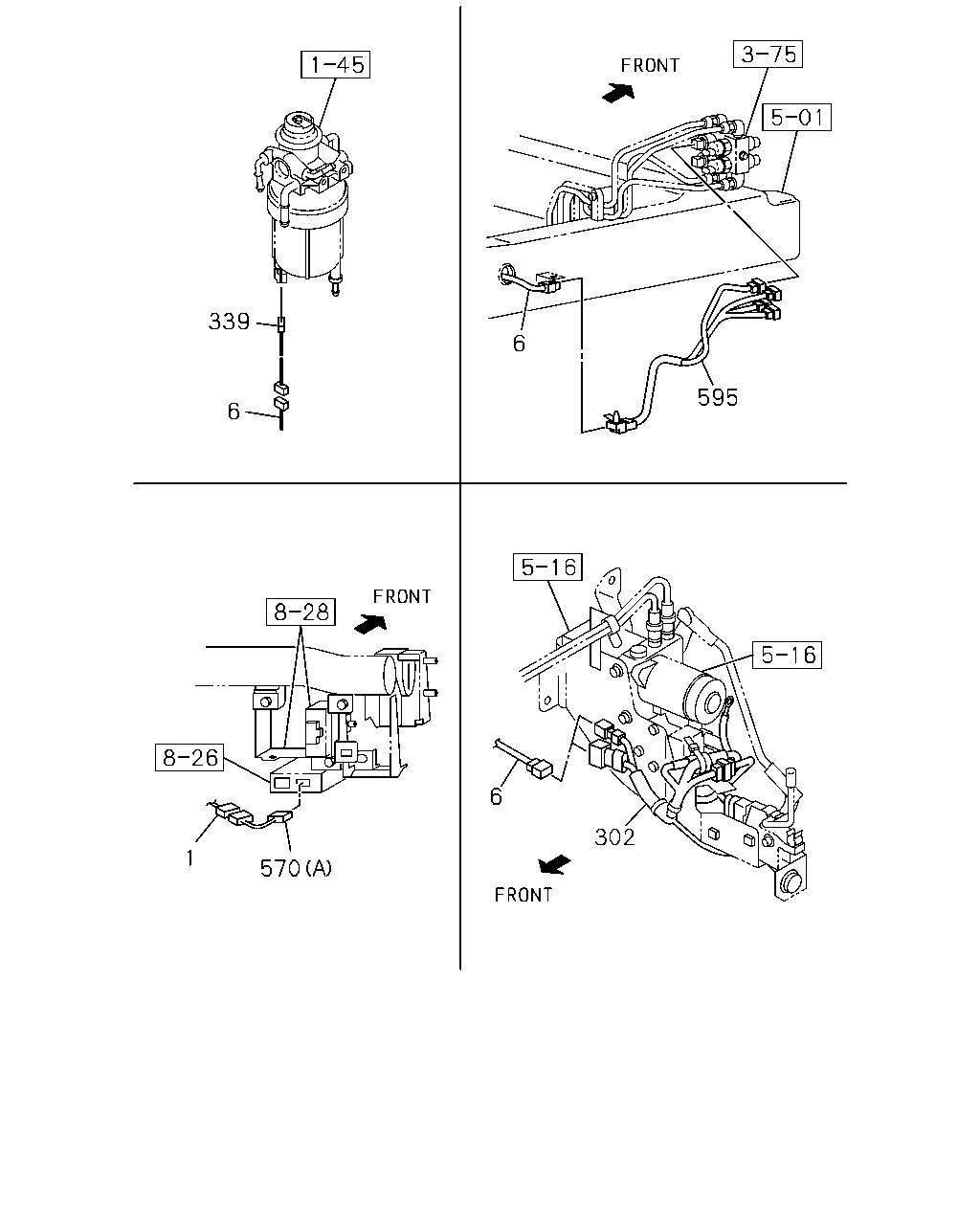

595 6 339 6 1 570 6 302

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB ALLISON MD3060P A/T(Y4G) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-972-1	01	1	1511-	●	●
1	HARNESS; CAB ALLISON MD3060P A/T(Y4G) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-974-1	01	1	1511-	●	●
1	HARNESS; CAB ALLISON MD3060P A/T(Y4G) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-973-1	01	1	1511-	●	●
1	HARNESS; CAB ALLISON MD3060P A/T(Y4G) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-975-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-983-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-987-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-985-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-989-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-982-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-986-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-984-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-988-1	01	1	1511-	●	●
6	HARNESS; FRAME ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-147-2	01	1	1511-	●
6	HARNESS; FRAME ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-147-2	01	1	1511-		●
6	HARNESS; FRAME ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL<6MZ> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-148-2	01	1	1511-	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) CATALYSIS CONTROL<6MZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-136-0	01	1	1511-	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD<8JM>	8-98305-145-2	01	1	1511-	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD<8JM>	8-98305-135-0	01	1	1511-		●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) CATALYSIS CONTROL<6MZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-146-2	01	1	1511-		●
302	HARNESS; POWER CAB TILT	8-97620-490-1	01	1	1511-	●	●
339	HARNESS; EXT,FUEL FUEL TANK 200L FRAME SIDE<N20>	8-98227-392-1	01	1	1511-	●	●
339	HARNESS; EXT,FUEL FUEL TANK 400L<SDH>	8-98227-393-0	01	1	1511-	●	●
570	HARNESS; SPEED SENSOR ALLISON MD3060P A/T(Y4G) (A)	8-98305-915-0	01	1	1511-	●	●
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) (B)	8-98148-602-0	01	1	1511-	●	●
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) (A)	8-98172-313-0	01	1	1511-	●	●
595	HARNESS; WARNING,BRK	8-98329-527-0	01	1	1511-	●	●

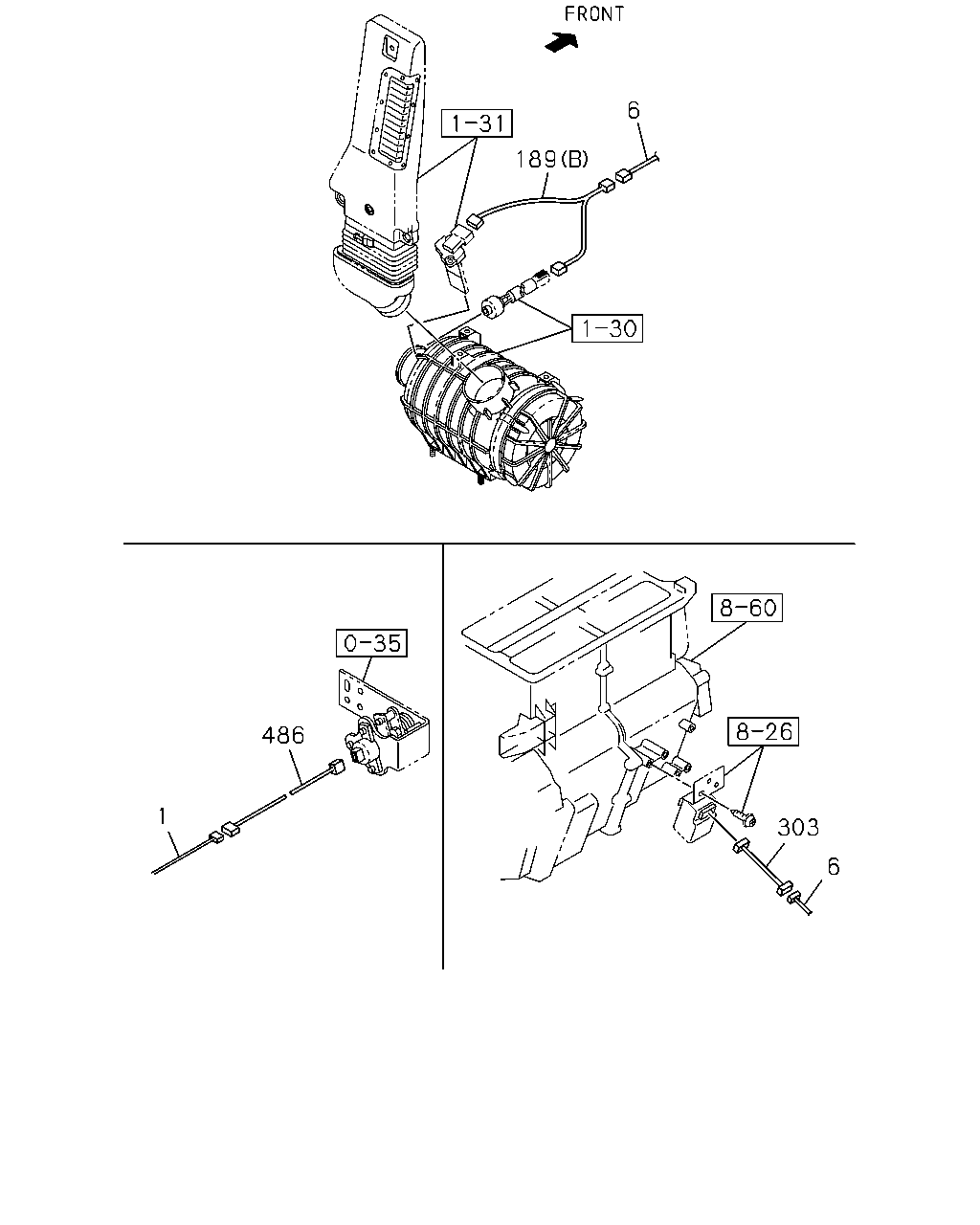

486 1 303 6 189 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB ALLISON MD3060P A/T(Y4G) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-972-1	01	1	1511-	●	●
1	HARNESS; CAB ALLISON MD3060P A/T(Y4G) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-974-1	01	1	1511-	●	●
1	HARNESS; CAB ALLISON MD3060P A/T(Y4G) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-973-1	01	1	1511-	●	●
1	HARNESS; CAB ALLISON MD3060P A/T(Y4G) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-975-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-983-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-987-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-985-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-989-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-982-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-986-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-984-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-988-1	01	1	1511-	●	●
6	HARNESS; FRAME ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-147-2	01	1	1511-	●
6	HARNESS; FRAME ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-147-2	01	1	1511-		●
6	HARNESS; FRAME ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL<6MZ> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-148-2	01	1	1511-	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) CATALYSIS CONTROL<6MZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-136-0	01	1	1511-	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD<8JM>	8-98305-145-2	01	1	1511-	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD<8JM>	8-98305-135-0	01	1	1511-		●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) CATALYSIS CONTROL<6MZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-146-2	01	1	1511-		●
189	HARNESS; EXT (B)	8-98098-510-0	01	1	1511-	●	●
189	HARNESS; EXT EXC. COUNTRY NEW ZEALAND(CX6) (A)	8-98131-066-0	01	1	1511-	●	●
303	HARNESS; WATER LEVEL 6HK1-TCC ENG(81L)	8-98306-992-1	01	1	1511-	●	●
303	HARNESS; WATER LEVEL 6HK1-TCS ENG(80L)	8-98306-305-1	01	1	1511-	●	●
486	HARNESS; ALL SPEED ACCEL PTO ZF TRANS RR(BDM)	1-82675-898-0	01	1	1511-	●	●

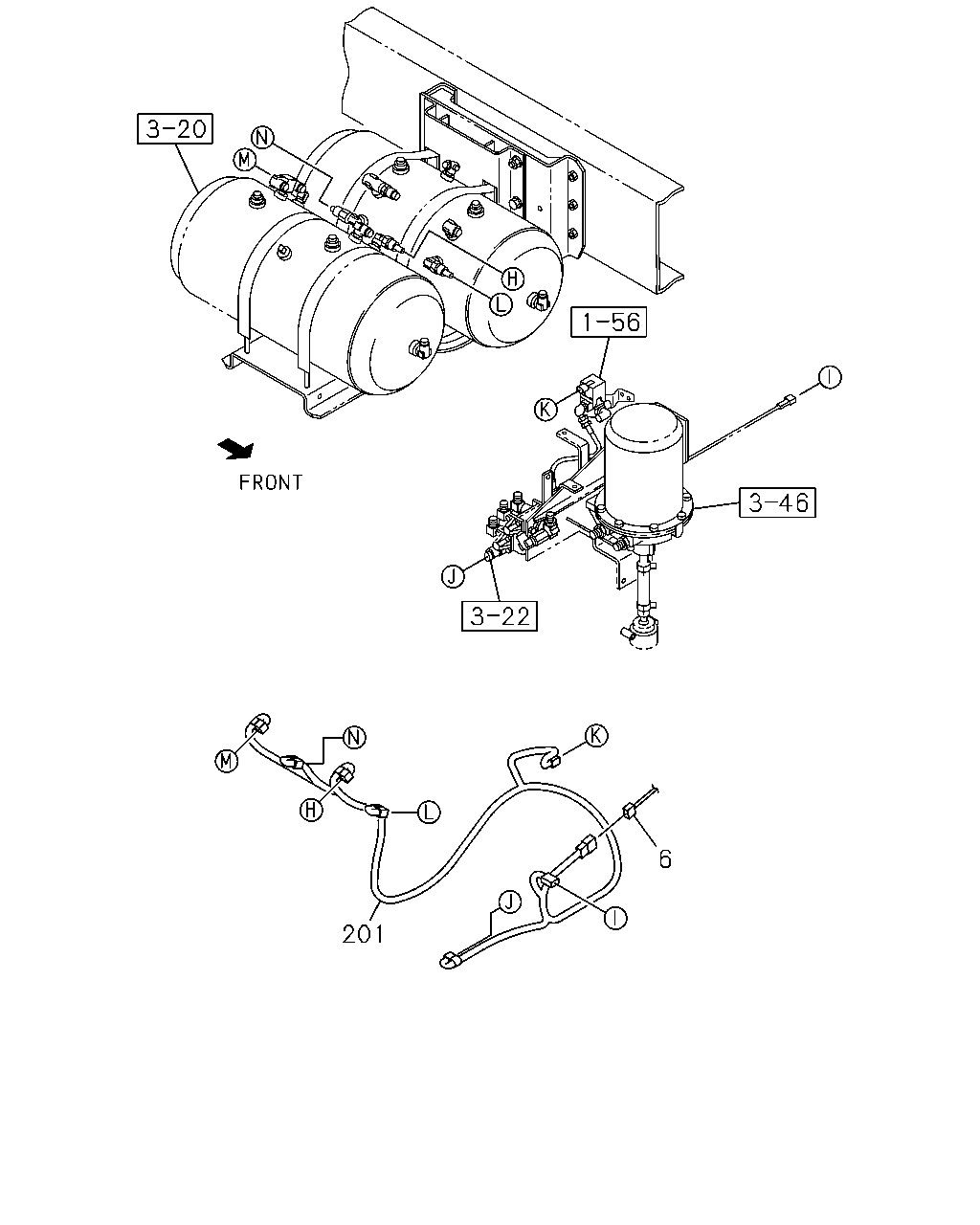

201 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-147-2	01	1	1511-	●
6	HARNESS; FRAME ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-147-2	01	1	1511-		●
6	HARNESS; FRAME ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL<6MZ> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-148-2	01	1	1511-	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) CATALYSIS CONTROL<6MZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-136-0	01	1	1511-	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD<8JM>	8-98305-145-2	01	1	1511-	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD<8JM>	8-98305-135-0	01	1	1511-		●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) CATALYSIS CONTROL<6MZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-146-2	01	1	1511-		●
201	HARNESS; AIR TANK WHEEL BASE 4200MM(42W)	8-98321-366-0	01	1	1511-	●	●

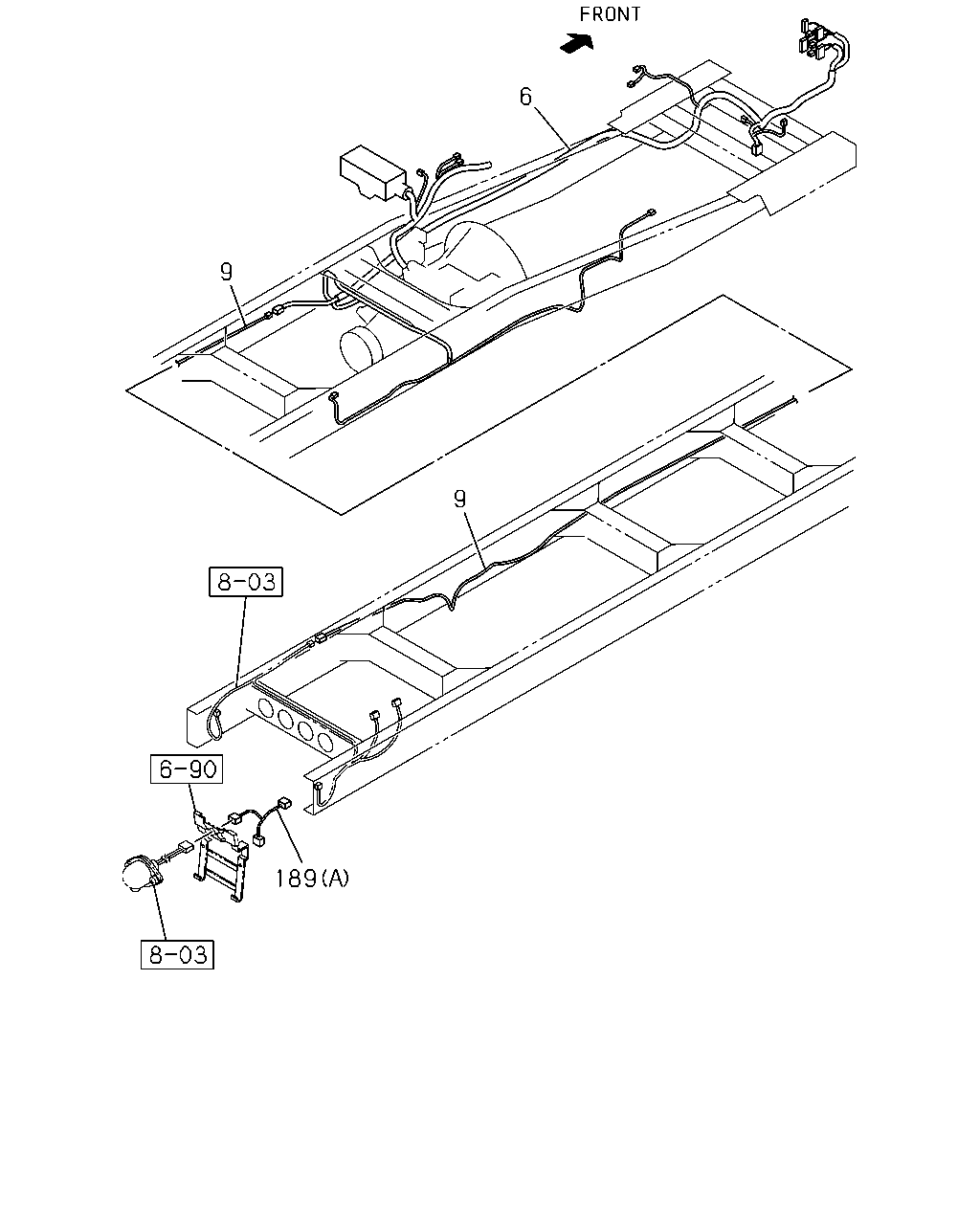

6 9 9 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-147-2	01	1	1511-	●
6	HARNESS; FRAME ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-147-2	01	1	1511-		●
6	HARNESS; FRAME ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL<6MZ> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-148-2	01	1	1511-	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) CATALYSIS CONTROL<6MZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-136-0	01	1	1511-	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD<8JM>	8-98305-145-2	01	1	1511-	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD<8JM>	8-98305-135-0	01	1	1511-		●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) CATALYSIS CONTROL<6MZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-146-2	01	1	1511-		●
9	HARNESS; FRAME,RR WHEEL BASE 4200MM(42W)	8-98305-202-0	01	1	1511-	●
9	HARNESS; FRAME,RR WHEEL BASE 5500MM(55W)	8-98322-265-0	01	1	1511-	●
9	HARNESS; FRAME,RR WHEEL BASE 6500MM(65W)	8-98322-267-0	01	1	1511-	●
9	HARNESS; FRAME,RR WHEEL BASE 4200MM(42W)	8-98322-263-0	01	1	1511-		●
9	HARNESS; FRAME,RR WHEEL BASE 5500MM(55W)	8-98322-264-0	01	1	1511-		●
9	HARNESS; FRAME,RR WHEEL BASE 6500MM(65W)	8-98322-266-0	01	1	1511-		●
189	HARNESS; EXT (B)	8-98098-510-0	01	1	1511-	●	●
189	HARNESS; EXT EXC. COUNTRY NEW ZEALAND(CX6) (A)	8-98131-066-0	01	1	1511-	●	●

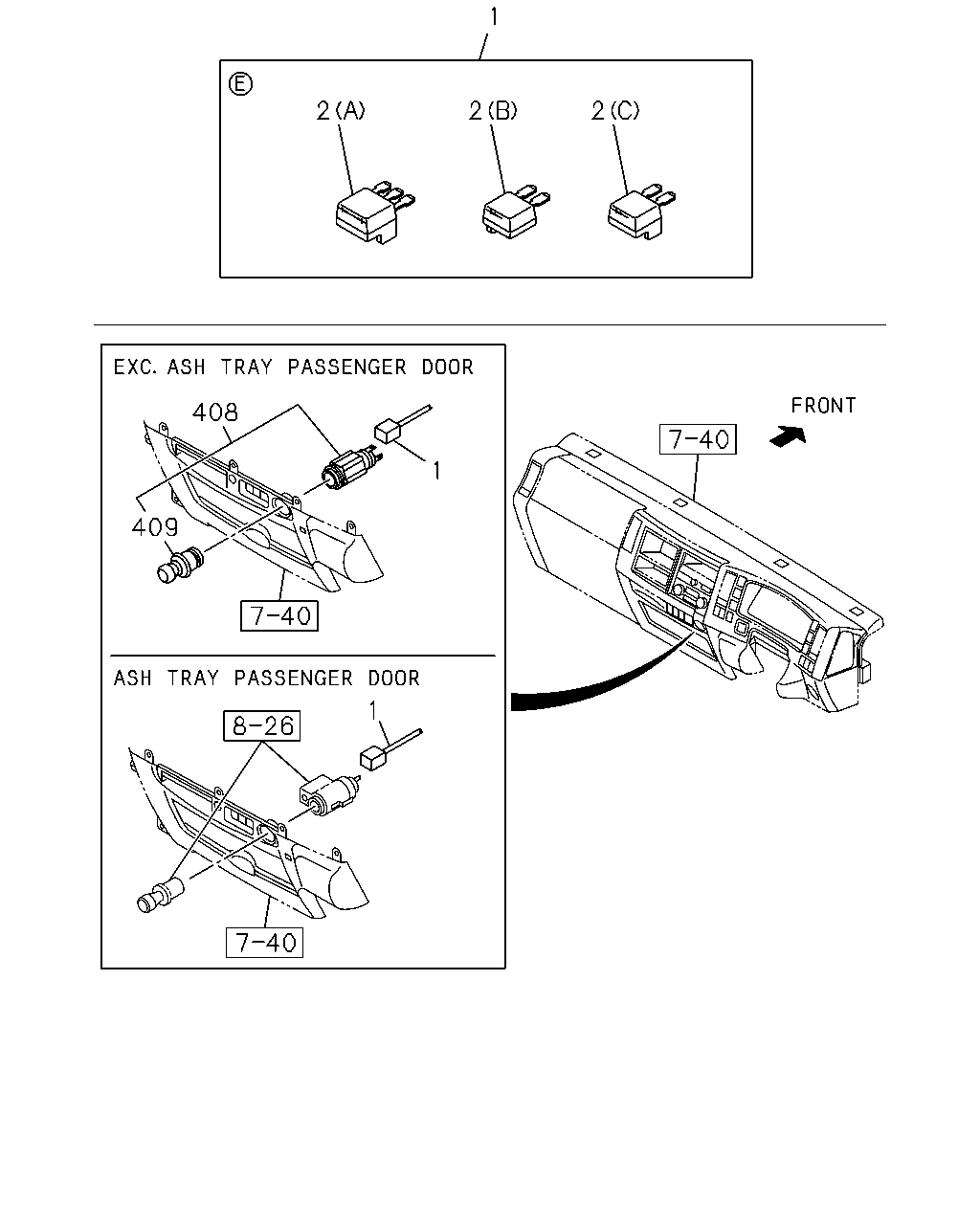

1 2 2 2 1 1 408 409

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB ALLISON MD3060P A/T(Y4G) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-972-1	01	1	1511-	●	●
1	HARNESS; CAB ALLISON MD3060P A/T(Y4G) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-974-1	01	1	1511-	●	●
1	HARNESS; CAB ALLISON MD3060P A/T(Y4G) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-973-1	01	1	1511-	●	●
1	HARNESS; CAB ALLISON MD3060P A/T(Y4G) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-975-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-983-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-987-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-985-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-989-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-982-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-986-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-984-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-988-1	01	1	1511-	●	●
2	DIODE; CABLE HARNESS (A) BLACK 3P-1.5A	8-94416-438-1	AR	1	1511-	●	●
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	1511-	●	●
2	DIODE; CABLE HARNESS (C) 2P	8-98223-969-0	AR	1	1511-	●	●
408	SOCKET ASM; ACCESSORY EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98169-757-0	01	1	1511-	●	●
409	CAP; ACCESSORY SOCKET EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98183-771-0	01	1	1511-	●	●

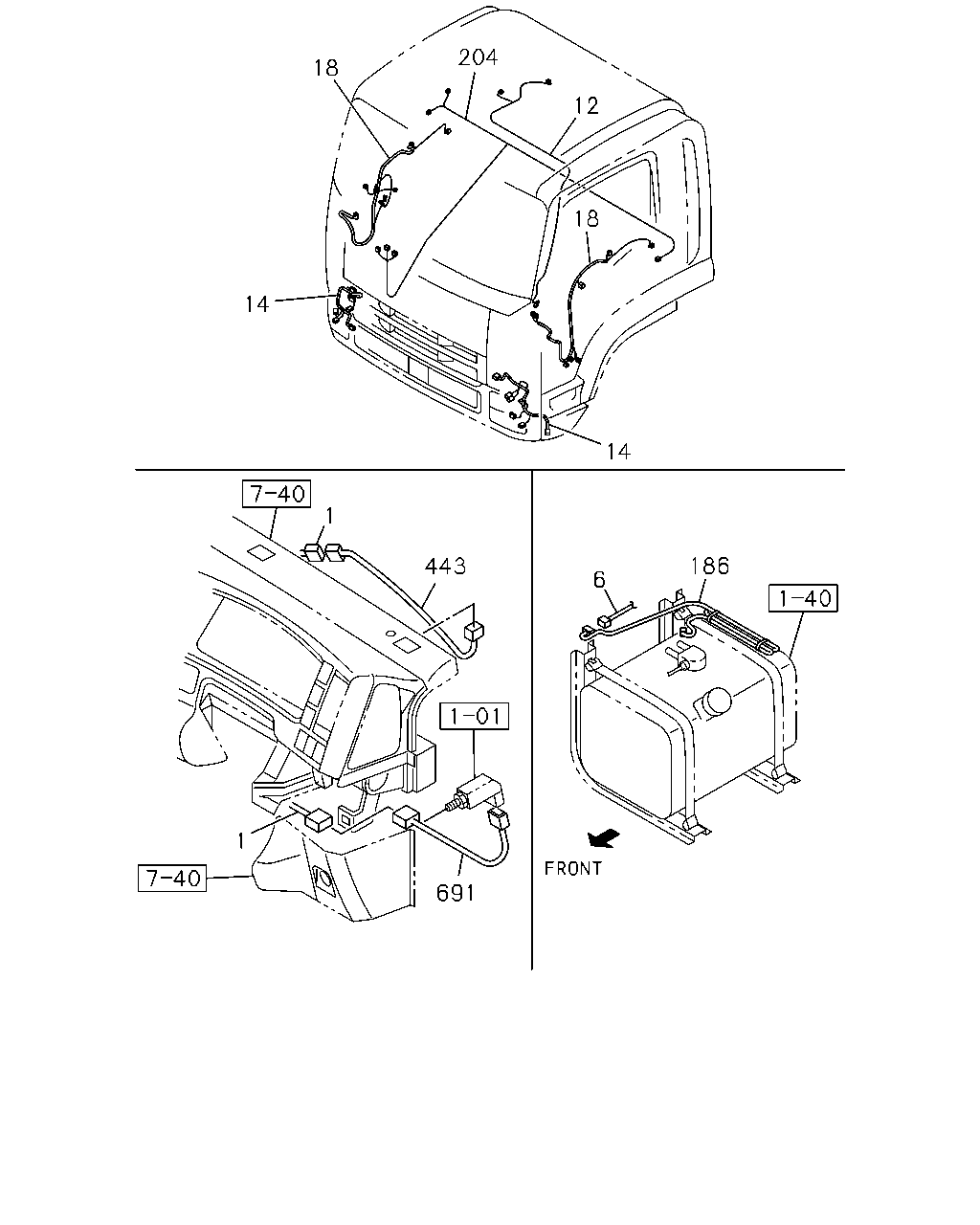

204 18 14 12 18 14 443 1 1 691 6 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB ALLISON MD3060P A/T(Y4G) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-972-1	01	1	1511-	●	●
1	HARNESS; CAB ALLISON MD3060P A/T(Y4G) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-974-1	01	1	1511-	●	●
1	HARNESS; CAB ALLISON MD3060P A/T(Y4G) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-973-1	01	1	1511-	●	●
1	HARNESS; CAB ALLISON MD3060P A/T(Y4G) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-975-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-983-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-987-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-985-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-989-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-982-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-986-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-984-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-988-1	01	1	1511-	●	●
6	HARNESS; FRAME ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-147-2	01	1	1511-	●
6	HARNESS; FRAME ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-147-2	01	1	1511-		●
6	HARNESS; FRAME ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL<6MZ> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-148-2	01	1	1511-	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) CATALYSIS CONTROL<6MZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-136-0	01	1	1511-	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD<8JM>	8-98305-145-2	01	1	1511-	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD<8JM>	8-98305-135-0	01	1	1511-		●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) CATALYSIS CONTROL<6MZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-146-2	01	1	1511-		●
12	HARNESS; ROOF	8-98079-072-1	01	1	1511-	●	●
14	HARNESS; HEADLAMP CORNERING LAMP<T87>	8-98077-292-1	02	1	1511-	●	●
14	HARNESS; HEADLAMP EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> ,CORNERING LAMP<T87>	8-94270-986-0	02	1	1511-	●	●
14	HARNESS; HEADLAMP HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87>	8-98069-166-1	02	1	1511-		●
18	HARNESS; DOOR	8-98079-079-5	01	1	1511-	●	●
18	HARNESS; DOOR	8-98079-076-5	01	1	1511-	●	●
186	HARNESS; FUEL TANK FUEL TANK 400L<SDH>	8-98099-650-0	01	1	1511-	●	●
204	HARNESS; CABLE,FLOOR ALLISON MD3060P A/T(Y4G) AIR BAG DRIVER & PASSENGER(AK5) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>	8-98306-567-0	01	1	1511-	●
204	HARNESS; CABLE,FLOOR ALLISON MD3060P A/T(Y4G) AIR BAG DRIVER & PASSENGER(AK5) DRIVER ISRINGHAUSEN SEAT<SJA>	8-98085-300-1	01	1	1511-	●	●
204	HARNESS; CABLE,FLOOR ALLISON MD3060P A/T(Y4G) AIR BAG DRIVER(AJ3)	8-98085-299-2	01	1	1511-	●	●
204	HARNESS; CABLE,FLOOR ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5)	8-98085-286-1	01	1	1511-	●	●
204	HARNESS; CABLE,FLOOR ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3)	8-98085-281-2	01	1	1511-	●	●
443	HARNESS; EXT,A/C FULLAUTO AIR CONDITIONER(C68)	8-98096-565-0	01	1	1511-	●	●
691	HARNESS; IDLE CONT	8-98049-014-2	01	1	1511-	●	●

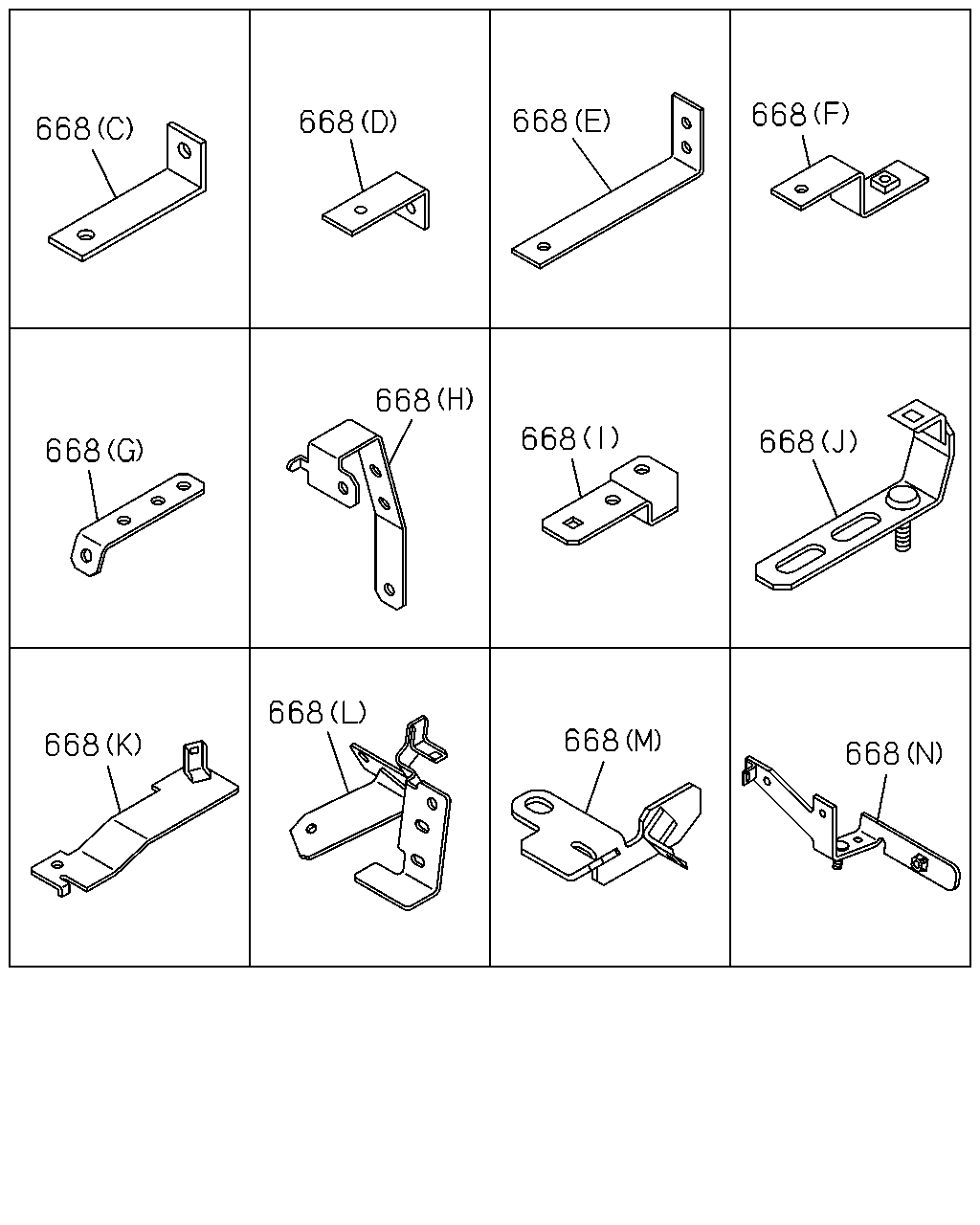

668 668 668 668 668 668 668 668 668 668 668 668

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
668	BRACKET; HARNESS (D) L=55	1-47475-304-0	01	1	1511-	●	●
668	BRACKET; HARNESS (E)	1-47479-674-0	01	1	1511-	●	●
668	BRACKET; HARNESS (G)	1-82698-167-0	01	1	1511-	●	●
668	BRACKET; HARNESS (F)	8-97609-110-1	01	1	1511-	●	●
668	BRACKET; HARNESS (H)	8-97619-097-1	01	1	1511-	●	●
668	BRACKET; HARNESS (I)	8-97620-519-0	01	1	1511-	●	●
668	BRACKET; HARNESS (J)	8-98047-730-0	02	1	1511-	●	●
668	BRACKET; HARNESS (A)	8-98095-653-2	01	1	1511-	●	●
668	BRACKET; HARNESS (K)	8-98107-610-1	01	1	1511-	●	●
668	BRACKET; HARNESS (L)	8-98107-611-0	01	1	1511-	●	●
668	BRACKET; HARNESS (N)	8-98212-082-1	01	1	1511-	●	●
668	BRACKET; HARNESS (M)	8-98254-592-0	01	1	1511-	●	●
668	BRACKET; HARNESS ALLISON MD3060P A/T(Y4G) (B)	8-98032-360-0	01	1	1511-	●	●
668	BRACKET; HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) L=95	1-82699-085-0	04	1	1511-	●	●

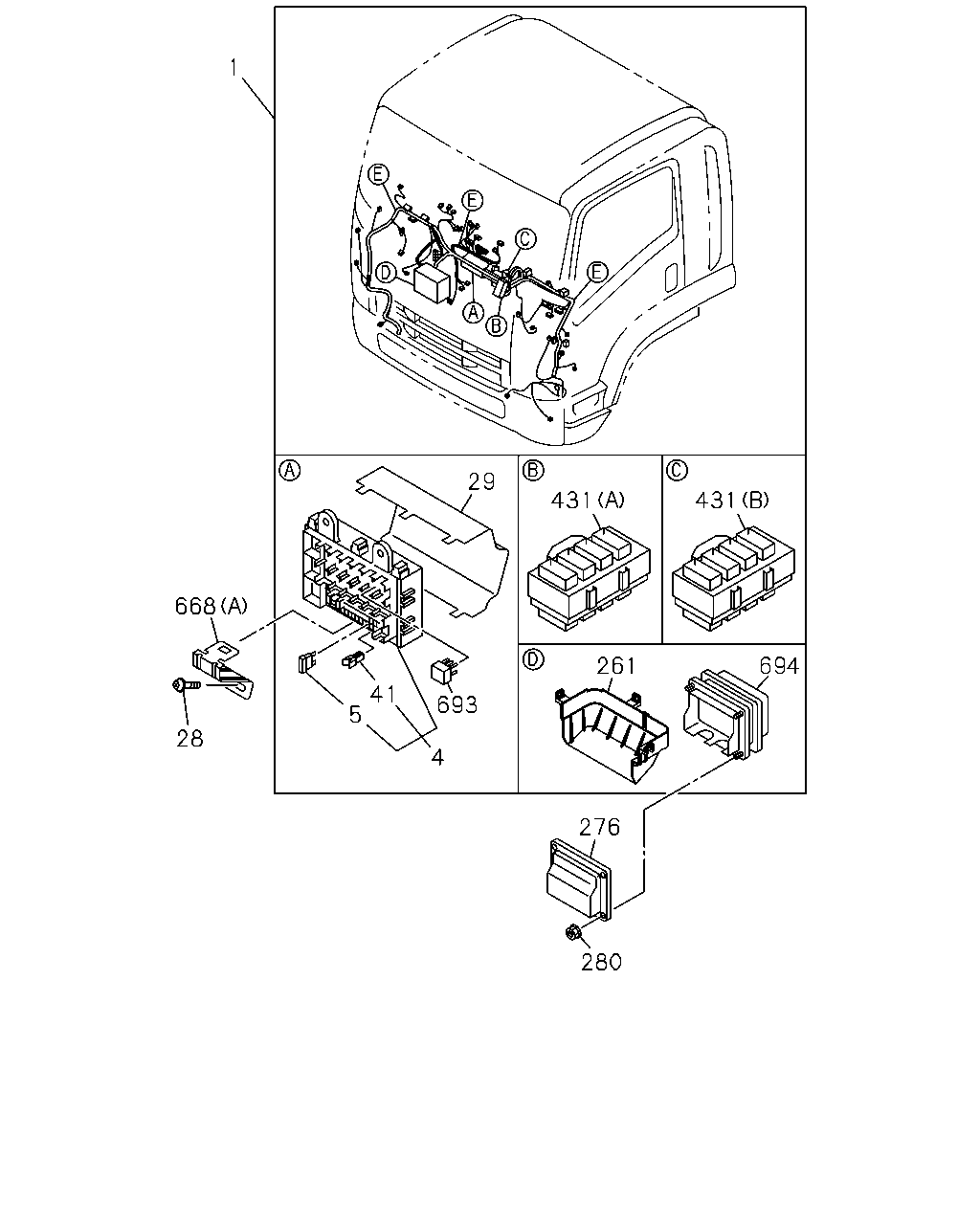

1 29 431 431 668 28 693 41 5 4 276 280 694 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB ALLISON MD3060P A/T(Y4G) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-972-1	01	1	1511-	●	●
1	HARNESS; CAB ALLISON MD3060P A/T(Y4G) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-974-1	01	1	1511-	●	●
1	HARNESS; CAB ALLISON MD3060P A/T(Y4G) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-973-1	01	1	1511-	●	●
1	HARNESS; CAB ALLISON MD3060P A/T(Y4G) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-975-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-983-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-987-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-985-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98307-989-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-982-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-986-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-984-1	01	1	1511-	●	●
1	HARNESS; CAB ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98307-988-1	01	1	1511-	●	●

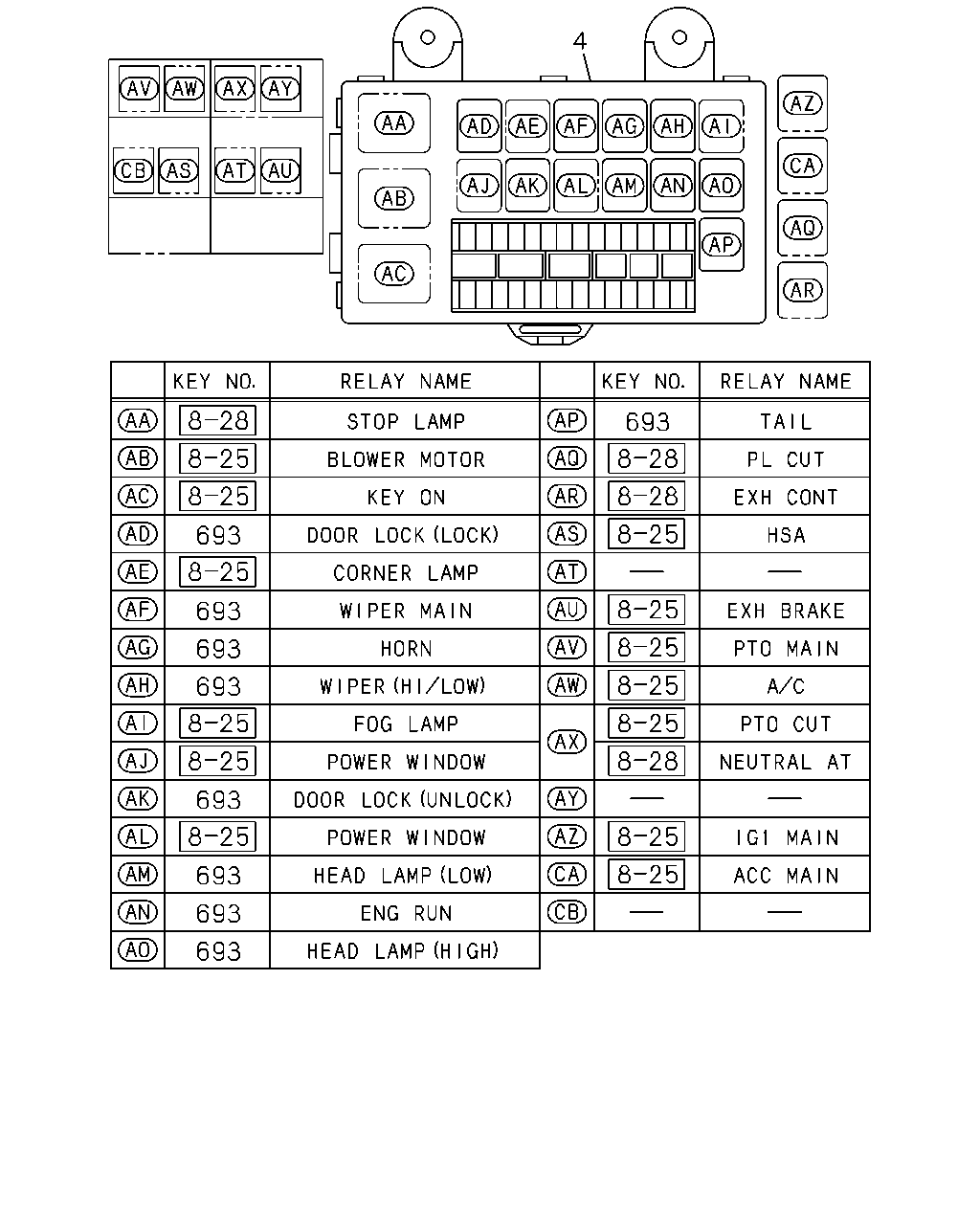

4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1511-	●	●
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1511-	●	●
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1511-	●	●
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1511-	●	●
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	AR	1	1511-	●	●
28	SCREW; FUSE BOX M6X16 FLANGE	0-28650-616-0	01	1	1511-	●	●
29	COVER; FUSE BOX	8-98056-968-0	01	1	1511-	●	●
41	PULLER; FUSE	8-98054-260-0	01	1	1511-	●	●
261	COVER; CONNECTOR BOX	8-98065-986-1	01	1	1511-	●	●
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1511-	●	●
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	1511-	●	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1511-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1511-	●	●
668	BRACKET; HARNESS (D) L=55	1-47475-304-0	01	1	1511-	●	●
668	BRACKET; HARNESS (E)	1-47479-674-0	01	1	1511-	●	●
668	BRACKET; HARNESS (G)	1-82698-167-0	01	1	1511-	●	●
668	BRACKET; HARNESS (F)	8-97609-110-1	01	1	1511-	●	●
668	BRACKET; HARNESS (H)	8-97619-097-1	01	1	1511-	●	●
668	BRACKET; HARNESS (I)	8-97620-519-0	01	1	1511-	●	●
668	BRACKET; HARNESS (J)	8-98047-730-0	02	1	1511-	●	●
668	BRACKET; HARNESS (A)	8-98095-653-2	01	1	1511-	●	●
668	BRACKET; HARNESS (K)	8-98107-610-1	01	1	1511-	●	●
668	BRACKET; HARNESS (L)	8-98107-611-0	01	1	1511-	●	●
668	BRACKET; HARNESS (N)	8-98212-082-1	01	1	1511-	●	●
668	BRACKET; HARNESS (M)	8-98254-592-0	01	1	1511-	●	●
668	BRACKET; HARNESS ALLISON MD3060P A/T(Y4G) (B)	8-98032-360-0	01	1	1511-	●	●
668	BRACKET; HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) L=95	1-82699-085-0	04	1	1511-	●	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1511-	●	●
694	BOX ASM; CONNECTOR	8-98057-771-0	01	1	1511-	●	●

4 693 693 693 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1511-	●	●
	693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1511-	●	●

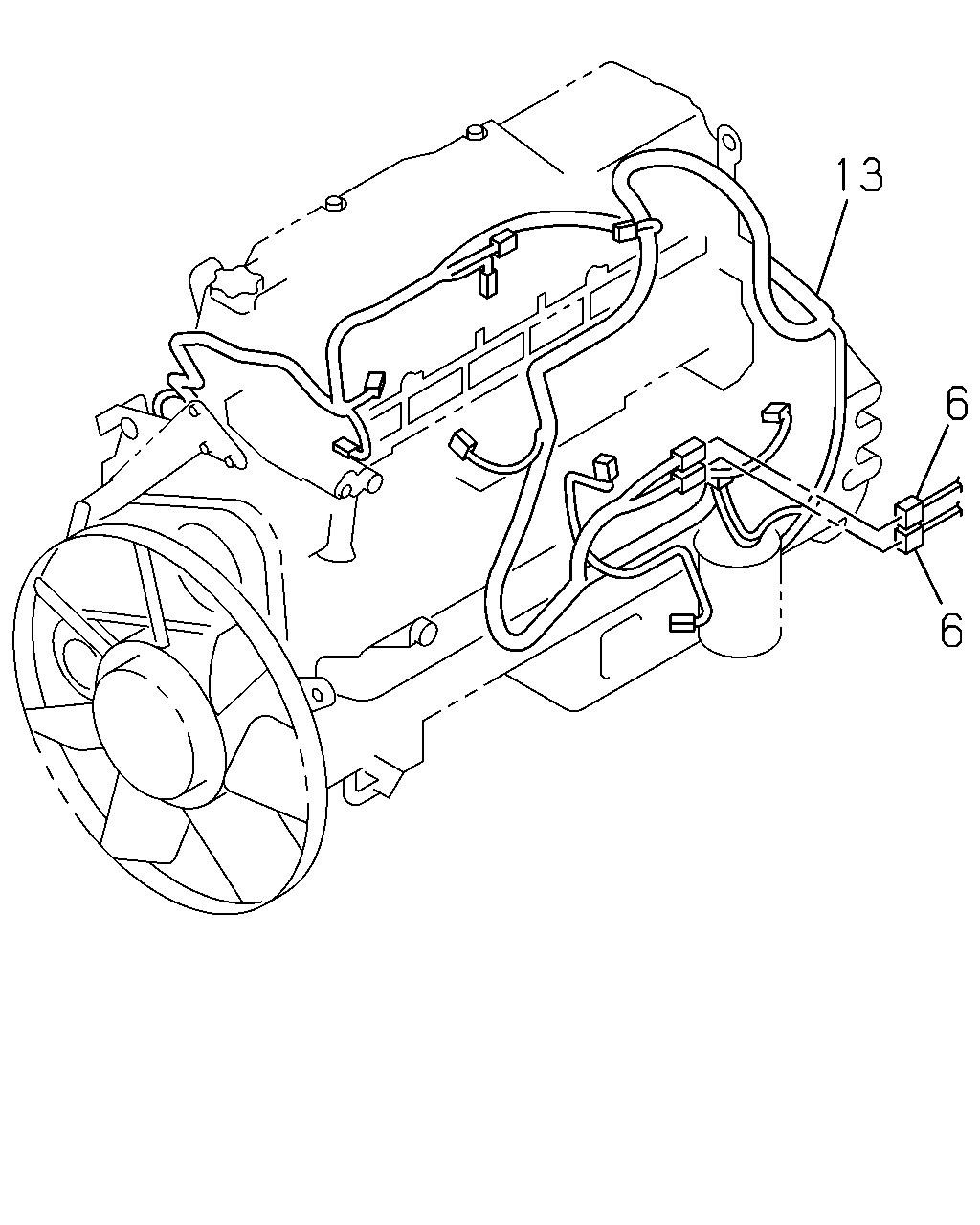

13 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-147-2	01	1	1511-	●
6	HARNESS; FRAME ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-147-2	01	1	1511-		●
6	HARNESS; FRAME ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL<6MZ> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-148-2	01	1	1511-	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) CATALYSIS CONTROL<6MZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-136-0	01	1	1511-	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD<8JM>	8-98305-145-2	01	1	1511-	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD<8JM>	8-98305-135-0	01	1	1511-		●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) CATALYSIS CONTROL<6MZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-146-2	01	1	1511-		●
13	HARNESS; ENG 6HK1-TCC ENG(81L) ALLISON MD3060P A/T(Y4G) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) GENERATOR 24V50A(K89) A/T<X9D> CATALYSIS CONTROL<6MZ> EXC. 15" CLUTCH(RE9),TRANSMISSION CONTROL-SMOOTHERDELETE(8GJ)	8-98328-522-0	01	1	1511-	●	●
13	HARNESS; ENG 6HK1-TCC ENG(81L) ALLISON MD3060P A/T(Y4G) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) A/T<X9D> CATALYSIS CONTROL<6MZ> EXC. 15" CLUTCH(RE9),TRANSMISSION CONTROL-SMOOTHERDELETE(8GJ)	8-98328-523-0	01	1	1511-	●	●
13	HARNESS; ENG 6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) GENERATOR 24V50A(K89) 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> CATALYSIS CONTROL<6MZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98328-516-0	01	1	1511-	●	●
13	HARNESS; ENG 6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) 15" CLUTCH(RE9) MANUAL TRANSMISSION<X9C> CATALYSIS CONTROL<6MZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98328-517-0	01	1	1511-	●	●
13	HARNESS; ENG 6HK1-TCS ENG(80L) ALLISON MD3060P A/T(Y4G) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) CATALYSIS CONTROL WITH DPD<8JM>	8-98177-216-1	01	1	1511-	●	●
13	HARNESS; ENG 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) GENERATOR 24V50A(K89) CATALYSIS CONTROL WITH DPD<8JM>	8-98177-208-1	01	1	1511-	●	●
13	HARNESS; ENG 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) CATALYSIS CONTROL WITH DPD<8JM>	8-98177-209-1	01	1	1511-	●	●
13	HARNESS; ENG 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) CATALYSIS CONTROL WITH DPD<8JM>	8-98177-215-1	01	1	1511-	●	●

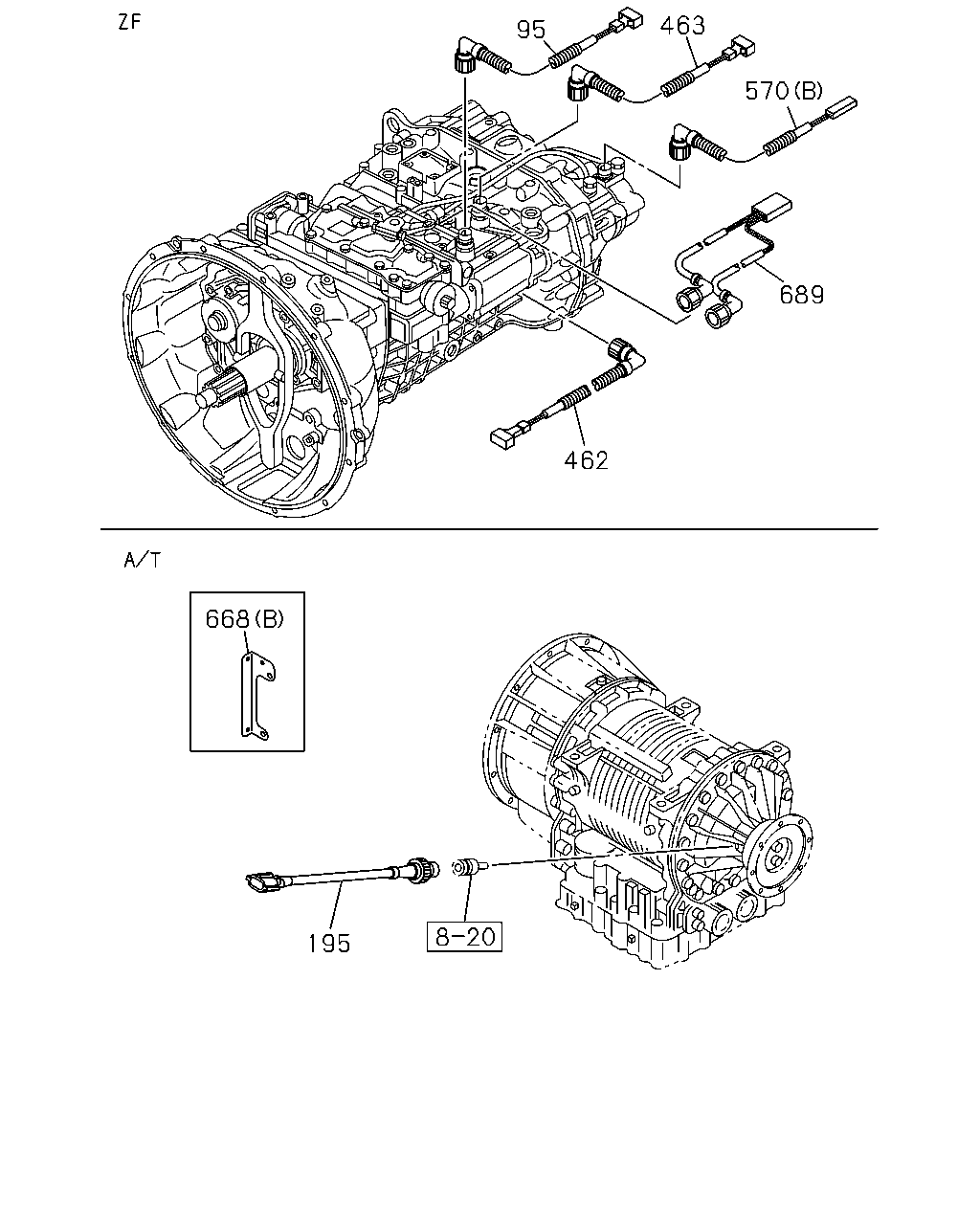

95 463 689 462 195 668 570

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
95	HARNESS; NEUTRAL SW ZF9S1110 M/T(Y5E) RED	8-98145-854-0	01	1	1511-	●	●
195	HARNESS; EXT ALLISON MD3060P A/T(Y4G)	1-82671-045-1	01	1	1511-	●	●
462	HARNESS; SW,RANGE ZF9S1110 M/T(Y5E) BLUE	8-98145-857-0	01	1	1511-	●	●
463	HARNESS; SW,BACK UP ZF9S1110 M/T(Y5E) BLACK	8-98145-856-0	01	1	1511-	●	●
570	HARNESS; SPEED SENSOR ALLISON MD3060P A/T(Y4G) (A)	8-98305-915-0	01	1	1511-	●	●
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) (B)	8-98148-602-0	01	1	1511-	●	●
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) (A)	8-98172-313-0	01	1	1511-	●	●
668	BRACKET; HARNESS (D) L=55	1-47475-304-0	01	1	1511-	●	●
668	BRACKET; HARNESS (E)	1-47479-674-0	01	1	1511-	●	●
668	BRACKET; HARNESS (G)	1-82698-167-0	01	1	1511-	●	●
668	BRACKET; HARNESS (F)	8-97609-110-1	01	1	1511-	●	●
668	BRACKET; HARNESS (H)	8-97619-097-1	01	1	1511-	●	●
668	BRACKET; HARNESS (I)	8-97620-519-0	01	1	1511-	●	●
668	BRACKET; HARNESS (J)	8-98047-730-0	02	1	1511-	●	●
668	BRACKET; HARNESS (A)	8-98095-653-2	01	1	1511-	●	●
668	BRACKET; HARNESS (K)	8-98107-610-1	01	1	1511-	●	●
668	BRACKET; HARNESS (L)	8-98107-611-0	01	1	1511-	●	●
668	BRACKET; HARNESS (N)	8-98212-082-1	01	1	1511-	●	●
668	BRACKET; HARNESS (M)	8-98254-592-0	01	1	1511-	●	●
668	BRACKET; HARNESS ALLISON MD3060P A/T(Y4G) (B)	8-98032-360-0	01	1	1511-	●	●
668	BRACKET; HARNESS WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) L=95	1-82699-085-0	04	1	1511-	●	●
689	HARNESS; PRESSURE & ECU SWITCH ZF9S1110 M/T(Y5E)	8-98148-603-0	01	1	1511-	●	●

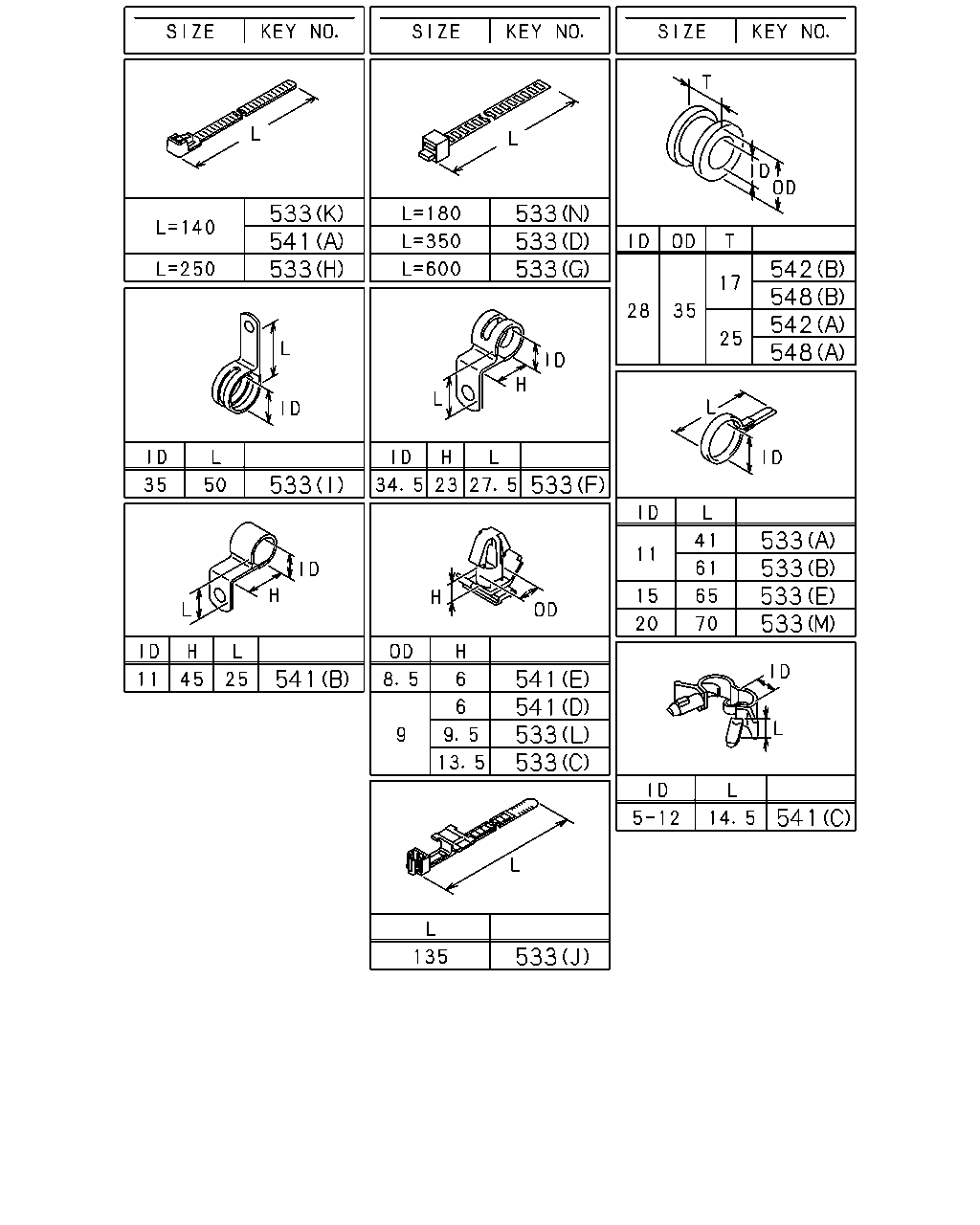

533 533 541 533 541 533 533 533 533 533 541 541 533 533 542 548 542 548 533 533 533 533 541

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
533	CLIP (A) ID=11 L=41	1-09700-403-0	04	1	1511-	●
533	CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) ID=11 L=41	1-09700-403-0	04	1	1511-		●
533	CLIP WHEEL BASE 4200MM(42W) (E) ID=15 L=65	1-09700-466-0	08	1	1511-	●
533	CLIP WHEEL BASE 4200MM(42W) (B) ID=11 L=61	1-09700-484-0	02	1	1511-	●
533	CLIP WHEEL BASE 5500MM(55W) (E) ID=15 L=65	1-09700-466-0	09	1	1511-	●
533	CLIP WHEEL BASE 6500MM(65W) (E) ID=15 L=65	1-09700-466-0	09	1	1511-		●
533	CLIP WHEEL BASE 5500MM(55W) (M) ID=20 L=70	1-09700-485-0	14	1	1511-	●
533	CLIP WHEEL BASE 6500MM(65W) (E) ID=15 L=65	1-09700-466-0	11	1	1511-	●
533	CLIP WHEEL BASE 6500MM(65W) (M) ID=20 L=70	1-09700-485-0	17	1	1511-	●
533	CLIP (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1511-	●	●
533	CLIP (F) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1511-	●	●
533	CLIP (I) ID=35 L=50	1-09701-214-0	01	1	1511-	●	●
533	CLIP (G) L=600	1-09707-107-1	01	1	1511-	●	●
533	CLIP (G) L=600	1-09707-107-1	01	1	1511-	●	●
533	CLIP (D) L=350	1-09707-183-0	01	1	1511-	●	●
533	CLIP (H) L=250	5-09707-030-1	02	1	1511-	●	●
533	CLIP (H) L=250	5-09707-030-1	02	1	1511-	●	●
533	CLIP (H) L=250	5-09707-030-1	02	1	1511-	●	●
533	CLIP (H) L=250	5-09707-030-1	02	1	1511-	●	●
533	CLIP (H) L=250	5-09707-030-1	01	1	1511-	●	●
533	CLIP EXC. COUNTRY NEW ZEALAND(CX6) (H) L=250	5-09707-030-1	01	1	1511-	●	●
533	CLIP EXC. CATALYSIS CONTROL<6MZ> (H) L=250	5-09707-030-1	01	1	1511-	●	●
533	CLIP (H) L=250	5-09707-030-1	03	1	1511-	●	●
533	CLIP (K) L=140	5-09707-031-1	01	1	1511-	●	●
533	CLIP (E) ID=15 L=65	1-09700-466-0	02	1	1511-	●	●
533	CLIP EXC. CATALYSIS CONTROL<6MZ> (J) L=135	1-09987-143-1	02	1	1511-	●	●
533	CLIP EXC. COUNTRY NEW ZEALAND(CX6) (N) L=180	1-09707-162-1	01	1	1511-	●	●
533	CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (N) L=180	1-09707-162-1	01	1	1511-	●	●
533	CLIP WHEEL BASE 4200MM(42W) (M) ID=20 L=70	1-09700-485-0	06	1	1511-	●	●
533	CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) (L) OD=9 H=9.5	1-09709-179-0	01	1	1511-	●	●
533	CLIP WHEEL BASE 5500MM(55W) (B) ID=11 L=61	1-09700-484-0	04	1	1511-	●	●
533	CLIP WHEEL BASE 6500MM(65W) (B) ID=11 L=61	1-09700-484-0	03	1	1511-	●	●
533	CLIP WHEEL BASE 6500MM(65W) (C) OD=9 H=13.5	1-09709-180-0	01	1	1511-	●	●
533	CLIP WHEEL BASE 4200MM(42W) (A) ID=11 L=41	1-09700-403-0	01	1	1511-		●
533	CLIP WHEEL BASE 4200MM(42W) (E) ID=15 L=65	1-09700-466-0	05	1	1511-		●
533	CLIP WHEEL BASE 5500MM(55W) (E) ID=15 L=65	1-09700-466-0	07	1	1511-		●
533	CLIP WHEEL BASE 5500MM(55W) (M) ID=20 L=70	1-09700-485-0	15	1	1511-		●
533	CLIP WHEEL BASE 6500MM(65W) (M) ID=20 L=70	1-09700-485-0	18	1	1511-		●
541	CLIP (B) ID=11 H=45 L=25	1-09700-866-0	01	1	1511-	●	●
541	CLIP (C) ID=5-12 L=14.5	1-09987-221-0	02	1	1511-	●	●
541	CLIP (A) L=140	5-09707-031-1	01	1	1511-	●	●
541	CLIP (D) OD=9 H=6	8-97368-793-0	02	1	1511-	●	●
541	CLIP ALLISON MD3060P A/T(Y4G) (E) OD=9 H=6	1-09709-178-0	01	1	1511-	●	●
542	GROMMET; HARNESS (B) ID=28 OD=35 T=17	9-09956-256-2	01	1	1511-	●	●
542	GROMMET; HARNESS (B) ID=28 OD=35 T=17	9-09956-256-2	02	1	1511-	●	●
542	GROMMET; HARNESS EXC. CATALYSIS CONTROL<6MZ> (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1511-	●	●
548	GROMMET (A) ID=28 OD=35 T=25	1-09332-011-1	01	1	1511-	●	●
548	GROMMET (B) ID=28 OD=35 T=17	9-09956-256-2	01	1	1511-	●	●

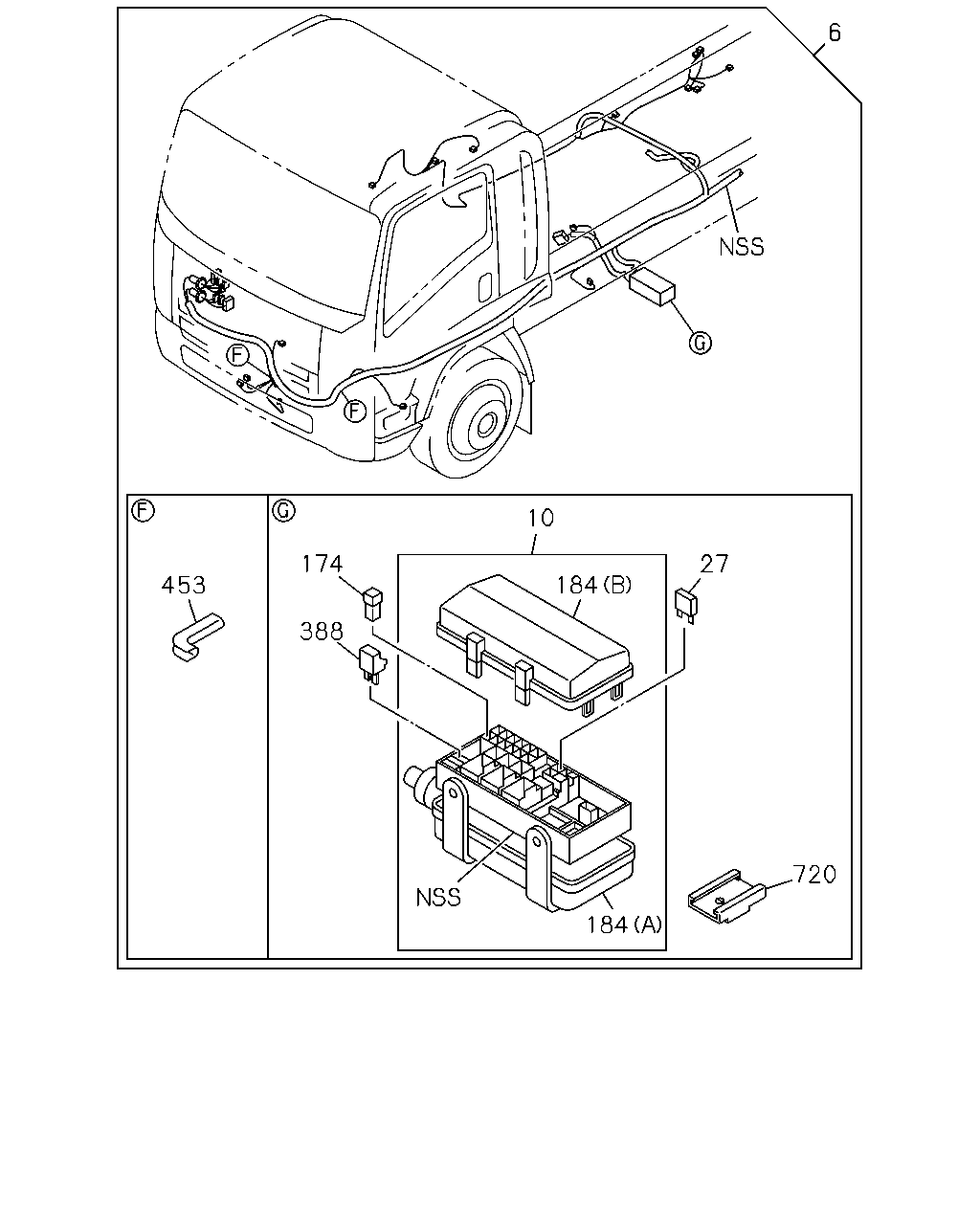

6 10 453 174 388 184 27 184 720

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-147-2	01	1	1511-	●
6	HARNESS; FRAME ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-147-2	01	1	1511-		●
6	HARNESS; FRAME ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL<6MZ> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-148-2	01	1	1511-	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) CATALYSIS CONTROL<6MZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-136-0	01	1	1511-	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD<8JM>	8-98305-145-2	01	1	1511-	●	●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) CATALYSIS CONTROL WITH DPD<8JM>	8-98305-135-0	01	1	1511-		●
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) CATALYSIS CONTROL<6MZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-146-2	01	1	1511-		●
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	1511-	●	●
27	FUSE UNIT 10A RED	8-98054-257-0	01	1	1511-	●	●
27	FUSE UNIT 15A BLUE	8-98054-258-0	02	1	1511-	●	●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	01	1	1511-	●	●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	02	1	1511-	●	●
174	FUSE; SLOW BLOW 30A PINK	8-98079-191-0	01	1	1511-	●	●
174	FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	01	1	1511-	●	●
174	FUSE; SLOW BLOW 50A RED	8-98079-193-0	03	1	1511-	●	●
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	1511-	●	●
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-1	01	1	1511-	●	●
388	DIODE; RELAY BOX BLACK 4P-1.5A	8-94381-730-0	01	1	1511-	●	●
388	DIODE; RELAY BOX BLACK 2P-1.5A	8-94422-639-1	02	1	1511-	●	●
453	PROTECTOR; HARNESS	1-82699-709-0	01	1	1511-	●	●
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	1511-	●	●

535 267 267 267 639 535 534 639 267 639 290 290 293 295 525 640 534 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
267	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
267	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
267	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1511-	●	●
267	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	01	1	1511-	●	●
267	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	02	1	1511-	●	●
267	BOLT; BRKT (D) M10X25 FLANGE	0-28651-025-0	02	1	1511-	●	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1511-	●	●
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
290	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8 FLANGE	0-91180-108-0	04	1	1511-	●	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	1511-	●	●
293	NUT M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
295	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
534	BOLT (A) M8X30 FLANGE	0-28650-830-0	01	1	1511-	●	●
534	BOLT (C) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1511-	●	●
534	BOLT (B) M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1511-	●	●
535	BOLT; BRKT FIX (A) M10X35 FLANGE	0-28651-035-0	01	1	1511-	●	●
535	BOLT; BRKT FIX WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M8X30 FLANGE	0-28650-830-0	04	1	1511-	●	●
639	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
639	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
639	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1511-	●	●
639	BOLT; CLIP (C) M8X30 FLANGE	0-28650-830-0	01	1	1511-	●	●
640	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1511-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
