◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11717 - FVR AUST/NZ EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#169780) — 298 parça

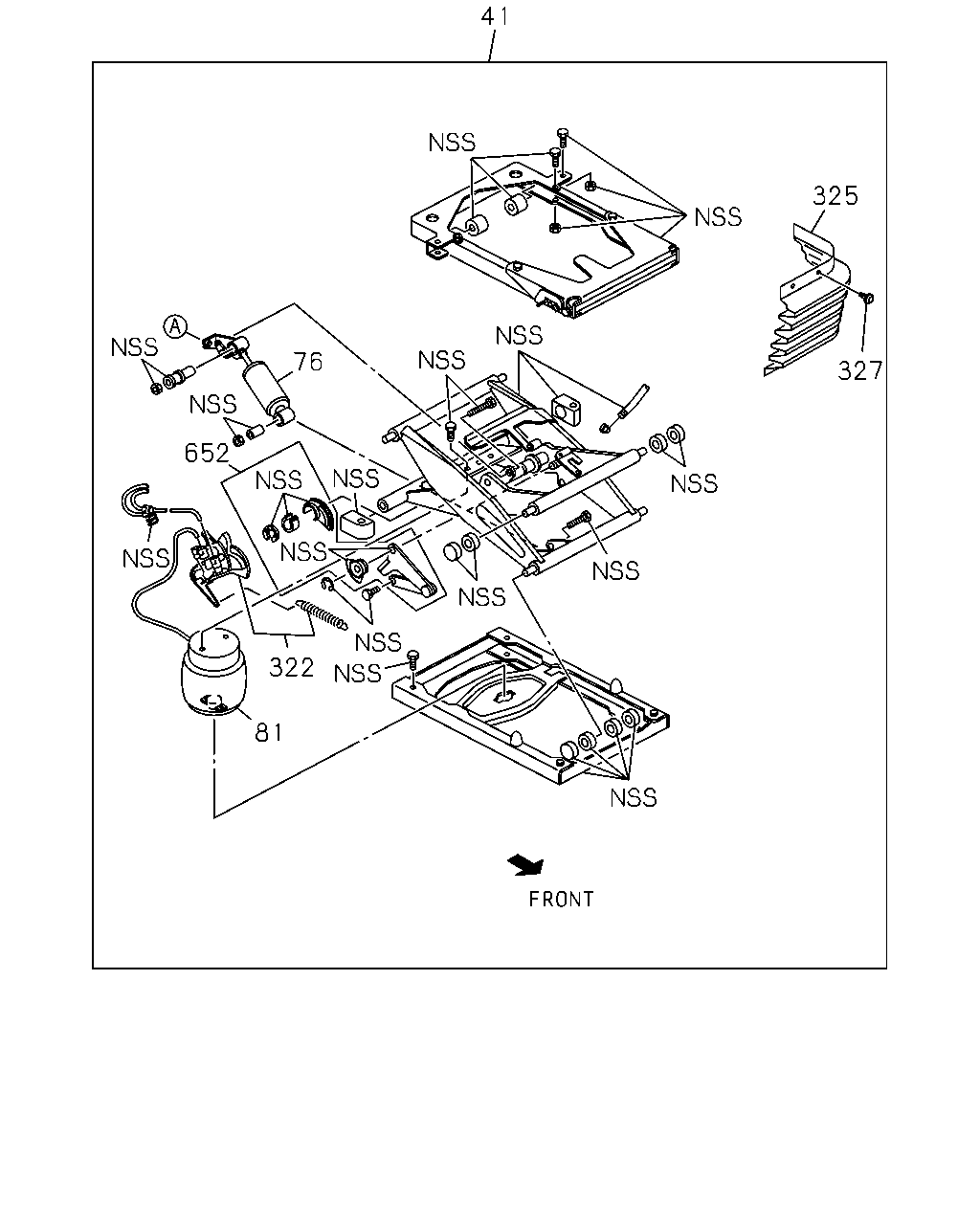

çizim 501389
41 327 325 81 322 652 76
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER 8-98195-063-1 01 1 1511- ● ●
76 DAMPER; AIR SUSP 8-98097-999-0 01 1 1511- ● ●
76 DAMPER; AIR SUSP
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98097-999-0 01 1 1511- ●
81 SPRING; AIR 8-98098-000-0 01 1 1511- ● ●
81 SPRING; AIR
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-000-0 01 1 1511- ●
322 VALVE; AIR SPRING 8-98331-314-0 01 1 1511- ● ●
322 VALVE; AIR SPRING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98331-314-0 01 1 1511- ●
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 1511- ● ●
325 COVER; SUSPENSION DEVICE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-003-0 01 1 1511- ●
327 CLIP; COVER 8-98098-004-0 01 1 1511- ● ●
327 CLIP; COVER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-004-0 01 1 1511- ●
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 1511- ● ●
652 LOCK ASM; HEIGHT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-002-0 01 1 1511- ●

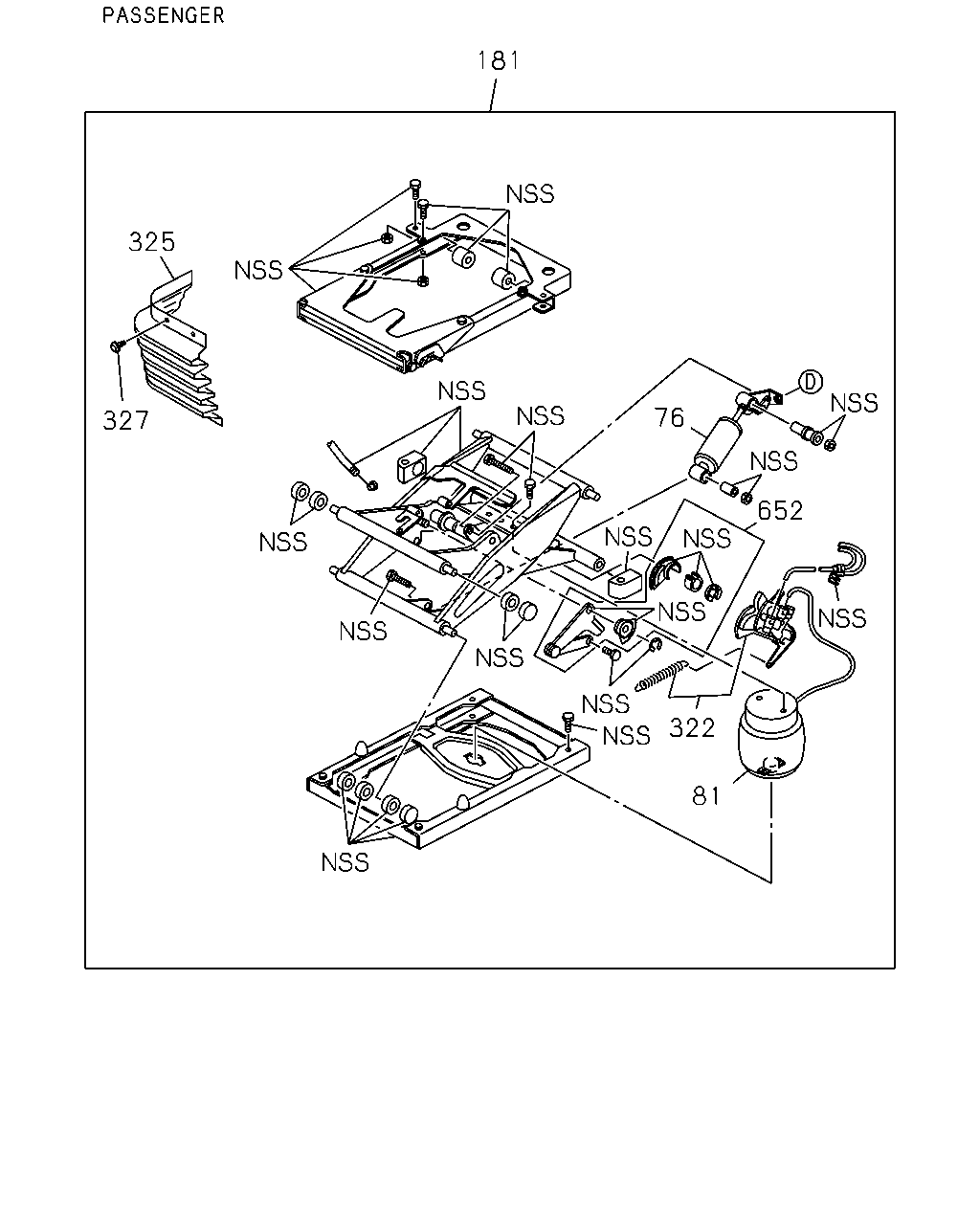

çizim 501849
181 325 327 322 81 652 76
BalonParca AdiParca NoAdetTipApplied Date A B
76 DAMPER; AIR SUSP 8-98097-999-0 01 1 1511- ● ●
76 DAMPER; AIR SUSP
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98097-999-0 01 1 1511- ●
81 SPRING; AIR 8-98098-000-0 01 1 1511- ● ●
81 SPRING; AIR
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-000-0 01 1 1511- ●
181 SEAT ASM; PASSENGER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98195-064-1 01 1 1511- ●
322 VALVE; AIR SPRING 8-98331-314-0 01 1 1511- ● ●
322 VALVE; AIR SPRING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98331-314-0 01 1 1511- ●
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 1511- ● ●
325 COVER; SUSPENSION DEVICE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-003-0 01 1 1511- ●
327 CLIP; COVER 8-98098-004-0 01 1 1511- ● ●
327 CLIP; COVER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-004-0 01 1 1511- ●
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 1511- ● ●
652 LOCK ASM; HEIGHT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-002-0 01 1 1511- ●

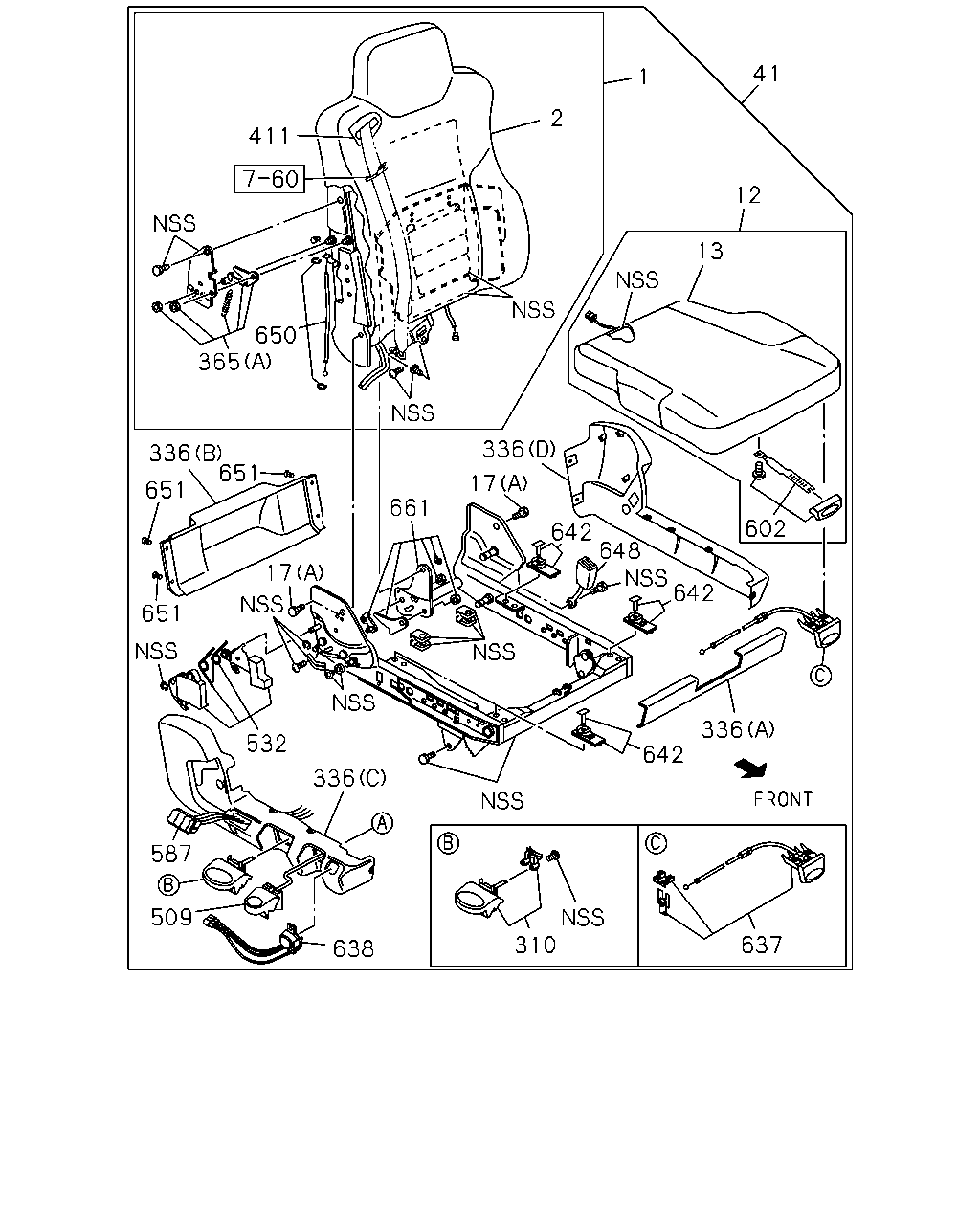

çizim 503012
41 1 2 411 13 12 650 365 336 17 661 651 336 651 651 17 642 648 642 602 336 642 336 532 587 509 638 310 637
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
DRIVER 		8-98097-964-0 01 1 1511- ● ●
1 BACK ASM; SEAT
AIR BAG DRIVER & PASSENGER(AK5) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> PASSENGER 		8-98097-962-0 01 1 1511- ●
1 BACK ASM; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) PASSENGER 		8-98097-961-0 01 1 1511- ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER 		8-98232-353-0 01 1 1511- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> PASSENGER 		8-98232-352-0 01 1 1511- ●
12 CUSHION; SEAT,FRT 8-98098-006-0 01 1 1511- ● ●
12 CUSHION; SEAT,FRT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-006-0 01 1 1511- ●
13 COVER; TRIM,FRT SEAT,CUSHION 8-98098-007-0 01 1 1511- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-007-0 01 1 1511- ●
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 1511- ● ●
17 BOLT; RECLINING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98097-974-0 02 1 1511- ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> (B) M8X20 		8-98092-334-0 02 1 1511- ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1511- ●
41 SEAT ASM; DRIVER 8-98195-063-1 01 1 1511- ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DRIVER 		8-98097-992-0 01 1 1511- ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> PASSENGER 		8-98097-991-0 01 1 1511- ●
336 COVER; DRIVER SEAT
(C) 		8-98097-984-0 01 1 1511- ● ●
336 COVER; DRIVER SEAT
(A) 		8-98097-995-0 01 1 1511- ● ●
336 COVER; DRIVER SEAT
(B) 		8-98097-996-0 01 1 1511- ● ●
336 COVER; DRIVER SEAT
(D) 		8-98331-313-0 01 1 1511- ● ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 1511- ● ●
365 LOCK ASM; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98097-972-0 01 1 1511- ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1511- ● ●
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 1511- ● ●
411 GUIDE; SEAT BELT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98097-967-0 01 1 1511- ●
509 LEVER; DAMPER
DRIVER 		8-98097-988-0 01 1 1511- ● ●
509 LEVER; DAMPER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> PASSENGER 		8-98097-987-0 01 1 1511- ●
532 LEVER ASM; TILT
DRIVER 		8-98097-982-0 01 1 1511- ● ●
532 LEVER ASM; TILT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> PASSENGER 		8-98097-981-0 01 1 1511- ●
587 VALVE; LUMBAR SUPPORT
DRIVER 		8-98097-986-0 01 1 1511- ● ●
587 VALVE; LUMBAR SUPPORT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> PASSENGER 		8-98097-985-0 01 1 1511- ●
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 1511- ● ●
602 KNOB; ADJ,SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-008-0 01 1 1511- ●
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 1511- ● ●
637 LEVER; SLOPE ADJ
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98097-989-0 01 1 1511- ●
638 VALVE; LOWERING
DRIVER 		8-98097-994-0 01 1 1511- ● ●
638 VALVE; LOWERING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> PASSENGER 		8-98097-993-0 01 1 1511- ●
642 SLIDER; CUSHION 8-98192-932-0 04 1 1511- ● ●
642 SLIDER; CUSHION
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98192-932-0 04 1 1511- ●
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 1511- ● ●
648 BUCKLE; SEAT BELT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98097-976-0 01 1 1511- ●
650 CABLE 8-98232-354-0 01 1 1511- ● ●
650 CABLE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98232-354-0 01 1 1511- ●
651 RIVET 8-98194-075-0 04 1 1511- ● ●
651 RIVET
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98194-075-0 04 1 1511- ●
661 LOCK ASM; RECLINING
DRIVER 		8-98097-980-0 01 1 1511- ● ●
661 LOCK ASM; RECLINING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> PASSENGER 		8-98097-979-0 01 1 1511- ●

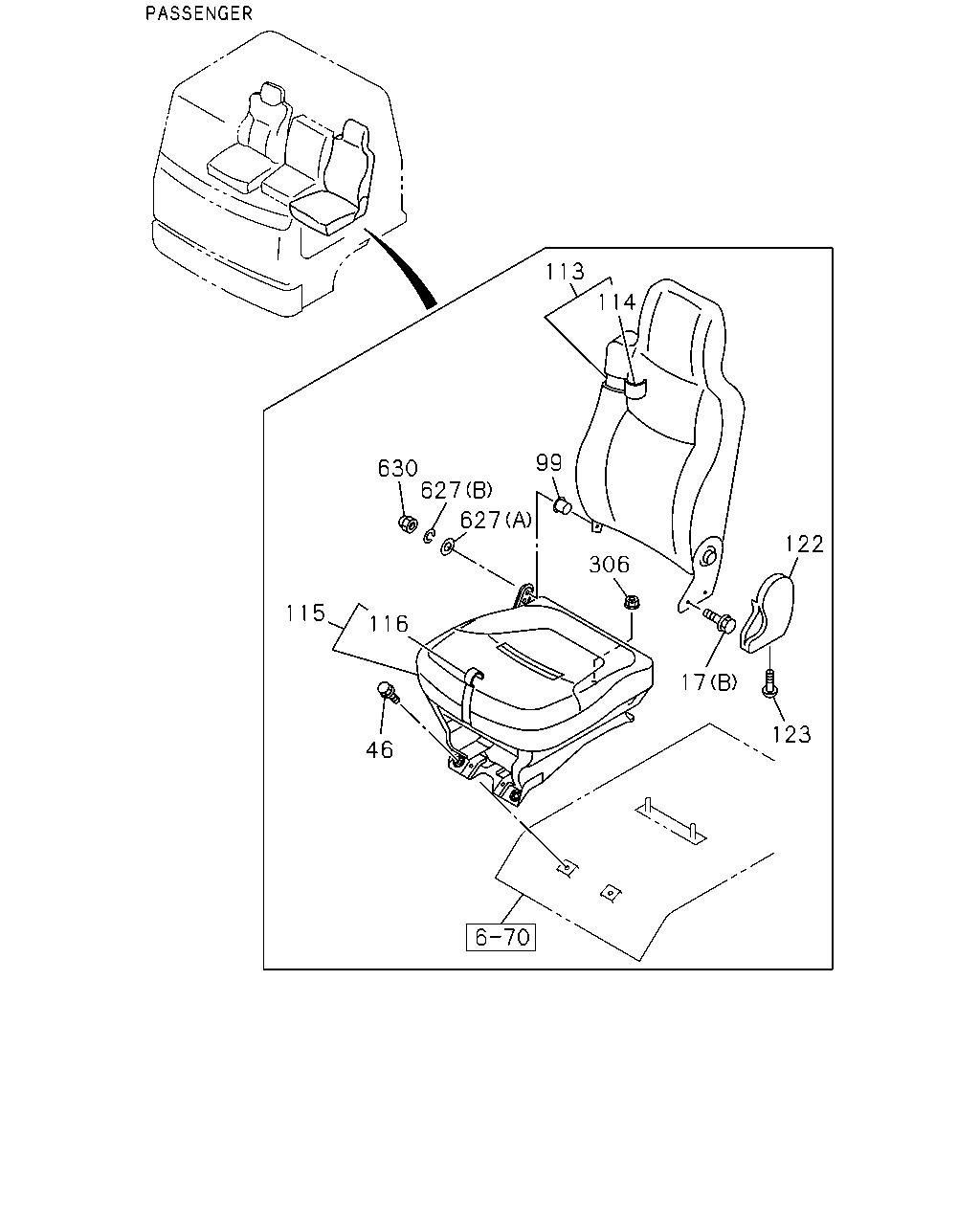

çizim 503099
113 99 114 627 630 627 115 116 46 306 17 122 123
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 1511- ● ●
17 BOLT; RECLINING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98097-974-0 02 1 1511- ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> (B) M8X20 		8-98092-334-0 02 1 1511- ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1511- ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1511- ● ●
99 BUSHING; SEAT BACK
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98112-751-0 01 1 1511- ●
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1511- ●
113 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> DARK GRAY 		8-97421-422-0 01 1 1511- ●
113 BACK ASM; SEAT
DARK GRAY 		8-97421-422-0 01 1 1511- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DRIVER ISRINGHAUSEN SEAT<SJA> DARK GRAY 		8-97421-424-0 01 1 1511- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97421-424-0 01 1 1511- ●
115 CUSHION ASM; PASSENGER SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> DARK GRAY 		8-97421-418-1 01 1 1511- ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-418-1 01 1 1511- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT<SJA> DARK GRAY 		8-97421-420-0 01 1 1511- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97421-420-0 01 1 1511- ●
122 COVER; ADJ,RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> GRAY 		8-97409-967-0 01 1 1511- ●
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 1511- ●
123 SCREW; COVER,RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98070-026-0 01 1 1511- ●
123 SCREW; COVER,RECLINING 8-98070-026-0 01 1 1511- ●
306 NUT; SEAT ADJ
M10 FLANGE 		0-91180-110-0 02 1 1511- ● ●
627 WASHER; FRT SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) 		8-98063-223-0 01 1 1511- ●
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1511- ●
627 WASHER; FRT SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		8-98063-224-0 01 1 1511- ●
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1511- ●
630 NUT; CAP
DRIVER ISRINGHAUSEN SEAT<SJA> M8 		8-98063-225-0 01 1 1511- ●
630 NUT; CAP
M8 		8-98063-225-0 01 1 1511- ●
çizim 503128
506 360 175 188 16 126 359 403 179 182 188 403 176
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1511- ● ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		8-97854-900-0 01 1 1511- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-434-1 01 1 1511- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-435-1 01 1 1511- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-432-1 01 1 1511- ● ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-430-3 01 1 1511- ● ●
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1511- ● ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1511- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1511- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1511- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1511- ● ●
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE 		0-91180-108-0 04 1 1511- ● ●
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 1511- ● ●

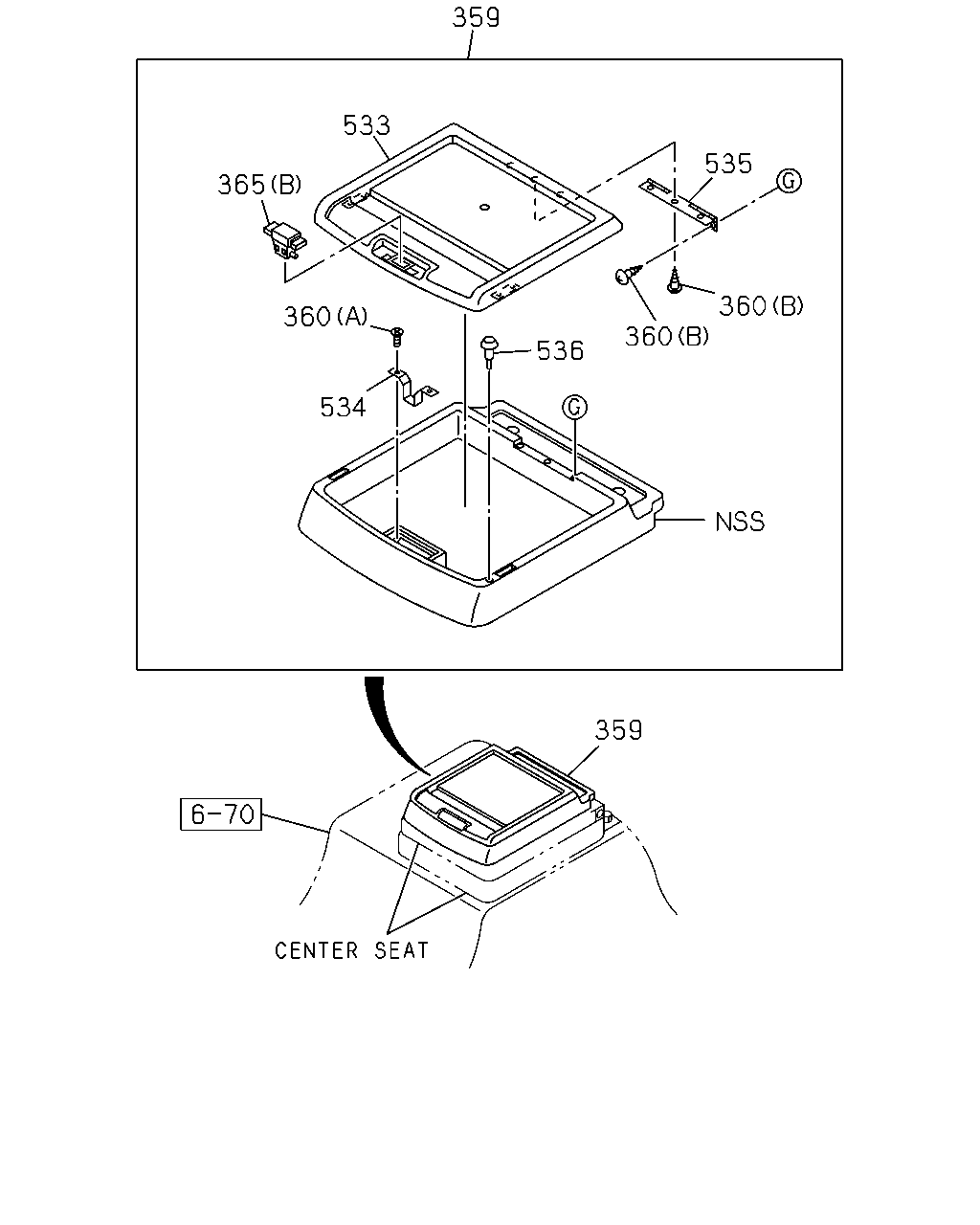

çizim 503190
359 533 365 365 534 536 360 360 535 359
BalonParca AdiParca NoAdetTipApplied Date A B
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1511- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1511- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1511- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1511- ● ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 1511- ● ●
365 LOCK ASM; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98097-972-0 01 1 1511- ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1511- ● ●
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1511- ● ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-190-0 01 1 1511- ● ●
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1511- ● ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-187-0 02 1 1511- ● ●

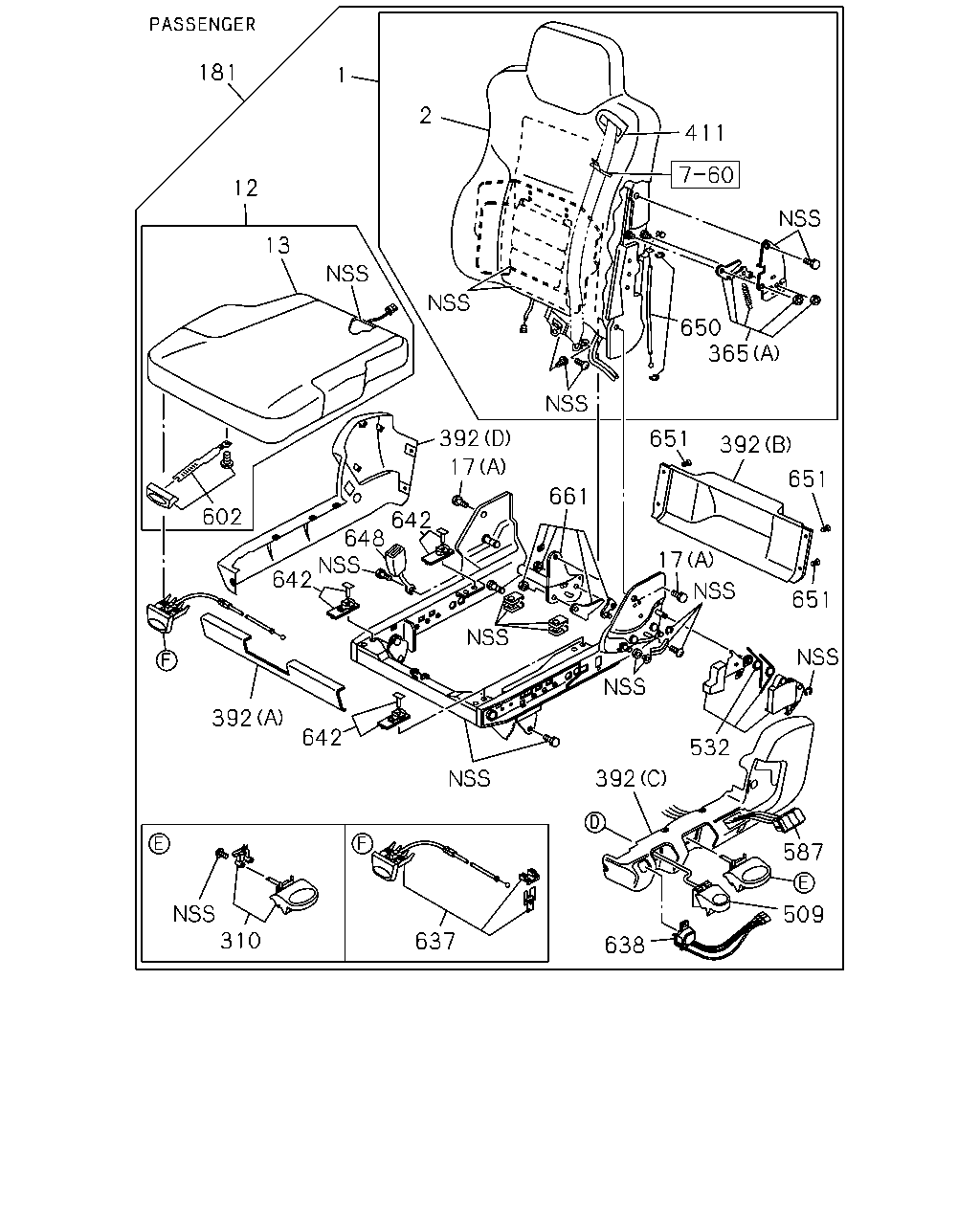

çizim 503252
181 1 2 12 13 602 310 637 411 650 651 651 392 651 638 392 509 587 532 17 642 392 642 642 648 661 392 365 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
DRIVER 		8-98097-964-0 01 1 1511- ● ●
1 BACK ASM; SEAT
AIR BAG DRIVER & PASSENGER(AK5) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> PASSENGER 		8-98097-962-0 01 1 1511- ●
1 BACK ASM; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) PASSENGER 		8-98097-961-0 01 1 1511- ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER 		8-98232-353-0 01 1 1511- ● ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> PASSENGER 		8-98232-352-0 01 1 1511- ●
12 CUSHION; SEAT,FRT 8-98098-006-0 01 1 1511- ● ●
12 CUSHION; SEAT,FRT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-006-0 01 1 1511- ●
13 COVER; TRIM,FRT SEAT,CUSHION 8-98098-007-0 01 1 1511- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-007-0 01 1 1511- ●
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 1511- ● ●
17 BOLT; RECLINING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98097-974-0 02 1 1511- ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT<SJA> (B) M8X20 		8-98092-334-0 02 1 1511- ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1511- ●
181 SEAT ASM; PASSENGER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98195-064-1 01 1 1511- ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DRIVER 		8-98097-992-0 01 1 1511- ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> PASSENGER 		8-98097-991-0 01 1 1511- ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 1511- ● ●
365 LOCK ASM; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98097-972-0 01 1 1511- ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1511- ● ●
392 COVER; STAND,PASSENGER SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (C) 		8-98097-983-0 01 1 1511- ●
392 COVER; STAND,PASSENGER SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98097-995-0 01 1 1511- ●
392 COVER; STAND,PASSENGER SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98097-996-0 01 1 1511- ●
392 COVER; STAND,PASSENGER SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (D) 		8-98333-916-0 01 1 1511- ●
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 1511- ● ●
411 GUIDE; SEAT BELT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98097-967-0 01 1 1511- ●
509 LEVER; DAMPER
DRIVER 		8-98097-988-0 01 1 1511- ● ●
509 LEVER; DAMPER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> PASSENGER 		8-98097-987-0 01 1 1511- ●
532 LEVER ASM; TILT
DRIVER 		8-98097-982-0 01 1 1511- ● ●
532 LEVER ASM; TILT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> PASSENGER 		8-98097-981-0 01 1 1511- ●
587 VALVE; LUMBAR SUPPORT
DRIVER 		8-98097-986-0 01 1 1511- ● ●
587 VALVE; LUMBAR SUPPORT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> PASSENGER 		8-98097-985-0 01 1 1511- ●
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 1511- ● ●
602 KNOB; ADJ,SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-008-0 01 1 1511- ●
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 1511- ● ●
637 LEVER; SLOPE ADJ
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98097-989-0 01 1 1511- ●
638 VALVE; LOWERING
DRIVER 		8-98097-994-0 01 1 1511- ● ●
638 VALVE; LOWERING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> PASSENGER 		8-98097-993-0 01 1 1511- ●
642 SLIDER; CUSHION 8-98192-932-0 04 1 1511- ● ●
642 SLIDER; CUSHION
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98192-932-0 04 1 1511- ●
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 1511- ● ●
648 BUCKLE; SEAT BELT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98097-976-0 01 1 1511- ●
650 CABLE 8-98232-354-0 01 1 1511- ● ●
650 CABLE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98232-354-0 01 1 1511- ●
651 RIVET 8-98194-075-0 04 1 1511- ● ●
651 RIVET
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98194-075-0 04 1 1511- ●
661 LOCK ASM; RECLINING
DRIVER 		8-98097-980-0 01 1 1511- ● ●
661 LOCK ASM; RECLINING
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> PASSENGER 		8-98097-979-0 01 1 1511- ●

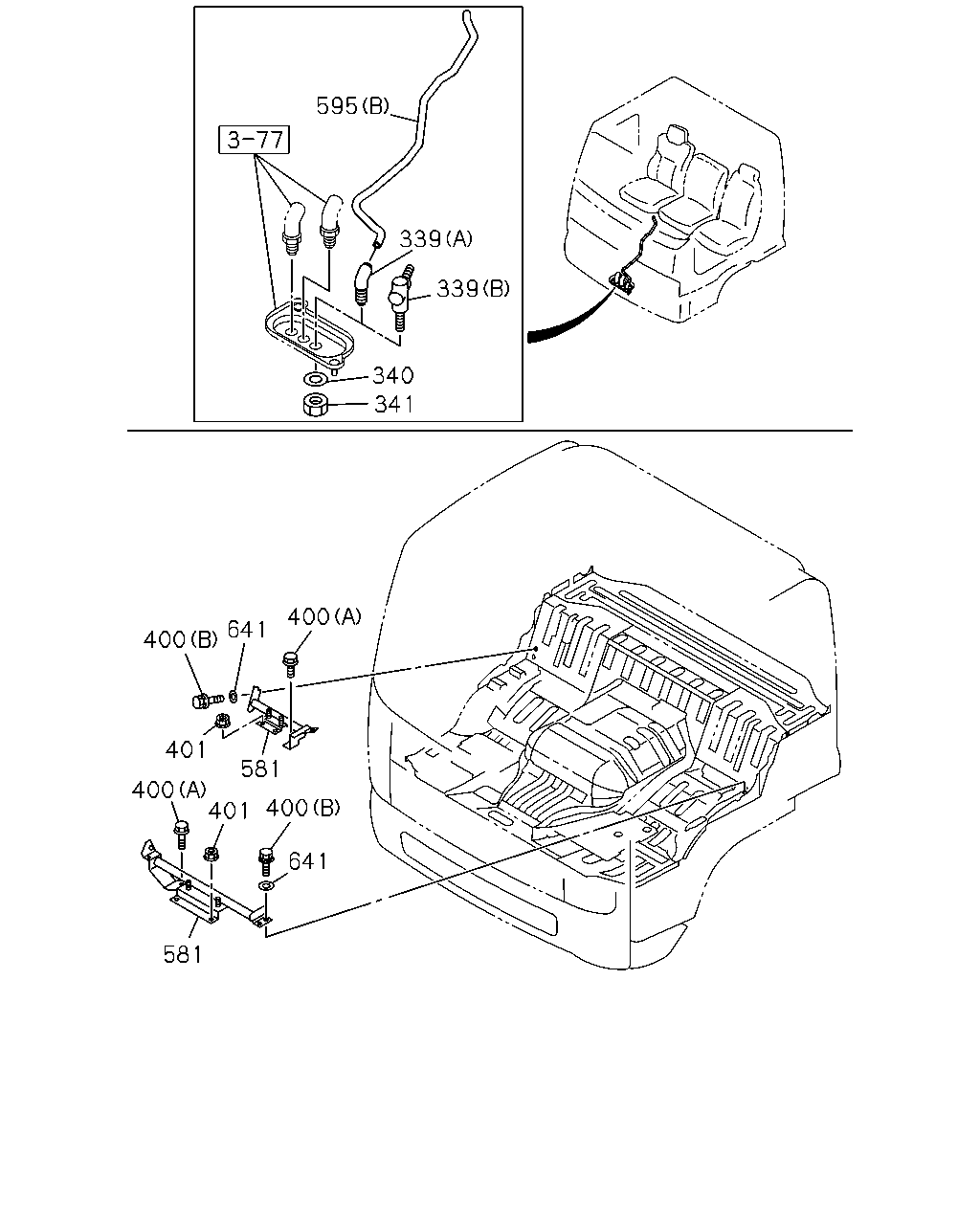

çizim 503254
595 339 339 340 341 400 641 400 401 581 400 401 400 641 581
BalonParca AdiParca NoAdetTipApplied Date A B
339 UNION; DRIVER SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		1-09656-751-0 01 1 1511- ●
339 UNION; DRIVER SEAT
EXC. DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98014-971-0 01 1 1511- ●
339 UNION; DRIVER SEAT
(A) 		8-98014-971-0 01 1 1511- ●
340 WASHER; UNION
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> ID=12.5 		0-91610-712-0 02 1 1511- ●
341 NUT; UNION
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> M12 		9-09840-280-0 01 1 1511- ●
400 BOLT; SUPPORT
DRIVER ISRINGHAUSEN SEAT<SJA> (A) M8X20 FLANGE 		0-28650-820-0 01 1 1511- ●
400 BOLT; SUPPORT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1511- ●
400 BOLT; SUPPORT
DRIVER ISRINGHAUSEN SEAT<SJA> (B) 		8-98098-996-0 02 1 1511- ●
400 BOLT; SUPPORT
(B) 		8-98098-996-0 02 1 1511- ●
400 BOLT; SUPPORT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) M8X20 FLANGE 		0-28650-820-0 02 1 1511- ●
400 BOLT; SUPPORT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> CENTER SEAT DELETE<SP9> (B) 		8-98098-996-0 04 1 1511- ●
401 NUT; SUPPORT
DRIVER ISRINGHAUSEN SEAT<SJA> M10 FLANGE 		0-91180-110-0 02 1 1511- ●
401 NUT; SUPPORT
M10 FLANGE 		0-91180-110-0 02 1 1511- ●
401 NUT; SUPPORT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> M10 FLANGE 		0-91180-110-0 04 1 1511- ●
581 PIPE; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> CENTER SEAT DELETE<SP9> 		8-98228-516-0 01 1 1511- ●
581 PIPE; SEAT 8-97589-693-3 01 1 1511- ● ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 1511- ● ●
595 TUBE; NYLON
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-348-0 01 1 1511- ●
595 TUBE; NYLON
(B) 		8-98041-300-0 01 1 1511- ● ●
641 WASHER; SUPPORT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98099-007-0 02 1 1511- ●
641 WASHER; SUPPORT 8-98099-007-0 02 1 1511- ●
641 WASHER; SUPPORT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> CENTER SEAT DELETE<SP9> 		8-98099-007-0 04 1 1511- ●

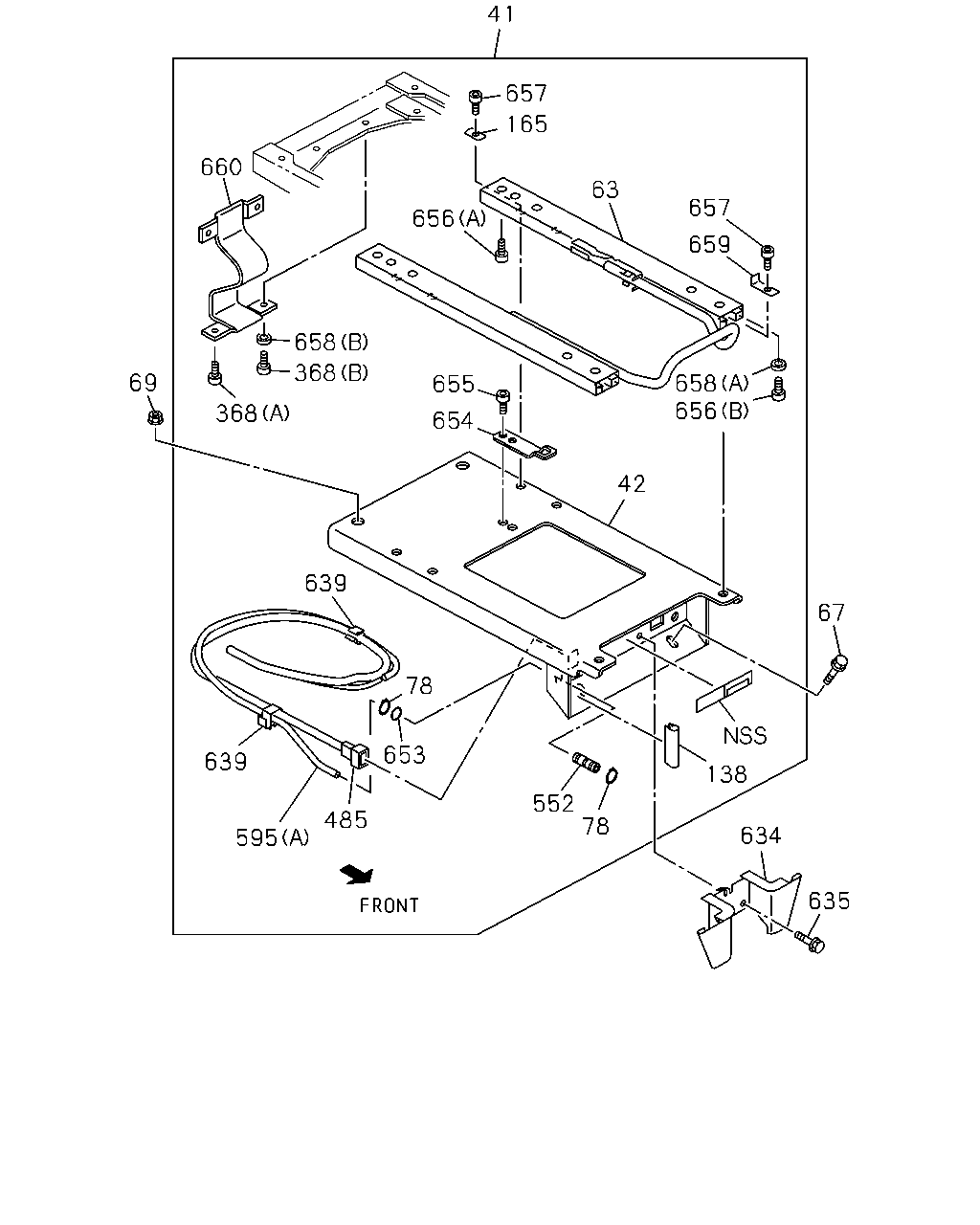

çizim 503430
41 657 165 63 656 660 658 368 368 69 639 78 653 485 595 639 552 78 138 634 635 67 42 656 658 659 657 654 655
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER 8-98195-063-1 01 1 1511- ● ●
42 STAND; DRIVER SEAT 8-98106-346-0 01 1 1511- ● ●
63 ADJUSTER; SEAT SLIDE 8-98098-005-0 01 1 1511- ● ●
63 ADJUSTER; SEAT SLIDE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-005-0 01 1 1511- ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1511- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1511- ● ●
78 RING; SNAP 8-98101-900-0 02 1 1511- ● ●
78 RING; SNAP
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98101-900-0 02 1 1511- ●
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 1511- ● ●
138 PROTECTOR; SEAT STAND
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-351-0 01 1 1511- ●
165 WASHER; PL 1-75590-086-0 04 1 1511- ● ●
165 WASHER; PL
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		1-75590-086-0 04 1 1511- ●
368 BOLT; SEAT
(A) 		8-98106-353-0 03 1 1511- ● ●
368 BOLT; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-353-0 03 1 1511- ●
368 BOLT; SEAT
(B) 		8-98106-358-0 01 1 1511- ● ●
368 BOLT; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98106-358-0 01 1 1511- ●
485 HARNESS; FRT SEAT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98106-360-0 01 1 1511- ●
485 HARNESS; FRT SEAT
AIR BAG DRIVER & PASSENGER(AK5) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-360-0 01 1 1511- ●
485 HARNESS; FRT SEAT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98106-360-0 01 1 1511- ●
485 HARNESS; FRT SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98106-361-0 01 1 1511- ●
552 CONNECTOR 8-98308-101-0 01 1 1511- ● ●
552 CONNECTOR
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98308-101-0 01 1 1511- ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 1511- ● ●
595 TUBE; NYLON
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-348-0 01 1 1511- ●
595 TUBE; NYLON
(B) 		8-98041-300-0 01 1 1511- ● ●
634 COVER; CONNECTOR,SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98088-279-0 01 1 1511- ●
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 1511- ●
634 COVER; CONNECTOR,SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98088-279-0 02 1 1511- ●
635 BOLT; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> M6X16 		0-52000-616-0 02 1 1511- ●
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 1511- ●
635 BOLT; COVER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> M6X16 		0-52000-616-0 04 1 1511- ●
639 CLIP; SEAT 8-98308-100-0 02 1 1511- ● ●
639 CLIP; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98308-100-0 02 1 1511- ●
653 GASKET 8-98101-901-0 01 1 1511- ● ●
653 GASKET
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98101-901-0 01 1 1511- ●
654 HOOK; STOPPER 8-98106-352-0 01 1 1511- ● ●
654 HOOK; STOPPER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-352-0 01 1 1511- ●
655 BOLT; HOOK 8-98106-353-0 02 1 1511- ● ●
655 BOLT; HOOK
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-353-0 02 1 1511- ●
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 1511- ● ●
656 BOLT; SLIDER TO SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		1-75590-085-0 04 1 1511- ●
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 1511- ● ●
656 BOLT; SLIDER TO SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98106-354-0 02 1 1511- ●
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 1511- ● ●
657 BOLT; SLIDER TO STAND
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		1-75590-085-0 06 1 1511- ●
658 SPACER; BOLT
(A) 		8-98106-355-0 02 1 1511- ● ●
658 SPACER; BOLT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-355-0 02 1 1511- ●
658 SPACER; BOLT
(B) 		8-98106-359-0 01 1 1511- ● ●
658 SPACER; BOLT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98106-359-0 01 1 1511- ●
659 STOPPER 8-98106-356-0 02 1 1511- ● ●
659 STOPPER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-356-0 02 1 1511- ●
660 BELT; TETHER 8-98106-357-0 01 1 1511- ● ●
660 BELT; TETHER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-357-0 01 1 1511- ●

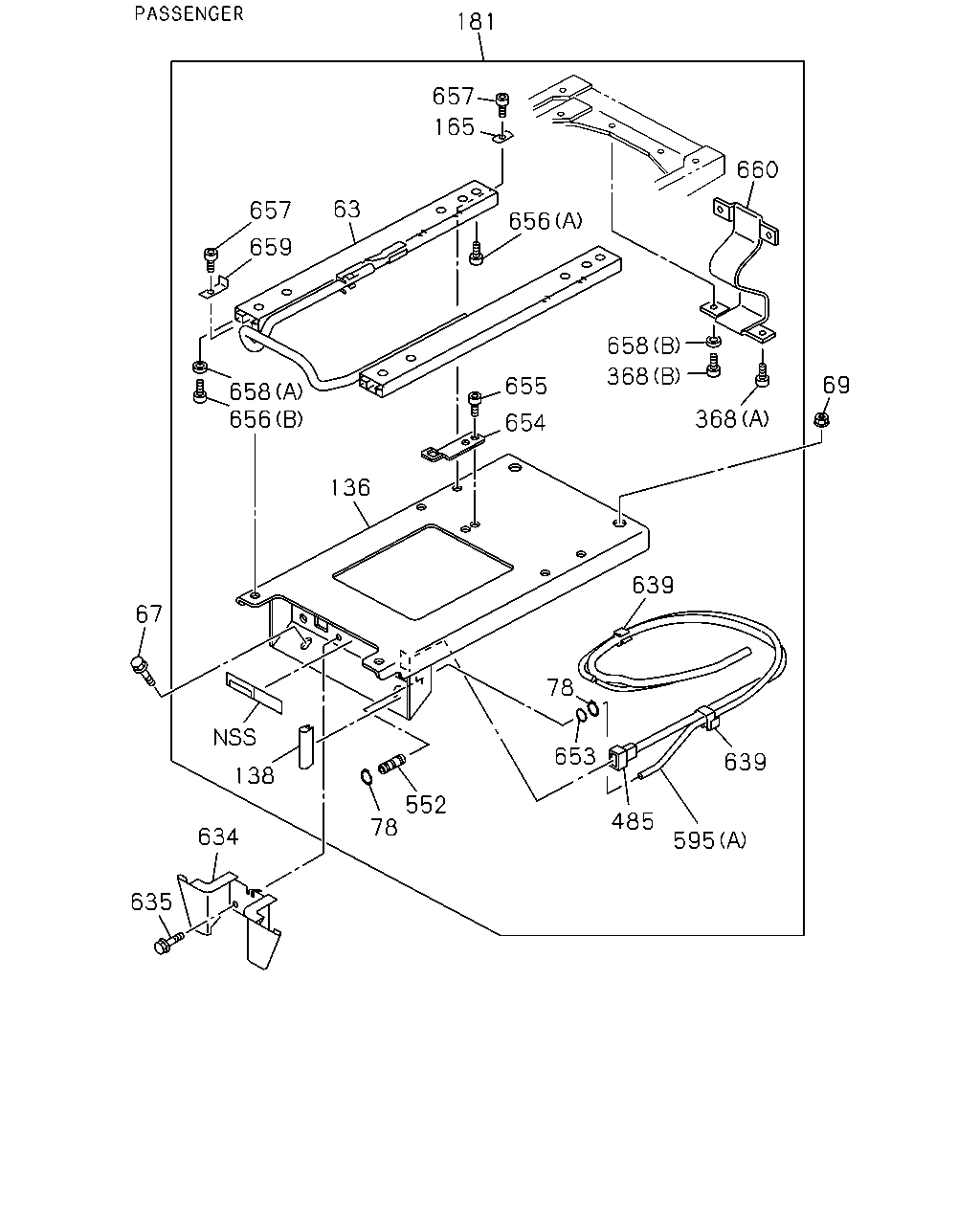

çizim 503522
181 635 634 67 138 78 485 595 639 653 78 639 136 656 658 552 657 657 659 63 656 660 69 658 368 368 655 654 165
BalonParca AdiParca NoAdetTipApplied Date A B
63 ADJUSTER; SEAT SLIDE 8-98098-005-0 01 1 1511- ● ●
63 ADJUSTER; SEAT SLIDE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98098-005-0 01 1 1511- ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1511- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1511- ● ●
78 RING; SNAP 8-98101-900-0 02 1 1511- ● ●
78 RING; SNAP
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98101-900-0 02 1 1511- ●
136 STAND; PASSENGER SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-346-0 01 1 1511- ●
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 1511- ● ●
138 PROTECTOR; SEAT STAND
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-351-0 01 1 1511- ●
165 WASHER; PL 1-75590-086-0 04 1 1511- ● ●
165 WASHER; PL
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		1-75590-086-0 04 1 1511- ●
181 SEAT ASM; PASSENGER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98195-064-1 01 1 1511- ●
368 BOLT; SEAT
(A) 		8-98106-353-0 03 1 1511- ● ●
368 BOLT; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-353-0 03 1 1511- ●
368 BOLT; SEAT
(B) 		8-98106-358-0 01 1 1511- ● ●
368 BOLT; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98106-358-0 01 1 1511- ●
485 HARNESS; FRT SEAT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC>,DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98106-360-0 01 1 1511- ●
485 HARNESS; FRT SEAT
AIR BAG DRIVER & PASSENGER(AK5) DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-360-0 01 1 1511- ●
485 HARNESS; FRT SEAT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98106-360-0 01 1 1511- ●
485 HARNESS; FRT SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98106-361-0 01 1 1511- ●
552 CONNECTOR 8-98308-101-0 01 1 1511- ● ●
552 CONNECTOR
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98308-101-0 01 1 1511- ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 1511- ● ●
595 TUBE; NYLON
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-348-0 01 1 1511- ●
595 TUBE; NYLON
(B) 		8-98041-300-0 01 1 1511- ● ●
634 COVER; CONNECTOR,SEAT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-98088-279-0 01 1 1511- ●
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 1511- ●
634 COVER; CONNECTOR,SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98088-279-0 02 1 1511- ●
635 BOLT; COVER
DRIVER ISRINGHAUSEN SEAT<SJA> M6X16 		0-52000-616-0 02 1 1511- ●
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 1511- ●
635 BOLT; COVER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> M6X16 		0-52000-616-0 04 1 1511- ●
639 CLIP; SEAT 8-98308-100-0 02 1 1511- ● ●
639 CLIP; SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98308-100-0 02 1 1511- ●
653 GASKET 8-98101-901-0 01 1 1511- ● ●
653 GASKET
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98101-901-0 01 1 1511- ●
654 HOOK; STOPPER 8-98106-352-0 01 1 1511- ● ●
654 HOOK; STOPPER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-352-0 01 1 1511- ●
655 BOLT; HOOK 8-98106-353-0 02 1 1511- ● ●
655 BOLT; HOOK
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-353-0 02 1 1511- ●
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 1511- ● ●
656 BOLT; SLIDER TO SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		1-75590-085-0 04 1 1511- ●
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 1511- ● ●
656 BOLT; SLIDER TO SEAT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98106-354-0 02 1 1511- ●
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 1511- ● ●
657 BOLT; SLIDER TO STAND
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		1-75590-085-0 06 1 1511- ●
658 SPACER; BOLT
(A) 		8-98106-355-0 02 1 1511- ● ●
658 SPACER; BOLT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (A) 		8-98106-355-0 02 1 1511- ●
658 SPACER; BOLT
(B) 		8-98106-359-0 01 1 1511- ● ●
658 SPACER; BOLT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) 		8-98106-359-0 01 1 1511- ●
659 STOPPER 8-98106-356-0 02 1 1511- ● ●
659 STOPPER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-356-0 02 1 1511- ●
660 BELT; TETHER 8-98106-357-0 01 1 1511- ● ●
660 BELT; TETHER
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98106-357-0 01 1 1511- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
