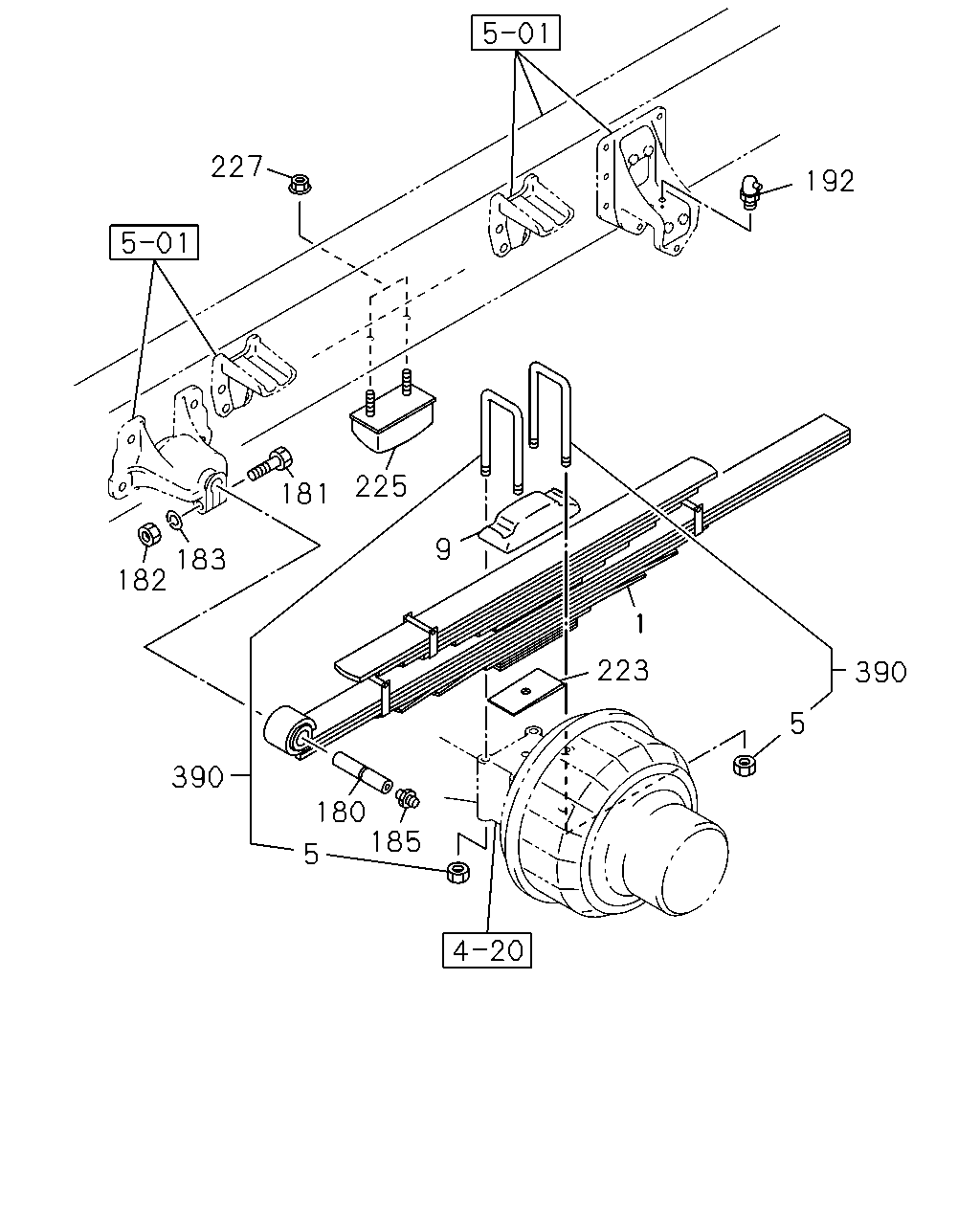

4-60 — REAR SUSPENSION
(#16978) — 15 parça
227
192
225
181
9
183
182
1
223
390
5
390
180
185
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
8-98100-572-0
02
1
1110-
5
NUT; U-BOLT,RR SPR
M24
0-91112-824-0
08
1
1110-
9
PAD; U BOLT,RR SPR
1-51372-030-0
02
1
1110-
180
PIN; RR SPR
1-51361-020-0
02
1
1110-
181
BOLT; SPR & SHACKLE
M14X80
0-10856-480-0
02
1
1110-
182
NUT; PIN,RR SPR
M14
0-91110-514-0
02
1
1110-
183
WASHER; LK,PIN,RR SPR
ID=14.2
0-91510-514-0
02
1
1110-
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
0-90301-410-0
02
1
1110-
192
NIPPLE; GREASE,SHACKLE PIN
PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
02
1
1110-
223
SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W) P46 PROP SHAFT(C4Z)
8-98091-873-0
02
1
1110-1212
223
SPACER; U BOLT,RR SPR
WHEEL BASE 5000MM(50W) P46 PROP SHAFT(C4Z)
1-51377-371-1
02
1
1110-1212
223
SPACER; U BOLT,RR SPR
WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W) P46 PROP SHAFT(C4Z)
1-51377-385-0
02
1
1110-
225
RUBBER; CUSHION,RR SPR
1-53366-081-1
02
1
1110-
227
NUT; CUSHION RUBBER
M12 FLANGE
0-91180-212-0
04
1
1110-
390
U-BOLT SET; RR SPRING
L=470
1-87870-300-1
04
1
1110-
