◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11717 - FVR AUST/NZ EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#169778) — 52 parça

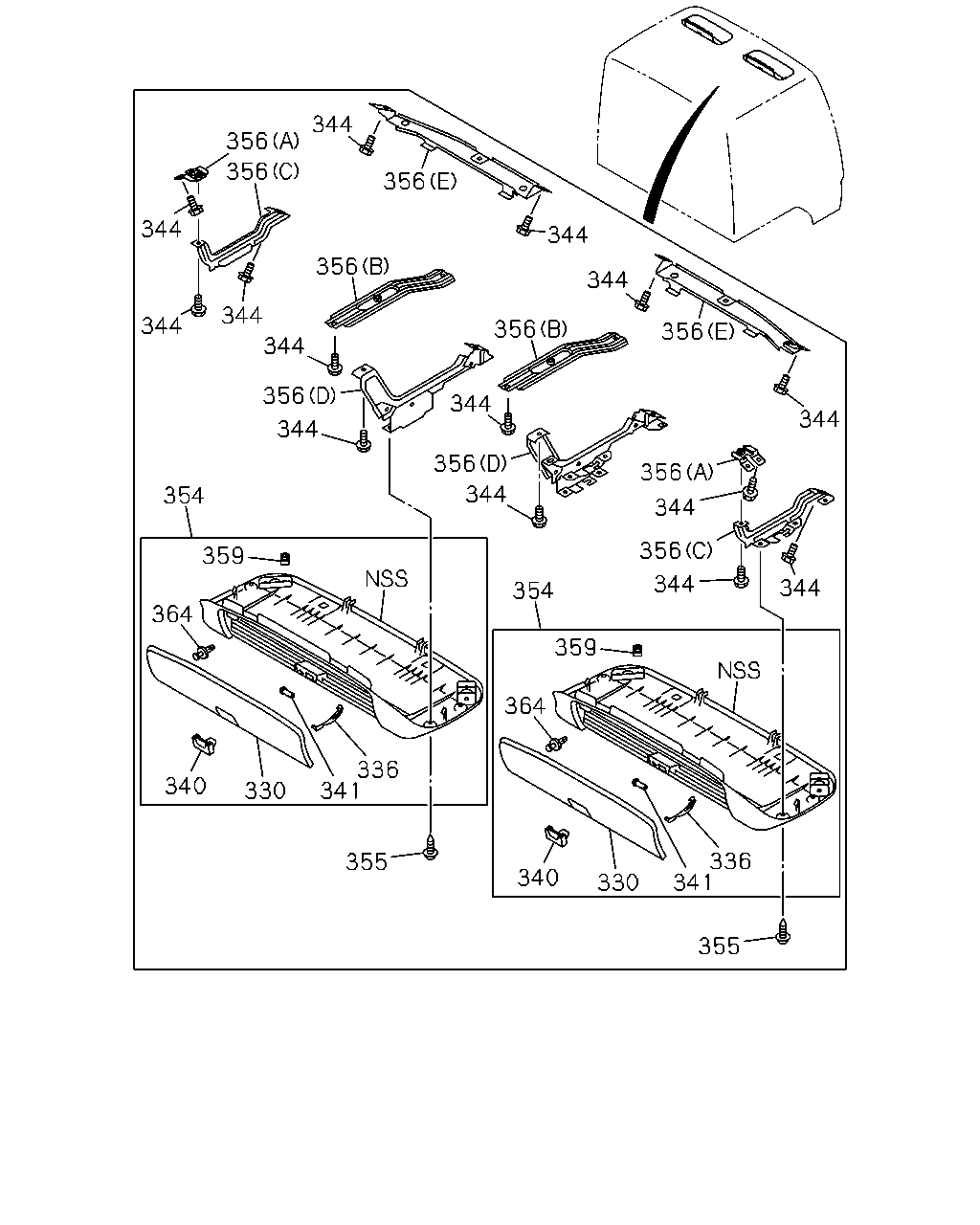

çizim 501239
344 356 356 344 344 344 356 344 344 354 359 364 340 330 341 355 336 364 340 330 341 355 336 359 354 344 356 344 356 356 356 344 344 356 356 356 344 344 344 344
BalonParca AdiParca NoAdetTipApplied Date A B
330 LID; HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97407-834-1 02 1 1511- ● ●
336 STAY; LID
HEADER CONSOLE DRIVER & PASSENGER<EDG> 		1-72448-379-3 04 1 1511- ● ●
340 LOCK; HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG> 		1-72448-376-0 02 1 1511- ● ●
341 HINGE; LID,HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG> 		8-98025-428-2 04 1 1511- ● ●
344 BOLT; BRKT,FRT
HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X12 FLANGE 		8-97108-669-0 20 1 1511- ● ●
354 TRAY; HEADER ROOF
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97428-821-0 02 1 1511- ● ●
355 SCREW; TRAY
HEADER CONSOLE DRIVER & PASSENGER<EDG> M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 08 1 1511- ● ●
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) 		8-97386-874-1 02 1 1511- ● ●
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) 		8-98010-059-0 02 1 1511- ● ●
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (C) 		8-98016-871-3 01 1 1511- ● ●
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (D) 		8-98042-009-2 01 1 1511- ● ●
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (E) 		8-98042-016-3 01 1 1511- ● ●
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (C) 		8-98014-088-3 01 1 1511- ● ●
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (D) 		8-98023-257-2 01 1 1511- ● ●
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (E) 		8-98042-015-3 01 1 1511- ● ●
359 HOLDER; HEADER TRAY
HEADER CONSOLE DRIVER & PASSENGER<EDG> 		8-98041-754-0 08 1 1511- ● ●
364 STOPPER; LID
HEADER CONSOLE DRIVER & PASSENGER<EDG> 		8-98010-867-1 06 1 1511- ● ●

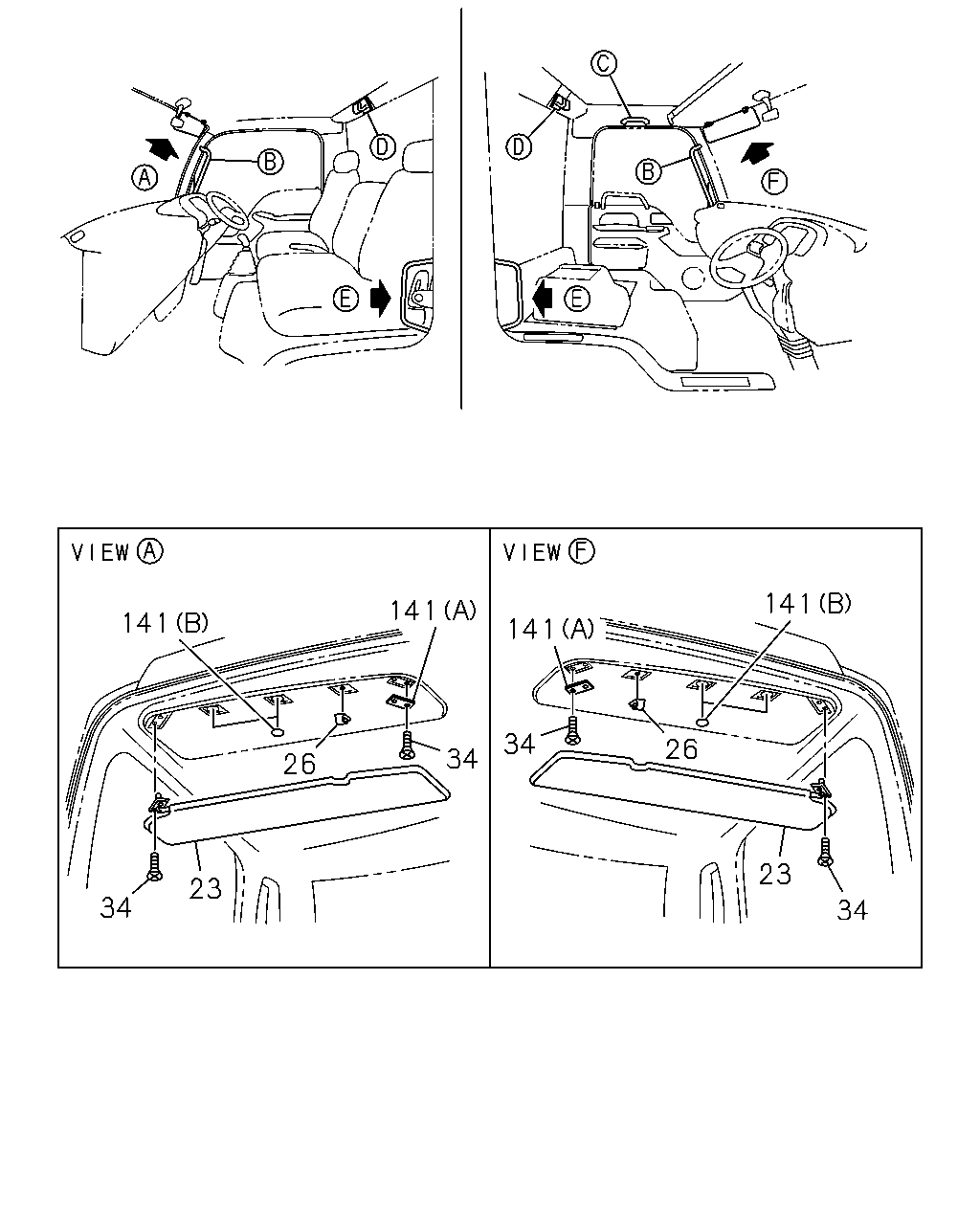

çizim 502836
141 141 34 26 23 34 34 26 141 141 34 23
BalonParca AdiParca NoAdetTipApplied Date A B
23 SUN VISOR
H.S.A SYSTEM<6EP> HEADER CONSOLE DRIVER & PASSENGER<EDG> CATALYSIS CONTROL<6MZ>,CATALYSIS CONTROL WITH DPD<8JM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) DARK GRAY 		8-97413-097-1 01 1 1511- ● ●
23 SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> CATALYSIS CONTROL WITH DPD<8JM> EXC. H.S.A SYSTEM<6EP> DARK GRAY 		8-97413-097-1 01 1 1511- ● ●
23 SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97405-170-3 01 1 1511- ● ●
23 SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> CATALYSIS CONTROL<6MZ> EXC. H.S.A SYSTEM<6EP> DARK GRAY 		8-97407-373-2 01 1 1511- ● ●
26 HOLDER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97405-171-0 02 1 1511- ● ●
34 SCREW; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X26 		8-98033-674-0 04 1 1511- ● ●
34 SCREW; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X26 		8-98033-674-0 04 1 1511- ● ●
141 COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) L=66 B=30 DARK GRAY 		8-97408-029-0 02 1 1511- ● ●
141 COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 04 1 1511- ● ●

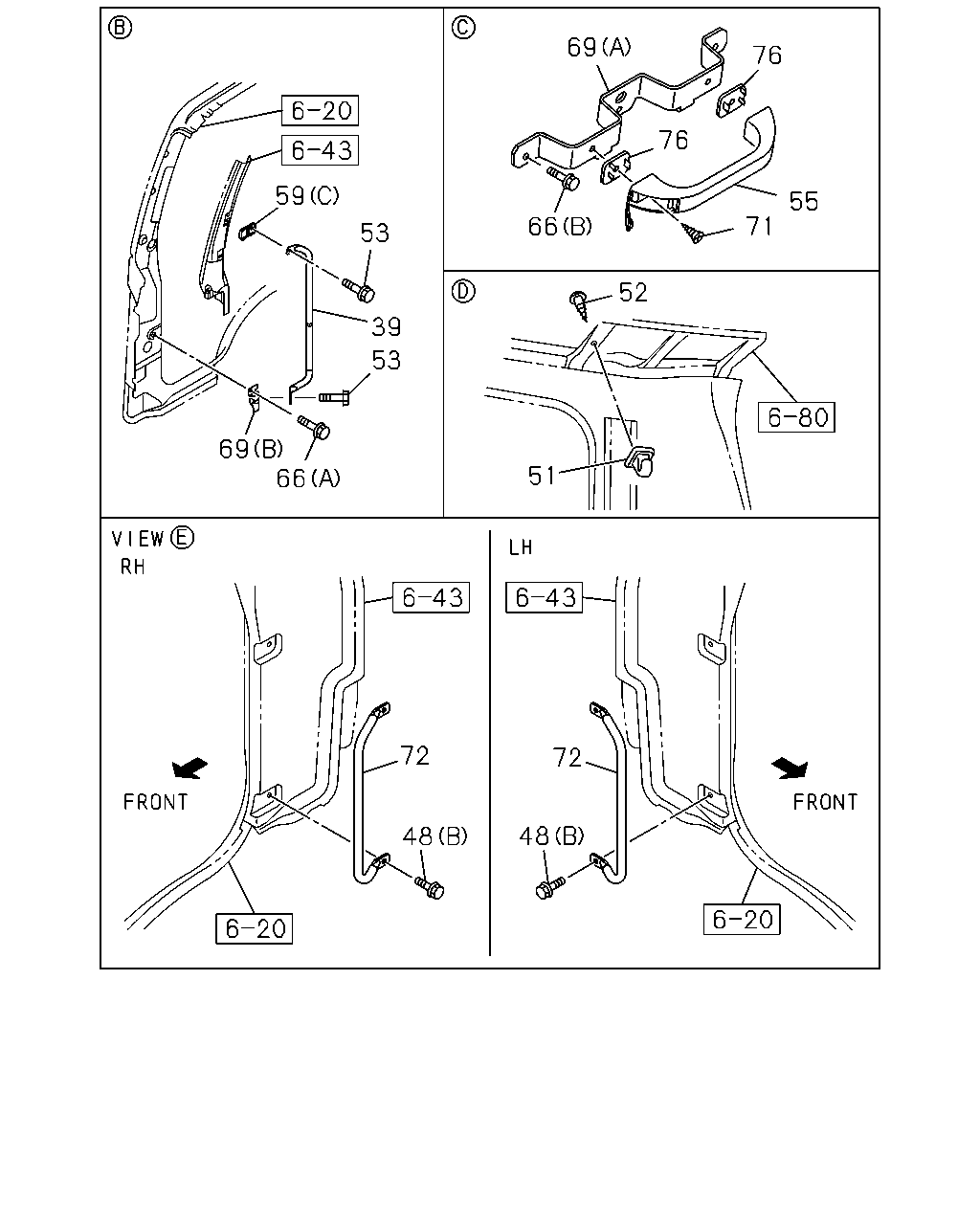

çizim 502955
59 53 39 53 69 66 72 48 48 72 51 52 71 55 76 66 76 69
BalonParca AdiParca NoAdetTipApplied Date A B
39 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97407-943-2 01 1 1511- ● ●
39 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97407-942-2 01 1 1511- ● ●
48 BOLT; ASSIST GRIP
(B) M8X16 FLANGE 		0-28060-816-0 04 1 1511- ● ●
48 BOLT; ASSIST GRIP
(A) M8X30 FLANGE 		0-28660-830-0 04 1 1511- ● ●
51 HOOK; COAT HANGER
DARK GRAY 		8-97409-845-0 02 1 1511- ● ●
52 SCREW; HOOK
M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 02 1 1511- ● ●
53 SCREW; ASSIST HANDLE
M8X20 FLANGE 		0-28650-820-0 04 1 1511- ● ●
55 GRIP; ASSIST,CAB SIDE UPR
DARK GRAY 		8-97405-285-2 01 1 1511- ● ●
59 COVER; ASSIST GRIP
(B) 		1-71998-789-2 02 1 1511- ● ●
59 COVER; ASSIST GRIP
(A) 		1-71998-790-2 02 1 1511- ● ●
59 COVER; ASSIST GRIP
(C) DARK GRAY 		8-97407-417-1 02 1 1511- ● ●
66 BOLT; ASSIST GRIP BRKT
(A) M8X16 FLANGE 		0-28050-816-0 04 1 1511- ● ●
66 BOLT; ASSIST GRIP BRKT
(B) M6X12 FLANGE 		8-97108-669-0 06 1 1511- ● ●
69 BRACKET; ASSIST GRIP
(A) 		8-98014-094-0 02 1 1511- ● ●
69 BRACKET; ASSIST GRIP
(B) 		8-98057-972-2 01 1 1511- ● ●
69 BRACKET; ASSIST GRIP
(B) 		8-98057-971-2 01 1 1511- ● ●
71 SCREW
M6X28 		8-98004-344-0 02 1 1511- ● ●
72 GRIP; ASSIST,CAB ENTRY,BACK 8-98315-144-0 02 1 1511- ● ●
76 SPACER; ASSIST GRIP
DARK GRAY 		8-97405-286-0 02 1 1511- ● ●

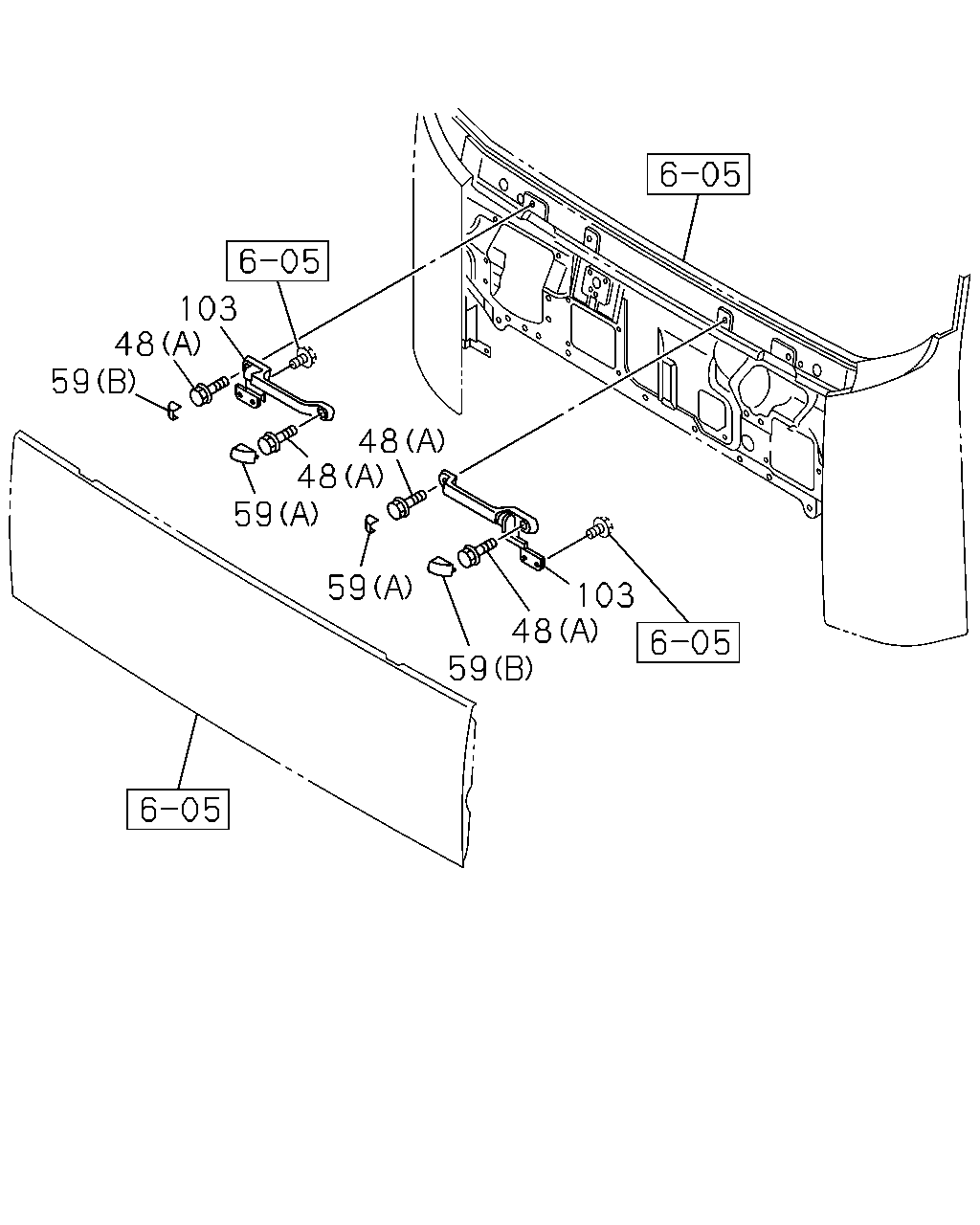

çizim 503035
103 48 59 59 59 48 48 103 48 59
BalonParca AdiParca NoAdetTipApplied Date A B
48 BOLT; ASSIST GRIP
(B) M8X16 FLANGE 		0-28060-816-0 04 1 1511- ● ●
48 BOLT; ASSIST GRIP
(A) M8X30 FLANGE 		0-28660-830-0 04 1 1511- ● ●
59 COVER; ASSIST GRIP
(B) 		1-71998-789-2 02 1 1511- ● ●
59 COVER; ASSIST GRIP
(A) 		1-71998-790-2 02 1 1511- ● ●
59 COVER; ASSIST GRIP
(C) DARK GRAY 		8-97407-417-1 02 1 1511- ● ●
103 GRIP; ASSIST,FRT PNL 8-98036-565-1 01 1 1511- ● ●
103 GRIP; ASSIST,FRT PNL 8-98036-566-1 01 1 1511- ● ●
