◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11717 - FVR AUST/NZ EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶

7-10 — CAUTION PLATE AND LABEL (#169773) — 10 parça

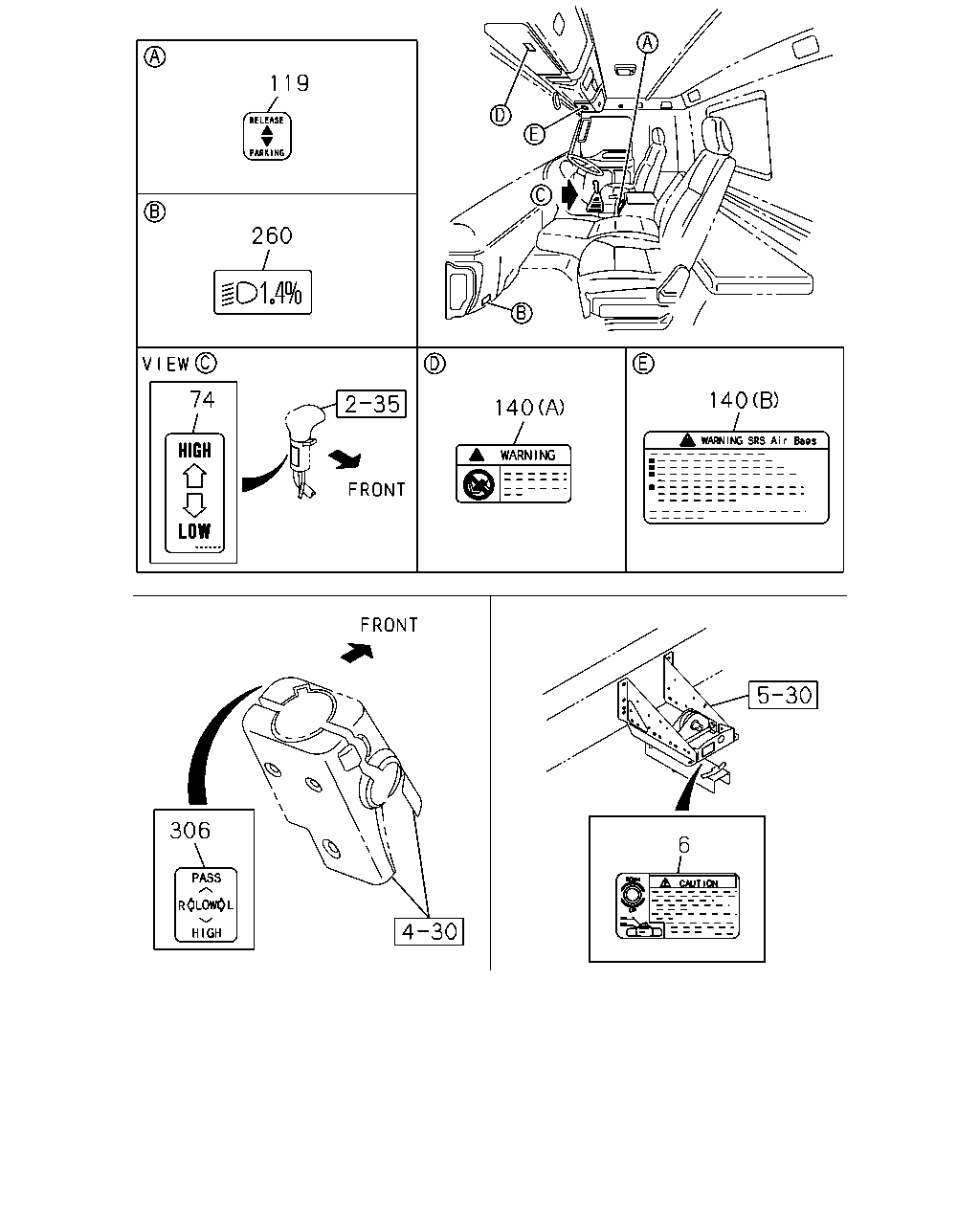

çizim 501140

6 306 74 140 140 260 119

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	6	PLATE; CAUTION,SPARE TIRE	8-98082-437-0	01	1	1511-	●	●
	74	PLATE; CAUTION,CHANGE LEV ASSISTOR SHIFT CONTROL<WX8>	8-98118-493-0	01	1	1511-	●	●
	119	PLATE; CAUTION,HAND BRK LEVER	1-85881-759-0	01	1	1511-	●	●
	140	PLATE; CAUTION,SRS AIR BAG DRIVER & PASSENGER(AK5) (A)	8-98080-839-0	02	1	1511-	●	●
	140	PLATE; CAUTION,SRS AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) CATALYSIS CONTROL<6MZ> EXC. H.S.A SYSTEM<6EP> (B)	8-98139-964-0	01	1	1511-	●	●
	260	PLATE; CAUTION,HEAD LAMP LEVELING	8-98008-779-0	01	1	1511-	●	●
	306	LABEL; BEAM & PASS	8-98070-239-0	01	1	1511-	●	●

çizim 503057

160 49 35

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	35	PLATE; CAUTION,CAB	8-98017-667-1	01	1	1511-	●	●
	49	PLATE; CAUTION,FUSE BOX	8-98305-918-1	01	1	1511-	●	●
	160	PLATE; CAUTION,TOWING ZF9S1110 M/T(Y5E)	1-85888-737-1	01	1	1511-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
