◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11717 - FVR AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#169764) — 66 parça

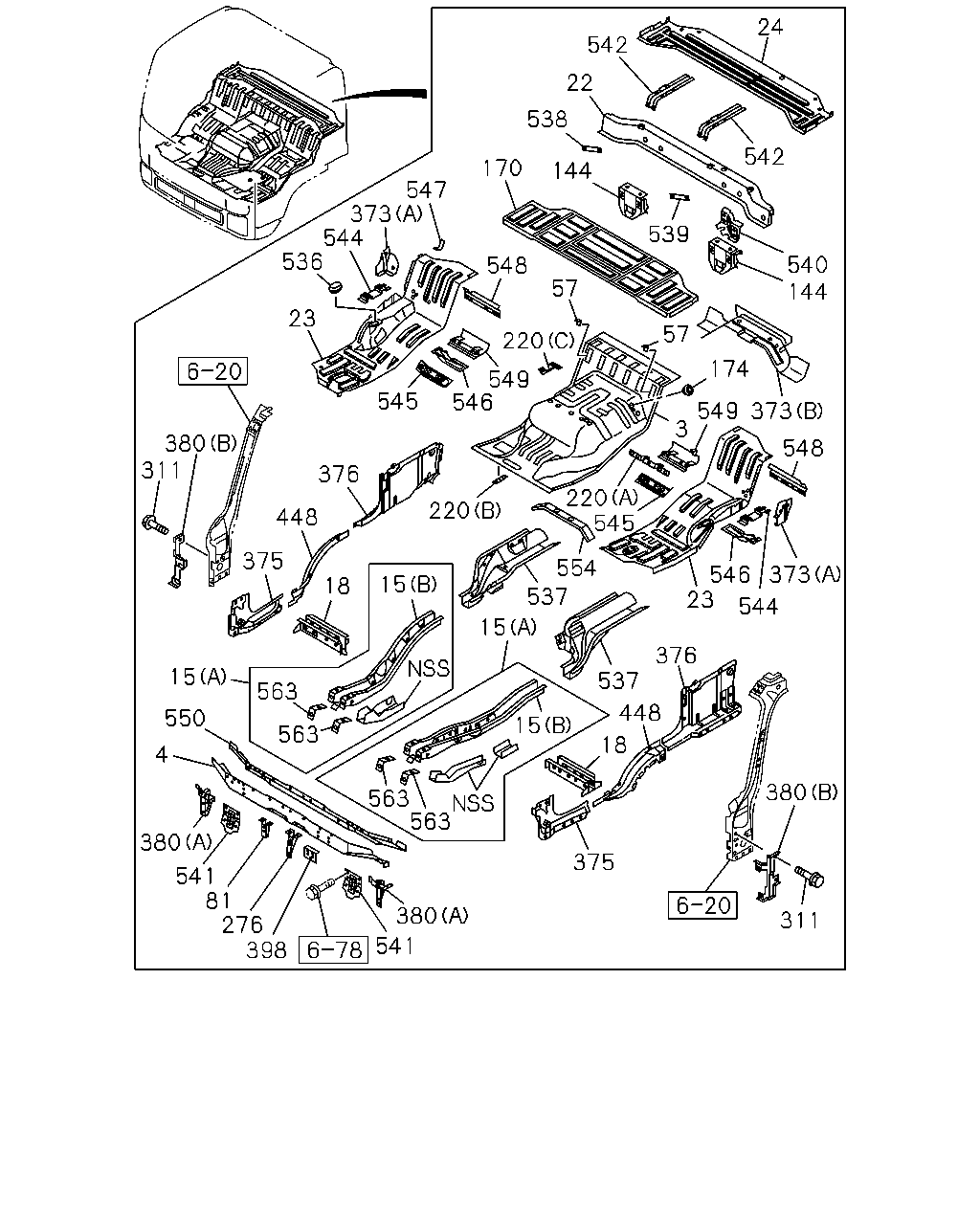

çizim 500946
538 22 542 24 170 144 539 540 542 174 57 373 549 3 548 373 546 23 544 376 537 448 18 375 311 380 398 276 541 380 81 550 4 15 375 311 380 448 376 545 536 544 373 547 546 548 380 15 15 554 220 15 18 563 563 563 563 541 220 57 549 537 220 545 23 144
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG
DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98081-357-4 01 1 1511- ●
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98081-357-4 01 1 1511- ●
3 HOOD ASM; ENG
DRIVER ISRINGHAUSEN SEAT<SJA> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		8-98081-360-4 01 1 1511- ●
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		8-98081-360-4 01 1 1511- ●
3 HOOD ASM; ENG
DRIVER ISRINGHAUSEN SEAT<SJA> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-359-4 01 1 1511- ●
3 HOOD ASM; ENG
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-359-4 01 1 1511- ●
3 HOOD ASM; ENG
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98228-265-0 01 1 1511- ●
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1511- ● ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1511- ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1511- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1511- ● ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1511- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-421-4 01 1 1511- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-398-4 01 1 1511- ● ●
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1511- ● ●
23 PANEL; FLOOR,SIDE 8-97584-372-7 01 1 1511- ● ●
23 PANEL; FLOOR,SIDE 8-98073-691-1 01 1 1511- ● ●
24 PANEL; BED PAN 8-97584-378-6 01 1 1511- ● ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1511- ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1511- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1511- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1511- ● ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1511- ● ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1511- ● ●
220 PATCH
(A) 		8-97588-840-4 01 1 1511- ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 1511- ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 1511- ● ●
276 BRACKET; RAD GRILLE 8-98253-712-0 01 1 1511- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1511- ● ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98228-266-0 01 1 1511- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1511- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1511- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1511- ● ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1511- ● ●
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1511- ● ●
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1511- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1511- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1511- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1511- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1511- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1511- ● ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 1511- ● ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 1511- ● ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1511- ● ●
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1511- ● ●
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1511- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1511- ● ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1511- ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1511- ● ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1511- ● ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1511- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1511- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1511- ● ●
545 BRACKET; SEAT FRT
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98050-188-0 01 1 1511- ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1511- ● ●
545 BRACKET; SEAT FRT
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-97584-373-1 01 1 1511- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 1511- ● ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1511- ● ●
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 1511- ● ●
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 1511- ● ●
549 BRACKET; SEAT RR
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 		8-98050-189-1 01 1 1511- ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 1511- ● ●
549 BRACKET; SEAT RR
DRIVER ISRINGHAUSEN SEAT<SJA> 		8-97588-958-4 01 1 1511- ● ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1511- ● ●
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1511- ● ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1511- ● ●
