6-47 — MUD GUARD AND INSULATOR (#169761) — 76 parça

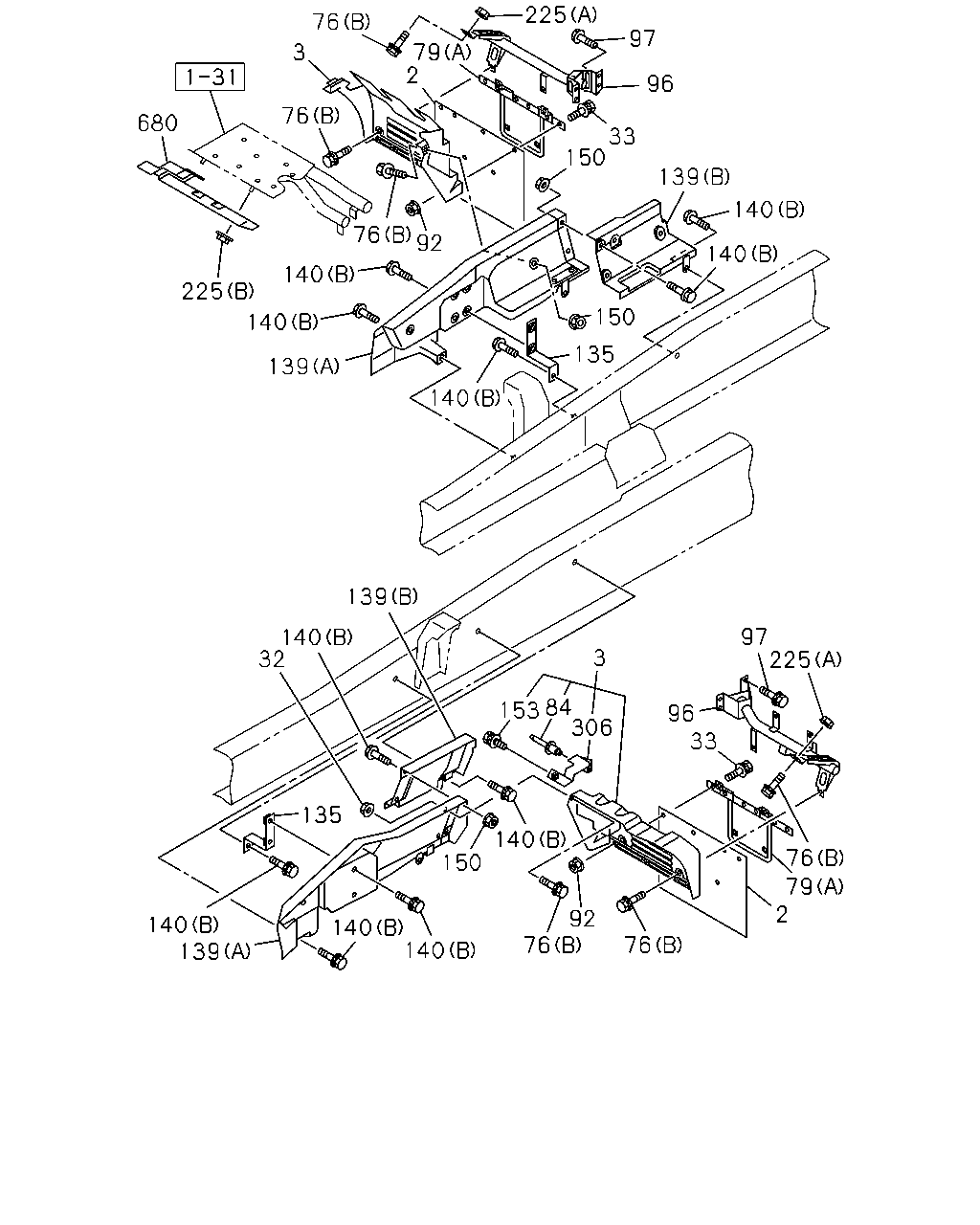

680 3 76 76 225 139 140 140 76 92 2 79 225 97 96 33 150 150 135 140 140 140 139 140 32 135 140 139 140 150 140 76 76 140 306 3 84 153 96 33 76 79 2 225 97 92 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; MUD,TIRE RR	1-79931-512-1	02	1	1511-	●	●
3	GUARD; MUD,RR	8-98196-109-0	01	1	1511-	●	●
3	GUARD; MUD,RR	8-98219-767-0	01	1	1511-	●	●
32	NUT; MUD GUARD M8 W/DISHED WASHER	8-97329-625-0	02	1	1511-	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	12	1	1511-	●	●
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1511-	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	1511-	●	●
79	RETAINER; MUD COVER (B)	8-98060-066-0	02	1	1511-	●	●
79	RETAINER; MUD COVER (A)	8-98102-106-0	01	1	1511-	●	●
79	RETAINER; MUD COVER (A)	8-98102-105-0	01	1	1511-	●	●
84	RIVET; MUD GUARD	5-09734-006-1	02	1	1511-	●	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	08	1	1511-	●	●
96	STAY; MUD GUARD	1-79931-519-4	01	1	1511-	●	●
96	STAY; MUD GUARD	1-79931-540-3	01	1	1511-	●	●
97	BOLT; STAY TO FRAME M10X30 FLANGE	0-28651-030-0	08	1	1511-	●	●
135	BRACKET; SIDE PANEL	1-53457-191-0	02	1	1511-	●	●
139	PANEL; SIDE (B)	1-53194-591-0	01	1	1511-	●	●
139	PANEL; SIDE (A)	1-53194-620-5	01	1	1511-	●	●
139	PANEL; SIDE (B)	1-53194-590-0	01	1	1511-	●	●
139	PANEL; SIDE (A)	1-53194-619-4	01	1	1511-	●	●
140	BOLT; SIDE PANEL (B) M8X30 W/LK&PL WASHER	1-09030-095-0	16	1	1511-	●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (C) M8X12 FLANGE	0-28050-812-0	02	1	1511-	●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (E) M8X25 FLANGE	0-28050-825-0	02	1	1511-	●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (E) M8X25 FLANGE	0-28050-825-0	04	1	1511-	●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE	0-28050-830-0	03	1	1511-	●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE	0-28050-830-0	08	1	1511-	●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (D) M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	1511-	●	●
150	NUT; SIDE PANEL M8 W/DISHED WASHER	8-97329-625-0	04	1	1511-	●	●
153	BOLT; BRKT M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1511-	●	●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
225	NUT; MUD GUARD (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	1511-	●	●
306	BRACKET; MUD GUARD	8-98196-125-0	01	1	1511-	●	●
680	GUARD; MUD,UPPER	8-98123-402-0	01	1	1511-	●	●

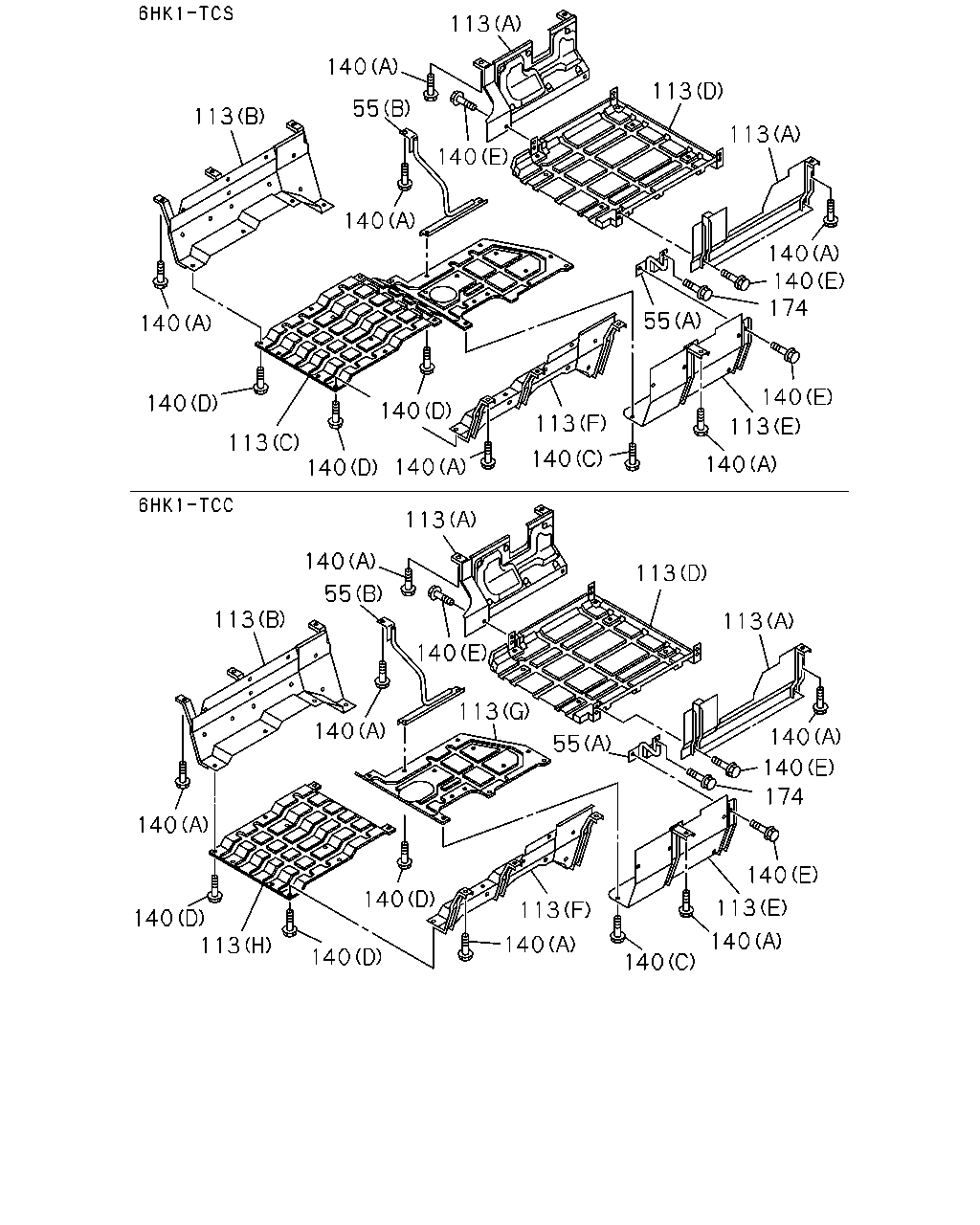

113 140 55 113 140 140 140 113 140 140 140 140 113 140 113 140 174 55 140 140 113 113 140 113 113 140 55 113 140 140 140 113 140 140 113 140 140 140 113 140 140 174 140 113 55 113 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
55	STAY; UNDER COVER,RR ZF9S1110 M/T(Y5E) (B)	8-98064-086-2	01	1	1511-	●	●
55	STAY; UNDER COVER,RR ZF9S1110 M/T(Y5E) (A)	8-98239-846-0	01	1	1511-	●	●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) (B)	8-98017-756-2	01	1	1511-	●	●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) (D)	8-98017-772-1	01	1	1511-	●	●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) (E)	8-98078-182-0	01	1	1511-	●	●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) (F)	8-98114-851-0	01	1	1511-	●	●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) (A)	8-98078-185-3	01	1	1511-	●	●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) (A)	8-98078-188-3	01	1	1511-	●	●
113	PANEL; SIDE 6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) (G)	8-98217-709-0	01	1	1511-	●	●
113	PANEL; SIDE 6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) (H)	8-98239-842-0	01	1	1511-	●	●
113	PANEL; SIDE 6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) (C)	8-98017-762-1	01	1	1511-	●	●
140	BOLT; SIDE PANEL (B) M8X30 W/LK&PL WASHER	1-09030-095-0	16	1	1511-	●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (C) M8X12 FLANGE	0-28050-812-0	02	1	1511-	●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (E) M8X25 FLANGE	0-28050-825-0	02	1	1511-	●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (E) M8X25 FLANGE	0-28050-825-0	04	1	1511-	●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE	0-28050-830-0	03	1	1511-	●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE	0-28050-830-0	08	1	1511-	●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (D) M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	1511-	●	●
174	BOLT; STAY FIX ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28050-830-0	01	1	1511-	●	●

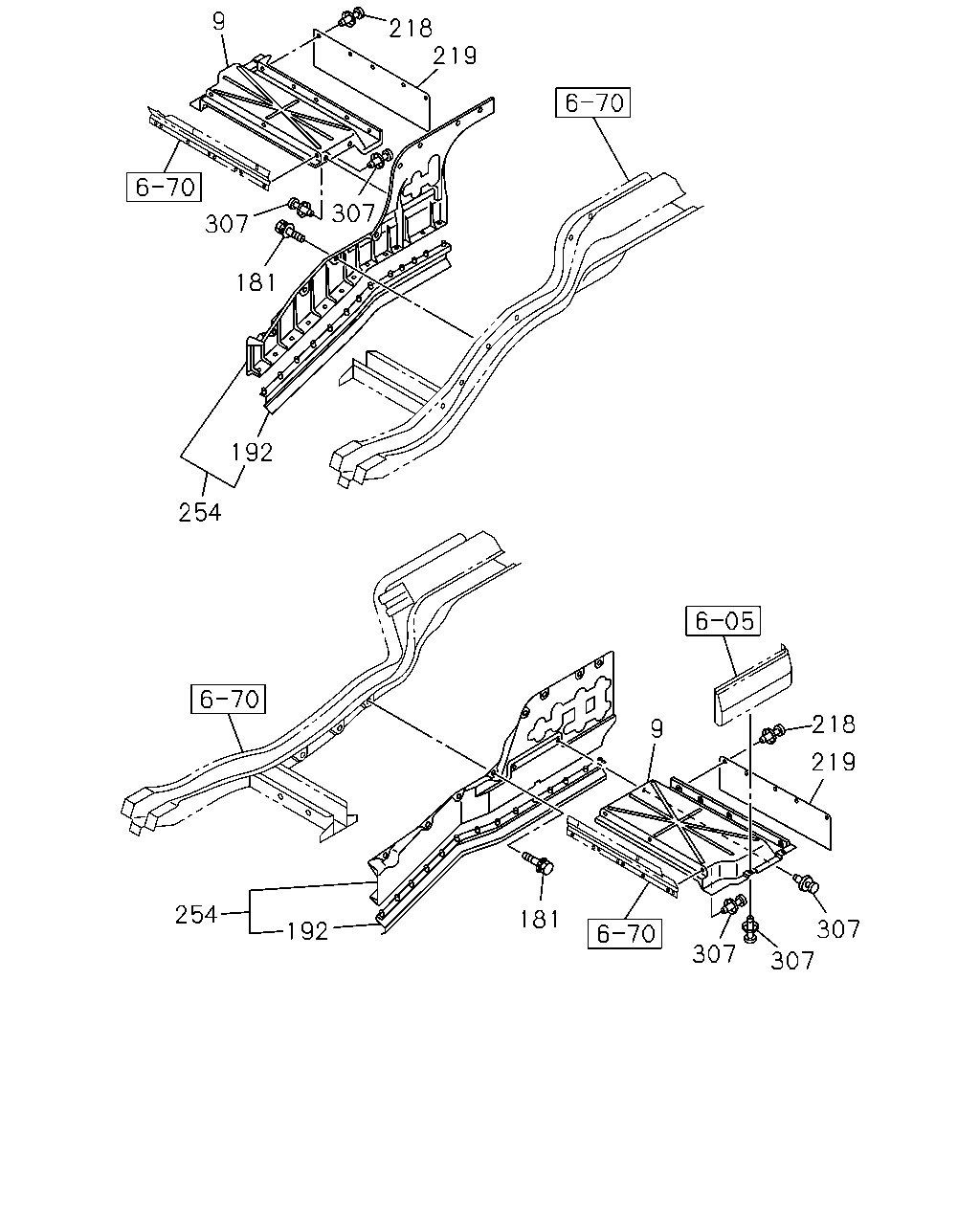

9 307 181 307 219 218 192 254 254 192 181 307 307 307 219 218 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	GUARD; SPLASH,WHEEL HOUSE	8-98040-120-2	01	1	1511-	●	●
9	GUARD; SPLASH,WHEEL HOUSE	8-98040-119-2	01	1	1511-	●	●
181	BOLT; COVER,SIDE M8X24.5 W/LK&PL WASHER	8-98059-720-0	16	1	1511-	●	●
192	SEAL; MUD COVER	8-98069-361-0	01	1	1511-	●	●
192	SEAL; MUD COVER	8-98069-360-0	01	1	1511-	●	●
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	10	1	1511-	●	●
219	FLAP; MUD GUARD	8-98041-151-1	02	1	1511-	●	●
254	COVER; MUD,VALANCE	8-98039-928-1	01	1	1511-	●	●
254	COVER; MUD,VALANCE	8-98039-927-3	01	1	1511-	●	●
307	RETAINER D8X13.5	1-09987-248-1	14	1	1511-	●	●

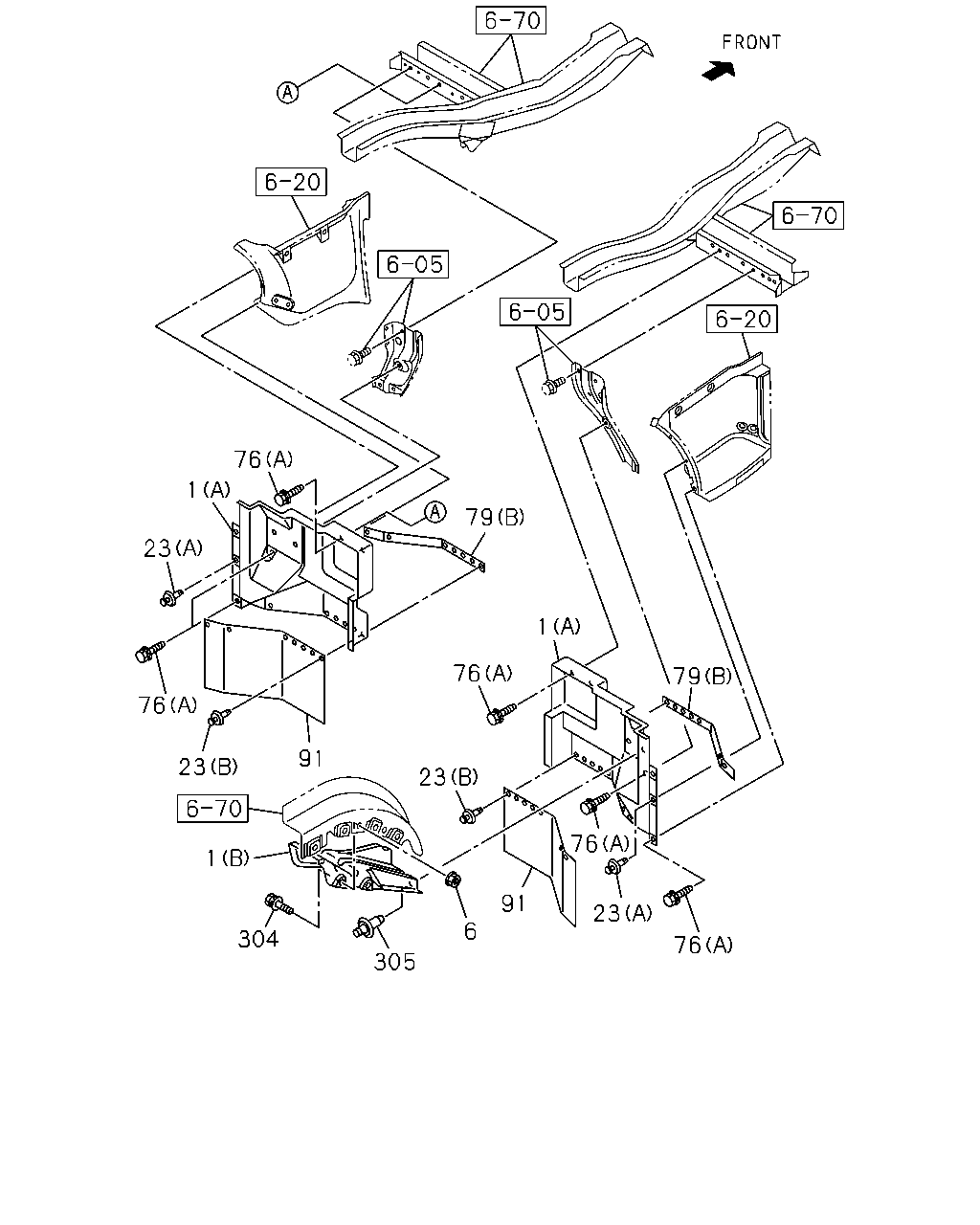

76 23 76 1 79 76 79 305 304 23 1 91 76 23 1 76 23 6 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT (A)	8-98039-851-1	01	1	1511-	●	●
1	GUARD; MUD,FRT (A)	8-98039-850-1	01	1	1511-	●	●
1	GUARD; MUD,FRT DUMP CONTROL LEVER<RC4> (B)	8-98076-271-0	01	1	1511-	●	●
6	NUT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6 FLANGE	8-94197-199-0	02	1	1511-	●	●
23	FASTENER; MUD COVER (B)	1-09470-001-0	10	1	1511-	●	●
23	FASTENER; MUD COVER (A) D8X13.5	1-09987-248-1	04	1	1511-	●	●
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1511-	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	1511-	●	●
79	RETAINER; MUD COVER (B)	8-98060-066-0	02	1	1511-	●	●
79	RETAINER; MUD COVER (A)	8-98102-106-0	01	1	1511-	●	●
79	RETAINER; MUD COVER (A)	8-98102-105-0	01	1	1511-	●	●
91	COVER; MUD,FRT	8-98060-067-1	02	1	1511-	●	●
304	BOLT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	1511-	●	●
305	FASTENER; SPLASH GUARD DUMP CONTROL LEVER<RC4> D8X13.5	1-09987-248-1	02	1	1511-	●	●
