6-01 — FRONT BUMPER (#169750) — 111 parça

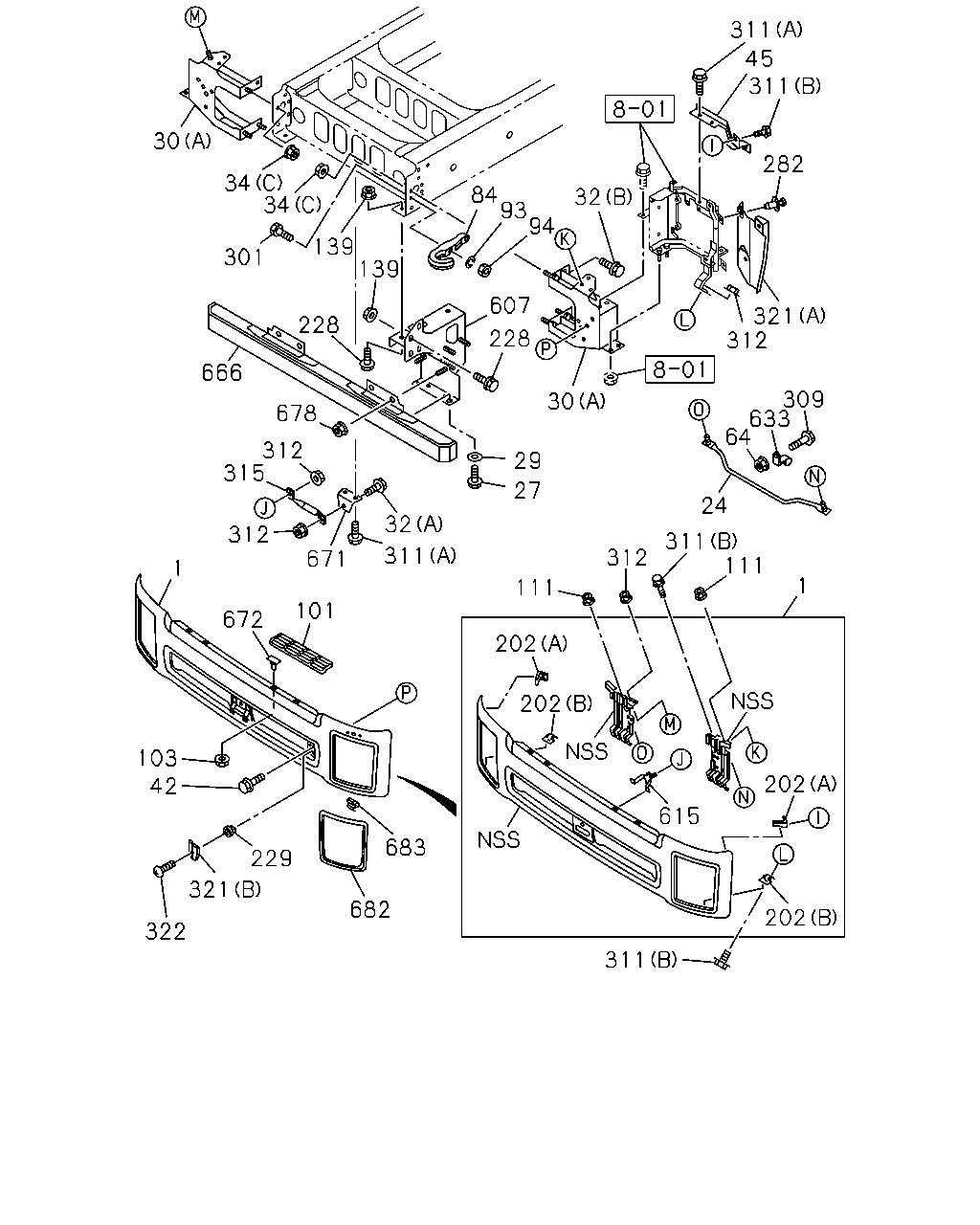

30 34 34 301 139 228 666 678 312 315 312 671 1 672 103 42 229 321 322 682 683 101 311 32 202 202 615 202 311 202 111 312 311 111 1 24 64 27 29 30 228 607 94 93 84 32 633 309 312 321 282 311 45 311 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT WHITE	8-97409-903-1	01	1	1511-	●	●
24	BAR; FRT BUMPER	8-97625-359-0	01	1	1511-	●	●
27	BOLT; BUMPER TO BACK BAR FRONT UNDER RUN PROTECTOR<EBE> M12X35 FLANGE	0-28651-235-0	04	1	1511-	●	●
29	WASHER; FRT BUMPER FRONT UNDER RUN PROTECTOR<EBE> ID=12.5 OD=32	0-91614-712-0	08	1	1511-	●	●
30	BRACKET; FRT BUMPER (A)	8-98034-434-2	01	1	1511-	●	●
30	BRACKET; FRT BUMPER (A)	8-98034-435-2	01	1	1511-	●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-546-1	01	1	1511-	●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-547-1	01	1	1511-	●	●
32	BOLT; BRKT,BUMPER (B) M12X35 FLANGE	0-28051-235-0	02	1	1511-	●	●
32	BOLT; BRKT,BUMPER (A) M10X30	8-94324-205-0	01	1	1511-	●	●
34	NUT; BRKT,BUMPER (C) M12 FLANGE	0-91180-212-0	06	1	1511-	●	●
34	NUT; BRKT,BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M16	0-91110-516-0	02	1	1511-	●	●
34	NUT; BRKT,BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14 FLANGE	0-91180-214-0	04	1	1511-	●	●
42	BOLT; BUMPER M10X30	8-94324-205-0	06	1	1511-	●	●
45	BRACKET; BRKT TO BUMPER	8-97613-648-2	01	1	1511-	●	●
45	BRACKET; BRKT TO BUMPER	8-97613-647-2	01	1	1511-	●	●
64	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	1511-	●	●
84	HOOK	1-57181-027-1	01	1	1511-	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1511-	●	●
94	NUT; HOOK M16	0-91110-516-0	02	1	1511-	●	●
101	STEP; BUMPER	8-97611-543-0	01	1	1511-	●	●
101	STEP; BUMPER	8-97611-542-0	01	1	1511-	●	●
103	NUT; BUMPER STEP M6 FLANGE	0-91180-106-0	04	1	1511-	●	●
111	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
139	NUT; BRKT FIX FRONT UNDER RUN PROTECTOR<EBE> M16	0-91110-516-0	02	1	1511-	●	●
139	NUT; BRKT FIX FRONT UNDER RUN PROTECTOR<EBE> M14 FLANGE	0-91180-214-0	06	1	1511-	●	●
202	BRACKET; BUMPER SIDE (A)	8-97613-637-0	01	1	1511-	●	●
202	BRACKET; BUMPER SIDE (B)	8-97613-641-1	01	1	1511-	●	●
202	BRACKET; BUMPER SIDE (A)	8-97613-636-0	01	1	1511-	●	●
202	BRACKET; BUMPER SIDE (B)	8-97613-640-1	01	1	1511-	●	●
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> M16X40	0-20851-640-0	02	1	1511-	●	●
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> M14X45 FLANGE	0-28851-445-0	06	1	1511-	●	●
229	GROMMET D=7X7 L=7.5	5-09983-007-0	02	1	1511-	●	●
282	FASTENER; BUMPER FILLER D8X13.5	1-09987-248-1	08	1	1511-	●	●
301	BOLT; HOOK TO FRAME M16X70	0-10861-670-0	02	1	1511-	●	●
309	BOLT; CLIP M6X16 FLANGE	0-28650-616-0	01	1	1511-	●	●
311	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	06	1	1511-	●	●
311	BOLT; BRKT (B) M10X30	8-94324-205-0	07	1	1511-	●	●
312	NUT; BRKT M10 FLANGE	0-91180-210-0	05	1	1511-	●	●
315	STAY; BUMPER	8-97613-645-1	01	1	1511-	●	●
321	COVER; BUMPER FRT SIDE (B)	8-97616-297-1	01	1	1511-	●	●
321	COVER; BUMPER FRT SIDE (A)	8-97619-120-0	01	1	1511-	●	●
321	COVER; BUMPER FRT SIDE (B)	8-97616-296-1	01	1	1511-	●	●
321	COVER; BUMPER FRT SIDE (A)	8-97619-119-0	01	1	1511-	●	●
322	SCREW; COVER FIX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1511-	●	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98279-068-0	01	1	1511-	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98279-067-0	01	1	1511-	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MANUAL TRANSMISSION<X9C>	8-98279-066-0	01	1	1511-	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MANUAL TRANSMISSION<X9C>	8-98279-065-0	01	1	1511-	●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98279-072-0	01	1	1511-		●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98279-071-0	01	1	1511-		●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MANUAL TRANSMISSION<X9C>	8-98279-070-0	01	1	1511-		●
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> MANUAL TRANSMISSION<X9C>	8-98279-069-0	01	1	1511-		●
615	BRACKET; BUMPER CENTER	8-97613-643-1	01	1	1511-	●	●
633	CLIP; BUMPER ID=16 H=24 L=20	0-95207-315-0	01	1	1511-	●	●
666	PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE>	8-98196-475-0	01	1	1511-	●	●
671	BRACKET; STAY	8-97620-889-0	01	1	1511-	●	●
672	STUD; STEP M6X20	8-97611-666-0	04	1	1511-	●	●
678	NUT; BUMPER TO BACK BAR FRONT UNDER RUN PROTECTOR<EBE> M12 FLANGE	0-91180-212-0	04	1	1511-	●	●
682	BEZEL; BUMPER	8-97611-531-2	01	1	1511-	●	●
682	BEZEL; BUMPER	8-97611-530-2	01	1	1511-	●	●
683	CLIP; BEZEL,BUMPER	8-98084-293-0	08	1	1511-	●	●

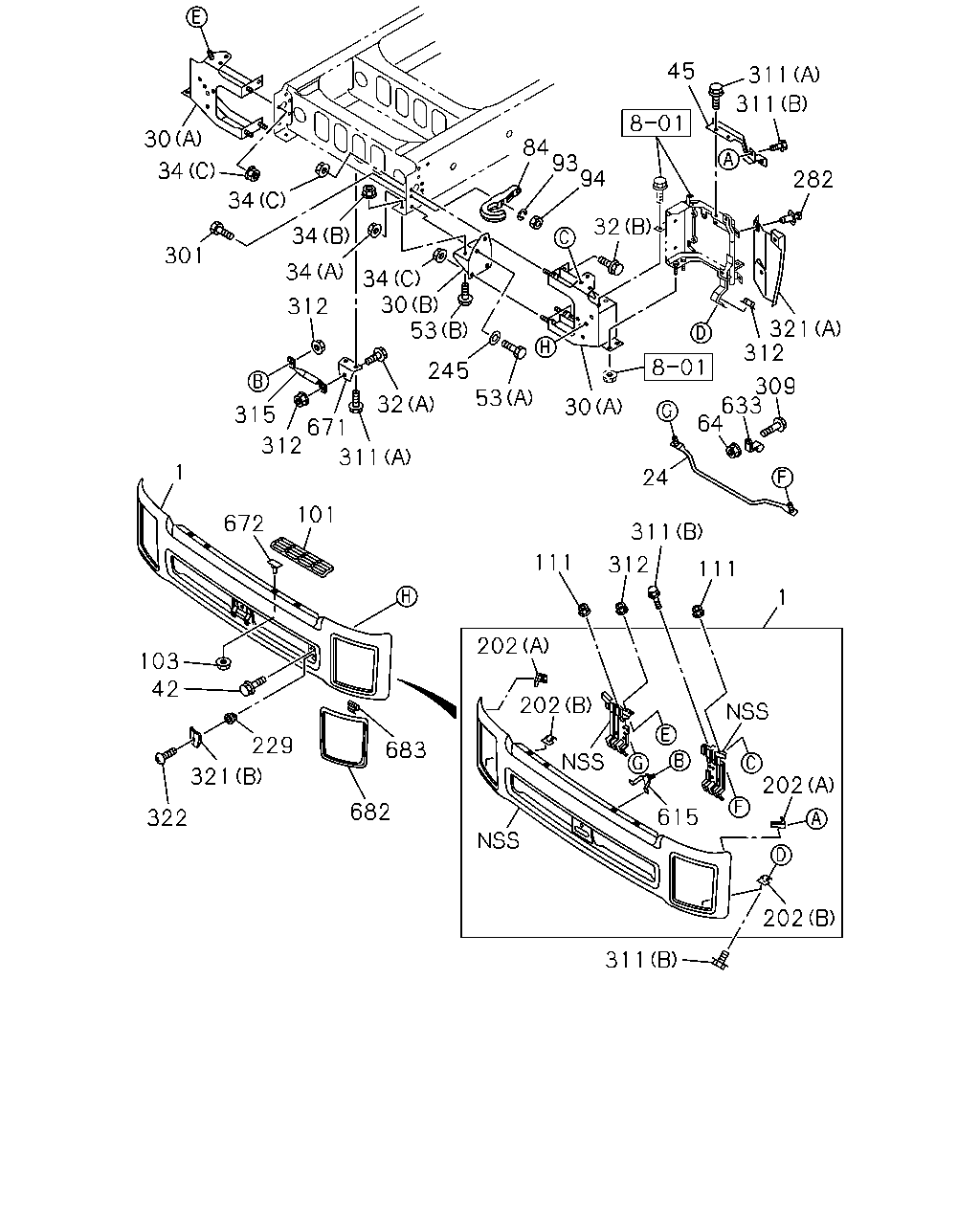

1 111 311 312 111 202 311 202 615 202 202 24 64 633 309 312 321 282 311 311 45 32 94 93 84 30 53 245 53 30 34 34 34 34 30 301 34 312 32 311 671 312 315 101 672 1 683 682 229 321 322 42 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT WHITE	8-97409-903-1	01	1	1511-	●	●
24	BAR; FRT BUMPER	8-97625-359-0	01	1	1511-	●	●
30	BRACKET; FRT BUMPER (A)	8-98034-434-2	01	1	1511-	●	●
30	BRACKET; FRT BUMPER (A)	8-98034-435-2	01	1	1511-	●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-546-1	01	1	1511-	●	●
30	BRACKET; FRT BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98053-547-1	01	1	1511-	●	●
32	BOLT; BRKT,BUMPER (B) M12X35 FLANGE	0-28051-235-0	02	1	1511-	●	●
32	BOLT; BRKT,BUMPER (A) M10X30	8-94324-205-0	01	1	1511-	●	●
34	NUT; BRKT,BUMPER (C) M12 FLANGE	0-91180-212-0	06	1	1511-	●	●
34	NUT; BRKT,BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M16	0-91110-516-0	02	1	1511-	●	●
34	NUT; BRKT,BUMPER EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14 FLANGE	0-91180-214-0	04	1	1511-	●	●
42	BOLT; BUMPER M10X30	8-94324-205-0	06	1	1511-	●	●
45	BRACKET; BRKT TO BUMPER	8-97613-648-2	01	1	1511-	●	●
45	BRACKET; BRKT TO BUMPER	8-97613-647-2	01	1	1511-	●	●
53	BOLT; BRKT TO FRAME EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M16X40	0-20851-640-0	02	1	1511-	●	●
53	BOLT; BRKT TO FRAME EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14X45 FLANGE	0-28851-445-0	04	1	1511-	●	●
64	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	1511-	●	●
84	HOOK	1-57181-027-1	01	1	1511-	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-816-0	02	1	1511-	●	●
94	NUT; HOOK M16	0-91110-516-0	02	1	1511-	●	●
101	STEP; BUMPER	8-97611-543-0	01	1	1511-	●	●
101	STEP; BUMPER	8-97611-542-0	01	1	1511-	●	●
103	NUT; BUMPER STEP M6 FLANGE	0-91180-106-0	04	1	1511-	●	●
111	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
202	BRACKET; BUMPER SIDE (A)	8-97613-637-0	01	1	1511-	●	●
202	BRACKET; BUMPER SIDE (B)	8-97613-641-1	01	1	1511-	●	●
202	BRACKET; BUMPER SIDE (A)	8-97613-636-0	01	1	1511-	●	●
202	BRACKET; BUMPER SIDE (B)	8-97613-640-1	01	1	1511-	●	●
229	GROMMET D=7X7 L=7.5	5-09983-007-0	02	1	1511-	●	●
245	WASHER; PL,BRKT TO FRAME EXC. FRONT UNDER RUN PROTECTOR<EBE> ID=17 OD=30	0-91610-516-0	02	1	1511-	●	●
282	FASTENER; BUMPER FILLER D8X13.5	1-09987-248-1	08	1	1511-	●	●
301	BOLT; HOOK TO FRAME M16X70	0-10861-670-0	02	1	1511-	●	●
309	BOLT; CLIP M6X16 FLANGE	0-28650-616-0	01	1	1511-	●	●
311	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	06	1	1511-	●	●
311	BOLT; BRKT (B) M10X30	8-94324-205-0	07	1	1511-	●	●
312	NUT; BRKT M10 FLANGE	0-91180-210-0	05	1	1511-	●	●
315	STAY; BUMPER	8-97613-645-1	01	1	1511-	●	●
321	COVER; BUMPER FRT SIDE (B)	8-97616-297-1	01	1	1511-	●	●
321	COVER; BUMPER FRT SIDE (A)	8-97619-120-0	01	1	1511-	●	●
321	COVER; BUMPER FRT SIDE (B)	8-97616-296-1	01	1	1511-	●	●
321	COVER; BUMPER FRT SIDE (A)	8-97619-119-0	01	1	1511-	●	●
322	SCREW; COVER FIX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1511-	●	●
615	BRACKET; BUMPER CENTER	8-97613-643-1	01	1	1511-	●	●
633	CLIP; BUMPER ID=16 H=24 L=20	0-95207-315-0	01	1	1511-	●	●
671	BRACKET; STAY	8-97620-889-0	01	1	1511-	●	●
672	STUD; STEP M6X20	8-97611-666-0	04	1	1511-	●	●
682	BEZEL; BUMPER	8-97611-531-2	01	1	1511-	●	●
682	BEZEL; BUMPER	8-97611-530-2	01	1	1511-	●	●
683	CLIP; BEZEL,BUMPER	8-98084-293-0	08	1	1511-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
