5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶
5-30 — SPARE TIRE CARRIER AND COVER
(#169749) — 17 parça
Tümü
A - FGD5MV
B - FGR5MV
◀

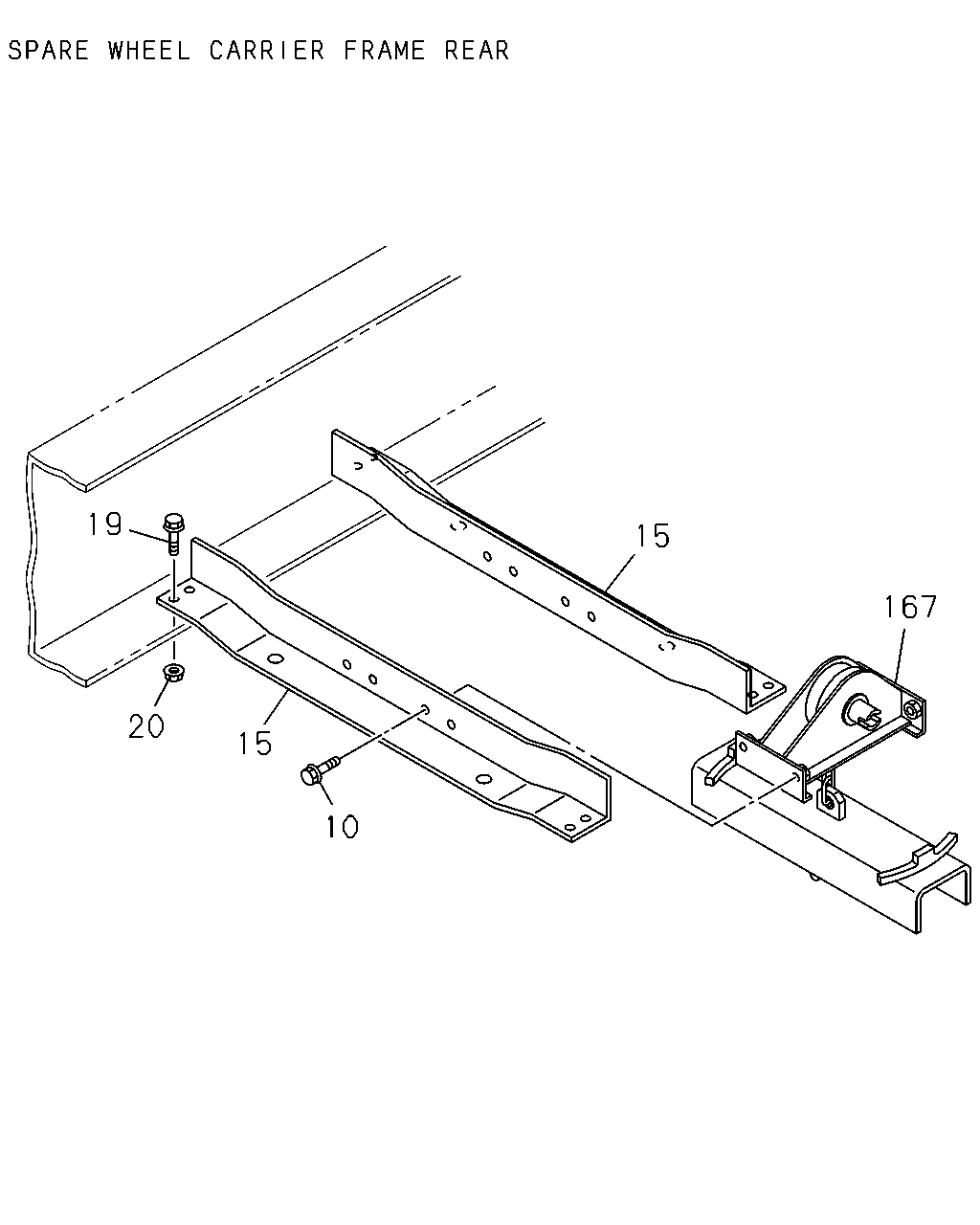

[530A] NO.2 (6 parça)

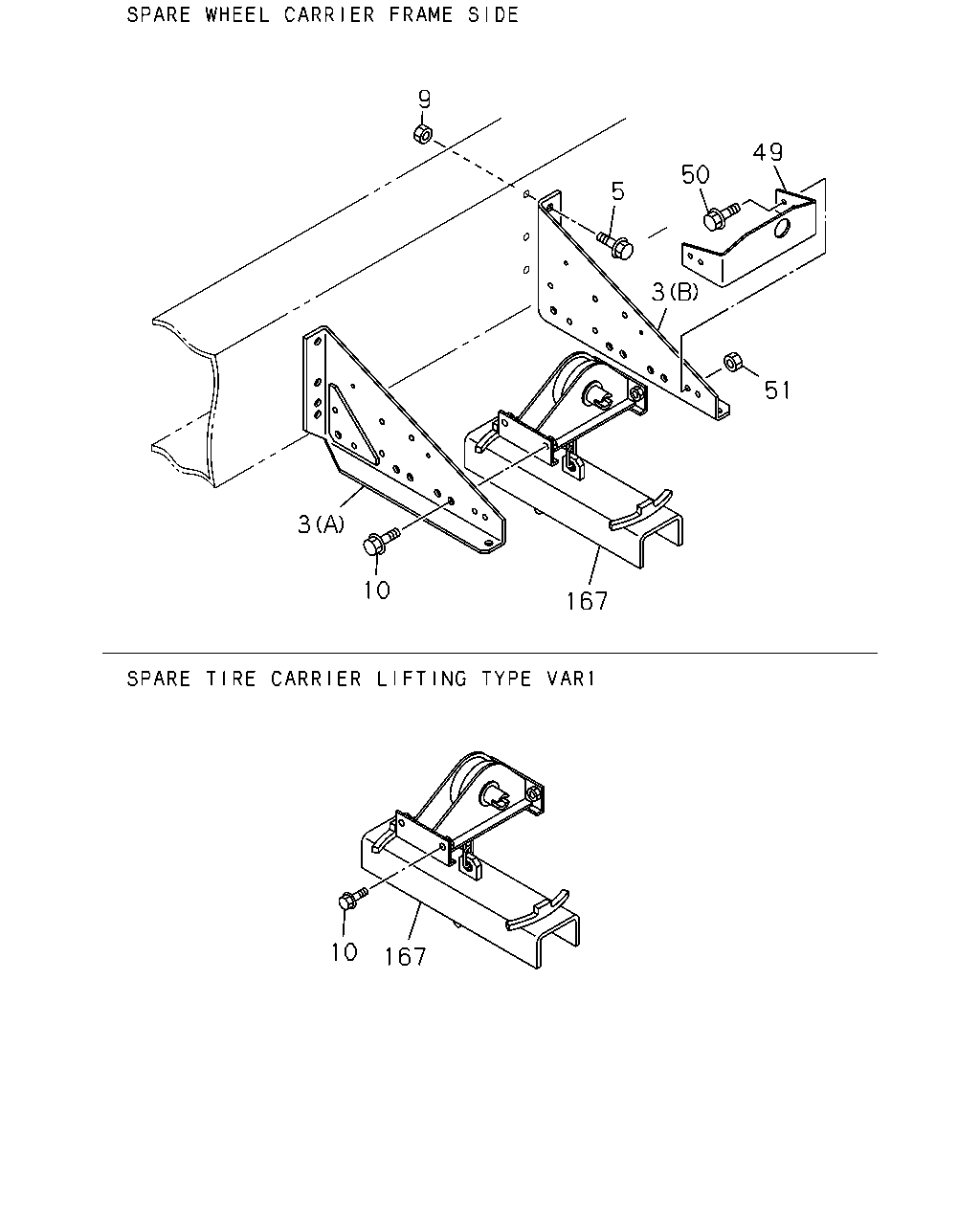

[530A] NO.1 (11 parça)
▶
15
167
10
15
20
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
10
BOLT; TIRE HANGER
M12X30 FLANGE
0-28651-230-0
04
1
1511-
●
●
15
MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>
1-53631-395-1
02
1
1511-
●
●
19
BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X30 FLANGE
0-28051-030-0
08
1
1511-
●
●
20
NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE
0-91180-210-0
08
1
1511-
●
●
167
HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>
1-53630-210-4
01
1
1511-
●
167
HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>
1-53630-210-4
01
1
1511-
●
9
5
50
49
3
51
167
10
3
167
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B)
8-98106-690-0
01
1
1511-
●
●
3
BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A)
8-98106-691-0
01
1
1511-
●
●
5
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE
0-28051-245-0
06
1
1511-
●
●
9
NUT; BRKT TO FRAME
WHEEL BASE 5500MM(55W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12
0-91110-512-0
01
1
1511-
●
●
9
NUT; BRKT TO FRAME
WHEEL BASE 6500MM(65W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12
0-91110-512-0
03
1
1511-
●
●
10
BOLT; TIRE HANGER
M12X30 FLANGE
0-28651-230-0
04
1
1511-
●
●
49
STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13>
1-53631-466-1
01
1
1511-
●
●
50
BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE
0-28650-830-0
04
1
1511-
●
●
51
NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE
0-91180-108-0
04
1
1511-
●
●
167
HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>
1-53630-210-4
01
1
1511-
●
167
HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>
1-53630-210-4
01
1
1511-
●
