5-20 — BATTERY CARRIER (#169748) — 35 parça

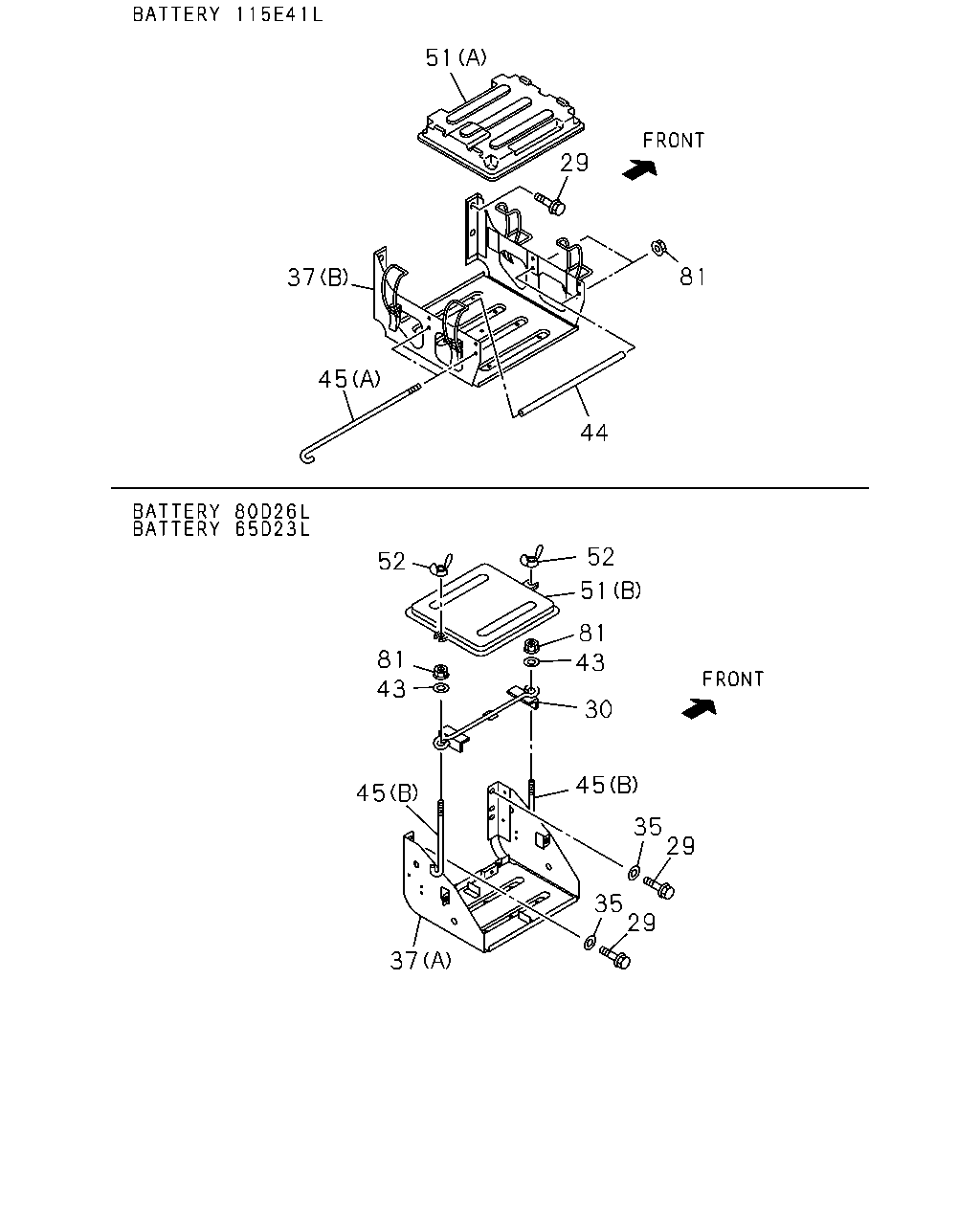

51 37 45 44 81 29 52 51 81 43 30 52 81 43 45 37 35 29 29 35 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	BOLT; BRKT TO FRAME WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10X35 FLANGE	0-28651-035-0	04	1	1511-	●	●
30	PLATE; BATTERY EXC. BATTERY 115E41L<8MA>	5-53615-004-1	01	1	1511-	●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	1511-	●	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	1511-	●	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	1511-	●	●
37	BRACKET; BATTERY WHEEL BASE 4200MM(42W) (D)	8-98088-828-0	01	1	1511-	●	●
37	BRACKET; BATTERY WHEEL BASE 4200MM(42W) (C)	8-98162-291-0	01	1	1511-	●	●
37	BRACKET; BATTERY WHEEL BASE 4200MM(42W) BATTERY 115E41L<8MA> (E)	8-98261-636-0	01	1	1511-	●	●
37	BRACKET; BATTERY WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BATTERY 115E41L<8MA> (B)	8-98261-641-1	01	1	1511-	●	●
43	WASHER; PL,CLAMP EXC. BATTERY 115E41L<8MA> ID=8.4 OD=22	0-91614-708-0	02	1	1511-	●	●
44	SPACER; BATTERY BATTERY 115E41L<8MA>	8-98261-682-0	02	1	1511-	●	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A) L=430	8-97134-740-0	02	1	1511-	●	●
45	ROD; TENSION,BATTERY EXC. BATTERY 115E41L<8MA> (B) L=120	9-53616-615-0	02	1	1511-	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	1511-	●	●
51	COVER; BATTERY EXC. BATTERY 115E41L<8MA> (B)	8-97120-747-0	01	1	1511-	●	●
52	NUT; WING,COVER FIX EXC. BATTERY 115E41L<8MA> M8 WING NUT	0-91118-408-0	02	1	1511-	●	●
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	1511-	●	●

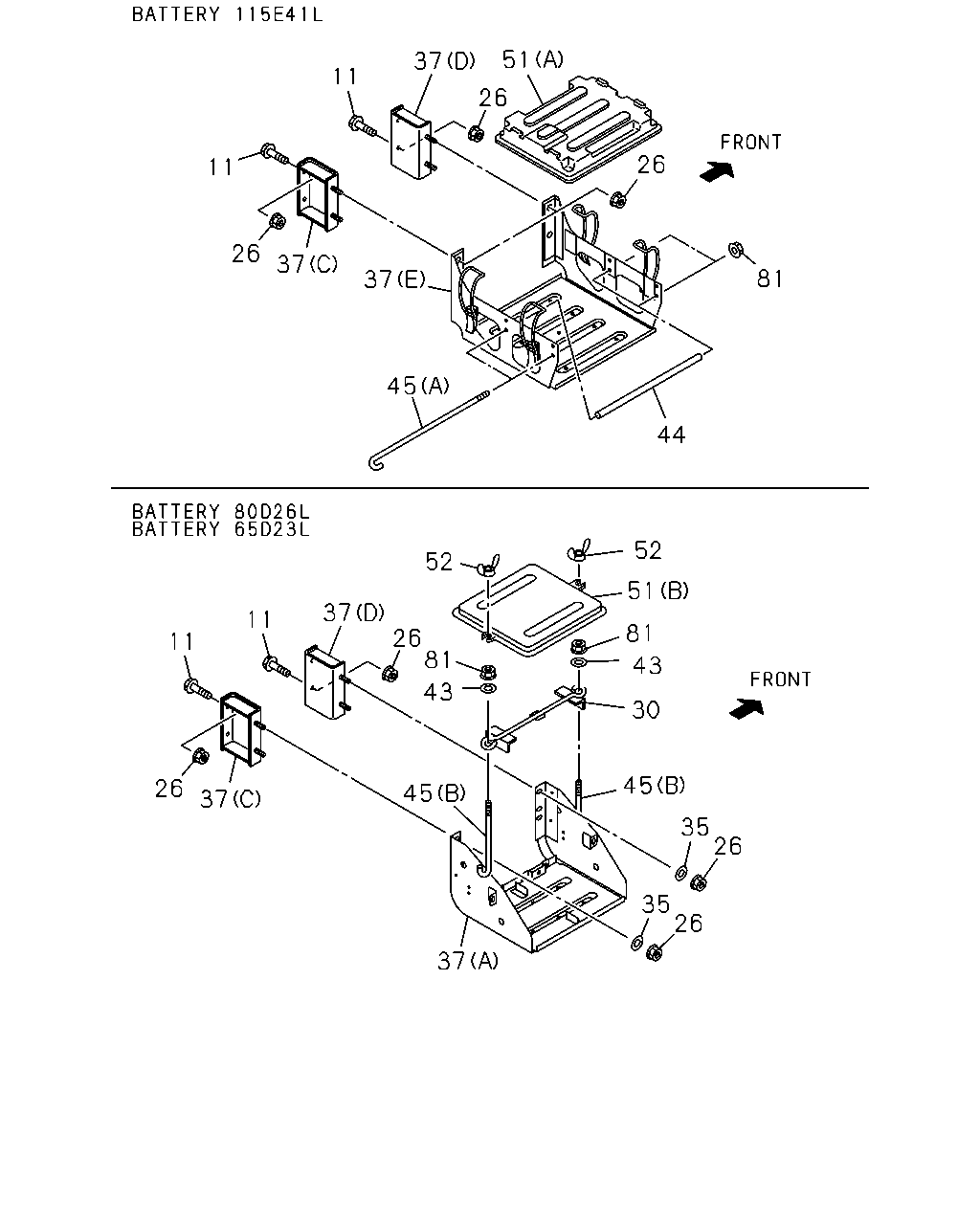

51 37 11 11 26 37 37 45 44 81 26 26 52 51 81 43 30 45 35 26 26 35 37 45 43 81 26 37 11 11 26 37 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; BRKT FIX WHEEL BASE 4200MM(42W) M10X35 FLANGE	0-28651-035-0	04	1	1511-	●	●
26	NUT; BRKT WHEEL BASE 4200MM(42W) M10 FLANGE	0-91180-210-0	08	1	1511-	●	●
30	PLATE; BATTERY EXC. BATTERY 115E41L<8MA>	5-53615-004-1	01	1	1511-	●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	1511-	●	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	1511-	●	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	1511-	●	●
37	BRACKET; BATTERY WHEEL BASE 4200MM(42W) (D)	8-98088-828-0	01	1	1511-	●	●
37	BRACKET; BATTERY WHEEL BASE 4200MM(42W) (C)	8-98162-291-0	01	1	1511-	●	●
37	BRACKET; BATTERY WHEEL BASE 4200MM(42W) BATTERY 115E41L<8MA> (E)	8-98261-636-0	01	1	1511-	●	●
37	BRACKET; BATTERY WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) BATTERY 115E41L<8MA> (B)	8-98261-641-1	01	1	1511-	●	●
43	WASHER; PL,CLAMP EXC. BATTERY 115E41L<8MA> ID=8.4 OD=22	0-91614-708-0	02	1	1511-	●	●
44	SPACER; BATTERY BATTERY 115E41L<8MA>	8-98261-682-0	02	1	1511-	●	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A) L=430	8-97134-740-0	02	1	1511-	●	●
45	ROD; TENSION,BATTERY EXC. BATTERY 115E41L<8MA> (B) L=120	9-53616-615-0	02	1	1511-	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	1511-	●	●
51	COVER; BATTERY EXC. BATTERY 115E41L<8MA> (B)	8-97120-747-0	01	1	1511-	●	●
52	NUT; WING,COVER FIX EXC. BATTERY 115E41L<8MA> M8 WING NUT	0-91118-408-0	02	1	1511-	●	●
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
