◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11717 - FVR AUST/NZ EURO5 ▶ 5 - Frame, Cab Mounting ▶ 5-17 - CYLINDER; CAB TILT ▶
5-17 — CYLINDER; CAB TILT (#169747) — 27 parça
çizim 501796
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER; OIL,CAB TILT 8-98020-528-0 01 1 1511- ● ●

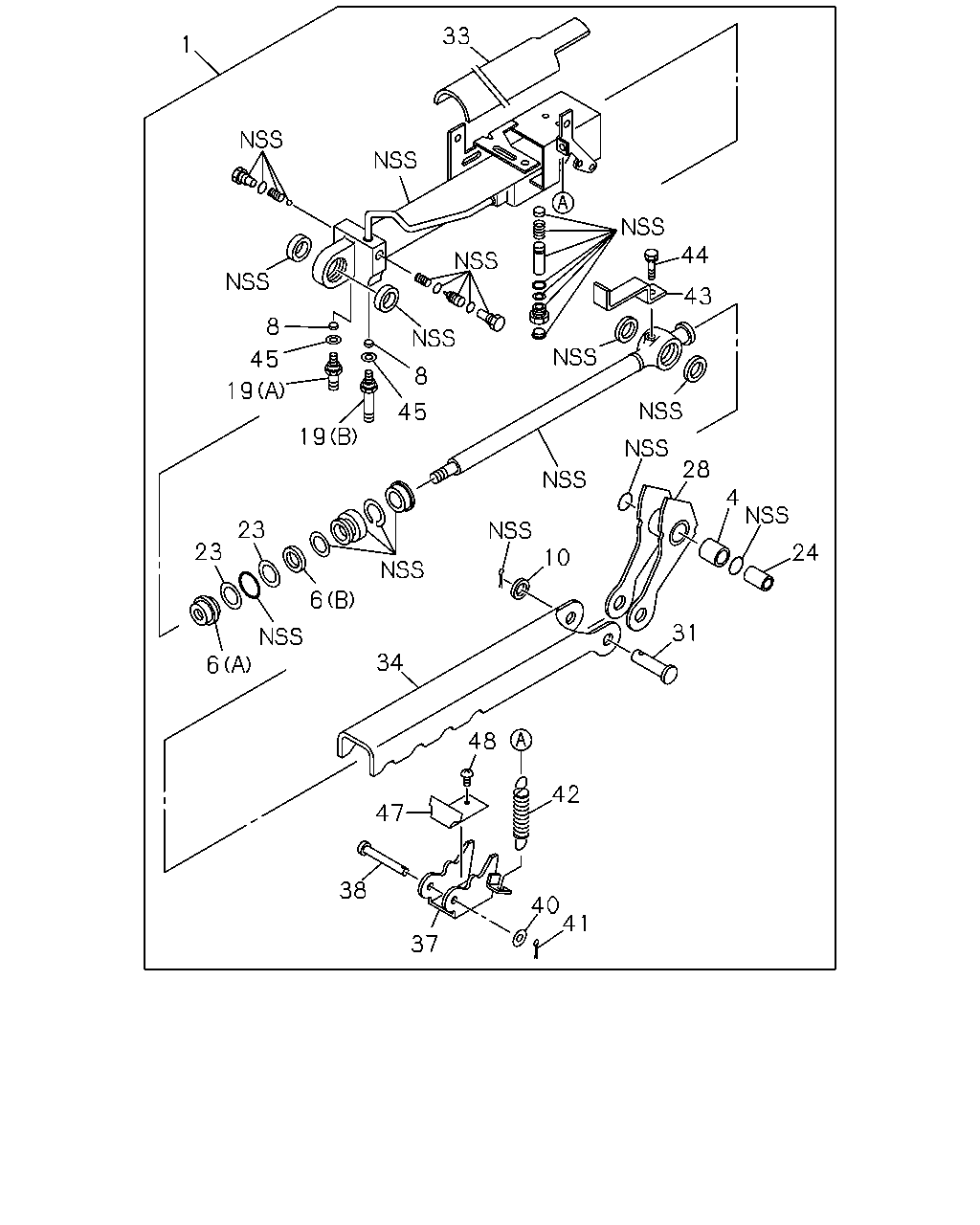

çizim 502400
33 1 8 45 19 19 8 45 44 43 28 24 4 31 10 42 48 47 38 37 40 41 34 23 6 23 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER; OIL,CAB TILT 8-98020-528-0 01 1 1511- ● ●
4 BUSHING; OIL CYL 1-53458-405-0 01 1 1511- ● ●
6 PISTON; OIL CYL
(A) 		8-98134-365-0 01 1 1511- ● ●
6 PISTON; OIL CYL
(B) 		8-98134-367-0 01 1 1511- ● ●
8 FILTER; OIL CYL 1-53458-102-0 02 1 1511- ● ●
10 WASHER; OIL CYL 1-53458-401-0 01 1 1511- ● ●
19 NIPPLE; OIL CYL
(A) 		1-53457-044-0 01 1 1511- ● ●
19 NIPPLE; OIL CYL
(B) 		1-53457-045-0 01 1 1511- ● ●
23 RING; SNAP 1-53457-048-0 02 1 1511- ● ●
24 COLLAR; LEVER 1-53458-398-0 01 1 1511- ● ●
28 LEVER; OIL CYL 1-53458-583-0 01 1 1511- ● ●
31 PIN; OIL CYL 1-53457-172-0 01 1 1511- ● ●
33 COVER; CYL 1-53458-590-0 01 1 1511- ● ●
34 STOPPER; OIL CYL 1-53458-582-0 01 1 1511- ● ●
37 LEVER; STOPPER 1-53457-170-0 01 1 1511- ● ●
38 PIN; STOPPER 1-53458-550-0 01 1 1511- ● ●
40 WASHER; STOPPER PIN 1-53458-045-0 01 1 1511- ● ●
41 PIN; SPLIT 1-53458-545-0 01 1 1511- ● ●
42 SPRING; LOCK LEVER 1-53457-168-0 01 1 1511- ● ●
43 PLATE; SW 1-53457-167-0 01 1 1511- ● ●
44 BOLT; SW PLATE
M6X12 		1-53458-542-0 01 1 1511- ● ●
45 GASKET; OIL CYL 1-53458-073-0 02 1 1511- ● ●
47 PLATE; THRUST,OIL CYL 1-53457-169-0 01 1 1511- ● ●
48 SCREW; OIL CYL
M5X8 		1-53458-005-0 02 1 1511- ● ●

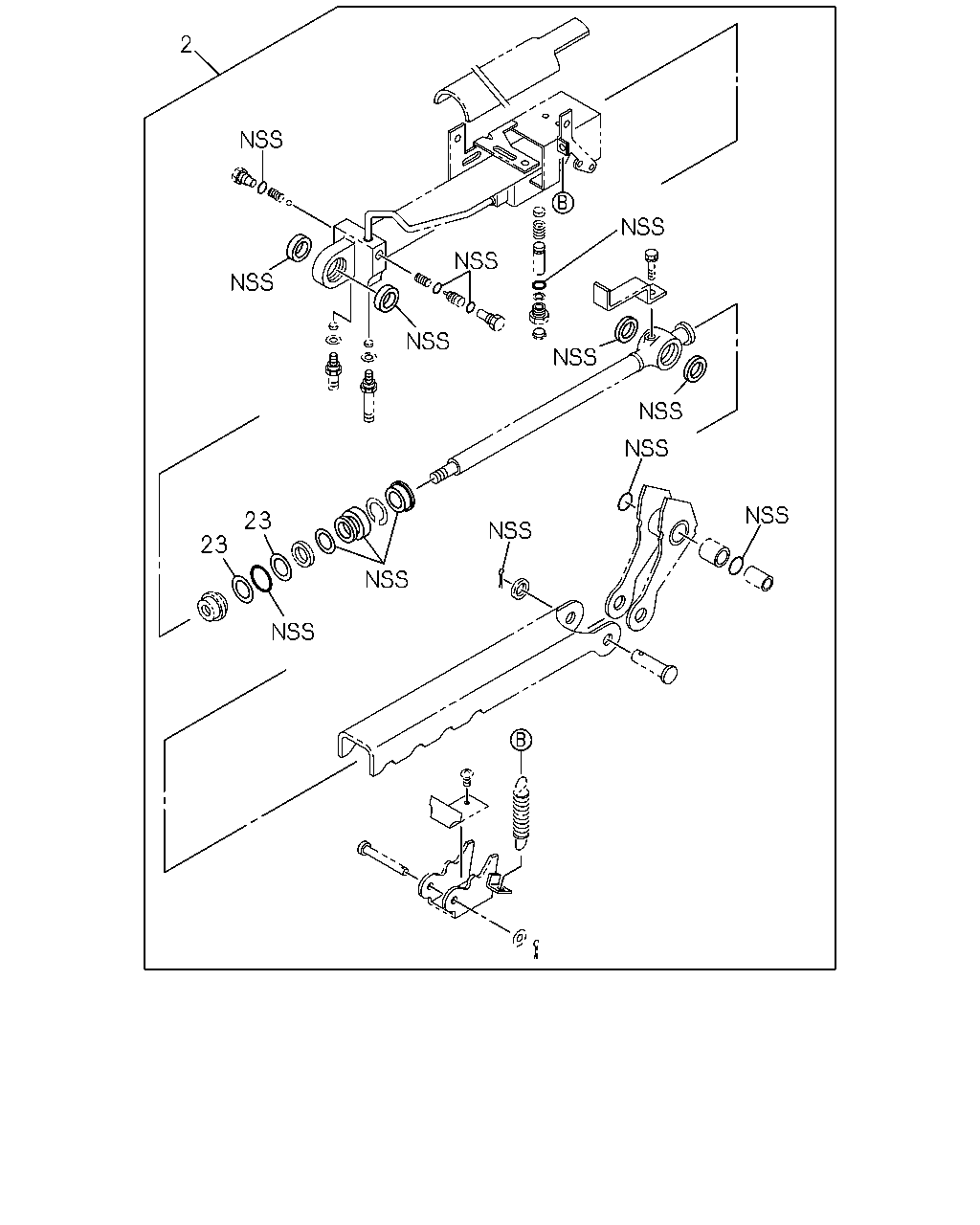

çizim 502449
2 23 23
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; OIL CYL 1-85579-068-0 01 1 1511- ● ●
23 RING; SNAP 1-53457-048-0 02 1 1511- ● ●
