Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#169743) — 187 parça

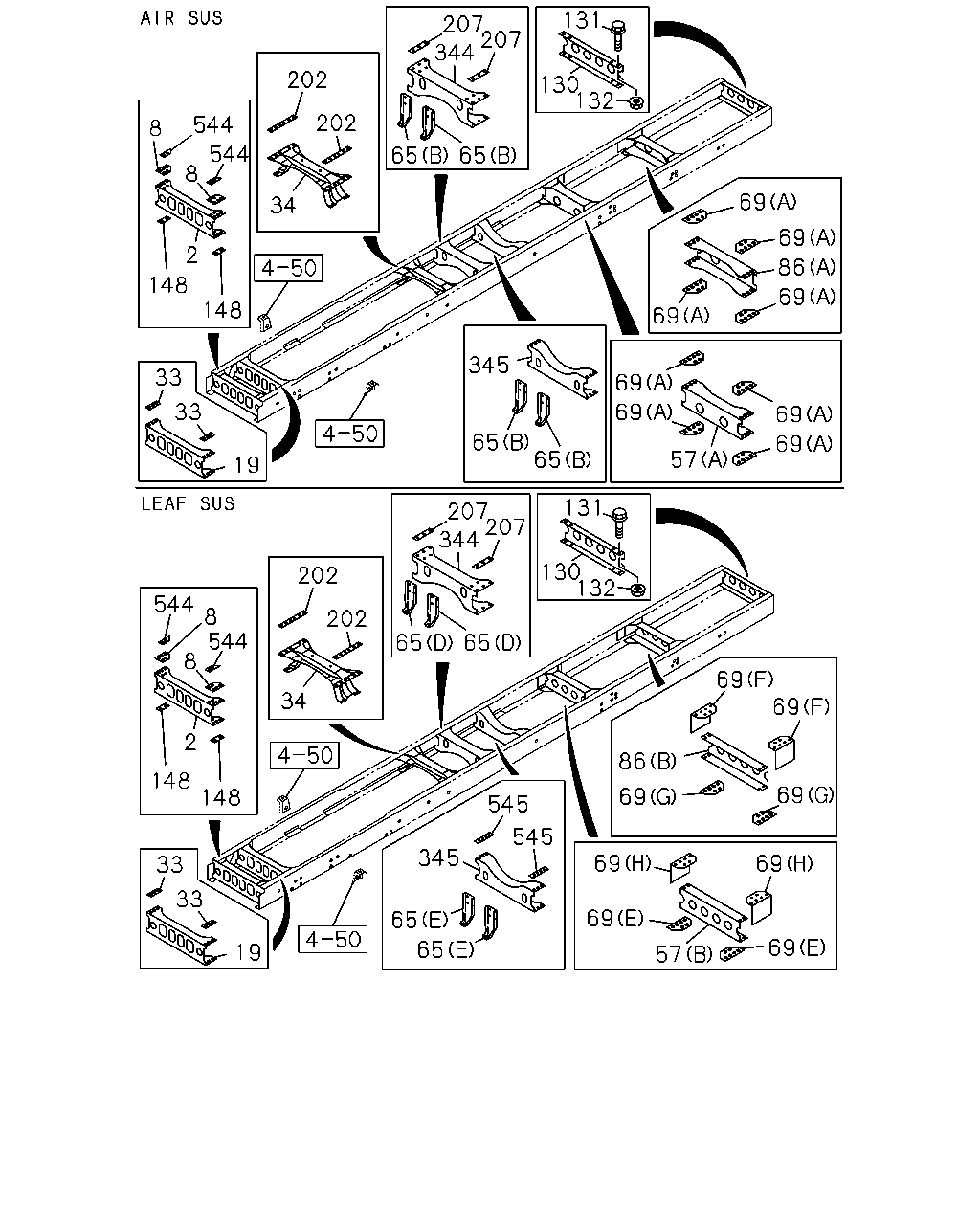

130 131 132 69 86 69 207 207 344 65 65 202 202 544 8 544 34 8 148 2 148 33 19 33 345 139 69 69 69 69 69 69 65 65 57 65 65 69 57 69 69 69 207 207 344 65 65 202 202 544 544 8 8 2 148 148 33 33 19 65 345 65 139 69 86 69 69 69 65 131 130 132 34 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97610-852-7	01	1	1511-	●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	1511-	●	●	●
19	MEMBER; CROSS,2ND	8-97610-853-5	01	1	1511-	●	●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	1511-	●	●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	1511-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT FVR AIR SUS(FGD***) (A)	8-97611-239-2	01	1	1511-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT FVR LEAF SUS(FGR***) (B)	8-97610-858-5	01	1	1511-	●	●	●
65	BRACKET; CENTER BRG (A)	8-97621-250-0	02	1	1511-	●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) (B)	8-97614-136-0	04	1	1511-		●
65	BRACKET; CENTER BRG FVR LEAF SUS(FGR***) (E)	8-97614-133-0	02	1	1511-		●
65	BRACKET; CENTER BRG FVR LEAF SUS(FGR***) (D)	8-97621-881-0	02	1	1511-		●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) ALLISON MD3060P A/T(Y4G) (D)	8-97621-881-0	02	1	1511-			●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) ALLISON MD3060P A/T(Y4G) (F)	8-97614-125-0	02	1	1511-			●
65	BRACKET; CENTER BRG FVR LEAF SUS(FGR***) (F)	8-97614-125-0	02	1	1511-			●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) ALLISON MD3060P A/T(Y4G) (G)	8-97614-129-0	02	1	1511-			●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) (D)	8-97614-132-0	02	1	1511-			●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) (F)	8-97614-150-0	02	1	1511-			●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) (G)	8-97623-393-0	02	1	1511-			●
65	BRACKET; CENTER BRG FVR LEAF SUS(FGR***) (G)	8-97623-393-0	02	1	1511-			●
65	BRACKET; CENTER BRG FVR LEAF SUS(FGR***) (C)	8-97623-367-0	02	1	1511-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (D)	8-97619-800-0	01	1	1511-	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (D)	8-97619-801-0	01	1	1511-	●
69	GUSSET; RR SUSP,UPR FVR AIR SUS(FGD***) (A)	8-97611-247-0	08	1	1511-	●	●	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (F)	8-97619-802-0	01	1	1511-	●	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (F)	8-97619-803-0	01	1	1511-	●	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (E)	8-97610-865-0	02	1	1511-	●	●	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (G)	8-97610-866-0	02	1	1511-	●	●	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (H)	8-98312-921-0	01	1	1511-		●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (H)	8-98312-922-0	01	1	1511-		●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (B)	8-97611-907-1	01	1	1511-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (B)	8-97611-908-1	01	1	1511-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (C)	8-97611-910-0	01	1	1511-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (C)	8-97611-911-0	01	1	1511-			●
86	MEMBER; CROSS,RR SUSP RR FVR AIR SUS(FGD***) (A)	8-97611-239-2	01	1	1511-	●	●	●
86	MEMBER; CROSS,RR SUSP RR FVR LEAF SUS(FGR***) (B)	8-97610-858-5	01	1	1511-	●	●	●
130	MEMBER; CROSS,END	8-97610-869-1	01	1	1511-	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	1511-	●	●	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	1511-	●	●	●
139	MEMBER; CROSS,6TH	8-97611-238-1	01	1	1511-			●
148	SPACER; C/MBR	8-97611-039-0	02	1	1511-	●	●	●
202	SPACER; 3RD C/MBR	8-97610-872-0	02	1	1511-	●	●	●
207	SPACER; 4TH C/MBR 0.25KG	8-97611-244-0	02	1	1511-	●	●	●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1511-	●	●	●
345	MEMBER; CROSS,5TH	8-97611-238-1	01	1	1511-		●	●
544	PLATE; CAB FRT MTG	8-97611-030-0	02	1	1511-	●	●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	1511-			●

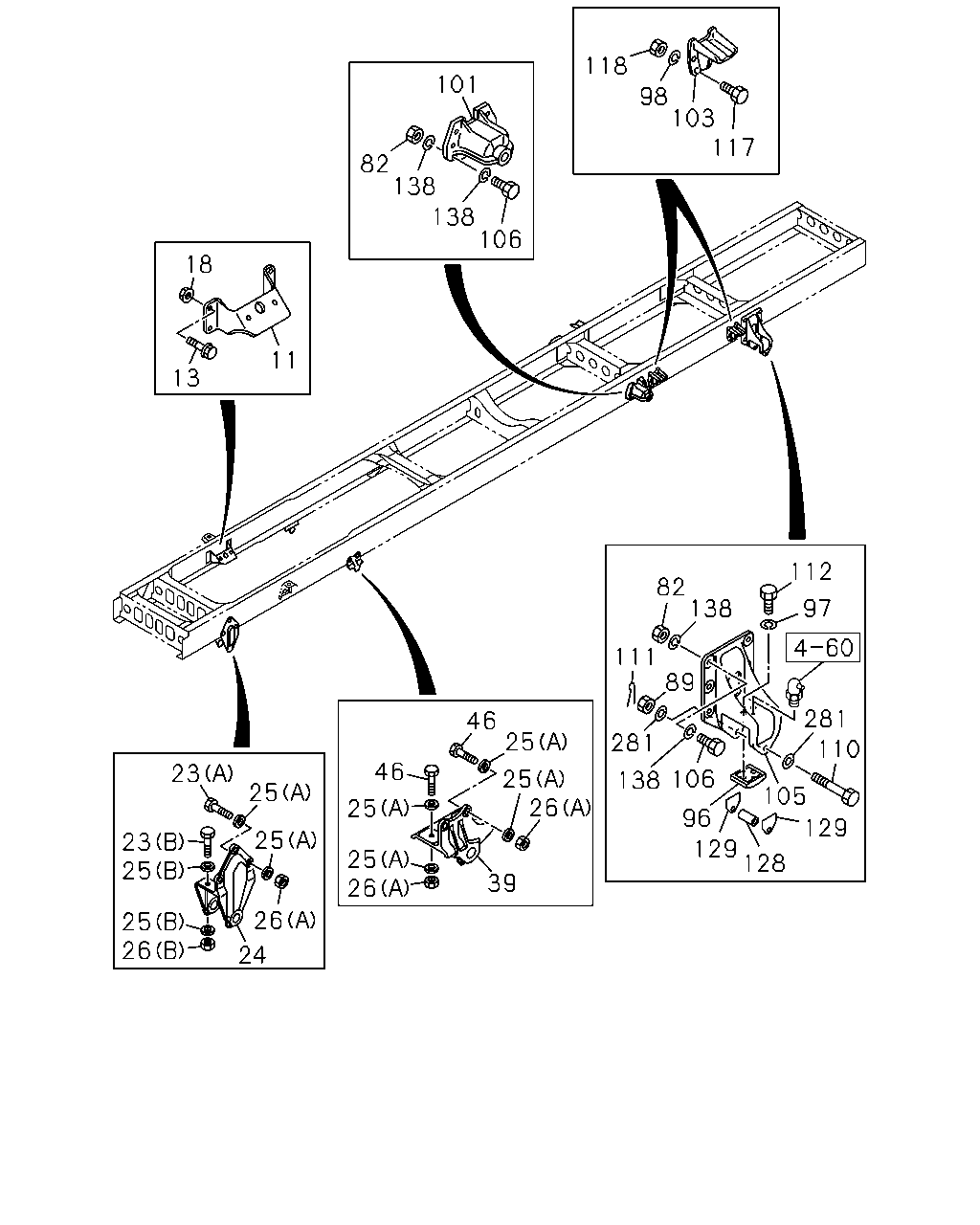

112 97 138 82 111 89 281 138 96 129 106 128 105 110 281 129 26 39 25 25 46 46 25 25 26 23 25 25 26 24 26 25 25 23 11 18 13 82 101 138 138 106 118 98 103 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	BRACKET; ENG MTG	8-97619-549-0	02	1	1511-	●	●
11	BRACKET; ENG MTG	8-97619-550-0	02	1	1511-			●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	1511-	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1511-	●	●	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	1511-	●	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	1511-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	1511-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	1511-	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1511-	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1511-	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	1511-	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1511-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	1511-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	1511-	●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1511-	●	●	●
82	NUT; BRKT FVR LEAF SUS(FGR***) M14	0-91110-514-0	24	1	1511-	●	●	●
89	NUT; LEAF SPR STOPPER FVR LEAF SUS(FGR***) M14 SLOTTED	0-91116-514-0	02	1	1511-	●	●	●
96	PAD; RR SPR FVR LEAF SUS(FGR***)	1-53359-047-0	02	1	1511-	●	●	●
97	WASHER; LK,PAD FVR LEAF SUS(FGR***) ID=14.2	0-91510-514-0	04	1	1511-	●	●	●
98	WASHER; LK,STOPPER FVR LEAF SUS(FGR***) ID=14.2	0-91510-814-0	16	1	1511-	●	●	●
101	BRACKET; RR SPR,FRT FVR LEAF SUS(FGR***)	1-53353-078-1	02	1	1511-	●	●	●
103	STOPPER; SUB SPR FVR LEAF SUS(FGR***)	1-53356-057-0	04	1	1511-	●	●	●
105	BRACKET; RR SPR,RR FVR LEAF SUS(FGR***)	1-53354-064-1	02	1	1511-	●	●	●
106	BOLT; BRKT FVR LEAF SUS(FGR***) M14X50	0-20951-450-0	24	1	1511-	●	●	●
110	BOLT; LEAF SPR STOPPER FVR LEAF SUS(FGR***)	1-09000-007-0	02	1	1511-	●	●	●
111	PIN; SPLIT,LEAF SPR STOPPER FVR LEAF SUS(FGR***) OD=2.8 L=28	0-81123-028-0	02	1	1511-	●	●	●
112	BOLT; PAD FVR LEAF SUS(FGR***) M14X35	0-20851-435-0	04	1	1511-	●	●	●
117	BOLT; STOPPER FVR LEAF SUS(FGR***) M14X50	0-20951-450-0	16	1	1511-	●	●	●
118	NUT; STOPPER FVR LEAF SUS(FGR***) M14	0-91110-514-0	16	1	1511-	●	●	●
128	COLLAR; RUBBER FVR LEAF SUS(FGR***)	1-53359-004-0	02	1	1511-	●	●	●
129	SHIM; SIDE FVR LEAF SUS(FGR***) T=4.5	1-53359-061-1	02	1	1511-	●	●	●
129	SHIM; SIDE FVR LEAF SUS(FGR***) T=3.2	1-53359-062-1	02	1	1511-	●	●	●
138	WASHER; LK,BRKT FVR LEAF SUS(FGR***) ID=14.2	0-91510-814-0	24	1	1511-	●	●	●
281	WASHER; LEAF SPR STOPPER FVR LEAF SUS(FGR***) ID=15 OD=30	9-09160-614-0	04	1	1511-	●	●	●

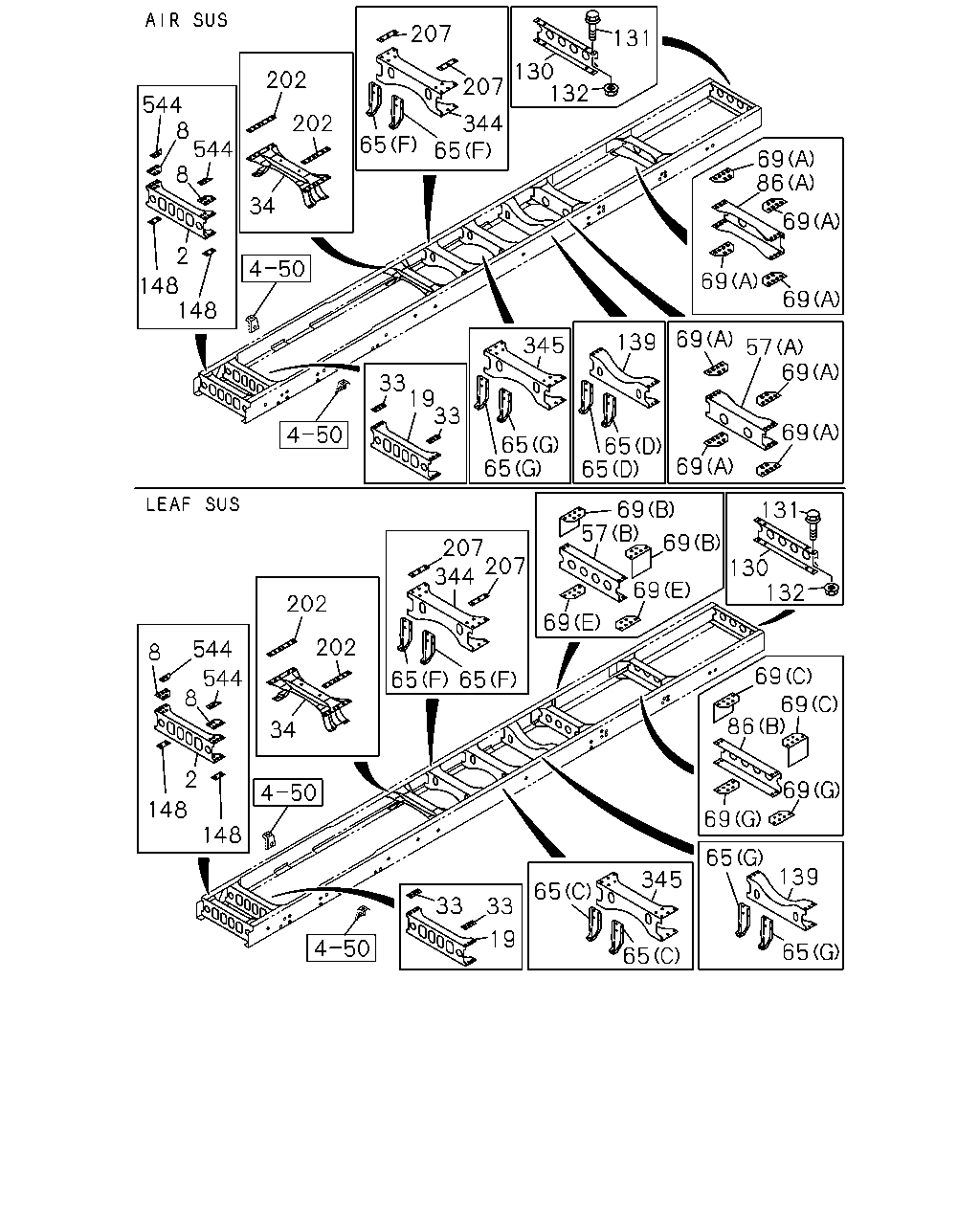

69 69 86 69 69 132 130 131 69 69 69 69 86 69 69 69 545 545 345 65 65 19 33 33 148 148 544 544 202 202 207 65 65 207 131 130 132 57 69 69 207 207 344 65 65 202 202 34 148 148 8 544 8 2 544 69 345 65 34 8 8 57 344 65 19 33 33 2 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97610-852-7	01	1	1511-	●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	1511-	●	●	●
19	MEMBER; CROSS,2ND	8-97610-853-5	01	1	1511-	●	●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	1511-	●	●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	1511-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT FVR AIR SUS(FGD***) (A)	8-97611-239-2	01	1	1511-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT FVR LEAF SUS(FGR***) (B)	8-97610-858-5	01	1	1511-	●	●	●
65	BRACKET; CENTER BRG (A)	8-97621-250-0	02	1	1511-	●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) (B)	8-97614-136-0	04	1	1511-		●
65	BRACKET; CENTER BRG FVR LEAF SUS(FGR***) (E)	8-97614-133-0	02	1	1511-		●
65	BRACKET; CENTER BRG FVR LEAF SUS(FGR***) (D)	8-97621-881-0	02	1	1511-		●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) ALLISON MD3060P A/T(Y4G) (D)	8-97621-881-0	02	1	1511-			●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) ALLISON MD3060P A/T(Y4G) (F)	8-97614-125-0	02	1	1511-			●
65	BRACKET; CENTER BRG FVR LEAF SUS(FGR***) (F)	8-97614-125-0	02	1	1511-			●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) ALLISON MD3060P A/T(Y4G) (G)	8-97614-129-0	02	1	1511-			●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) (D)	8-97614-132-0	02	1	1511-			●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) (F)	8-97614-150-0	02	1	1511-			●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) (G)	8-97623-393-0	02	1	1511-			●
65	BRACKET; CENTER BRG FVR LEAF SUS(FGR***) (G)	8-97623-393-0	02	1	1511-			●
65	BRACKET; CENTER BRG FVR LEAF SUS(FGR***) (C)	8-97623-367-0	02	1	1511-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (D)	8-97619-800-0	01	1	1511-	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (D)	8-97619-801-0	01	1	1511-	●
69	GUSSET; RR SUSP,UPR FVR AIR SUS(FGD***) (A)	8-97611-247-0	08	1	1511-	●	●	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (F)	8-97619-802-0	01	1	1511-	●	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (F)	8-97619-803-0	01	1	1511-	●	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (E)	8-97610-865-0	02	1	1511-	●	●	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (G)	8-97610-866-0	02	1	1511-	●	●	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (H)	8-98312-921-0	01	1	1511-		●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (H)	8-98312-922-0	01	1	1511-		●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (B)	8-97611-907-1	01	1	1511-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (B)	8-97611-908-1	01	1	1511-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (C)	8-97611-910-0	01	1	1511-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (C)	8-97611-911-0	01	1	1511-			●
86	MEMBER; CROSS,RR SUSP RR FVR AIR SUS(FGD***) (A)	8-97611-239-2	01	1	1511-	●	●	●
86	MEMBER; CROSS,RR SUSP RR FVR LEAF SUS(FGR***) (B)	8-97610-858-5	01	1	1511-	●	●	●
130	MEMBER; CROSS,END	8-97610-869-1	01	1	1511-	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	1511-	●	●	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	1511-	●	●	●
148	SPACER; C/MBR	8-97611-039-0	02	1	1511-	●	●	●
202	SPACER; 3RD C/MBR	8-97610-872-0	02	1	1511-	●	●	●
207	SPACER; 4TH C/MBR 0.25KG	8-97611-244-0	02	1	1511-	●	●	●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1511-	●	●	●
345	MEMBER; CROSS,5TH	8-97611-238-1	01	1	1511-		●	●
544	PLATE; CAB FRT MTG	8-97611-030-0	02	1	1511-	●	●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	1511-			●
545	SPACER; 5TH C/MBR FVR LEAF SUS(FGR***) 6HK1-TCC ENG(81L) 0.24KG	8-97611-245-0	02	1	1511-		●

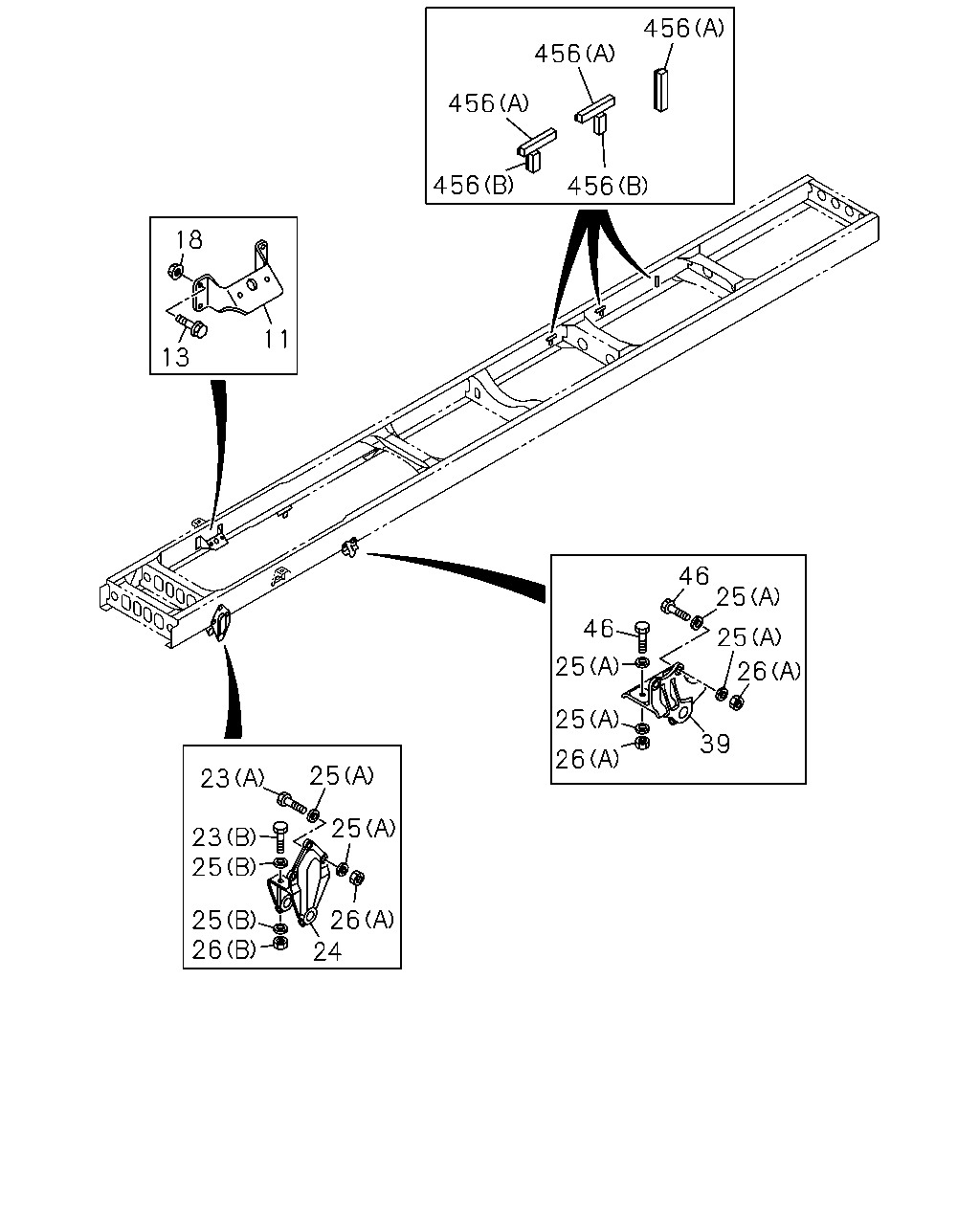

456 456 456 456 456 11 13 18 23 25 25 26 24 25 26 25 23 46 46 25 25 26 25 25 26 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	BRACKET; ENG MTG	8-97619-549-0	02	1	1511-	●	●
11	BRACKET; ENG MTG	8-97619-550-0	02	1	1511-			●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	1511-	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1511-	●	●	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	1511-	●	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	1511-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	1511-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	1511-	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1511-	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1511-	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	1511-	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1511-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	1511-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	1511-	●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	1511-	●	●	●
456	PATCH; STOPPER FVR AIR SUS(FGD***) (A)	8-97642-212-0	06	1	1511-	●	●	●
456	PATCH; STOPPER FVR AIR SUS(FGD***) (B)	8-97642-213-0	04	1	1511-	●	●	●

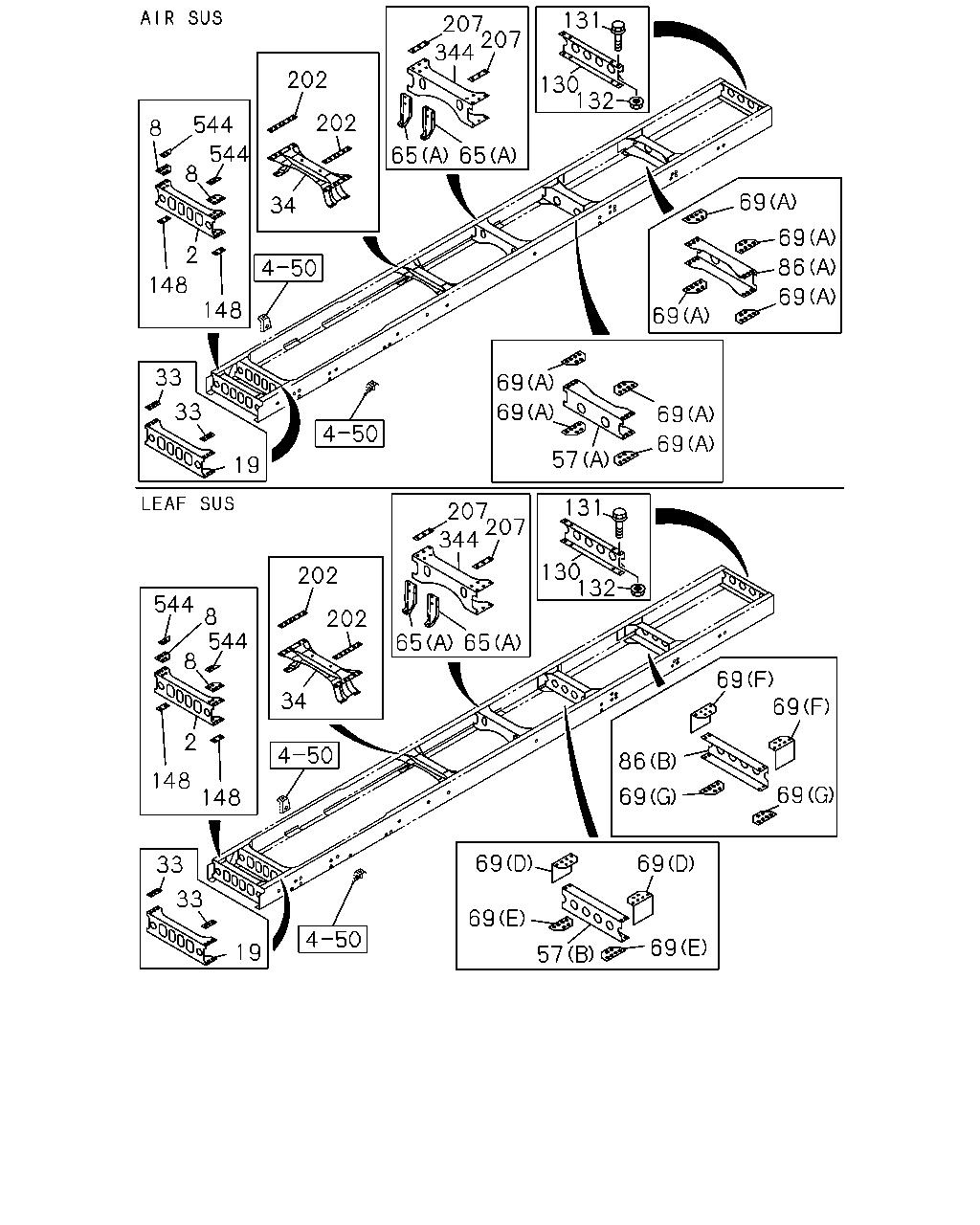

207 131 130 132 69 69 86 69 69 69 69 57 69 69 131 130 132 86 69 65 65 69 69 69 69 69 57 69 69 19 33 33 148 148 2 8 8 544 544 19 33 33 148 148 2 8 8 544 202 202 34 65 65 344 207 202 202 34 344 207 207

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97610-852-7	01	1	1511-	●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	1511-	●	●	●
19	MEMBER; CROSS,2ND	8-97610-853-5	01	1	1511-	●	●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	1511-	●	●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	1511-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT FVR AIR SUS(FGD***) (A)	8-97611-239-2	01	1	1511-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT FVR LEAF SUS(FGR***) (B)	8-97610-858-5	01	1	1511-	●	●	●
65	BRACKET; CENTER BRG (A)	8-97621-250-0	02	1	1511-	●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) (B)	8-97614-136-0	04	1	1511-		●
65	BRACKET; CENTER BRG FVR LEAF SUS(FGR***) (E)	8-97614-133-0	02	1	1511-		●
65	BRACKET; CENTER BRG FVR LEAF SUS(FGR***) (D)	8-97621-881-0	02	1	1511-		●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) ALLISON MD3060P A/T(Y4G) (D)	8-97621-881-0	02	1	1511-			●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) ALLISON MD3060P A/T(Y4G) (F)	8-97614-125-0	02	1	1511-			●
65	BRACKET; CENTER BRG FVR LEAF SUS(FGR***) (F)	8-97614-125-0	02	1	1511-			●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) ALLISON MD3060P A/T(Y4G) (G)	8-97614-129-0	02	1	1511-			●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) (D)	8-97614-132-0	02	1	1511-			●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) (F)	8-97614-150-0	02	1	1511-			●
65	BRACKET; CENTER BRG FVR AIR SUS(FGD***) ZF9S1110 M/T(Y5E) (G)	8-97623-393-0	02	1	1511-			●
65	BRACKET; CENTER BRG FVR LEAF SUS(FGR***) (G)	8-97623-393-0	02	1	1511-			●
65	BRACKET; CENTER BRG FVR LEAF SUS(FGR***) (C)	8-97623-367-0	02	1	1511-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (D)	8-97619-800-0	01	1	1511-	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (D)	8-97619-801-0	01	1	1511-	●
69	GUSSET; RR SUSP,UPR FVR AIR SUS(FGD***) (A)	8-97611-247-0	08	1	1511-	●	●	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (F)	8-97619-802-0	01	1	1511-	●	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (F)	8-97619-803-0	01	1	1511-	●	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (E)	8-97610-865-0	02	1	1511-	●	●	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (G)	8-97610-866-0	02	1	1511-	●	●	●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (H)	8-98312-921-0	01	1	1511-		●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (H)	8-98312-922-0	01	1	1511-		●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (B)	8-97611-907-1	01	1	1511-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (B)	8-97611-908-1	01	1	1511-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (C)	8-97611-910-0	01	1	1511-			●
69	GUSSET; RR SUSP,UPR FVR LEAF SUS(FGR***) (C)	8-97611-911-0	01	1	1511-			●
86	MEMBER; CROSS,RR SUSP RR FVR AIR SUS(FGD***) (A)	8-97611-239-2	01	1	1511-	●	●	●
86	MEMBER; CROSS,RR SUSP RR FVR LEAF SUS(FGR***) (B)	8-97610-858-5	01	1	1511-	●	●	●
130	MEMBER; CROSS,END	8-97610-869-1	01	1	1511-	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	1511-	●	●	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	1511-	●	●	●
148	SPACER; C/MBR	8-97611-039-0	02	1	1511-	●	●	●
202	SPACER; 3RD C/MBR	8-97610-872-0	02	1	1511-	●	●	●
207	SPACER; 4TH C/MBR 0.25KG	8-97611-244-0	02	1	1511-	●	●	●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	1511-	●	●	●
544	PLATE; CAB FRT MTG	8-97611-030-0	02	1	1511-	●	●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	1511-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
