4-60 — REAR SUSPENSION (#169735) — 75 parça

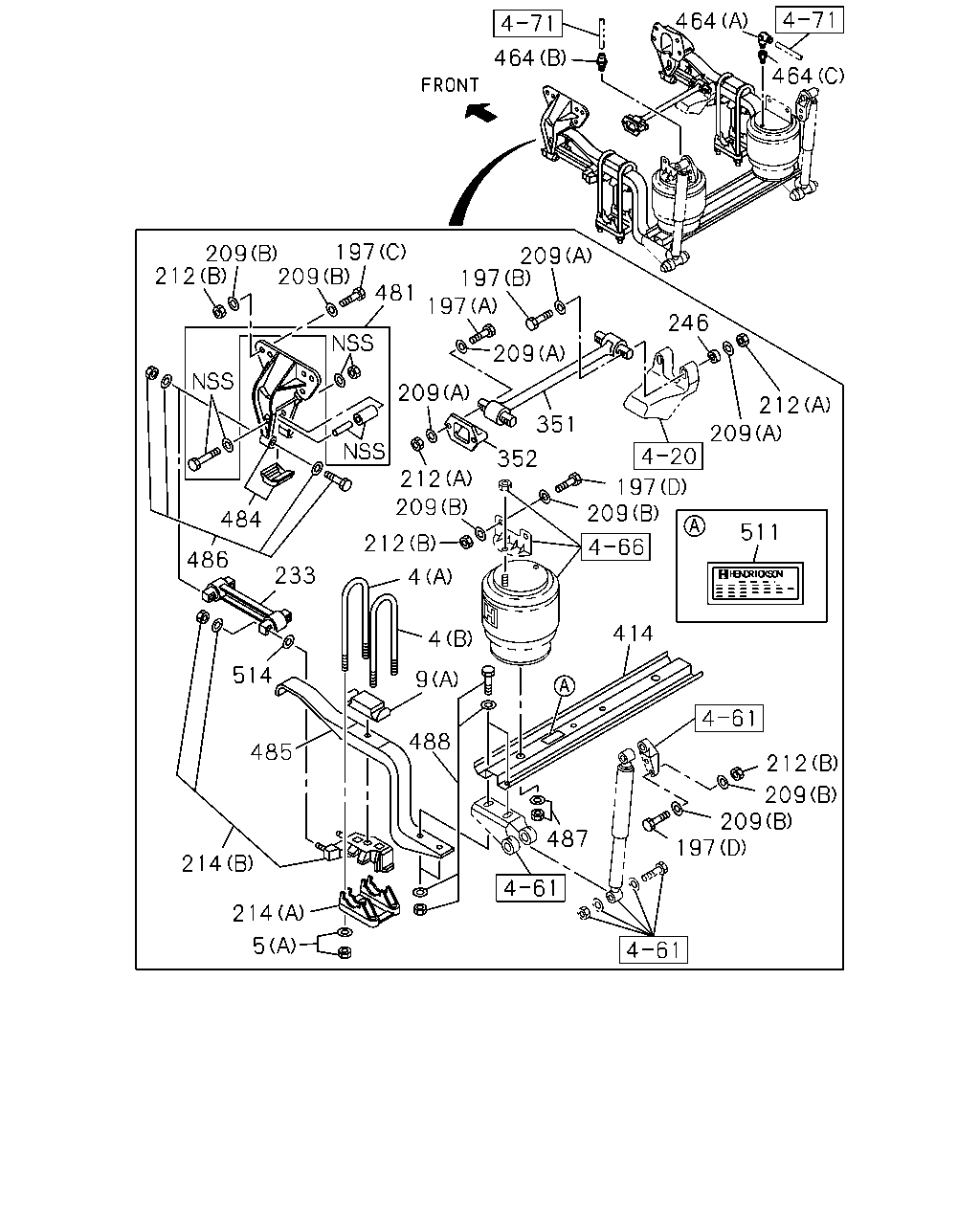

çizim 501498
464 464 464 209 197 197 481 209 209 197 212 209 212 209 212 233 484 486 514 485 214 214 5 487 488 9 4 4 414 209 197 352 351 209 246 197 209 209 212 209 212 511
BalonParca AdiParca NoAdetTipApplied Date A B
4 U-BOLT; RR SPR
(A) L=356 		1-51371-229-0 02 1 1511- ●
4 U-BOLT; RR SPR
(B) L=381 		1-51371-230-0 02 1 1511- ●
5 NUT; U-BOLT,RR SPR
(A) 		1-52179-039-0 01 1 1511- ●
5 NUT; U-BOLT,RR SPR
(B) M24 		0-91112-824-0 08 1 1511- ●
9 PAD; U BOLT,RR SPR
(A) 		1-51372-073-0 02 1 1511- ●
9 PAD; U BOLT,RR SPR
(B) 		1-51372-030-0 02 1 1511- ●
197 BOLT
(A) 		1-09000-767-0 02 1 1511- ●
197 BOLT
(B) 		1-09000-768-0 02 1 1511- ●
197 BOLT
(C) M20X65 		1-09000-769-0 12 1 1511- ●
197 BOLT
(D) 		1-09000-771-0 08 1 1511- ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 08 1 1511- ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 40 1 1511- ●
212 NUT
(A) M16 		1-09400-160-0 04 1 1511- ●
212 NUT
(B) M20 		1-09400-161-0 20 1 1511- ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 1511- ●
214 SEAT; SPR
(B) 		1-51385-105-0 02 1 1511- ●
233 ROD ASM; TORQUE,RR SUSP
L=366 		1-51510-855-0 02 1 1511- ●
246 WASHER; TORQUE ROD 8-97372-224-0 02 1 1511- ●
351 ROD ASM; RADIUS 1-51510-867-0 01 1 1511- ●
352 BRACKET; RADIUS ROD,FRAME 1-53353-132-0 01 1 1511- ●
414 BEAM; AIR SPR 1-52172-036-0 01 1 1511- ●
464 UNION; AIR
(A) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1511- ●
464 UNION; AIR
(B) DIN12 & R1/4 STRAIGHT 		1-09661-214-0 01 1 1511- ●
464 UNION; AIR
(C) 		8-98120-199-0 01 1 1511- ●
481 ROLLER; REBOUND 1-53357-043-0 01 1 1511- ●
484 BRACKET; REAR SPRING 1-53353-131-0 02 1 1511- ●
485 SPRING; LEAF 1-51410-259-0 02 1 1511- ●
486 FIXING KIT; TORQUE ROD 1-52000-165-0 01 1 1511- ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 01 1 1511- ●
488 FIXING KIT; BEAM 1-52000-164-0 01 1 1511- ●
511 LABEL 1-51399-034-0 01 1 1511- ●
514 SPACER; TORQUE ROD 1-09503-299-0 08 1 1511- ●

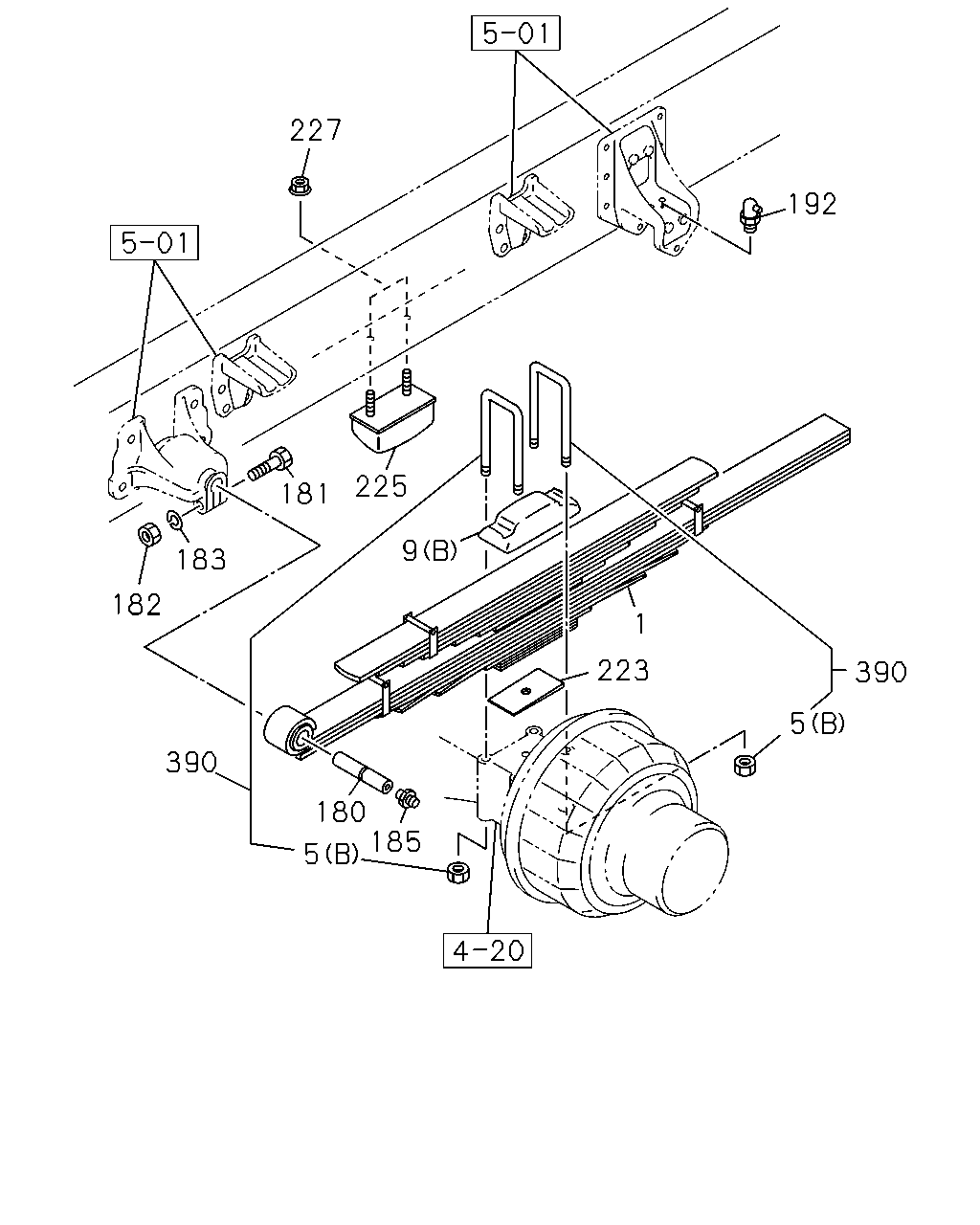

çizim 502291
227 192 225 9 181 183 182 390 180 185 5 223 1 5 390
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		8-98017-565-0 02 1 1511- ●
5 NUT; U-BOLT,RR SPR
(A) 		1-52179-039-0 01 1 1511- ●
5 NUT; U-BOLT,RR SPR
(B) M24 		0-91112-824-0 08 1 1511- ●
9 PAD; U BOLT,RR SPR
(A) 		1-51372-073-0 02 1 1511- ●
9 PAD; U BOLT,RR SPR
(B) 		1-51372-030-0 02 1 1511- ●
180 PIN; RR SPR 1-51361-020-0 02 1 1511- ●
181 BOLT; SPR & SHACKLE
M14X80 		0-10856-480-0 02 1 1511- ●
182 NUT; PIN,RR SPR
M14 		0-91110-514-0 02 1 1511- ●
183 WASHER; LK,PIN,RR SPR
ID=14.2 		0-91510-514-0 02 1 1511- ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1511- ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1511- ●
223 SPACER; U BOLT,RR SPR 1-51377-371-1 02 1 1511- ●
225 RUBBER; CUSHION,RR SPR 1-53366-081-1 02 1 1511- ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 04 1 1511- ●
390 U-BOLT SET; RR SPRING
L=490 		1-87870-036-4 04 1 1511- ●

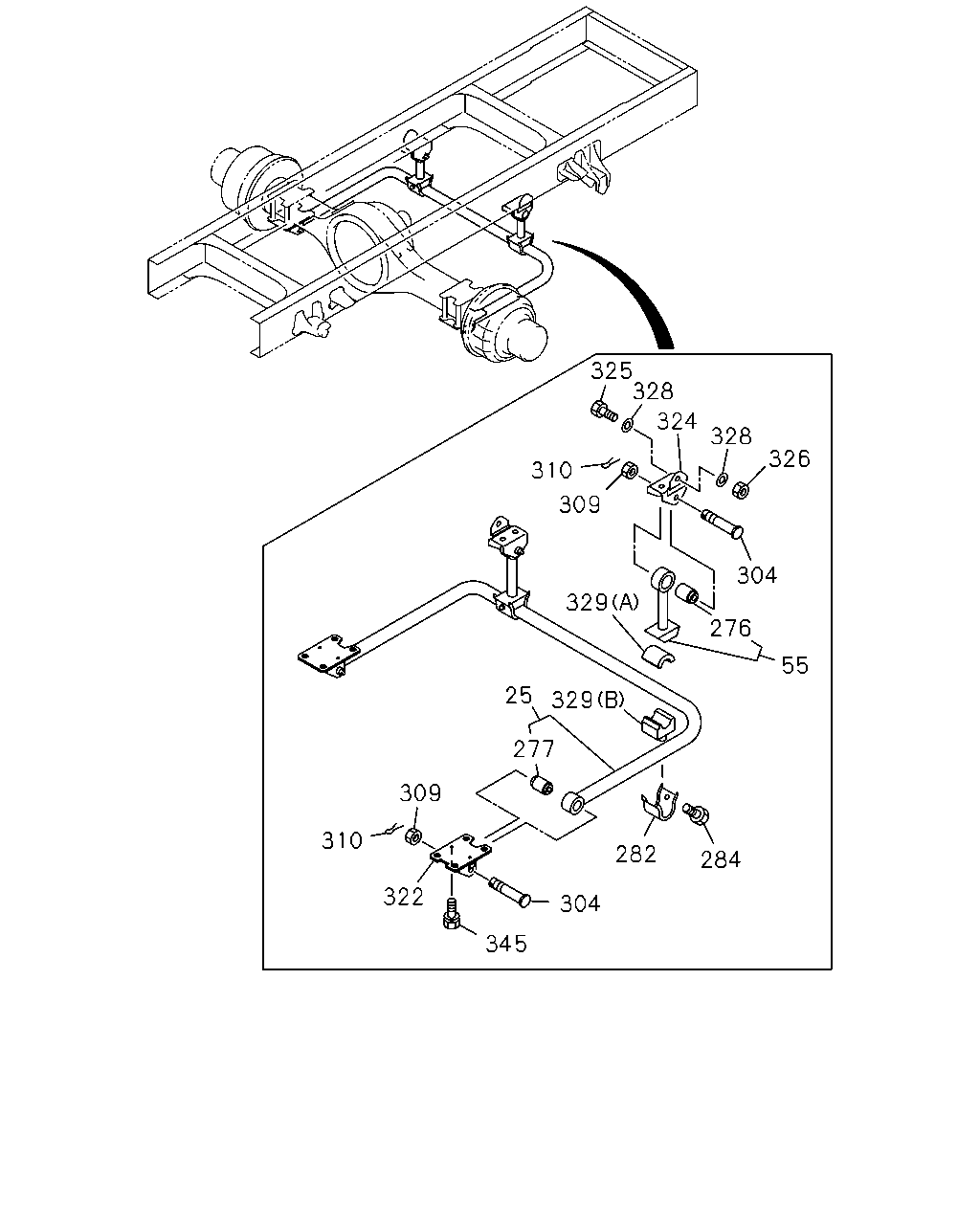

çizim 502316
325 324 328 310 309 329 276 304 326 328 55 329 25 277 309 310 322 345 282 304 284
BalonParca AdiParca NoAdetTipApplied Date A B
25 BAR ASM; STAB,RR SUSP 1-51770-030-2 01 1 1511- ●
55 ROD; STAB 1-51770-035-1 02 1 1511- ●
276 BUSHING; STAB ROD 1-51779-019-0 02 1 1511- ●
277 BUSHING; STAB,RR UPR 1-51779-067-0 02 1 1511- ●
282 RETAINER; STAB BAR 1-51789-015-2 02 1 1511- ●
284 BOLT; RET TO RET
M10X25 		8-94463-351-0 08 1 1511- ●
304 PIN; STAB ROD 1-51789-020-2 04 1 1511- ●
309 NUT; STAB ROD
M24 		9-99116-424-0 04 1 1511- ●
310 PIN; SPLIT,STAB ROD
OD=4.6 L=45 		0-81125-045-0 04 1 1511- ●
322 BRACKET; STAB BAR TO RR AXLE 1-51781-127-0 01 1 1511- ●
322 BRACKET; STAB BAR TO RR AXLE 1-51781-048-4 01 1 1511- ●
324 BRACKET; STAB BAR TO FRAME 1-51781-059-0 02 1 1511- ●
325 BOLT; BRKT TO FRAME
M14X40 		0-20951-440-0 02 1 1511- ●
325 BOLT; BRKT TO FRAME
M14X45 		9-92061-445-0 04 1 1511- ●
326 NUT; BRKT TO FRAME
M14 		0-91110-514-0 04 1 1511- ●
328 WASHER; PL,BRKT
ID=15 		8-98010-627-1 10 1 1511- ●
329 BUSHING; STAB ROD
(A) 		1-51789-051-1 02 1 1511- ●
329 BUSHING; STAB ROD
(B) 		1-51789-052-0 02 1 1511- ●
345 BOLT; BRKT
M10X16 FLANGE 		0-28051-016-0 04 1 1511- ●

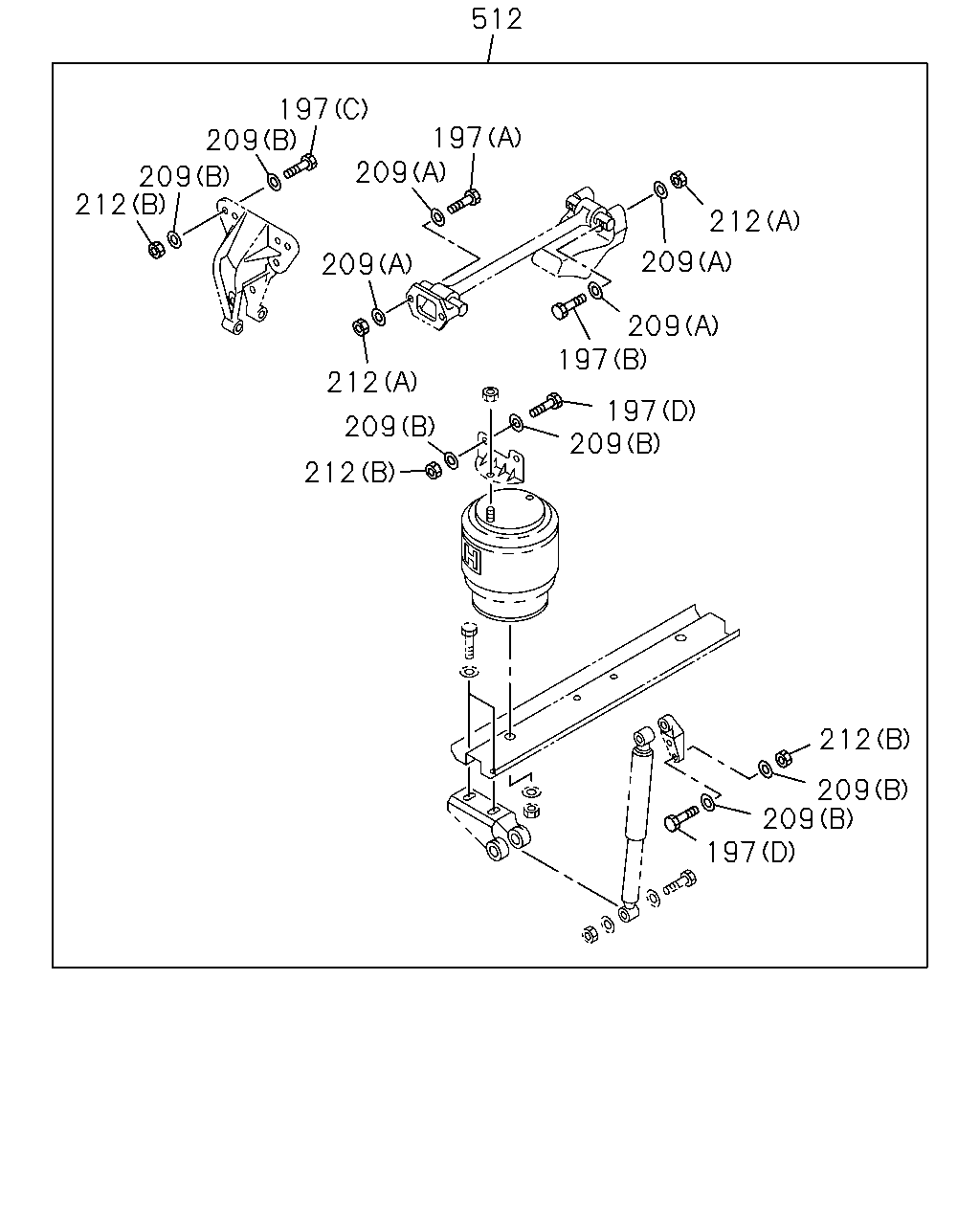

çizim 502604
512 197 209 209 212 209 209 197 209 212 209 197 197 209 209 212 212 212 209 209 197
BalonParca AdiParca NoAdetTipApplied Date A B
197 BOLT
(A) 		1-09000-767-0 02 1 1511- ●
197 BOLT
(B) 		1-09000-768-0 02 1 1511- ●
197 BOLT
(C) M20X65 		1-09000-769-0 12 1 1511- ●
197 BOLT
(D) 		1-09000-771-0 08 1 1511- ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 08 1 1511- ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 40 1 1511- ●
212 NUT
(A) M16 		1-09400-160-0 04 1 1511- ●
212 NUT
(B) M20 		1-09400-161-0 20 1 1511- ●
512 FIXING KIT; BRKT TO FRAME 8-98049-197-0 01 1 1511- ●
