◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11717 - FVR AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#169733) — 32 parça

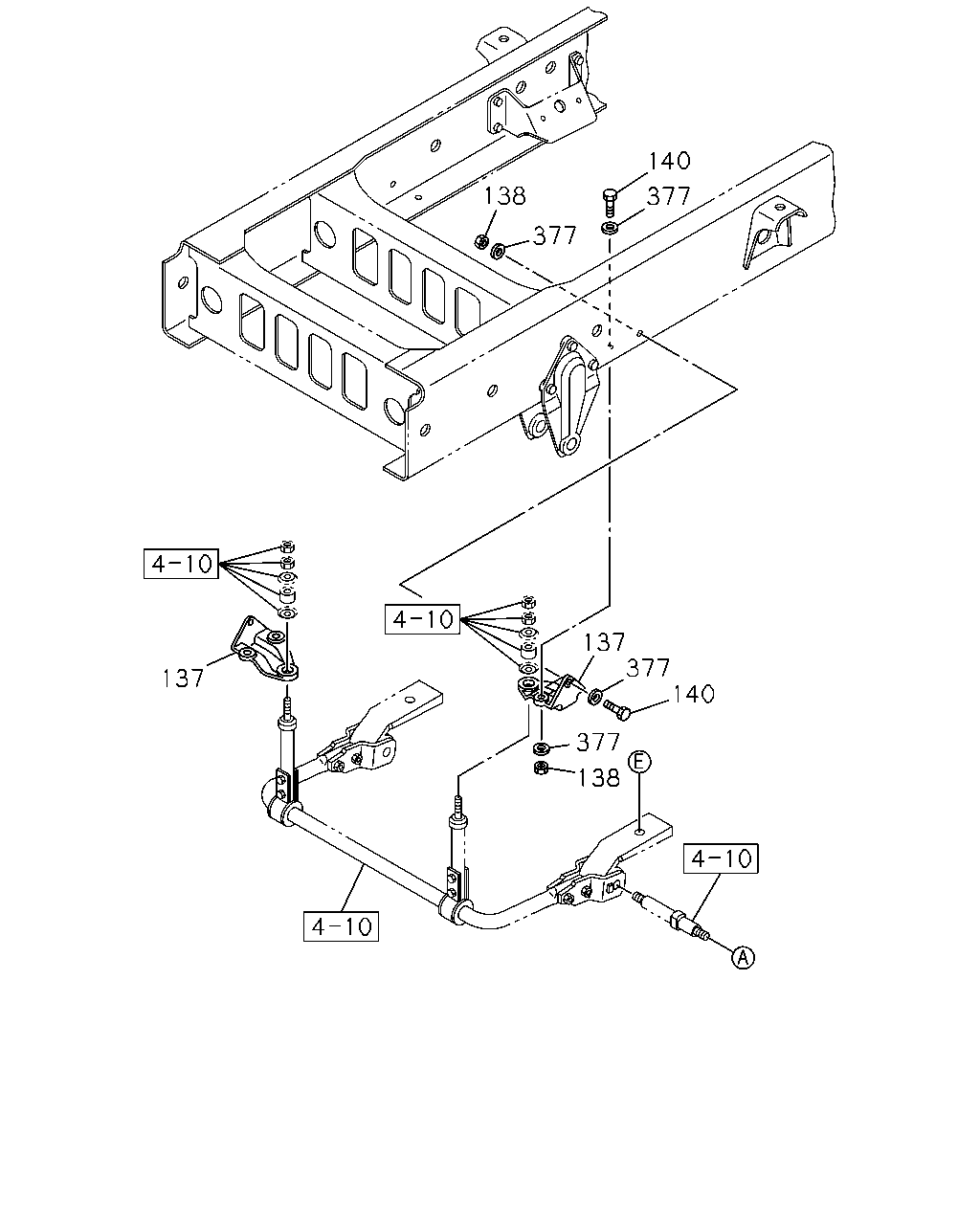

çizim 501647
140 377 377 138 137 137 377 140 138 377
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; STAB BAR TO FRAME 8-98128-356-1 02 1 1511- ● ●
138 NUT; BRKT
M14 		0-91110-514-0 06 1 1511- ● ●
140 BOLT; BRKT
M14X45 		9-92061-445-0 06 1 1511- ● ●
377 WASHER; LK,BRKT
ID=15 		8-98010-627-1 12 1 1511- ● ●

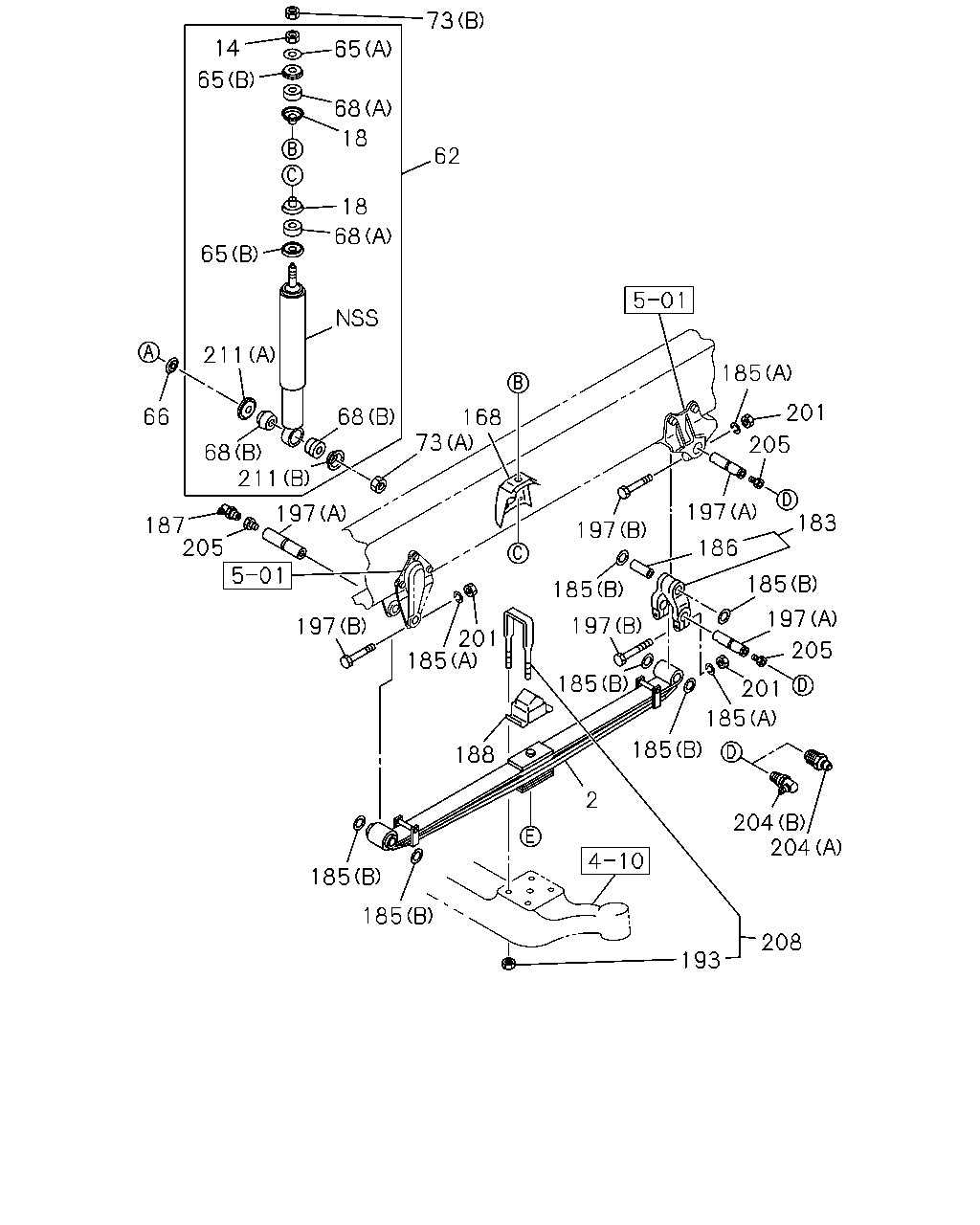

çizim 503671
73 65 14 65 68 18 65 62 68 211 66 187 73 197 197 211 68 205 197 201 185 185 197 185 197 205 201 185 186 183 185 197 201 185 205 185 204 204 2 188 185 185 168 208 68 18 193
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98069-483-0 02 1 1511- ● ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 1511- ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 1511- ● ●
62 ABSORBER ASM; SHOCK,FRT 8-98029-369-0 02 1 1511- ● ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 1511- ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 1511- ● ●
66 WASHER; LK,S/ABS SETTING
ID=21 		0-91610-520-0 02 1 1511- ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 1511- ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 1511- ● ●
73 NUT; BRKT,SHOCK
(A) M20 		0-91110-520-0 02 1 1511- ● ●
73 NUT; BRKT,SHOCK
(B) M14 		0-91111-514-0 02 1 1511- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 1511- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1511- ● ●
185 WASHER; LK,PIN
(A) ID=12.2 		0-91510-612-0 12 1 1511- ● ●
185 WASHER; LK,PIN
(B) ID=32.4 		1-51169-018-0 12 1 1511- ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1511- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1511- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-125-1 02 1 1511- ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1511- ● ●
197 PIN; FRT SPR,FRT
(B) M12X80 		0-10856-280-0 12 1 1511- ● ●
197 PIN; FRT SPR,FRT
(A) 		1-51161-031-0 06 1 1511- ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1511- ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1511- ● ●
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1511- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1511- ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-498-0 04 1 1511- ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1511- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1511- ● ●
