4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#169729) — 56 parça

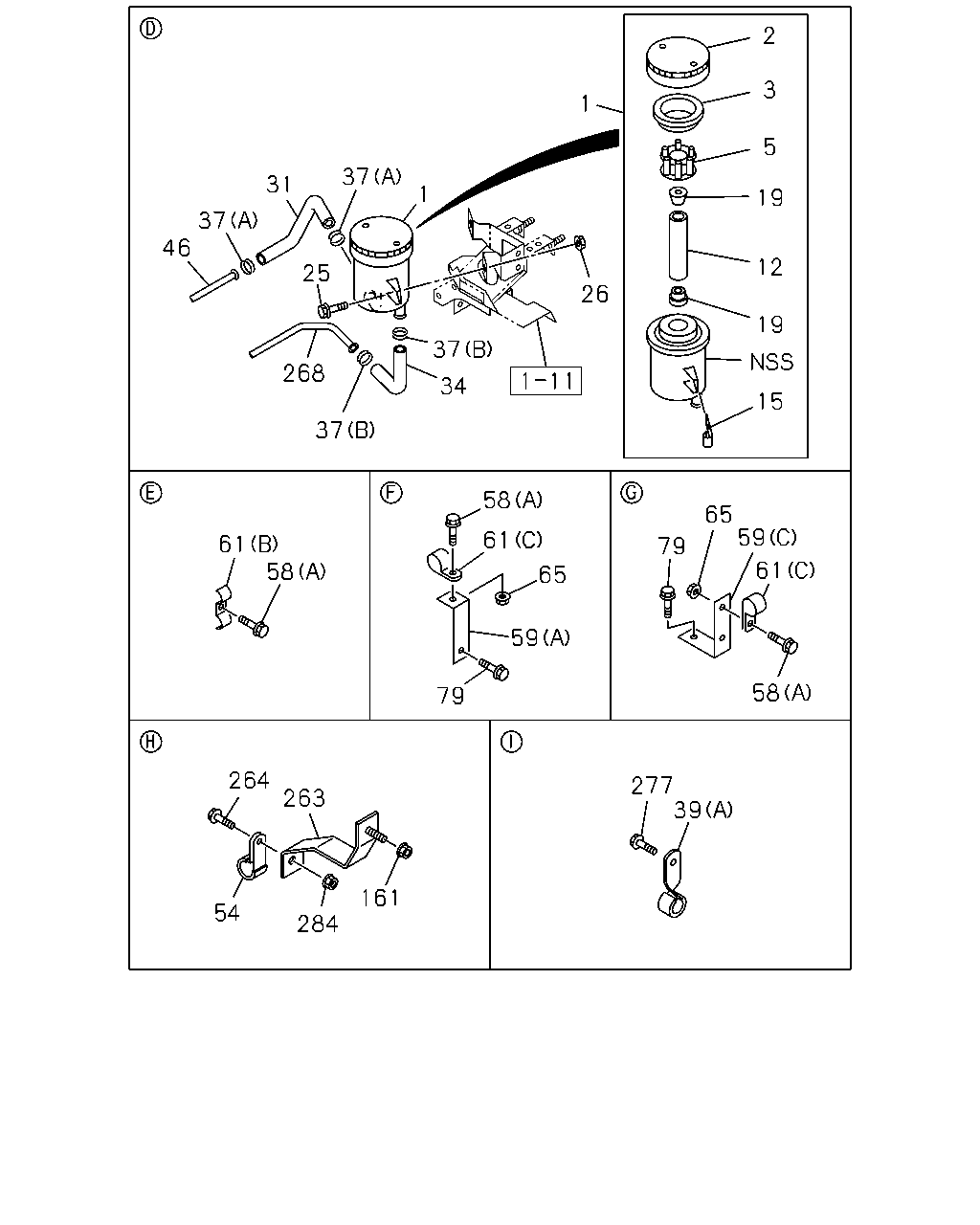

46 37 31 37 1 26 37 34 37 268 25 1 61 58 264 54 284 161 277 39 58 61 59 65 79 58 61 65 59 79 263 2 3 5 19 12 19 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1511-	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1511-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1511-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1511-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1511-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1511-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1511-	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	1511-	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	1511-	●	●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1511-	●	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1511-	●	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1511-	●	●
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	1511-	●	●
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	1511-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2696	8-98096-303-0	01	1	1511-	●	●
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	1511-	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1511-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1511-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1511-	●	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	1511-	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1511-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1511-	●	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1511-	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1511-	●	●
79	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1511-	●	●
161	NUT; P/S PIPE M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
263	BRACKET; P/S PIPE	8-98096-820-1	01	1	1511-	●	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98154-047-0	01	1	1511-	●	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1511-	●	●

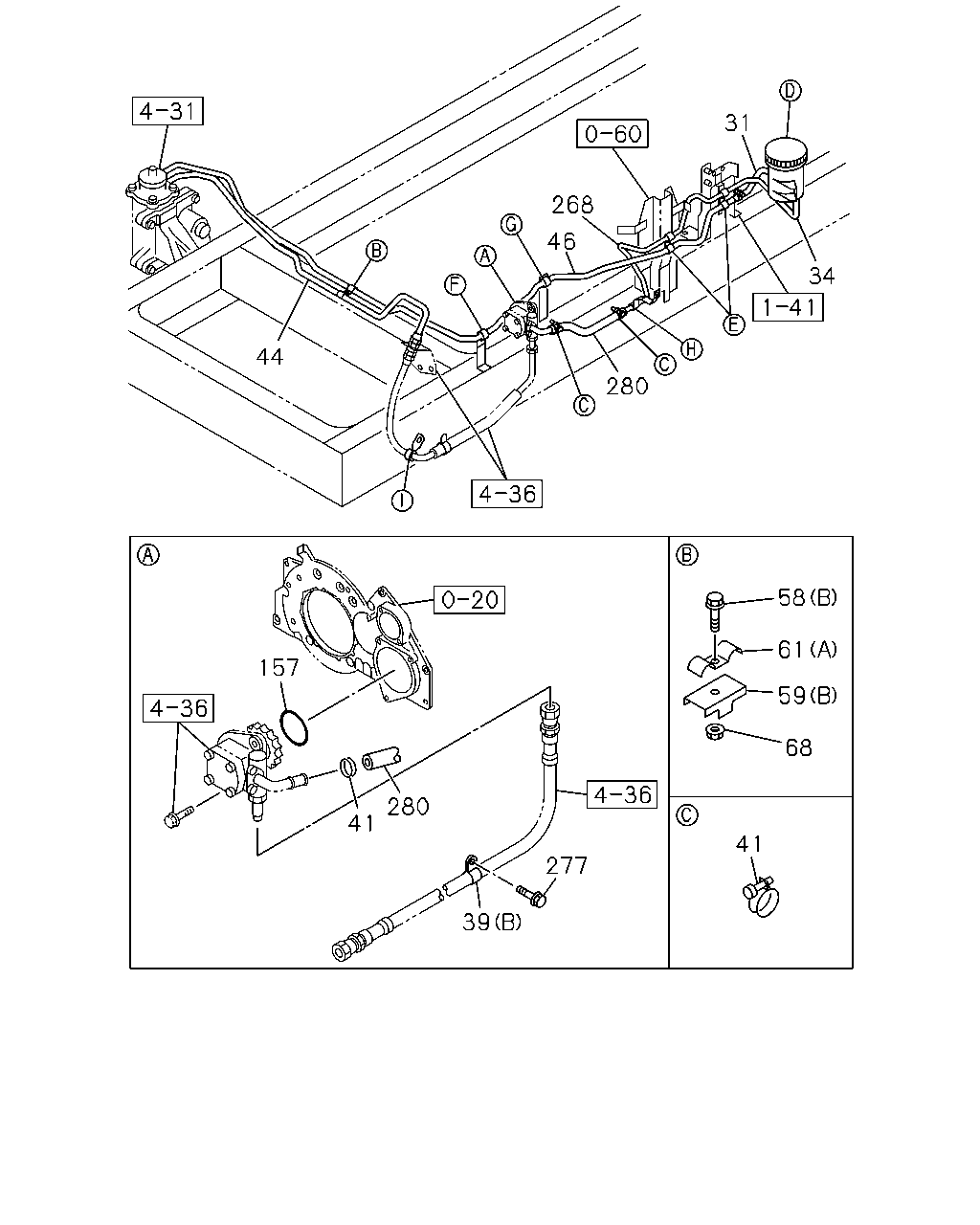

268 31 34 58 61 59 68 41 277 39 41 157 280 44 46 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	1511-	●	●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1511-	●	●
39	CLIP; FLEX HOSE (A) ID=19 L=58	1-09700-733-1	01	1	1511-	●	●
39	CLIP; FLEX HOSE (B) ID=40	8-94226-553-0	01	1	1511-	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1511-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98075-632-1	01	1	1511-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2696	8-98096-303-0	01	1	1511-	●	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
58	BOLT; CLIP (B) M8X40 FLANGE	0-28650-840-0	01	1	1511-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1511-	●	●
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1511-	●	●
59	BRACKET; CLIP,OIL PIPE (C)	8-98083-607-0	01	1	1511-	●	●
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-536-0	02	1	1511-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1511-	●	●
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1511-	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	1511-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98154-047-0	01	1	1511-	●	●
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
280	HOSE; P/S OIL PUMP,INL	8-98090-818-0	01	1	1511-	●	●
