Isuzu WW
▶
TRUCKS
▶
FVR
▶
11717 - FVR AUST/NZ EURO5
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-20 - REAR AXLE CASE AND SHAFT
▶
4-20 — REAR AXLE CASE AND SHAFT
(#169724) — 54 parça
Tümü
A - FGD5MV
B - FGR5MV
◀

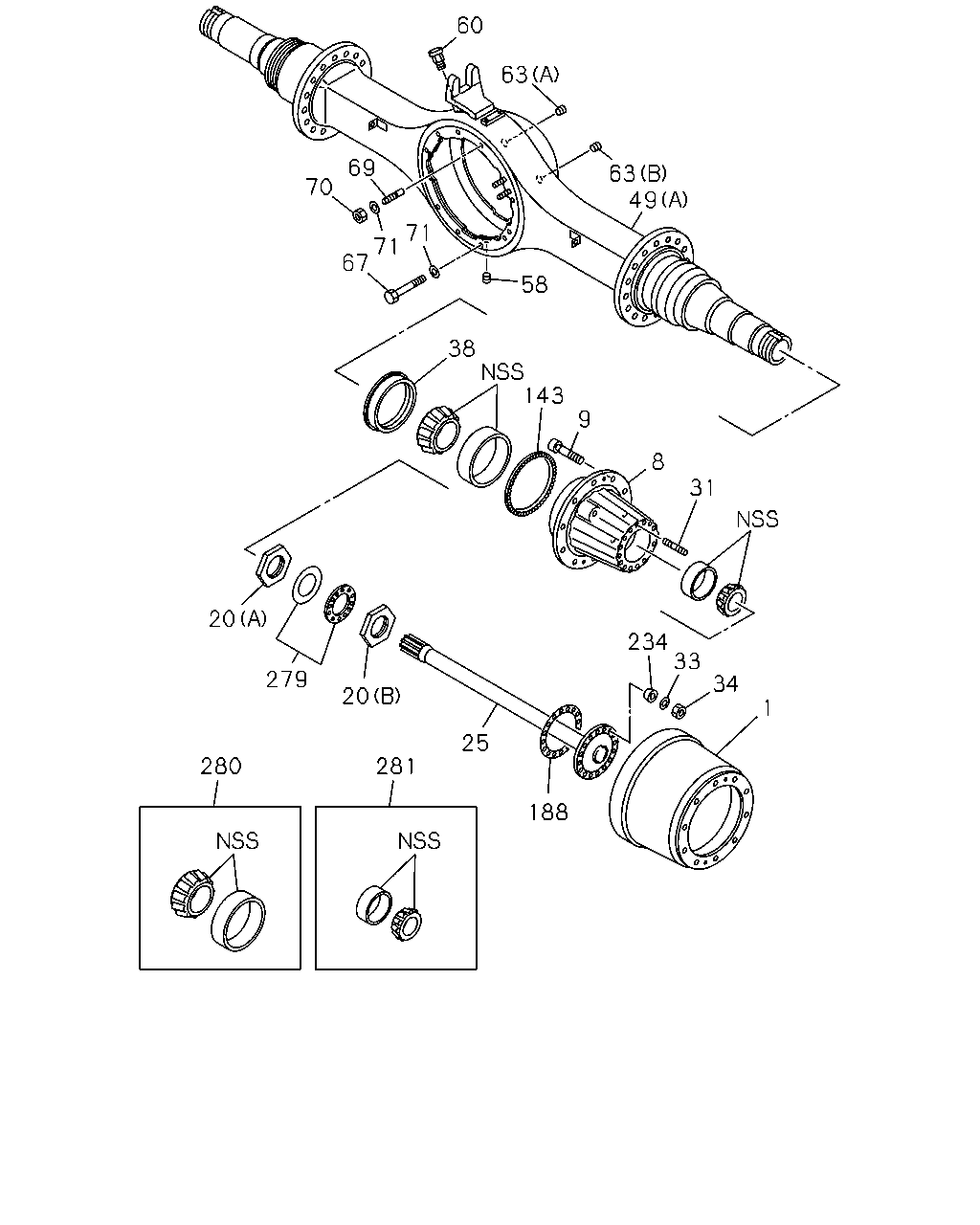

[420A] LEAF SUS (27 parça)

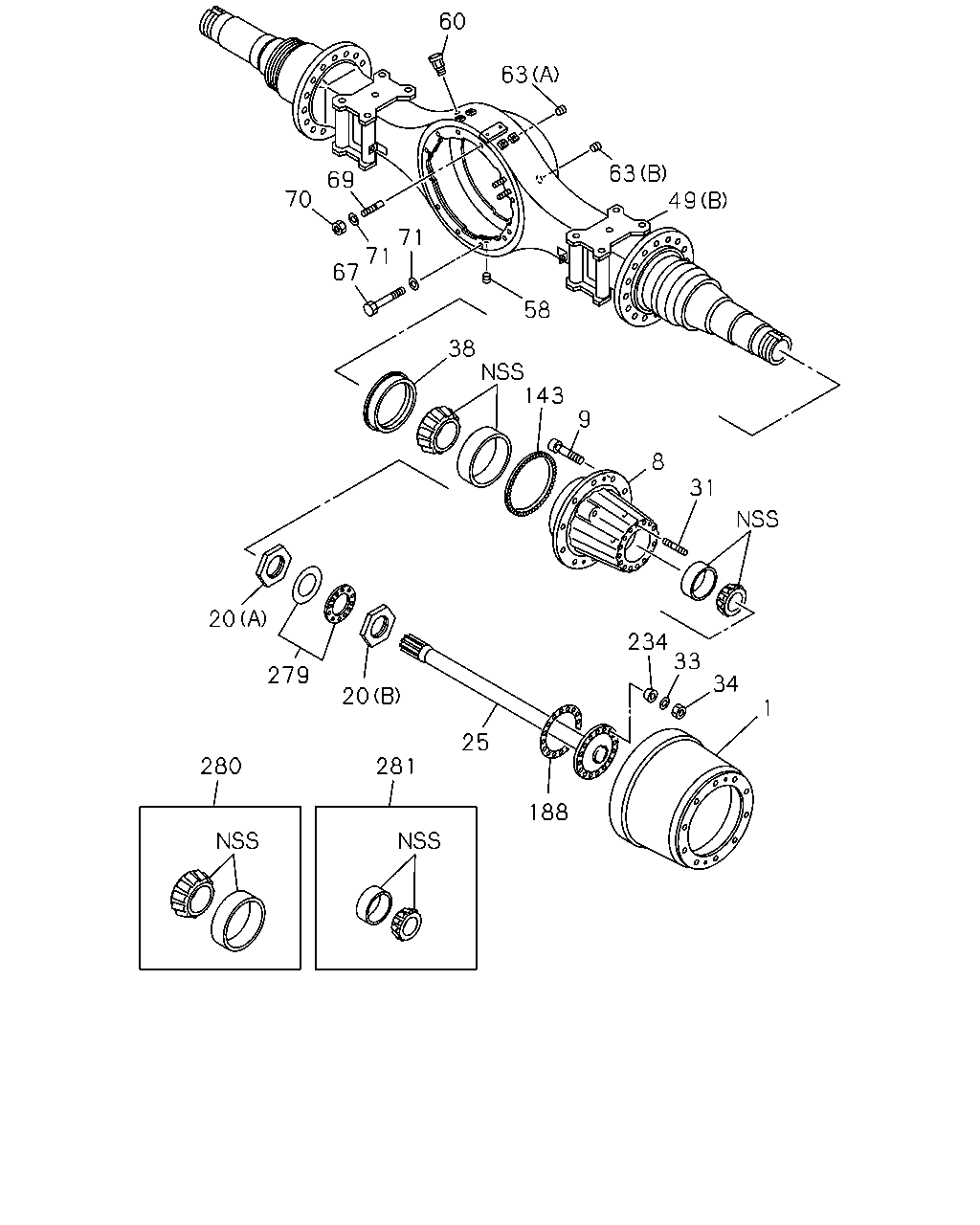

[420A] AIR SUS (27 parça)
▶
60
69
70
67
71
71
38
143
58
9
8
234
33
34
1
188
25
281
279
280
31
63
63
49
20
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DRUM; BRK,RR
1-42315-422-0
02
1
1511-
●
●
8
HUB; RR AXLE
1-42311-164-0
02
1
1511-
●
●
9
PIN; WHEEL,RR AXLE
1-42339-033-0
20
1
1511-
●
●
20
NUT; BRG,RR HUB
(A)
1-42129-065-0
02
1
1511-
●
●
20
NUT; BRG,RR HUB
(B)
1-42129-067-0
02
1
1511-
●
●
25
SHAFT; AXLE,RR
L=951
1-42171-557-0
01
1
1511-
●
●
25
SHAFT; AXLE,RR
L=1120
1-42171-558-0
01
1
1511-
●
●
31
STUD; AXLE SHAFT TO HUB
1-42319-171-0
16
1
1511-
●
●
33
WASHER; AXLE SHAFT
1-42179-003-0
16
1
1511-
●
●
34
NUT; AXLE SHAFT
1-42179-005-0
16
1
1511-
●
●
38
SEAL; OIL,RR HUB,INNER
1-42319-172-0
02
1
1511-
●
●
49
CASE; RR AXLE
(A)
1-42190-754-0
01
1
1511-
●
49
CASE; RR AXLE
(B)
1-42190-755-0
01
1
1511-
●
58
PLUG; DRAIN,AXLE CASE
1-42129-054-0
01
1
1511-
●
●
60
BREATHER; RR AXLE CASE
1-09893-032-0
01
1
1511-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(A)
1-42119-135-0
02
1
1511-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(B)
1-42129-054-0
01
1
1511-
●
●
67
BOLT; FINAL DRIVE SETTING
1-42119-136-0
08
1
1511-
●
●
69
STUD; AXLE CASE
L=120.65
1-42119-184-0
04
1
1511-
●
●
70
NUT; CARRIER
1-42179-005-0
04
1
1511-
●
●
71
WASHER; LK,FINAL DRIVE SETTING
1-41229-168-0
12
1
1511-
●
●
143
RING; EXCITER
1-42319-224-0
02
1
1511-
●
●
188
GASKET; AXLE SHAFT
1-42175-013-0
02
1
1511-
●
●
234
DOWEL; AXLE SHAFT
1-42319-162-0
16
1
1511-
●
●
279
RING & WASHER; LK,BRG NUT
1-42179-022-0
02
1
1511-
●
●
280
BEARING SET; HUB,INNER
1-85573-012-0
02
1
1511-
●
●
281
BEARING SET; HUB,OUTER
1-85573-013-0
02
1
1511-
●
●
60
63
63
58
69
70
71
71
67
38
9
31
8
143
34
1
33
234
25
188
281
20
279
20
280
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DRUM; BRK,RR
1-42315-422-0
02
1
1511-
●
●
8
HUB; RR AXLE
1-42311-164-0
02
1
1511-
●
●
9
PIN; WHEEL,RR AXLE
1-42339-033-0
20
1
1511-
●
●
20
NUT; BRG,RR HUB
(A)
1-42129-065-0
02
1
1511-
●
●
20
NUT; BRG,RR HUB
(B)
1-42129-067-0
02
1
1511-
●
●
25
SHAFT; AXLE,RR
L=951
1-42171-557-0
01
1
1511-
●
●
25
SHAFT; AXLE,RR
L=1120
1-42171-558-0
01
1
1511-
●
●
31
STUD; AXLE SHAFT TO HUB
1-42319-171-0
16
1
1511-
●
●
33
WASHER; AXLE SHAFT
1-42179-003-0
16
1
1511-
●
●
34
NUT; AXLE SHAFT
1-42179-005-0
16
1
1511-
●
●
38
SEAL; OIL,RR HUB,INNER
1-42319-172-0
02
1
1511-
●
●
49
CASE; RR AXLE
(A)
1-42190-754-0
01
1
1511-
●
49
CASE; RR AXLE
(B)
1-42190-755-0
01
1
1511-
●
58
PLUG; DRAIN,AXLE CASE
1-42129-054-0
01
1
1511-
●
●
60
BREATHER; RR AXLE CASE
1-09893-032-0
01
1
1511-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(A)
1-42119-135-0
02
1
1511-
●
●
63
PLUG; OIL FILLER,AXLE CASE
(B)
1-42129-054-0
01
1
1511-
●
●
67
BOLT; FINAL DRIVE SETTING
1-42119-136-0
08
1
1511-
●
●
69
STUD; AXLE CASE
L=120.65
1-42119-184-0
04
1
1511-
●
●
70
NUT; CARRIER
1-42179-005-0
04
1
1511-
●
●
71
WASHER; LK,FINAL DRIVE SETTING
1-41229-168-0
12
1
1511-
●
●
143
RING; EXCITER
1-42319-224-0
02
1
1511-
●
●
188
GASKET; AXLE SHAFT
1-42175-013-0
02
1
1511-
●
●
234
DOWEL; AXLE SHAFT
1-42319-162-0
16
1
1511-
●
●
279
RING & WASHER; LK,BRG NUT
1-42179-022-0
02
1
1511-
●
●
280
BEARING SET; HUB,INNER
1-85573-012-0
02
1
1511-
●
●
281
BEARING SET; HUB,OUTER
1-85573-013-0
02
1
1511-
●
●
