4-10 — FRONT AXLE (#169722) — 74 parça

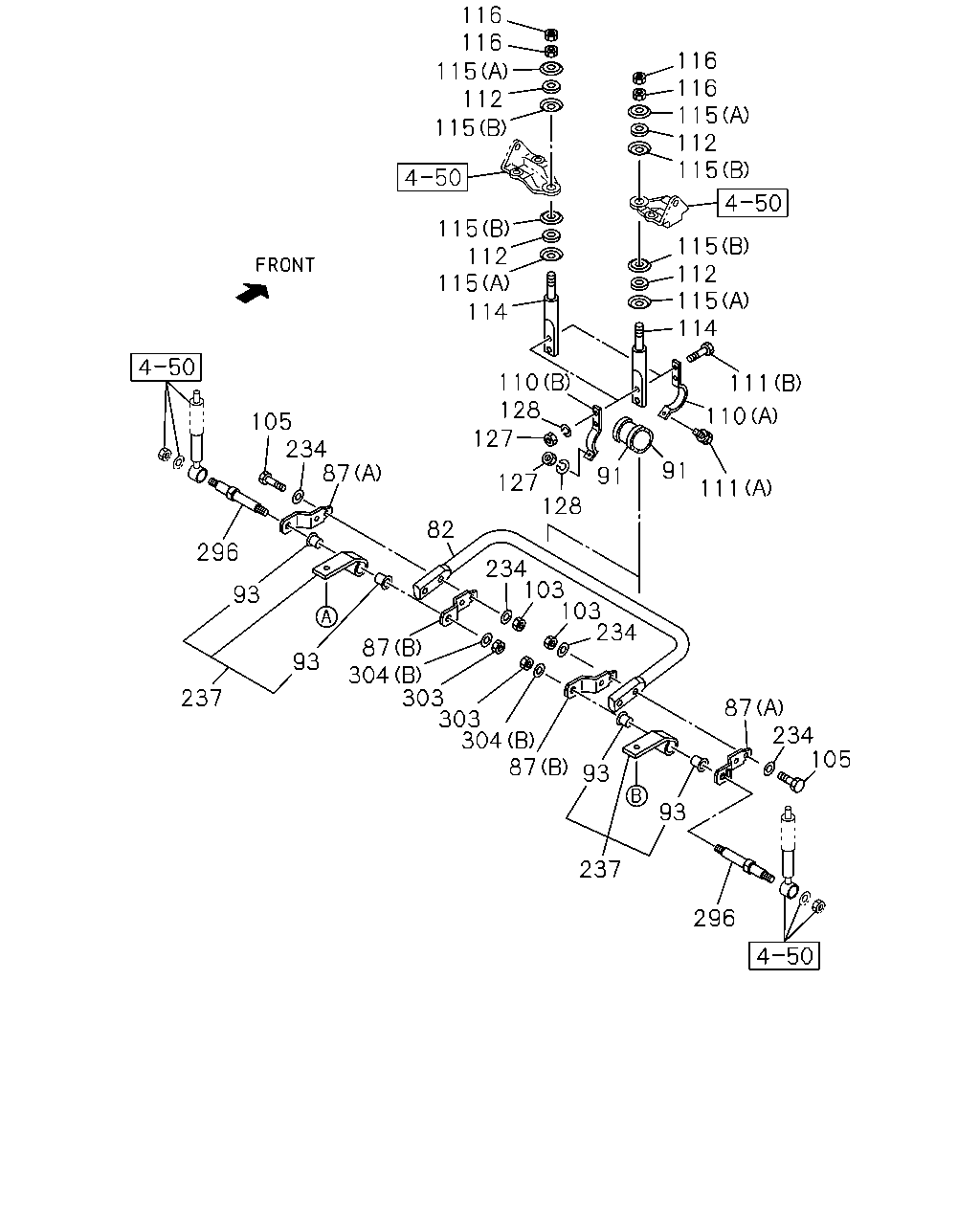

çizim 501092
116 115 116 112 115 115 115 112 114 110 127 128 127 105 296 93 237 93 304 82 87 234 87 303 303 304 87 93 93 237 296 105 234 87 234 103 103 234 128 91 91 110 111 111 114 115 112 115 115 112 115 116 116
BalonParca AdiParca NoAdetTipApplied Date A B
82 BAR; STAB,FRT SUSP 8-98012-961-1 01 1 1511- ● ●
87 BRACKET; STABILIZER
(A) 		8-98012-958-0 02 1 1511- ● ●
87 BRACKET; STABILIZER
(B) 		8-98012-959-0 02 1 1511- ● ●
91 BUSHING; RUBBER,STAB BAR 1-51779-079-1 04 1 1511- ● ●
93 BUSHING; STABILIZER 1-51689-015-3 04 1 1511- ● ●
103 NUT; BRKT FIX
M14 		0-91110-514-0 04 1 1511- ● ●
105 BOLT; BRKT FIX
M14X70 		0-10956-470-0 04 1 1511- ● ●
110 CLAMP; STAB TO ROD
(A) 		1-51789-027-2 02 1 1511- ● ●
110 CLAMP; STAB TO ROD
(B) 		1-51789-028-1 02 1 1511- ● ●
111 BOLT; CLAMP TO ROD
(A) M12X30 		0-20851-230-0 02 1 1511- ● ●
111 BOLT; CLAMP TO ROD
(B) M12X50 		0-20851-250-0 04 1 1511- ● ●
112 BUSHING; ROD 9-51631-050-0 04 1 1511- ● ●
114 ROD; STAB BAR 1-51773-065-0 02 1 1511- ● ●
115 WASHER; CENTER,STAB TO FRAME
(B) ID=16.8 		1-51631-022-0 04 1 1511- ● ●
115 WASHER; CENTER,STAB TO FRAME
(A) ID=14.5 		9-51631-051-0 04 1 1511- ● ●
116 NUT; LK,STAB TO FRAME
M14 		0-91111-514-0 04 1 1511- ● ●
127 NUT; CLAMP
M12 		0-91110-512-0 06 1 1511- ● ●
128 WASHER; LK,CLAMP
ID=12.2 		0-91510-812-0 06 1 1511- ● ●
234 WASHER; STAB
ID=15 		8-98010-627-1 08 1 1511- ● ●
237 SUPPORT; STAB BAR 1-51681-662-0 02 1 1511- ● ●
296 PIN; STAB 8-98022-874-1 02 1 1511- ● ●
303 NUT; PIN
M20 		0-91110-520-0 02 1 1511- ● ●
304 WASHER; PL
(A) 		1-43149-011-0 02 1 1511- ● ●
304 WASHER; PL
(B) ID=21 		9-09164-520-0 02 1 1511- ● ●

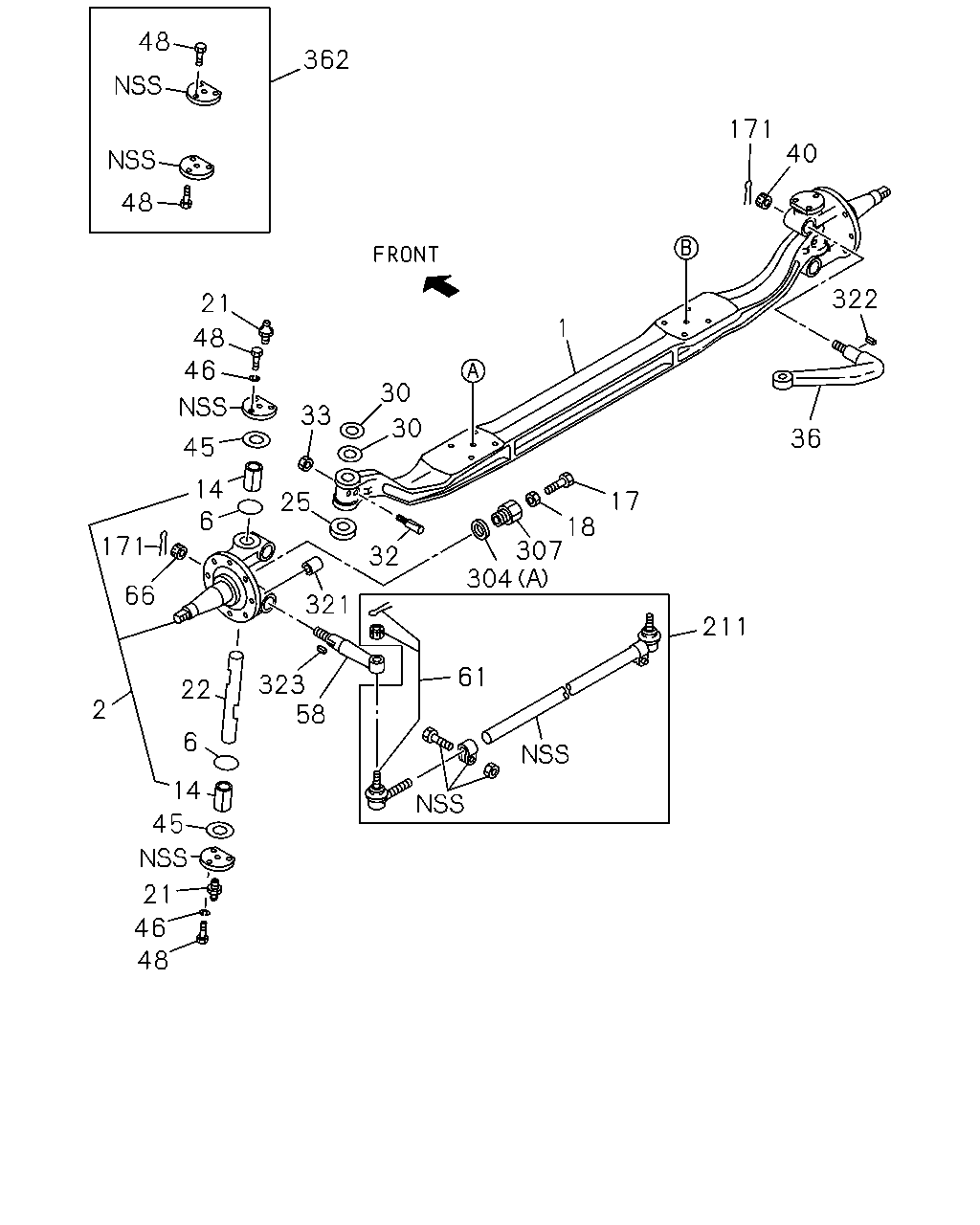

çizim 501095
48 46 21 45 14 6 22 323 58 321 66 2 171 6 14 45 46 48 21 33 25 32 304 61 211 307 18 17 36 322 171 30 30 48 48 362 40 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 AXLE; FRT 1-43111-161-0 01 1 1511- ● ●
2 KNUCKLE; FRT AXLE 1-43131-108-0 01 1 1511- ● ●
2 KNUCKLE; FRT AXLE 1-43132-107-0 01 1 1511- ● ●
6 SEAL; KING PIN 1-09625-634-0 04 1 1511- ● ●
14 BUSHING; KING PIN 1-43149-015-0 04 1 1511- ● ●
17 BOLT; STOPPER KNUCKLE 1-43149-014-0 02 1 1511- ● ●
18 NUT; STOPPER BOLT,KNUCKLE 1-43149-013-0 02 1 1511- ● ●
21 NIPPLE; GREASE,KING PIN 1-48259-253-0 04 1 1511- ● ●
22 PIN; KING,FRT AXLE 1-43161-016-0 02 1 1511- ● ●
25 BEARING; THRUST,KING PIN 1-43173-004-0 02 1 1511- ● ●
30 WASHER; THRUST,KING PIN
T=0.015" 		1-43171-338-0 AR 1 1511- ● ●
30 WASHER; THRUST,KING PIN
T=0.010" 		1-43171-339-0 AR 1 1511- ● ●
30 WASHER; THRUST,KING PIN
T=0.005" 		1-43171-340-0 AR 1 1511- ● ●
32 BOLT; KEY,KING PIN
L=3.25" 		1-43116-006-0 02 1 1511- ● ●
32 BOLT; KEY,KING PIN
L=98.4 		1-43116-014-0 02 1 1511- ● ●
33 NUT; KEY BOLT 1-43119-002-0 04 1 1511- ● ●
36 ARM; KNUCKLE 1-43133-087-0 01 1 1511- ● ●
40 NUT; KNUCKLE ARM 1-43139-059-0 01 1 1511- ● ●
45 GASKET; KING PIN COVER 1-43139-044-0 04 1 1511- ● ●
46 WASHER; LK,COVER 1-41519-055-0 12 1 1511- ● ●
48 BOLT; COVER 1-43139-045-0 12 1 1511- ● ●
58 ARM; TIE ROD 1-43134-061-0 01 1 1511- ● ●
58 ARM; TIE ROD 1-43135-066-0 01 1 1511- ● ●
61 ROD END; TIE ROD 1-43155-058-0 01 1 1511- ● ●
61 ROD END; TIE ROD 1-43156-058-0 01 1 1511- ● ●
66 NUT; TIE ROD END 1-43139-052-0 02 1 1511- ● ●
171 PIN; SPLIT,STRG ARM 1-43139-048-0 03 1 1511- ● ●
211 ROD ASM; STEERING TIE ROD 1-43150-861-0 01 1 1511- ● ●
304 WASHER; PL
(A) 		1-43149-011-0 02 1 1511- ● ●
304 WASHER; PL
(B) ID=21 		9-09164-520-0 02 1 1511- ● ●
307 STOPPER; STEERING,RR 1-43149-012-0 02 1 1511- ● ●
321 BUSHING; KNUCKLE 1-42319-213-0 02 1 1511- ● ●
322 KEY; KNUCKLE ARM 1-43139-046-0 01 1 1511- ● ●
323 KEY; TIE ROD ARM 1-43139-046-0 02 1 1511- ● ●
362 COVER SET; KING PIN 1-43175-027-0 02 1 1511- ● ●

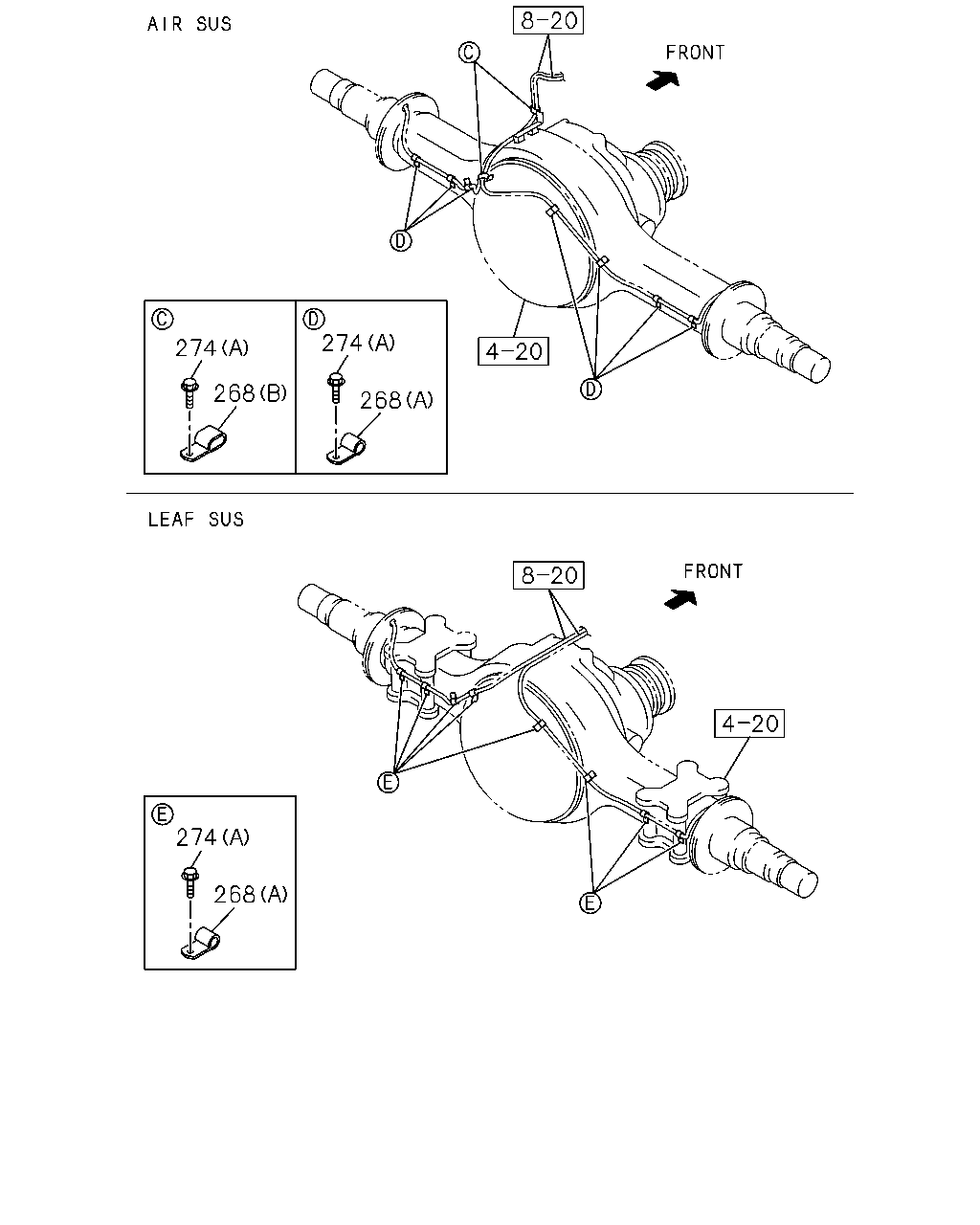

çizim 501366
274 268 274 268 274 268
BalonParca AdiParca NoAdetTipApplied Date A B
268 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 07 1 1511- ●
268 CLIP; HARNESS
(B) ID=11X2 L=16 		0-95325-025-0 02 1 1511- ●
268 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 08 1 1511- ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 09 1 1511- ●
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 04 1 1511- ● ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 08 1 1511- ●

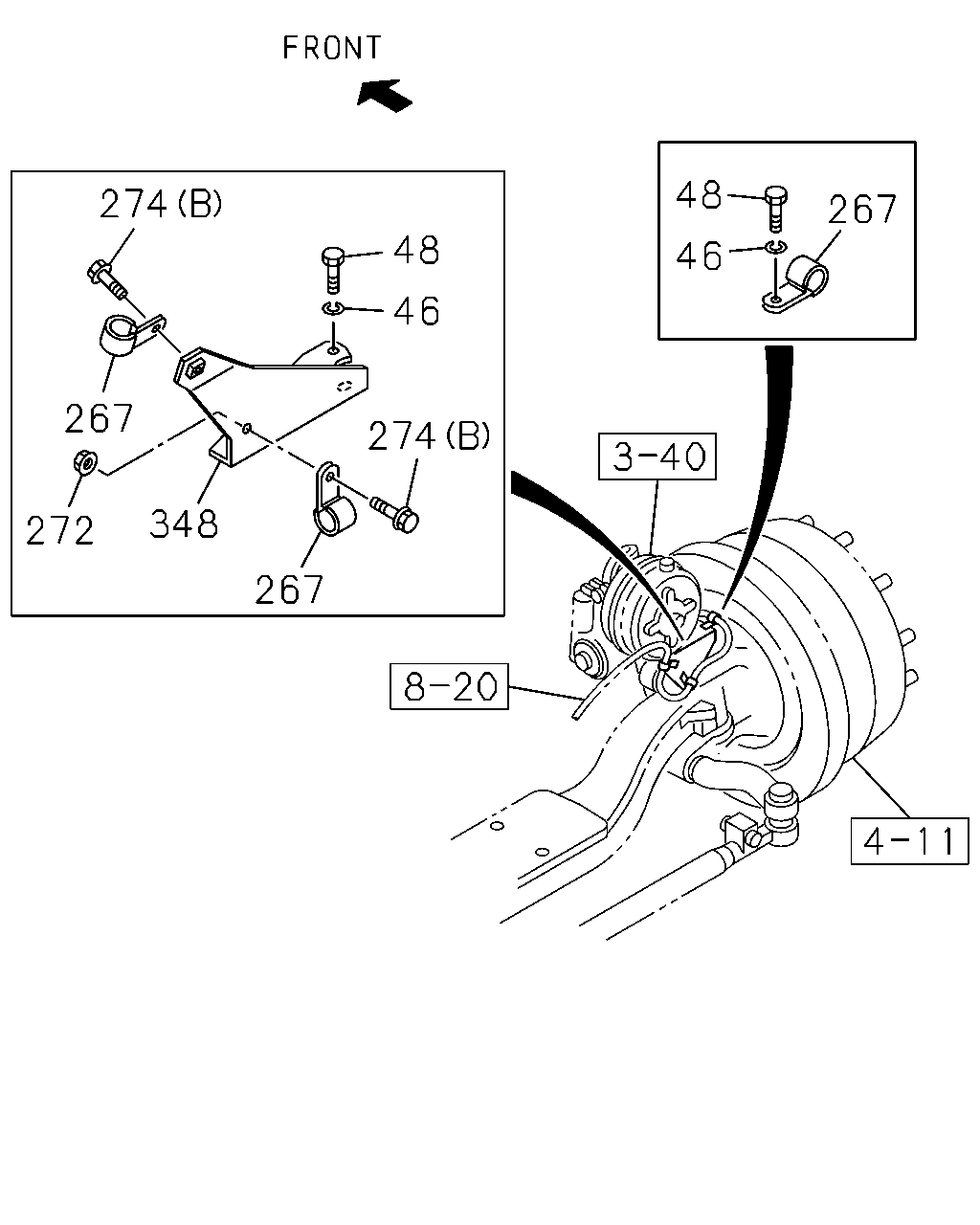

çizim 502551
274 267 272 348 48 274 267 46 48 267 46
BalonParca AdiParca NoAdetTipApplied Date A B
46 WASHER; LK,COVER 1-41519-055-0 12 1 1511- ● ●
48 BOLT; COVER 1-43139-045-0 12 1 1511- ● ●
267 CLIP; HARNESS
ID=11 L=16 		0-95235-025-0 06 1 1511- ● ●
272 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 09 1 1511- ●
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 04 1 1511- ● ●
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 08 1 1511- ●
348 BRACKET; CLIP 8-98034-794-0 01 1 1511- ● ●
348 BRACKET; CLIP 8-98034-793-0 01 1 1511- ● ●
