Sayfa 4-01 - Isuzu EPC

4-01 — PROPELLER SHAFT (#169721) — 573 parça

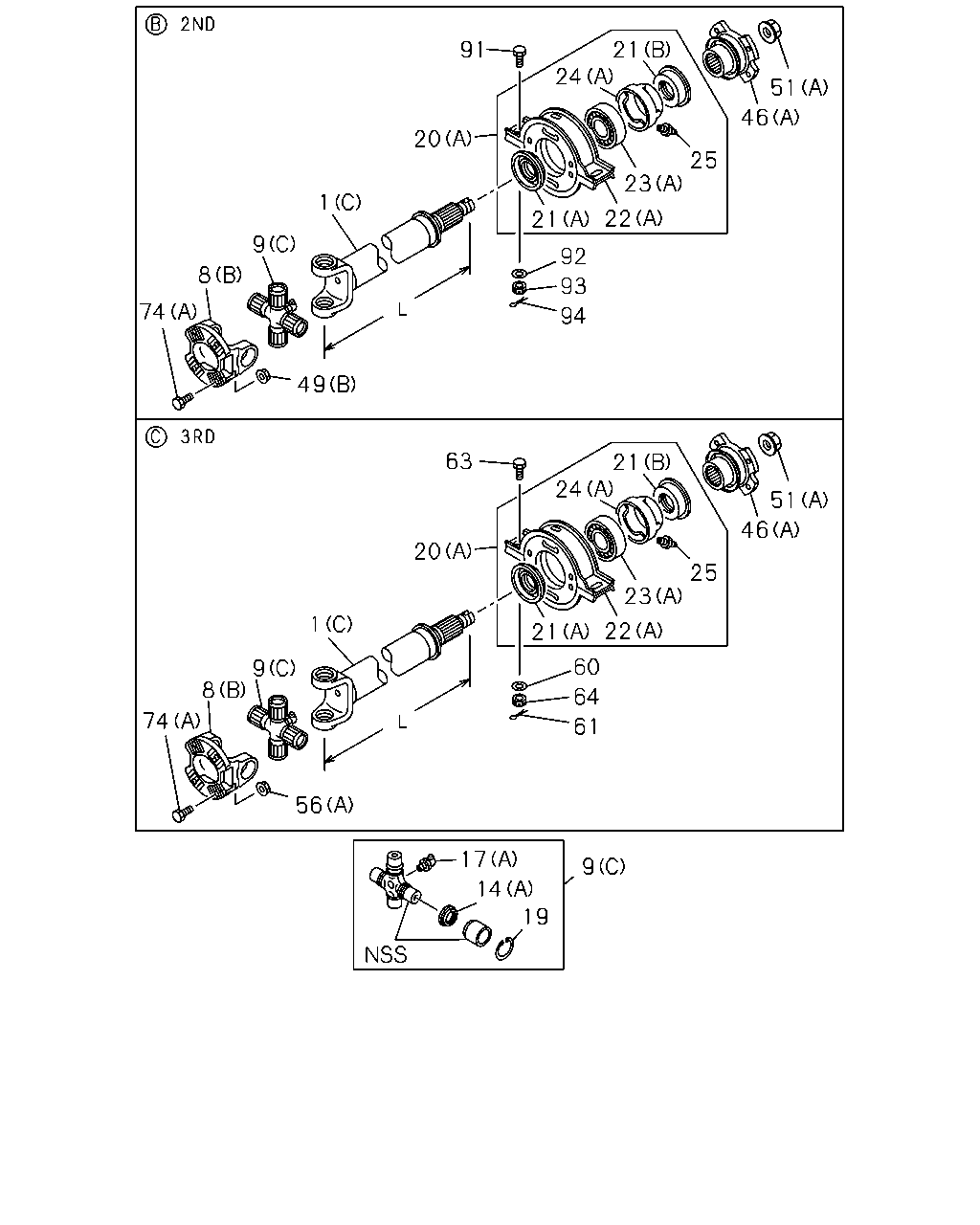

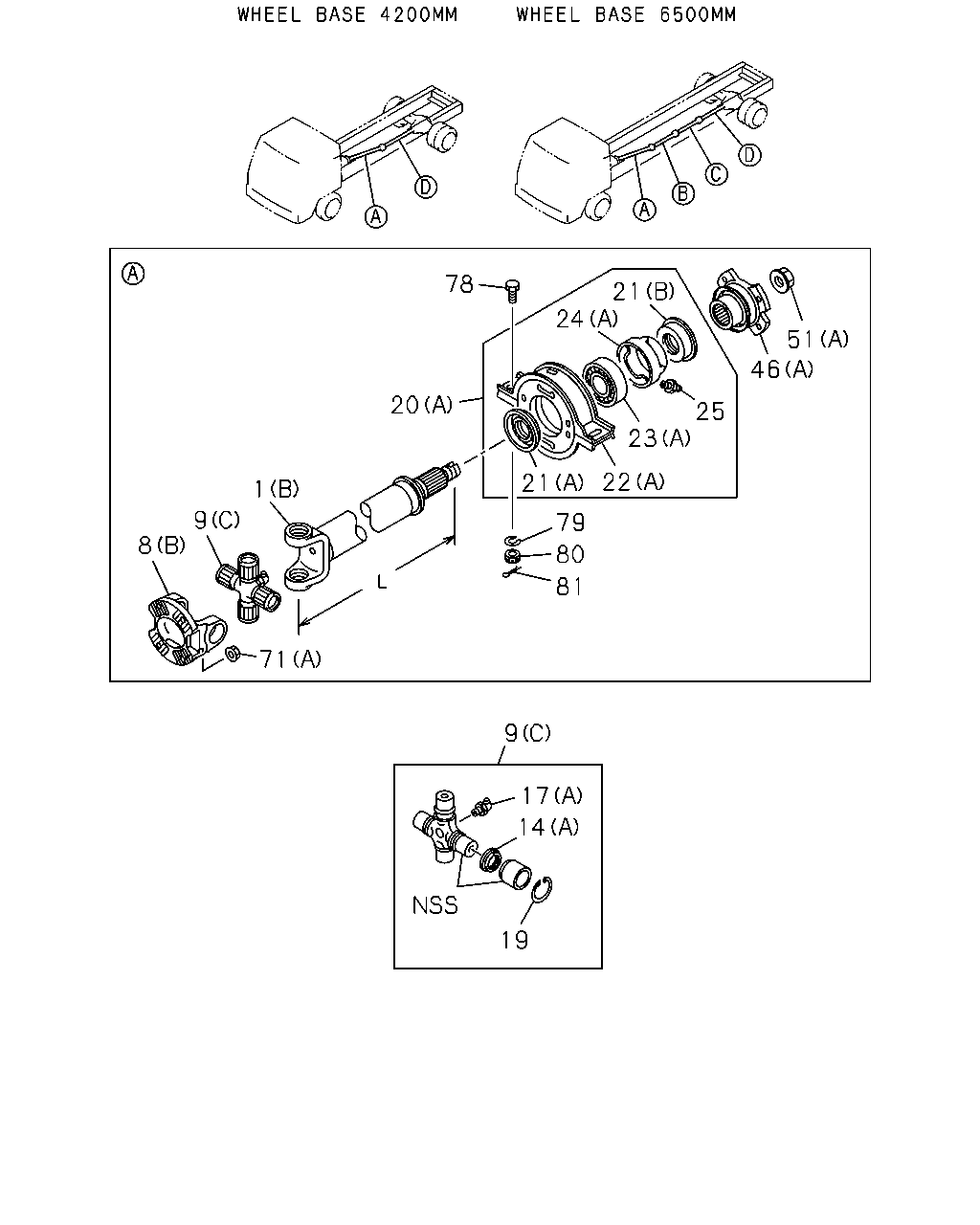

91 21 24 51 25 23 22 21 20 1 9 8 74 49 92 94 93 63 21 51 24 20 25 46 23 22 21 1 9 8 74 56 60 64 61 9 17 14 19 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP (B) L=725	8-98092-402-1	01	1	1511-	●
1	SHAFT; PROP (A) L=1119	8-98092-528-1	01	1	1511-	●
1	SHAFT; PROP (D) L=1214	1-37124-501-0	01	1	1511-		●
1	SHAFT; PROP (F) L=1229	8-98091-297-0	01	1	1511-		●
1	SHAFT; PROP (E) L=654	8-98091-298-0	01	1	1511-		●
1	SHAFT; PROP EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) L=1074	8-98091-302-0	02	1	1511-			●
1	SHAFT; PROP ALLISON MD3060P A/T(Y4G) (D) L=1164	8-98091-322-0	01	1	1511-			●
1	SHAFT; PROP EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) L=659	8-98241-798-0	01	1	1511-			●
1	SHAFT; PROP ZF9S1110 M/T(Y5E) (B) L=595	8-98092-400-1	01	1	1511-			●
1	SHAFT; PROP ZF9S1110 M/T(Y5E) (C) L=1070	8-98092-406-1	02	1	1511-			●
1	SHAFT; PROP ZF9S1110 M/T(Y5E) (A) L=1184	8-98092-529-1	01	1	1511-			●
8	YOKE; FLANGE,PROP SHAFT (B)	1-37211-079-1	03	1	1511-	●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-072-1	03	1	1511-		●
8	YOKE; FLANGE,PROP SHAFT ALLISON MD3060P A/T(Y4G) (A)	1-37211-072-1	03	1	1511-			●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-072-1	01	1	1511-		●
8	YOKE; FLANGE,PROP SHAFT ALLISON MD3060P A/T(Y4G) (A)	1-37211-072-1	02	1	1511-			●
8	YOKE; FLANGE,PROP SHAFT ZF9S1110 M/T(Y5E) (B)	1-37211-079-1	05	1	1511-			●
9	JOURNAL ASM; PROP SHAFT (C)	1-37300-110-0	03	1	1511-	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-094-1	AR	1	1511-		●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-094-1	AR	1	1511-		●
9	JOURNAL ASM; PROP SHAFT ALLISON MD3060P A/T(Y4G) (A)	1-37300-094-1	AR	1	1511-			●
9	JOURNAL ASM; PROP SHAFT ALLISON MD3060P A/T(Y4G) (A)	1-37300-094-1	AR	1	1511-			●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-095-1	AR	1	1511-		●
9	JOURNAL ASM; PROP SHAFT ALLISON MD3060P A/T(Y4G) (B)	1-37300-095-1	AR	1	1511-			●
9	JOURNAL ASM; PROP SHAFT ZF9S1110 M/T(Y5E) (C)	1-37300-110-0	05	1	1511-			●
14	COVER; DUST,SPIDER (A)	1-37249-131-0	12	1	1511-	●
14	COVER; DUST,SPIDER (B)	9-37352-023-0	12	1	1511-		●
14	COVER; DUST,SPIDER ALLISON MD3060P A/T(Y4G) (B)	9-37352-023-0	12	1	1511-			●
14	COVER; DUST,SPIDER (B)	9-37352-023-0	04	1	1511-		●
14	COVER; DUST,SPIDER ALLISON MD3060P A/T(Y4G) (B)	9-37352-023-0	08	1	1511-			●
14	COVER; DUST,SPIDER ZF9S1110 M/T(Y5E) (A)	1-37249-131-0	20	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	1511-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1511-		●
17	NIPPLE; GREASE,PROP SHAFT ALLISON MD3060P A/T(Y4G) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1511-		●
17	NIPPLE; GREASE,PROP SHAFT ALLISON MD3060P A/T(Y4G) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	0-90301-610-0	01	1	1511-		●
17	NIPPLE; GREASE,PROP SHAFT EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) PT1/8 ELBOW	0-90301-610-0	02	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT ZF9S1110 M/T(Y5E) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	05	1	1511-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-102-1	12	1	1511-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST ZF9S1110 M/T(Y5E) T=2.2	1-09587-102-1	20	1	1511-			●
20	BEARING ASM; CTR,PROP SHAFT (A) ID=60	1-37510-115-0	01	1	1511-	●
20	BEARING ASM; CTR,PROP SHAFT (B)	1-37510-093-3	01	1	1511-		●
20	BEARING ASM; CTR,PROP SHAFT (B)	1-37510-093-3	01	1	1511-		●
20	BEARING ASM; CTR,PROP SHAFT EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-37510-093-3	03	1	1511-			●
20	BEARING ASM; CTR,PROP SHAFT ZF9S1110 M/T(Y5E) (A) ID=60	1-37510-115-0	03	1	1511-			●
21	SEAL; OIL,CENTER BRG (A) D=120	1-09625-127-0	01	1	1511-	●
21	SEAL; OIL,CENTER BRG (B)	1-09625-621-0	01	1	1511-	●
21	SEAL; OIL,CENTER BRG (C) D=120	1-09625-126-0	02	1	1511-		●
21	SEAL; OIL,CENTER BRG (C) D=120	1-09625-126-0	02	1	1511-		●
21	SEAL; OIL,CENTER BRG EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) D=120	1-09625-126-0	06	1	1511-			●
21	SEAL; OIL,CENTER BRG ZF9S1110 M/T(Y5E) (A) D=120	1-09625-127-0	03	1	1511-			●
21	SEAL; OIL,CENTER BRG ZF9S1110 M/T(Y5E) (B)	1-09625-621-0	03	1	1511-			●
22	RUBBER; CUSHION,CENTER BRG,1ST (A)	1-37516-048-2	01	1	1511-	●
22	RUBBER; CUSHION,CENTER BRG,1ST (B)	1-37516-047-2	01	1	1511-		●
22	RUBBER; CUSHION,CENTER BRG,1ST (B)	1-37516-047-2	01	1	1511-		●
22	RUBBER; CUSHION,CENTER BRG,1ST EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-37516-047-2	03	1	1511-			●
22	RUBBER; CUSHION,CENTER BRG,1ST ZF9S1110 M/T(Y5E) (A)	1-37516-048-2	03	1	1511-			●
23	BEARING; CENTER,PROP SHAFT (A)	9-00090-256-0	01	1	1511-	●
23	BEARING; CENTER,PROP SHAFT (B)	9-00090-292-0	01	1	1511-		●
23	BEARING; CENTER,PROP SHAFT (B)	9-00090-292-0	01	1	1511-		●
23	BEARING; CENTER,PROP SHAFT EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	9-00090-292-0	03	1	1511-			●
23	BEARING; CENTER,PROP SHAFT ZF9S1110 M/T(Y5E) (A)	9-00090-256-0	03	1	1511-			●
24	RETAINER; CENTER BRG,1ST (A)	1-37529-109-0	01	1	1511-	●
24	RETAINER; CENTER BRG,1ST (B)	1-37529-039-0	01	1	1511-		●
24	RETAINER; CENTER BRG,1ST (B)	1-37529-039-0	01	1	1511-		●
24	RETAINER; CENTER BRG,1ST EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-37529-039-0	03	1	1511-			●
24	RETAINER; CENTER BRG,1ST ZF9S1110 M/T(Y5E) (A)	1-37529-109-0	03	1	1511-			●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1511-	●	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1511-		●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	03	1	1511-			●
46	FLANGE; SPLINED,PROP SHAFT,1ST (A)	1-37245-348-0	01	1	1511-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST (B)	1-37245-283-1	01	1	1511-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST (B)	1-37245-283-1	01	1	1511-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-37245-283-1	03	1	1511-			●
46	FLANGE; SPLINED,PROP SHAFT,1ST ZF9S1110 M/T(Y5E) (A)	1-37245-348-0	03	1	1511-			●
49	NUT; YOKE (A) M16 FLANGE	1-09449-065-0	04	1	1511-		●
49	NUT; YOKE EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M16 FLANGE	1-09449-065-0	04	1	1511-			●
49	NUT; YOKE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M14 FLANGE	8-97365-444-0	04	1	1511-			●
51	NUT; FLANGE,SPLINED (A) M39 FLANGE	1-09440-046-0	01	1	1511-	●
51	NUT; FLANGE,SPLINED (B) M33 FLANGE	1-09449-051-0	01	1	1511-		●
51	NUT; FLANGE,SPLINED (B) M33 FLANGE	1-09449-051-0	01	1	1511-		●
51	NUT; FLANGE,SPLINED EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M33 FLANGE	1-09449-051-0	03	1	1511-			●
51	NUT; FLANGE,SPLINED ZF9S1110 M/T(Y5E) (A) M39 FLANGE	1-09440-046-0	03	1	1511-			●
56	NUT; YOKE (A) M14 FLANGE	8-97365-444-0	08	1	1511-	●
56	NUT; YOKE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14 FLANGE	8-97365-444-0	08	1	1511-			●
56	NUT; YOKE (B) M16 FLANGE	1-09449-065-0	08	1	1511-		●
56	NUT; YOKE EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16 FLANGE	1-09449-065-0	08	1	1511-			●
56	NUT; YOKE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14 FLANGE	8-97365-444-0	04	1	1511-			●
56	NUT; YOKE EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16 FLANGE	1-09449-065-0	04	1	1511-			●
60	WASHER; PL,RET TO BRKT ID=17	1-09503-241-1	02	1	1511-			●
61	PIN; SPLIT OD=3.7 L=25	0-81124-025-0	02	1	1511-			●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M16X45	1-09042-030-0	02	1	1511-			●
64	NUT; RET TO BRKT M16 SLOTTED	8-98049-689-0	02	1	1511-			●
74	BOLT; YOKE,TRANS (A) M14X50	1-09000-645-0	08	1	1511-	●
74	BOLT; YOKE,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14X50	1-09000-645-0	08	1	1511-			●
74	BOLT; YOKE,TRANS (B) M16X48	1-09000-383-0	04	1	1511-		●
74	BOLT; YOKE,TRANS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16X48	1-09000-383-0	04	1	1511-			●
74	BOLT; YOKE,TRANS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16X48	1-09000-383-0	04	1	1511-			●
74	BOLT; YOKE,TRANS (B) M16X48	1-09000-383-0	08	1	1511-		●
74	BOLT; YOKE,TRANS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16X48	1-09000-383-0	08	1	1511-			●
74	BOLT; YOKE,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14X50	1-09000-645-0	04	1	1511-			●
74	BOLT; YOKE,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14X50	1-09000-645-0	04	1	1511-			●
91	BOLT; HOLDER SET,CTR BRG M16X45	1-09042-030-0	02	1	1511-		●	●
92	WASHER; LK,HOLDER SET,CTR BRG ID=17	1-09503-241-1	02	1	1511-		●	●
93	NUT; HOLDER SET,CTR BRG M16 SLOTTED	8-98049-689-0	02	1	1511-		●	●
94	PIN; SPLIT,HOLDER SET CTR BRG OD=3.7 L=25	0-81124-025-0	02	1	1511-		●	●

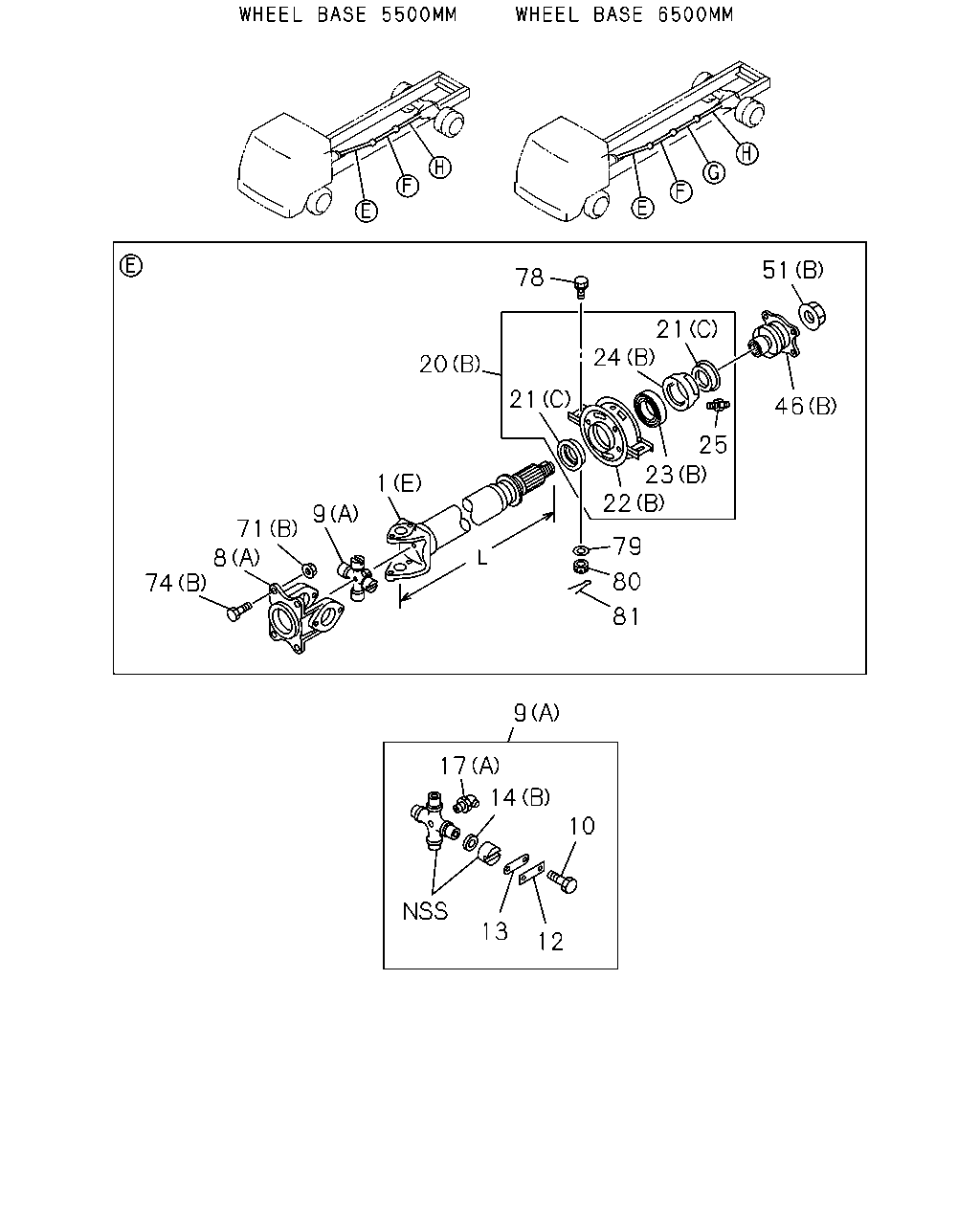

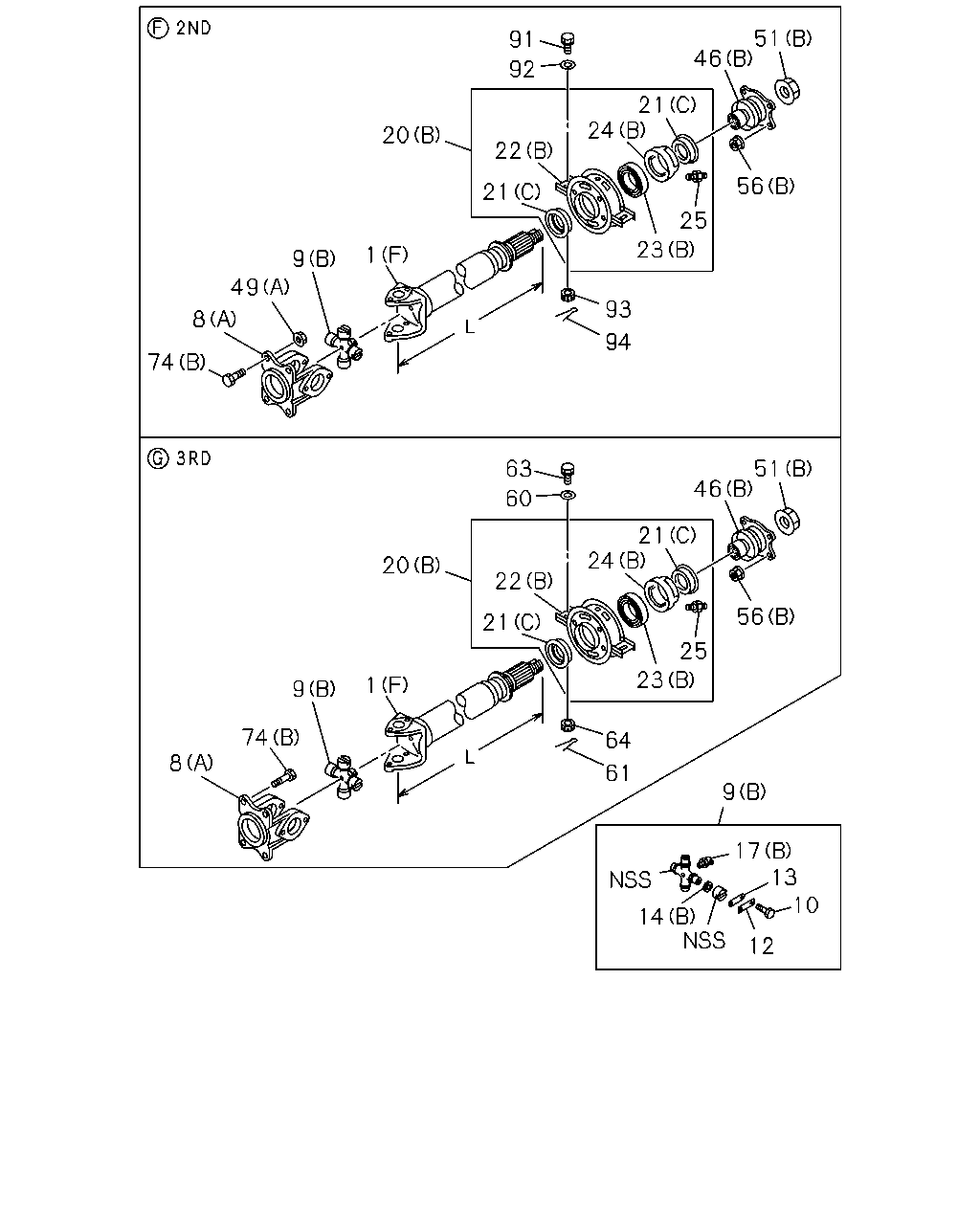

13 12 10 14 17 9 81 80 79 22 23 25 46 51 21 24 21 20 78 1 9 71 8 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP (B) L=725	8-98092-402-1	01	1	1511-	●
1	SHAFT; PROP (A) L=1119	8-98092-528-1	01	1	1511-	●
1	SHAFT; PROP (D) L=1214	1-37124-501-0	01	1	1511-		●
1	SHAFT; PROP (F) L=1229	8-98091-297-0	01	1	1511-		●
1	SHAFT; PROP (E) L=654	8-98091-298-0	01	1	1511-		●
1	SHAFT; PROP EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) L=1074	8-98091-302-0	02	1	1511-			●
1	SHAFT; PROP ALLISON MD3060P A/T(Y4G) (D) L=1164	8-98091-322-0	01	1	1511-			●
1	SHAFT; PROP EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) L=659	8-98241-798-0	01	1	1511-			●
1	SHAFT; PROP ZF9S1110 M/T(Y5E) (B) L=595	8-98092-400-1	01	1	1511-			●
1	SHAFT; PROP ZF9S1110 M/T(Y5E) (C) L=1070	8-98092-406-1	02	1	1511-			●
1	SHAFT; PROP ZF9S1110 M/T(Y5E) (A) L=1184	8-98092-529-1	01	1	1511-			●
8	YOKE; FLANGE,PROP SHAFT (B)	1-37211-079-1	03	1	1511-	●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-072-1	03	1	1511-		●
8	YOKE; FLANGE,PROP SHAFT ALLISON MD3060P A/T(Y4G) (A)	1-37211-072-1	03	1	1511-			●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-072-1	01	1	1511-		●
8	YOKE; FLANGE,PROP SHAFT ALLISON MD3060P A/T(Y4G) (A)	1-37211-072-1	02	1	1511-			●
8	YOKE; FLANGE,PROP SHAFT ZF9S1110 M/T(Y5E) (B)	1-37211-079-1	05	1	1511-			●
9	JOURNAL ASM; PROP SHAFT (C)	1-37300-110-0	03	1	1511-	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-094-1	AR	1	1511-		●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-094-1	AR	1	1511-		●
9	JOURNAL ASM; PROP SHAFT ALLISON MD3060P A/T(Y4G) (A)	1-37300-094-1	AR	1	1511-			●
9	JOURNAL ASM; PROP SHAFT ALLISON MD3060P A/T(Y4G) (A)	1-37300-094-1	AR	1	1511-			●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-095-1	AR	1	1511-		●
9	JOURNAL ASM; PROP SHAFT ALLISON MD3060P A/T(Y4G) (B)	1-37300-095-1	AR	1	1511-			●
9	JOURNAL ASM; PROP SHAFT ZF9S1110 M/T(Y5E) (C)	1-37300-110-0	05	1	1511-			●
10	BOLT; UJT M10X20	0-20951-020-0	24	1	1511-		●
10	BOLT; UJT ALLISON MD3060P A/T(Y4G) M10X20	0-20951-020-0	24	1	1511-			●
10	BOLT; UJT M10X20	0-20951-020-0	08	1	1511-		●
10	BOLT; UJT ALLISON MD3060P A/T(Y4G) M10X20	0-20951-020-0	16	1	1511-			●
12	PLATE; LK,FRT UJT,PROP SHAFT	1-37356-010-0	04	1	1511-		●
12	PLATE; LK,FRT UJT,PROP SHAFT ALLISON MD3060P A/T(Y4G)	1-37356-010-0	04	1	1511-			●
12	PLATE; LK,FRT UJT,PROP SHAFT	1-37356-010-0	08	1	1511-		●
12	PLATE; LK,FRT UJT,PROP SHAFT EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-37356-010-0	12	1	1511-			●
13	COVER; FRT UJT,PROP SHAFT T=6	1-37355-022-0	04	1	1511-		●
13	COVER; FRT UJT,PROP SHAFT ALLISON MD3060P A/T(Y4G) T=6	1-37355-022-0	04	1	1511-			●
13	COVER; FRT UJT,PROP SHAFT T=6	1-37355-022-0	08	1	1511-		●
13	COVER; FRT UJT,PROP SHAFT EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) T=6	1-37355-022-0	12	1	1511-			●
14	COVER; DUST,SPIDER (A)	1-37249-131-0	12	1	1511-	●
14	COVER; DUST,SPIDER (B)	9-37352-023-0	12	1	1511-		●
14	COVER; DUST,SPIDER ALLISON MD3060P A/T(Y4G) (B)	9-37352-023-0	12	1	1511-			●
14	COVER; DUST,SPIDER (B)	9-37352-023-0	04	1	1511-		●
14	COVER; DUST,SPIDER ALLISON MD3060P A/T(Y4G) (B)	9-37352-023-0	08	1	1511-			●
14	COVER; DUST,SPIDER ZF9S1110 M/T(Y5E) (A)	1-37249-131-0	20	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	1511-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1511-		●
17	NIPPLE; GREASE,PROP SHAFT ALLISON MD3060P A/T(Y4G) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1511-		●
17	NIPPLE; GREASE,PROP SHAFT ALLISON MD3060P A/T(Y4G) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	0-90301-610-0	01	1	1511-		●
17	NIPPLE; GREASE,PROP SHAFT EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) PT1/8 ELBOW	0-90301-610-0	02	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT ZF9S1110 M/T(Y5E) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	05	1	1511-			●
20	BEARING ASM; CTR,PROP SHAFT (A) ID=60	1-37510-115-0	01	1	1511-	●
20	BEARING ASM; CTR,PROP SHAFT (B)	1-37510-093-3	01	1	1511-		●
20	BEARING ASM; CTR,PROP SHAFT (B)	1-37510-093-3	01	1	1511-		●
20	BEARING ASM; CTR,PROP SHAFT EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-37510-093-3	03	1	1511-			●
20	BEARING ASM; CTR,PROP SHAFT ZF9S1110 M/T(Y5E) (A) ID=60	1-37510-115-0	03	1	1511-			●
21	SEAL; OIL,CENTER BRG (A) D=120	1-09625-127-0	01	1	1511-	●
21	SEAL; OIL,CENTER BRG (B)	1-09625-621-0	01	1	1511-	●
21	SEAL; OIL,CENTER BRG (C) D=120	1-09625-126-0	02	1	1511-		●
21	SEAL; OIL,CENTER BRG (C) D=120	1-09625-126-0	02	1	1511-		●
21	SEAL; OIL,CENTER BRG EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) D=120	1-09625-126-0	06	1	1511-			●
21	SEAL; OIL,CENTER BRG ZF9S1110 M/T(Y5E) (A) D=120	1-09625-127-0	03	1	1511-			●
21	SEAL; OIL,CENTER BRG ZF9S1110 M/T(Y5E) (B)	1-09625-621-0	03	1	1511-			●
22	RUBBER; CUSHION,CENTER BRG,1ST (A)	1-37516-048-2	01	1	1511-	●
22	RUBBER; CUSHION,CENTER BRG,1ST (B)	1-37516-047-2	01	1	1511-		●
22	RUBBER; CUSHION,CENTER BRG,1ST (B)	1-37516-047-2	01	1	1511-		●
22	RUBBER; CUSHION,CENTER BRG,1ST EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-37516-047-2	03	1	1511-			●
22	RUBBER; CUSHION,CENTER BRG,1ST ZF9S1110 M/T(Y5E) (A)	1-37516-048-2	03	1	1511-			●
23	BEARING; CENTER,PROP SHAFT (A)	9-00090-256-0	01	1	1511-	●
23	BEARING; CENTER,PROP SHAFT (B)	9-00090-292-0	01	1	1511-		●
23	BEARING; CENTER,PROP SHAFT (B)	9-00090-292-0	01	1	1511-		●
23	BEARING; CENTER,PROP SHAFT EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	9-00090-292-0	03	1	1511-			●
23	BEARING; CENTER,PROP SHAFT ZF9S1110 M/T(Y5E) (A)	9-00090-256-0	03	1	1511-			●
24	RETAINER; CENTER BRG,1ST (A)	1-37529-109-0	01	1	1511-	●
24	RETAINER; CENTER BRG,1ST (B)	1-37529-039-0	01	1	1511-		●
24	RETAINER; CENTER BRG,1ST (B)	1-37529-039-0	01	1	1511-		●
24	RETAINER; CENTER BRG,1ST EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-37529-039-0	03	1	1511-			●
24	RETAINER; CENTER BRG,1ST ZF9S1110 M/T(Y5E) (A)	1-37529-109-0	03	1	1511-			●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1511-	●	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1511-		●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	03	1	1511-			●
46	FLANGE; SPLINED,PROP SHAFT,1ST (A)	1-37245-348-0	01	1	1511-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST (B)	1-37245-283-1	01	1	1511-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST (B)	1-37245-283-1	01	1	1511-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-37245-283-1	03	1	1511-			●
46	FLANGE; SPLINED,PROP SHAFT,1ST ZF9S1110 M/T(Y5E) (A)	1-37245-348-0	03	1	1511-			●
51	NUT; FLANGE,SPLINED (A) M39 FLANGE	1-09440-046-0	01	1	1511-	●
51	NUT; FLANGE,SPLINED (B) M33 FLANGE	1-09449-051-0	01	1	1511-		●
51	NUT; FLANGE,SPLINED (B) M33 FLANGE	1-09449-051-0	01	1	1511-		●
51	NUT; FLANGE,SPLINED EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M33 FLANGE	1-09449-051-0	03	1	1511-			●
51	NUT; FLANGE,SPLINED ZF9S1110 M/T(Y5E) (A) M39 FLANGE	1-09440-046-0	03	1	1511-			●
71	NUT; YOKE (A) M14 FLANGE	8-97365-444-0	04	1	1511-	●
71	NUT; YOKE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14 FLANGE	8-97365-444-0	04	1	1511-			●
71	NUT; YOKE (B) M16 FLANGE	1-09449-065-0	04	1	1511-		●
71	NUT; YOKE EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16 FLANGE	1-09449-065-0	04	1	1511-			●
74	BOLT; YOKE,TRANS (A) M14X50	1-09000-645-0	08	1	1511-	●
74	BOLT; YOKE,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14X50	1-09000-645-0	08	1	1511-			●
74	BOLT; YOKE,TRANS (B) M16X48	1-09000-383-0	04	1	1511-		●
74	BOLT; YOKE,TRANS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16X48	1-09000-383-0	04	1	1511-			●
74	BOLT; YOKE,TRANS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16X48	1-09000-383-0	04	1	1511-			●
74	BOLT; YOKE,TRANS (B) M16X48	1-09000-383-0	08	1	1511-		●
74	BOLT; YOKE,TRANS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16X48	1-09000-383-0	08	1	1511-			●
74	BOLT; YOKE,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14X50	1-09000-645-0	04	1	1511-			●
74	BOLT; YOKE,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14X50	1-09000-645-0	04	1	1511-			●
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP M16X45	1-09042-030-0	02	1	1511-	●	●	●
79	WASHER; PL,HOLDER SET,CENTER BRG ID=17	1-09503-241-1	02	1	1511-	●	●	●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	8-98049-689-0	02	1	1511-	●	●	●
81	PIN; SPLIT,HOLDER SET,CENTER BRG OD=3.7 L=25	0-81124-025-0	02	1	1511-	●	●	●

12 83 84 10 106 106 74 9 9 8 225 107 128 1 9 8 56 17 13 104 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP (B) L=725	8-98092-402-1	01	1	1511-	●
1	SHAFT; PROP (A) L=1119	8-98092-528-1	01	1	1511-	●
1	SHAFT; PROP (D) L=1214	1-37124-501-0	01	1	1511-		●
1	SHAFT; PROP (F) L=1229	8-98091-297-0	01	1	1511-		●
1	SHAFT; PROP (E) L=654	8-98091-298-0	01	1	1511-		●
1	SHAFT; PROP EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) L=1074	8-98091-302-0	02	1	1511-			●
1	SHAFT; PROP ALLISON MD3060P A/T(Y4G) (D) L=1164	8-98091-322-0	01	1	1511-			●
1	SHAFT; PROP EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) L=659	8-98241-798-0	01	1	1511-			●
1	SHAFT; PROP ZF9S1110 M/T(Y5E) (B) L=595	8-98092-400-1	01	1	1511-			●
1	SHAFT; PROP ZF9S1110 M/T(Y5E) (C) L=1070	8-98092-406-1	02	1	1511-			●
1	SHAFT; PROP ZF9S1110 M/T(Y5E) (A) L=1184	8-98092-529-1	01	1	1511-			●
8	YOKE; FLANGE,PROP SHAFT (B)	1-37211-079-1	03	1	1511-	●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-072-1	03	1	1511-		●
8	YOKE; FLANGE,PROP SHAFT ALLISON MD3060P A/T(Y4G) (A)	1-37211-072-1	03	1	1511-			●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-072-1	01	1	1511-		●
8	YOKE; FLANGE,PROP SHAFT ALLISON MD3060P A/T(Y4G) (A)	1-37211-072-1	02	1	1511-			●
8	YOKE; FLANGE,PROP SHAFT ZF9S1110 M/T(Y5E) (B)	1-37211-079-1	05	1	1511-			●
9	JOURNAL ASM; PROP SHAFT (C)	1-37300-110-0	03	1	1511-	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-094-1	AR	1	1511-		●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-094-1	AR	1	1511-		●
9	JOURNAL ASM; PROP SHAFT ALLISON MD3060P A/T(Y4G) (A)	1-37300-094-1	AR	1	1511-			●
9	JOURNAL ASM; PROP SHAFT ALLISON MD3060P A/T(Y4G) (A)	1-37300-094-1	AR	1	1511-			●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-095-1	AR	1	1511-		●
9	JOURNAL ASM; PROP SHAFT ALLISON MD3060P A/T(Y4G) (B)	1-37300-095-1	AR	1	1511-			●
9	JOURNAL ASM; PROP SHAFT ZF9S1110 M/T(Y5E) (C)	1-37300-110-0	05	1	1511-			●
10	BOLT; UJT M10X20	0-20951-020-0	24	1	1511-		●
10	BOLT; UJT ALLISON MD3060P A/T(Y4G) M10X20	0-20951-020-0	24	1	1511-			●
10	BOLT; UJT M10X20	0-20951-020-0	08	1	1511-		●
10	BOLT; UJT ALLISON MD3060P A/T(Y4G) M10X20	0-20951-020-0	16	1	1511-			●
12	PLATE; LK,FRT UJT,PROP SHAFT	1-37356-010-0	04	1	1511-		●
12	PLATE; LK,FRT UJT,PROP SHAFT ALLISON MD3060P A/T(Y4G)	1-37356-010-0	04	1	1511-			●
12	PLATE; LK,FRT UJT,PROP SHAFT	1-37356-010-0	08	1	1511-		●
12	PLATE; LK,FRT UJT,PROP SHAFT EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-37356-010-0	12	1	1511-			●
13	COVER; FRT UJT,PROP SHAFT T=6	1-37355-022-0	04	1	1511-		●
13	COVER; FRT UJT,PROP SHAFT ALLISON MD3060P A/T(Y4G) T=6	1-37355-022-0	04	1	1511-			●
13	COVER; FRT UJT,PROP SHAFT T=6	1-37355-022-0	08	1	1511-		●
13	COVER; FRT UJT,PROP SHAFT EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) T=6	1-37355-022-0	12	1	1511-			●
14	COVER; DUST,SPIDER (A)	1-37249-131-0	12	1	1511-	●
14	COVER; DUST,SPIDER (B)	9-37352-023-0	12	1	1511-		●
14	COVER; DUST,SPIDER ALLISON MD3060P A/T(Y4G) (B)	9-37352-023-0	12	1	1511-			●
14	COVER; DUST,SPIDER (B)	9-37352-023-0	04	1	1511-		●
14	COVER; DUST,SPIDER ALLISON MD3060P A/T(Y4G) (B)	9-37352-023-0	08	1	1511-			●
14	COVER; DUST,SPIDER ZF9S1110 M/T(Y5E) (A)	1-37249-131-0	20	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	1511-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1511-		●
17	NIPPLE; GREASE,PROP SHAFT ALLISON MD3060P A/T(Y4G) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1511-		●
17	NIPPLE; GREASE,PROP SHAFT ALLISON MD3060P A/T(Y4G) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	0-90301-610-0	01	1	1511-		●
17	NIPPLE; GREASE,PROP SHAFT EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) PT1/8 ELBOW	0-90301-610-0	02	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT ZF9S1110 M/T(Y5E) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	05	1	1511-			●
56	NUT; YOKE (A) M14 FLANGE	8-97365-444-0	08	1	1511-	●
56	NUT; YOKE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14 FLANGE	8-97365-444-0	08	1	1511-			●
56	NUT; YOKE (B) M16 FLANGE	1-09449-065-0	08	1	1511-		●
56	NUT; YOKE EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16 FLANGE	1-09449-065-0	08	1	1511-			●
56	NUT; YOKE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14 FLANGE	8-97365-444-0	04	1	1511-			●
56	NUT; YOKE EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16 FLANGE	1-09449-065-0	04	1	1511-			●
74	BOLT; YOKE,TRANS (A) M14X50	1-09000-645-0	08	1	1511-	●
74	BOLT; YOKE,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14X50	1-09000-645-0	08	1	1511-			●
74	BOLT; YOKE,TRANS (B) M16X48	1-09000-383-0	04	1	1511-		●
74	BOLT; YOKE,TRANS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16X48	1-09000-383-0	04	1	1511-			●
74	BOLT; YOKE,TRANS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16X48	1-09000-383-0	04	1	1511-			●
74	BOLT; YOKE,TRANS (B) M16X48	1-09000-383-0	08	1	1511-		●
74	BOLT; YOKE,TRANS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16X48	1-09000-383-0	08	1	1511-			●
74	BOLT; YOKE,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14X50	1-09000-645-0	04	1	1511-			●
74	BOLT; YOKE,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14X50	1-09000-645-0	04	1	1511-			●
83	PLATE; LK,UJT,PROP SHAFT	1-37356-010-0	04	1	1511-		●
83	PLATE; LK,UJT,PROP SHAFT ALLISON MD3060P A/T(Y4G)	1-37356-010-0	04	1	1511-			●
84	COVER; UJT,PROP SHAFT T=6	1-37355-022-0	04	1	1511-		●
84	COVER; UJT,PROP SHAFT ALLISON MD3060P A/T(Y4G) T=6	1-37355-022-0	04	1	1511-			●
104	PLUG; SLEEVE YOKE	1-09600-067-0	01	1	1511-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	1511-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (B) MT6 STRAIGHT	1-09380-006-0	01	1	1511-		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT ALLISON MD3060P A/T(Y4G) (B) MT6 STRAIGHT	1-09380-006-0	01	1	1511-			●
107	COVER; RET,SLEEVE	1-37249-137-1	01	1	1511-		●
107	COVER; RET,SLEEVE ALLISON MD3060P A/T(Y4G)	1-37249-137-1	01	1	1511-			●
128	SEAL; SLEEVE (A)	1-37247-019-0	01	1	1511-	●
128	SEAL; SLEEVE ZF9S1110 M/T(Y5E) (A)	1-37247-019-0	01	1	1511-			●
128	SEAL; SLEEVE (B)	1-37247-021-0	01	1	1511-		●
128	SEAL; SLEEVE ALLISON MD3060P A/T(Y4G) (B)	1-37247-021-0	01	1	1511-			●
225	YOKE; SLEEVE,PROP SHAFT (A) L=330	1-37241-124-0	01	1	1511-	●
225	YOKE; SLEEVE,PROP SHAFT ZF9S1110 M/T(Y5E) (A) L=330	1-37241-124-0	01	1	1511-			●
225	YOKE; SLEEVE,PROP SHAFT (B) L=332	1-37241-109-1	01	1	1511-		●
225	YOKE; SLEEVE,PROP SHAFT ALLISON MD3060P A/T(Y4G) (B) L=332	1-37241-109-1	01	1	1511-			●

78 21 51 46 25 23 22 21 80 81 79 1 9 8 71 20 24 9 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP (B) L=725	8-98092-402-1	01	1	1511-	●
1	SHAFT; PROP (A) L=1119	8-98092-528-1	01	1	1511-	●
1	SHAFT; PROP (D) L=1214	1-37124-501-0	01	1	1511-		●
1	SHAFT; PROP (F) L=1229	8-98091-297-0	01	1	1511-		●
1	SHAFT; PROP (E) L=654	8-98091-298-0	01	1	1511-		●
1	SHAFT; PROP EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) L=1074	8-98091-302-0	02	1	1511-			●
1	SHAFT; PROP ALLISON MD3060P A/T(Y4G) (D) L=1164	8-98091-322-0	01	1	1511-			●
1	SHAFT; PROP EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) L=659	8-98241-798-0	01	1	1511-			●
1	SHAFT; PROP ZF9S1110 M/T(Y5E) (B) L=595	8-98092-400-1	01	1	1511-			●
1	SHAFT; PROP ZF9S1110 M/T(Y5E) (C) L=1070	8-98092-406-1	02	1	1511-			●
1	SHAFT; PROP ZF9S1110 M/T(Y5E) (A) L=1184	8-98092-529-1	01	1	1511-			●
8	YOKE; FLANGE,PROP SHAFT (B)	1-37211-079-1	03	1	1511-	●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-072-1	03	1	1511-		●
8	YOKE; FLANGE,PROP SHAFT ALLISON MD3060P A/T(Y4G) (A)	1-37211-072-1	03	1	1511-			●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-072-1	01	1	1511-		●
8	YOKE; FLANGE,PROP SHAFT ALLISON MD3060P A/T(Y4G) (A)	1-37211-072-1	02	1	1511-			●
8	YOKE; FLANGE,PROP SHAFT ZF9S1110 M/T(Y5E) (B)	1-37211-079-1	05	1	1511-			●
9	JOURNAL ASM; PROP SHAFT (C)	1-37300-110-0	03	1	1511-	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-094-1	AR	1	1511-		●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-094-1	AR	1	1511-		●
9	JOURNAL ASM; PROP SHAFT ALLISON MD3060P A/T(Y4G) (A)	1-37300-094-1	AR	1	1511-			●
9	JOURNAL ASM; PROP SHAFT ALLISON MD3060P A/T(Y4G) (A)	1-37300-094-1	AR	1	1511-			●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-095-1	AR	1	1511-		●
9	JOURNAL ASM; PROP SHAFT ALLISON MD3060P A/T(Y4G) (B)	1-37300-095-1	AR	1	1511-			●
9	JOURNAL ASM; PROP SHAFT ZF9S1110 M/T(Y5E) (C)	1-37300-110-0	05	1	1511-			●
14	COVER; DUST,SPIDER (A)	1-37249-131-0	12	1	1511-	●
14	COVER; DUST,SPIDER (B)	9-37352-023-0	12	1	1511-		●
14	COVER; DUST,SPIDER ALLISON MD3060P A/T(Y4G) (B)	9-37352-023-0	12	1	1511-			●
14	COVER; DUST,SPIDER (B)	9-37352-023-0	04	1	1511-		●
14	COVER; DUST,SPIDER ALLISON MD3060P A/T(Y4G) (B)	9-37352-023-0	08	1	1511-			●
14	COVER; DUST,SPIDER ZF9S1110 M/T(Y5E) (A)	1-37249-131-0	20	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	1511-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1511-		●
17	NIPPLE; GREASE,PROP SHAFT ALLISON MD3060P A/T(Y4G) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1511-		●
17	NIPPLE; GREASE,PROP SHAFT ALLISON MD3060P A/T(Y4G) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	0-90301-610-0	01	1	1511-		●
17	NIPPLE; GREASE,PROP SHAFT EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) PT1/8 ELBOW	0-90301-610-0	02	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT ZF9S1110 M/T(Y5E) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	05	1	1511-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-102-1	12	1	1511-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST ZF9S1110 M/T(Y5E) T=2.2	1-09587-102-1	20	1	1511-			●
20	BEARING ASM; CTR,PROP SHAFT (A) ID=60	1-37510-115-0	01	1	1511-	●
20	BEARING ASM; CTR,PROP SHAFT (B)	1-37510-093-3	01	1	1511-		●
20	BEARING ASM; CTR,PROP SHAFT (B)	1-37510-093-3	01	1	1511-		●
20	BEARING ASM; CTR,PROP SHAFT EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-37510-093-3	03	1	1511-			●
20	BEARING ASM; CTR,PROP SHAFT ZF9S1110 M/T(Y5E) (A) ID=60	1-37510-115-0	03	1	1511-			●
21	SEAL; OIL,CENTER BRG (A) D=120	1-09625-127-0	01	1	1511-	●
21	SEAL; OIL,CENTER BRG (B)	1-09625-621-0	01	1	1511-	●
21	SEAL; OIL,CENTER BRG (C) D=120	1-09625-126-0	02	1	1511-		●
21	SEAL; OIL,CENTER BRG (C) D=120	1-09625-126-0	02	1	1511-		●
21	SEAL; OIL,CENTER BRG EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) D=120	1-09625-126-0	06	1	1511-			●
21	SEAL; OIL,CENTER BRG ZF9S1110 M/T(Y5E) (A) D=120	1-09625-127-0	03	1	1511-			●
21	SEAL; OIL,CENTER BRG ZF9S1110 M/T(Y5E) (B)	1-09625-621-0	03	1	1511-			●
22	RUBBER; CUSHION,CENTER BRG,1ST (A)	1-37516-048-2	01	1	1511-	●
22	RUBBER; CUSHION,CENTER BRG,1ST (B)	1-37516-047-2	01	1	1511-		●
22	RUBBER; CUSHION,CENTER BRG,1ST (B)	1-37516-047-2	01	1	1511-		●
22	RUBBER; CUSHION,CENTER BRG,1ST EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-37516-047-2	03	1	1511-			●
22	RUBBER; CUSHION,CENTER BRG,1ST ZF9S1110 M/T(Y5E) (A)	1-37516-048-2	03	1	1511-			●
23	BEARING; CENTER,PROP SHAFT (A)	9-00090-256-0	01	1	1511-	●
23	BEARING; CENTER,PROP SHAFT (B)	9-00090-292-0	01	1	1511-		●
23	BEARING; CENTER,PROP SHAFT (B)	9-00090-292-0	01	1	1511-		●
23	BEARING; CENTER,PROP SHAFT EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	9-00090-292-0	03	1	1511-			●
23	BEARING; CENTER,PROP SHAFT ZF9S1110 M/T(Y5E) (A)	9-00090-256-0	03	1	1511-			●
24	RETAINER; CENTER BRG,1ST (A)	1-37529-109-0	01	1	1511-	●
24	RETAINER; CENTER BRG,1ST (B)	1-37529-039-0	01	1	1511-		●
24	RETAINER; CENTER BRG,1ST (B)	1-37529-039-0	01	1	1511-		●
24	RETAINER; CENTER BRG,1ST EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-37529-039-0	03	1	1511-			●
24	RETAINER; CENTER BRG,1ST ZF9S1110 M/T(Y5E) (A)	1-37529-109-0	03	1	1511-			●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1511-	●	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1511-		●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	03	1	1511-			●
46	FLANGE; SPLINED,PROP SHAFT,1ST (A)	1-37245-348-0	01	1	1511-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST (B)	1-37245-283-1	01	1	1511-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST (B)	1-37245-283-1	01	1	1511-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-37245-283-1	03	1	1511-			●
46	FLANGE; SPLINED,PROP SHAFT,1ST ZF9S1110 M/T(Y5E) (A)	1-37245-348-0	03	1	1511-			●
51	NUT; FLANGE,SPLINED (A) M39 FLANGE	1-09440-046-0	01	1	1511-	●
51	NUT; FLANGE,SPLINED (B) M33 FLANGE	1-09449-051-0	01	1	1511-		●
51	NUT; FLANGE,SPLINED (B) M33 FLANGE	1-09449-051-0	01	1	1511-		●
51	NUT; FLANGE,SPLINED EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M33 FLANGE	1-09449-051-0	03	1	1511-			●
51	NUT; FLANGE,SPLINED ZF9S1110 M/T(Y5E) (A) M39 FLANGE	1-09440-046-0	03	1	1511-			●
71	NUT; YOKE (A) M14 FLANGE	8-97365-444-0	04	1	1511-	●
71	NUT; YOKE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14 FLANGE	8-97365-444-0	04	1	1511-			●
71	NUT; YOKE (B) M16 FLANGE	1-09449-065-0	04	1	1511-		●
71	NUT; YOKE EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16 FLANGE	1-09449-065-0	04	1	1511-			●
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP M16X45	1-09042-030-0	02	1	1511-	●	●	●
79	WASHER; PL,HOLDER SET,CENTER BRG ID=17	1-09503-241-1	02	1	1511-	●	●	●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	8-98049-689-0	02	1	1511-	●	●	●
81	PIN; SPLIT,HOLDER SET,CENTER BRG OD=3.7 L=25	0-81124-025-0	02	1	1511-	●	●	●

74 8 9 104 225 128 1 9 56 8 106 56 9 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP (B) L=725	8-98092-402-1	01	1	1511-	●
1	SHAFT; PROP (A) L=1119	8-98092-528-1	01	1	1511-	●
1	SHAFT; PROP (D) L=1214	1-37124-501-0	01	1	1511-		●
1	SHAFT; PROP (F) L=1229	8-98091-297-0	01	1	1511-		●
1	SHAFT; PROP (E) L=654	8-98091-298-0	01	1	1511-		●
1	SHAFT; PROP EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) L=1074	8-98091-302-0	02	1	1511-			●
1	SHAFT; PROP ALLISON MD3060P A/T(Y4G) (D) L=1164	8-98091-322-0	01	1	1511-			●
1	SHAFT; PROP EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) L=659	8-98241-798-0	01	1	1511-			●
1	SHAFT; PROP ZF9S1110 M/T(Y5E) (B) L=595	8-98092-400-1	01	1	1511-			●
1	SHAFT; PROP ZF9S1110 M/T(Y5E) (C) L=1070	8-98092-406-1	02	1	1511-			●
1	SHAFT; PROP ZF9S1110 M/T(Y5E) (A) L=1184	8-98092-529-1	01	1	1511-			●
8	YOKE; FLANGE,PROP SHAFT (B)	1-37211-079-1	03	1	1511-	●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-072-1	03	1	1511-		●
8	YOKE; FLANGE,PROP SHAFT ALLISON MD3060P A/T(Y4G) (A)	1-37211-072-1	03	1	1511-			●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-072-1	01	1	1511-		●
8	YOKE; FLANGE,PROP SHAFT ALLISON MD3060P A/T(Y4G) (A)	1-37211-072-1	02	1	1511-			●
8	YOKE; FLANGE,PROP SHAFT ZF9S1110 M/T(Y5E) (B)	1-37211-079-1	05	1	1511-			●
9	JOURNAL ASM; PROP SHAFT (C)	1-37300-110-0	03	1	1511-	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-094-1	AR	1	1511-		●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-094-1	AR	1	1511-		●
9	JOURNAL ASM; PROP SHAFT ALLISON MD3060P A/T(Y4G) (A)	1-37300-094-1	AR	1	1511-			●
9	JOURNAL ASM; PROP SHAFT ALLISON MD3060P A/T(Y4G) (A)	1-37300-094-1	AR	1	1511-			●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-095-1	AR	1	1511-		●
9	JOURNAL ASM; PROP SHAFT ALLISON MD3060P A/T(Y4G) (B)	1-37300-095-1	AR	1	1511-			●
9	JOURNAL ASM; PROP SHAFT ZF9S1110 M/T(Y5E) (C)	1-37300-110-0	05	1	1511-			●
14	COVER; DUST,SPIDER (A)	1-37249-131-0	12	1	1511-	●
14	COVER; DUST,SPIDER (B)	9-37352-023-0	12	1	1511-		●
14	COVER; DUST,SPIDER ALLISON MD3060P A/T(Y4G) (B)	9-37352-023-0	12	1	1511-			●
14	COVER; DUST,SPIDER (B)	9-37352-023-0	04	1	1511-		●
14	COVER; DUST,SPIDER ALLISON MD3060P A/T(Y4G) (B)	9-37352-023-0	08	1	1511-			●
14	COVER; DUST,SPIDER ZF9S1110 M/T(Y5E) (A)	1-37249-131-0	20	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	1511-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1511-		●
17	NIPPLE; GREASE,PROP SHAFT ALLISON MD3060P A/T(Y4G) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1511-		●
17	NIPPLE; GREASE,PROP SHAFT ALLISON MD3060P A/T(Y4G) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	0-90301-610-0	01	1	1511-		●
17	NIPPLE; GREASE,PROP SHAFT EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) PT1/8 ELBOW	0-90301-610-0	02	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT ZF9S1110 M/T(Y5E) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	05	1	1511-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-102-1	12	1	1511-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST ZF9S1110 M/T(Y5E) T=2.2	1-09587-102-1	20	1	1511-			●
56	NUT; YOKE (A) M14 FLANGE	8-97365-444-0	08	1	1511-	●
56	NUT; YOKE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14 FLANGE	8-97365-444-0	08	1	1511-			●
56	NUT; YOKE (B) M16 FLANGE	1-09449-065-0	08	1	1511-		●
56	NUT; YOKE EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16 FLANGE	1-09449-065-0	08	1	1511-			●
56	NUT; YOKE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14 FLANGE	8-97365-444-0	04	1	1511-			●
56	NUT; YOKE EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16 FLANGE	1-09449-065-0	04	1	1511-			●
74	BOLT; YOKE,TRANS (A) M14X50	1-09000-645-0	08	1	1511-	●
74	BOLT; YOKE,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14X50	1-09000-645-0	08	1	1511-			●
74	BOLT; YOKE,TRANS (B) M16X48	1-09000-383-0	04	1	1511-		●
74	BOLT; YOKE,TRANS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16X48	1-09000-383-0	04	1	1511-			●
74	BOLT; YOKE,TRANS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16X48	1-09000-383-0	04	1	1511-			●
74	BOLT; YOKE,TRANS (B) M16X48	1-09000-383-0	08	1	1511-		●
74	BOLT; YOKE,TRANS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16X48	1-09000-383-0	08	1	1511-			●
74	BOLT; YOKE,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14X50	1-09000-645-0	04	1	1511-			●
74	BOLT; YOKE,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14X50	1-09000-645-0	04	1	1511-			●
104	PLUG; SLEEVE YOKE	1-09600-067-0	01	1	1511-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	1511-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT (B) MT6 STRAIGHT	1-09380-006-0	01	1	1511-		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT ALLISON MD3060P A/T(Y4G) (B) MT6 STRAIGHT	1-09380-006-0	01	1	1511-			●
128	SEAL; SLEEVE (A)	1-37247-019-0	01	1	1511-	●
128	SEAL; SLEEVE ZF9S1110 M/T(Y5E) (A)	1-37247-019-0	01	1	1511-			●
128	SEAL; SLEEVE (B)	1-37247-021-0	01	1	1511-		●
128	SEAL; SLEEVE ALLISON MD3060P A/T(Y4G) (B)	1-37247-021-0	01	1	1511-			●
225	YOKE; SLEEVE,PROP SHAFT (A) L=330	1-37241-124-0	01	1	1511-	●
225	YOKE; SLEEVE,PROP SHAFT ZF9S1110 M/T(Y5E) (A) L=330	1-37241-124-0	01	1	1511-			●
225	YOKE; SLEEVE,PROP SHAFT (B) L=332	1-37241-109-1	01	1	1511-		●
225	YOKE; SLEEVE,PROP SHAFT ALLISON MD3060P A/T(Y4G) (B) L=332	1-37241-109-1	01	1	1511-			●

12 10 17 13 14 9 61 64 8 74 9 1 20 21 22 23 25 24 60 63 21 56 46 51 74 8 49 9 1 20 21 94 93 23 25 56 51 46 21 24 22 92 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP (B) L=725	8-98092-402-1	01	1	1511-	●
1	SHAFT; PROP (A) L=1119	8-98092-528-1	01	1	1511-	●
1	SHAFT; PROP (D) L=1214	1-37124-501-0	01	1	1511-		●
1	SHAFT; PROP (F) L=1229	8-98091-297-0	01	1	1511-		●
1	SHAFT; PROP (E) L=654	8-98091-298-0	01	1	1511-		●
1	SHAFT; PROP EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F) L=1074	8-98091-302-0	02	1	1511-			●
1	SHAFT; PROP ALLISON MD3060P A/T(Y4G) (D) L=1164	8-98091-322-0	01	1	1511-			●
1	SHAFT; PROP EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) L=659	8-98241-798-0	01	1	1511-			●
1	SHAFT; PROP ZF9S1110 M/T(Y5E) (B) L=595	8-98092-400-1	01	1	1511-			●
1	SHAFT; PROP ZF9S1110 M/T(Y5E) (C) L=1070	8-98092-406-1	02	1	1511-			●
1	SHAFT; PROP ZF9S1110 M/T(Y5E) (A) L=1184	8-98092-529-1	01	1	1511-			●
8	YOKE; FLANGE,PROP SHAFT (B)	1-37211-079-1	03	1	1511-	●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-072-1	03	1	1511-		●
8	YOKE; FLANGE,PROP SHAFT ALLISON MD3060P A/T(Y4G) (A)	1-37211-072-1	03	1	1511-			●
8	YOKE; FLANGE,PROP SHAFT (A)	1-37211-072-1	01	1	1511-		●
8	YOKE; FLANGE,PROP SHAFT ALLISON MD3060P A/T(Y4G) (A)	1-37211-072-1	02	1	1511-			●
8	YOKE; FLANGE,PROP SHAFT ZF9S1110 M/T(Y5E) (B)	1-37211-079-1	05	1	1511-			●
9	JOURNAL ASM; PROP SHAFT (C)	1-37300-110-0	03	1	1511-	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-094-1	AR	1	1511-		●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-094-1	AR	1	1511-		●
9	JOURNAL ASM; PROP SHAFT ALLISON MD3060P A/T(Y4G) (A)	1-37300-094-1	AR	1	1511-			●
9	JOURNAL ASM; PROP SHAFT ALLISON MD3060P A/T(Y4G) (A)	1-37300-094-1	AR	1	1511-			●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-095-1	AR	1	1511-		●
9	JOURNAL ASM; PROP SHAFT ALLISON MD3060P A/T(Y4G) (B)	1-37300-095-1	AR	1	1511-			●
9	JOURNAL ASM; PROP SHAFT ZF9S1110 M/T(Y5E) (C)	1-37300-110-0	05	1	1511-			●
10	BOLT; UJT M10X20	0-20951-020-0	24	1	1511-		●
10	BOLT; UJT ALLISON MD3060P A/T(Y4G) M10X20	0-20951-020-0	24	1	1511-			●
10	BOLT; UJT M10X20	0-20951-020-0	08	1	1511-		●
10	BOLT; UJT ALLISON MD3060P A/T(Y4G) M10X20	0-20951-020-0	16	1	1511-			●
12	PLATE; LK,FRT UJT,PROP SHAFT	1-37356-010-0	04	1	1511-		●
12	PLATE; LK,FRT UJT,PROP SHAFT ALLISON MD3060P A/T(Y4G)	1-37356-010-0	04	1	1511-			●
12	PLATE; LK,FRT UJT,PROP SHAFT	1-37356-010-0	08	1	1511-		●
12	PLATE; LK,FRT UJT,PROP SHAFT EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-37356-010-0	12	1	1511-			●
13	COVER; FRT UJT,PROP SHAFT T=6	1-37355-022-0	04	1	1511-		●
13	COVER; FRT UJT,PROP SHAFT ALLISON MD3060P A/T(Y4G) T=6	1-37355-022-0	04	1	1511-			●
13	COVER; FRT UJT,PROP SHAFT T=6	1-37355-022-0	08	1	1511-		●
13	COVER; FRT UJT,PROP SHAFT EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) T=6	1-37355-022-0	12	1	1511-			●
14	COVER; DUST,SPIDER (A)	1-37249-131-0	12	1	1511-	●
14	COVER; DUST,SPIDER (B)	9-37352-023-0	12	1	1511-		●
14	COVER; DUST,SPIDER ALLISON MD3060P A/T(Y4G) (B)	9-37352-023-0	12	1	1511-			●
14	COVER; DUST,SPIDER (B)	9-37352-023-0	04	1	1511-		●
14	COVER; DUST,SPIDER ALLISON MD3060P A/T(Y4G) (B)	9-37352-023-0	08	1	1511-			●
14	COVER; DUST,SPIDER ZF9S1110 M/T(Y5E) (A)	1-37249-131-0	20	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	1511-	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1511-		●
17	NIPPLE; GREASE,PROP SHAFT ALLISON MD3060P A/T(Y4G) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1511-		●
17	NIPPLE; GREASE,PROP SHAFT ALLISON MD3060P A/T(Y4G) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT (B) PT1/8 ELBOW	0-90301-610-0	01	1	1511-		●
17	NIPPLE; GREASE,PROP SHAFT EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) PT1/8 ELBOW	0-90301-610-0	02	1	1511-			●
17	NIPPLE; GREASE,PROP SHAFT ZF9S1110 M/T(Y5E) (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	05	1	1511-			●
20	BEARING ASM; CTR,PROP SHAFT (A) ID=60	1-37510-115-0	01	1	1511-	●
20	BEARING ASM; CTR,PROP SHAFT (B)	1-37510-093-3	01	1	1511-		●
20	BEARING ASM; CTR,PROP SHAFT (B)	1-37510-093-3	01	1	1511-		●
20	BEARING ASM; CTR,PROP SHAFT EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-37510-093-3	03	1	1511-			●
20	BEARING ASM; CTR,PROP SHAFT ZF9S1110 M/T(Y5E) (A) ID=60	1-37510-115-0	03	1	1511-			●
21	SEAL; OIL,CENTER BRG (A) D=120	1-09625-127-0	01	1	1511-	●
21	SEAL; OIL,CENTER BRG (B)	1-09625-621-0	01	1	1511-	●
21	SEAL; OIL,CENTER BRG (C) D=120	1-09625-126-0	02	1	1511-		●
21	SEAL; OIL,CENTER BRG (C) D=120	1-09625-126-0	02	1	1511-		●
21	SEAL; OIL,CENTER BRG EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) D=120	1-09625-126-0	06	1	1511-			●
21	SEAL; OIL,CENTER BRG ZF9S1110 M/T(Y5E) (A) D=120	1-09625-127-0	03	1	1511-			●
21	SEAL; OIL,CENTER BRG ZF9S1110 M/T(Y5E) (B)	1-09625-621-0	03	1	1511-			●
22	RUBBER; CUSHION,CENTER BRG,1ST (A)	1-37516-048-2	01	1	1511-	●
22	RUBBER; CUSHION,CENTER BRG,1ST (B)	1-37516-047-2	01	1	1511-		●
22	RUBBER; CUSHION,CENTER BRG,1ST (B)	1-37516-047-2	01	1	1511-		●
22	RUBBER; CUSHION,CENTER BRG,1ST EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-37516-047-2	03	1	1511-			●
22	RUBBER; CUSHION,CENTER BRG,1ST ZF9S1110 M/T(Y5E) (A)	1-37516-048-2	03	1	1511-			●
23	BEARING; CENTER,PROP SHAFT (A)	9-00090-256-0	01	1	1511-	●
23	BEARING; CENTER,PROP SHAFT (B)	9-00090-292-0	01	1	1511-		●
23	BEARING; CENTER,PROP SHAFT (B)	9-00090-292-0	01	1	1511-		●
23	BEARING; CENTER,PROP SHAFT EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	9-00090-292-0	03	1	1511-			●
23	BEARING; CENTER,PROP SHAFT ZF9S1110 M/T(Y5E) (A)	9-00090-256-0	03	1	1511-			●
24	RETAINER; CENTER BRG,1ST (A)	1-37529-109-0	01	1	1511-	●
24	RETAINER; CENTER BRG,1ST (B)	1-37529-039-0	01	1	1511-		●
24	RETAINER; CENTER BRG,1ST (B)	1-37529-039-0	01	1	1511-		●
24	RETAINER; CENTER BRG,1ST EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-37529-039-0	03	1	1511-			●
24	RETAINER; CENTER BRG,1ST ZF9S1110 M/T(Y5E) (A)	1-37529-109-0	03	1	1511-			●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1511-	●	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1511-		●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	03	1	1511-			●
46	FLANGE; SPLINED,PROP SHAFT,1ST (A)	1-37245-348-0	01	1	1511-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST (B)	1-37245-283-1	01	1	1511-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST (B)	1-37245-283-1	01	1	1511-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-37245-283-1	03	1	1511-			●
46	FLANGE; SPLINED,PROP SHAFT,1ST ZF9S1110 M/T(Y5E) (A)	1-37245-348-0	03	1	1511-			●
49	NUT; YOKE (A) M16 FLANGE	1-09449-065-0	04	1	1511-		●
49	NUT; YOKE EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M16 FLANGE	1-09449-065-0	04	1	1511-			●
49	NUT; YOKE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M14 FLANGE	8-97365-444-0	04	1	1511-			●
51	NUT; FLANGE,SPLINED (A) M39 FLANGE	1-09440-046-0	01	1	1511-	●
51	NUT; FLANGE,SPLINED (B) M33 FLANGE	1-09449-051-0	01	1	1511-		●
51	NUT; FLANGE,SPLINED (B) M33 FLANGE	1-09449-051-0	01	1	1511-		●
51	NUT; FLANGE,SPLINED EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M33 FLANGE	1-09449-051-0	03	1	1511-			●
51	NUT; FLANGE,SPLINED ZF9S1110 M/T(Y5E) (A) M39 FLANGE	1-09440-046-0	03	1	1511-			●
56	NUT; YOKE (A) M14 FLANGE	8-97365-444-0	08	1	1511-	●
56	NUT; YOKE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14 FLANGE	8-97365-444-0	08	1	1511-			●
56	NUT; YOKE (B) M16 FLANGE	1-09449-065-0	08	1	1511-		●
56	NUT; YOKE EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16 FLANGE	1-09449-065-0	08	1	1511-			●
56	NUT; YOKE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14 FLANGE	8-97365-444-0	04	1	1511-			●
56	NUT; YOKE EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16 FLANGE	1-09449-065-0	04	1	1511-			●
60	WASHER; PL,RET TO BRKT ID=17	1-09503-241-1	02	1	1511-			●
61	PIN; SPLIT OD=3.7 L=25	0-81124-025-0	02	1	1511-			●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M16X45	1-09042-030-0	02	1	1511-			●
64	NUT; RET TO BRKT M16 SLOTTED	8-98049-689-0	02	1	1511-			●
74	BOLT; YOKE,TRANS (A) M14X50	1-09000-645-0	08	1	1511-	●
74	BOLT; YOKE,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14X50	1-09000-645-0	08	1	1511-			●
74	BOLT; YOKE,TRANS (B) M16X48	1-09000-383-0	04	1	1511-		●
74	BOLT; YOKE,TRANS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16X48	1-09000-383-0	04	1	1511-			●
74	BOLT; YOKE,TRANS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16X48	1-09000-383-0	04	1	1511-			●
74	BOLT; YOKE,TRANS (B) M16X48	1-09000-383-0	08	1	1511-		●
74	BOLT; YOKE,TRANS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M16X48	1-09000-383-0	08	1	1511-			●
74	BOLT; YOKE,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14X50	1-09000-645-0	04	1	1511-			●
74	BOLT; YOKE,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M14X50	1-09000-645-0	04	1	1511-			●
91	BOLT; HOLDER SET,CTR BRG M16X45	1-09042-030-0	02	1	1511-		●	●
92	WASHER; LK,HOLDER SET,CTR BRG ID=17	1-09503-241-1	02	1	1511-		●	●
93	NUT; HOLDER SET,CTR BRG M16 SLOTTED	8-98049-689-0	02	1	1511-		●	●
94	PIN; SPLIT,HOLDER SET CTR BRG OD=3.7 L=25	0-81124-025-0	02	1	1511-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
