◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11717 - FVR AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#169720) — 97 parça
çizim 501638
388 379 34
BalonParca AdiParca NoAdetTipApplied Date A B
34 NUT; BRKT
(B) M6 FLANGE 		0-91180-106-0 02 1 1511- ● ●
34 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 06 1 1511- ● ●
34 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
34 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(A) L=60 H=30 		1-47477-716-1 02 1 1511- ● ●
379 BRACKET; NYLON TUBE
(B) 		8-98044-013-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(C) 		8-98074-610-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(D) L=65 B=25 		8-98135-584-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(E) 		8-98177-873-0 04 1 1511- ● ●
379 BRACKET; NYLON TUBE
(F) 		8-98186-380-0 01 1 1511- ● ●
388 SEAL
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> 180X40 		1-72498-019-1 02 1 1511- ●
388 SEAL
100X40 		1-72498-022-1 03 1 1511- ● ●

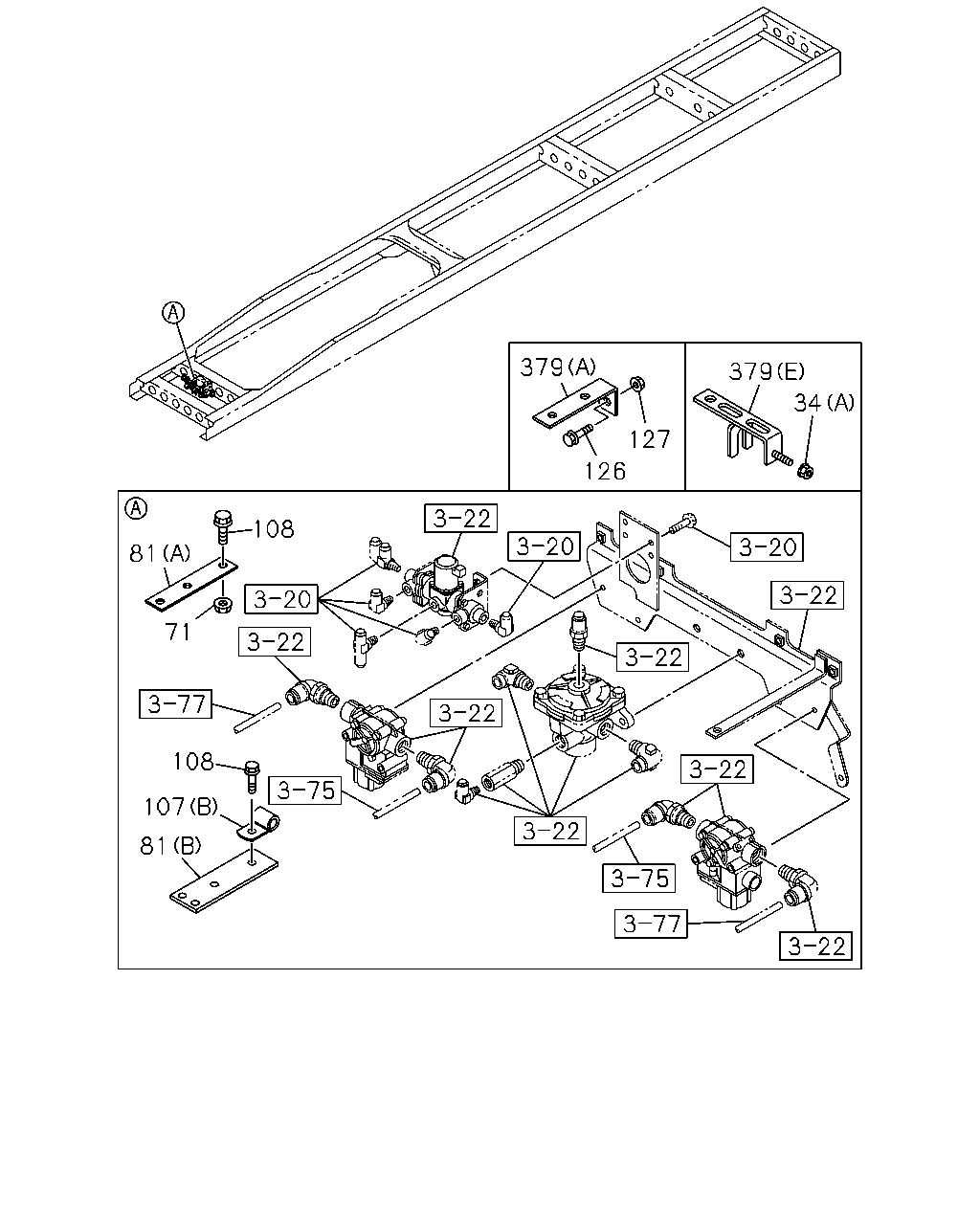

çizim 502433
379 379 127 126 34 108 81 108 107 81 71
BalonParca AdiParca NoAdetTipApplied Date A B
34 NUT; BRKT
(B) M6 FLANGE 		0-91180-106-0 02 1 1511- ● ●
34 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 06 1 1511- ● ●
34 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
34 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
81 BRACKET; CLIP
(A) L=170 		1-47479-380-0 01 1 1511- ● ●
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 1511- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 1511- ● ●
107 CLIP; NYLON TUBE
(C) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1511- ● ●
107 CLIP; NYLON TUBE
H.S.A SYSTEM<6EP> (B) ID=35 L=33 		1-09700-945-0 01 1 1511- ● ●
107 CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33 		8-98009-359-0 01 1 1511- ● ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1511- ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ●
126 BOLT; CLIP BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 01 1 1511- ● ●
126 BOLT; CLIP BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 1511- ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 03 1 1511- ●
127 NUT; CLIP BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1511- ●
379 BRACKET; NYLON TUBE
(A) L=60 H=30 		1-47477-716-1 02 1 1511- ● ●
379 BRACKET; NYLON TUBE
(B) 		8-98044-013-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(C) 		8-98074-610-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(D) L=65 B=25 		8-98135-584-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(E) 		8-98177-873-0 04 1 1511- ● ●
379 BRACKET; NYLON TUBE
(F) 		8-98186-380-0 01 1 1511- ● ●

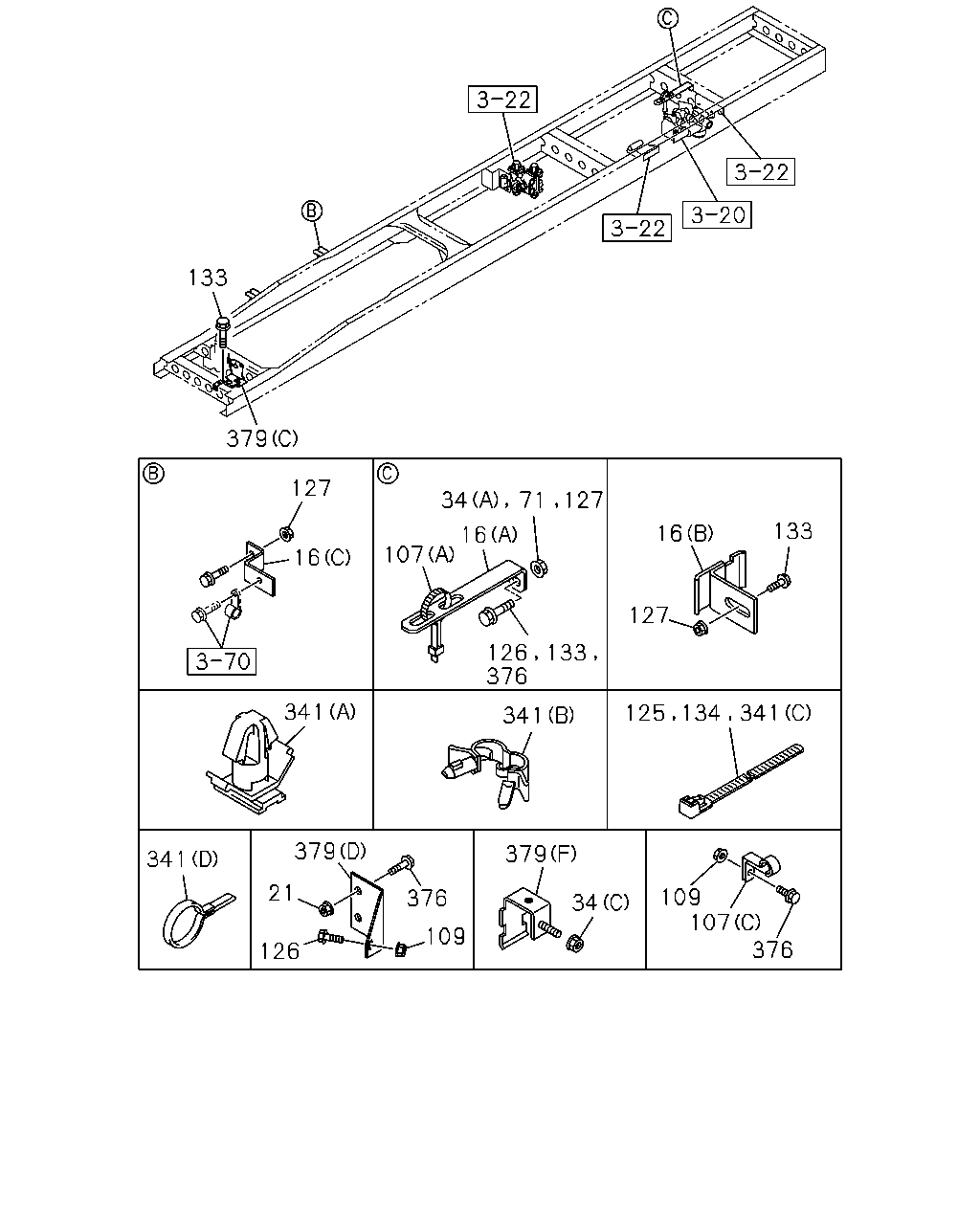

çizim 502527
133 379 127 34 127 133 127 16 134 125 341 109 341 71 16 107 126 133 376 107 376 34 379 341 341 379 376 109 21 126 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; PIPE CLIP
(A) L=150 H=30 		1-47477-629-2 02 1 1511- ●
16 BRACKET; PIPE CLIP
(B) 		8-98119-184-1 01 1 1511- ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) 		8-98119-184-1 01 1 1511- ●
16 BRACKET; PIPE CLIP
WHEEL BASE 4200MM(42W) (B) 		1-47479-693-0 01 1 1511- ● ●
16 BRACKET; PIPE CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) 		1-47475-881-0 01 1 1511- ● ●
16 BRACKET; PIPE CLIP
(A) L=150 H=30 		1-47477-629-2 01 1 1511- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1511- ●
34 NUT; BRKT
(B) M6 FLANGE 		0-91180-106-0 02 1 1511- ● ●
34 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 06 1 1511- ● ●
34 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
34 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 03 1 1511- ● ●
107 CLIP; NYLON TUBE
(C) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1511- ● ●
107 CLIP; NYLON TUBE
H.S.A SYSTEM<6EP> (B) ID=35 L=33 		1-09700-945-0 01 1 1511- ● ●
107 CLIP; NYLON TUBE
EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33 		8-98009-359-0 01 1 1511- ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
125 CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W) L=350 		1-09707-183-0 10 1 1511- ●
125 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) L=350 		1-09707-183-0 19 1 1511- ●
125 CLIP; NYLON TUBE
6HK1-TCC ENG(81L) WHEEL BASE 4200MM(42W) L=350 		1-09707-183-0 19 1 1511- ●
125 CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W) L=350 		1-09707-183-0 19 1 1511- ●
125 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) L=350 		1-09707-183-0 23 1 1511- ●
125 CLIP; NYLON TUBE
L=350 		1-09707-183-0 05 1 1511- ● ●
125 CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W) L=350 		1-09707-183-0 03 1 1511- ● ●
125 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=350 		1-09707-183-0 11 1 1511- ● ●
125 CLIP; NYLON TUBE
WHEEL BASE 4200MM(42W) L=350 		1-09707-183-0 09 1 1511- ●
125 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) L=350 		1-09707-183-0 18 1 1511- ●
125 CLIP; NYLON TUBE
WHEEL BASE 6500MM(65W) L=350 		1-09707-183-0 22 1 1511- ●
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 1511- ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ●
126 BOLT; CLIP BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 01 1 1511- ● ●
126 BOLT; CLIP BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 1511- ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 03 1 1511- ●
127 NUT; CLIP BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1511- ●
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ●
134 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 1511- ● ●
341 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6 		1-09709-178-0 01 1 1511- ● ●
341 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CATALYSIS CONTROL<6MZ> (A) OD=9 H=6 		1-09709-178-0 01 1 1511- ●
341 CLIP; HARNESS
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL<6MZ>,CATALYSIS CONTROL WITH DPD<8JM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6 		1-09709-178-0 01 1 1511- ●
341 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=5-12 L=14.5 		1-09987-221-0 02 1 1511- ● ●
341 CLIP; HARNESS
WHEEL BASE 4200MM(42W) CATALYSIS CONTROL<6MZ>,CATALYSIS CONTROL WITH DPD<8JM> (B) ID=5-12 L=14.5 		1-09987-221-0 02 1 1511- ● ●
341 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CATALYSIS CONTROL<6MZ> (B) ID=5-12 L=14.5 		1-09987-221-0 02 1 1511- ●
341 CLIP; HARNESS
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL<6MZ>,CATALYSIS CONTROL WITH DPD<8JM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=5-12 L=14.5 		1-09987-221-0 02 1 1511- ●
341 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=250 		5-09707-030-1 01 1 1511- ● ●
341 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. CATALYSIS CONTROL<6MZ> (C) L=250 		5-09707-030-1 01 1 1511- ●
341 CLIP; HARNESS
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL<6MZ>,CATALYSIS CONTROL WITH DPD<8JM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=250 		5-09707-030-1 01 1 1511- ●
341 CLIP; HARNESS
WHEEL BASE 4200MM(42W) (D) ID=11 L=61 		1-09700-484-0 01 1 1511- ● ●
341 CLIP; HARNESS
WHEEL BASE 4200MM(42W) (A) OD=9 H=6 		1-09709-178-0 02 1 1511- ● ●
341 CLIP; HARNESS
WHEEL BASE 4200MM(42W) (C) L=250 		5-09707-030-1 05 1 1511- ● ●
376 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ●
376 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ●
376 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1511- ● ●
379 BRACKET; NYLON TUBE
(A) L=60 H=30 		1-47477-716-1 02 1 1511- ● ●
379 BRACKET; NYLON TUBE
(B) 		8-98044-013-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(C) 		8-98074-610-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(D) L=65 B=25 		8-98135-584-0 01 1 1511- ● ●
379 BRACKET; NYLON TUBE
(E) 		8-98177-873-0 04 1 1511- ● ●
379 BRACKET; NYLON TUBE
(F) 		8-98186-380-0 01 1 1511- ● ●
