3-77 — BRAKE PIPING; AIR,REAR (#169719) — 137 parça

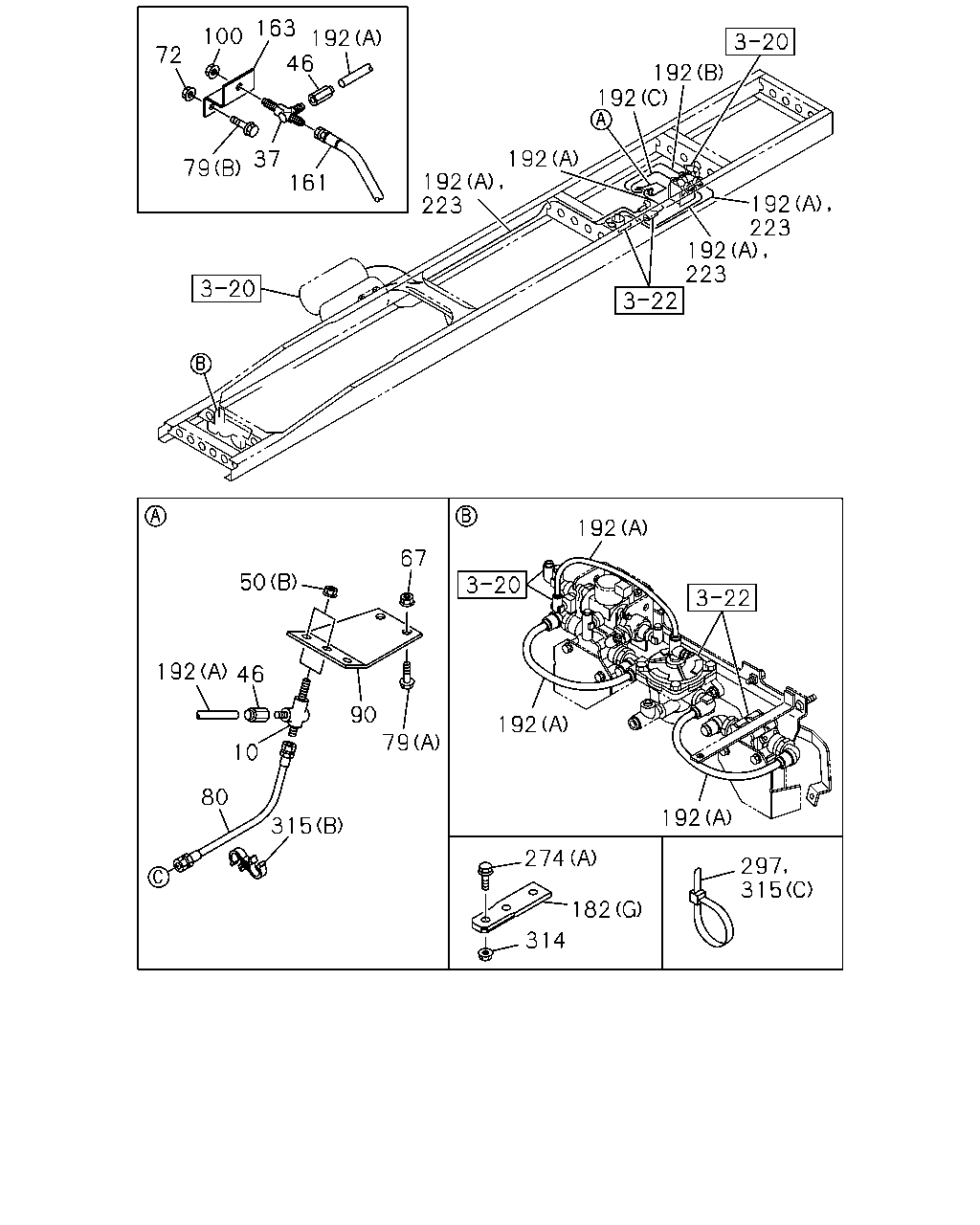

çizim 502024
192 192 192 192 192 192 192 192 192 192 192 223 223 223 46 46 315 315 80 100 72 37 79 161 274 182 297 90 79 10 50 67 163 314
BalonParca AdiParca NoAdetTipApplied Date A B
10 CONNECTOR; FLEX HOSE
M16 2WAY 		1-09650-182-1 02 1 1511- ●
37 UNION; AIR PIPE
M16 2WAY 		1-09650-182-1 01 1 1511- ●
46 NIPPLE; AIR PIPE
DIN12 & M16 STRAIGHT 		1-09660-876-0 03 1 1511- ●
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
50 NUT; UNION BRKT
(B) M12 		0-91111-512-0 02 1 1511- ●
67 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 1511- ●
67 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 1511- ●
72 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1511- ●
72 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
79 BOLT; HOSE BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1511- ●
79 BOLT; HOSE BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1511- ●
80 HOSE; FLEX,POWER CHAMBER
L=660 		1-09363-814-0 02 1 1511- ●
90 BRACKET; PIPE UNION 1-47477-851-1 01 1 1511- ●
100 NUT; UNION
M12 		0-91111-512-0 01 1 1511- ●
161 HOSE; FLEX,QUICK RELEASE VLV 1-09363-969-0 01 1 1511- ●
163 BRACKET; FLEX HOSE 8-98092-676-0 01 1 1511- ●
182 BRACKET; TUBE CLIP
(A) L=215 		1-47479-288-0 01 1 1511- ●
182 BRACKET; TUBE CLIP
(B) 		1-47479-598-0 01 1 1511- ●
182 BRACKET; TUBE CLIP
(C) 		8-98212-967-0 01 1 1511- ●
182 BRACKET; TUBE CLIP
(D) 		8-98212-968-0 01 1 1511- ●
182 BRACKET; TUBE CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) L=150 H=30 		1-47477-629-2 01 1 1511- ● ●
182 BRACKET; TUBE CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (F) 		8-98119-184-1 01 1 1511- ● ●
182 BRACKET; TUBE CLIP
(G) L=100 		1-47477-620-1 01 1 1511- ●
192 TUBE; NYLON
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (D) 		8-98232-700-2 01 1 1511- ●
192 TUBE; NYLON
(B) 		8-98085-803-0 01 1 1511- ●
192 TUBE; NYLON
(C) 		8-98085-806-0 01 1 1511- ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1511- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1511- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1511- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1511- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1511- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1511- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 1511- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 1511- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=28 		1-87411-034-0 AR 1 1511- ● ●
274 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1511- ●
274 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1511- ● ●
274 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ●
297 CLIP; BAND
L=350 		1-09707-183-0 03 1 1511- ●
314 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1511- ●
314 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1511- ●
315 CLIP
(D) ID=28 L=40 		1-09701-261-0 02 1 1511- ●
315 CLIP
(C) L=350 		1-09707-183-0 01 1 1511- ●
315 CLIP
WHEEL BASE 4200MM(42W) (C) L=350 		1-09707-183-0 10 1 1511- ●
315 CLIP
(C) L=350 		1-09707-183-0 02 1 1511- ● ●
315 CLIP
(A) ID=14 		8-94238-572-0 01 1 1511- ● ●
315 CLIP
WHEEL BASE 5500MM(55W) (C) L=350 		1-09707-183-0 14 1 1511- ● ●
315 CLIP
WHEEL BASE 6500MM(65W) (C) L=350 		1-09707-183-0 16 1 1511- ● ●
315 CLIP
(B) ID=18 & 18 		8-94323-068-0 01 1 1511- ●
315 CLIP
WHEEL BASE 4200MM(42W) (C) L=350 		1-09707-183-0 08 1 1511- ●

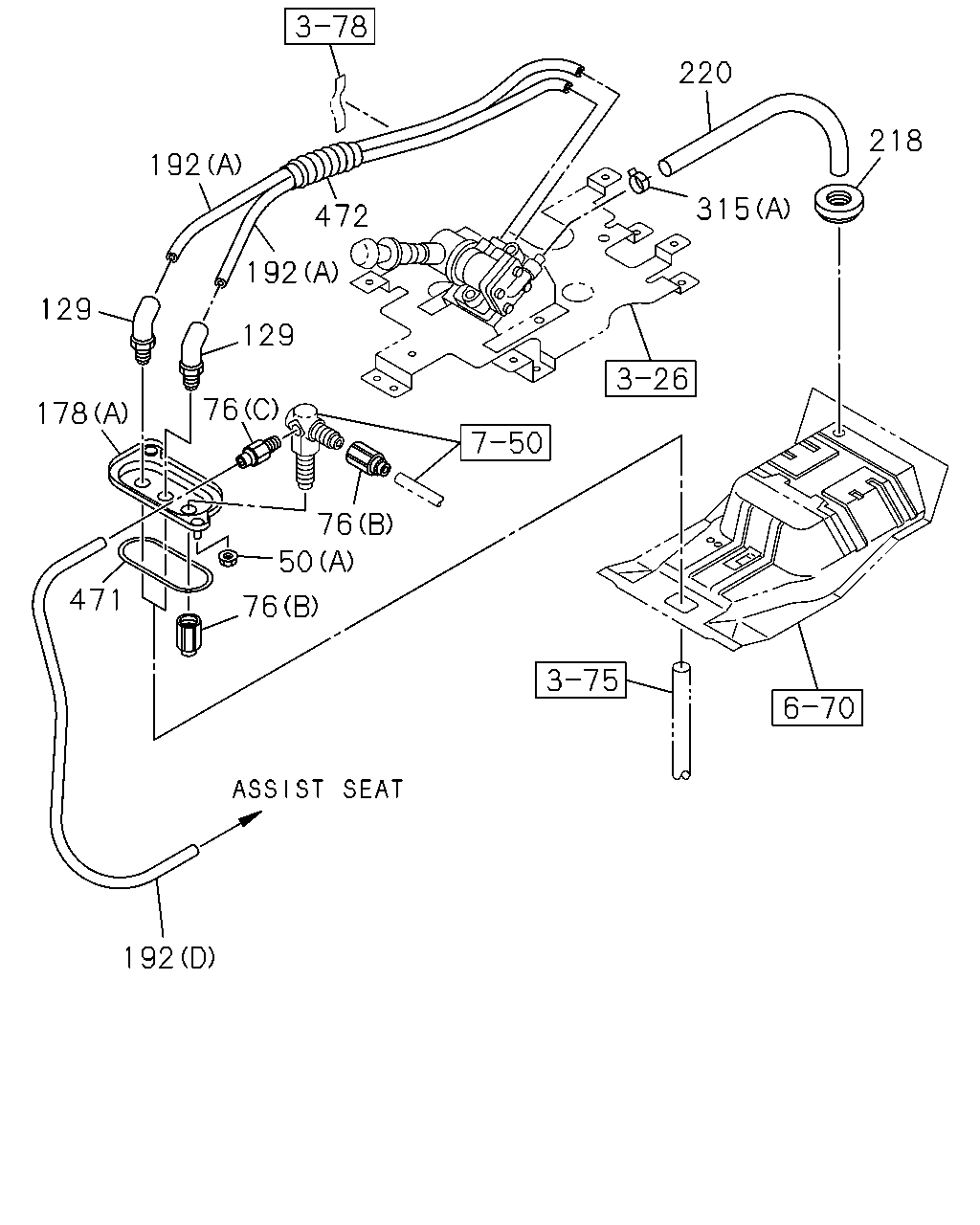

çizim 502456
192 129 192 472 220 218 315 129 76 178 76 50 76 471 192
BalonParca AdiParca NoAdetTipApplied Date A B
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
50 NUT; UNION BRKT
(B) M12 		0-91111-512-0 02 1 1511- ●
76 ADAPTER; NYLON TUBE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (C) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 1511- ●
76 ADAPTER; NYLON TUBE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1511- ●
76 ADAPTER; NYLON TUBE
(A) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 1511- ●
129 CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW 		8-97611-963-1 02 1 1511- ● ●
178 BRACKET; UNION
(A) 		8-98017-054-1 01 1 1511- ● ●
178 BRACKET; UNION
(B) 		8-98057-822-0 01 1 1511- ●
192 TUBE; NYLON
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (D) 		8-98232-700-2 01 1 1511- ●
192 TUBE; NYLON
(B) 		8-98085-803-0 01 1 1511- ●
192 TUBE; NYLON
(C) 		8-98085-806-0 01 1 1511- ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1511- ● ●
218 GROMMET; VINYL HOSE
OD=24 		9-61166-007-0 01 1 1511- ● ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 1511- ● ●
315 CLIP
(D) ID=28 L=40 		1-09701-261-0 02 1 1511- ●
315 CLIP
(C) L=350 		1-09707-183-0 01 1 1511- ●
315 CLIP
WHEEL BASE 4200MM(42W) (C) L=350 		1-09707-183-0 10 1 1511- ●
315 CLIP
(C) L=350 		1-09707-183-0 02 1 1511- ● ●
315 CLIP
(A) ID=14 		8-94238-572-0 01 1 1511- ● ●
315 CLIP
WHEEL BASE 5500MM(55W) (C) L=350 		1-09707-183-0 14 1 1511- ● ●
315 CLIP
WHEEL BASE 6500MM(65W) (C) L=350 		1-09707-183-0 16 1 1511- ● ●
315 CLIP
(B) ID=18 & 18 		8-94323-068-0 01 1 1511- ●
315 CLIP
WHEEL BASE 4200MM(42W) (C) L=350 		1-09707-183-0 08 1 1511- ●
471 SEAL; BRKT 1-79738-832-0 01 1 1511- ● ●
472 TUBE; SPUTTER 8-98067-708-0 01 1 1511- ● ●

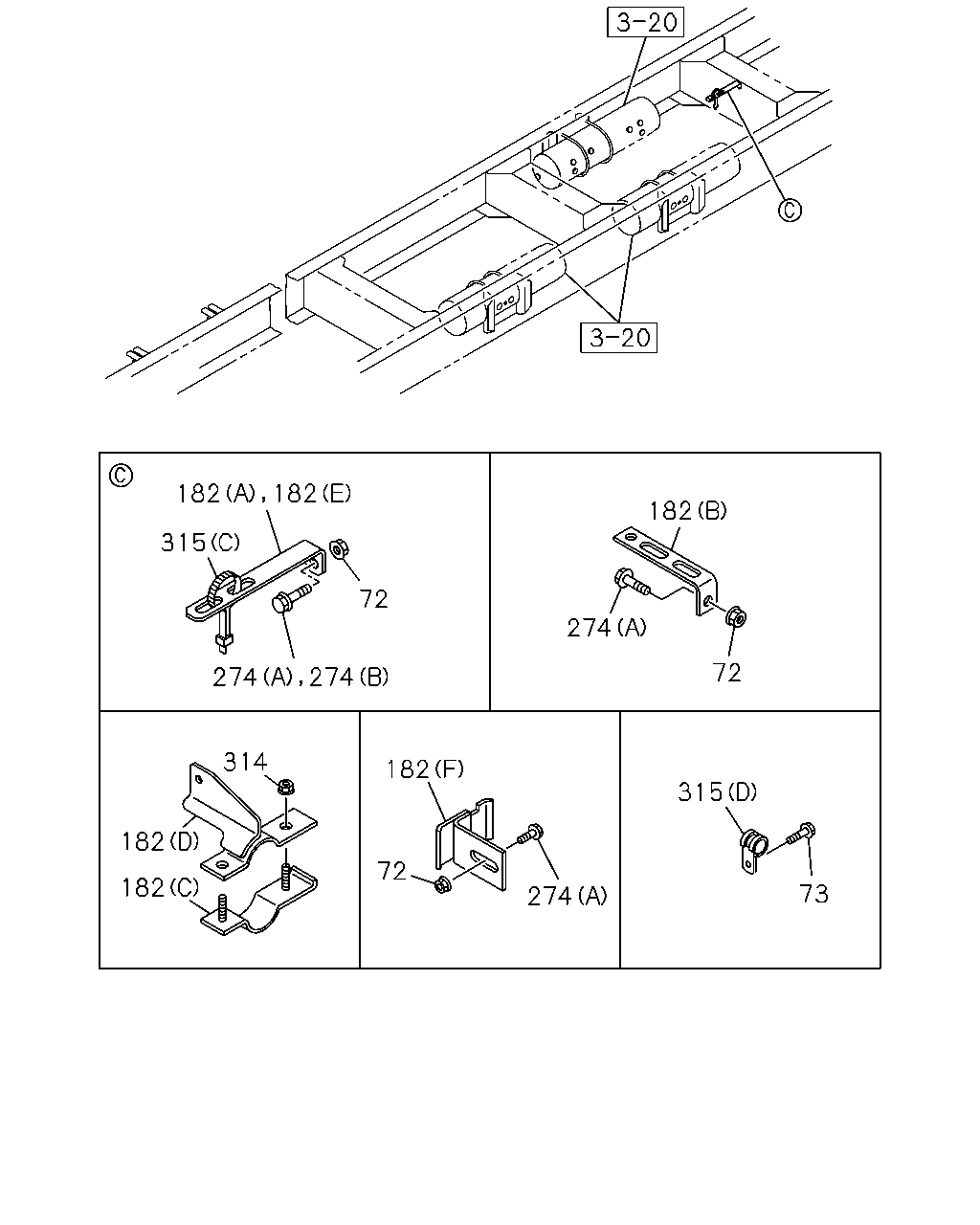

çizim 502566
182 182 182 182 182 182 274 274 274 314 72 73 315 315 72 274 72
BalonParca AdiParca NoAdetTipApplied Date A B
72 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1511- ●
72 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
73 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1511- ●
182 BRACKET; TUBE CLIP
(A) L=215 		1-47479-288-0 01 1 1511- ●
182 BRACKET; TUBE CLIP
(B) 		1-47479-598-0 01 1 1511- ●
182 BRACKET; TUBE CLIP
(C) 		8-98212-967-0 01 1 1511- ●
182 BRACKET; TUBE CLIP
(D) 		8-98212-968-0 01 1 1511- ●
182 BRACKET; TUBE CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) L=150 H=30 		1-47477-629-2 01 1 1511- ● ●
182 BRACKET; TUBE CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (F) 		8-98119-184-1 01 1 1511- ● ●
182 BRACKET; TUBE CLIP
(G) L=100 		1-47477-620-1 01 1 1511- ●
274 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1511- ●
274 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1511- ● ●
274 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ●
314 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1511- ●
314 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1511- ●
315 CLIP
(D) ID=28 L=40 		1-09701-261-0 02 1 1511- ●
315 CLIP
(C) L=350 		1-09707-183-0 01 1 1511- ●
315 CLIP
WHEEL BASE 4200MM(42W) (C) L=350 		1-09707-183-0 10 1 1511- ●
315 CLIP
(C) L=350 		1-09707-183-0 02 1 1511- ● ●
315 CLIP
(A) ID=14 		8-94238-572-0 01 1 1511- ● ●
315 CLIP
WHEEL BASE 5500MM(55W) (C) L=350 		1-09707-183-0 14 1 1511- ● ●
315 CLIP
WHEEL BASE 6500MM(65W) (C) L=350 		1-09707-183-0 16 1 1511- ● ●
315 CLIP
(B) ID=18 & 18 		8-94323-068-0 01 1 1511- ●
315 CLIP
WHEEL BASE 4200MM(42W) (C) L=350 		1-09707-183-0 08 1 1511- ●

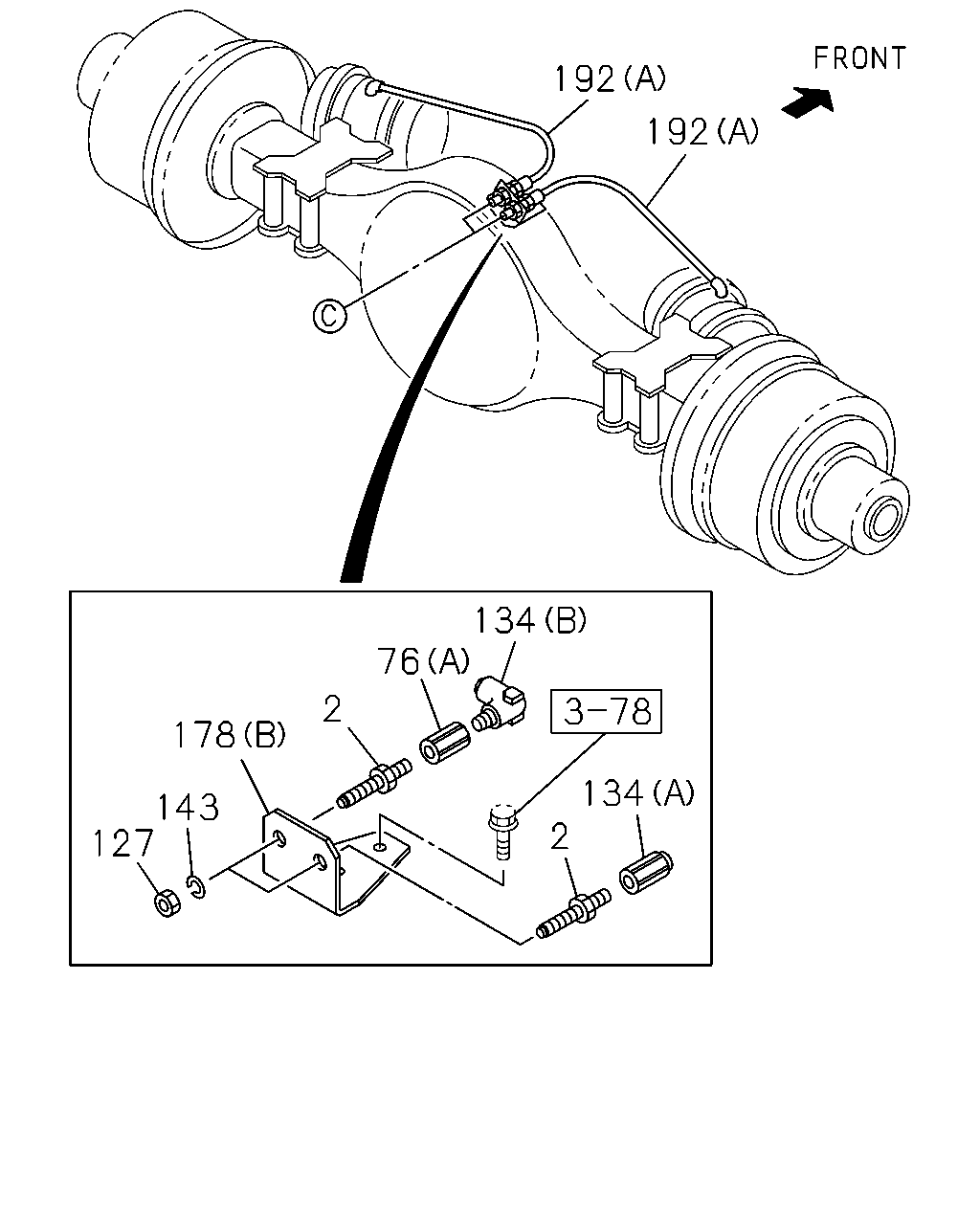

çizim 502619
192 178 76 134 2 143 127 134 192 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 UNION; AIR PIPE
M16 L=74 		0-92123-310-0 02 1 1511- ●
76 ADAPTER; NYLON TUBE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (C) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 1511- ●
76 ADAPTER; NYLON TUBE
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1511- ●
76 ADAPTER; NYLON TUBE
(A) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 1511- ●
127 NUT; UNION
M16 		0-91111-516-0 02 1 1511- ●
134 CONNECTOR
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 1511- ●
134 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1511- ●
143 WASHER; LK,UNION
ID=16.2 		0-91510-816-0 02 1 1511- ●
178 BRACKET; UNION
(A) 		8-98017-054-1 01 1 1511- ● ●
178 BRACKET; UNION
(B) 		8-98057-822-0 01 1 1511- ●
192 TUBE; NYLON
DRIVER&PASSENGER ISRINGHAUSEN SEAT<EGC> (D) 		8-98232-700-2 01 1 1511- ●
192 TUBE; NYLON
(B) 		8-98085-803-0 01 1 1511- ●
192 TUBE; NYLON
(C) 		8-98085-806-0 01 1 1511- ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1511- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1511- ● ●
