Isuzu WW
▶
TRUCKS
▶
FVR
▶
11717 - FVR AUST/NZ EURO5
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#169718) — 41 parça
Tümü
A - FGD5MV
B - FGR5MV
◀

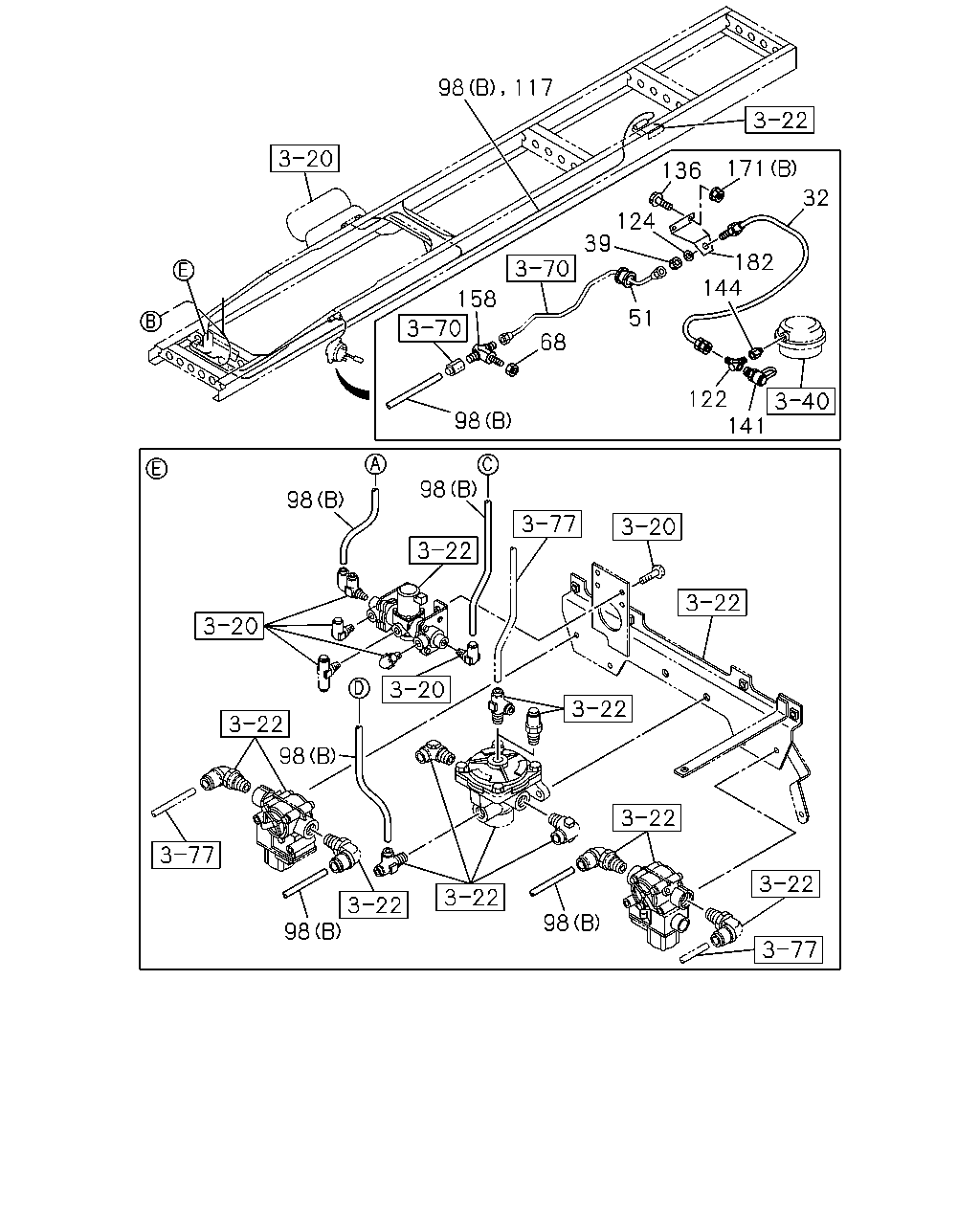

[375A] FRAME SIDE (22 parça)

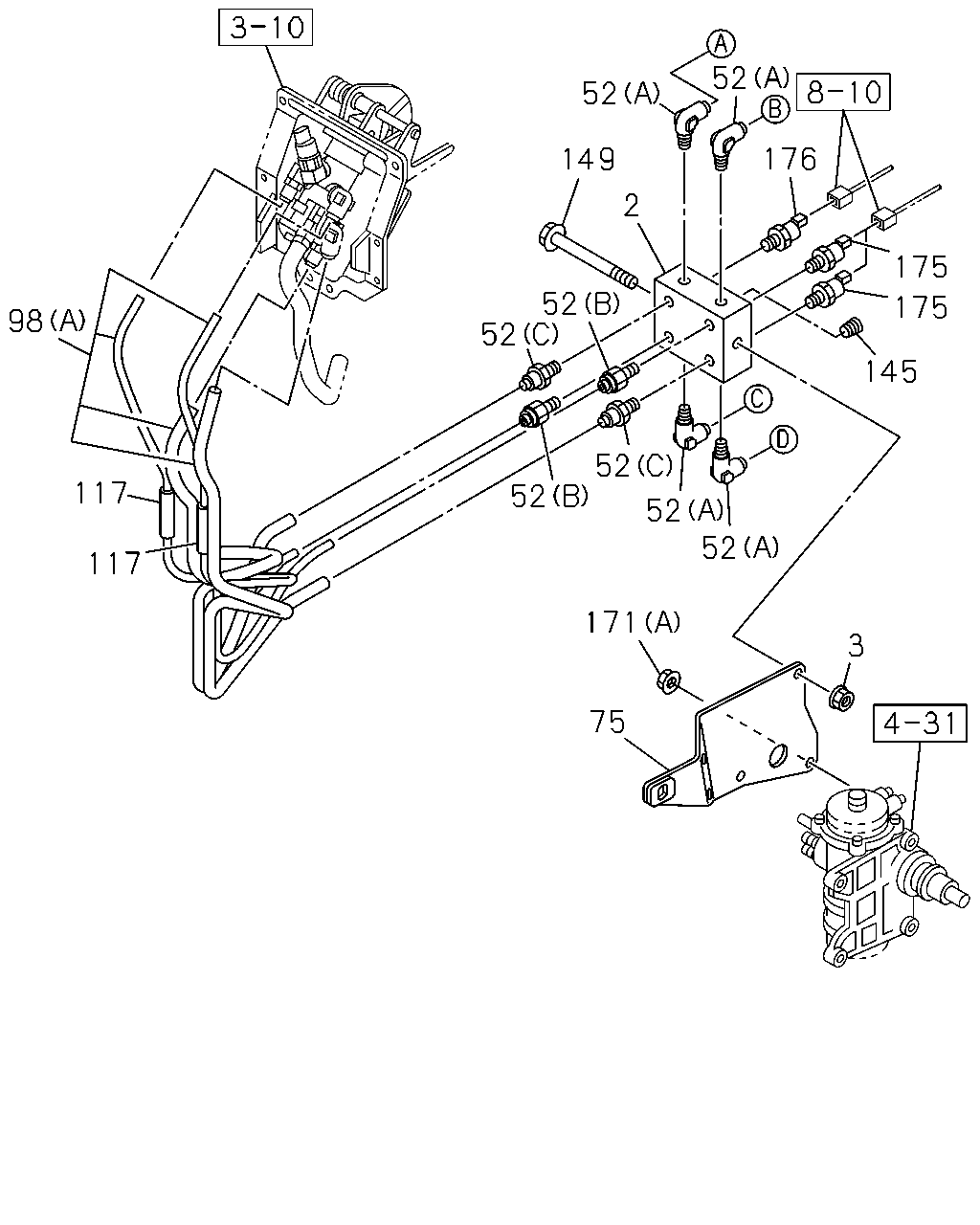

[375A] CAB UNDER (19 parça)
▶
98
98
98
98
98
98
98
117
136
171
32
182
144
141
122
51
124
39
68
158
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
32
HOSE; FLEX,FRT
8-98090-844-0
02
1
1511-
●
●
39
NUT; PIPE UNION
M16
0-91111-516-0
02
1
1511-
●
●
51
GROMMET; NYLON TUBE
ID=28 OD=35 T=25
1-09332-011-1
02
1
1511-
●
●
68
NUT; UNION
M12
0-91111-512-0
02
1
1511-
●
●
98
TUBE; NYLON
(A)
8-98091-307-0
01
1
1511-
●
●
98
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1511-
●
●
98
TUBE; NYLON
(B) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1511-
●
●
117
TUBE; CORRUGATE
WHEEL BASE 5500MM(55W) SERVICED BY L=2000 ID=13
1-87411-022-0
01
1
1511-
●
●
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
01
1
1511-
●
●
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
01
1
1511-
●
●
117
TUBE; CORRUGATE
WHEEL BASE 6500MM(65W) SERVICED BY L=2000 ID=13
1-87411-022-0
02
1
1511-
●
●
122
CONNECTOR; FLEX HOSE
M16 & PT3/8 ELBOW
1-09650-438-0
01
1
1511-
●
●
122
CONNECTOR; FLEX HOSE
M16 & PT3/8 ELBOW
1-09656-724-0
01
1
1511-
●
●
124
WASHER; LK,CONNECTOR
ID=16.2
0-91510-816-0
02
1
1511-
●
●
136
BOLT; CONNECTOR
M8X25 FLANGE
0-28650-825-0
04
1
1511-
●
●
141
CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR
1-47459-013-1
01
1
1511-
●
●
144
ADAPTER
NPTF3/8 & RC3/8
1-09660-548-0
02
1
1511-
●
●
158
UNION; STRAIGHT
M16
1-09654-148-1
02
1
1511-
●
●
171
NUT; BRACKET
(B) M8 FLANGE
0-91180-108-0
04
1
1511-
●
●
171
NUT; BRACKET
(A) M10 FLANGE
0-91180-210-0
02
1
1511-
●
●
182
BRACKET; CONNECTOR
1-47476-210-0
01
1
1511-
●
●
182
BRACKET; CONNECTOR
1-47476-211-0
01
1
1511-
●
●
98
117
117
52
52
149
176
175
175
145
2
52
52
52
52
52
52
171
75
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
UNION; AIR PIPE
8-98057-394-1
01
1
1511-
●
●
3
NUT; PIPE UNION
M8 FLANGE
0-91180-108-0
01
1
1511-
●
●
52
CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW
1-09660-956-0
04
1
1511-
●
●
52
CONNECTOR; NYLON TUBE
(B) DIN8 R1/4 STRAIGHT
1-09660-963-0
02
1
1511-
●
●
52
CONNECTOR; NYLON TUBE
(C) DIN12 & R1/4 STRAIGHT
1-09660-967-0
02
1
1511-
●
●
75
BRACKET; UNION
8-98099-485-1
01
1
1511-
●
●
98
TUBE; NYLON
(A)
8-98091-307-0
01
1
1511-
●
●
98
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1511-
●
●
98
TUBE; NYLON
(B) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1511-
●
●
117
TUBE; CORRUGATE
WHEEL BASE 5500MM(55W) SERVICED BY L=2000 ID=13
1-87411-022-0
01
1
1511-
●
●
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
01
1
1511-
●
●
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
01
1
1511-
●
●
117
TUBE; CORRUGATE
WHEEL BASE 6500MM(65W) SERVICED BY L=2000 ID=13
1-87411-022-0
02
1
1511-
●
●
145
PLUG
PT1/4
9-99204-513-0
01
1
1511-
●
●
149
BOLT; UNION
M8X100 FLANGE
0-28050-800-0
01
1
1511-
●
●
171
NUT; BRACKET
(B) M8 FLANGE
0-91180-108-0
04
1
1511-
●
●
171
NUT; BRACKET
(A) M10 FLANGE
0-91180-210-0
02
1
1511-
●
●
175
SENSOR; AIR PRESS
THREAD R1/4
1-80220-023-1
02
1
1511-
●
●
176
SWITCH; AIR PRESS
STAMP 0.3
8-98010-857-0
01
1
1511-
●
●
