◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11717 - FVR AUST/NZ EURO5 ▶ 3 - Brakes, Brake System ▶ 3-41 - REAR BRAKE POWER CHAMBER ▶
3-41 — REAR BRAKE POWER CHAMBER (#169714) — 12 parça

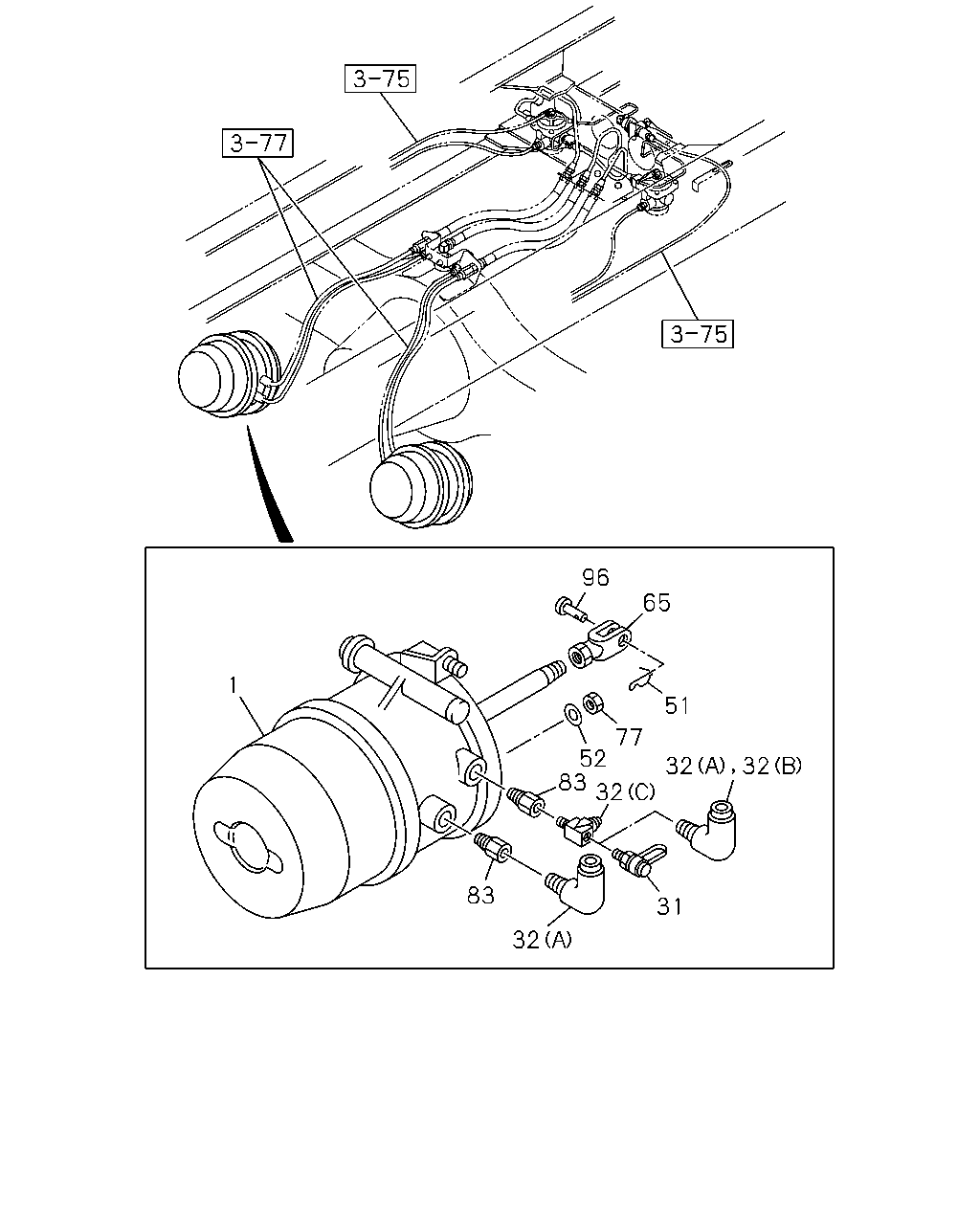

çizim 502252
1 96 65 51 77 52 83 32 32 83 32 31 32
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; SPRING 1-48250-959-0 01 1 1511- ● ●
1 CHAMBER ASM; SPRING 1-48250-960-0 01 1 1511- ● ●
31 CONNECTOR
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1511- ● ●
32 CONNECTOR; SPR CHAMBER
(C) DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 1511- ● ●
32 CONNECTOR; SPR CHAMBER
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1511- ● ●
32 CONNECTOR; SPR CHAMBER
(B) DIN12 & NPTF3/8 ELBOW 		1-09660-962-0 02 1 1511- ● ●
51 PIN; SPLIT 1-48259-275-0 02 1 1511- ● ●
52 WASHER; PL 1-41519-038-0 04 1 1511- ● ●
65 JOINT; JAW 1-48259-321-0 02 1 1511- ● ●
77 NUT; SPR CHAMBER BRK 1-87050-052-0 04 1 1511- ● ●
83 ADAPTER; SPR CHAMBER
NPTF3/8 & RC3/8 		1-09660-548-0 02 1 1511- ● ●
96 PIN; JAW JOINT 1-48259-273-0 02 1 1511- ● ●
