3-22 — AIR CONTROL PARTS
(#169710) — 208 parça
Tümü
A - FGD5MV
B - FGR5MV
◀
[322A] RELAY VALVE NO.2 (4 parça)
[322A] FRAME SIDE NO.2 (41 parça)
[322A] REPAIR KIT; PROTECTION VALVE (1 parça)
[322A] REPAIR KIT; HSA VALVE (2 parça)
[322A] PROTECTION VALVE; WB 4200MM (30 parça)
[322A] FRAME SIDE NO.1 (29 parça)
[322A] PROTECTION VALVE; WB 5500,6500MM (31 parça)
[322A] RELAY VALVE NO.1 (30 parça)
[322A] QUICK RELEASE VALVE (23 parça)
[322A] COMPONENT; HSA VALVE (17 parça)
▶

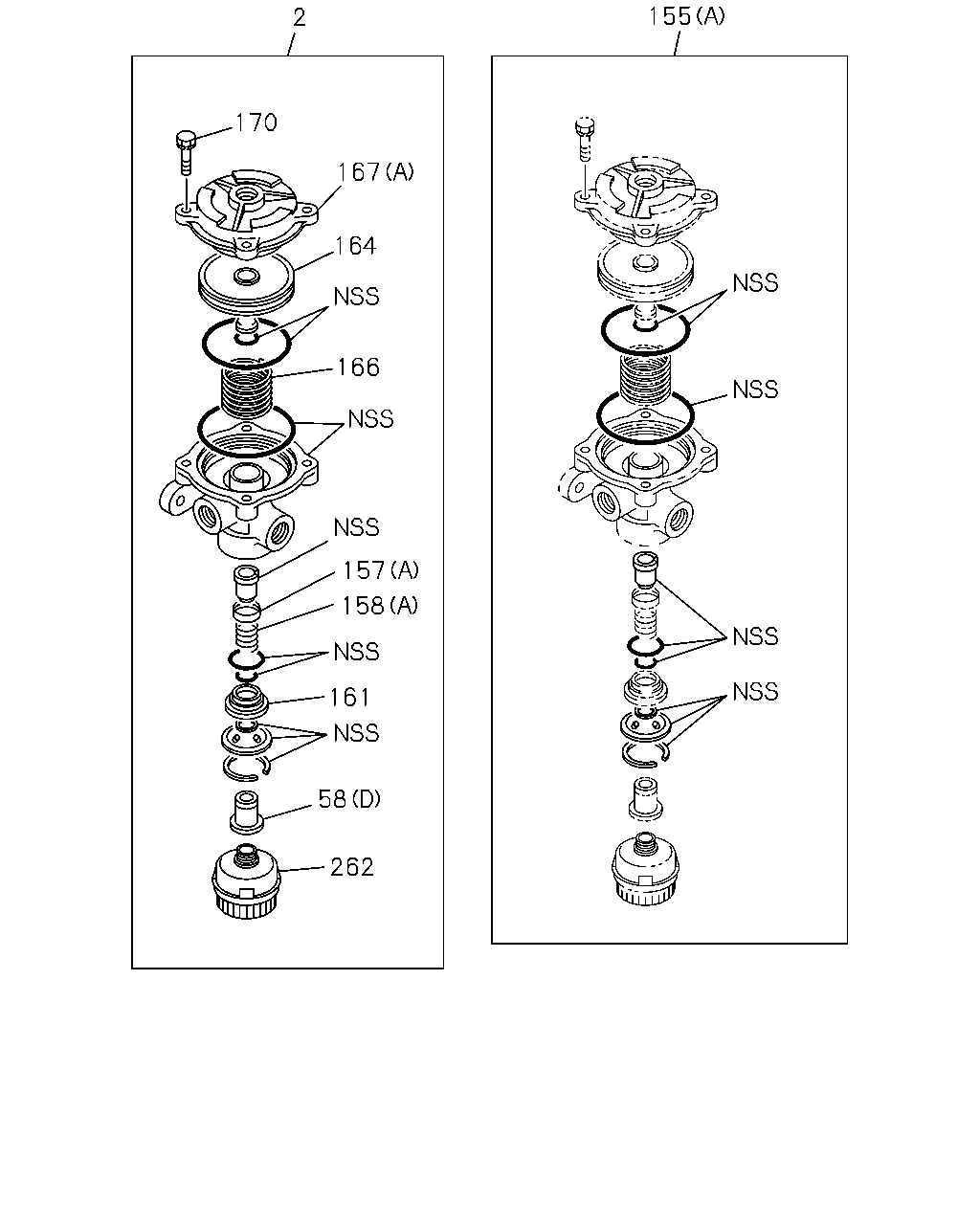

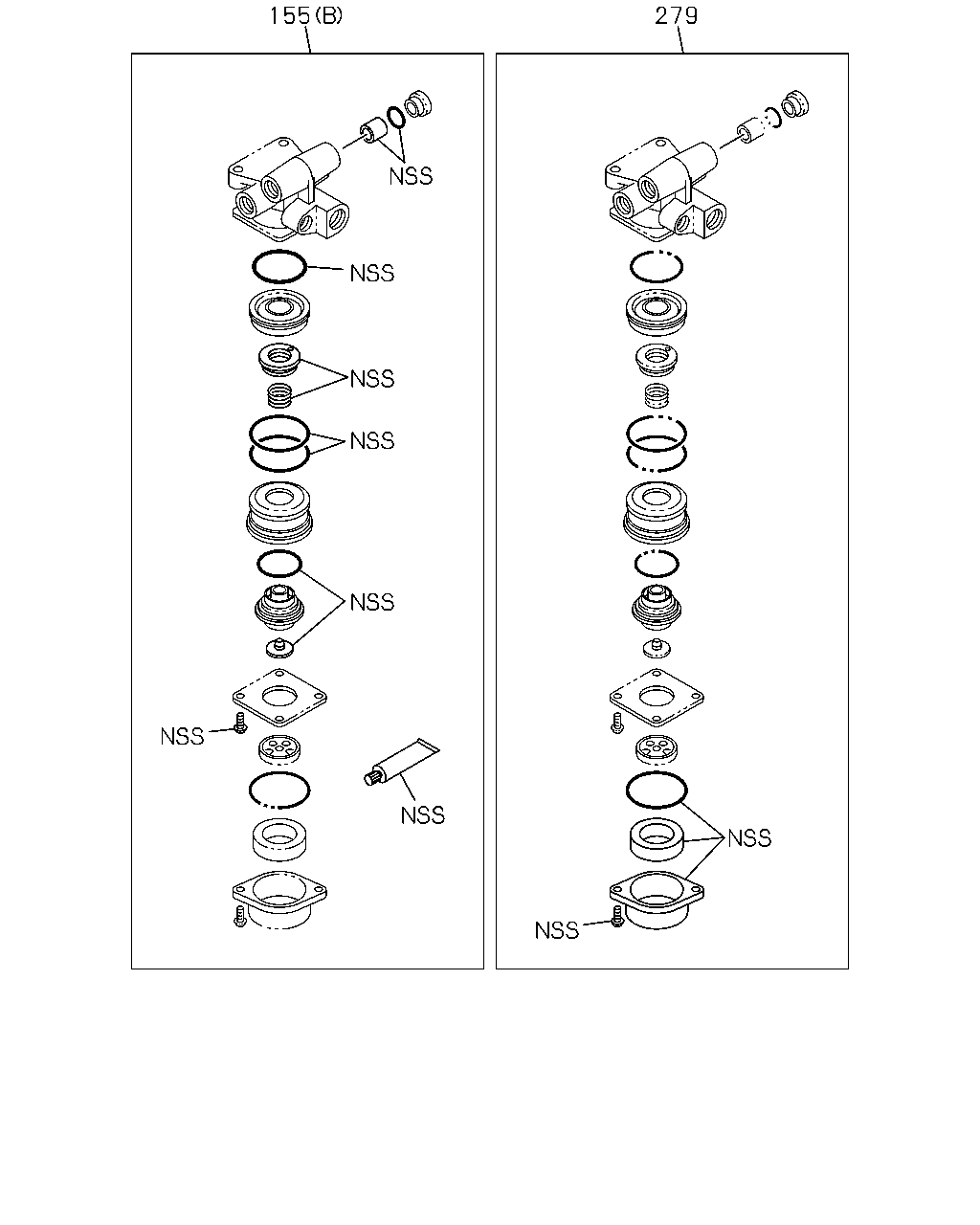

155
279
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
155
REPAIR KIT; RELAY VALVE
(A)
1-85576-294-0
01
1
1511-
●
●
155
REPAIR KIT; RELAY VALVE
(A)
1-85576-294-0
01
1
1511-
●
●
155
REPAIR KIT; RELAY VALVE
(B)
1-85576-408-0
01
1
1511-
●
●
279
REPAIR KIT; SILENCER
1-85576-409-0
01
1
1511-
●
●

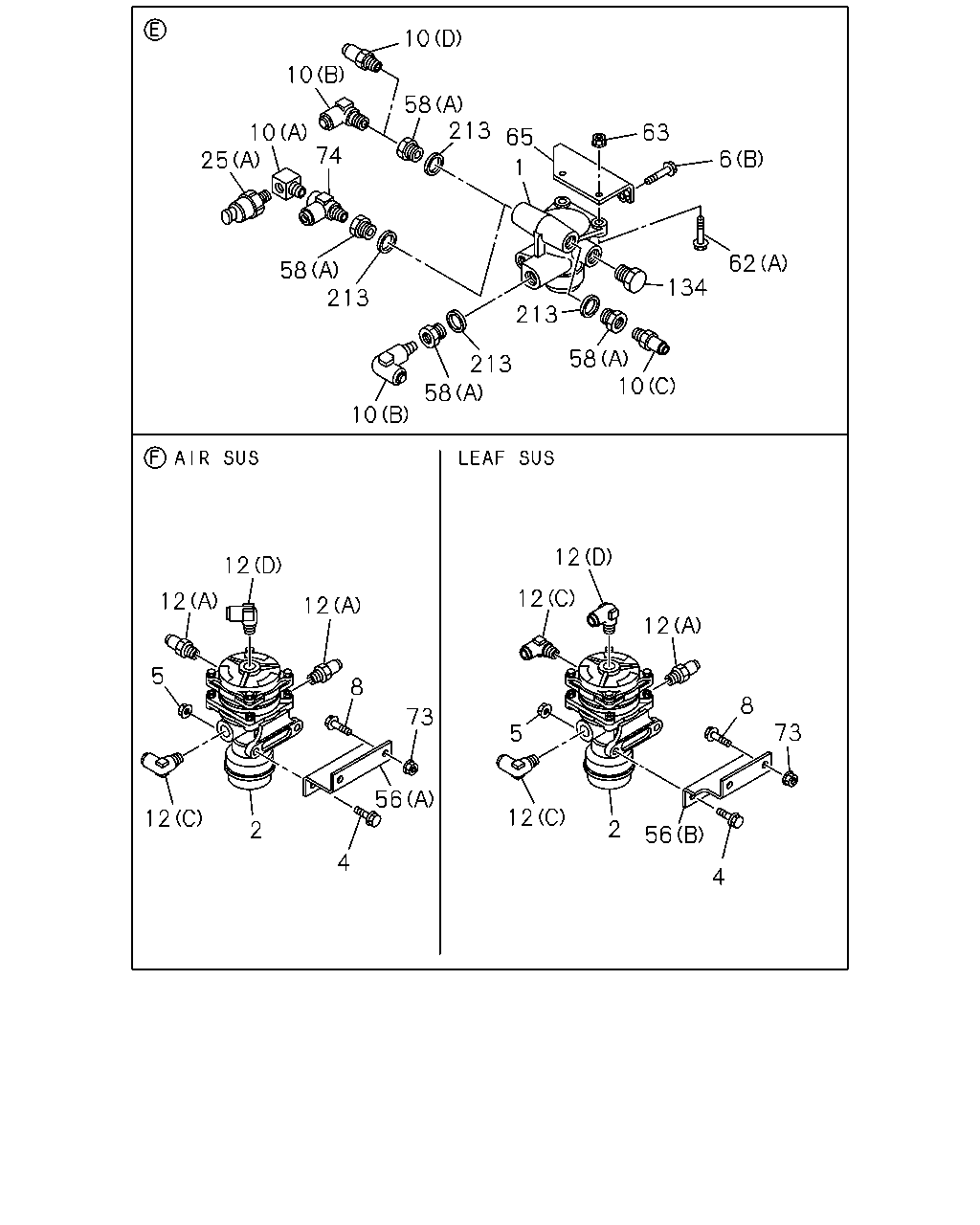

10
10
10
25
74
58
10
58
213
213
213
58
65
6
63
134
62
58
213
10
12
12
5
12
2
4
56
73
12
8
12
12
5
12
12
2
56
8
73
4
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
VALVE; RELAY RWD RR
1-48240-354-1
01
1
1511-
●
●
2
VALVE; RELAY
1-48210-997-0
01
1
1511-
●
●
2
VALVE; RELAY
1-48210-997-0
01
1
1511-
●
●
4
BOLT; RELAY VLV TO BRKT
M10X35 FLANGE
0-28651-035-0
02
1
1511-
●
●
4
BOLT; RELAY VLV TO BRKT
M10X35 FLANGE
0-28651-035-0
02
1
1511-
●
●
5
NUT
M10 FLANGE
0-91180-210-0
02
1
1511-
●
●
5
NUT
M10 FLANGE
0-91180-210-0
02
1
1511-
●
●
6
BOLT; VLV
(B) M8X35 FLANGE
0-28650-835-0
02
1
1511-
●
●
6
BOLT; VLV
(A) M8X85
1-09044-074-0
04
1
1511-
●
●
8
BOLT; BRKT
M10X35 FLANGE
0-28651-035-0
02
1
1511-
●
●
10
CONNECTOR
(B) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1511-
●
10
CONNECTOR
(A) PT1/4 2WAY
1-09660-693-0
01
1
1511-
●
●
10
CONNECTOR
(C) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
1511-
●
●
10
CONNECTOR
(B) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
1511-
●
10
CONNECTOR
(D) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1511-
●
12
CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
1511-
●
12
CONNECTOR; RELAY VLV
(A) DIN12 & R3/8 STRAIGHT
1-09660-965-0
02
1
1511-
●
12
CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1511-
●
●
12
CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1511-
●
●
12
CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1511-
●
12
CONNECTOR; RELAY VLV
(B) M12 & M8 & RC3/8 3WAY
1-09661-207-0
01
1
1511-
●
●
12
CONNECTOR; RELAY VLV
(A) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1511-
●
25
SWITCH; PRESSURE
(B) STAMP 5.5
8-97609-249-0
01
1
1511-
●
●
25
SWITCH; PRESSURE
(A) STAMP 2.0
8-98010-856-2
01
1
1511-
●
●
56
BRACKET; RELAY VLV
(A)
1-47478-233-0
01
1
1511-
●
56
BRACKET; RELAY VLV
(B)
8-98126-366-0
01
1
1511-
●
58
ADAPTER
(A) INNER PT3/8,OUTER M22
1-09650-494-1
04
1
1511-
●
●
58
ADAPTER
(D)
1-48219-154-0
01
1
1511-
●
●
58
ADAPTER
(D)
1-48219-154-0
01
1
1511-
●
●
58
ADAPTER
WHEEL BASE 4200MM(42W) (C) M20 & RC3/8 STRAIGHT
1-09660-883-0
01
1
1511-
●
●
58
ADAPTER
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) PT3/8 ELBOW
1-09660-696-0
01
1
1511-
●
●
58
ADAPTER
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) PT3/8
1-09664-210-0
01
1
1511-
●
●
62
BOLT; BRKT FIX
(B) M8X25 FLANGE
0-28650-825-0
02
1
1511-
●
●
62
BOLT; BRKT FIX
(A) M8X30 FLANGE
0-28650-830-0
02
1
1511-
●
●
63
NUT; BRKT FIX
M8 FLANGE
0-91180-108-0
02
1
1511-
●
●
63
NUT; BRKT FIX
M8 FLANGE
0-91180-108-0
02
1
1511-
●
●
65
BRACKET; RELAY VLV RR
1-47471-032-0
01
1
1511-
●
●
73
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1511-
●
●
74
CONNECTOR; 3WAY
DIN8 & RC1/4 & R3/8 3WAY
1-09661-536-0
01
1
1511-
●
●
134
PLUG; RELAY VALVE
M22
1-09661-502-0
01
1
1511-
●
●
213
GASKET
ID=22.5
9-09571-422-0
04
1
1511-
●
●
241
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
241
REPAIR KIT; PROTECTION VALVE
1-85576-451-2
01
1
1511-
●
●

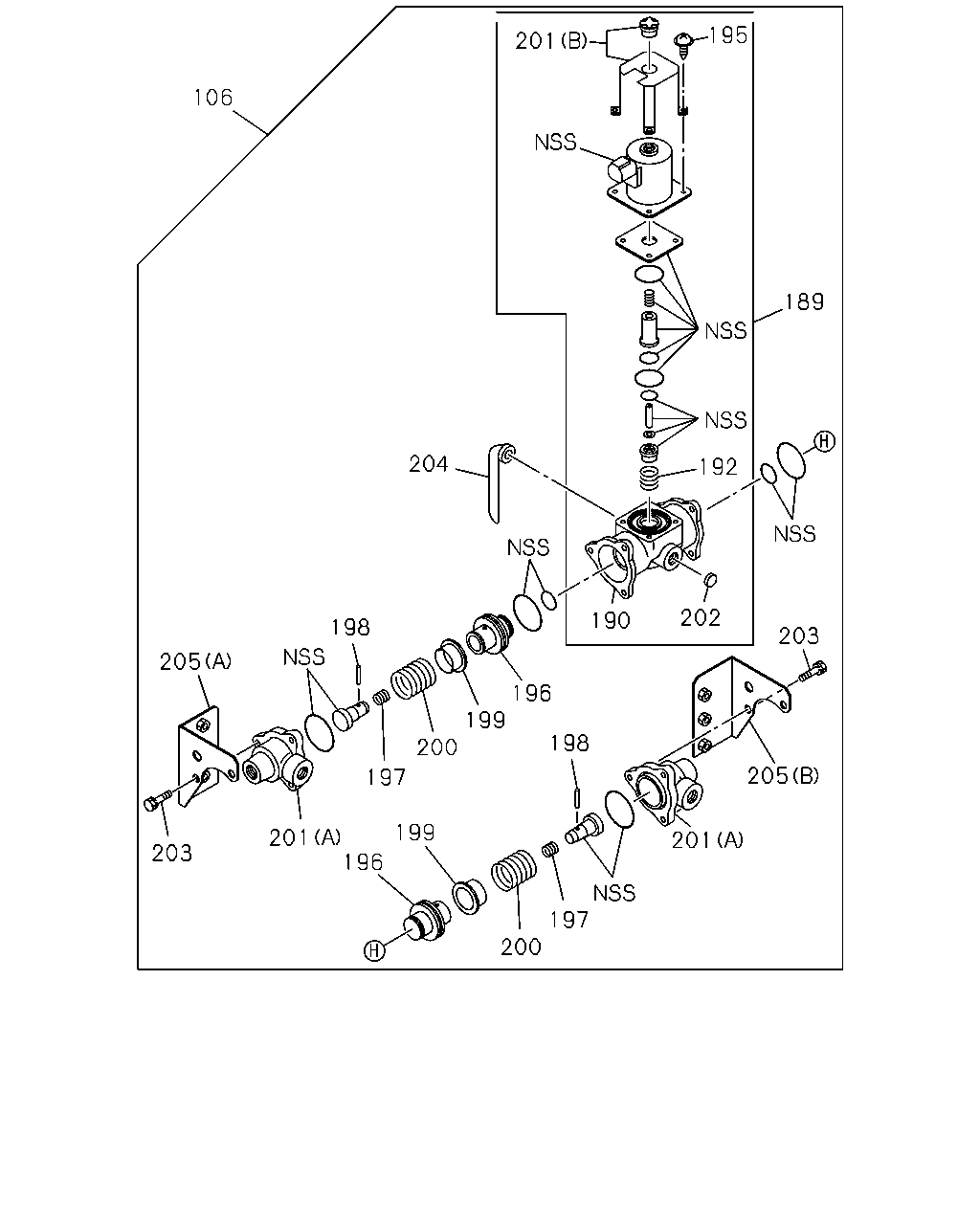

188
204
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
188
REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP>
1-85576-304-1
01
1
1511-
●
●
204
PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP>
1-46366-194-0
01
1
1511-
●
●

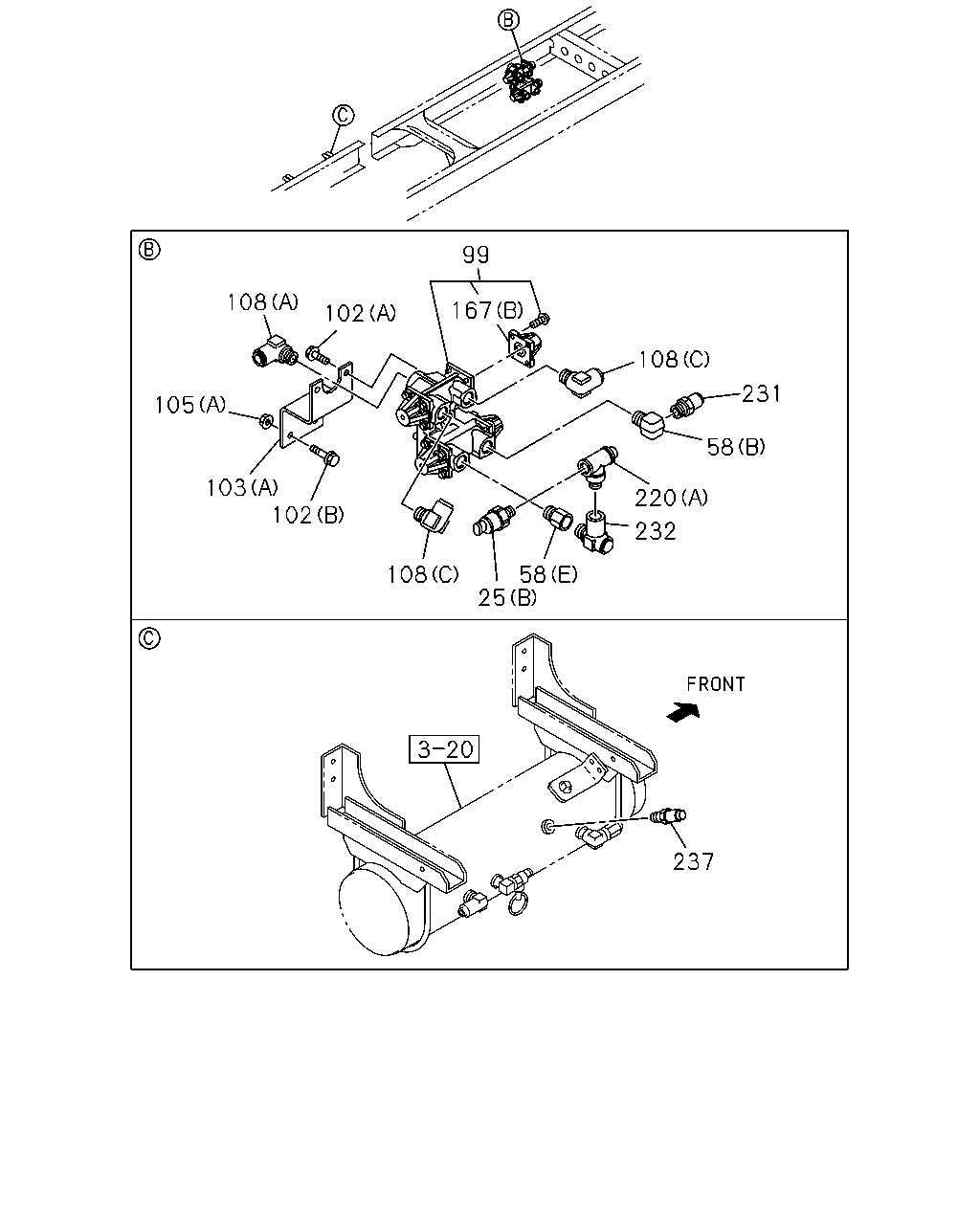

99
231
232
102
105
108
108
167
103
102
220
220
25
220
58
108
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
25
SWITCH; PRESSURE
(B) STAMP 5.5
8-97609-249-0
01
1
1511-
●
●
25
SWITCH; PRESSURE
(A) STAMP 2.0
8-98010-856-2
01
1
1511-
●
●
58
ADAPTER
(A) INNER PT3/8,OUTER M22
1-09650-494-1
04
1
1511-
●
●
58
ADAPTER
(D)
1-48219-154-0
01
1
1511-
●
●
58
ADAPTER
(D)
1-48219-154-0
01
1
1511-
●
●
58
ADAPTER
WHEEL BASE 4200MM(42W) (C) M20 & RC3/8 STRAIGHT
1-09660-883-0
01
1
1511-
●
●
58
ADAPTER
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) PT3/8 ELBOW
1-09660-696-0
01
1
1511-
●
●
58
ADAPTER
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) PT3/8
1-09664-210-0
01
1
1511-
●
●
99
VALVE; PROTECTION
1-48110-294-3
01
1
1511-
●
●
102
BOLT; PROTECTION VALVE
(A) M8X16 FLANGE
0-28050-816-0
02
1
1511-
●
●
102
BOLT; PROTECTION VALVE
WHEEL BASE 4200MM(42W) (C) M10X35 FLANGE
0-28651-035-0
02
1
1511-
●
●
102
BOLT; PROTECTION VALVE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M8X30 FLANGE
0-28650-830-0
02
1
1511-
●
●
103
BRACKET; PROTECTION VALVE
WHEEL BASE 4200MM(42W) (B)
8-98119-704-0
01
1
1511-
●
●
103
BRACKET; PROTECTION VALVE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A)
8-98090-802-0
01
1
1511-
●
●
105
NUT; BRKT,VALVE
WHEEL BASE 4200MM(42W) (B) M10 FLANGE
0-91180-210-0
02
1
1511-
●
●
105
NUT; BRKT,VALVE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8 FLANGE
0-91180-108-0
02
1
1511-
●
●
108
CONNECTOR; ELBOW
(B) DIN12 & M22 ELBOW
1-09661-497-0
04
1
1511-
●
●
108
CONNECTOR; ELBOW
WHEEL BASE 4200MM(42W) (D) PT3/8 ELBOW
1-09660-696-0
01
1
1511-
●
●
108
CONNECTOR; ELBOW
WHEEL BASE 4200MM(42W) (C) DIN12 & R3/8 ELBOW
1-09660-959-0
03
1
1511-
●
●
108
CONNECTOR; ELBOW
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1511-
●
●
108
CONNECTOR; ELBOW
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) DIN12 & R1/2 ELBOW
1-09660-960-0
01
1
1511-
●
●
167
COVER; VALVE
(B)
1-48119-625-0
04
1
1511-
●
●
167
COVER; VALVE
(A)
1-48219-070-0
01
1
1511-
●
●
167
COVER; VALVE
(A)
1-48219-070-0
01
1
1511-
●
●
220
CONNECTOR; 3WAY
WHEEL BASE 4200MM(42W) (D) DIN12X2 & PT3/8 DOUBLE ELBOW
1-09661-026-0
01
1
1511-
●
●
220
CONNECTOR; 3WAY
WHEEL BASE 4200MM(42W) (C) DIN17 & RC3/8 & R1/2 3WAY
8-98031-238-0
01
1
1511-
●
●
220
CONNECTOR; 3WAY
WHEEL BASE 4200MM(42W) (B) R3/8 & RC3/8 & RC1/4 3WAY
8-98166-127-0
01
1
1511-
●
●
220
CONNECTOR; 3WAY
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) DIN8 & RC1/4 & R3/8 3WAY
1-09660-988-1
01
1
1511-
●
●
231
CONNECTOR; NYLON TUBE
DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1511-
●
●
232
VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY
8-98032-527-0
01
1
1511-
●
●

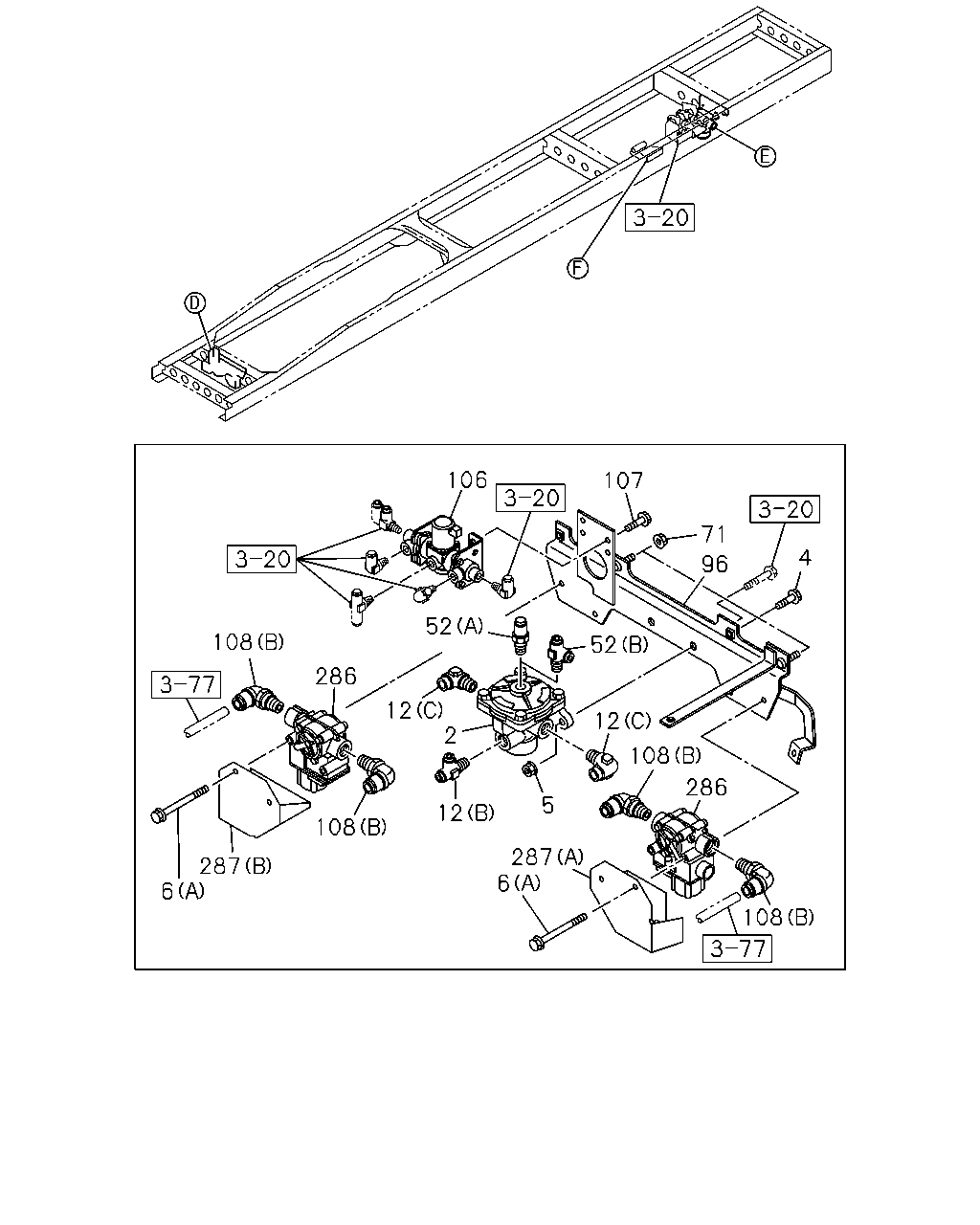

106
107
71
96
4
108
287
286
108
52
12
12
286
108
287
52
12
108
6
6
5
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
VALVE; RELAY
1-48210-997-0
01
1
1511-
●
●
2
VALVE; RELAY
1-48210-997-0
01
1
1511-
●
●
4
BOLT; RELAY VLV TO BRKT
M10X35 FLANGE
0-28651-035-0
02
1
1511-
●
●
4
BOLT; RELAY VLV TO BRKT
M10X35 FLANGE
0-28651-035-0
02
1
1511-
●
●
5
NUT
M10 FLANGE
0-91180-210-0
02
1
1511-
●
●
5
NUT
M10 FLANGE
0-91180-210-0
02
1
1511-
●
●
6
BOLT; VLV
(B) M8X35 FLANGE
0-28650-835-0
02
1
1511-
●
●
6
BOLT; VLV
(A) M8X85
1-09044-074-0
04
1
1511-
●
●
12
CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
1511-
●
12
CONNECTOR; RELAY VLV
(A) DIN12 & R3/8 STRAIGHT
1-09660-965-0
02
1
1511-
●
12
CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1511-
●
●
12
CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1511-
●
●
12
CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1511-
●
12
CONNECTOR; RELAY VLV
(B) M12 & M8 & RC3/8 3WAY
1-09661-207-0
01
1
1511-
●
●
12
CONNECTOR; RELAY VLV
(A) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1511-
●
52
CONNECTOR; RELAY VLV
H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
1511-
●
●
52
CONNECTOR; RELAY VLV
EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY
1-09660-997-0
01
1
1511-
●
●
71
NUT; AIR VLV
M8 FLANGE
0-91180-108-0
02
1
1511-
●
●
96
BRACKET
8-98273-496-0
01
1
1511-
●
●
106
VALVE; HSA
H.S.A SYSTEM<6EP>
1-46362-123-1
01
1
1511-
●
●
107
BOLT; VLV
H.S.A SYSTEM<6EP> M8X25 FLANGE
0-28650-825-0
04
1
1511-
●
●
108
CONNECTOR; ELBOW
(B) DIN12 & M22 ELBOW
1-09661-497-0
04
1
1511-
●
●
108
CONNECTOR; ELBOW
WHEEL BASE 4200MM(42W) (D) PT3/8 ELBOW
1-09660-696-0
01
1
1511-
●
●
108
CONNECTOR; ELBOW
WHEEL BASE 4200MM(42W) (C) DIN12 & R3/8 ELBOW
1-09660-959-0
03
1
1511-
●
●
108
CONNECTOR; ELBOW
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1511-
●
●
108
CONNECTOR; ELBOW
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) DIN12 & R1/2 ELBOW
1-09660-960-0
01
1
1511-
●
●
286
MODULATOR; FRT
8-98215-454-0
02
1
1511-
●
●
287
COVER; MODULATOR
(B)
8-98273-493-0
01
1
1511-
●
●
287
COVER; MODULATOR
(A)
8-98273-494-0
01
1
1511-
●
●

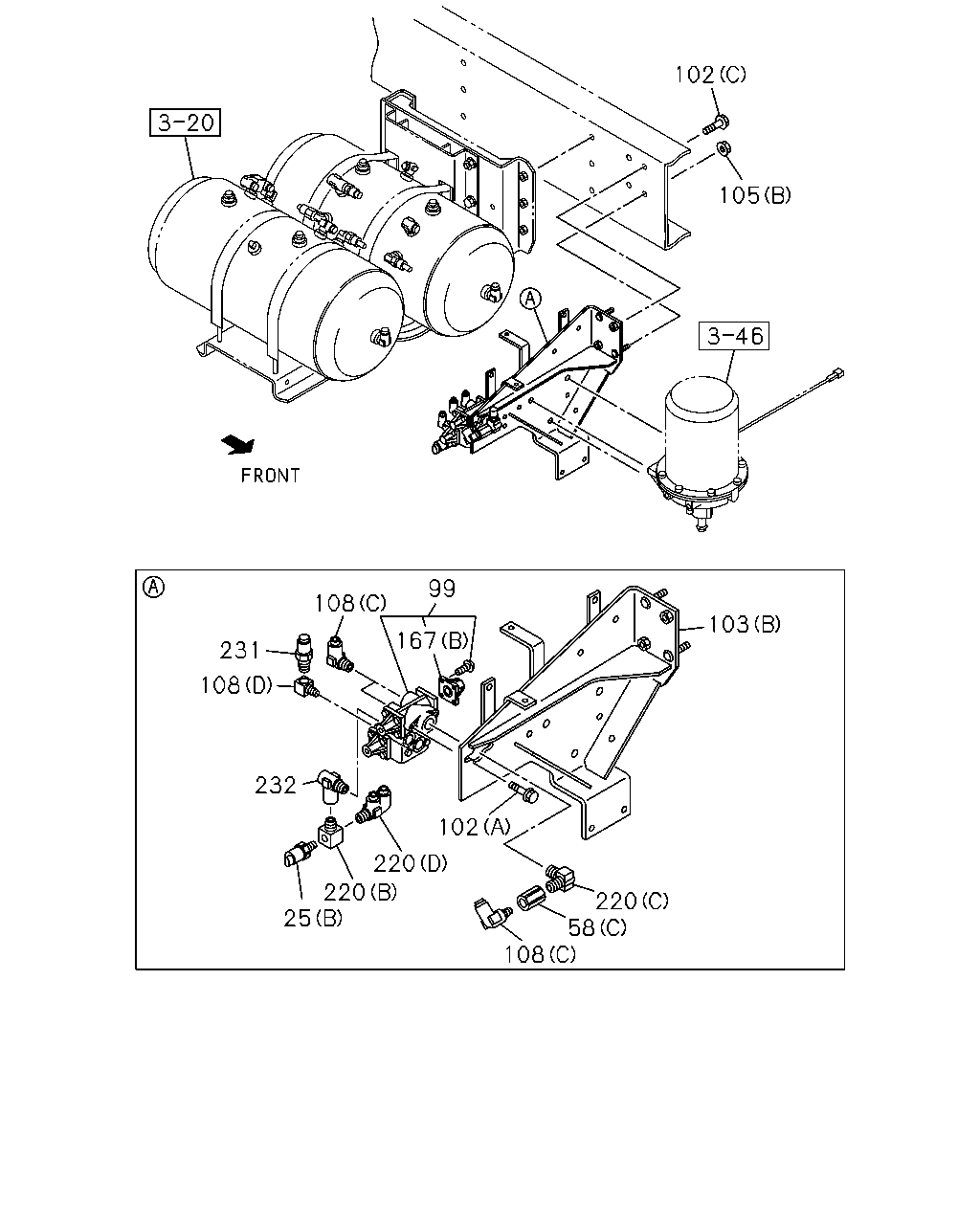

108
105
103
108
102
167
99
102
25
108
220
58
231
58
232
237
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
25
SWITCH; PRESSURE
(B) STAMP 5.5
8-97609-249-0
01
1
1511-
●
●
25
SWITCH; PRESSURE
(A) STAMP 2.0
8-98010-856-2
01
1
1511-
●
●
58
ADAPTER
(A) INNER PT3/8,OUTER M22
1-09650-494-1
04
1
1511-
●
●
58
ADAPTER
(D)
1-48219-154-0
01
1
1511-
●
●
58
ADAPTER
(D)
1-48219-154-0
01
1
1511-
●
●
58
ADAPTER
WHEEL BASE 4200MM(42W) (C) M20 & RC3/8 STRAIGHT
1-09660-883-0
01
1
1511-
●
●
58
ADAPTER
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) PT3/8 ELBOW
1-09660-696-0
01
1
1511-
●
●
58
ADAPTER
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) PT3/8
1-09664-210-0
01
1
1511-
●
●
99
VALVE; PROTECTION
1-48110-294-3
01
1
1511-
●
●
102
BOLT; PROTECTION VALVE
(A) M8X16 FLANGE
0-28050-816-0
02
1
1511-
●
●
102
BOLT; PROTECTION VALVE
WHEEL BASE 4200MM(42W) (C) M10X35 FLANGE
0-28651-035-0
02
1
1511-
●
●
102
BOLT; PROTECTION VALVE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M8X30 FLANGE
0-28650-830-0
02
1
1511-
●
●
103
BRACKET; PROTECTION VALVE
WHEEL BASE 4200MM(42W) (B)
8-98119-704-0
01
1
1511-
●
●
103
BRACKET; PROTECTION VALVE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A)
8-98090-802-0
01
1
1511-
●
●
105
NUT; BRKT,VALVE
WHEEL BASE 4200MM(42W) (B) M10 FLANGE
0-91180-210-0
02
1
1511-
●
●
105
NUT; BRKT,VALVE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8 FLANGE
0-91180-108-0
02
1
1511-
●
●
108
CONNECTOR; ELBOW
(B) DIN12 & M22 ELBOW
1-09661-497-0
04
1
1511-
●
●
108
CONNECTOR; ELBOW
WHEEL BASE 4200MM(42W) (D) PT3/8 ELBOW
1-09660-696-0
01
1
1511-
●
●
108
CONNECTOR; ELBOW
WHEEL BASE 4200MM(42W) (C) DIN12 & R3/8 ELBOW
1-09660-959-0
03
1
1511-
●
●
108
CONNECTOR; ELBOW
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1511-
●
●
108
CONNECTOR; ELBOW
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) DIN12 & R1/2 ELBOW
1-09660-960-0
01
1
1511-
●
●
167
COVER; VALVE
(B)
1-48119-625-0
04
1
1511-
●
●
167
COVER; VALVE
(A)
1-48219-070-0
01
1
1511-
●
●
167
COVER; VALVE
(A)
1-48219-070-0
01
1
1511-
●
●
220
CONNECTOR; 3WAY
WHEEL BASE 4200MM(42W) (D) DIN12X2 & PT3/8 DOUBLE ELBOW
1-09661-026-0
01
1
1511-
●
●
220
CONNECTOR; 3WAY
WHEEL BASE 4200MM(42W) (C) DIN17 & RC3/8 & R1/2 3WAY
8-98031-238-0
01
1
1511-
●
●
220
CONNECTOR; 3WAY
WHEEL BASE 4200MM(42W) (B) R3/8 & RC3/8 & RC1/4 3WAY
8-98166-127-0
01
1
1511-
●
●
220
CONNECTOR; 3WAY
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) DIN8 & RC1/4 & R3/8 3WAY
1-09660-988-1
01
1
1511-
●
●
231
CONNECTOR; NYLON TUBE
DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1511-
●
●
232
VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY
8-98032-527-0
01
1
1511-
●
●
237
VALVE; SAFETY
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)
1-48320-012-2
01
1
1511-
●
●
2
170
167
164
166
157
158
161
58
262
155
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
VALVE; RELAY
1-48210-997-0
01
1
1511-
●
●
2
VALVE; RELAY
1-48210-997-0
01
1
1511-
●
●
58
ADAPTER
(A) INNER PT3/8,OUTER M22
1-09650-494-1
04
1
1511-
●
●
58
ADAPTER
(D)
1-48219-154-0
01
1
1511-
●
●
58
ADAPTER
(D)
1-48219-154-0
01
1
1511-
●
●
58
ADAPTER
WHEEL BASE 4200MM(42W) (C) M20 & RC3/8 STRAIGHT
1-09660-883-0
01
1
1511-
●
●
58
ADAPTER
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) PT3/8 ELBOW
1-09660-696-0
01
1
1511-
●
●
58
ADAPTER
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) PT3/8
1-09664-210-0
01
1
1511-
●
●
155
REPAIR KIT; RELAY VALVE
(A)
1-85576-294-0
01
1
1511-
●
●
155
REPAIR KIT; RELAY VALVE
(A)
1-85576-294-0
01
1
1511-
●
●
155
REPAIR KIT; RELAY VALVE
(B)
1-85576-408-0
01
1
1511-
●
●
157
RETAINER; VALVE
(A)
1-48213-002-0
01
1
1511-
●
●
157
RETAINER; VALVE
(A)
1-48213-002-0
01
1
1511-
●
●
157
RETAINER; VALVE
(B)
1-48419-020-0
01
1
1511-
●
●
158
SPRING; VALVE
(A)
1-47819-089-0
01
1
1511-
●
●
158
SPRING; VALVE
(A)
1-47819-089-0
01
1
1511-
●
●
158
SPRING; VALVE
(B)
9-48419-003-0
01
1
1511-
●
●
161
GUIDE; VALVE
1-48129-014-0
01
1
1511-
●
●
161
GUIDE; VALVE
1-48129-014-0
01
1
1511-
●
●
164
PISTON; RELAY VALVE
1-48219-071-0
01
1
1511-
●
●
164
PISTON; RELAY VALVE
1-48219-071-0
01
1
1511-
●
●
166
SPRING; PISTON
1-47819-090-0
01
1
1511-
●
●
166
SPRING; PISTON
1-47819-090-0
01
1
1511-
●
●
167
COVER; VALVE
(B)
1-48119-625-0
04
1
1511-
●
●
167
COVER; VALVE
(A)
1-48219-070-0
01
1
1511-
●
●
167
COVER; VALVE
(A)
1-48219-070-0
01
1
1511-
●
●
170
SCREW; COVER TO BODY
1-48219-039-0
04
1
1511-
●
●
170
SCREW; COVER TO BODY
1-48219-039-0
04
1
1511-
●
●
262
SILENCER; RELAY VALVE
1-48219-149-0
01
1
1511-
●
●
262
SILENCER; RELAY VALVE
1-48219-149-0
01
1
1511-
●
●

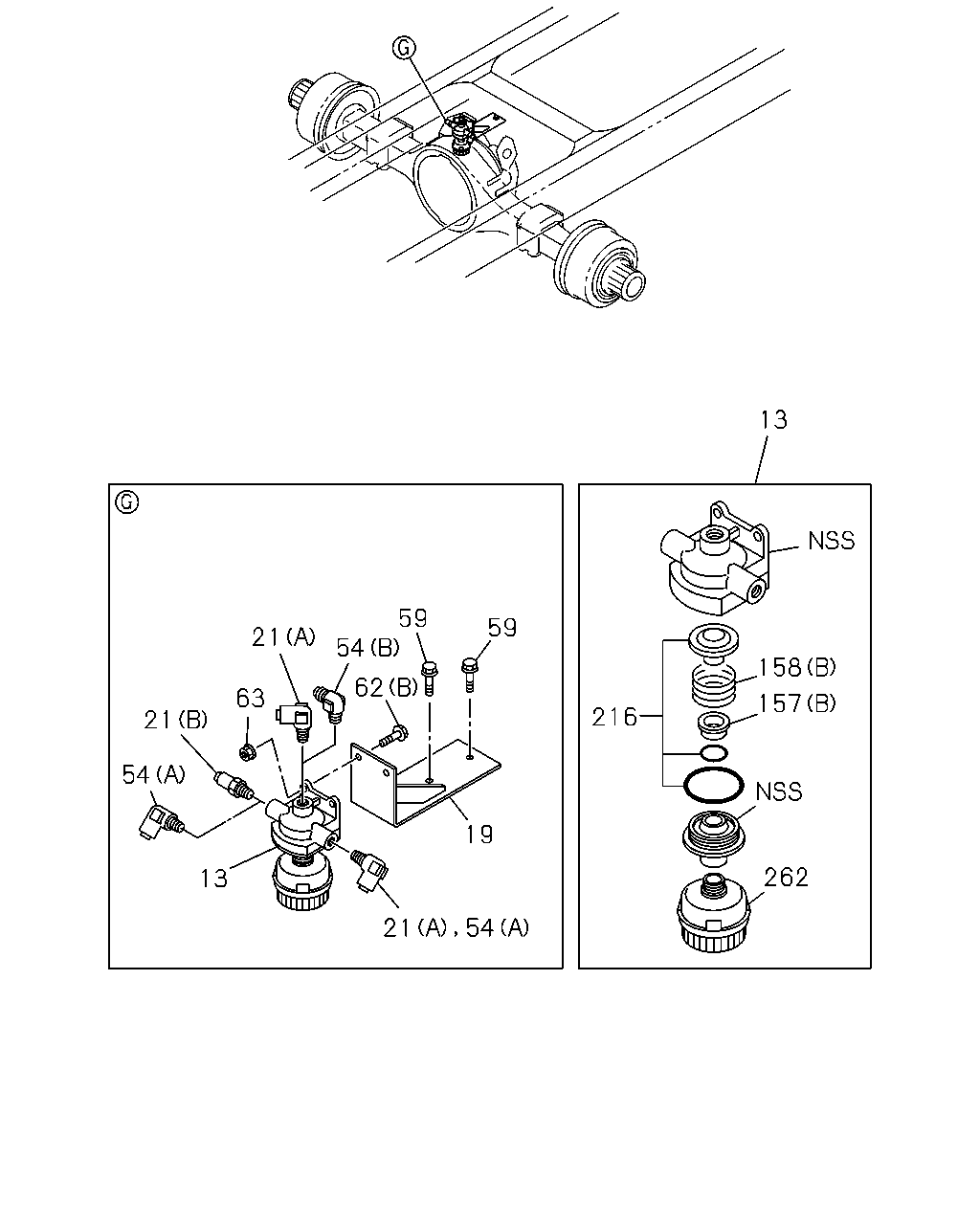

54
21
21
63
13
21
54
59
19
54
62
59
13
216
158
157
262
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
13
VALVE ASM; QUICK RELEASE
8-98170-207-0
01
1
1511-
●
●
19
BRACKET; QUICK RELEASE VLV
8-98179-172-0
01
1
1511-
●
19
BRACKET; QUICK RELEASE VLV
8-98033-795-0
01
1
1511-
●
21
CONNECTOR; QUICK RELEASE VLV
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1511-
●
21
CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1511-
●
54
CONNECTOR; QUICK RELEASE VLV
(B) M16 & PT3/8 ELBOW
1-09650-438-0
01
1
1511-
●
54
CONNECTOR; QUICK RELEASE VLV
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1511-
●
59
BOLT; RELEASE VALVE FIX
M8X16 FLANGE
0-28050-816-0
02
1
1511-
●
59
BOLT; RELEASE VALVE FIX
M8X16 FLANGE
0-28050-816-0
01
1
1511-
●
59
BOLT; RELEASE VALVE FIX
M8X20 FLANGE
0-28050-820-0
01
1
1511-
●
62
BOLT; BRKT FIX
(B) M8X25 FLANGE
0-28650-825-0
02
1
1511-
●
●
62
BOLT; BRKT FIX
(A) M8X30 FLANGE
0-28650-830-0
02
1
1511-
●
●
63
NUT; BRKT FIX
M8 FLANGE
0-91180-108-0
02
1
1511-
●
●
63
NUT; BRKT FIX
M8 FLANGE
0-91180-108-0
02
1
1511-
●
●
157
RETAINER; VALVE
(A)
1-48213-002-0
01
1
1511-
●
●
157
RETAINER; VALVE
(A)
1-48213-002-0
01
1
1511-
●
●
157
RETAINER; VALVE
(B)
1-48419-020-0
01
1
1511-
●
●
158
SPRING; VALVE
(A)
1-47819-089-0
01
1
1511-
●
●
158
SPRING; VALVE
(A)
1-47819-089-0
01
1
1511-
●
●
158
SPRING; VALVE
(B)
9-48419-003-0
01
1
1511-
●
●
216
REPAIR KIT; QUICK RELEASE VLV
8-98171-596-0
01
1
1511-
●
●
262
SILENCER; RELAY VALVE
1-48219-149-0
01
1
1511-
●
●
262
SILENCER; RELAY VALVE
1-48219-149-0
01
1
1511-
●
●
106
201
195
192
203
202
201
205
197
200
196
197
199
200
198
204
205
203
201
199
189
196
198
190
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
106
VALVE; HSA
H.S.A SYSTEM<6EP>
1-46362-123-1
01
1
1511-
●
●
189
VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP>
1-46366-247-0
01
1
1511-
●
●
190
BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP>
1-46366-234-0
01
1
1511-
●
●
192
SPRING; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP>
1-46366-181-0
01
1
1511-
●
●
195
SCREW; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP>
1-46366-191-0
04
1
1511-
●
●
196
PISTON; HSA VLV
H.S.A SYSTEM<6EP>
1-46366-232-0
02
1
1511-
●
●
197
SPRING; INNER,HSA VLV
H.S.A SYSTEM<6EP>
1-46366-161-0
02
1
1511-
●
●
198
PIN; STRAIGHT,HSA VLV
H.S.A SYSTEM<6EP>
1-46366-122-0
02
1
1511-
●
●
199
RETAINER; HSA VLV
H.S.A SYSTEM<6EP>
1-46366-121-0
02
1
1511-
●
●
200
SPRING; OUTER,HSA VLV
H.S.A SYSTEM<6EP>
1-46366-120-0
02
1
1511-
●
●
201
COVER; HSA VLV
H.S.A SYSTEM<6EP> (A)
1-46366-118-1
02
1
1511-
●
●
201
COVER; HSA VLV
H.S.A SYSTEM<6EP> (B)
1-46366-241-0
01
1
1511-
●
●
202
FILTER; HSA VLV
H.S.A SYSTEM<6EP>
1-46366-117-1
02
1
1511-
●
●
203
SCREW; HSA VLV
H.S.A SYSTEM<6EP>
1-46366-116-1
06
1
1511-
●
●
204
PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP>
1-46366-194-0
01
1
1511-
●
●
205
BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A)
1-46366-149-0
01
1
1511-
●
●
205
BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B)
1-46366-150-0
01
1
1511-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
