Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#169709) — 262 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

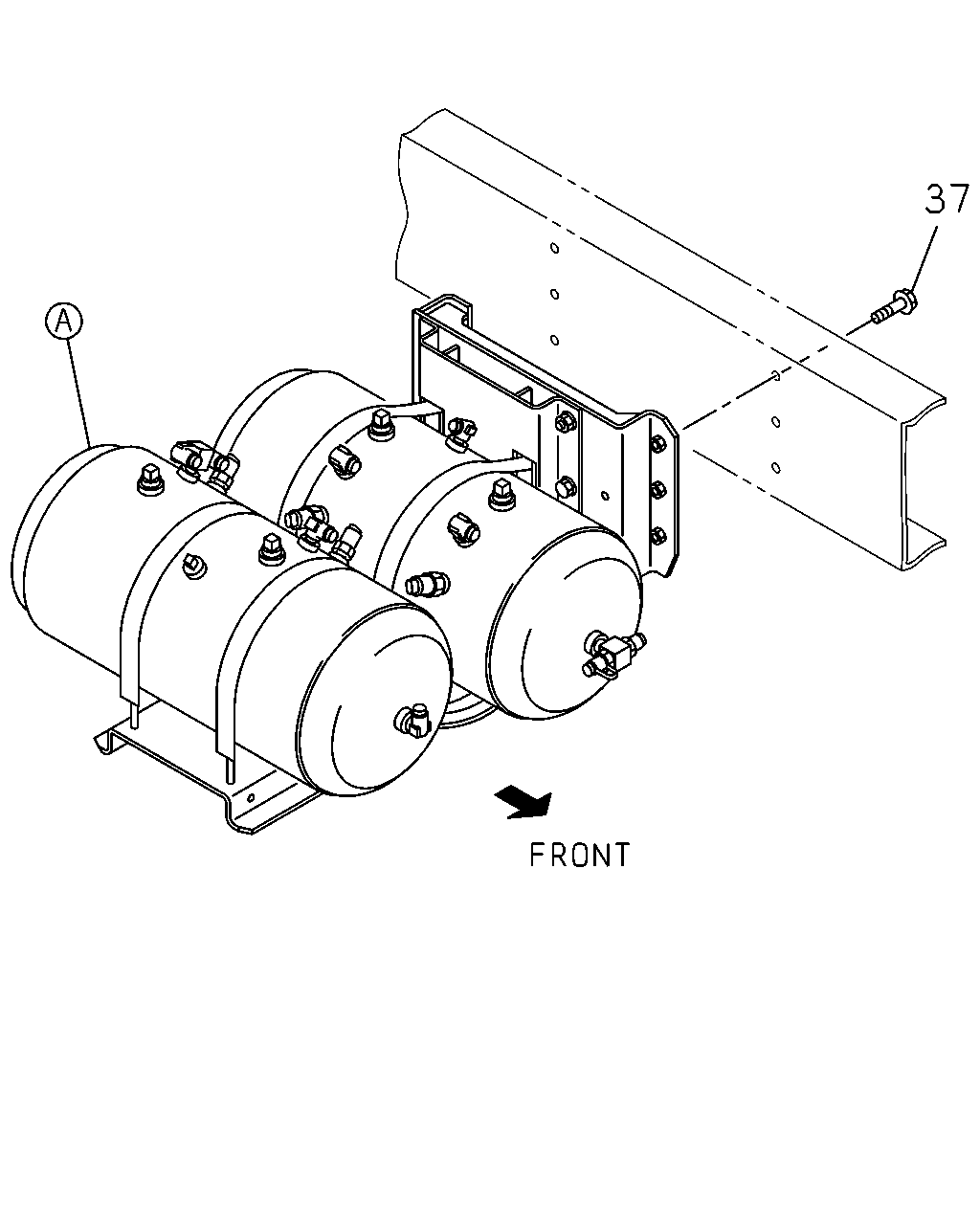

	37	BOLT; AIR TANK WHEEL BASE 4200MM(42W) M12X40 FLANGE	0-28651-240-0	06	1	1511-	●	●
	37	BOLT; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M12X40 FLANGE	0-28651-240-0	04	1	1511-	●	●

5 5 5 7 6 58 31 359 34 16 166 5 31 5 136 39 10 8 10 28 80 10 10 5 6 7 16 8 7 6 28 46 46 57 342 184 10 46 28 342 184 213 8 8 8 57 46 1 1 58 28 5 80 136 213 5 10 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

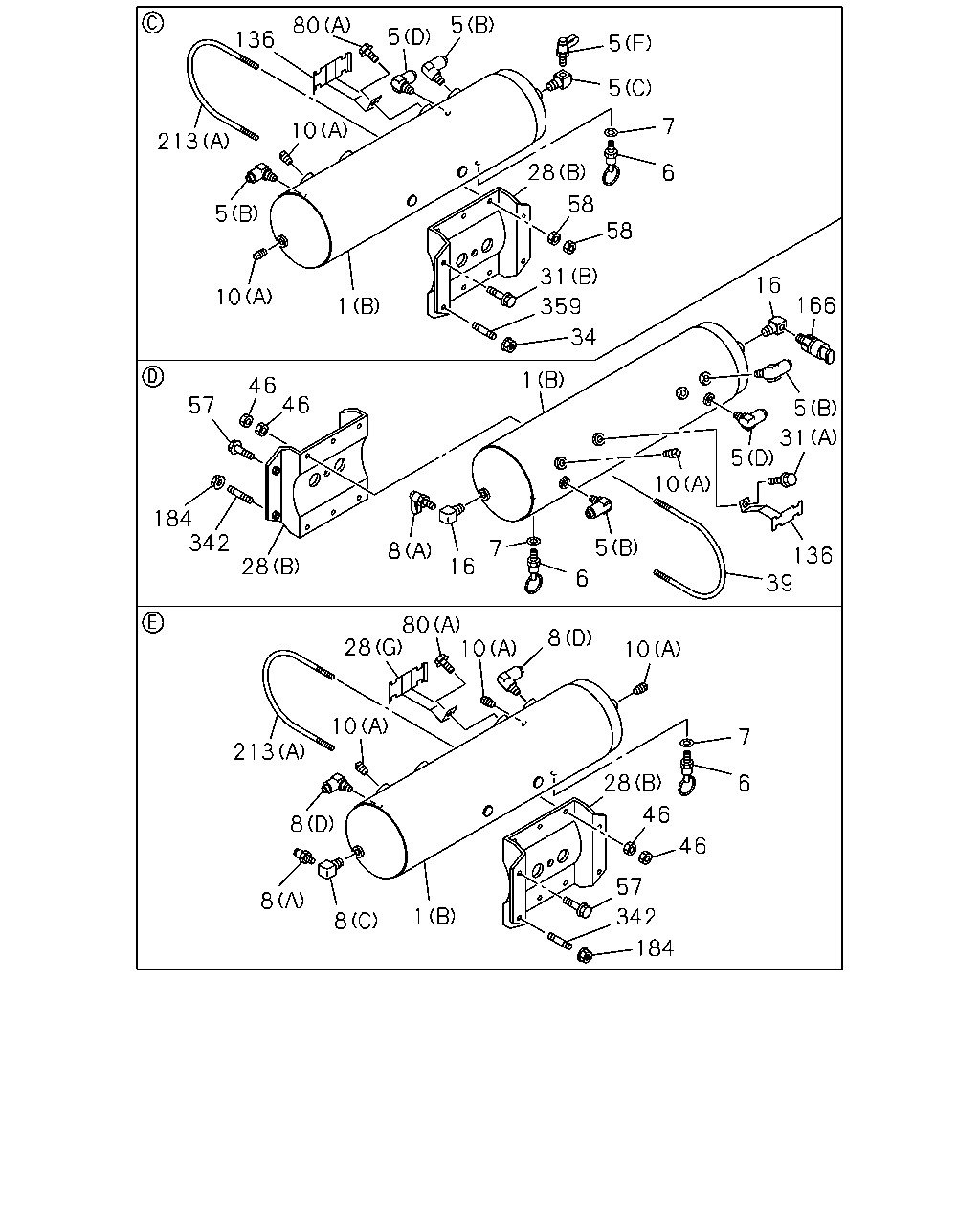

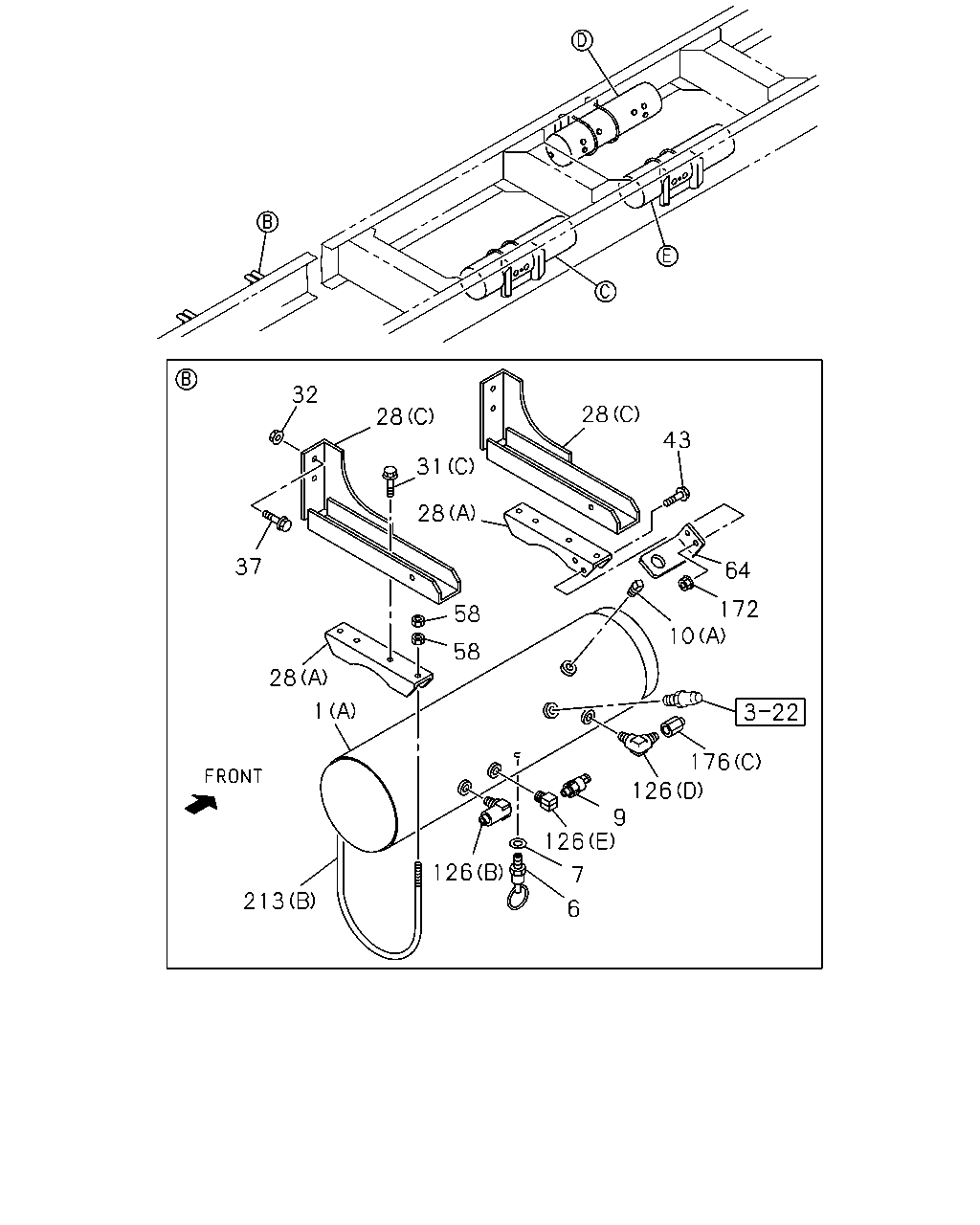

1	TANK ASM; AIR (D)	8-98081-870-1	01	1	1511-	●	●
1	TANK ASM; AIR WHEEL BASE 4200MM(42W) (C)	1-48370-961-0	02	1	1511-	●	●
1	TANK ASM; AIR WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A)	8-98166-854-0	01	1	1511-	●	●
1	TANK ASM; AIR WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-98166-855-0	01	1	1511-	●	●
1	TANK ASM; AIR WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-98166-855-0	02	1	1511-	●	●
5	UNION; AIR TANK WHEEL BASE 4200MM(42W) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1511-	●
5	UNION; AIR TANK WHEEL BASE 4200MM(42W) (E) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	1511-	●
5	UNION; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1511-	●
5	UNION; AIR TANK (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1511-		●
5	UNION; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1511-	●	●
5	UNION; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1511-	●	●
5	UNION; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1511-	●	●
5	UNION; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (F) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1511-	●	●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1511-		●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4200MM(42W)	1-48312-015-0	04	1	1511-	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	1-48312-015-0	01	1	1511-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1511-	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	1-48312-015-0	01	1	1511-	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	1-48312-015-0	02	1	1511-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 4200MM(42W) ID=14	1-09630-145-0	04	1	1511-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=14	1-09630-145-0	01	1	1511-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1511-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=14	1-09630-145-0	01	1	1511-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=14	1-09630-145-0	02	1	1511-	●	●
8	CONNECTOR; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	1511-	●
8	CONNECTOR; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1511-	●	●
8	CONNECTOR; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1511-	●	●
8	CONNECTOR; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1511-	●	●
8	CONNECTOR; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1511-	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	1511-	●	●
10	PLUG; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) PT3/8	9-09204-517-0	03	1	1511-	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1511-	●	●
10	PLUG; AIR TANK WHEEL BASE 4200MM(42W) (B) PT3/4	9-09204-526-0	04	1	1511-	●	●
10	PLUG; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) PT3/8	9-09204-517-0	01	1	1511-	●	●
16	CONNECTOR; SWITCH WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1511-	●	●
28	BRACKET; AIR TANK (F)	8-98100-165-3	01	1	1511-	●	●
28	BRACKET; AIR TANK WHEEL BASE 4200MM(42W) (D)	8-98048-199-0	01	1	1511-	●	●
28	BRACKET; AIR TANK WHEEL BASE 4200MM(42W) (E)	8-98048-200-2	01	1	1511-	●	●
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A)	1-48317-324-2	02	1	1511-	●	●
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-98104-686-0	01	1	1511-	●	●
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-98104-686-0	02	1	1511-	●	●
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C)	8-98107-430-0	02	1	1511-	●	●
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (G)	8-98114-814-0	02	1	1511-	●	●
31	BOLT; BRKT TO FRAME WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
31	BOLT; BRKT TO FRAME WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) M10X25 FLANGE	0-28651-025-0	04	1	1511-	●	●
31	BOLT; BRKT TO FRAME WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M10X35 FLANGE	0-28651-035-0	02	1	1511-	●	●
34	NUT; BRKT,AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
39	U-BOLT; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=210	1-48317-458-1	02	1	1511-	●	●
39	U-BOLT; AIR TANK L=210	1-48317-458-1	02	1	1511-	●	●
46	NUT; U-BOLT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8	0-91110-508-0	08	1	1511-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1511-	●	●
46	NUT; U-BOLT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8	0-91110-508-0	08	1	1511-	●	●
57	BOLT; BRKT,AIR TANK TO FRAME WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10X35 FLANGE	0-28651-035-0	04	1	1511-	●	●
58	NUT; BAND,AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8	0-91110-508-0	08	1	1511-	●	●
58	NUT; BAND,AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8	0-91110-508-0	08	1	1511-	●	●
80	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	03	1	1511-	●	●
80	BOLT; BRKT WHEEL BASE 4200MM(42W) (C) M12X35 FLANGE	0-28651-235-0	04	1	1511-	●	●
80	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
80	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
136	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	8-98114-814-0	04	1	1511-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	8-97615-622-0	01	1	1511-	●	●
184	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10 FLANGE	0-91180-210-0	04	1	1511-	●	●
213	BOLT; U AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=210	1-48317-458-1	02	1	1511-	●	●
213	BOLT; U AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=210	1-48317-458-1	02	1	1511-	●	●
213	BOLT; U AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-98321-157-0	02	1	1511-	●	●
342	STUD WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10X28,M10X15 L=50	5-09300-050-0	04	1	1511-	●	●
359	STUD; BRKT TO FRAME WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M10X28,M10X15 L=50	5-09300-050-0	02	1	1511-	●	●

126 126 126 126 10 38 126 28 80 126 126 126 104 28 80 104 42 185 38 126 126 10 45 45 126 126 10 126 126 126 45 45 10 9 126 1 126 7 6 10 126 38 126 38 41 9 1 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

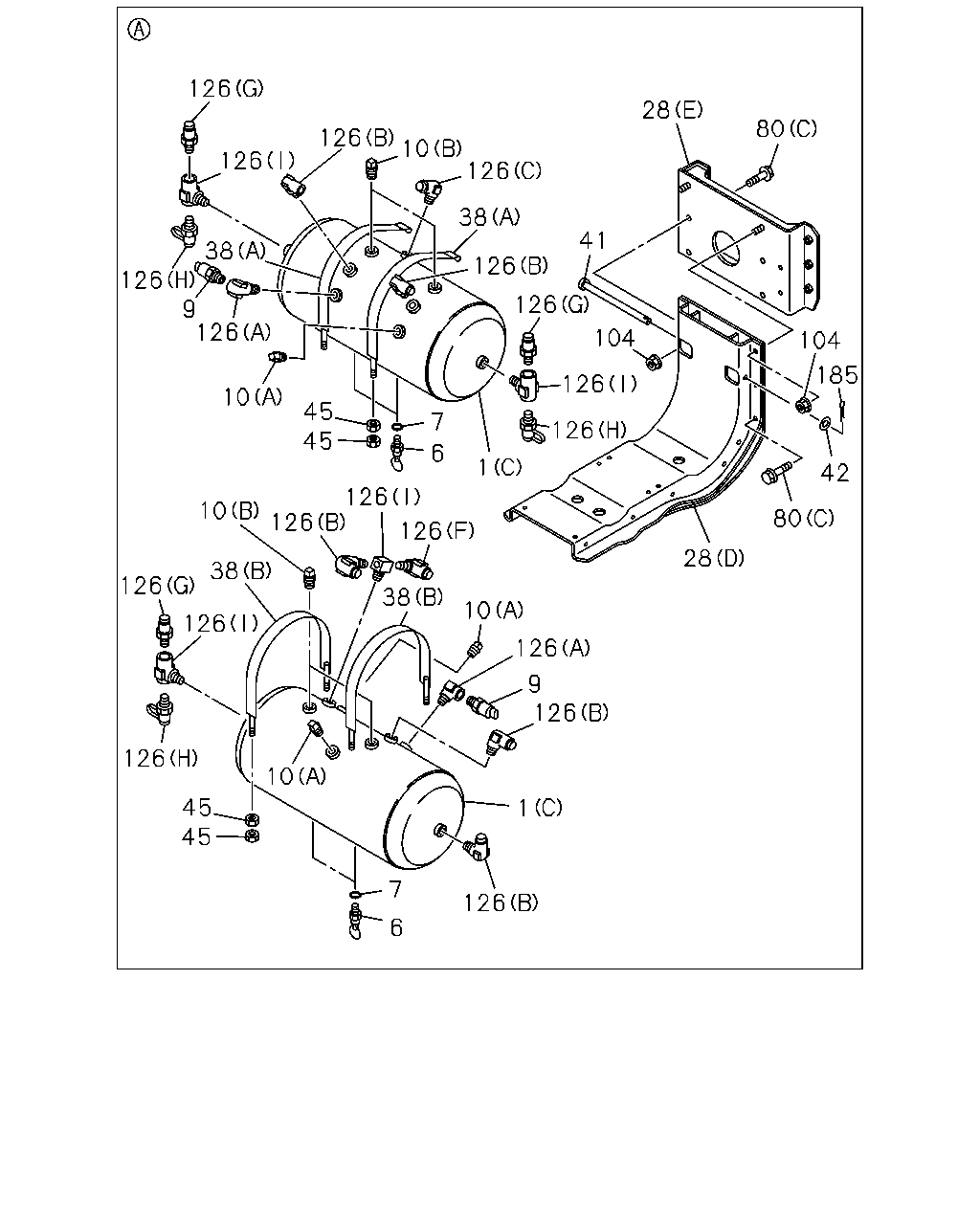

1	TANK ASM; AIR (D)	8-98081-870-1	01	1	1511-	●	●
1	TANK ASM; AIR WHEEL BASE 4200MM(42W) (C)	1-48370-961-0	02	1	1511-	●	●
1	TANK ASM; AIR WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A)	8-98166-854-0	01	1	1511-	●	●
1	TANK ASM; AIR WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-98166-855-0	01	1	1511-	●	●
1	TANK ASM; AIR WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-98166-855-0	02	1	1511-	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4200MM(42W)	1-48312-015-0	04	1	1511-	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	1-48312-015-0	01	1	1511-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1511-	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	1-48312-015-0	01	1	1511-	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	1-48312-015-0	02	1	1511-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 4200MM(42W) ID=14	1-09630-145-0	04	1	1511-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=14	1-09630-145-0	01	1	1511-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1511-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=14	1-09630-145-0	01	1	1511-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=14	1-09630-145-0	02	1	1511-	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK WHEEL BASE 4200MM(42W)	8-97615-622-0	02	1	1511-	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	8-97615-622-0	01	1	1511-	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	1511-	●	●
10	PLUG; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) PT3/8	9-09204-517-0	03	1	1511-	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1511-	●	●
10	PLUG; AIR TANK WHEEL BASE 4200MM(42W) (B) PT3/4	9-09204-526-0	04	1	1511-	●	●
10	PLUG; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) PT3/8	9-09204-517-0	01	1	1511-	●	●
28	BRACKET; AIR TANK (F)	8-98100-165-3	01	1	1511-	●	●
28	BRACKET; AIR TANK WHEEL BASE 4200MM(42W) (D)	8-98048-199-0	01	1	1511-	●	●
28	BRACKET; AIR TANK WHEEL BASE 4200MM(42W) (E)	8-98048-200-2	01	1	1511-	●	●
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A)	1-48317-324-2	02	1	1511-	●	●
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-98104-686-0	01	1	1511-	●	●
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-98104-686-0	02	1	1511-	●	●
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C)	8-98107-430-0	02	1	1511-	●	●
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (G)	8-98114-814-0	02	1	1511-	●	●
38	BAND; AIR TANK WHEEL BASE 4200MM(42W) (A)	1-48317-108-2	02	1	1511-	●	●
38	BAND; AIR TANK WHEEL BASE 4200MM(42W) (B)	1-48317-109-2	02	1	1511-	●	●
41	PIN; BAND FIX WHEEL BASE 4200MM(42W)	1-09744-068-0	01	1	1511-	●	●
42	WASHER; PL WHEEL BASE 4200MM(42W) ID=10.5	0-91614-510-0	01	1	1511-	●	●
45	NUT; AIR TANK,MAIN WHEEL BASE 4200MM(42W) M8	0-91110-508-0	12	1	1511-	●	●
80	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	03	1	1511-	●	●
80	BOLT; BRKT WHEEL BASE 4200MM(42W) (C) M12X35 FLANGE	0-28651-235-0	04	1	1511-	●	●
80	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
80	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
104	NUT; BRKT WHEEL BASE 4200MM(42W) M12 FLANGE	0-91180-212-0	02	1	1511-	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1511-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 4200MM(42W) (A) PT1/4 2WAY	1-09660-693-0	02	1	1511-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 4200MM(42W) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1511-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 4200MM(42W) (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1511-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 4200MM(42W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	1511-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 4200MM(42W) (G) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	1511-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 4200MM(42W) (H) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1511-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 4200MM(42W) (I) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	04	1	1511-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1511-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1511-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1511-	●	●
185	PIN; SNAP WHEEL BASE 4200MM(42W) L=32.6	8-98062-280-0	01	1	1511-	●	●

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

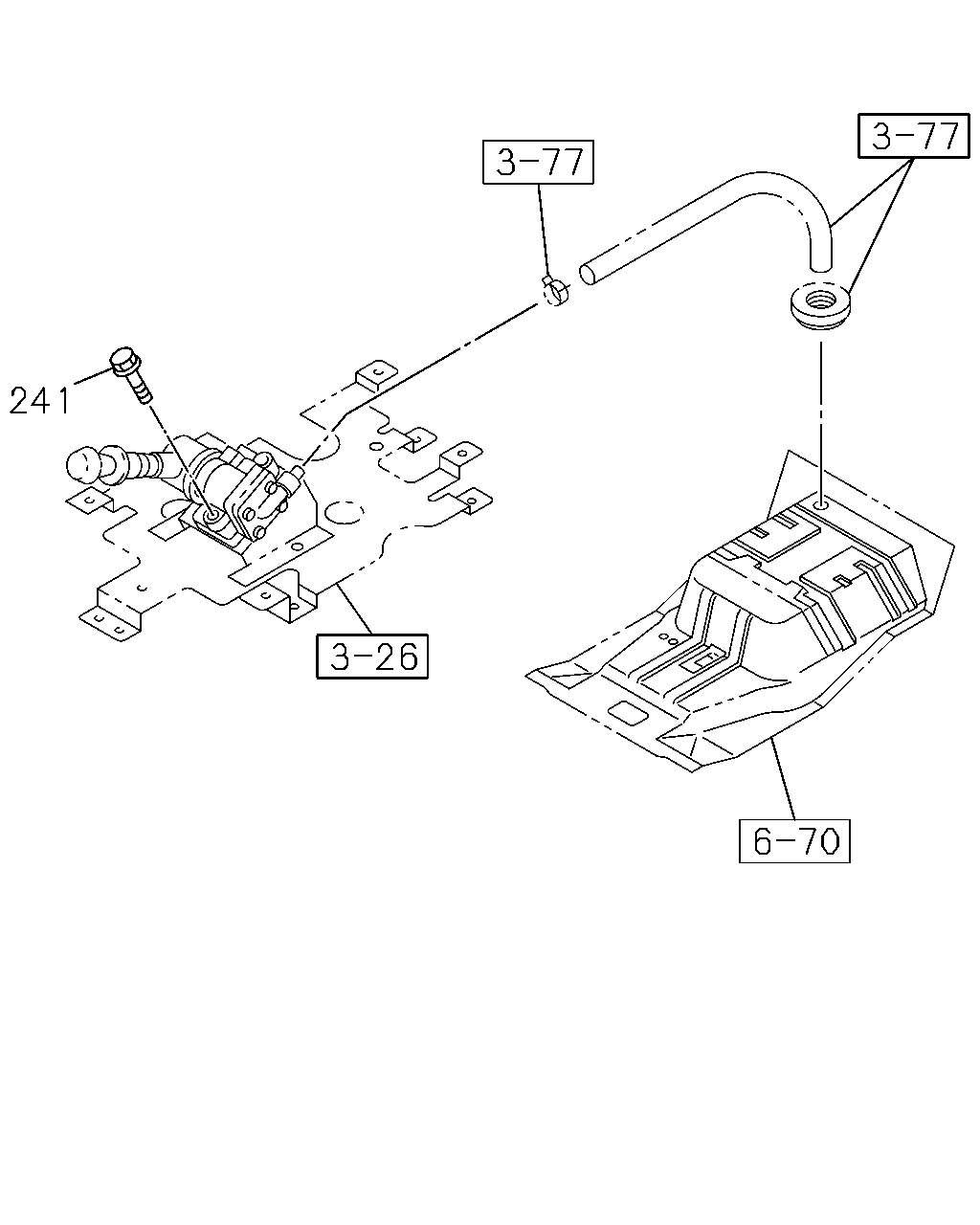

	241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	1511-	●	●

80 94 46 46 94 28 1 5 10 5 7 6 39 39 10 5 5 10 10 8 5 5 103 100 102 257 176 176 126 352 126 176 257 107 257 176 176 126 352 257 107 176 126 352 105 101 352

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

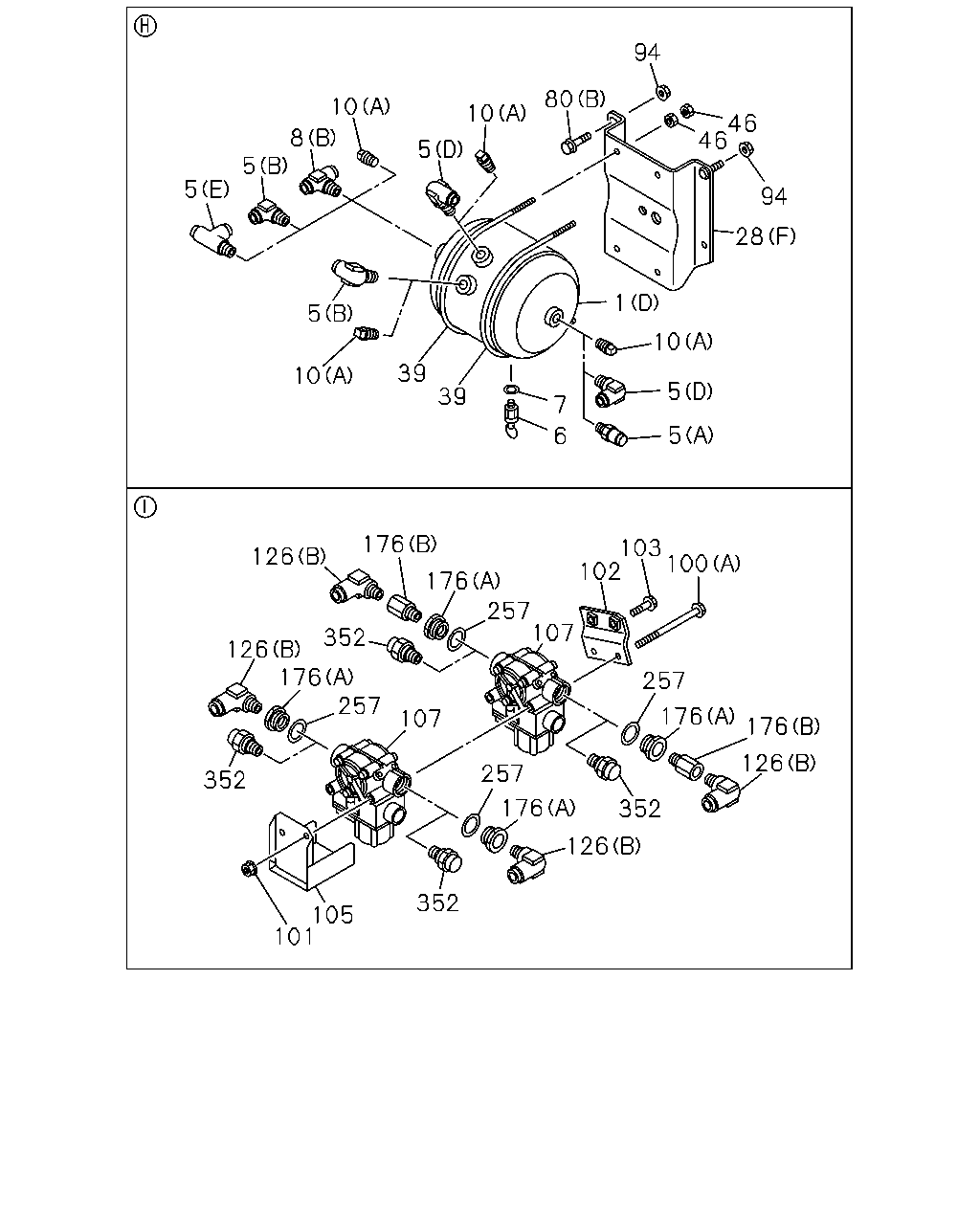

1	TANK ASM; AIR (D)	8-98081-870-1	01	1	1511-	●	●
1	TANK ASM; AIR WHEEL BASE 4200MM(42W) (C)	1-48370-961-0	02	1	1511-	●	●
1	TANK ASM; AIR WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A)	8-98166-854-0	01	1	1511-	●	●
1	TANK ASM; AIR WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-98166-855-0	01	1	1511-	●	●
1	TANK ASM; AIR WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-98166-855-0	02	1	1511-	●	●
5	UNION; AIR TANK WHEEL BASE 4200MM(42W) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1511-	●
5	UNION; AIR TANK WHEEL BASE 4200MM(42W) (E) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	1511-	●
5	UNION; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1511-	●
5	UNION; AIR TANK (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1511-		●
5	UNION; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1511-	●	●
5	UNION; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1511-	●	●
5	UNION; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1511-	●	●
5	UNION; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (F) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1511-	●	●
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1511-		●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4200MM(42W)	1-48312-015-0	04	1	1511-	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	1-48312-015-0	01	1	1511-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1511-	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	1-48312-015-0	01	1	1511-	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	1-48312-015-0	02	1	1511-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 4200MM(42W) ID=14	1-09630-145-0	04	1	1511-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=14	1-09630-145-0	01	1	1511-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1511-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=14	1-09630-145-0	01	1	1511-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=14	1-09630-145-0	02	1	1511-	●	●
8	CONNECTOR; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) DIN12X2 & R3/8 3WAY	1-09661-005-0	01	1	1511-	●
8	CONNECTOR; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1511-	●	●
8	CONNECTOR; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1511-	●	●
8	CONNECTOR; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1511-	●	●
8	CONNECTOR; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1511-	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	1511-	●	●
10	PLUG; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) PT3/8	9-09204-517-0	03	1	1511-	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1511-	●	●
10	PLUG; AIR TANK WHEEL BASE 4200MM(42W) (B) PT3/4	9-09204-526-0	04	1	1511-	●	●
10	PLUG; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) PT3/8	9-09204-517-0	01	1	1511-	●	●
28	BRACKET; AIR TANK (F)	8-98100-165-3	01	1	1511-	●	●
28	BRACKET; AIR TANK WHEEL BASE 4200MM(42W) (D)	8-98048-199-0	01	1	1511-	●	●
28	BRACKET; AIR TANK WHEEL BASE 4200MM(42W) (E)	8-98048-200-2	01	1	1511-	●	●
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A)	1-48317-324-2	02	1	1511-	●	●
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-98104-686-0	01	1	1511-	●	●
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-98104-686-0	02	1	1511-	●	●
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C)	8-98107-430-0	02	1	1511-	●	●
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (G)	8-98114-814-0	02	1	1511-	●	●
39	U-BOLT; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) L=210	1-48317-458-1	02	1	1511-	●	●
39	U-BOLT; AIR TANK L=210	1-48317-458-1	02	1	1511-	●	●
46	NUT; U-BOLT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8	0-91110-508-0	08	1	1511-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1511-	●	●
46	NUT; U-BOLT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8	0-91110-508-0	08	1	1511-	●	●
80	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	03	1	1511-	●	●
80	BOLT; BRKT WHEEL BASE 4200MM(42W) (C) M12X35 FLANGE	0-28651-235-0	04	1	1511-	●	●
80	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
80	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	04	1	1511-	●	●
100	BOLT; MODULATOR (A) M8X140 FLANGE	0-28055-814-0	02	1	1511-	●	●
100	BOLT; MODULATOR (B) M8X25 FLANGE	0-28650-825-0	02	1	1511-	●	●
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
102	BRACKET; MODULATOR	8-98272-718-0	01	1	1511-	●	●
103	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
105	COVER; MODULATOR	8-98272-749-0	01	1	1511-	●	●
107	MODULATOR; RR	8-98215-454-0	02	1	1511-	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1511-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 4200MM(42W) (A) PT1/4 2WAY	1-09660-693-0	02	1	1511-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 4200MM(42W) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1511-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 4200MM(42W) (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1511-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 4200MM(42W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	1511-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 4200MM(42W) (G) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	1511-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 4200MM(42W) (H) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1511-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 4200MM(42W) (I) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	04	1	1511-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1511-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1511-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1511-	●	●
176	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1511-	●	●
176	ADAPTER (B) PT3/8	1-09664-210-0	01	1	1511-	●	●
176	ADAPTER WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1511-	●	●
257	GASKET; PLUG ID=22.5	9-09571-422-0	02	1	1511-	●	●
352	CONNECTOR; STRAIGHT DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1511-	●	●

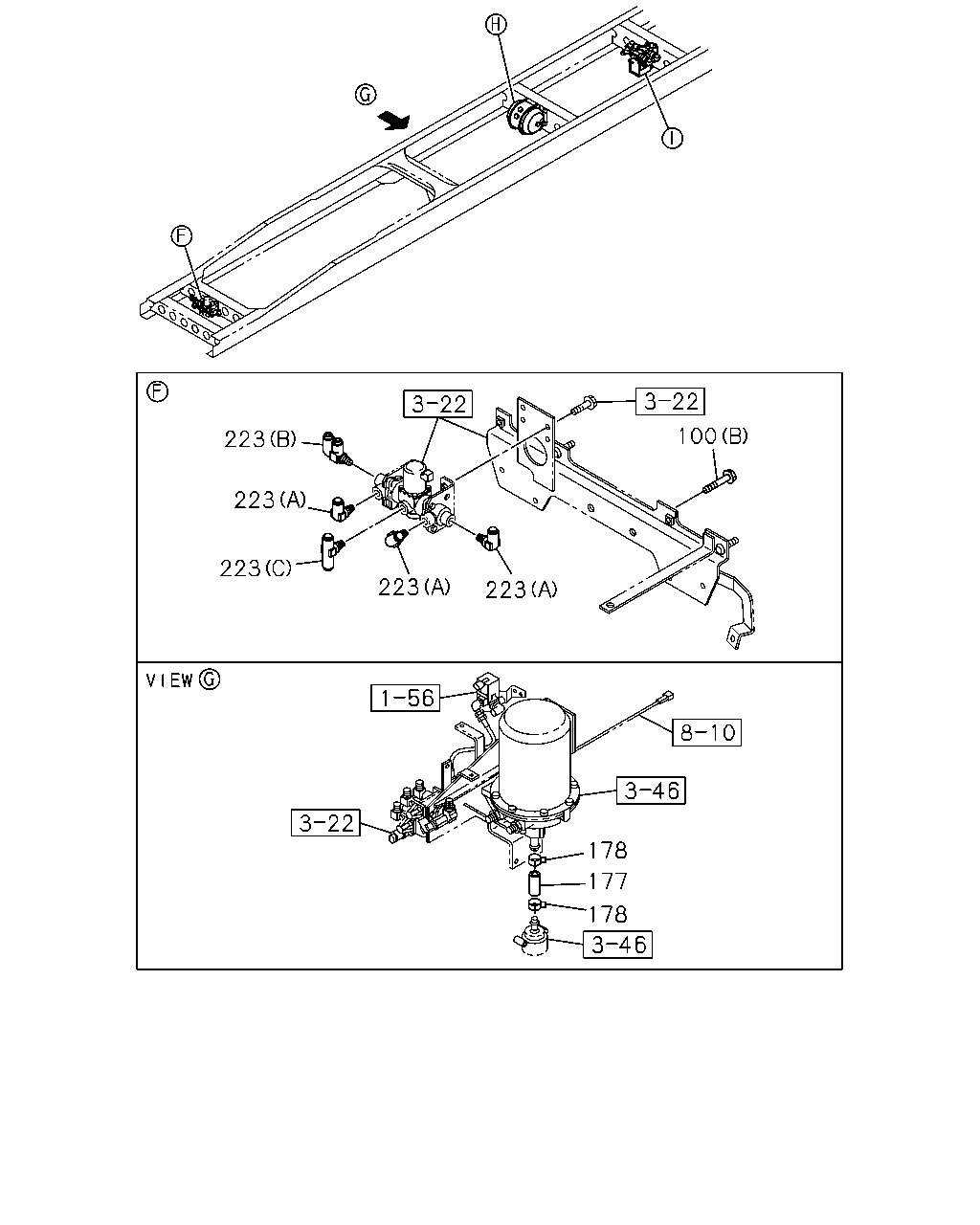

223 223 223 223 223 100 178 177 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	BOLT; MODULATOR (A) M8X140 FLANGE	0-28055-814-0	02	1	1511-	●	●
100	BOLT; MODULATOR (B) M8X25 FLANGE	0-28650-825-0	02	1	1511-	●	●
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1511-	●	●
178	CLIP; HOSE ID=21	8-94242-034-0	02	1	1511-	●	●
223	UNION H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	03	1	1511-	●	●
223	UNION H.S.A SYSTEM<6EP> (B) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1511-	●	●
223	UNION H.S.A SYSTEM<6EP> (C)	1-09661-073-0	01	1	1511-	●	●

32 37 28 1 58 58 28 31 28 28 64 43 10 176 126 9 126 7 6 126 213 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (D)	8-98081-870-1	01	1	1511-	●	●
1	TANK ASM; AIR WHEEL BASE 4200MM(42W) (C)	1-48370-961-0	02	1	1511-	●	●
1	TANK ASM; AIR WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A)	8-98166-854-0	01	1	1511-	●	●
1	TANK ASM; AIR WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-98166-855-0	01	1	1511-	●	●
1	TANK ASM; AIR WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-98166-855-0	02	1	1511-	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4200MM(42W)	1-48312-015-0	04	1	1511-	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	1-48312-015-0	01	1	1511-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1511-	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	1-48312-015-0	01	1	1511-	●	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	1-48312-015-0	02	1	1511-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 4200MM(42W) ID=14	1-09630-145-0	04	1	1511-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=14	1-09630-145-0	01	1	1511-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1511-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=14	1-09630-145-0	01	1	1511-	●	●
7	GASKET; DRAIN COCK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=14	1-09630-145-0	02	1	1511-	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK WHEEL BASE 4200MM(42W)	8-97615-622-0	02	1	1511-	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	8-97615-622-0	01	1	1511-	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	1511-	●	●
10	PLUG; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) PT3/8	9-09204-517-0	03	1	1511-	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1511-	●	●
10	PLUG; AIR TANK WHEEL BASE 4200MM(42W) (B) PT3/4	9-09204-526-0	04	1	1511-	●	●
10	PLUG; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) PT3/8	9-09204-517-0	01	1	1511-	●	●
28	BRACKET; AIR TANK (F)	8-98100-165-3	01	1	1511-	●	●
28	BRACKET; AIR TANK WHEEL BASE 4200MM(42W) (D)	8-98048-199-0	01	1	1511-	●	●
28	BRACKET; AIR TANK WHEEL BASE 4200MM(42W) (E)	8-98048-200-2	01	1	1511-	●	●
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A)	1-48317-324-2	02	1	1511-	●	●
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-98104-686-0	01	1	1511-	●	●
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-98104-686-0	02	1	1511-	●	●
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C)	8-98107-430-0	02	1	1511-	●	●
28	BRACKET; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (G)	8-98114-814-0	02	1	1511-	●	●
31	BOLT; BRKT TO FRAME WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) M8X16 FLANGE	0-28050-816-0	02	1	1511-	●	●
31	BOLT; BRKT TO FRAME WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) M10X25 FLANGE	0-28651-025-0	04	1	1511-	●	●
31	BOLT; BRKT TO FRAME WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M10X35 FLANGE	0-28651-035-0	02	1	1511-	●	●
32	NUT; BRKT TO FRAME M12 FLANGE	0-91180-112-0	04	1	1511-	●	●
37	BOLT; AIR TANK WHEEL BASE 4200MM(42W) M12X40 FLANGE	0-28651-240-0	06	1	1511-	●	●
37	BOLT; AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M12X40 FLANGE	0-28651-240-0	04	1	1511-	●	●
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
58	NUT; BAND,AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8	0-91110-508-0	08	1	1511-	●	●
58	NUT; BAND,AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8	0-91110-508-0	08	1	1511-	●	●
64	STAY; AIR TANK,MAIN WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W)	1-48317-907-0	01	1	1511-	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1511-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 4200MM(42W) (A) PT1/4 2WAY	1-09660-693-0	02	1	1511-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 4200MM(42W) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1511-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 4200MM(42W) (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1511-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 4200MM(42W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	1511-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 4200MM(42W) (G) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	1511-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 4200MM(42W) (H) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	03	1	1511-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 4200MM(42W) (I) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	04	1	1511-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1511-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1511-	●	●
126	CONNECTOR; ELBOW WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (D) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1511-	●	●
172	NUT; STAY,AIR TANK,MAIN WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
176	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1511-	●	●
176	ADAPTER (B) PT3/8	1-09664-210-0	01	1	1511-	●	●
176	ADAPTER WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1511-	●	●
213	BOLT; U AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=210	1-48317-458-1	02	1	1511-	●	●
213	BOLT; U AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=210	1-48317-458-1	02	1	1511-	●	●
213	BOLT; U AIR TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	8-98321-157-0	02	1	1511-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
