Isuzu WW
▶
TRUCKS
▶
FVR
▶
11717 - FVR AUST/NZ EURO5
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶

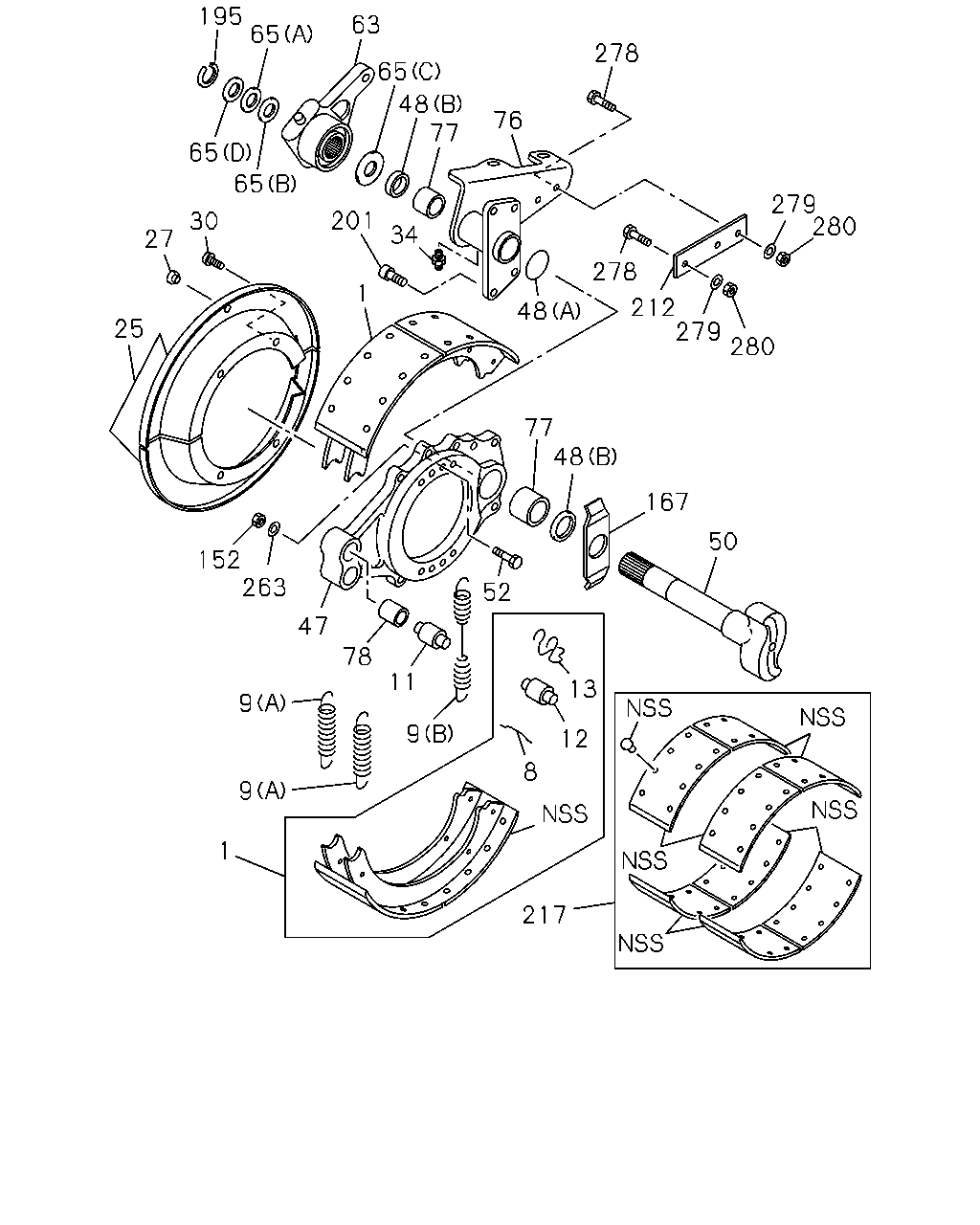

3-05 — REAR WHEEL BRAKE
(#169705) — 38 parça
Tümü
A - FGD5MV
B - FGR5MV
8
13
12
217
9
11
78
47
263
152
9
9
1
52
48
77
167
50
280
279
212
278
280
279
278
76
77
48
65
63
65
195
65
30
65
27
25
201
34
48
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SHOE; BRK,RR
1-47120-734-0
04
1
1511-
●
●
8
PIN; RETURN SPRING,RR BRK SHOE
1-47119-116-0
04
1
1511-
●
●
9
SPRING; RETURN,BRK SHOE
(A)
1-47119-114-0
04
1
1511-
●
●
9
SPRING; RETURN,BRK SHOE
(B)
1-47119-115-0
02
1
1511-
●
●
11
PIN; ANCHOR,RR WHEEL BRK
1-47131-040-0
04
1
1511-
●
●
12
ROLLER; CAM,BRK SHOE
1-47119-141-0
04
1
1511-
●
●
13
CLIP; ROLLER PIN,BRK SHOE
1-47119-118-0
04
1
1511-
●
●
25
COVER SET; RR BRK DRUM
1-47151-774-0
02
1
1511-
●
●
27
COVER; CHECK HOLE,DRUM COVER
1-87050-011-0
04
1
1511-
●
●
30
BOLT; DRUM COVER
1-47159-176-0
12
1
1511-
●
●
34
NIPPLE; GREASE,CHAMBER BRKT
1-48259-253-0
02
1
1511-
●
●
47
BRACKET; ANCHOR PIN,RR WHEEL BRK
1-47137-374-0
02
1
1511-
●
●
48
SEAL; OIL,CM/SHF,RR BRK
(A)
1-47149-056-0
02
1
1511-
●
●
48
SEAL; OIL,CM/SHF,RR BRK
(B)
1-47149-057-0
04
1
1511-
●
●
50
CAMSHAFT; BRK,RR BRK
1-47141-124-0
01
1
1511-
●
●
50
CAMSHAFT; BRK,RR BRK
1-47141-125-0
01
1
1511-
●
●
52
BOLT; ANCHOR BRKT
1-47139-122-0
16
1
1511-
●
●
63
ADJUSTER ASM; SLACK,RR BRK
1-48270-106-0
02
1
1511-
●
●
65
SPACER; SLACK ADJ,BRK
(A) T=0.06"
1-47139-121-0
02
1
1511-
●
●
65
SPACER; SLACK ADJ,BRK
(B)
1-47149-059-0
02
1
1511-
●
●
65
SPACER; SLACK ADJ,BRK
(D) T=0.03"
1-47149-060-0
02
1
1511-
●
●
65
SPACER; SLACK ADJ,BRK
(C)
1-47149-065-0
02
1
1511-
●
●
76
BRACKET; POWER CHAMBER,RR,W/BUSHING
1-47145-022-0
01
1
1511-
●
76
BRACKET; POWER CHAMBER,RR,W/BUSHING
1-47145-023-0
01
1
1511-
●
76
BRACKET; POWER CHAMBER,RR,W/BUSHING
1-47145-029-0
01
1
1511-
●
76
BRACKET; POWER CHAMBER,RR,W/BUSHING
1-47145-030-0
01
1
1511-
●
77
BUSHING
1-47146-012-0
04
1
1511-
●
●
78
BUSHING; BRKT
1-47139-117-0
04
1
1511-
●
●
152
NUT; ANCHOR BRKT
1-41229-169-0
16
1
1511-
●
●
167
WASHER; ADJ CAM
1-47149-077-0
02
1
1511-
●
●
195
RING; SNAP,CM/SHF
1-87050-005-0
02
1
1511-
●
●
201
BOLT; BRKT,POWER CHAMBER
1-47139-119-0
08
1
1511-
●
●
212
STAY
1-47149-081-0
02
1
1511-
●
●
217
LINING KIT; RR BRK
1-87050-157-0
01
1
1511-
●
●
263
WASHER; PL,ANCHOR BRKT
1-41519-038-0
16
1
1511-
●
●
278
BOLT; SUPPORT
1-41329-038-0
06
1
1511-
●
●
279
WASHER; SUPPORT
1-47149-083-0
06
1
1511-
●
●
280
NUT; SUPPORT
1-47149-082-0
06
1
1511-
●
●
