2-53 — TRANSMISSION OIL COOLER SYSTEM (#169700) — 43 parça

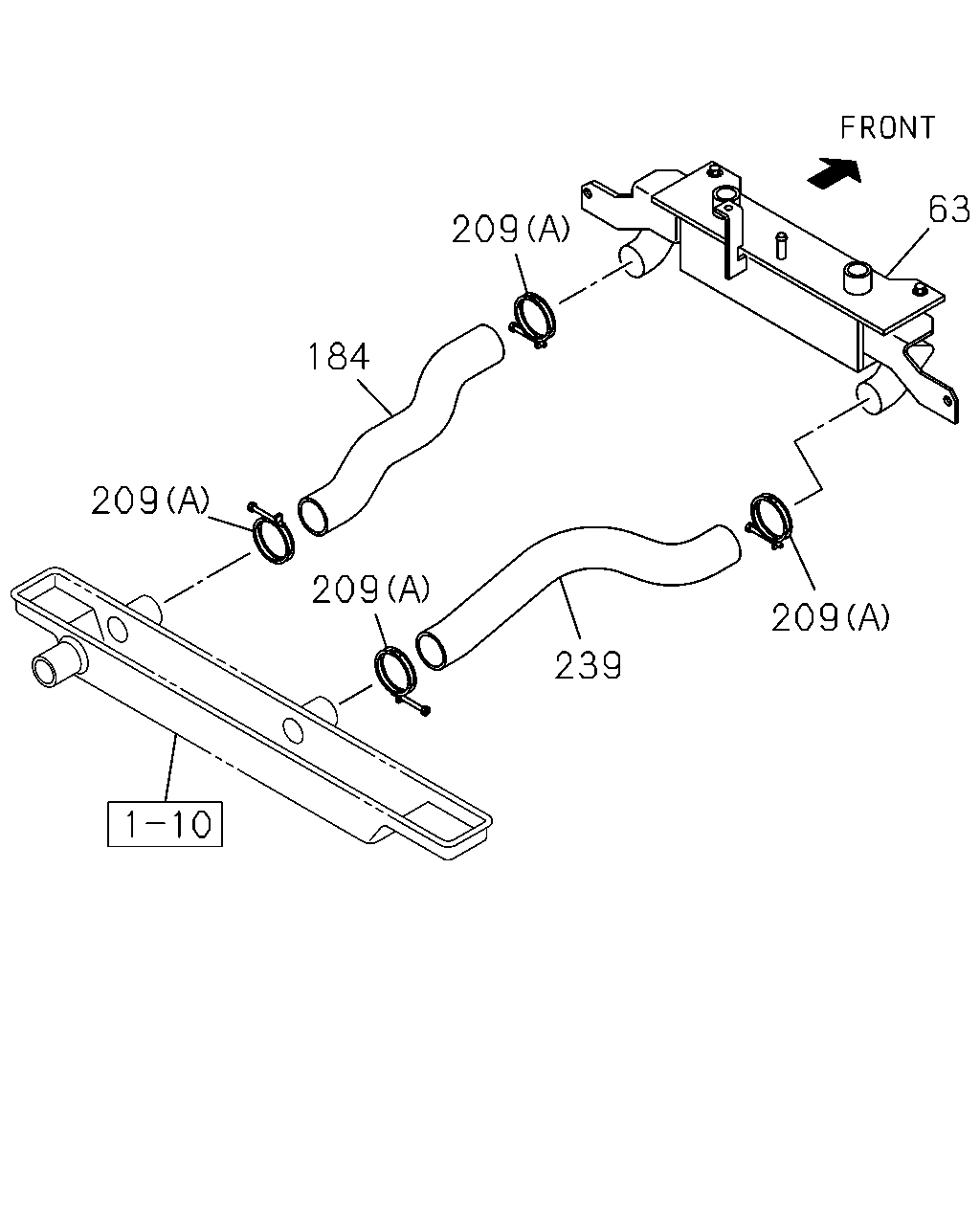

63 209 239 209 209 184 209

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
63	COOLER; OIL A/T<X9D> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98329-298-0	01	1	1511-	●	●
63	COOLER; OIL FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98329-299-0	01	1	1511-	●	●
184	HOSE; FLEX,PIPE TO COOLER 6HK1-TCC ENG(81L) ALLISON MD3060P A/T(Y4G)	8-98295-929-0	01	1	1511-	●	●
184	HOSE; FLEX,PIPE TO COOLER 6HK1-TCS ENG(80L) ALLISON MD3060P A/T(Y4G)	8-98025-696-1	01	1	1511-	●	●
209	CLIP; HOSE ALLISON MD3060P A/T(Y4G) (A) ID=26 L=26	1-09701-236-0	02	1	1511-	●	●
209	CLIP; HOSE EXC. MANUAL TRANSMISSION<X9C> (B) ID=63	1-09704-067-0	04	1	1511-	●	●
239	HOSE; FLEX,COOLER TO PIPE 6HK1-TCC ENG(81L) A/T<X9D>	8-98295-928-0	01	1	1511-	●	●
239	HOSE; FLEX,COOLER TO PIPE 6HK1-TCS ENG(80L) ALLISON MD3060P A/T(Y4G)	8-98025-697-1	01	1	1511-	●	●

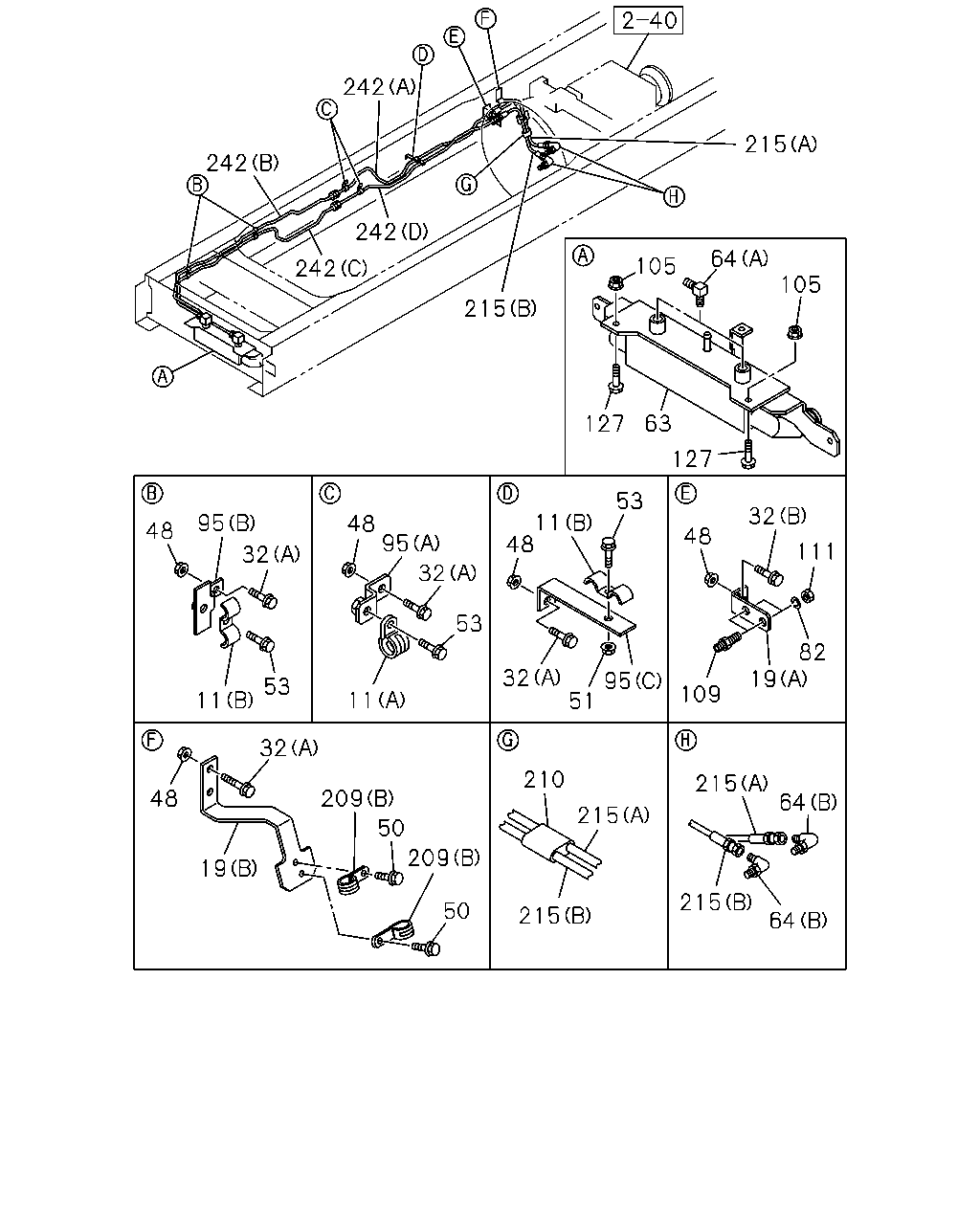

64 215 64 215 210 215 215 50 209 50 209 32 48 19 19 109 82 111 32 48 53 11 48 95 51 32 53 32 95 48 11 53 11 32 95 48 215 215 242 242 242 242 105 64 105 127 63 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	CLIP; PIPE ALLISON MD3060P A/T(Y4G) (A) ID=19 L=20	0-95235-836-0	02	1	1511-	●	●
11	CLIP; PIPE ALLISON MD3060P A/T(Y4G) (B) ID=19 & 19	1-09701-324-0	01	1	1511-	●	●
11	CLIP; PIPE ALLISON MD3060P A/T(Y4G) (B) ID=19 & 19	1-09701-324-0	02	1	1511-	●	●
19	BRACKET; FLEX HOSE ALLISON MD3060P A/T(Y4G) (A)	8-98097-570-0	01	1	1511-	●	●
19	BRACKET; FLEX HOSE ALLISON MD3060P A/T(Y4G) (B)	8-98144-397-0	01	1	1511-	●	●
32	BOLT; BRKT ALLISON MD3060P A/T(Y4G) (A) M8X30 FLANGE	0-28650-830-0	02	1	1511-	●	●
32	BOLT; BRKT ALLISON MD3060P A/T(Y4G) (A) M8X30 FLANGE	0-28650-830-0	05	1	1511-	●	●
32	BOLT; BRKT ALLISON MD3060P A/T(Y4G) (B) M8X35 FLANGE	0-28650-835-0	02	1	1511-	●	●
48	NUT; BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91180-108-0	04	1	1511-	●	●
48	NUT; BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91180-108-0	05	1	1511-	●	●
50	BOLT; CLIP ALLISON MD3060P A/T(Y4G) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
51	NUT; CLIP TO BRKT ALLISON MD3060P A/T(Y4G) M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
53	BOLT; CLIP,FLEX HOSE,A/T ALLISON MD3060P A/T(Y4G) M8X20 FLANGE	0-28650-820-0	05	1	1511-	●	●
63	COOLER; OIL A/T<X9D> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98329-298-0	01	1	1511-	●	●
63	COOLER; OIL FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D>	8-98329-299-0	01	1	1511-	●	●
64	CONNECTOR; OIL COOLER ALLISON MD3060P A/T(Y4G) (B)	8-98144-617-0	02	1	1511-	●	●
64	CONNECTOR; OIL COOLER ALLISON MD3060P A/T(Y4G) (A)	9-09903-722-0	02	1	1511-	●	●
82	WASHER; LK,UNION ALLISON MD3060P A/T(Y4G) ID=30.5	9-09150-530-0	02	1	1511-	●	●
95	BRACKET; CLIP ALLISON MD3060P A/T(Y4G) (A)	1-47479-255-0	02	1	1511-	●	●
95	BRACKET; CLIP ALLISON MD3060P A/T(Y4G) (B)	8-98089-351-0	02	1	1511-	●	●
95	BRACKET; CLIP ALLISON MD3060P A/T(Y4G) (C)	8-98269-434-0	01	1	1511-	●	●
105	NUT; OIL COOLER A/T<X9D> M8 FLANGE	0-91180-108-0	04	1	1511-	●	●
109	UNION ALLISON MD3060P A/T(Y4G) M30 & M30 STRAIGHT	1-09664-191-0	02	1	1511-	●	●
111	NUT; UNION ALLISON MD3060P A/T(Y4G) M30	9-09840-252-1	02	1	1511-	●	●
127	BOLT; COOLER A/T<X9D> EXC. FRONT UNDER RUN PROTECTOR<EBE> M8X30 FLANGE	0-28650-830-0	02	1	1511-	●	●
127	BOLT; COOLER FRONT UNDER RUN PROTECTOR<EBE> A/T<X9D> M8X30 FLANGE	0-28650-830-0	04	1	1511-	●	●
209	CLIP; HOSE ALLISON MD3060P A/T(Y4G) (A) ID=26 L=26	1-09701-236-0	02	1	1511-	●	●
209	CLIP; HOSE EXC. MANUAL TRANSMISSION<X9C> (B) ID=63	1-09704-067-0	04	1	1511-	●	●
210	BAND; FLEX HOSE ALLISON MD3060P A/T(Y4G) L=175	1-09707-178-0	01	1	1511-	●	●
215	HOSE; OIL COOLER ALLISON MD3060P A/T(Y4G) (A)	8-98144-618-0	01	1	1511-	●	●
215	HOSE; OIL COOLER ALLISON MD3060P A/T(Y4G) (B)	8-98144-619-0	01	1	1511-	●	●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (B)	8-98097-574-0	01	1	1511-	●	●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (C)	8-98113-105-0	01	1	1511-	●	●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (A)	8-98190-140-0	01	1	1511-	●	●
242	PIPE; COOLER ALLISON MD3060P A/T(Y4G) (D)	8-98190-142-0	01	1	1511-	●	●
