◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11717 - FVR AUST/NZ EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#169694) — 47 parça

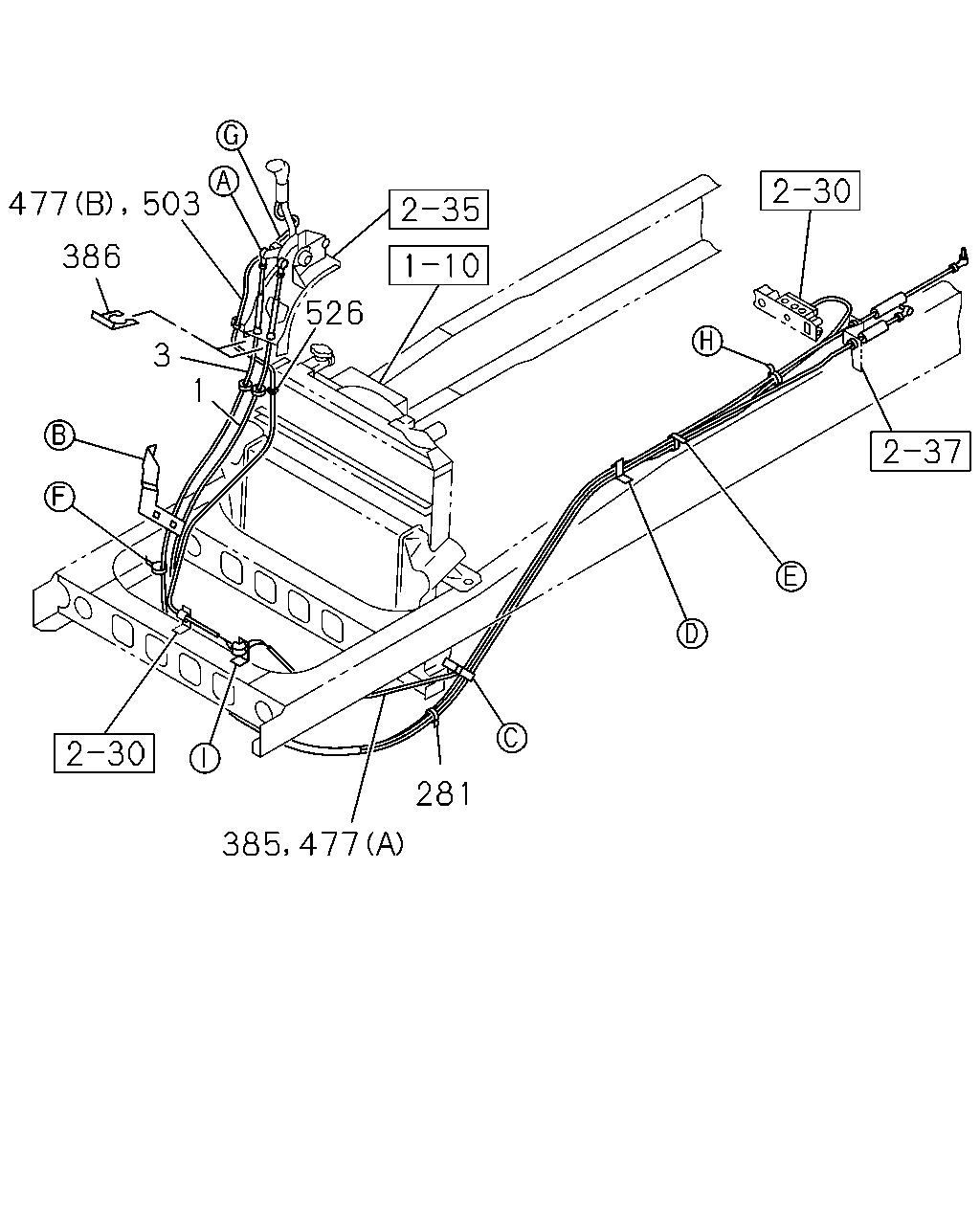

çizim 500878
477 503 386 3 1 526 385 477 281
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) L=3600 		8-98047-804-2 01 1 1511- ● ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ASSISTOR SHIFT CONTROL<WX8> L=3620 		8-98099-965-2 01 1 1511- ● ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) L=3680 		8-98047-818-1 01 1 1511- ● ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ASSISTOR SHIFT CONTROL<WX8> L=3700 		8-98099-967-1 01 1 1511- ● ●
281 CLIP; BAND
ASSISTOR SHIFT CONTROL<WX8> L=300 		1-09707-001-1 01 1 1511- ● ●
281 CLIP; BAND
6HK1-TCS ENG(80L) ASSISTOR SHIFT CONTROL<WX8> L=300 		1-09707-001-1 01 1 1511- ● ●
385 TUBE; NYLON
ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1511- ● ●
386 CLIP; CONT CABLE & TUBE
ASSISTOR SHIFT CONTROL<WX8> 		1-09700-966-1 02 1 1511- ● ●
477 TUBE; CORRUGATE
ASSISTOR SHIFT CONTROL<WX8> (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1511- ● ●
477 TUBE; CORRUGATE
ASSISTOR SHIFT CONTROL<WX8> (A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 1511- ● ●
503 TUBE; NYLON
ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 1511- ● ●
526 GROMMET
ASSISTOR SHIFT CONTROL<WX8> 		5-09333-062-0 01 1 1511- ● ●

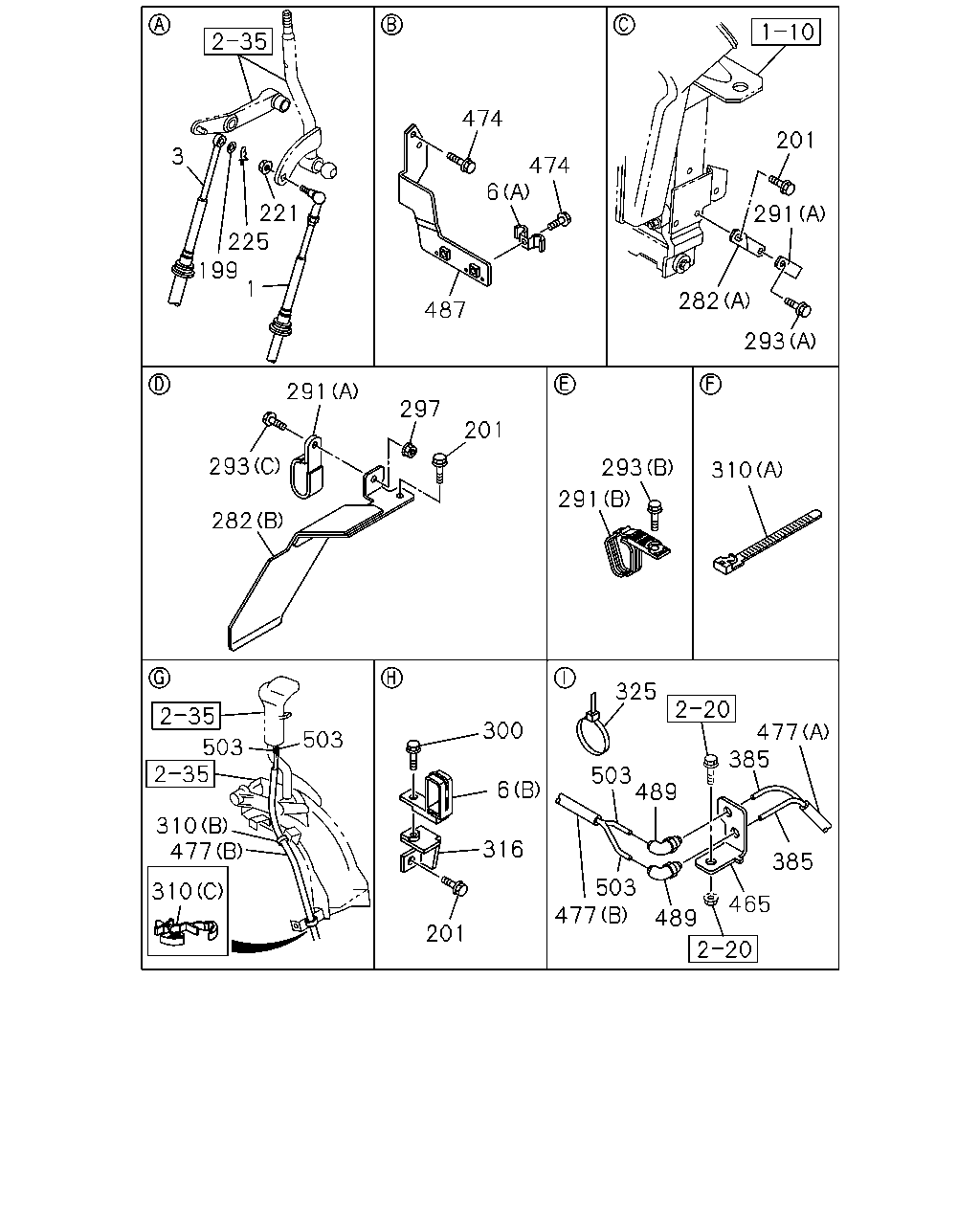

çizim 501147
3 199 225 221 1 474 6 474 487 201 291 282 293 310 293 291 201 297 291 293 282 503 503 310 477 310 300 6 316 201 325 503 489 385 477 385 465 489 503 477
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) L=3600 		8-98047-804-2 01 1 1511- ● ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCS ENG(80L) ASSISTOR SHIFT CONTROL<WX8> L=3620 		8-98099-965-2 01 1 1511- ● ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) L=3680 		8-98047-818-1 01 1 1511- ● ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCS ENG(80L) ASSISTOR SHIFT CONTROL<WX8> L=3700 		8-98099-967-1 01 1 1511- ● ●
6 CLIP; CABLE
ASSISTOR SHIFT CONTROL<WX8> (A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1511- ● ●
6 CLIP; CABLE
ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1511- ● ●
199 WASHER; PL,SELECT
ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=16 		0-91614-508-0 01 1 1511- ● ●
201 BOLT; BRKT
ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 02 1 1511- ● ●
201 BOLT; BRKT
ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28050-820-0 01 1 1511- ● ●
201 BOLT; BRKT
ASSISTOR SHIFT CONTROL<WX8> M12X35 FLANGE 		0-28151-235-0 01 1 1511- ● ●
221 NUT; SHIFT WIRE TO LEVER
ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		1-09440-062-1 01 1 1511- ● ●
225 PIN; SELECT CABLE
ASSISTOR SHIFT CONTROL<WX8> L=27.7 		8-94111-137-0 01 1 1511- ● ●
282 BRACKET; TRANS SIDE
ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98171-762-0 01 1 1511- ● ●
282 BRACKET; TRANS SIDE
6HK1-TCC ENG(81L) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98010-418-0 01 1 1511- ● ●
282 BRACKET; TRANS SIDE
6HK1-TCS ENG(80L) ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98098-265-2 01 1 1511- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
ASSISTOR SHIFT CONTROL<WX8> (A) ID=11X2 L=16 		0-95325-026-0 02 1 1511- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
ASSISTOR SHIFT CONTROL<WX8> (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1511- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
ASSISTOR SHIFT CONTROL<WX8> (A) M8X16 FLANGE 		0-28050-816-0 01 1 1511- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
ASSISTOR SHIFT CONTROL<WX8> (B) M8X20 FLANGE 		0-28050-820-0 01 1 1511- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
ASSISTOR SHIFT CONTROL<WX8> (C) M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ●
297 NUT; CLIP
ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
300 BOLT; CLIP
ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ●
310 CLIP; TUBE
ASSISTOR SHIFT CONTROL<WX8> (A) L=100 		5-09707-036-1 01 1 1511- ● ●
310 CLIP; TUBE
ASSISTOR SHIFT CONTROL<WX8> (B) ID=12 		8-94218-436-0 01 1 1511- ● ●
310 CLIP; TUBE
ASSISTOR SHIFT CONTROL<WX8> (C) ID=6 & 10-13 		8-97069-515-0 01 1 1511- ● ●
316 BRACKET; CLIP
ASSISTOR SHIFT CONTROL<WX8> 		8-98086-439-0 01 1 1511- ● ●
325 CLIP; NYLON TUBE
ZF9S1110 M/T(Y5E) L=350 		1-09707-183-0 01 1 1511- ● ●
385 TUBE; NYLON
ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=4000 OD=4 		1-87410-078-0 02 1 1511- ● ●
465 BRACKET; CONNECTOR
ASSISTOR SHIFT CONTROL<WX8> 		8-98141-474-0 01 1 1511- ● ●
474 BOLT; BRKT
ASSISTOR SHIFT CONTROL<WX8> M8X25 W/WASHER 		0-51640-825-0 03 1 1511- ● ●
477 TUBE; CORRUGATE
ASSISTOR SHIFT CONTROL<WX8> (B) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1511- ● ●
477 TUBE; CORRUGATE
ASSISTOR SHIFT CONTROL<WX8> (A) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 1511- ● ●
487 BRACKET; CONT CABLE
ZF9S1110 M/T(Y5E) 		8-98180-729-0 01 1 1511- ● ●
489 CONNECTOR
ASSISTOR SHIFT CONTROL<WX8> 		8-98085-747-0 02 1 1511- ● ●
503 TUBE; NYLON
ASSISTOR SHIFT CONTROL<WX8> SERVICED BY L=2000 OD=4 		1-87410-077-0 02 1 1511- ● ●
