Sayfa 2-20A - Isuzu EPC

2-20A — MANUAL TRANSMISSION ASM AND CASE (#169688) — 95 parça

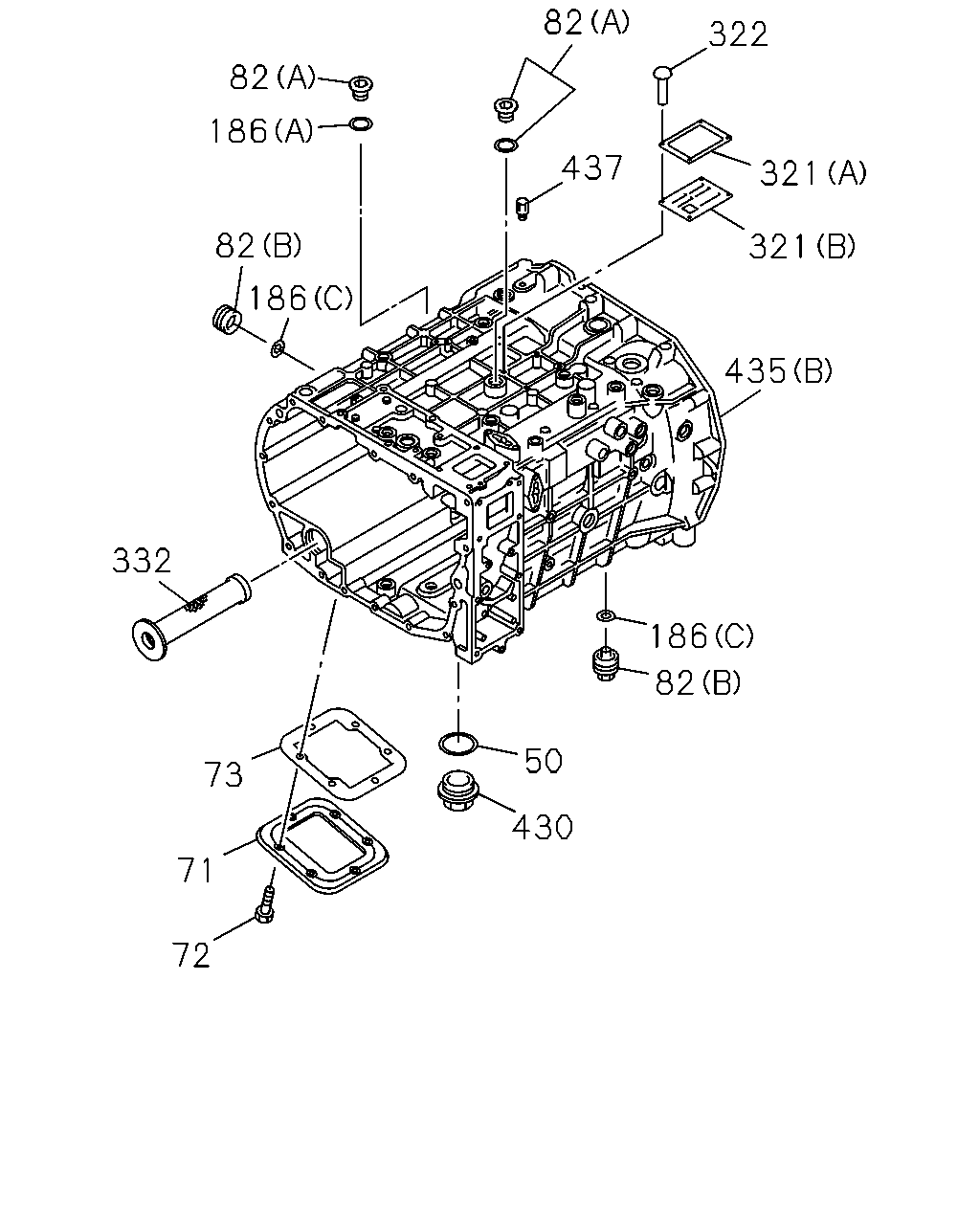

82 82 186 186 437 322 82 321 321 435 186 82 50 430 73 71 72 332

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	GASKET; DRAIN PLUG	1-33119-293-0	01	1	1511-
71	COVER; SIDE,TRANS CASE	1-33119-622-0	01	1	1511-
72	BOLT; SIDE COVER M10X22	1-33119-592-0	06	1	1511-
73	GASKET; SIDE COVER TO TRANS CASE	1-33119-237-0	01	1	1511-
82	PLUG; SCREW,CASE (C)	1-33119-618-0	02	1	1511-
82	PLUG; SCREW,CASE (A)	1-33119-619-0	01	1	1511-
82	PLUG; SCREW,CASE (B)	1-33119-620-0	02	1	1511-
186	RING; SEAL (A)	1-33119-249-0	01	1	1511-
186	RING; SEAL (B)	1-33119-286-0	02	1	1511-
186	RING; SEAL (C)	1-33119-435-0	02	1	1511-
321	PLATE; NAME (A)	1-33119-519-0	01	1	1511-
321	PLATE; NAME (B)	1-33119-520-0	01	1	1511-
322	RIVET; NAME PLATE	1-33119-617-0	04	1	1511-
332	FILTER; OIL	1-33119-437-0	01	1	1511-
430	PLUG; OIL DRAIN	1-33119-621-0	01	1	1511-
435	CASE; TRANS (B)	1-33111-371-0	01	1	1511-
435	CASE; TRANS (A)	1-33111-380-0	01	1	1511-
437	BREATHER; TRANS	1-36122-006-0	01	1	1511-

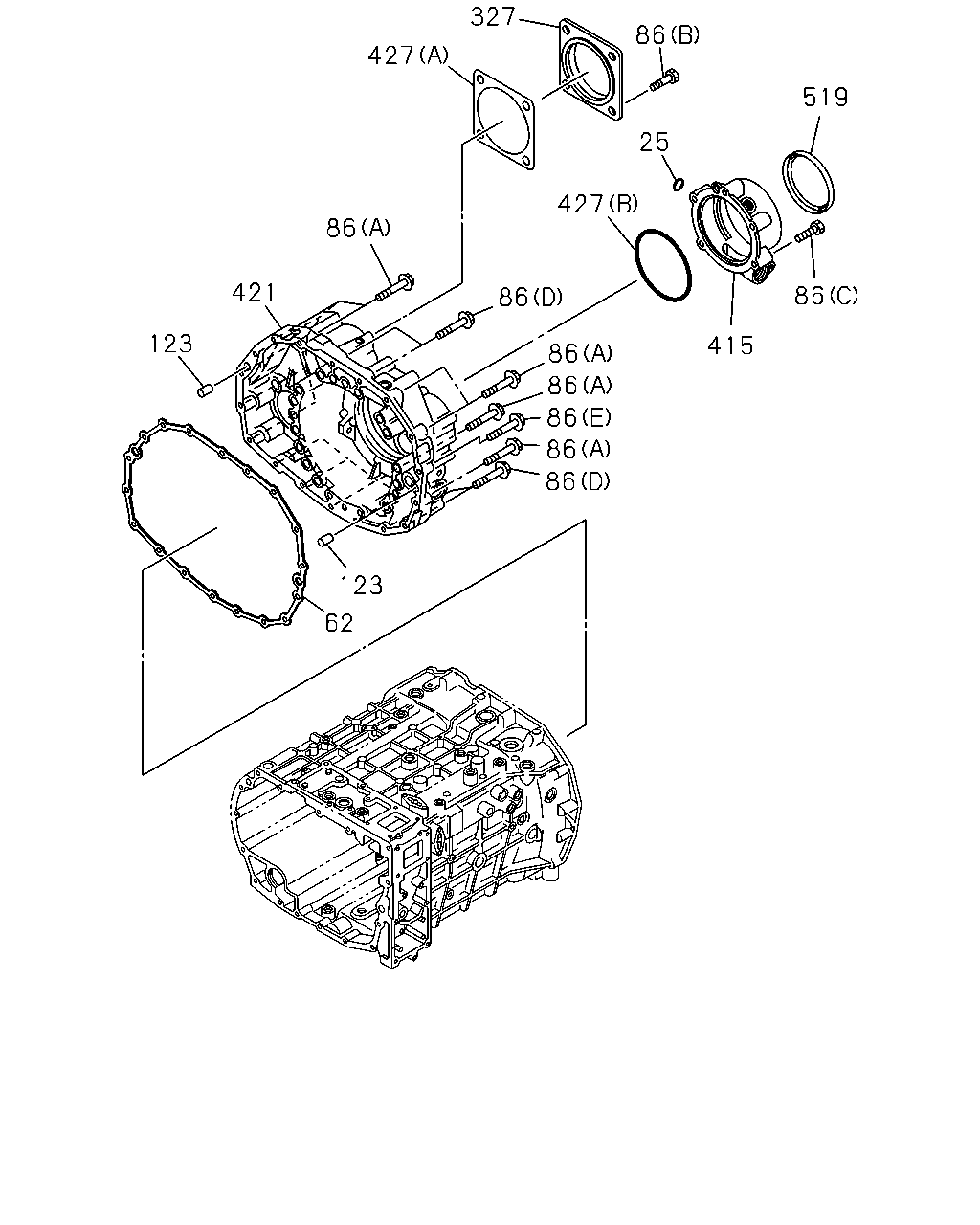

86 519 86 415 427 25 327 427 86 421 123 86 123 62 86 86 86 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	GASKET; COVER	1-33139-060-0	01	1	1511-
62	GASKET; RR COVER	1-33132-087-0	01	1	1511-
86	BOLT; RR COVER (A) M10X70	1-33119-616-0	12	1	1511-
86	BOLT; RR COVER (D) M10X110	1-33139-235-0	05	1	1511-
86	BOLT; RR COVER (E) M10X50	1-33139-236-0	01	1	1511-
86	BOLT; RR COVER (C) M10X60	1-33139-237-0	05	1	1511-
86	BOLT; RR COVER COUNTRY NEW ZEALAND(CX6) EXC. PTO ZF TRANS RR(BDM) (B) M12X25	1-33119-594-0	04	1	1511-
123	DOWEL; TRANS CASE	1-33119-292-0	04	1	1511-
327	COVER; RR,COUNTER COUNTRY NEW ZEALAND(CX6) EXC. PTO ZF TRANS RR(BDM)	1-33131-273-0	01	1	1511-
415	COVER; BRG	1-33131-269-0	01	1	1511-
421	COVER; RR,TRANS	1-33131-275-0	01	1	1511-
427	GASKET; RR COVER (B)	1-33132-088-0	01	1	1511-
427	GASKET; RR COVER COUNTRY NEW ZEALAND(CX6) EXC. PTO ZF TRANS RR(BDM) (A)	1-33132-054-0	01	1	1511-
519	GASKET; SHAFT	1-33139-059-0	01	1	1511-

468 329 477 478 245 82 186 314 435 315 33 113 28 463 29 330 413 27 24 36 36 37 343 412 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; CLU	1-31111-183-0	01	1	1511-
24	COVER; CHECK HOLE,DUST	1-31119-059-0	01	1	1511-
27	BOLT; COVER TO CLU HSG	1-31119-058-0	04	1	1511-
28	COVER; FRT,TRANS CASE	1-33121-166-0	01	1	1511-
29	BOLT; FRT COVER M8X30	1-33549-581-0	06	1	1511-
33	SEAL; OIL,FRT COVER,T/M	1-33219-321-0	01	1	1511-
36	BEARING; NEEDLE,CLU HSG	1-09811-396-0	04	1	1511-
37	SEAL; DUST,CLU HSG	1-09625-002-0	02	1	1511-
82	PLUG; SCREW,CASE (C)	1-33119-618-0	02	1	1511-
82	PLUG; SCREW,CASE (A)	1-33119-619-0	01	1	1511-
82	PLUG; SCREW,CASE (B)	1-33119-620-0	02	1	1511-
113	GASKET; FRT COVER TO TRANS CASE	1-33122-024-0	01	1	1511-
186	RING; SEAL (A)	1-33119-249-0	01	1	1511-
186	RING; SEAL (B)	1-33119-286-0	02	1	1511-
186	RING; SEAL (C)	1-33119-435-0	02	1	1511-
245	PIPE; OIL	1-33119-517-0	01	1	1511-
314	GASKET; CASE	1-33112-052-0	01	1	1511-
315	BOLT; CASE M10X70	1-33119-616-0	17	1	1511-
329	PUMP ASM; OIL	1-34150-123-0	01	1	1511-
330	RING; RET	1-33129-005-0	01	1	1511-
343	BOLT; CLU HSG TO PLATE M10X75 FLANGE	8-94399-669-1	01	1	1511-
412	CAP; CLU HSG	1-31119-026-0	01	1	1511-
413	BALL; CLU HSG	1-31119-014-0	04	1	1511-
435	CASE; TRANS (B)	1-33111-371-0	01	1	1511-
435	CASE; TRANS (A)	1-33111-380-0	01	1	1511-
463	COVER; DUST,FRT COVER	1-33129-018-0	01	1	1511-
468	GASKET; OIL PUMP	1-34159-122-0	01	1	1511-
477	BOLT; OIL PUMP M8X30	1-33549-581-0	08	1	1511-
478	WASHER; LK,OIL PUMP	1-33549-583-0	08	1	1511-

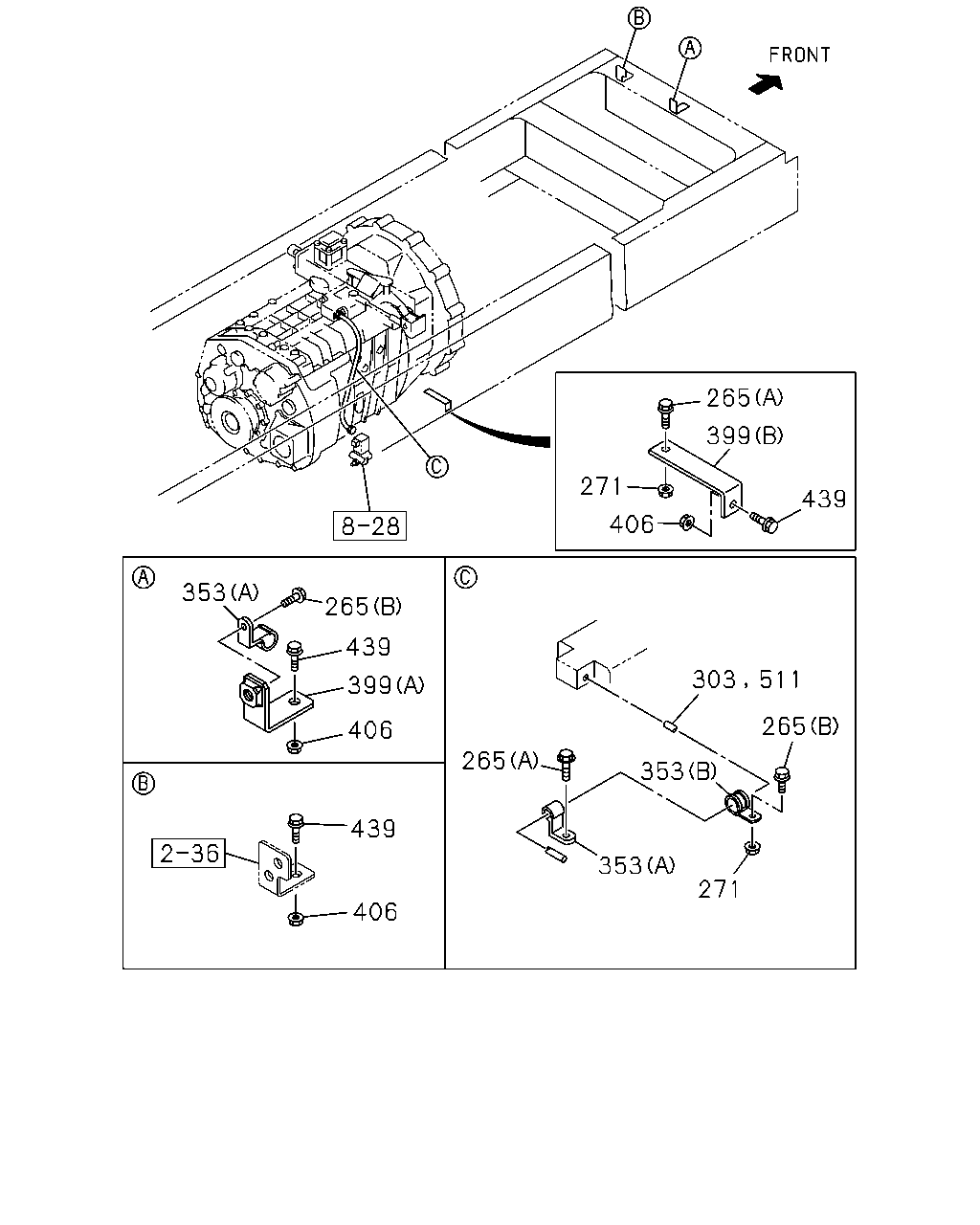

265 399 439 271 406 303 511 265 353 265 353 271 406 439 406 399 439 265 353

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	01	1	1511-
265	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1511-
265	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	1511-
265	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1511-
271	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1511-
303	TUBE; NYLON CATALYSIS CONTROL WITH DPD<8JM> SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1511-
303	TUBE; NYLON WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1511-
303	TUBE; NYLON CATALYSIS CONTROL<6MZ> SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	1511-
303	TUBE; NYLON WHEEL BASE 4200MM(42W) SERVICED BY L=2000 OD=8	1-87411-006-0	03	1	1511-
303	TUBE; NYLON WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1511-
353	CLIP; NYLON TUBE (A) ID=11 L=20	0-95235-035-0	03	1	1511-
353	CLIP; NYLON TUBE (A) ID=11 L=20	0-95235-035-0	01	1	1511-
353	CLIP; NYLON TUBE (B) ID=18 L=28	1-09701-067-0	01	1	1511-
353	CLIP; NYLON TUBE (B) ID=18 L=28	1-09701-067-0	02	1	1511-
399	BRACKET; CLIP (A)	8-98085-674-0	01	1	1511-
399	BRACKET; CLIP CATALYSIS CONTROL WITH DPD<8JM> (B)	1-47479-598-0	01	1	1511-
399	BRACKET; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B)	1-47479-598-0	01	1	1511-
399	BRACKET; CLIP CATALYSIS CONTROL<6MZ> (B)	1-47479-598-0	02	1	1511-
399	BRACKET; CLIP WHEEL BASE 4200MM(42W) (B)	1-47479-598-0	02	1	1511-
406	NUT; BRKT CATALYSIS CONTROL WITH DPD<8JM> M8 FLANGE	0-91180-108-0	01	1	1511-
406	NUT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	01	1	1511-
406	NUT; BRKT WHEEL BASE 4200MM(42W) M8 FLANGE	0-91180-108-0	02	1	1511-
406	NUT; BRKT CATALYSIS CONTROL<6MZ> M8 FLANGE	0-91180-108-0	02	1	1511-
406	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1511-
439	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1511-
439	BOLT; BRKT CATALYSIS CONTROL WITH DPD<8JM> M8X30 FLANGE	0-28650-830-0	01	1	1511-
439	BOLT; BRKT WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X30 FLANGE	0-28650-830-0	01	1	1511-
439	BOLT; BRKT CATALYSIS CONTROL<6MZ> M8X30 FLANGE	0-28650-830-0	02	1	1511-
439	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X30 FLANGE	0-28650-830-0	02	1	1511-
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1511-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TRANSMISSION ASM; MANUAL COUNTRY NEW ZEALAND(CX6) EXC. PTO ZF TRANS RR(BDM)	1-33043-933-1	01	1	1511-
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) COUNTRY NEW ZEALAND(CX6)	1-33044-084-1	01	1	1511-
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) EXC. COUNTRY NEW ZEALAND(CX6)	8-98235-393-1	01	1	1511-
1	TRANSMISSION ASM; MANUAL EXC. PTO ZF TRANS RR(BDM),COUNTRY NEW ZEALAND(CX6)	8-98235-392-1	01	1	1511-
