2-05 — CLUTCH PIPING (#169685) — 41 parça

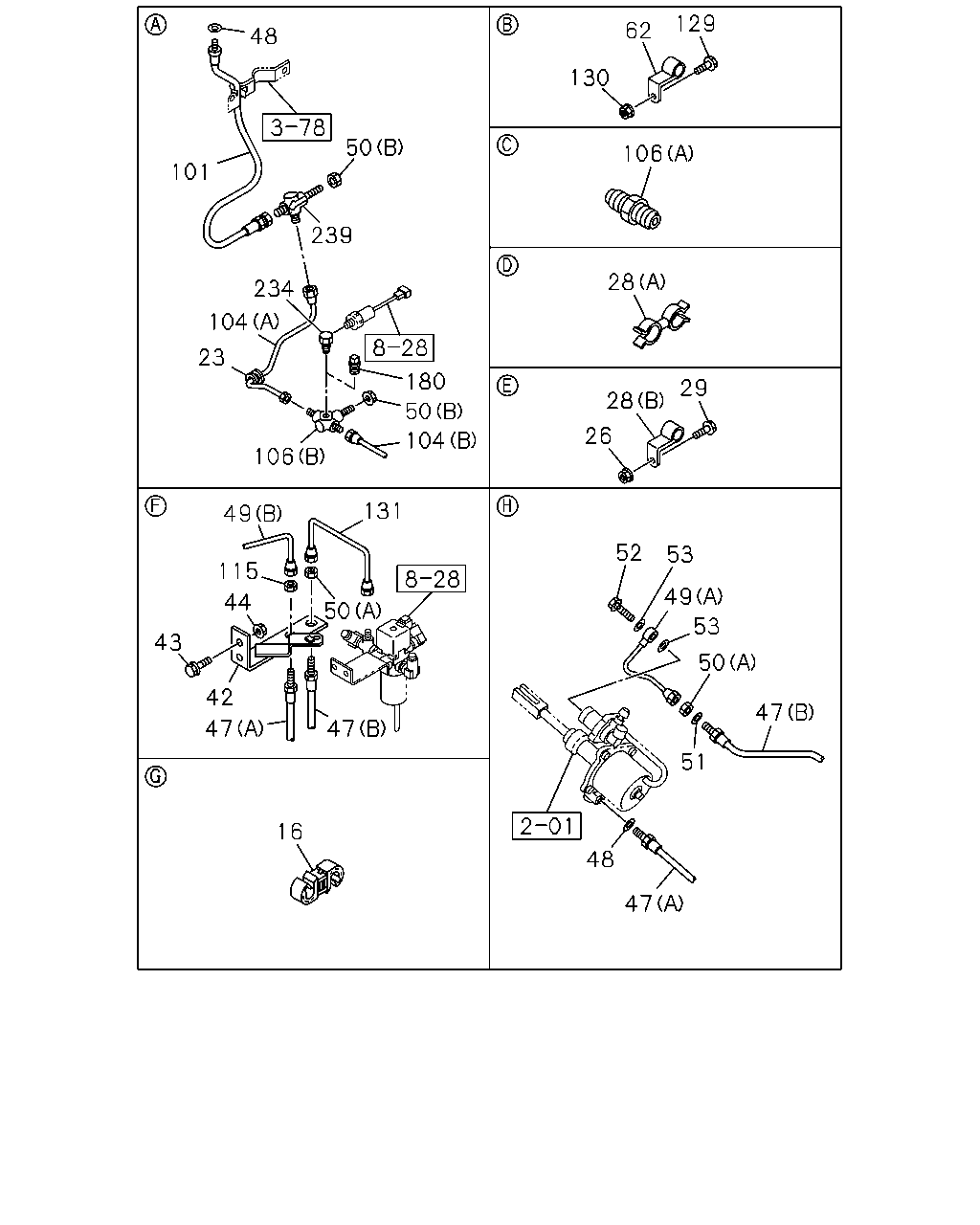

çizim 500551
16 47 48 51 47 50 53 49 53 52 131 49 115 44 50 47 47 42 43 26 28 29 28 106 129 62 130 104 50 180 106 23 104 234 239 50 101 48
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> ID=10 & 12 		1-09709-278-1 01 1 1511- ● ●
23 GROMMET; CLU PIPE
ZF9S1110 M/T(Y5E) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1511- ● ●
26 NUT; CLIP,OIL PIPE
ZF9S1110 M/T(Y5E) M8 FLANGE 		0-91180-108-0 03 1 1511- ● ●
28 CLIP; OIL PIPE
ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20 		1-09700-604-0 03 1 1511- ● ●
28 CLIP; OIL PIPE
ZF9S1110 M/T(Y5E) (A) ID=8.3 & 10 		8-94176-792-0 01 1 1511- ● ●
29 BOLT; CLIP,OIL PIPE
ZF9S1110 M/T(Y5E) M8X30 FLANGE 		0-28650-830-0 03 1 1511- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> 		8-98099-521-1 01 1 1511- ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
ASSISTOR SHIFT CONTROL<WX8> M8X30 FLANGE 		0-28650-830-0 02 1 1511- ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> (B) L=500 		1-09363-720-0 01 1 1511- ● ●
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> (A) L=500 		1-09364-329-0 01 1 1511- ● ●
48 GASKET; FLEX HOSE,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> ID=10.2 OD=16.0 		9-09571-410-0 01 1 1511- ● ●
48 GASKET; FLEX HOSE,CLU CONT
ZF9S1110 M/T(Y5E) ID=10.2 OD=16.0 		9-09571-410-0 01 1 1511- ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
ZF9S1110 M/T(Y5E) (B) L=2150 SERVICED BY L=2150 		1-47428-770-0 01 1 1511- ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
ZF9S1110 M/T(Y5E) (A) L=232 		1-49124-795-0 01 1 1511- ● ●
50 NUT; UNION
ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 02 1 1511- ● ●
50 NUT; UNION
ZF9S1110 M/T(Y5E) (B) M12 		0-91111-512-0 01 1 1511- ● ●
51 WASHER; LK
ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-812-0 01 1 1511- ● ●
52 BOLT; EYE,AIR PIPE
ZF9S1110 M/T(Y5E) M14X27 FLANGE 		1-09675-086-0 01 1 1511- ● ●
53 GASKET; JOINT BOLT
ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1511- ● ●
62 CLIP; CLU PIPE
ZF9S1110 M/T(Y5E) ID=8 H=20 L=20 		1-09700-604-0 03 1 1511- ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
ZF9S1110 M/T(Y5E) L=500 		8-98072-350-0 01 1 1511- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
ZF9S1110 M/T(Y5E) (A) L=533 SERVICED BY L=550 		1-47428-753-0 01 1 1511- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
ZF9S1110 M/T(Y5E) (B) L=1413 SERVICED BY L=1550 		1-47428-766-0 01 1 1511- ● ●
106 UNION; OIL PIPE
ZF9S1110 M/T(Y5E) (A) M14 STRAIGHT 		0-92113-008-0 01 1 1511- ● ●
106 UNION; OIL PIPE
ZF9S1110 M/T(Y5E) (B) M12 & M14 & PT1/4 3WAY 		1-09656-286-2 01 1 1511- ● ●
115 NUT; FLEX HOSE,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> M14 		0-91111-514-0 01 1 1511- ● ●
129 BOLT; PIPE CLIP
ZF9S1110 M/T(Y5E) M8X25 FLANGE 		0-28650-825-0 02 1 1511- ● ●
129 BOLT; PIPE CLIP
ZF9S1110 M/T(Y5E) M8X30 FLANGE 		0-28650-830-0 01 1 1511- ● ●
130 NUT; PIPE CLIP
ZF9S1110 M/T(Y5E) M8 FLANGE 		0-91180-108-0 03 1 1511- ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> CATALYSIS CONTROL<6MZ> L=244 		8-98092-621-0 01 1 1511- ● ●
180 PLUG; PIPE
ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> PT1/4 		9-99204-513-0 01 1 1511- ● ●
234 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> 		1-09660-012-0 01 1 1511- ● ●
239 UNION; CLU HOSE
ZF9S1110 M/T(Y5E) 		8-98107-850-0 01 1 1511- ● ●

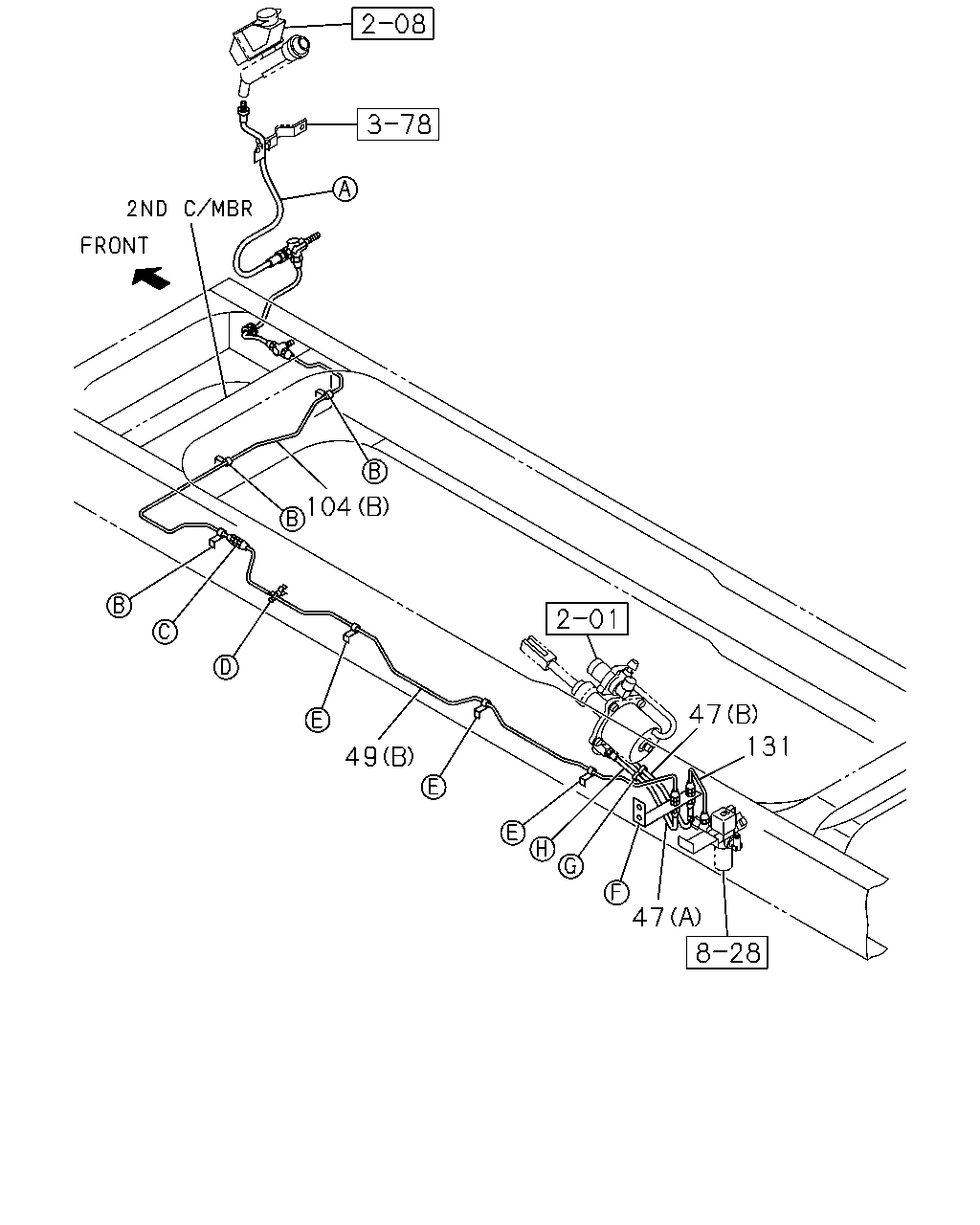

çizim 500600
104 49 47 131 47
BalonParca AdiParca NoAdetTipApplied Date A B
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> (B) L=500 		1-09363-720-0 01 1 1511- ● ●
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> (A) L=500 		1-09364-329-0 01 1 1511- ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
ZF9S1110 M/T(Y5E) (B) L=2150 SERVICED BY L=2150 		1-47428-770-0 01 1 1511- ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
ZF9S1110 M/T(Y5E) (A) L=232 		1-49124-795-0 01 1 1511- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
ZF9S1110 M/T(Y5E) (A) L=533 SERVICED BY L=550 		1-47428-753-0 01 1 1511- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
ZF9S1110 M/T(Y5E) (B) L=1413 SERVICED BY L=1550 		1-47428-766-0 01 1 1511- ● ●
131 PIPE; AIR,UNION TO FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> CATALYSIS CONTROL<6MZ> L=244 		8-98092-621-0 01 1 1511- ● ●
