◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11717 - FVR AUST/NZ EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#169682) — 59 parça

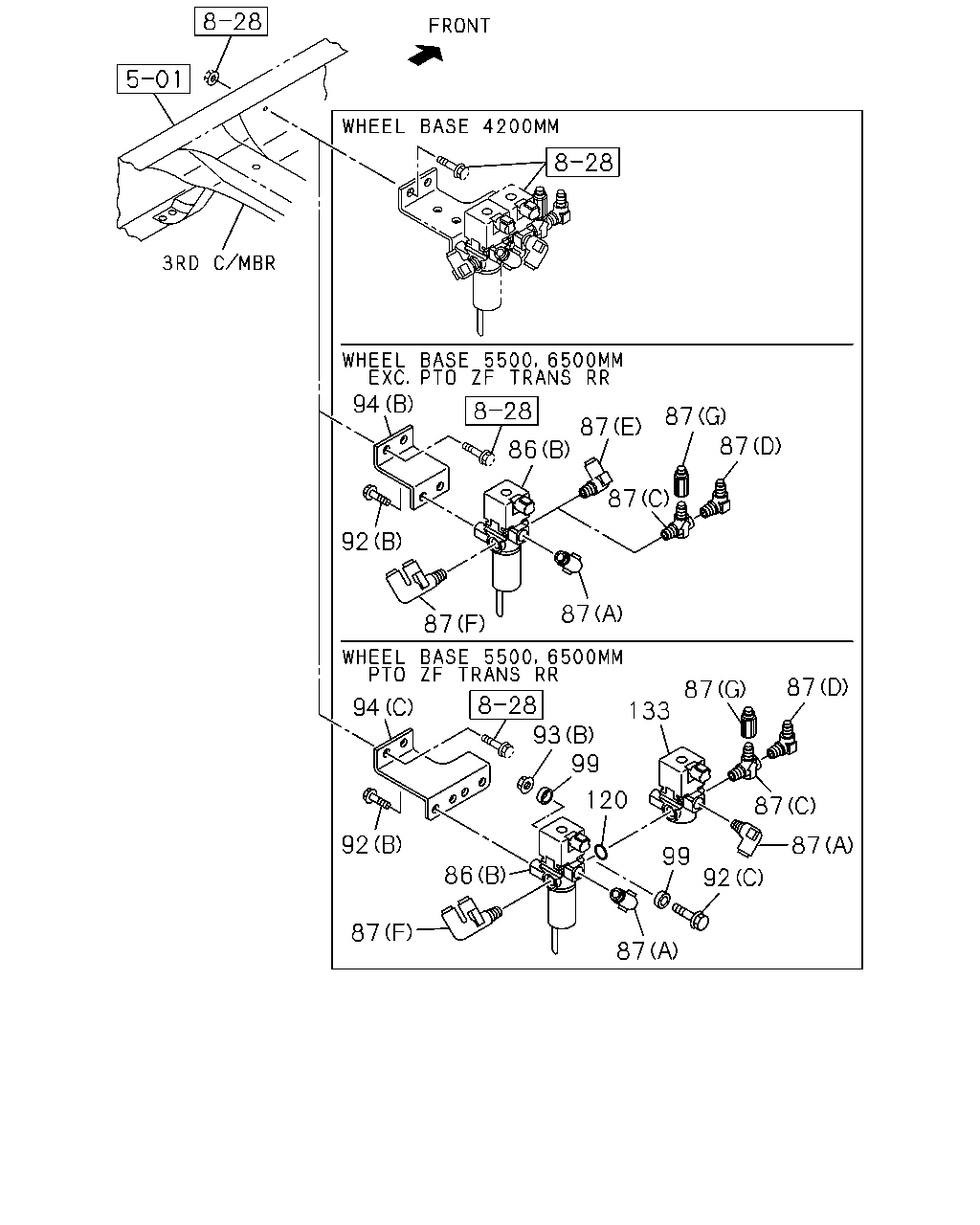

çizim 500760
94 86 87 87 87 87 87 87 92 94 93 99 120 133 87 87 87 87 92 99 86 92 87 87
BalonParca AdiParca NoAdetTipApplied Date A B
86 VALVE; MAG,EXH BRK
(A) 		1-82563-871-2 01 1 1511- ● ●
86 VALVE; MAG,EXH BRK
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97633-075-0 01 1 1511- ●
87 CONNECTOR
WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1511- ● ●
87 CONNECTOR
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1511- ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1511- ● ●
87 CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1511- ● ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1511- ●
87 CONNECTOR
WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1511- ● ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1511- ●
87 CONNECTOR
WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1511- ● ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1511- ● ●
87 CONNECTOR
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (C) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1511- ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1511- ● ●
87 CONNECTOR
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1511- ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (F) DIN13X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1511- ●
87 CONNECTOR
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (G) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1511- ●
92 BOLT; MAG VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1511- ● ●
92 BOLT; MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (B) M8X20 FLANGE 		0-28650-820-0 02 1 1511- ●
92 BOLT; MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM> (C) M6X50 FLANGE 		0-28050-650-0 01 1 1511- ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
93 NUT; MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM> (B) M6 FLANGE 		0-91180-106-0 01 1 1511- ●
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98057-863-0 01 1 1511- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98154-633-0 01 1 1511- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98154-633-0 01 1 1511- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO ZF TRANS RR(BDM) (B) 		8-98154-633-0 01 1 1511- ●
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98101-296-0 01 1 1511- ●
99 WASHER; MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM> 		1-82569-266-0 02 1 1511- ●
120 GASKET; MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM> ID=16.8 		9-09565-117-0 01 1 1511- ●
133 VALVE; MAG,PTO CONT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM> 		1-82563-871-2 01 1 1511- ●

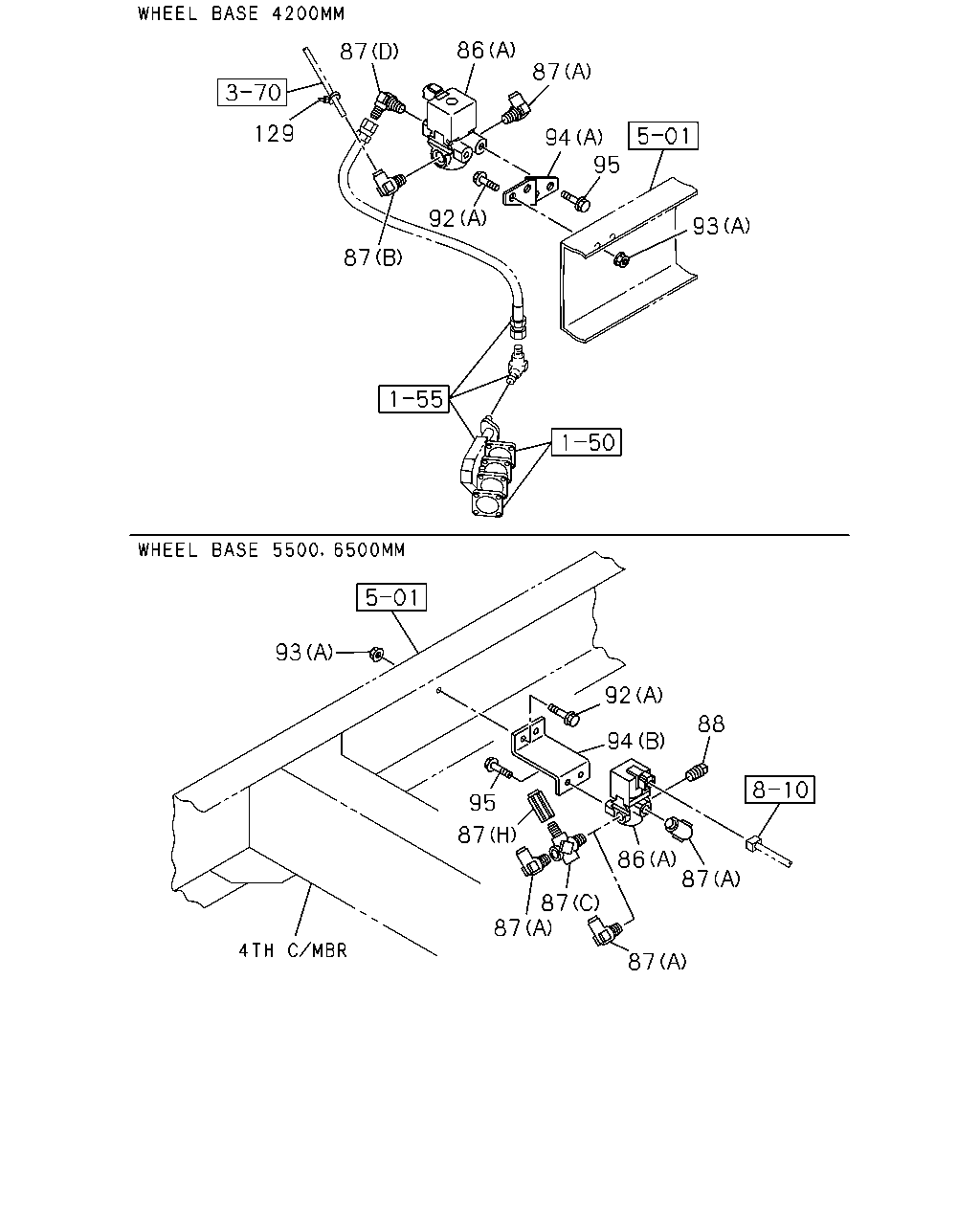

çizim 500763
87 86 87 94 95 93 92 87 129 93 92 94 88 86 87 87 87 87 87 95
BalonParca AdiParca NoAdetTipApplied Date A B
86 VALVE; MAG,EXH BRK
(A) 		1-82563-871-2 01 1 1511- ● ●
86 VALVE; MAG,EXH BRK
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97633-075-0 01 1 1511- ●
87 CONNECTOR
WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1511- ● ●
87 CONNECTOR
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (D) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1511- ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1511- ● ●
87 CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1511- ● ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1511- ●
87 CONNECTOR
WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1511- ● ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1511- ●
87 CONNECTOR
WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1511- ● ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1511- ● ●
87 CONNECTOR
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (C) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1511- ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1511- ● ●
87 CONNECTOR
ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (E) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1511- ●
87 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (F) DIN13X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1511- ●
87 CONNECTOR
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (G) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1511- ●
88 PLUG
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PT1/4 		9-99204-513-0 01 1 1511- ● ●
88 PLUG
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PT1/4 		9-99204-513-0 01 1 1511- ● ●
92 BOLT; MAG VLV
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1511- ● ●
92 BOLT; MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (B) M8X20 FLANGE 		0-28650-820-0 02 1 1511- ●
92 BOLT; MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM> (C) M6X50 FLANGE 		0-28050-650-0 01 1 1511- ●
93 NUT; MAG VLV
(A) M8 FLANGE 		0-91180-108-0 02 1 1511- ● ●
93 NUT; MAG VLV
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM> (B) M6 FLANGE 		0-91180-106-0 01 1 1511- ●
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98057-863-0 01 1 1511- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98154-633-0 01 1 1511- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98154-633-0 01 1 1511- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO ZF TRANS RR(BDM) (B) 		8-98154-633-0 01 1 1511- ●
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) PTO ZF TRANS RR(BDM) CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98101-296-0 01 1 1511- ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 1511- ● ●
129 CLIP; BAND
WHEEL BASE 4200MM(42W) L=350 		1-09707-183-0 01 1 1511- ● ●
