◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11717 - FVR AUST/NZ EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-55 - EXHAUST BRAKE VALVE AND CONTROL CYLINDER ▶
1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#169681) — 28 parça

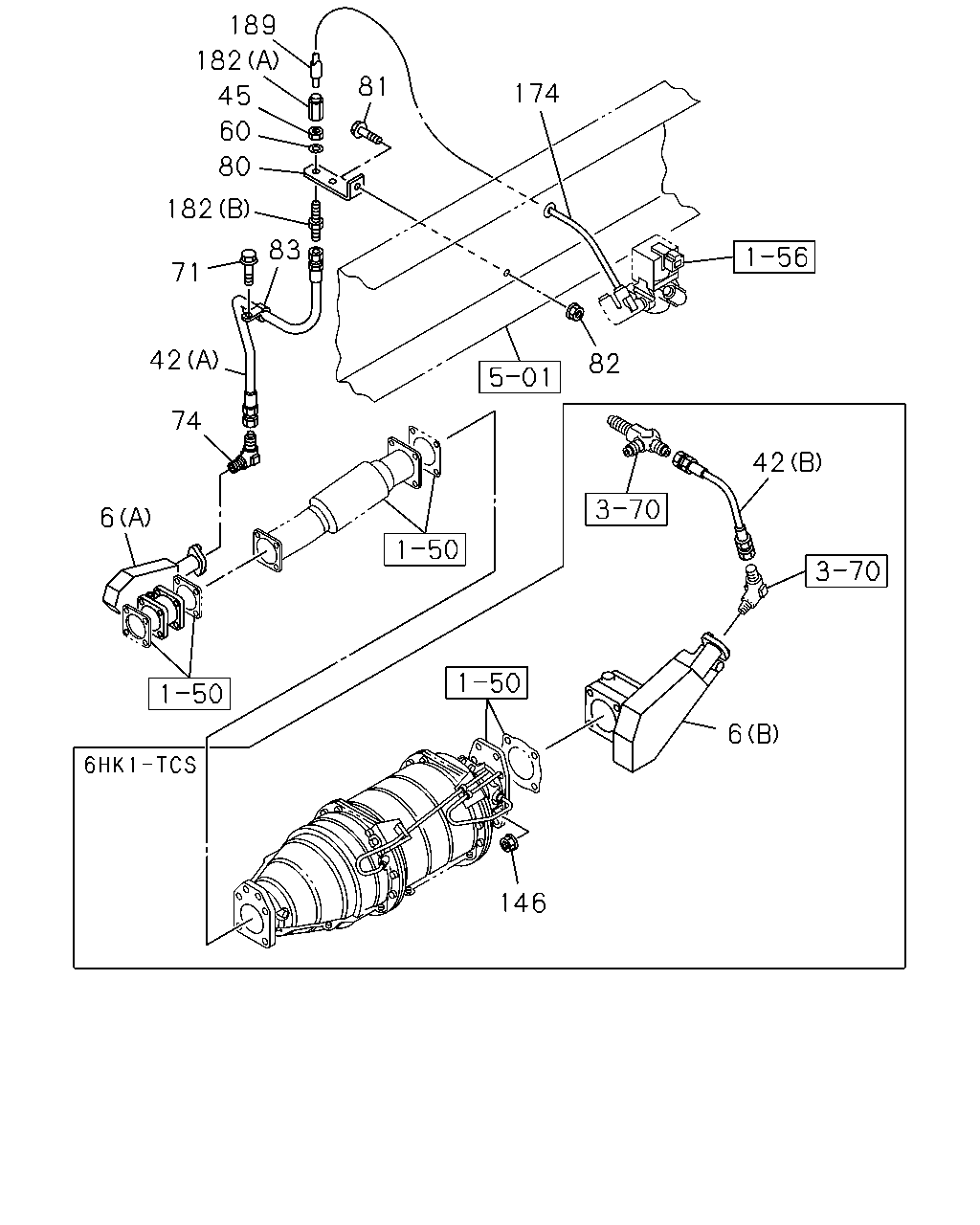

çizim 500783
174 82 42 6 146 6 74 42 71 83 182 80 60 45 182 189 81
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE
(A) 		8-98233-801-0 01 1 1511- ● ●
6 VALVE; EXH BRAKE
(B) 		8-98116-162-4 01 1 1511- ●
42 HOSE; FLEX,EXH BRK
(B) L=280 		1-09363-672-0 01 1 1511- ●
42 HOSE; FLEX,EXH BRK
WHEEL BASE 4200MM(42W) (A) L=370 		1-09363-771-0 01 1 1511- ● ●
42 HOSE; FLEX,EXH BRK
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=600 		8-98107-431-0 01 1 1511- ● ●
45 NUT; FLEX HOSE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M12 		9-09840-280-0 01 1 1511- ● ●
60 WASHER; PL
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=12.2 		0-91510-512-0 01 1 1511- ● ●
71 BOLT; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X25 FLANGE 		0-28650-825-0 01 1 1511- ● ●
74 CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1511- ● ●
80 BRACKET; FLEX HOSE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) 		8-98100-228-0 01 1 1511- ● ●
81 BOLT; HOSE BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8X30 FLANGE 		0-28650-830-0 01 1 1511- ● ●
82 NUT; HOSE BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) M8 FLANGE 		0-91180-108-0 01 1 1511- ● ●
83 CLIP; FLEX HOSE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) ID=13 		1-09701-030-1 01 1 1511- ● ●
146 NUT; EXH BRK VLV
M10 FLANGE 		0-91180-210-0 04 1 1511- ●
174 TUBE; NYLON
WHEEL BASE 4200MM(42W) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 1511- ● ●
174 TUBE; NYLON
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1511- ● ●
182 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M12 L=56.5 		0-92113-106-0 01 1 1511- ● ●
182 CONNECTOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1511- ● ●
189 TUBE; CORRUGATE
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1511- ● ●

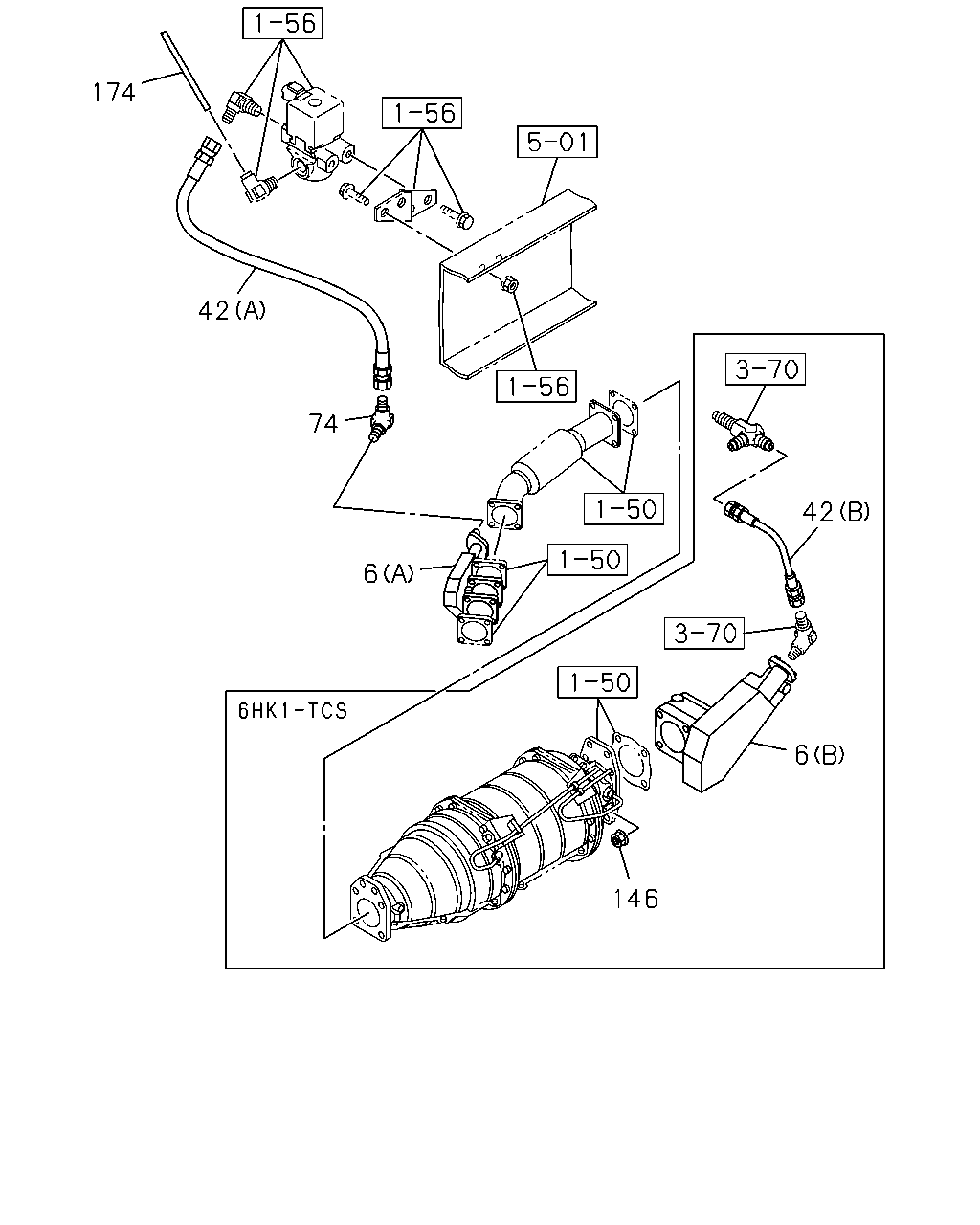

çizim 501655
174 42 74 6 42 6 146
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE
(A) 		8-98233-801-0 01 1 1511- ● ●
6 VALVE; EXH BRAKE
(B) 		8-98116-162-4 01 1 1511- ●
42 HOSE; FLEX,EXH BRK
(B) L=280 		1-09363-672-0 01 1 1511- ●
42 HOSE; FLEX,EXH BRK
WHEEL BASE 4200MM(42W) (A) L=370 		1-09363-771-0 01 1 1511- ● ●
42 HOSE; FLEX,EXH BRK
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=600 		8-98107-431-0 01 1 1511- ● ●
74 CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1511- ● ●
146 NUT; EXH BRK VLV
M10 FLANGE 		0-91180-210-0 04 1 1511- ●
174 TUBE; NYLON
WHEEL BASE 4200MM(42W) SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 1511- ● ●
174 TUBE; NYLON
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1511- ● ●
