◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11717 - FVR AUST/NZ EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#169680) — 343 parça

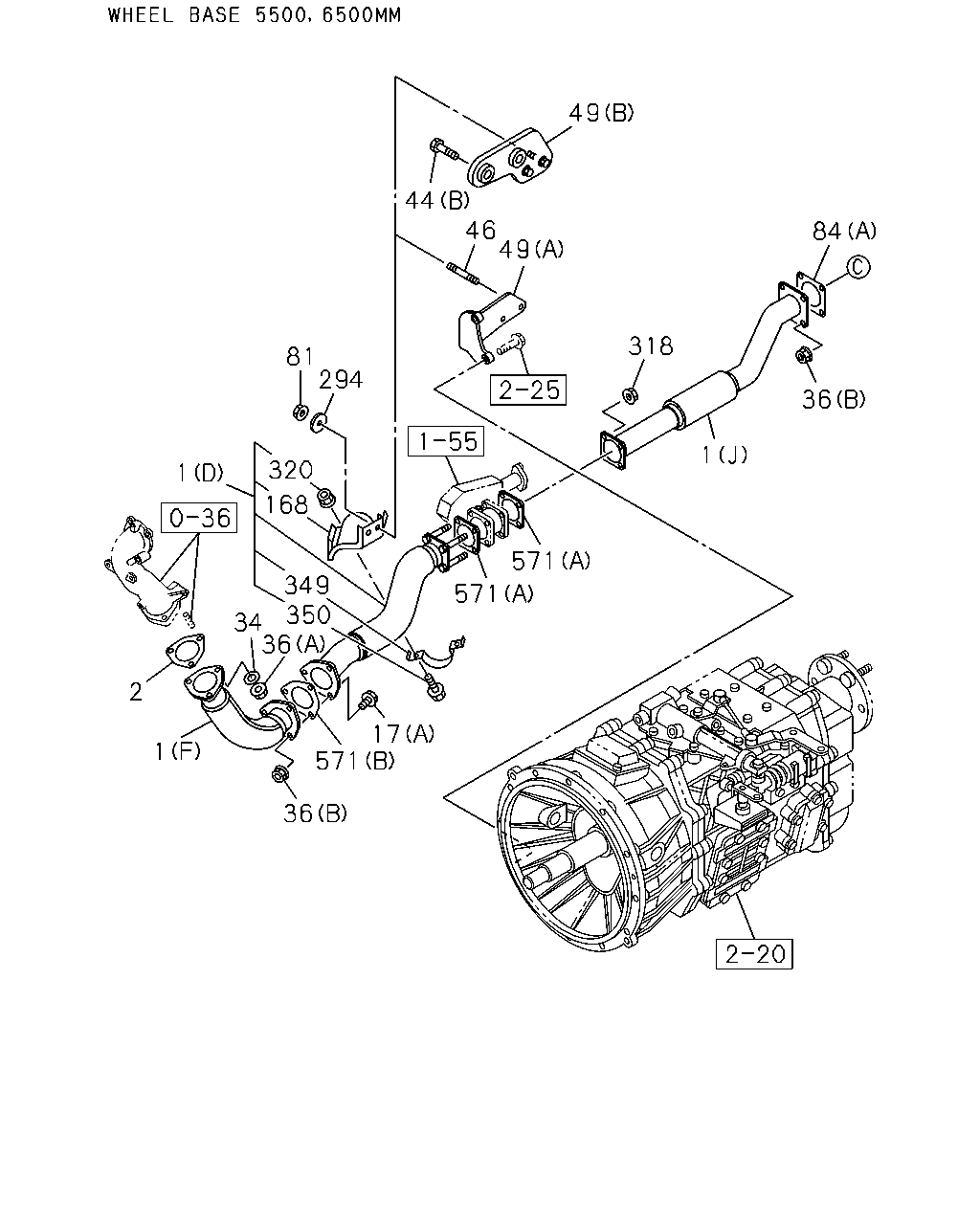

çizim 500758
36 84 1 318 571 571 17 571 36 350 36 349 34 168 49 49 46 44 294 81 320 1 2 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL<6MZ> (E) 		8-98096-668-2 01 1 1511- ● ●
1 PIPE; EXH
CATALYSIS CONTROL WITH DPD<8JM> (F) 		8-98215-406-0 01 1 1511- ● ●
1 PIPE; EXH
CATALYSIS CONTROL<6MZ> (A) 		8-98234-511-0 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 4200MM(42W) CATALYSIS CONTROL WITH DPD<8JM> (H) 		8-98070-119-0 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (J) 		1-22123-984-1 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 4200MM(42W) CATALYSIS CONTROL<6MZ> (C) 		8-98090-386-0 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 5500MM(55W) (D) 		8-98230-002-0 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 6500MM(65W) ALLISON MD3060P A/T(Y4G) CATALYSIS CONTROL WITH DPD<8JM> (D) 		8-98230-002-0 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 6500MM(65W) CATALYSIS CONTROL<6MZ> (D) 		8-98234-516-1 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 4200MM(42W) CATALYSIS CONTROL<6MZ> (B) 		8-98238-976-0 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 4200MM(42W) CATALYSIS CONTROL WITH DPD<8JM> (G) 		8-98221-117-0 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 4200MM(42W) ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (D) 		8-98220-351-0 01 1 1511- ● ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 1511- ● ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1511- ● ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1511- ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 1511- ● ●
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 1511- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1511- ● ●
36 NUT; EXH PIPE
CATALYSIS CONTROL WITH DPD<8JM> (B) M12 FLANGE 		0-91180-212-0 04 1 1511- ● ●
44 BOLT; BRKT
ALLISON MD3060P A/T(Y4G) (B) M16X45 		9-92361-645-0 02 1 1511- ● ●
44 BOLT; BRKT
CATALYSIS CONTROL WITH DPD<8JM> (A) M10X35 FLANGE 		0-28651-035-0 08 1 1511- ● ●
44 BOLT; BRKT
ZF9S1110 M/T(Y5E) CATALYSIS CONTROL<6MZ> (A) M10X35 FLANGE 		0-28651-035-0 02 1 1511- ● ●
44 BOLT; BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (A) M10X35 FLANGE 		0-28651-035-0 02 1 1511- ● ●
46 BOLT; BRKT,EXH PIPE
ZF9S1110 M/T(Y5E) M10X25 L=40 		0-44011-025-0 02 1 1511- ● ●
49 BRACKET; EXH PIPE TO TRANS
WHEEL BASE 5500MM(55W) (B) 		8-98153-928-0 01 1 1511- ● ●
49 BRACKET; EXH PIPE TO TRANS
WHEEL BASE 6500MM(65W) ALLISON MD3060P A/T(Y4G) CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-98153-928-0 01 1 1511- ● ●
49 BRACKET; EXH PIPE TO TRANS
WHEEL BASE 4200MM(42W) CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-98120-497-0 01 1 1511- ● ●
49 BRACKET; EXH PIPE TO TRANS
WHEEL BASE 6500MM(65W) CATALYSIS CONTROL<6MZ> (A) 		8-98120-497-0 01 1 1511- ● ●
49 BRACKET; EXH PIPE TO TRANS
WHEEL BASE 4200MM(42W) CATALYSIS CONTROL<6MZ> (A) 		8-98124-769-0 01 1 1511- ● ●
49 BRACKET; EXH PIPE TO TRANS
WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-98124-769-0 01 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
81 NUT; BRKT
CATALYSIS CONTROL<6MZ> M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
84 GASKET; EXH PIPE
CATALYSIS CONTROL WITH DPD<8JM> (A) 		1-22116-040-0 01 1 1511- ● ●
84 GASKET; EXH PIPE
CATALYSIS CONTROL WITH DPD<8JM> (B) ID=85.8 		1-22116-043-0 02 1 1511- ● ●
84 GASKET; EXH PIPE
CATALYSIS CONTROL<6MZ> (C) 		8-98096-305-0 01 1 1511- ● ●
168 BRACKET; EXH PIPE,FRT
WHEEL BASE 5500MM(55W) 		8-98230-000-1 01 1 1511- ● ●
168 BRACKET; EXH PIPE,FRT
WHEEL BASE 6500MM(65W) ALLISON MD3060P A/T(Y4G) CATALYSIS CONTROL WITH DPD<8JM> 		8-98230-000-1 01 1 1511- ● ●
168 BRACKET; EXH PIPE,FRT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98221-369-1 01 1 1511- ● ●
168 BRACKET; EXH PIPE,FRT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98221-369-1 01 1 1511- ● ●
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 1511- ● ●
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
320 NUT; CLAMP,EXH PIPE
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
320 NUT; CLAMP,EXH PIPE
6HK1-TCC ENG(81L) ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
320 NUT; CLAMP,EXH PIPE
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
349 CLAMP; EXH PIPE
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98115-162-0 01 1 1511- ● ●
349 CLAMP; EXH PIPE
6HK1-TCC ENG(81L) ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98115-162-0 01 1 1511- ● ●
349 CLAMP; EXH PIPE
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98115-162-0 01 1 1511- ● ●
350 BOLT; CLAMP,EXH PIPE
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28651-030-0 02 1 1511- ● ●
350 BOLT; CLAMP,EXH PIPE
6HK1-TCC ENG(81L) ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28651-030-0 02 1 1511- ● ●
350 BOLT; CLAMP,EXH PIPE
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28651-030-0 02 1 1511- ● ●
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 1511- ● ●
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 1511- ● ●
çizim 500759
175 562 60 81 17 107 226 56 36 70 62 226 121 81
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1511- ● ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1511- ● ●
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 1511- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1511- ● ●
36 NUT; EXH PIPE
CATALYSIS CONTROL WITH DPD<8JM> (B) M12 FLANGE 		0-91180-212-0 04 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98071-227-0 01 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
CATALYSIS CONTROL WITH DPD<8JM> (D) 		8-98071-231-0 01 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-98072-104-0 01 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
CATALYSIS CONTROL<6MZ> (F) 		1-22131-528-1 01 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
CATALYSIS CONTROL<6MZ> (E) 		8-98245-536-0 01 1 1511- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 02 1 1511- ● ●
60 BRACKET; FRAME TO BRKT
CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98071-228-1 01 1 1511- ● ●
60 BRACKET; FRAME TO BRKT
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-98072-708-0 01 1 1511- ● ●
60 BRACKET; FRAME TO BRKT
CATALYSIS CONTROL<6MZ> (C) 		8-98108-507-0 01 1 1511- ● ●
62 TUBE; DIST,BRKT
CATALYSIS CONTROL WITH DPD<8JM> (A) L=39 		8-98060-852-0 04 1 1511- ● ●
62 TUBE; DIST,BRKT
CATALYSIS CONTROL<6MZ> (A) L=39 		8-98060-852-0 02 1 1511- ● ●
62 TUBE; DIST,BRKT
CATALYSIS CONTROL<6MZ> (B) L=22 		9-22159-024-0 01 1 1511- ● ●
70 BOLT; BRKT
CATALYSIS CONTROL WITH DPD<8JM> (A) M10X70 FLANGE 		0-28051-070-0 04 1 1511- ● ●
70 BOLT; BRKT
CATALYSIS CONTROL<6MZ> (B) M10X50 FLANGE 		0-28051-050-0 01 1 1511- ● ●
70 BOLT; BRKT
CATALYSIS CONTROL<6MZ> (A) M10X70 FLANGE 		0-28051-070-0 02 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
81 NUT; BRKT
CATALYSIS CONTROL<6MZ> M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
107 BOLT; BRKT
CATALYSIS CONTROL WITH DPD<8JM> (A) M10X40 FLANGE 		0-28651-040-0 04 1 1511- ● ●
107 BOLT; BRKT
CATALYSIS CONTROL<6MZ> (B) M10X35 FLANGE 		0-28651-035-0 06 1 1511- ● ●
121 WASHER; PL,BRKT
CATALYSIS CONTROL WITH DPD<8JM> ID=11 OD=54 		1-09503-154-2 04 1 1511- ● ●
121 WASHER; PL,BRKT
CATALYSIS CONTROL<6MZ> ID=11 OD=54 		1-09503-154-2 02 1 1511- ● ●
175 CONVERTER; CATALYST
CATALYSIS CONTROL<6MZ> 		8-98236-535-0 01 1 1511- ● ●
226 RUBBER; CUSHION
CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-94457-277-1 04 1 1511- ● ●
226 RUBBER; CUSHION
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-94457-278-1 04 1 1511- ● ●
226 RUBBER; CUSHION
CATALYSIS CONTROL<6MZ> (A) 		8-94457-277-1 02 1 1511- ● ●
226 RUBBER; CUSHION
CATALYSIS CONTROL<6MZ> (B) 		8-94457-278-1 02 1 1511- ● ●
562 PLATE; STUD,BOLT
M12X35 		1-22131-963-0 02 1 1511- ● ●

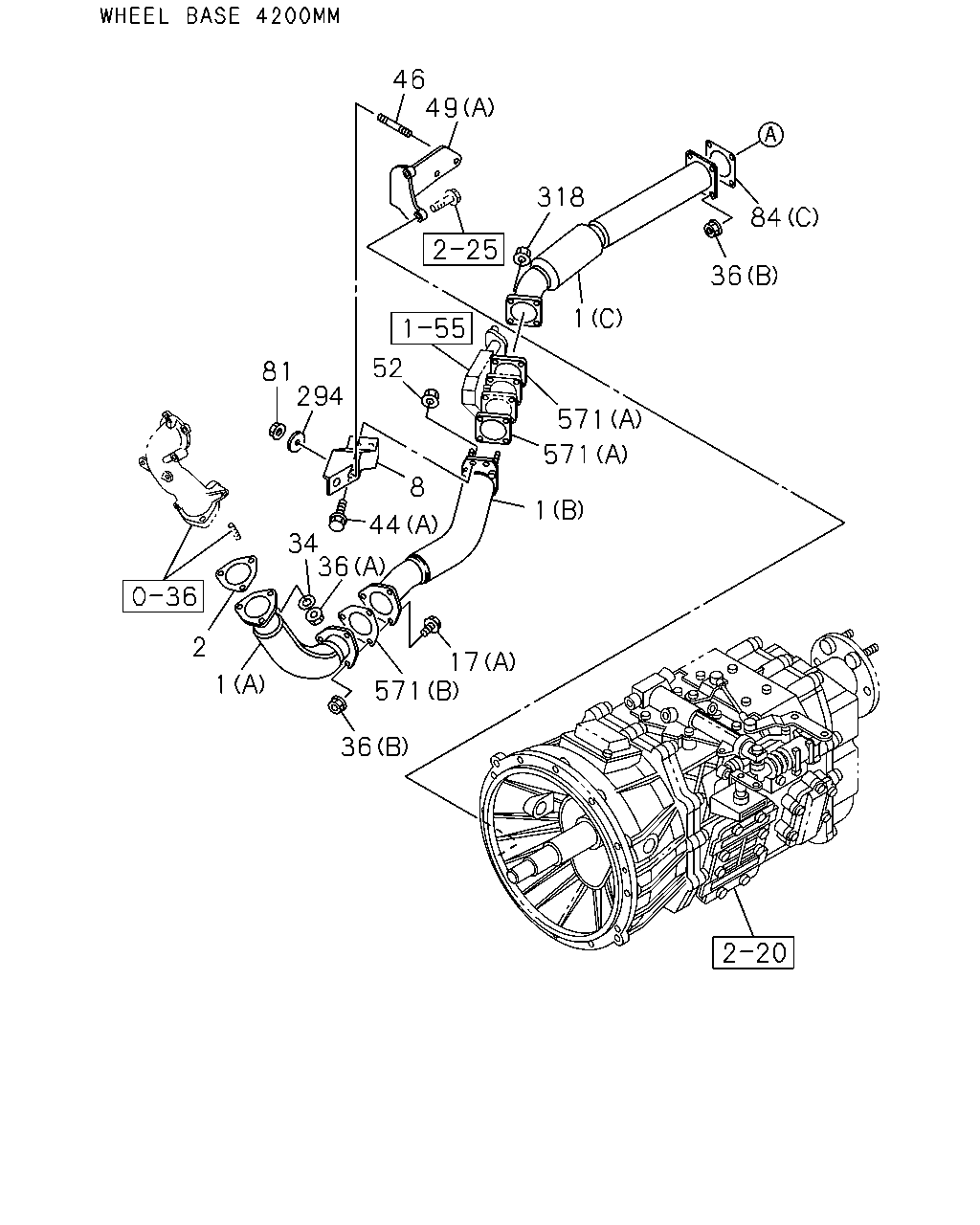

çizim 500766
36 84 318 49 46 1 571 571 1 52 81 294 8 44 34 36 2 1 571 17 36
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL<6MZ> (E) 		8-98096-668-2 01 1 1511- ● ●
1 PIPE; EXH
CATALYSIS CONTROL WITH DPD<8JM> (F) 		8-98215-406-0 01 1 1511- ● ●
1 PIPE; EXH
CATALYSIS CONTROL<6MZ> (A) 		8-98234-511-0 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 4200MM(42W) CATALYSIS CONTROL WITH DPD<8JM> (H) 		8-98070-119-0 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (J) 		1-22123-984-1 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 4200MM(42W) CATALYSIS CONTROL<6MZ> (C) 		8-98090-386-0 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 5500MM(55W) (D) 		8-98230-002-0 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 6500MM(65W) ALLISON MD3060P A/T(Y4G) CATALYSIS CONTROL WITH DPD<8JM> (D) 		8-98230-002-0 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 6500MM(65W) CATALYSIS CONTROL<6MZ> (D) 		8-98234-516-1 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 4200MM(42W) CATALYSIS CONTROL<6MZ> (B) 		8-98238-976-0 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 4200MM(42W) CATALYSIS CONTROL WITH DPD<8JM> (G) 		8-98221-117-0 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 4200MM(42W) ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (D) 		8-98220-351-0 01 1 1511- ● ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 1511- ● ●
8 BRACKET; EXH PIPE
WHEEL BASE 4200MM(42W) 		8-98120-522-0 01 1 1511- ● ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1511- ● ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1511- ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 1511- ● ●
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 1511- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1511- ● ●
36 NUT; EXH PIPE
CATALYSIS CONTROL WITH DPD<8JM> (B) M12 FLANGE 		0-91180-212-0 04 1 1511- ● ●
44 BOLT; BRKT
ALLISON MD3060P A/T(Y4G) (B) M16X45 		9-92361-645-0 02 1 1511- ● ●
44 BOLT; BRKT
CATALYSIS CONTROL WITH DPD<8JM> (A) M10X35 FLANGE 		0-28651-035-0 08 1 1511- ● ●
44 BOLT; BRKT
ZF9S1110 M/T(Y5E) CATALYSIS CONTROL<6MZ> (A) M10X35 FLANGE 		0-28651-035-0 02 1 1511- ● ●
44 BOLT; BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (A) M10X35 FLANGE 		0-28651-035-0 02 1 1511- ● ●
46 BOLT; BRKT,EXH PIPE
ZF9S1110 M/T(Y5E) M10X25 L=40 		0-44011-025-0 02 1 1511- ● ●
49 BRACKET; EXH PIPE TO TRANS
WHEEL BASE 5500MM(55W) (B) 		8-98153-928-0 01 1 1511- ● ●
49 BRACKET; EXH PIPE TO TRANS
WHEEL BASE 6500MM(65W) ALLISON MD3060P A/T(Y4G) CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-98153-928-0 01 1 1511- ● ●
49 BRACKET; EXH PIPE TO TRANS
WHEEL BASE 4200MM(42W) CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-98120-497-0 01 1 1511- ● ●
49 BRACKET; EXH PIPE TO TRANS
WHEEL BASE 6500MM(65W) CATALYSIS CONTROL<6MZ> (A) 		8-98120-497-0 01 1 1511- ● ●
49 BRACKET; EXH PIPE TO TRANS
WHEEL BASE 4200MM(42W) CATALYSIS CONTROL<6MZ> (A) 		8-98124-769-0 01 1 1511- ● ●
49 BRACKET; EXH PIPE TO TRANS
WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-98124-769-0 01 1 1511- ● ●
52 NUT; BRKT
CATALYSIS CONTROL WITH DPD<8JM> M10 FLANGE 		0-91180-210-0 08 1 1511- ● ●
52 NUT; BRKT
ZF9S1110 M/T(Y5E) CATALYSIS CONTROL<6MZ> M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
52 NUT; BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
81 NUT; BRKT
CATALYSIS CONTROL<6MZ> M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
84 GASKET; EXH PIPE
CATALYSIS CONTROL WITH DPD<8JM> (A) 		1-22116-040-0 01 1 1511- ● ●
84 GASKET; EXH PIPE
CATALYSIS CONTROL WITH DPD<8JM> (B) ID=85.8 		1-22116-043-0 02 1 1511- ● ●
84 GASKET; EXH PIPE
CATALYSIS CONTROL<6MZ> (C) 		8-98096-305-0 01 1 1511- ● ●
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 1511- ● ●
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 1511- ● ●
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 1511- ● ●

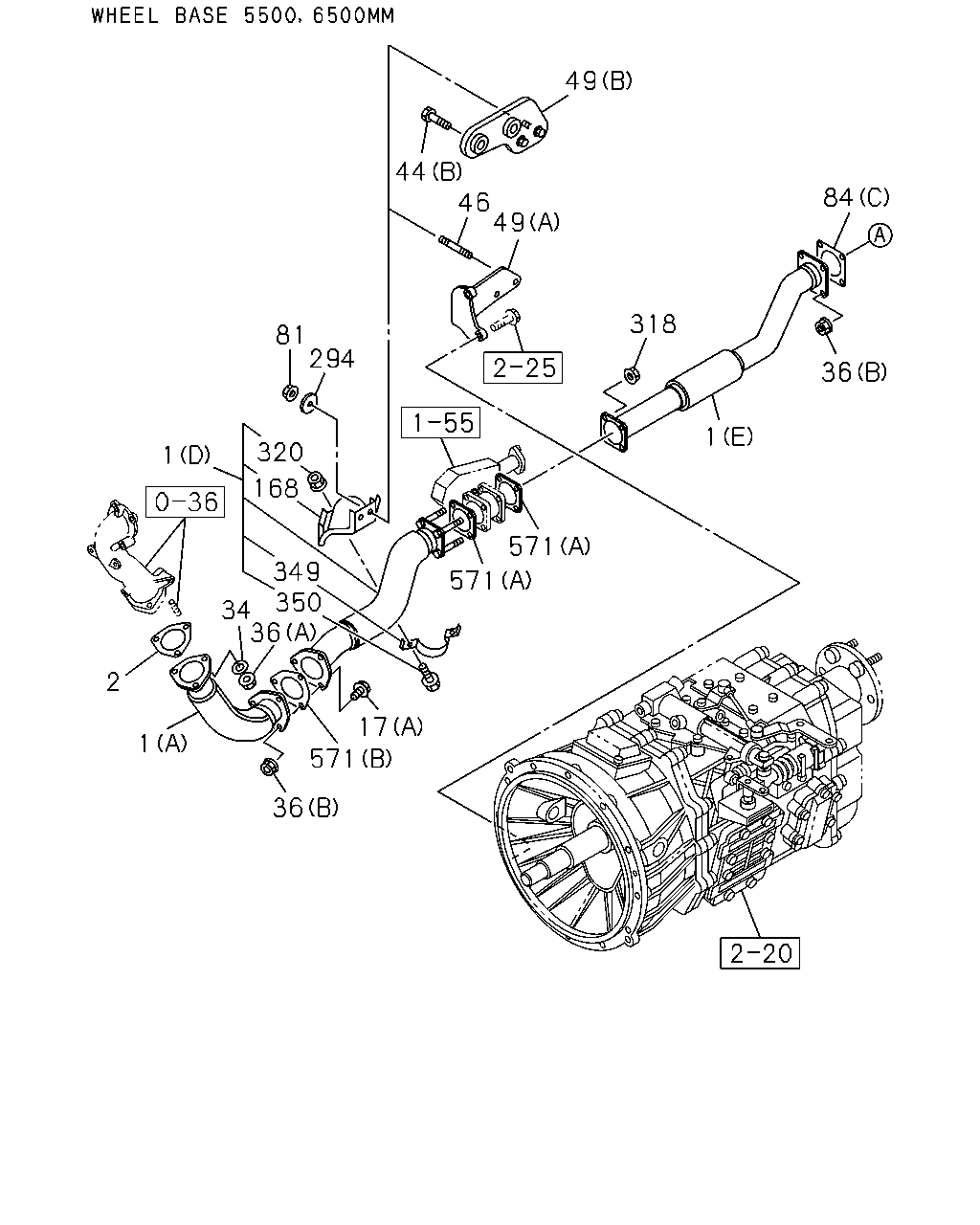

çizim 500769
84 36 1 318 49 44 46 49 81 294 320 1 168 349 350 34 36 2 1 36 571 17 571 571
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL<6MZ> (E) 		8-98096-668-2 01 1 1511- ● ●
1 PIPE; EXH
CATALYSIS CONTROL WITH DPD<8JM> (F) 		8-98215-406-0 01 1 1511- ● ●
1 PIPE; EXH
CATALYSIS CONTROL<6MZ> (A) 		8-98234-511-0 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 4200MM(42W) CATALYSIS CONTROL WITH DPD<8JM> (H) 		8-98070-119-0 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (J) 		1-22123-984-1 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 4200MM(42W) CATALYSIS CONTROL<6MZ> (C) 		8-98090-386-0 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 5500MM(55W) (D) 		8-98230-002-0 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 6500MM(65W) ALLISON MD3060P A/T(Y4G) CATALYSIS CONTROL WITH DPD<8JM> (D) 		8-98230-002-0 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 6500MM(65W) CATALYSIS CONTROL<6MZ> (D) 		8-98234-516-1 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 4200MM(42W) CATALYSIS CONTROL<6MZ> (B) 		8-98238-976-0 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 4200MM(42W) CATALYSIS CONTROL WITH DPD<8JM> (G) 		8-98221-117-0 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 4200MM(42W) ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (D) 		8-98220-351-0 01 1 1511- ● ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 1511- ● ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1511- ● ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1511- ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 1511- ● ●
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 1511- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1511- ● ●
36 NUT; EXH PIPE
CATALYSIS CONTROL WITH DPD<8JM> (B) M12 FLANGE 		0-91180-212-0 04 1 1511- ● ●
44 BOLT; BRKT
ALLISON MD3060P A/T(Y4G) (B) M16X45 		9-92361-645-0 02 1 1511- ● ●
44 BOLT; BRKT
CATALYSIS CONTROL WITH DPD<8JM> (A) M10X35 FLANGE 		0-28651-035-0 08 1 1511- ● ●
44 BOLT; BRKT
ZF9S1110 M/T(Y5E) CATALYSIS CONTROL<6MZ> (A) M10X35 FLANGE 		0-28651-035-0 02 1 1511- ● ●
44 BOLT; BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (A) M10X35 FLANGE 		0-28651-035-0 02 1 1511- ● ●
46 BOLT; BRKT,EXH PIPE
ZF9S1110 M/T(Y5E) M10X25 L=40 		0-44011-025-0 02 1 1511- ● ●
49 BRACKET; EXH PIPE TO TRANS
WHEEL BASE 5500MM(55W) (B) 		8-98153-928-0 01 1 1511- ● ●
49 BRACKET; EXH PIPE TO TRANS
WHEEL BASE 6500MM(65W) ALLISON MD3060P A/T(Y4G) CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-98153-928-0 01 1 1511- ● ●
49 BRACKET; EXH PIPE TO TRANS
WHEEL BASE 4200MM(42W) CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-98120-497-0 01 1 1511- ● ●
49 BRACKET; EXH PIPE TO TRANS
WHEEL BASE 6500MM(65W) CATALYSIS CONTROL<6MZ> (A) 		8-98120-497-0 01 1 1511- ● ●
49 BRACKET; EXH PIPE TO TRANS
WHEEL BASE 4200MM(42W) CATALYSIS CONTROL<6MZ> (A) 		8-98124-769-0 01 1 1511- ● ●
49 BRACKET; EXH PIPE TO TRANS
WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-98124-769-0 01 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
81 NUT; BRKT
CATALYSIS CONTROL<6MZ> M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
84 GASKET; EXH PIPE
CATALYSIS CONTROL WITH DPD<8JM> (A) 		1-22116-040-0 01 1 1511- ● ●
84 GASKET; EXH PIPE
CATALYSIS CONTROL WITH DPD<8JM> (B) ID=85.8 		1-22116-043-0 02 1 1511- ● ●
84 GASKET; EXH PIPE
CATALYSIS CONTROL<6MZ> (C) 		8-98096-305-0 01 1 1511- ● ●
168 BRACKET; EXH PIPE,FRT
WHEEL BASE 5500MM(55W) 		8-98230-000-1 01 1 1511- ● ●
168 BRACKET; EXH PIPE,FRT
WHEEL BASE 6500MM(65W) ALLISON MD3060P A/T(Y4G) CATALYSIS CONTROL WITH DPD<8JM> 		8-98230-000-1 01 1 1511- ● ●
168 BRACKET; EXH PIPE,FRT
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98221-369-1 01 1 1511- ● ●
168 BRACKET; EXH PIPE,FRT
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98221-369-1 01 1 1511- ● ●
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 1511- ● ●
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
320 NUT; CLAMP,EXH PIPE
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
320 NUT; CLAMP,EXH PIPE
6HK1-TCC ENG(81L) ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
320 NUT; CLAMP,EXH PIPE
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
349 CLAMP; EXH PIPE
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98115-162-0 01 1 1511- ● ●
349 CLAMP; EXH PIPE
6HK1-TCC ENG(81L) ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98115-162-0 01 1 1511- ● ●
349 CLAMP; EXH PIPE
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98115-162-0 01 1 1511- ● ●
350 BOLT; CLAMP,EXH PIPE
6HK1-TCS ENG(80L) ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28651-030-0 02 1 1511- ● ●
350 BOLT; CLAMP,EXH PIPE
6HK1-TCC ENG(81L) ALLISON MD3060P A/T(Y4G) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28651-030-0 02 1 1511- ● ●
350 BOLT; CLAMP,EXH PIPE
6HK1-TCC ENG(81L) ZF9S1110 M/T(Y5E) WHEEL BASE 4200MM(42W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28651-030-0 02 1 1511- ● ●
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 1511- ● ●
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 1511- ● ●

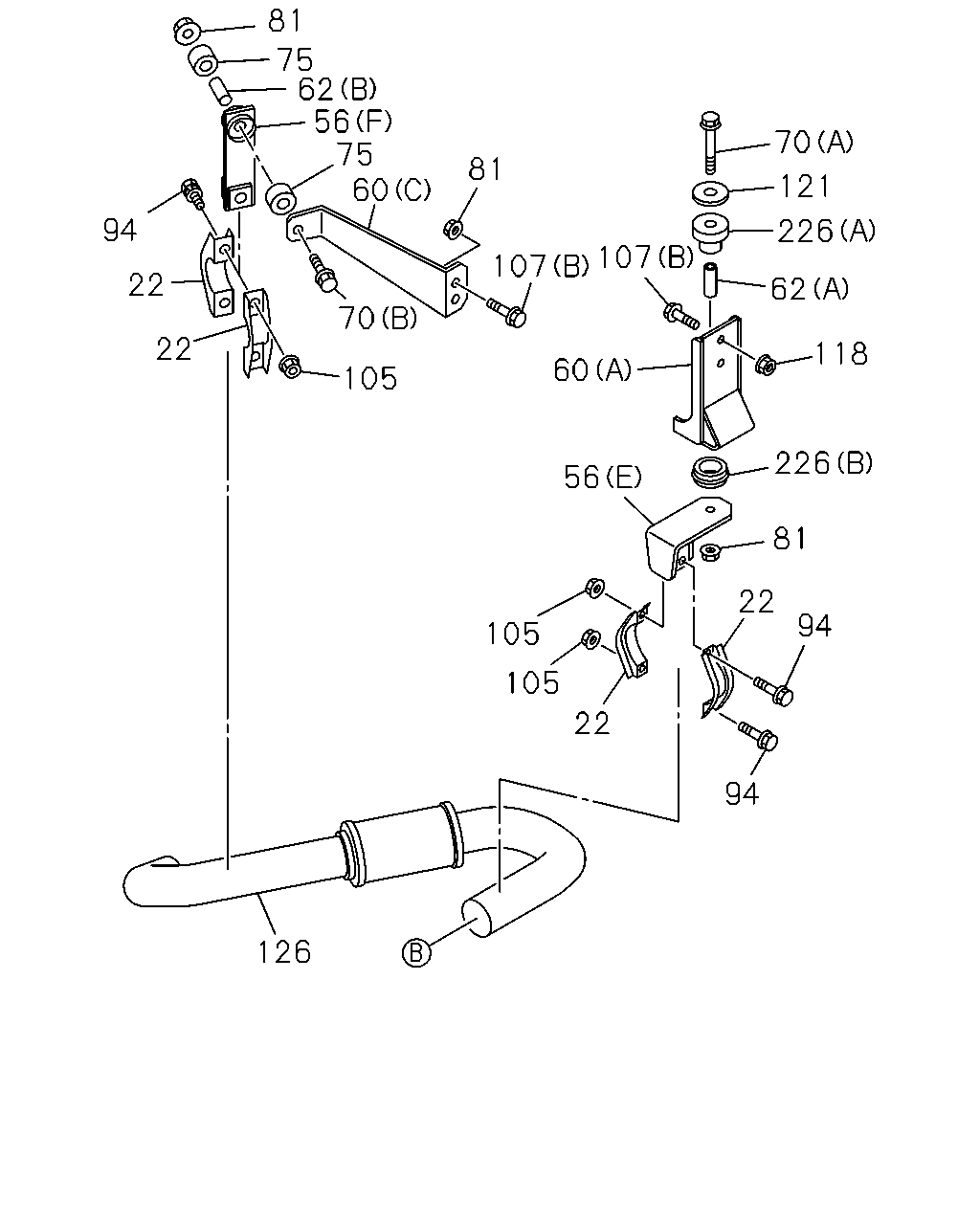

çizim 500770
126 22 105 105 22 94 94 81 226 118 62 226 121 70 107 60 56 107 81 60 70 105 75 56 62 75 81 94 22 22
BalonParca AdiParca NoAdetTipApplied Date A B
22 CLAMP; EXH PIPE
CATALYSIS CONTROL<6MZ> ID=80-84 		1-22133-233-0 02 1 1511- ● ●
22 CLAMP; EXH PIPE
CATALYSIS CONTROL<6MZ> ID=80-84 		1-22133-233-0 02 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98071-227-0 01 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
CATALYSIS CONTROL WITH DPD<8JM> (D) 		8-98071-231-0 01 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-98072-104-0 01 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
CATALYSIS CONTROL<6MZ> (F) 		1-22131-528-1 01 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
CATALYSIS CONTROL<6MZ> (E) 		8-98245-536-0 01 1 1511- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 02 1 1511- ● ●
60 BRACKET; FRAME TO BRKT
CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98071-228-1 01 1 1511- ● ●
60 BRACKET; FRAME TO BRKT
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-98072-708-0 01 1 1511- ● ●
60 BRACKET; FRAME TO BRKT
CATALYSIS CONTROL<6MZ> (C) 		8-98108-507-0 01 1 1511- ● ●
62 TUBE; DIST,BRKT
CATALYSIS CONTROL WITH DPD<8JM> (A) L=39 		8-98060-852-0 04 1 1511- ● ●
62 TUBE; DIST,BRKT
CATALYSIS CONTROL<6MZ> (A) L=39 		8-98060-852-0 02 1 1511- ● ●
62 TUBE; DIST,BRKT
CATALYSIS CONTROL<6MZ> (B) L=22 		9-22159-024-0 01 1 1511- ● ●
70 BOLT; BRKT
CATALYSIS CONTROL WITH DPD<8JM> (A) M10X70 FLANGE 		0-28051-070-0 04 1 1511- ● ●
70 BOLT; BRKT
CATALYSIS CONTROL<6MZ> (B) M10X50 FLANGE 		0-28051-050-0 01 1 1511- ● ●
70 BOLT; BRKT
CATALYSIS CONTROL<6MZ> (A) M10X70 FLANGE 		0-28051-070-0 02 1 1511- ● ●
75 RUBBER; SUPPORT,BRKT
CATALYSIS CONTROL<6MZ> OD=40 		1-22159-193-0 02 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
81 NUT; BRKT
CATALYSIS CONTROL<6MZ> M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
94 BOLT; CLAMP
CATALYSIS CONTROL<6MZ> M10X40 FLANGE 		0-28651-040-0 02 1 1511- ● ●
94 BOLT; CLAMP
CATALYSIS CONTROL<6MZ> M10X40 FLANGE 		0-28651-040-0 02 1 1511- ● ●
105 NUT; CLAMP
CATALYSIS CONTROL<6MZ> M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
105 NUT; CLAMP
CATALYSIS CONTROL<6MZ> M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
107 BOLT; BRKT
CATALYSIS CONTROL WITH DPD<8JM> (A) M10X40 FLANGE 		0-28651-040-0 04 1 1511- ● ●
107 BOLT; BRKT
CATALYSIS CONTROL<6MZ> (B) M10X35 FLANGE 		0-28651-035-0 06 1 1511- ● ●
118 NUT; SILENCER MTG BRKT
CATALYSIS CONTROL WITH DPD<8JM> M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
118 NUT; SILENCER MTG BRKT
CATALYSIS CONTROL<6MZ> M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
121 WASHER; PL,BRKT
CATALYSIS CONTROL WITH DPD<8JM> ID=11 OD=54 		1-09503-154-2 04 1 1511- ● ●
121 WASHER; PL,BRKT
CATALYSIS CONTROL<6MZ> ID=11 OD=54 		1-09503-154-2 02 1 1511- ● ●
126 PIPE; EXH,RR
CATALYSIS CONTROL<6MZ> 		8-98307-022-0 01 1 1511- ● ●
226 RUBBER; CUSHION
CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-94457-277-1 04 1 1511- ● ●
226 RUBBER; CUSHION
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-94457-278-1 04 1 1511- ● ●
226 RUBBER; CUSHION
CATALYSIS CONTROL<6MZ> (A) 		8-94457-277-1 02 1 1511- ● ●
226 RUBBER; CUSHION
CATALYSIS CONTROL<6MZ> (B) 		8-94457-278-1 02 1 1511- ● ●

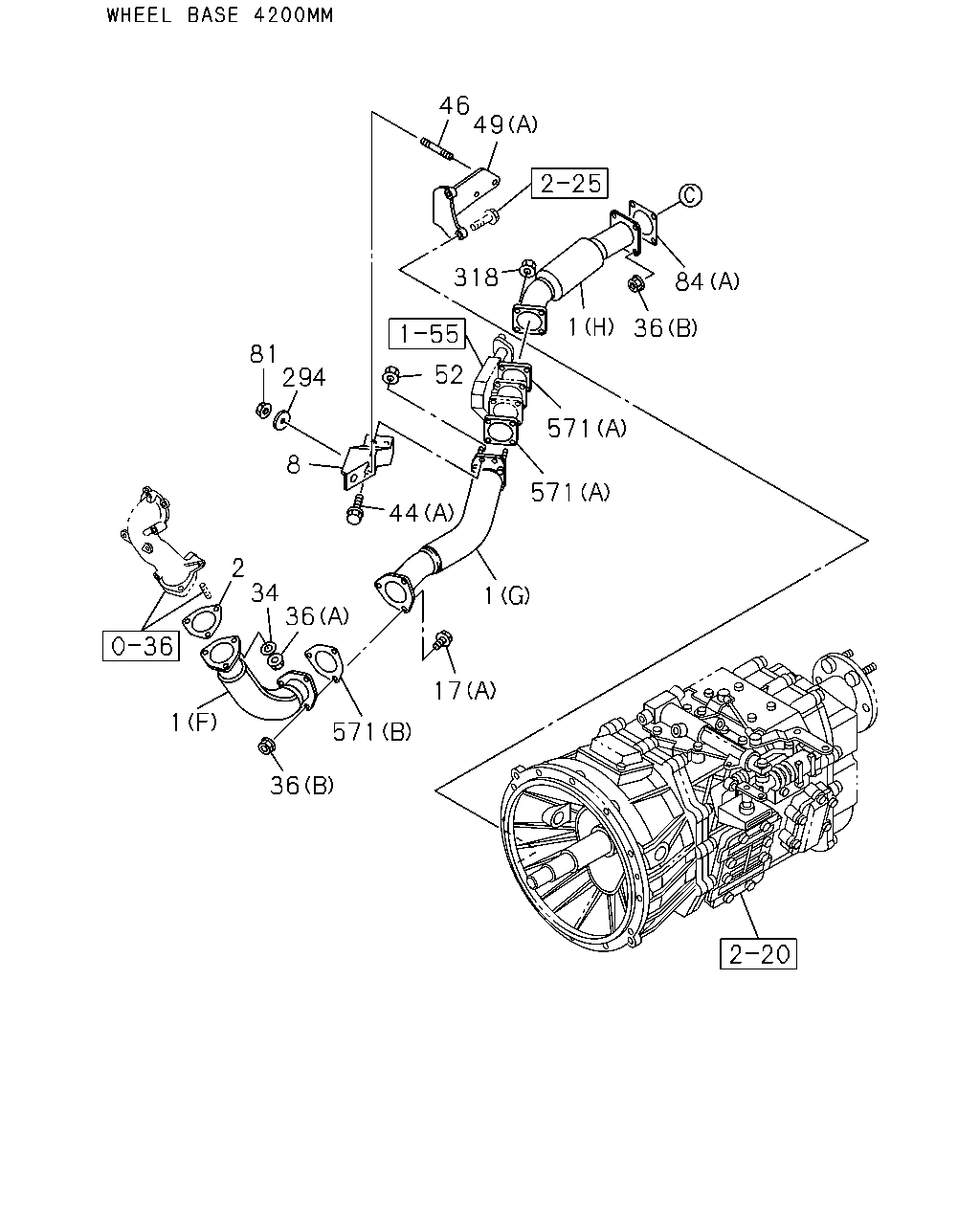

çizim 500775
571 571 1 36 84 49 46 318 52 44 1 17 571 36 36 34 2 1 8 294 81
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL<6MZ> (E) 		8-98096-668-2 01 1 1511- ● ●
1 PIPE; EXH
CATALYSIS CONTROL WITH DPD<8JM> (F) 		8-98215-406-0 01 1 1511- ● ●
1 PIPE; EXH
CATALYSIS CONTROL<6MZ> (A) 		8-98234-511-0 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 4200MM(42W) CATALYSIS CONTROL WITH DPD<8JM> (H) 		8-98070-119-0 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (J) 		1-22123-984-1 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 4200MM(42W) CATALYSIS CONTROL<6MZ> (C) 		8-98090-386-0 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 5500MM(55W) (D) 		8-98230-002-0 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 6500MM(65W) ALLISON MD3060P A/T(Y4G) CATALYSIS CONTROL WITH DPD<8JM> (D) 		8-98230-002-0 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 6500MM(65W) CATALYSIS CONTROL<6MZ> (D) 		8-98234-516-1 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 4200MM(42W) CATALYSIS CONTROL<6MZ> (B) 		8-98238-976-0 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 4200MM(42W) CATALYSIS CONTROL WITH DPD<8JM> (G) 		8-98221-117-0 01 1 1511- ● ●
1 PIPE; EXH
WHEEL BASE 4200MM(42W) ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (D) 		8-98220-351-0 01 1 1511- ● ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 1511- ● ●
8 BRACKET; EXH PIPE
WHEEL BASE 4200MM(42W) 		8-98120-522-0 01 1 1511- ● ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1511- ● ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1511- ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 1511- ● ●
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 1511- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1511- ● ●
36 NUT; EXH PIPE
CATALYSIS CONTROL WITH DPD<8JM> (B) M12 FLANGE 		0-91180-212-0 04 1 1511- ● ●
44 BOLT; BRKT
ALLISON MD3060P A/T(Y4G) (B) M16X45 		9-92361-645-0 02 1 1511- ● ●
44 BOLT; BRKT
CATALYSIS CONTROL WITH DPD<8JM> (A) M10X35 FLANGE 		0-28651-035-0 08 1 1511- ● ●
44 BOLT; BRKT
ZF9S1110 M/T(Y5E) CATALYSIS CONTROL<6MZ> (A) M10X35 FLANGE 		0-28651-035-0 02 1 1511- ● ●
44 BOLT; BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (A) M10X35 FLANGE 		0-28651-035-0 02 1 1511- ● ●
46 BOLT; BRKT,EXH PIPE
ZF9S1110 M/T(Y5E) M10X25 L=40 		0-44011-025-0 02 1 1511- ● ●
49 BRACKET; EXH PIPE TO TRANS
WHEEL BASE 5500MM(55W) (B) 		8-98153-928-0 01 1 1511- ● ●
49 BRACKET; EXH PIPE TO TRANS
WHEEL BASE 6500MM(65W) ALLISON MD3060P A/T(Y4G) CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-98153-928-0 01 1 1511- ● ●
49 BRACKET; EXH PIPE TO TRANS
WHEEL BASE 4200MM(42W) CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-98120-497-0 01 1 1511- ● ●
49 BRACKET; EXH PIPE TO TRANS
WHEEL BASE 6500MM(65W) CATALYSIS CONTROL<6MZ> (A) 		8-98120-497-0 01 1 1511- ● ●
49 BRACKET; EXH PIPE TO TRANS
WHEEL BASE 4200MM(42W) CATALYSIS CONTROL<6MZ> (A) 		8-98124-769-0 01 1 1511- ● ●
49 BRACKET; EXH PIPE TO TRANS
WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-98124-769-0 01 1 1511- ● ●
52 NUT; BRKT
CATALYSIS CONTROL WITH DPD<8JM> M10 FLANGE 		0-91180-210-0 08 1 1511- ● ●
52 NUT; BRKT
ZF9S1110 M/T(Y5E) CATALYSIS CONTROL<6MZ> M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
52 NUT; BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
81 NUT; BRKT
CATALYSIS CONTROL<6MZ> M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
84 GASKET; EXH PIPE
CATALYSIS CONTROL WITH DPD<8JM> (A) 		1-22116-040-0 01 1 1511- ● ●
84 GASKET; EXH PIPE
CATALYSIS CONTROL WITH DPD<8JM> (B) ID=85.8 		1-22116-043-0 02 1 1511- ● ●
84 GASKET; EXH PIPE
CATALYSIS CONTROL<6MZ> (C) 		8-98096-305-0 01 1 1511- ● ●
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 1511- ● ●
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 1511- ● ●
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 1511- ● ●

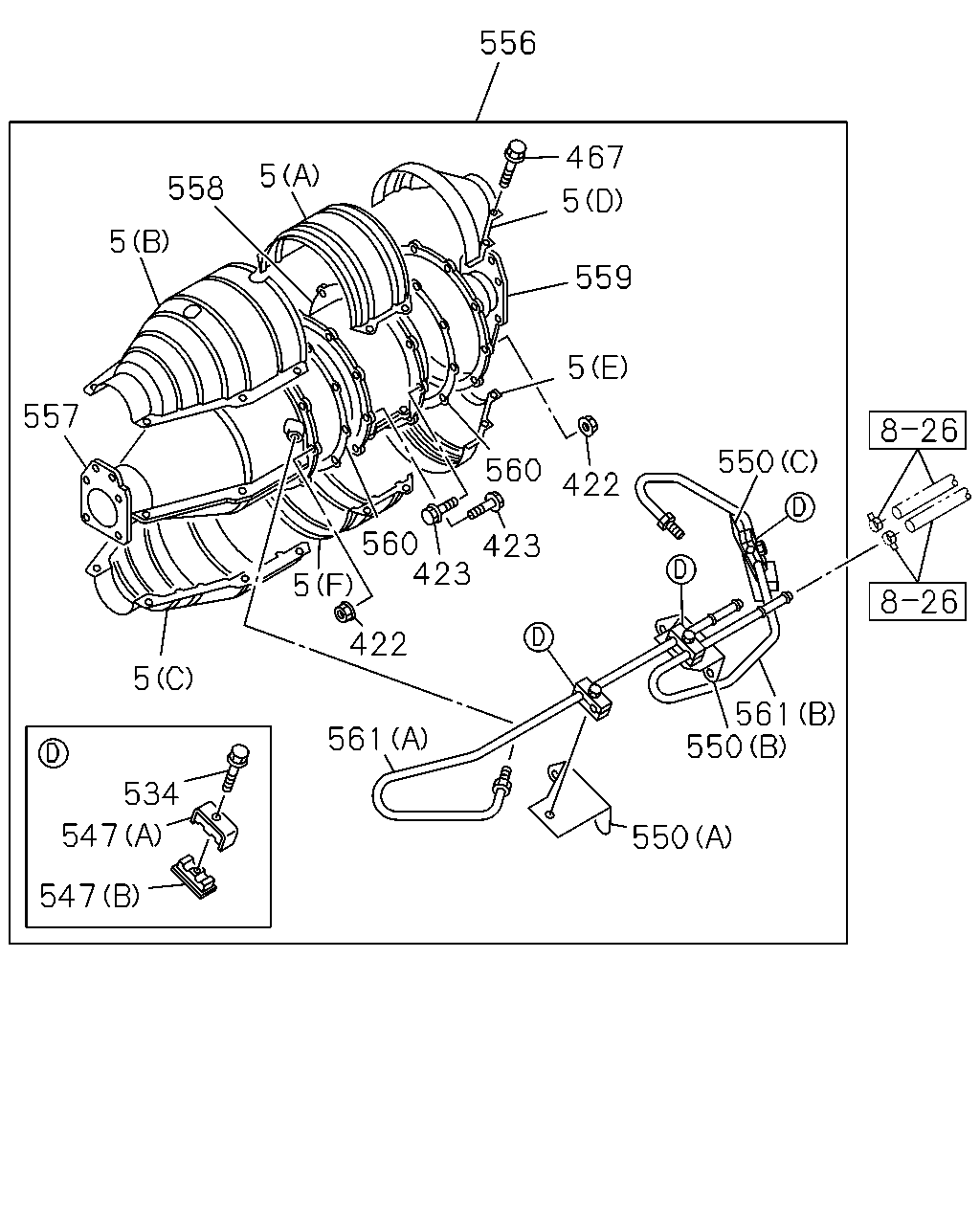

çizim 500782
561 550 550 550 422 5 559 5 467 556 560 423 423 560 422 561 5 5 534 547 547 557 5 558 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97611-098-0 01 1 1511- ● ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-97611-099-0 01 1 1511- ● ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-97611-100-0 01 1 1511- ● ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (F) 		8-97611-101-0 01 1 1511- ● ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (D) 		8-97611-102-0 01 1 1511- ● ●
5 PROTECTOR; HEAT
CATALYSIS CONTROL WITH DPD<8JM> (E) 		8-97611-103-0 01 1 1511- ● ●
422 NUT; PIPE
CATALYSIS CONTROL WITH DPD<8JM> M8 FLANGE 		0-91180-108-0 20 1 1511- ● ●
423 BOLT; PIPE
CATALYSIS CONTROL WITH DPD<8JM> M8X35 FLANGE 		0-28650-835-0 20 1 1511- ● ●
467 BOLT; PROTECTOR
CATALYSIS CONTROL WITH DPD<8JM> M6X16 		8-98019-179-0 14 1 1511- ● ●
534 BOLT; CLIP
CATALYSIS CONTROL WITH DPD<8JM> M6X35 FLANGE 		0-28650-635-0 03 1 1511- ● ●
547 CLIP; PIPE
CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-97381-635-0 03 1 1511- ● ●
547 CLIP; PIPE
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97381-636-0 03 1 1511- ● ●
550 BRACKET; DPD
CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-97611-085-0 01 1 1511- ● ●
550 BRACKET; DPD
CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-97611-096-0 01 1 1511- ● ●
550 BRACKET; DPD
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97611-097-0 01 1 1511- ● ●
556 DPD ASM
CATALYSIS CONTROL WITH DPD<8JM> 		8-97622-899-4 01 1 1511- ● ●
557 CATALYST ASM
CATALYSIS CONTROL WITH DPD<8JM> 		8-97608-054-6 01 1 1511- ● ●
558 FILTER ASM
CATALYSIS CONTROL WITH DPD<8JM> 		8-97608-056-2 01 1 1511- ● ●
559 COVER; RR
CATALYSIS CONTROL WITH DPD<8JM> 		8-97622-903-0 01 1 1511- ● ●
560 GASKET; DPD
CATALYSIS CONTROL WITH DPD<8JM> 		8-97611-092-0 02 1 1511- ● ●
561 PIPE; DPD
CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-97622-904-0 01 1 1511- ● ●
561 PIPE; DPD
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97622-905-0 01 1 1511- ● ●

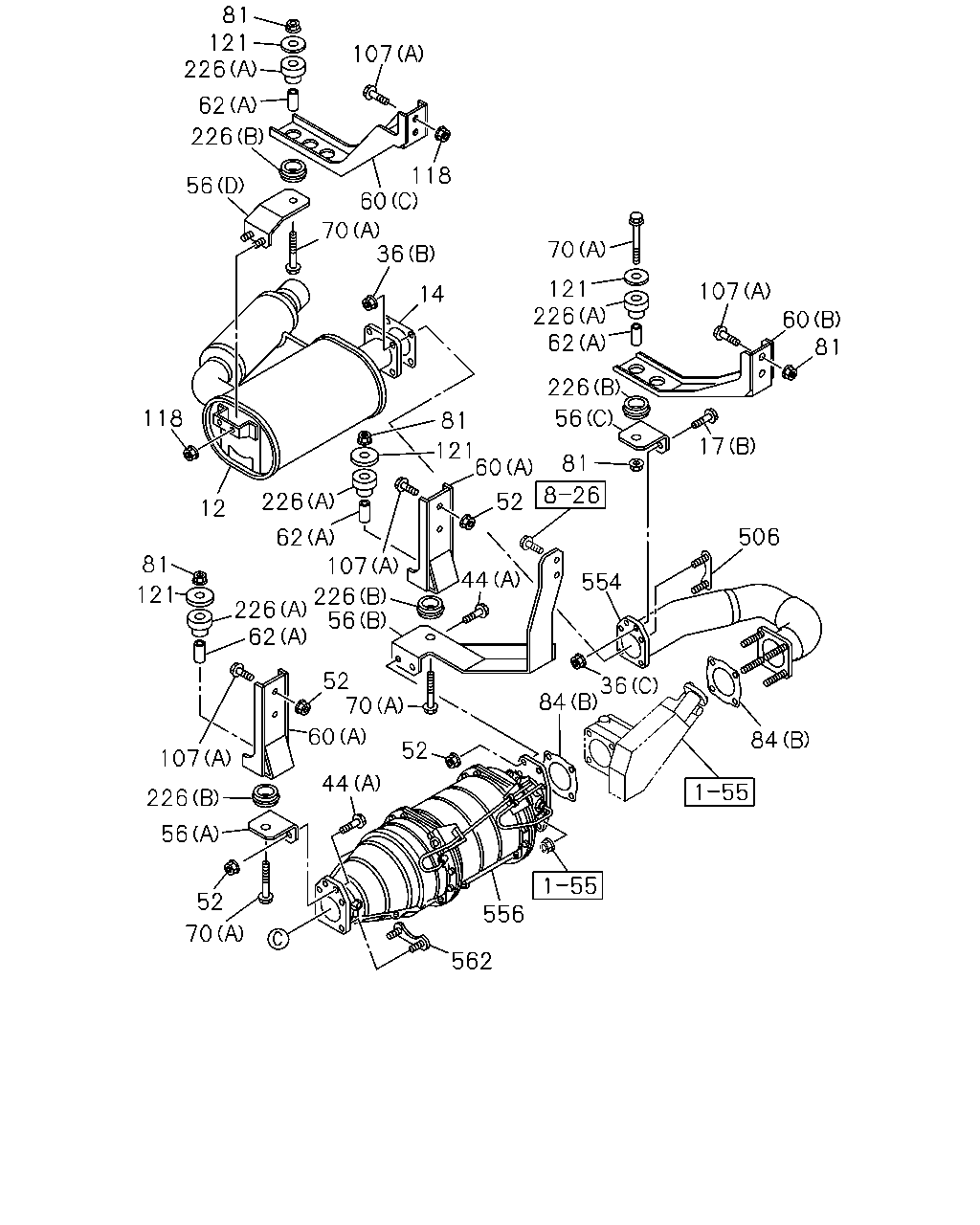

çizim 501414
84 506 554 36 84 556 562 52 70 60 44 52 56 226 44 52 60 121 81 81 107 62 226 12 81 121 226 62 107 226 56 52 70 56 226 62 226 121 70 107 81 60 17 14 36 118 60 70 107 81 121 226 226 62 56 118
BalonParca AdiParca NoAdetTipApplied Date A B
12 SILENCER ASM; EXH
CATALYSIS CONTROL WITH DPD<8JM> 		8-98070-098-2 01 1 1511- ● ●
14 GASKET; SILENCER TO EXH PIPE
CATALYSIS CONTROL WITH DPD<8JM> 		1-22116-042-0 01 1 1511- ● ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1511- ● ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1511- ● ●
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 1511- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1511- ● ●
36 NUT; EXH PIPE
CATALYSIS CONTROL WITH DPD<8JM> (B) M12 FLANGE 		0-91180-212-0 04 1 1511- ● ●
44 BOLT; BRKT
ALLISON MD3060P A/T(Y4G) (B) M16X45 		9-92361-645-0 02 1 1511- ● ●
44 BOLT; BRKT
CATALYSIS CONTROL WITH DPD<8JM> (A) M10X35 FLANGE 		0-28651-035-0 08 1 1511- ● ●
44 BOLT; BRKT
ZF9S1110 M/T(Y5E) CATALYSIS CONTROL<6MZ> (A) M10X35 FLANGE 		0-28651-035-0 02 1 1511- ● ●
44 BOLT; BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (A) M10X35 FLANGE 		0-28651-035-0 02 1 1511- ● ●
52 NUT; BRKT
CATALYSIS CONTROL WITH DPD<8JM> M10 FLANGE 		0-91180-210-0 08 1 1511- ● ●
52 NUT; BRKT
ZF9S1110 M/T(Y5E) CATALYSIS CONTROL<6MZ> M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
52 NUT; BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98071-227-0 01 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
CATALYSIS CONTROL WITH DPD<8JM> (D) 		8-98071-231-0 01 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-98072-104-0 01 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
CATALYSIS CONTROL<6MZ> (F) 		1-22131-528-1 01 1 1511- ● ●
56 BRACKET; CLAMP,EXH PIPE
CATALYSIS CONTROL<6MZ> (E) 		8-98245-536-0 01 1 1511- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 02 1 1511- ● ●
60 BRACKET; FRAME TO BRKT
CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-98071-228-1 01 1 1511- ● ●
60 BRACKET; FRAME TO BRKT
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-98072-708-0 01 1 1511- ● ●
60 BRACKET; FRAME TO BRKT
CATALYSIS CONTROL<6MZ> (C) 		8-98108-507-0 01 1 1511- ● ●
62 TUBE; DIST,BRKT
CATALYSIS CONTROL WITH DPD<8JM> (A) L=39 		8-98060-852-0 04 1 1511- ● ●
62 TUBE; DIST,BRKT
CATALYSIS CONTROL<6MZ> (A) L=39 		8-98060-852-0 02 1 1511- ● ●
62 TUBE; DIST,BRKT
CATALYSIS CONTROL<6MZ> (B) L=22 		9-22159-024-0 01 1 1511- ● ●
70 BOLT; BRKT
CATALYSIS CONTROL WITH DPD<8JM> (A) M10X70 FLANGE 		0-28051-070-0 04 1 1511- ● ●
70 BOLT; BRKT
CATALYSIS CONTROL<6MZ> (B) M10X50 FLANGE 		0-28051-050-0 01 1 1511- ● ●
70 BOLT; BRKT
CATALYSIS CONTROL<6MZ> (A) M10X70 FLANGE 		0-28051-070-0 02 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
81 NUT; BRKT
CATALYSIS CONTROL<6MZ> M10 FLANGE 		0-91180-210-0 01 1 1511- ● ●
84 GASKET; EXH PIPE
CATALYSIS CONTROL WITH DPD<8JM> (A) 		1-22116-040-0 01 1 1511- ● ●
84 GASKET; EXH PIPE
CATALYSIS CONTROL WITH DPD<8JM> (B) ID=85.8 		1-22116-043-0 02 1 1511- ● ●
84 GASKET; EXH PIPE
CATALYSIS CONTROL<6MZ> (C) 		8-98096-305-0 01 1 1511- ● ●
107 BOLT; BRKT
CATALYSIS CONTROL WITH DPD<8JM> (A) M10X40 FLANGE 		0-28651-040-0 04 1 1511- ● ●
107 BOLT; BRKT
CATALYSIS CONTROL<6MZ> (B) M10X35 FLANGE 		0-28651-035-0 06 1 1511- ● ●
118 NUT; SILENCER MTG BRKT
CATALYSIS CONTROL WITH DPD<8JM> M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
118 NUT; SILENCER MTG BRKT
CATALYSIS CONTROL<6MZ> M10 FLANGE 		0-91180-210-0 02 1 1511- ● ●
121 WASHER; PL,BRKT
CATALYSIS CONTROL WITH DPD<8JM> ID=11 OD=54 		1-09503-154-2 04 1 1511- ● ●
121 WASHER; PL,BRKT
CATALYSIS CONTROL<6MZ> ID=11 OD=54 		1-09503-154-2 02 1 1511- ● ●
226 RUBBER; CUSHION
CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-94457-277-1 04 1 1511- ● ●
226 RUBBER; CUSHION
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-94457-278-1 04 1 1511- ● ●
226 RUBBER; CUSHION
CATALYSIS CONTROL<6MZ> (A) 		8-94457-277-1 02 1 1511- ● ●
226 RUBBER; CUSHION
CATALYSIS CONTROL<6MZ> (B) 		8-94457-278-1 02 1 1511- ● ●
506 BRACKET; STUD
CATALYSIS CONTROL WITH DPD<8JM> 		1-22134-214-0 02 1 1511- ● ●
554 PIPE; EXH,SILENCER
CATALYSIS CONTROL WITH DPD<8JM> 		8-98085-262-0 01 1 1511- ● ●
556 DPD ASM
CATALYSIS CONTROL WITH DPD<8JM> 		8-97622-899-4 01 1 1511- ● ●
562 PLATE; STUD,BOLT
M12X35 		1-22131-963-0 02 1 1511- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
