Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#169678) — 487 parça

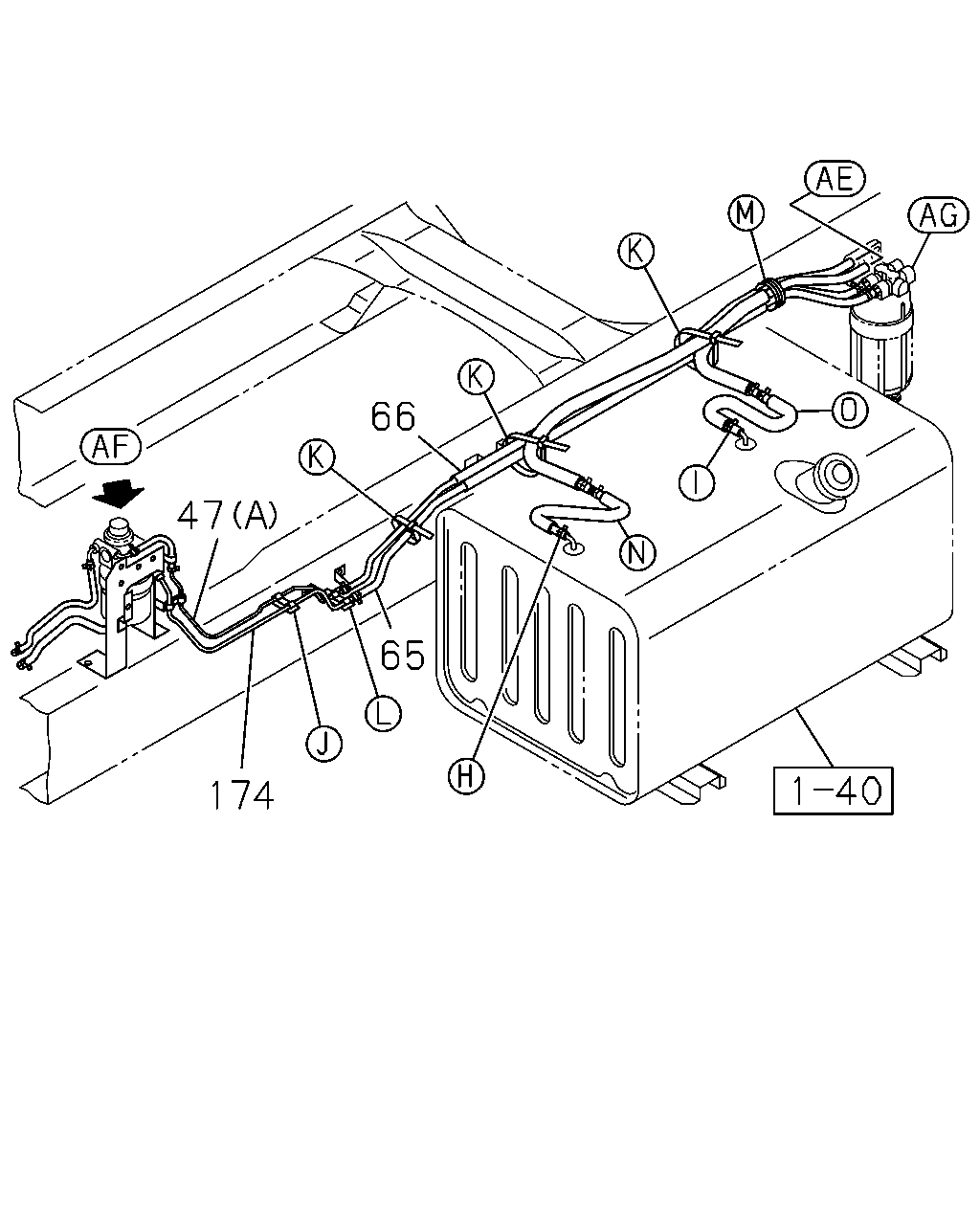

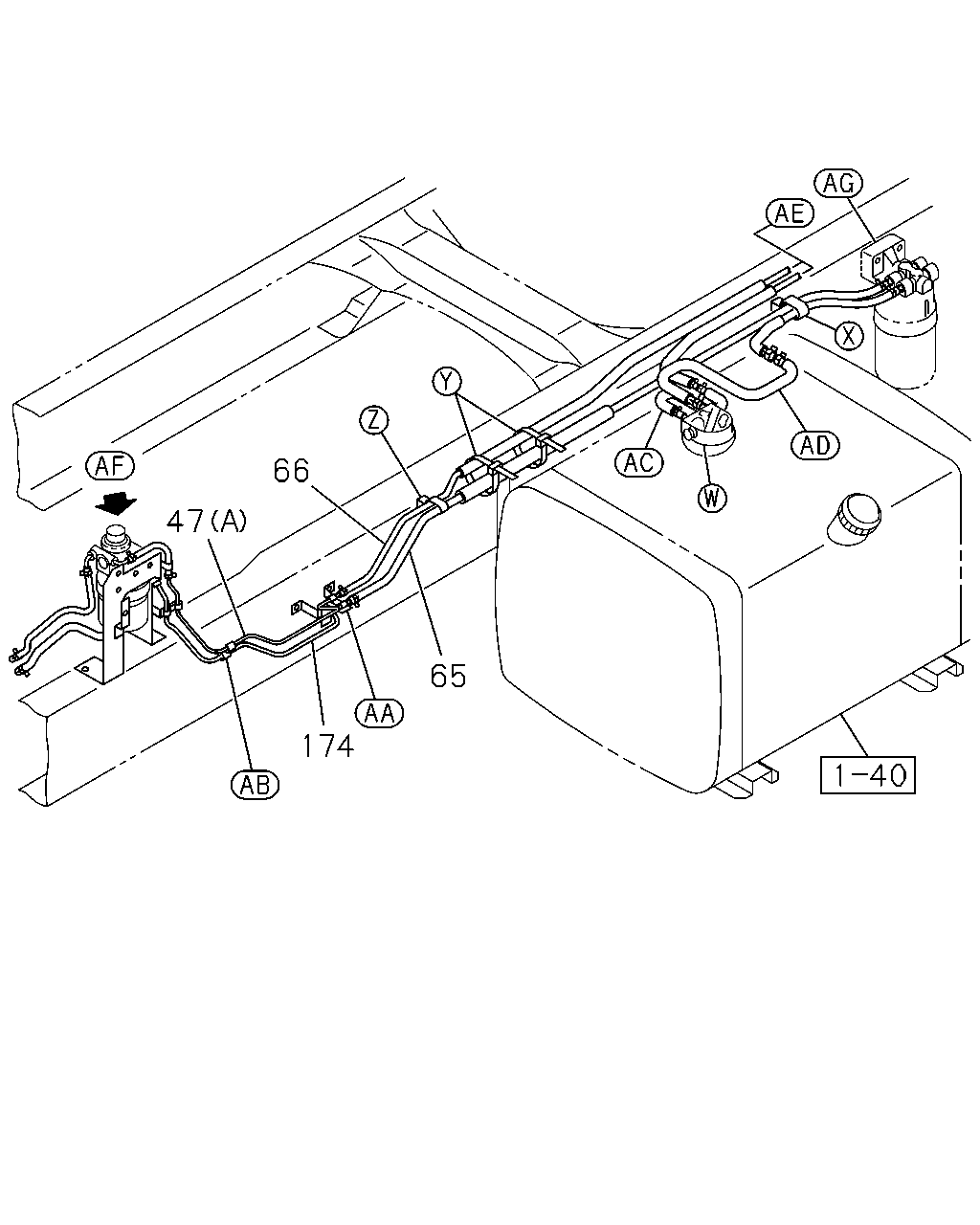

29 65 174 47 634

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1511-	●	●
29	HOSE; FUEL (A)	8-98156-579-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) (E)	8-98331-904-0	02	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (C)	8-98312-665-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (D)	8-98317-265-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (F)	8-98331-050-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (G)	8-98331-905-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (J)	8-98307-375-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (M)	8-98331-044-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (K)	8-98331-045-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (L)	8-98331-048-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) FUEL TANK 200L FRAME SIDE<N20> (I) L=730	8-98232-243-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (H) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (I) L=920	8-98232-244-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCC ENG(81L) (A) L=699	8-98286-297-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) (B) L=787	8-98127-647-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) (A) L=688	8-98129-921-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (C)	8-98009-438-1	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1260	8-98311-197-0	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> L=1610	8-98311-196-0	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98232-240-0	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> L=1620	8-98232-241-0	01	1	1511-	●	●
174	PIPE; FUEL,FEED,FRT L=685	8-98129-920-0	01	1	1511-	●	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) FUEL TANK 200L FRAME SIDE<N20>	8-98186-971-0	01	1	1511-	●	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1511-	●	●

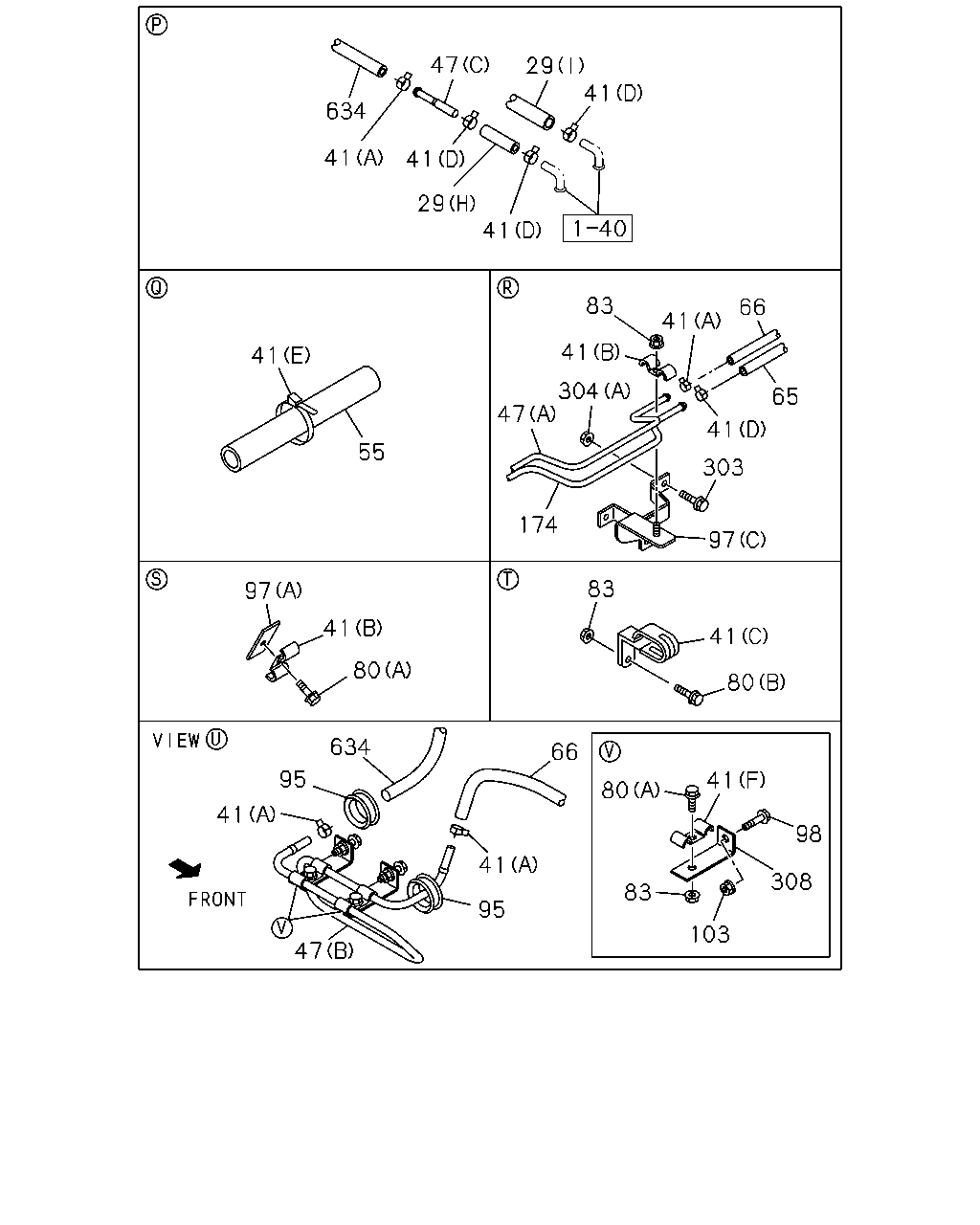

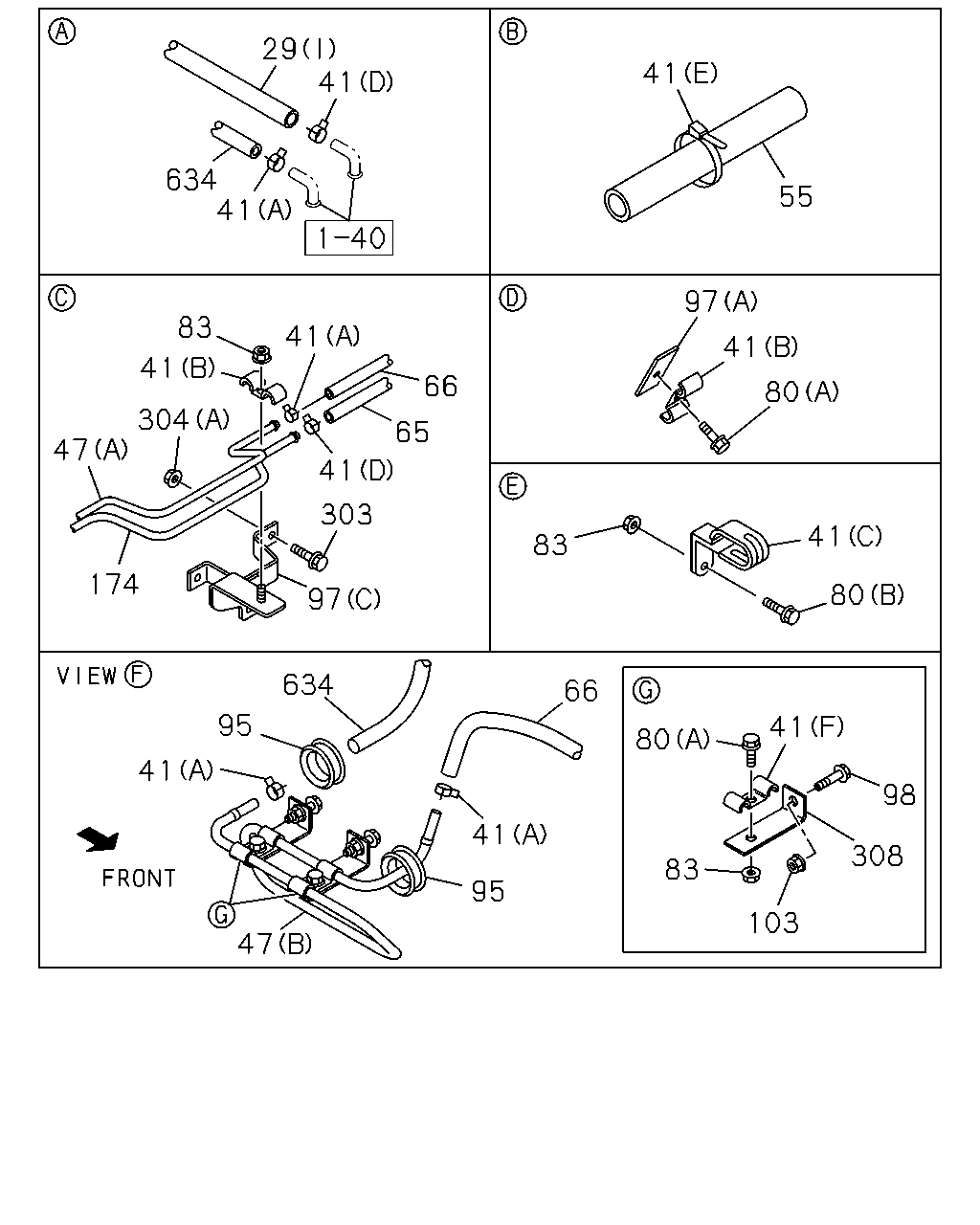

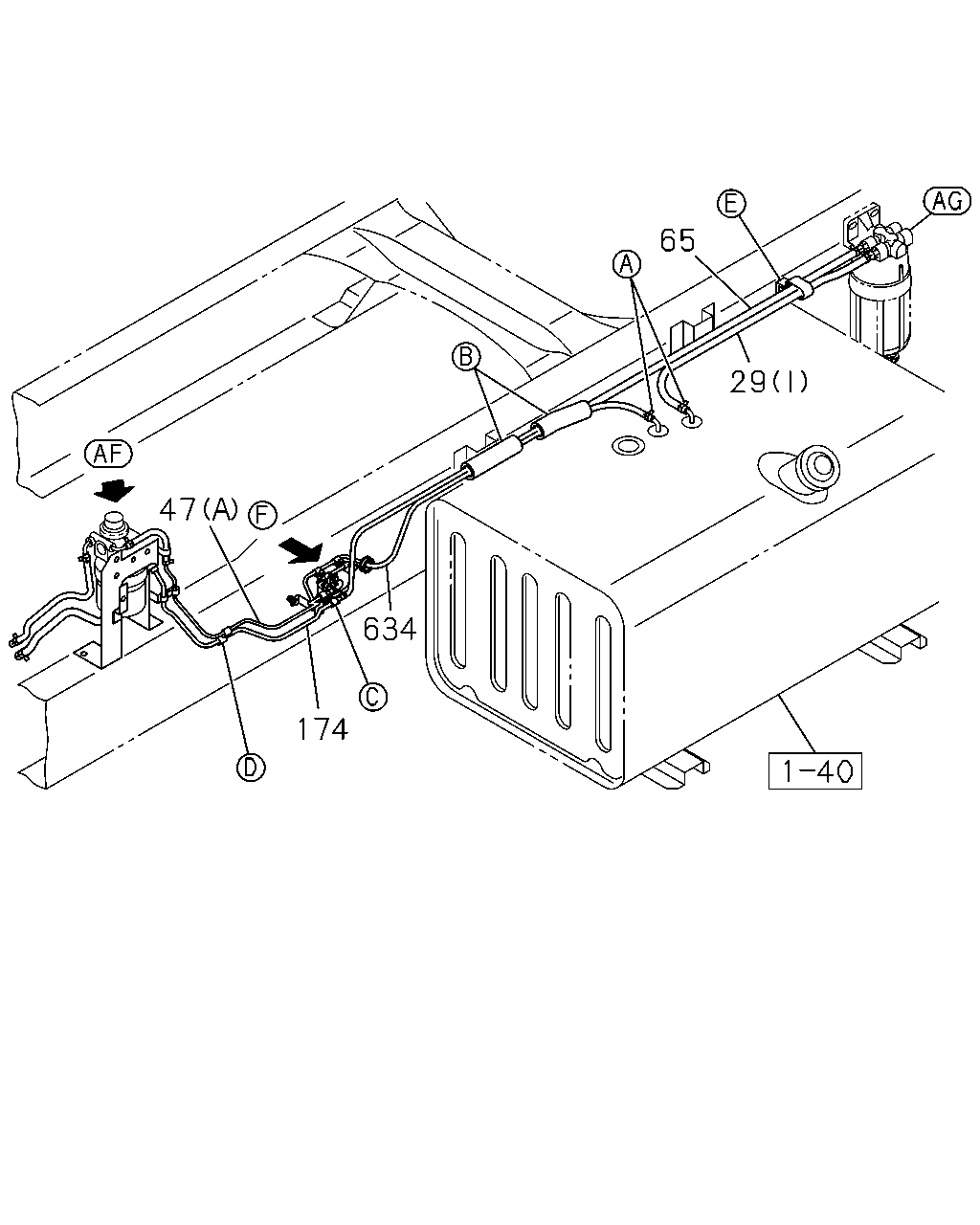

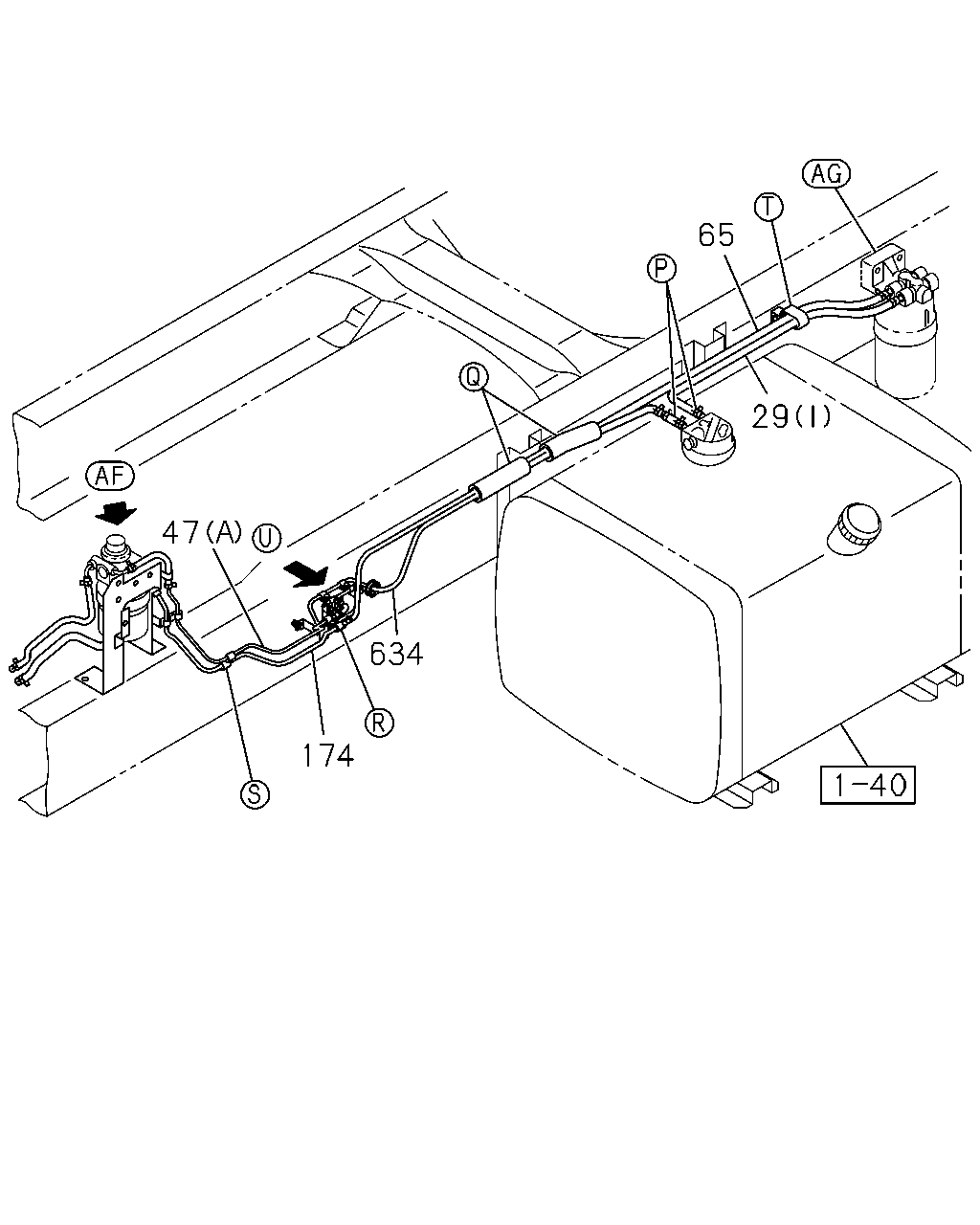

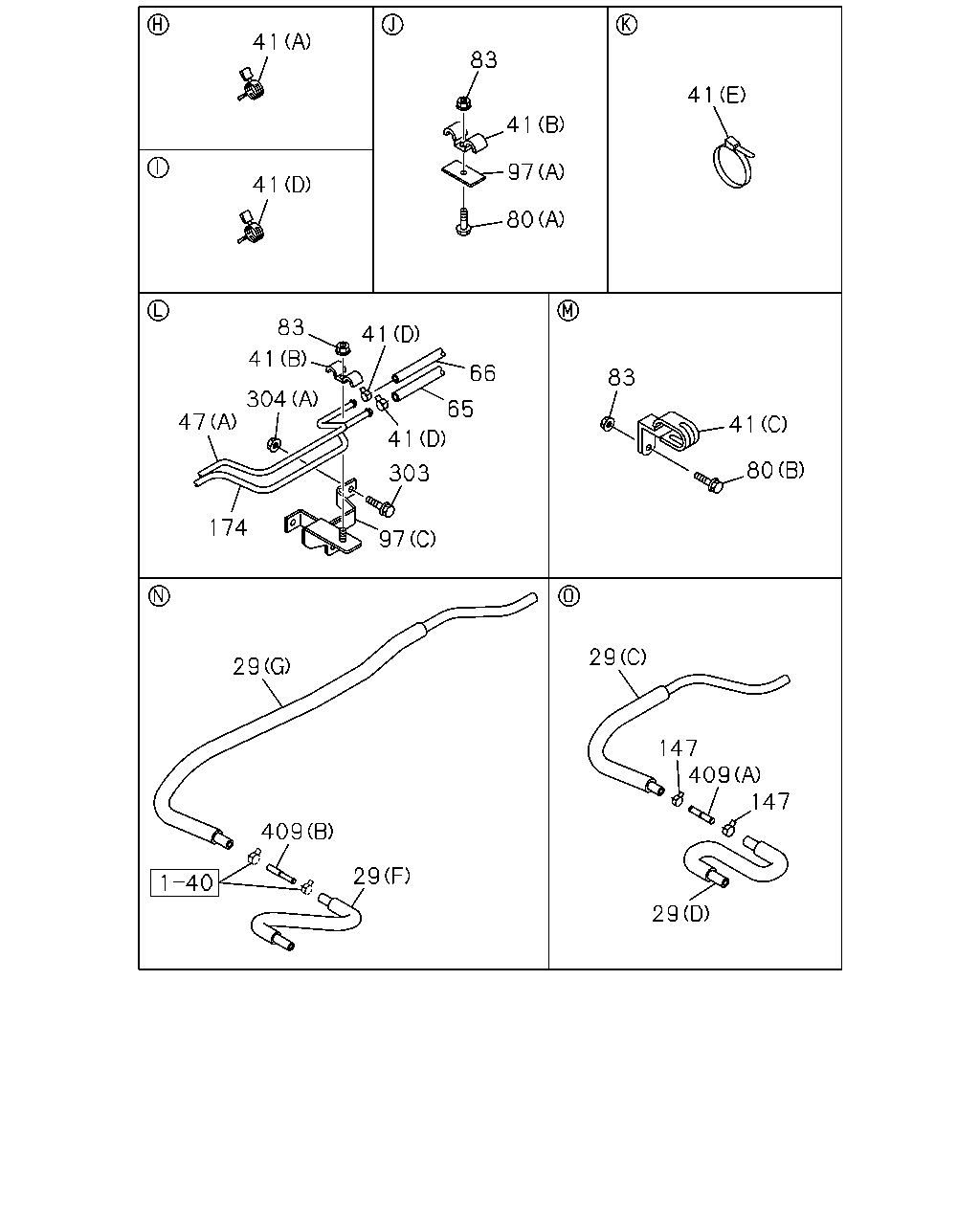

41 55 97 80 41 41 80 83 80 41 98 308 103 83 66 41 95 47 41 634 95 97 303 41 65 66 304 47 174 41 83 41 41 29 634 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1511-	●	●
29	HOSE; FUEL (A)	8-98156-579-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) (E)	8-98331-904-0	02	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (C)	8-98312-665-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (D)	8-98317-265-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (F)	8-98331-050-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (G)	8-98331-905-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (J)	8-98307-375-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (M)	8-98331-044-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (K)	8-98331-045-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (L)	8-98331-048-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) FUEL TANK 200L FRAME SIDE<N20> (I) L=730	8-98232-243-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (H) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (I) L=920	8-98232-244-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=24 & 24 L=49	1-09701-018-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (D) ID=16	8-94238-568-0	03	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (A) ID=13	8-94238-571-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (D) ID=16	8-94238-568-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (D) ID=16	8-94238-568-0	02	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCC ENG(81L) (A) L=699	8-98286-297-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) (B) L=787	8-98127-647-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) (A) L=688	8-98129-921-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (C)	8-98009-438-1	01	1	1511-	●	●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1260	8-98311-197-0	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> L=1610	8-98311-196-0	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98232-240-0	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> L=1620	8-98232-241-0	01	1	1511-	●	●
66	HOSE; FUEL,RETURN PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1230	8-98331-906-0	01	1	1511-	●	●
66	HOSE; FUEL,RETURN PIPE 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> L=1580	8-98311-308-0	01	1	1511-	●	●
66	HOSE; FUEL,RETURN PIPE 6HK1-TCS ENG(80L) L=180 SERVICED BY L=3000	0-01558-300-0	01	1	1511-	●	●
80	BOLT; CLIP,FUEL TANK (A) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
80	BOLT; CLIP,FUEL TANK (B) M8X30 FLANGE	0-28650-830-0	01	1	1511-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	1511-	●	●
83	NUT; CLIP,FUEL TANK FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
95	BUSHING; PIPE,FUEL TANK 6HK1-TCS ENG(80L) ID=28 OD=35 T=25	1-09332-011-1	02	1	1511-	●	●
97	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	1511-	●	●
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	1511-	●	●
97	BRACKET; CLIP (C)	8-98129-922-0	01	1	1511-	●	●
97	BRACKET; CLIP 6HK1-TCC ENG(81L) (D)	8-98153-352-0	01	1	1511-	●	●
97	BRACKET; CLIP 6HK1-TCC ENG(81L) (E)	8-98311-190-0	01	1	1511-	●	●
98	BOLT; BRKT,FUEL PIPE 6HK1-TCS ENG(80L) M8X30 FLANGE	0-28650-830-0	02	1	1511-	●	●
103	NUT; BRKT 6HK1-TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
174	PIPE; FUEL,FEED,FRT L=685	8-98129-920-0	01	1	1511-	●	●
303	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1511-	●	●
303	BOLT; BRKT 6HK1-TCC ENG(81L) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
303	BOLT; BRKT 6HK1-TCC ENG(81L) M8X30 FLANGE	0-28650-830-0	01	1	1511-	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1511-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
304	NUT; BRKT 6HK1-TCC ENG(81L) (A) M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
308	BRACKET; FUEL PIPE 6HK1-TCS ENG(80L) L=75	1-47478-323-0	02	1	1511-	●	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) FUEL TANK 200L FRAME SIDE<N20>	8-98186-971-0	01	1	1511-	●	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1511-	●	●

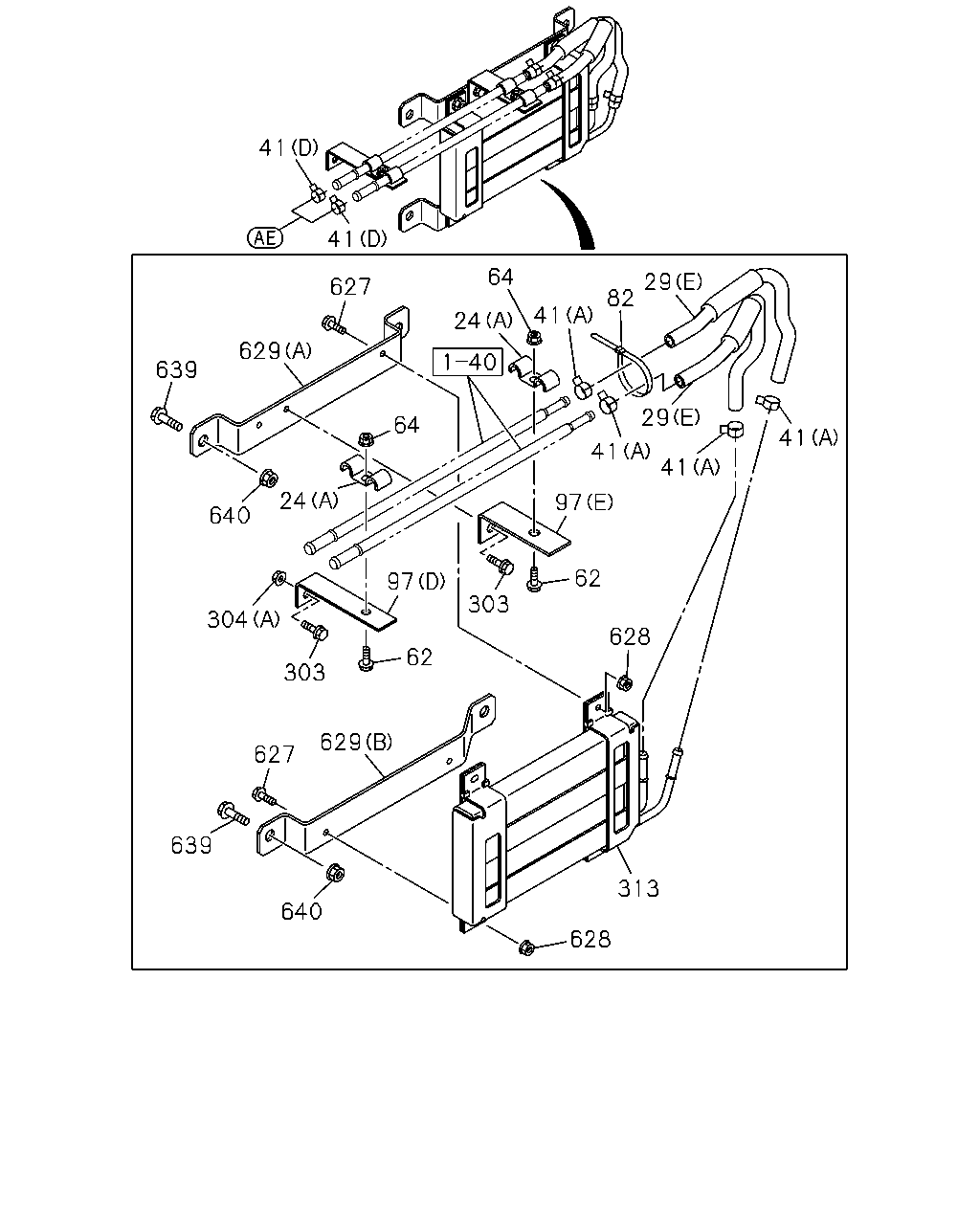

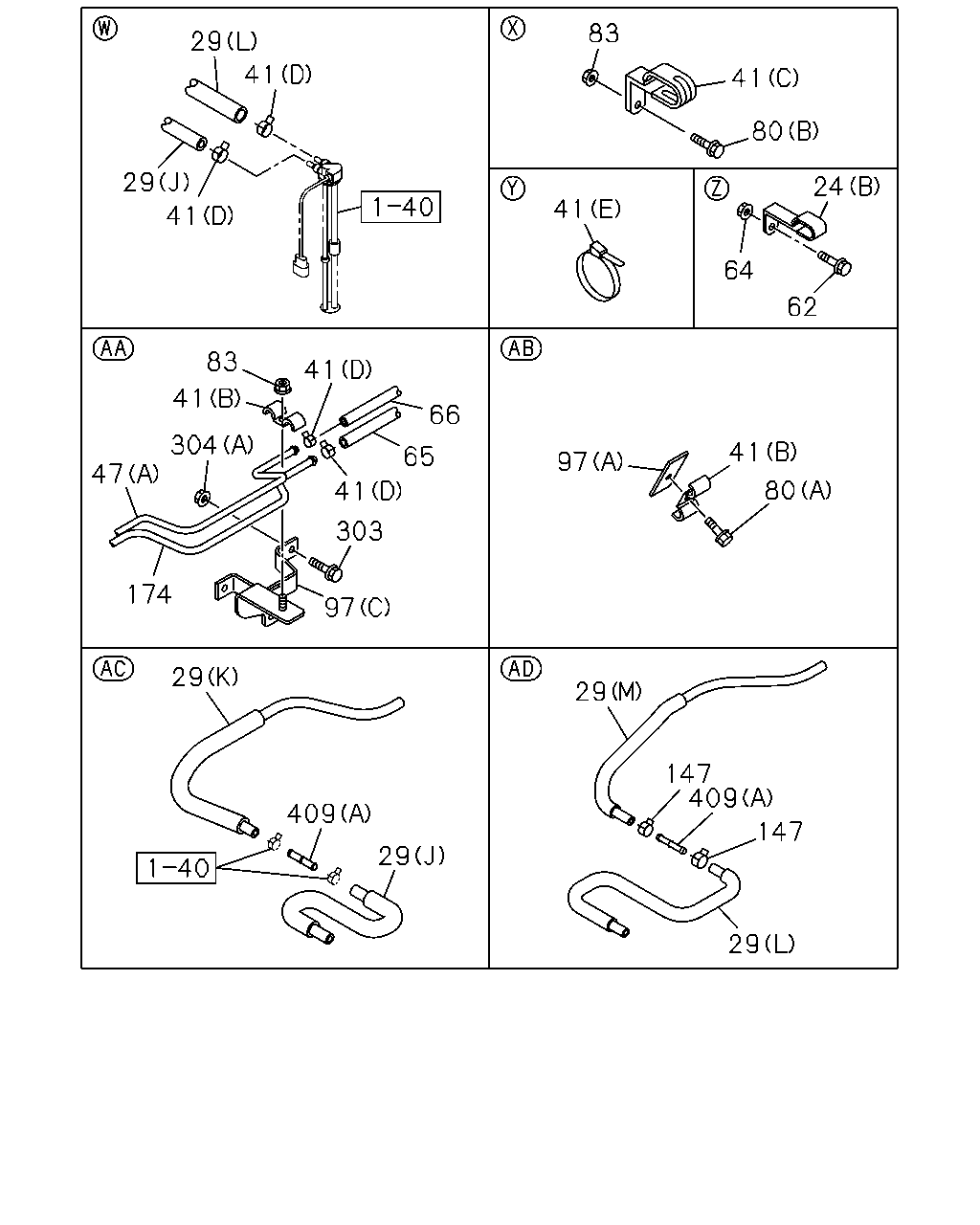

41 41 627 629 639 24 64 640 304 303 97 62 303 97 62 628 41 41 29 41 29 82 41 64 24 629 627 639 640 313 628

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L) (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1511-	●	●
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (B) ID=20 L=70	1-09701-033-0	01	1	1511-	●	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1511-	●	●
29	HOSE; FUEL (A)	8-98156-579-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) (E)	8-98331-904-0	02	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (C)	8-98312-665-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (D)	8-98317-265-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (F)	8-98331-050-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (G)	8-98331-905-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (J)	8-98307-375-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (M)	8-98331-044-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (K)	8-98331-045-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (L)	8-98331-048-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) FUEL TANK 200L FRAME SIDE<N20> (I) L=730	8-98232-243-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (H) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (I) L=920	8-98232-244-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=24 & 24 L=49	1-09701-018-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (D) ID=16	8-94238-568-0	03	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (A) ID=13	8-94238-571-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (D) ID=16	8-94238-568-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (D) ID=16	8-94238-568-0	02	1	1511-	●	●
62	BOLT; CLIP FIX 6HK1-TCC ENG(81L) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
62	BOLT; CLIP FIX 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	1511-	●	●
64	NUT; CLIP 6HK1-TCC ENG(81L) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
64	NUT; CLIP 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
82	CLIP; FUEL HOSE 6HK1-TCC ENG(81L) L=250	5-09707-030-1	01	1	1511-	●	●
97	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	1511-	●	●
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	1511-	●	●
97	BRACKET; CLIP (C)	8-98129-922-0	01	1	1511-	●	●
97	BRACKET; CLIP 6HK1-TCC ENG(81L) (D)	8-98153-352-0	01	1	1511-	●	●
97	BRACKET; CLIP 6HK1-TCC ENG(81L) (E)	8-98311-190-0	01	1	1511-	●	●
303	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1511-	●	●
303	BOLT; BRKT 6HK1-TCC ENG(81L) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
303	BOLT; BRKT 6HK1-TCC ENG(81L) M8X30 FLANGE	0-28650-830-0	01	1	1511-	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1511-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
304	NUT; BRKT 6HK1-TCC ENG(81L) (A) M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
313	COOLER ASM; FUEL 6HK1-TCC ENG(81L)	8-98227-679-1	01	1	1511-	●	●
627	BOLT; FUEL CLR 6HK1-TCC ENG(81L) M6X25 FLANGE	0-28650-625-0	04	1	1511-	●	●
628	NUT; FUEL CLR 6HK1-TCC ENG(81L) M6 FLANGE	0-91180-106-0	04	1	1511-	●	●
629	BRACKET; FUEL CLR EXC. CATALYSIS CONTROL WITH DPD<8JM> (B)	8-98312-587-0	01	1	1511-	●	●
629	BRACKET; FUEL CLR CATALYSIS CONTROL<6MZ> (A)	8-98306-517-0	01	1	1511-	●	●
639	BOLT; BRKT,FUEL CLR EXC. CATALYSIS CONTROL WITH DPD<8JM> M10X35 FLANGE	0-28651-035-0	04	1	1511-	●	●
640	NUT; BRKT,FUEL CLR FUEL TANK 400L<SDH> CATALYSIS CONTROL<6MZ> M10 FLANGE	0-91180-210-0	04	1	1511-	●	●
640	NUT; BRKT,FUEL CLR 6HK1-TCC ENG(81L) WHEEL BASE 4200MM(42W) FUEL TANK 200L FRAME SIDE<N20> CATALYSIS CONTROL<6MZ> M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
640	NUT; BRKT,FUEL CLR 6HK1-TCC ENG(81L) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) FUEL TANK 200L FRAME SIDE<N20> CATALYSIS CONTROL<6MZ> M10 FLANGE	0-91180-210-0	03	1	1511-	●	●

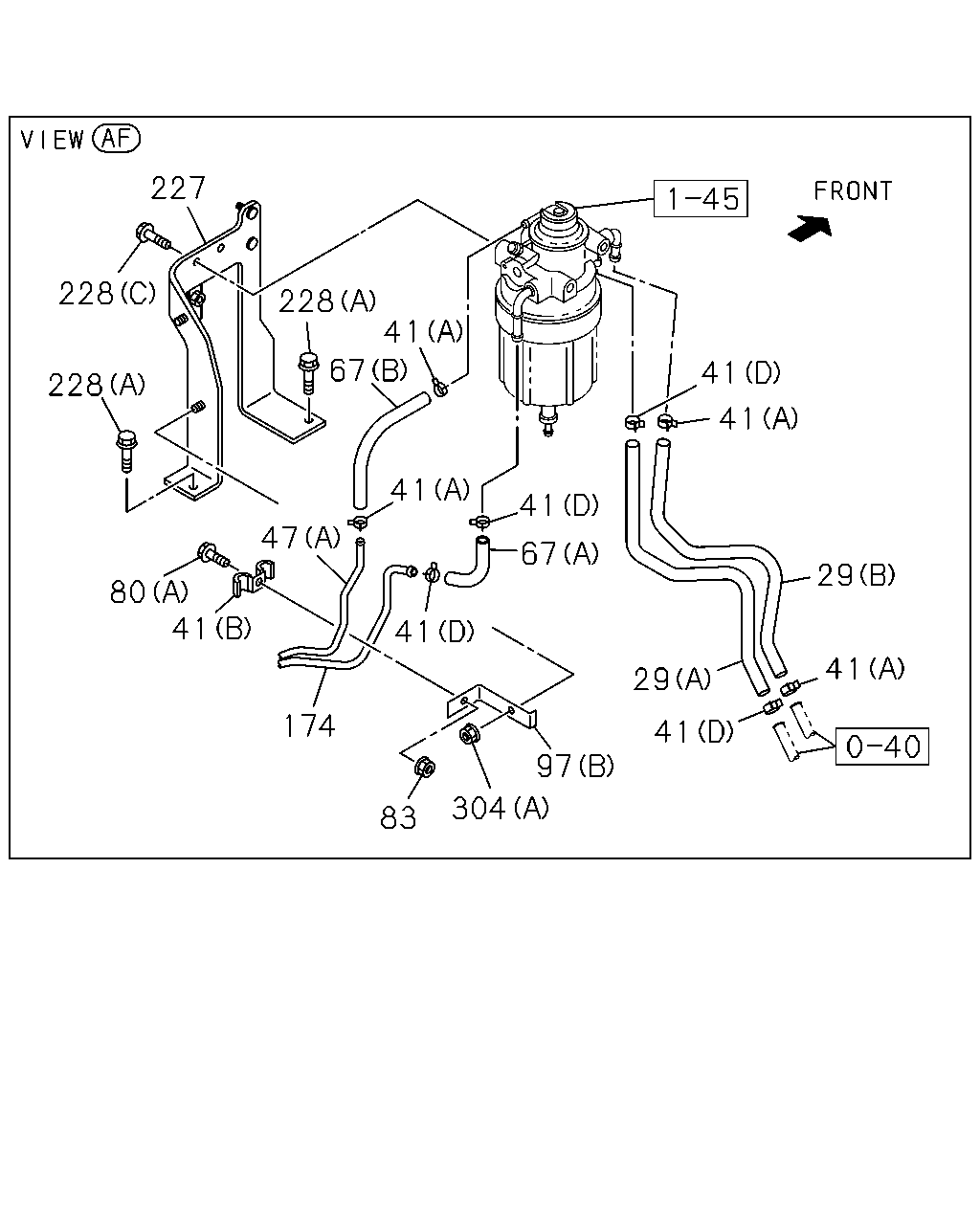

227 228 228 228 41 67 47 80 41 41 41 174 41 67 97 29 41 304 83 41 41 29 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1511-	●	●
29	HOSE; FUEL (A)	8-98156-579-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) (E)	8-98331-904-0	02	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (C)	8-98312-665-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (D)	8-98317-265-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (F)	8-98331-050-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (G)	8-98331-905-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (J)	8-98307-375-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (M)	8-98331-044-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (K)	8-98331-045-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (L)	8-98331-048-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) FUEL TANK 200L FRAME SIDE<N20> (I) L=730	8-98232-243-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (H) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (I) L=920	8-98232-244-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=24 & 24 L=49	1-09701-018-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (D) ID=16	8-94238-568-0	03	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (A) ID=13	8-94238-571-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (D) ID=16	8-94238-568-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (D) ID=16	8-94238-568-0	02	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCC ENG(81L) (A) L=699	8-98286-297-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) (B) L=787	8-98127-647-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) (A) L=688	8-98129-921-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (C)	8-98009-438-1	01	1	1511-	●	●
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01859-300-0	01	1	1511-	●	●
67	HOSE; FUEL,DELIVERY 6HK1-TCC ENG(81L) (B) L=180 SERVICED BY L=3000	0-01558-300-0	01	1	1511-	●	●
67	HOSE; FUEL,DELIVERY 6HK1-TCS ENG(80L) (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1511-	●	●
80	BOLT; CLIP,FUEL TANK (A) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
80	BOLT; CLIP,FUEL TANK (B) M8X30 FLANGE	0-28650-830-0	01	1	1511-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	1511-	●	●
83	NUT; CLIP,FUEL TANK FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
97	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	1511-	●	●
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	1511-	●	●
97	BRACKET; CLIP (C)	8-98129-922-0	01	1	1511-	●	●
97	BRACKET; CLIP 6HK1-TCC ENG(81L) (D)	8-98153-352-0	01	1	1511-	●	●
97	BRACKET; CLIP 6HK1-TCC ENG(81L) (E)	8-98311-190-0	01	1	1511-	●	●
174	PIPE; FUEL,FEED,FRT L=685	8-98129-920-0	01	1	1511-	●	●
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	1511-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1511-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M10X60 FLANGE	0-28051-060-0	02	1	1511-	●	●
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1511-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
304	NUT; BRKT 6HK1-TCC ENG(81L) (A) M8 FLANGE	0-91180-108-0	01	1	1511-	●	●

83 41 80 24 62 64 41 97 41 80 147 409 147 29 29 29 409 29 97 303 41 65 66 41 83 41 304 47 41 29 41 29 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L) (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1511-	●	●
24	CLIP; FUEL HOSE 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (B) ID=20 L=70	1-09701-033-0	01	1	1511-	●	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1511-	●	●
29	HOSE; FUEL (A)	8-98156-579-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) (E)	8-98331-904-0	02	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (C)	8-98312-665-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (D)	8-98317-265-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (F)	8-98331-050-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (G)	8-98331-905-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (J)	8-98307-375-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (M)	8-98331-044-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (K)	8-98331-045-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (L)	8-98331-048-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) FUEL TANK 200L FRAME SIDE<N20> (I) L=730	8-98232-243-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (H) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (I) L=920	8-98232-244-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=24 & 24 L=49	1-09701-018-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (D) ID=16	8-94238-568-0	03	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (A) ID=13	8-94238-571-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (D) ID=16	8-94238-568-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (D) ID=16	8-94238-568-0	02	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCC ENG(81L) (A) L=699	8-98286-297-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) (B) L=787	8-98127-647-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) (A) L=688	8-98129-921-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (C)	8-98009-438-1	01	1	1511-	●	●
62	BOLT; CLIP FIX 6HK1-TCC ENG(81L) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
62	BOLT; CLIP FIX 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	1511-	●	●
64	NUT; CLIP 6HK1-TCC ENG(81L) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
64	NUT; CLIP 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1260	8-98311-197-0	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> L=1610	8-98311-196-0	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98232-240-0	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> L=1620	8-98232-241-0	01	1	1511-	●	●
66	HOSE; FUEL,RETURN PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1230	8-98331-906-0	01	1	1511-	●	●
66	HOSE; FUEL,RETURN PIPE 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> L=1580	8-98311-308-0	01	1	1511-	●	●
66	HOSE; FUEL,RETURN PIPE 6HK1-TCS ENG(80L) L=180 SERVICED BY L=3000	0-01558-300-0	01	1	1511-	●	●
80	BOLT; CLIP,FUEL TANK (A) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
80	BOLT; CLIP,FUEL TANK (B) M8X30 FLANGE	0-28650-830-0	01	1	1511-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	1511-	●	●
83	NUT; CLIP,FUEL TANK FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
97	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	1511-	●	●
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	1511-	●	●
97	BRACKET; CLIP (C)	8-98129-922-0	01	1	1511-	●	●
97	BRACKET; CLIP 6HK1-TCC ENG(81L) (D)	8-98153-352-0	01	1	1511-	●	●
97	BRACKET; CLIP 6HK1-TCC ENG(81L) (E)	8-98311-190-0	01	1	1511-	●	●
147	CLIP; FUEL PIPE TO HOSE 6HK1-TCC ENG(81L) ID=16	8-98008-098-0	02	1	1511-	●	●
174	PIPE; FUEL,FEED,FRT L=685	8-98129-920-0	01	1	1511-	●	●
303	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1511-	●	●
303	BOLT; BRKT 6HK1-TCC ENG(81L) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
303	BOLT; BRKT 6HK1-TCC ENG(81L) M8X30 FLANGE	0-28650-830-0	01	1	1511-	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1511-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
304	NUT; BRKT 6HK1-TCC ENG(81L) (A) M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
409	JOINT; PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (A)	8-97353-668-0	01	1	1511-	●	●
409	JOINT; PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (B)	8-98009-438-1	01	1	1511-	●	●
409	JOINT; PIPE 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (A)	8-97353-668-0	02	1	1511-	●	●

279 228 345 304 345 39 39 41 41 65 29 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1511-	●	●
29	HOSE; FUEL (A)	8-98156-579-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) (E)	8-98331-904-0	02	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (C)	8-98312-665-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (D)	8-98317-265-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (F)	8-98331-050-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (G)	8-98331-905-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (J)	8-98307-375-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (M)	8-98331-044-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (K)	8-98331-045-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (L)	8-98331-048-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) FUEL TANK 200L FRAME SIDE<N20> (I) L=730	8-98232-243-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (H) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (I) L=920	8-98232-244-0	01	1	1511-	●	●
39	PIPE; FUEL NPTF3/8-18 OD=10	8-98122-953-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=24 & 24 L=49	1-09701-018-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (D) ID=16	8-94238-568-0	03	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (A) ID=13	8-94238-571-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (D) ID=16	8-94238-568-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (D) ID=16	8-94238-568-0	02	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1260	8-98311-197-0	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> L=1610	8-98311-196-0	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98232-240-0	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> L=1620	8-98232-241-0	01	1	1511-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1511-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M10X60 FLANGE	0-28051-060-0	02	1	1511-	●	●
228	BOLT; BRKT,SEDIMENTER (C) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1511-	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1511-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
304	NUT; BRKT 6HK1-TCC ENG(81L) (A) M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1511-	●	●

41 83 41 97 80 41 41 83 41 41 66 65 41 303 97 174 47 304 83 41 80 29 147 409 147 29 29 409 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1511-	●	●
29	HOSE; FUEL (A)	8-98156-579-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) (E)	8-98331-904-0	02	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (C)	8-98312-665-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (D)	8-98317-265-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (F)	8-98331-050-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (G)	8-98331-905-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (J)	8-98307-375-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (M)	8-98331-044-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (K)	8-98331-045-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (L)	8-98331-048-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) FUEL TANK 200L FRAME SIDE<N20> (I) L=730	8-98232-243-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (H) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (I) L=920	8-98232-244-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=24 & 24 L=49	1-09701-018-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (D) ID=16	8-94238-568-0	03	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (A) ID=13	8-94238-571-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (D) ID=16	8-94238-568-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (D) ID=16	8-94238-568-0	02	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCC ENG(81L) (A) L=699	8-98286-297-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) (B) L=787	8-98127-647-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) (A) L=688	8-98129-921-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (C)	8-98009-438-1	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1260	8-98311-197-0	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> L=1610	8-98311-196-0	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98232-240-0	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> L=1620	8-98232-241-0	01	1	1511-	●	●
66	HOSE; FUEL,RETURN PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1230	8-98331-906-0	01	1	1511-	●	●
66	HOSE; FUEL,RETURN PIPE 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> L=1580	8-98311-308-0	01	1	1511-	●	●
66	HOSE; FUEL,RETURN PIPE 6HK1-TCS ENG(80L) L=180 SERVICED BY L=3000	0-01558-300-0	01	1	1511-	●	●
80	BOLT; CLIP,FUEL TANK (A) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
80	BOLT; CLIP,FUEL TANK (B) M8X30 FLANGE	0-28650-830-0	01	1	1511-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	1511-	●	●
83	NUT; CLIP,FUEL TANK FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
97	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	1511-	●	●
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	1511-	●	●
97	BRACKET; CLIP (C)	8-98129-922-0	01	1	1511-	●	●
97	BRACKET; CLIP 6HK1-TCC ENG(81L) (D)	8-98153-352-0	01	1	1511-	●	●
97	BRACKET; CLIP 6HK1-TCC ENG(81L) (E)	8-98311-190-0	01	1	1511-	●	●
147	CLIP; FUEL PIPE TO HOSE 6HK1-TCC ENG(81L) ID=16	8-98008-098-0	02	1	1511-	●	●
174	PIPE; FUEL,FEED,FRT L=685	8-98129-920-0	01	1	1511-	●	●
303	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1511-	●	●
303	BOLT; BRKT 6HK1-TCC ENG(81L) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
303	BOLT; BRKT 6HK1-TCC ENG(81L) M8X30 FLANGE	0-28650-830-0	01	1	1511-	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1511-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
304	NUT; BRKT 6HK1-TCC ENG(81L) (A) M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
409	JOINT; PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (A)	8-97353-668-0	01	1	1511-	●	●
409	JOINT; PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (B)	8-98009-438-1	01	1	1511-	●	●
409	JOINT; PIPE 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (A)	8-97353-668-0	02	1	1511-	●	●

47 66 65 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	PIPE; FUEL,RETURN 6HK1-TCC ENG(81L) (A) L=699	8-98286-297-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) (B) L=787	8-98127-647-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) (A) L=688	8-98129-921-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (C)	8-98009-438-1	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1260	8-98311-197-0	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> L=1610	8-98311-196-0	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98232-240-0	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> L=1620	8-98232-241-0	01	1	1511-	●	●
66	HOSE; FUEL,RETURN PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1230	8-98331-906-0	01	1	1511-	●	●
66	HOSE; FUEL,RETURN PIPE 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> L=1580	8-98311-308-0	01	1	1511-	●	●
66	HOSE; FUEL,RETURN PIPE 6HK1-TCS ENG(80L) L=180 SERVICED BY L=3000	0-01558-300-0	01	1	1511-	●	●
174	PIPE; FUEL,FEED,FRT L=685	8-98129-920-0	01	1	1511-	●	●

47 29 41 41 634 41 29 41 83 66 41 65 41 41 304 303 47 174 97 55 97 41 80 83 41 80 80 41 98 308 83 103 41 66 95 634 95 41 47 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1511-	●	●
29	HOSE; FUEL (A)	8-98156-579-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) (E)	8-98331-904-0	02	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (C)	8-98312-665-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (D)	8-98317-265-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (F)	8-98331-050-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (G)	8-98331-905-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (J)	8-98307-375-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (M)	8-98331-044-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (K)	8-98331-045-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (L)	8-98331-048-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) FUEL TANK 200L FRAME SIDE<N20> (I) L=730	8-98232-243-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (H) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (I) L=920	8-98232-244-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=24 & 24 L=49	1-09701-018-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) (D) ID=16	8-94238-568-0	03	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (A) ID=13	8-94238-571-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (D) ID=16	8-94238-568-0	01	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	02	1	1511-	●	●
41	CLIP; FUEL PIPE,FUEL TANK 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (D) ID=16	8-94238-568-0	02	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCC ENG(81L) (A) L=699	8-98286-297-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) (B) L=787	8-98127-647-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) (A) L=688	8-98129-921-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (C)	8-98009-438-1	01	1	1511-	●	●
55	COVER; PIPE,FUEL TANK 6HK1-TCS ENG(80L) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1260	8-98311-197-0	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> L=1610	8-98311-196-0	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98232-240-0	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> L=1620	8-98232-241-0	01	1	1511-	●	●
66	HOSE; FUEL,RETURN PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1230	8-98331-906-0	01	1	1511-	●	●
66	HOSE; FUEL,RETURN PIPE 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> L=1580	8-98311-308-0	01	1	1511-	●	●
66	HOSE; FUEL,RETURN PIPE 6HK1-TCS ENG(80L) L=180 SERVICED BY L=3000	0-01558-300-0	01	1	1511-	●	●
80	BOLT; CLIP,FUEL TANK (A) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
80	BOLT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1511-	●	●
80	BOLT; CLIP,FUEL TANK (B) M8X30 FLANGE	0-28650-830-0	01	1	1511-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	1511-	●	●
83	NUT; CLIP,FUEL TANK FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
83	NUT; CLIP,FUEL TANK 6HK1-TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
95	BUSHING; PIPE,FUEL TANK 6HK1-TCS ENG(80L) ID=28 OD=35 T=25	1-09332-011-1	02	1	1511-	●	●
97	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	1511-	●	●
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	1511-	●	●
97	BRACKET; CLIP (C)	8-98129-922-0	01	1	1511-	●	●
97	BRACKET; CLIP 6HK1-TCC ENG(81L) (D)	8-98153-352-0	01	1	1511-	●	●
97	BRACKET; CLIP 6HK1-TCC ENG(81L) (E)	8-98311-190-0	01	1	1511-	●	●
98	BOLT; BRKT,FUEL PIPE 6HK1-TCS ENG(80L) M8X30 FLANGE	0-28650-830-0	02	1	1511-	●	●
103	NUT; BRKT 6HK1-TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	1511-	●	●
174	PIPE; FUEL,FEED,FRT L=685	8-98129-920-0	01	1	1511-	●	●
303	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1511-	●	●
303	BOLT; BRKT 6HK1-TCC ENG(81L) M8X20 FLANGE	0-28650-820-0	01	1	1511-	●	●
303	BOLT; BRKT 6HK1-TCC ENG(81L) M8X30 FLANGE	0-28650-830-0	01	1	1511-	●	●
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1511-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1511-	●	●
304	NUT; BRKT 6HK1-TCC ENG(81L) (A) M8 FLANGE	0-91180-108-0	01	1	1511-	●	●
308	BRACKET; FUEL PIPE 6HK1-TCS ENG(80L) L=75	1-47478-323-0	02	1	1511-	●	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) FUEL TANK 200L FRAME SIDE<N20>	8-98186-971-0	01	1	1511-	●	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1511-	●	●

65 29 634 174 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL (B)	8-98078-197-1	01	1	1511-	●	●
29	HOSE; FUEL (A)	8-98156-579-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) (E)	8-98331-904-0	02	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (C)	8-98312-665-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (D)	8-98317-265-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (F)	8-98331-050-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> (G)	8-98331-905-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (J)	8-98307-375-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (M)	8-98331-044-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (K)	8-98331-045-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> (L)	8-98331-048-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) FUEL TANK 200L FRAME SIDE<N20> (I) L=730	8-98232-243-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (H) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	1511-	●	●
29	HOSE; FUEL 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (I) L=920	8-98232-244-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCC ENG(81L) (A) L=699	8-98286-297-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) (B) L=787	8-98127-647-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) (A) L=688	8-98129-921-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (C)	8-98009-438-1	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1260	8-98311-197-0	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> L=1610	8-98311-196-0	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98232-240-0	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> L=1620	8-98232-241-0	01	1	1511-	●	●
174	PIPE; FUEL,FEED,FRT L=685	8-98129-920-0	01	1	1511-	●	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) FUEL TANK 200L FRAME SIDE<N20>	8-98186-971-0	01	1	1511-	●	●
634	HOSE; RUBBER RETURN 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> L=700 SERVICED BY L=3000	0-01558-300-0	01	1	1511-	●	●

47 66 174 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	PIPE; FUEL,RETURN 6HK1-TCC ENG(81L) (A) L=699	8-98286-297-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) (B) L=787	8-98127-647-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) (A) L=688	8-98129-921-0	01	1	1511-	●	●
47	PIPE; FUEL,RETURN 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> (C)	8-98009-438-1	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1260	8-98311-197-0	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> L=1610	8-98311-196-0	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L) FUEL TANK 200L FRAME SIDE<N20> L=1380	8-98232-240-0	01	1	1511-	●	●
65	HOSE; FUEL,DELIVERY PIPE 6HK1-TCS ENG(80L) FUEL TANK 400L<SDH> L=1620	8-98232-241-0	01	1	1511-	●	●
66	HOSE; FUEL,RETURN PIPE 6HK1-TCC ENG(81L) FUEL TANK 200L FRAME SIDE<N20> L=1230	8-98331-906-0	01	1	1511-	●	●
66	HOSE; FUEL,RETURN PIPE 6HK1-TCC ENG(81L) FUEL TANK 400L<SDH> L=1580	8-98311-308-0	01	1	1511-	●	●
66	HOSE; FUEL,RETURN PIPE 6HK1-TCS ENG(80L) L=180 SERVICED BY L=3000	0-01558-300-0	01	1	1511-	●	●
174	PIPE; FUEL,FEED,FRT L=685	8-98129-920-0	01	1	1511-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
