◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11717 - FVR AUST/NZ EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#169675) — 44 parça

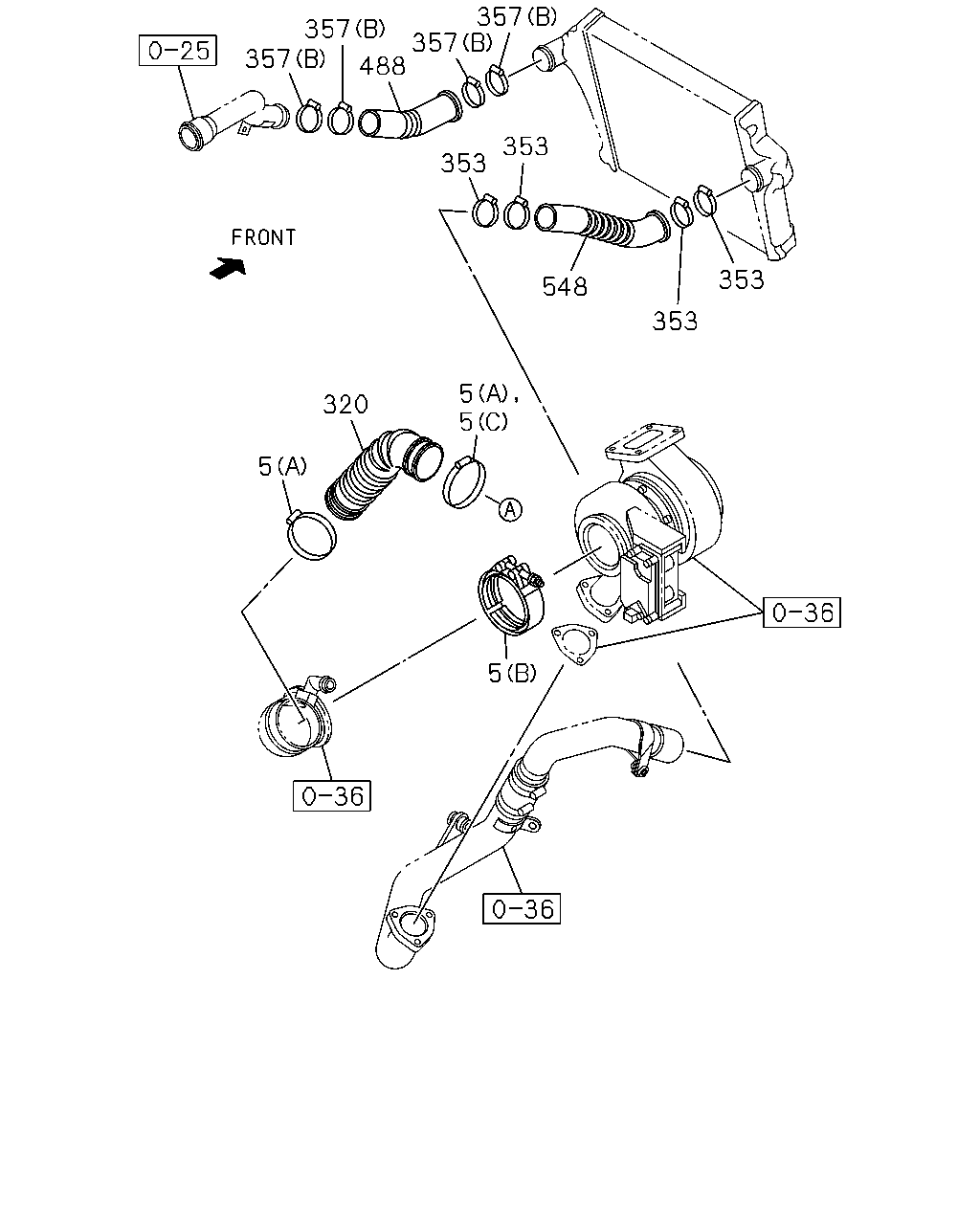

çizim 500709
357 357 357 357 488 353 353 548 353 353 5 5 320 5 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1511- ● ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1511- ●
5 CLIP; AIR DUCT
(B) ID=114 		8-15178-030-0 01 1 1511- ● ●
5 CLIP; AIR DUCT
(C) ID=130-169 		8-98155-950-0 01 1 1511- ●
320 HOSE; CONN,ACL 8-98012-859-2 01 1 1511- ●
320 HOSE; CONN,ACL 8-98021-990-2 01 1 1511- ●
353 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 04 1 1511- ● ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 02 1 1511- ● ●
357 CLIP; RUBBER HOSE
(B) ID=58-79 		1-09707-136-0 04 1 1511- ● ●
488 HOSE; RUBBER,PIPE 8-98012-936-1 01 1 1511- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE 8-98065-044-0 01 1 1511- ● ●

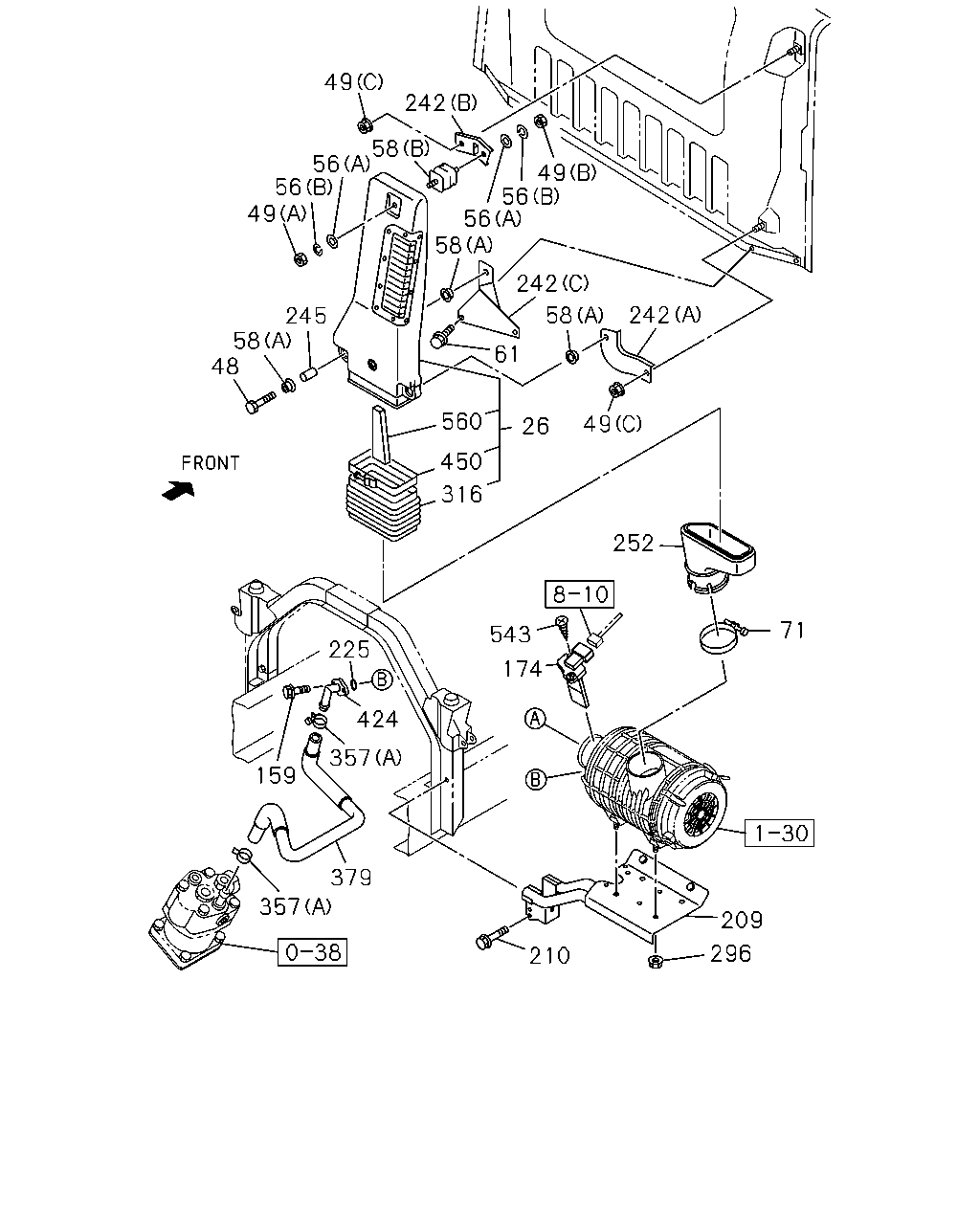

çizim 500956
49 56 56 58 242 49 56 56 49 58 245 58 48 560 450 316 26 61 58 242 242 49 252 543 225 424 357 159 357 379 210 209 296 174 71
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT 8-98010-361-2 01 1 1511- ● ●
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 1511- ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1511- ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1511- ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1511- ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1511- ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1511- ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1511- ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1511- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1511- ● ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1511- ●
71 CLIP; AIR DUCT
ID=140-160 		8-98133-368-0 01 1 1511- ●
159 BOLT; AIR PIPE
M6X16 FLANGE 		0-28050-616-0 02 1 1511- ●
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1511- ● ●
209 BRACKET; ACL 8-98021-995-1 01 1 1511- ● ●
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1511- ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1511- ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1511- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1511- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 1511- ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1511- ● ●
252 DUCT; AIR INT 8-98012-861-1 01 1 1511- ●
252 DUCT; AIR INT 8-98021-989-1 01 1 1511- ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1511- ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1511- ● ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 02 1 1511- ● ●
357 CLIP; RUBBER HOSE
(B) ID=58-79 		1-09707-136-0 04 1 1511- ● ●
379 HOSE; RUBBER 8-98077-469-0 01 1 1511- ●
379 HOSE; RUBBER 8-98077-470-0 01 1 1511- ●
424 PIPE; AIR,INL 8-98081-834-0 01 1 1511- ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1511- ● ●
543 SCREW; SENSOR
M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1511- ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1511- ● ●
