◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11717 - FVR AUST/NZ EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-32 - WATER PIPING; ENGINE ▶
0-32 — WATER PIPING; ENGINE (#169655) — 42 parça

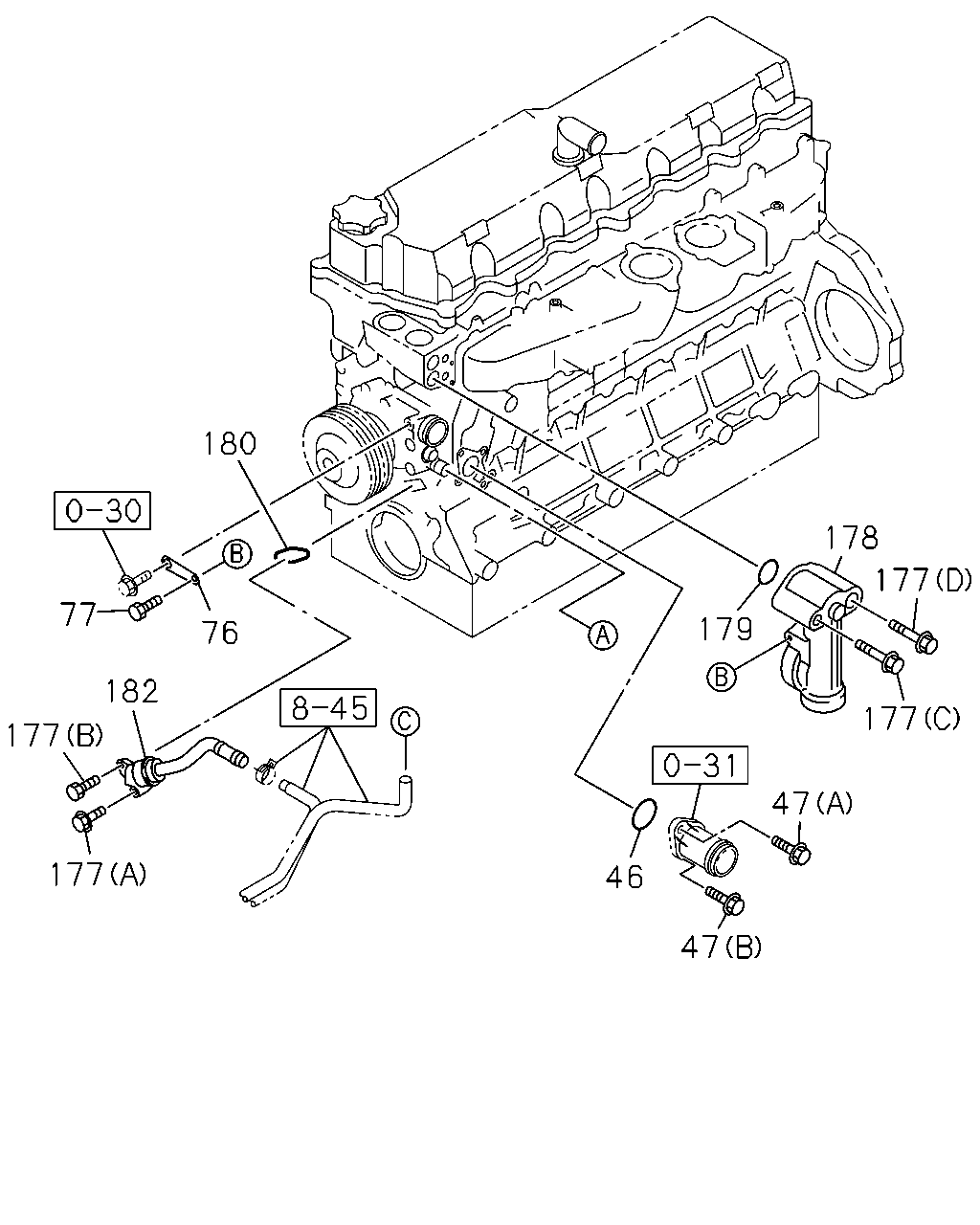

çizim 500282
180 178 179 177 177 47 46 47 182 77 177 177 76
BalonParca AdiParca NoAdetTipApplied Date A B
46 GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3 		8-94396-680-2 01 1 1511- ● ●
47 BOLT; DUCT,TO OIL COOLER
(A) M8X45 FLANGE 		0-28050-845-0 01 1 1511- ● ●
47 BOLT; DUCT,TO OIL COOLER
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1511- ● ●
76 BRACKET; WATER DUCT,PUMP 8-94394-784-0 01 1 1511- ● ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28050-850-0 01 1 1511- ● ●
177 BOLT; WATER DUCT
(C) M8X80 FLANGE 		0-28050-880-0 01 1 1511- ● ●
177 BOLT; WATER DUCT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1511- ● ●
177 BOLT; WATER DUCT
(A) M8X65 FLANGE 		1-09044-072-1 01 1 1511- ● ●
177 BOLT; WATER DUCT
(D) M16X75 FLANGE 		8-94397-360-1 01 1 1511- ● ●
178 DUCT; WATER,BYPASS 8-94396-627-3 01 1 1511- ● ●
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 		8-98276-756-0 01 1 1511- ● ●
180 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94396-720-1 01 1 1511- ● ●
182 DUCT; WATER,HTR 8-94394-348-5 01 1 1511- ● ●

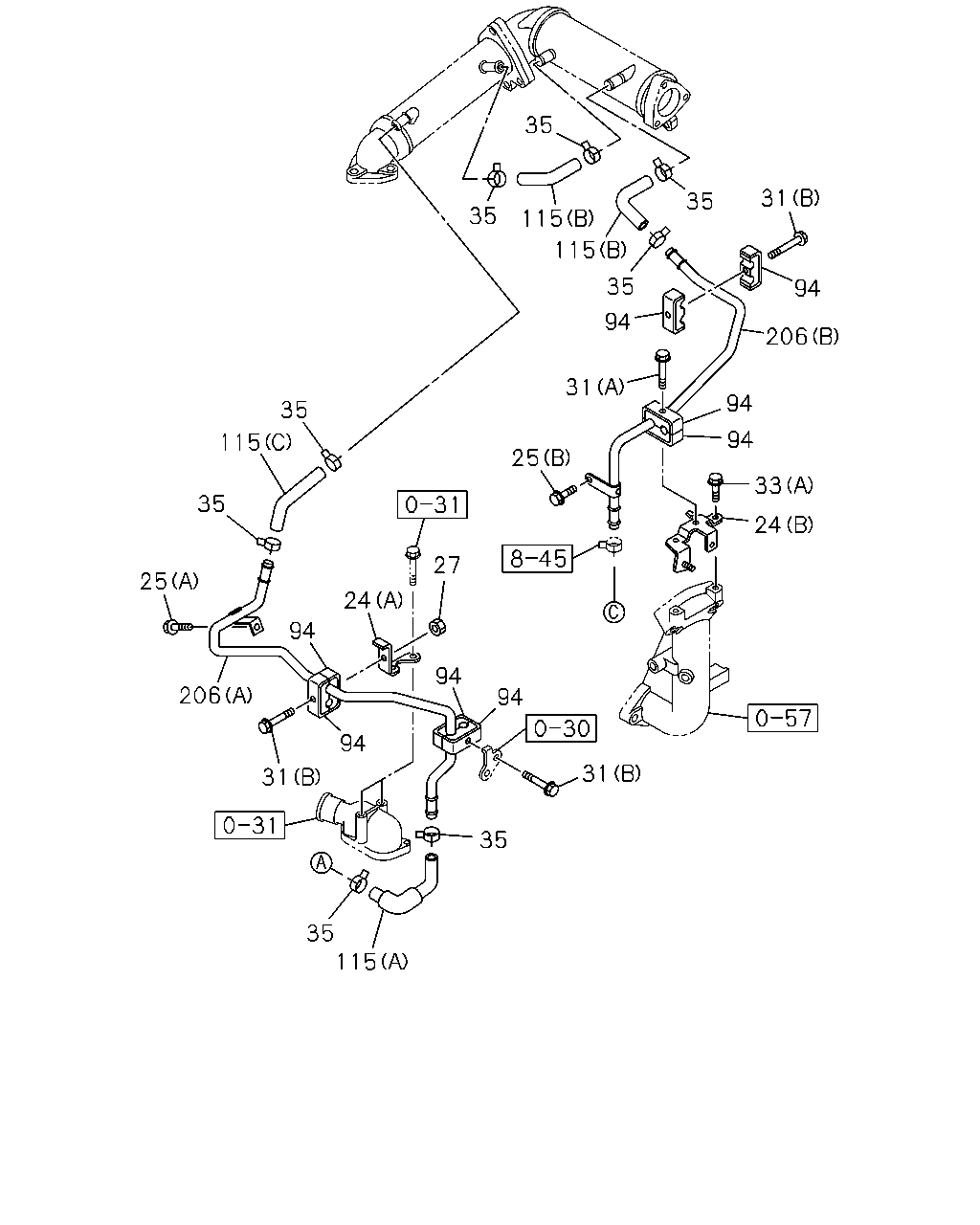

çizim 500293
35 35 31 94 206 94 33 94 24 31 94 35 115 115 35 35 115 35 25 94 27 24 94 94 94 31 206 35 35 115 31 25
BalonParca AdiParca NoAdetTipApplied Date A B
24 BRACKET; WATER PIPE
(A) 		8-98000-557-2 01 1 1511- ● ●
24 BRACKET; WATER PIPE
(B) 		8-98051-626-1 01 1 1511- ● ●
25 BOLT; WATER PIPE
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1511- ● ●
25 BOLT; WATER PIPE
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1511- ● ●
27 NUT; PIPE FIX
M6 FLANGE 		0-91180-106-0 01 1 1511- ● ●
31 BOLT; CLIP
(A) M6X45 FLANGE 		0-28050-645-0 01 1 1511- ● ●
31 BOLT; CLIP
(B) M6X40 FLANGE 		0-28650-640-0 03 1 1511- ● ●
33 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1511- ● ●
33 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1511- ● ●
35 CLIP; RUBBER HOSE
ID=20 		8-98127-648-0 08 1 1511- ● ●
35 CLIP; RUBBER HOSE
ID=20.8 		8-94125-862-1 01 1 1511- ●
94 CLIP; WATER PIPE 8-97605-129-1 08 1 1511- ● ●
115 HOSE; RUBBER
(A) 		8-97606-735-1 01 1 1511- ● ●
115 HOSE; RUBBER
(B) 		8-97606-749-0 02 1 1511- ● ●
115 HOSE; RUBBER
(C) 		8-98043-192-0 01 1 1511- ● ●
206 PIPE; WATER,EGR COOLER
(A) 		8-97604-928-2 01 1 1511- ● ●
206 PIPE; WATER,EGR COOLER
(B) 		8-98000-480-1 01 1 1511- ● ●

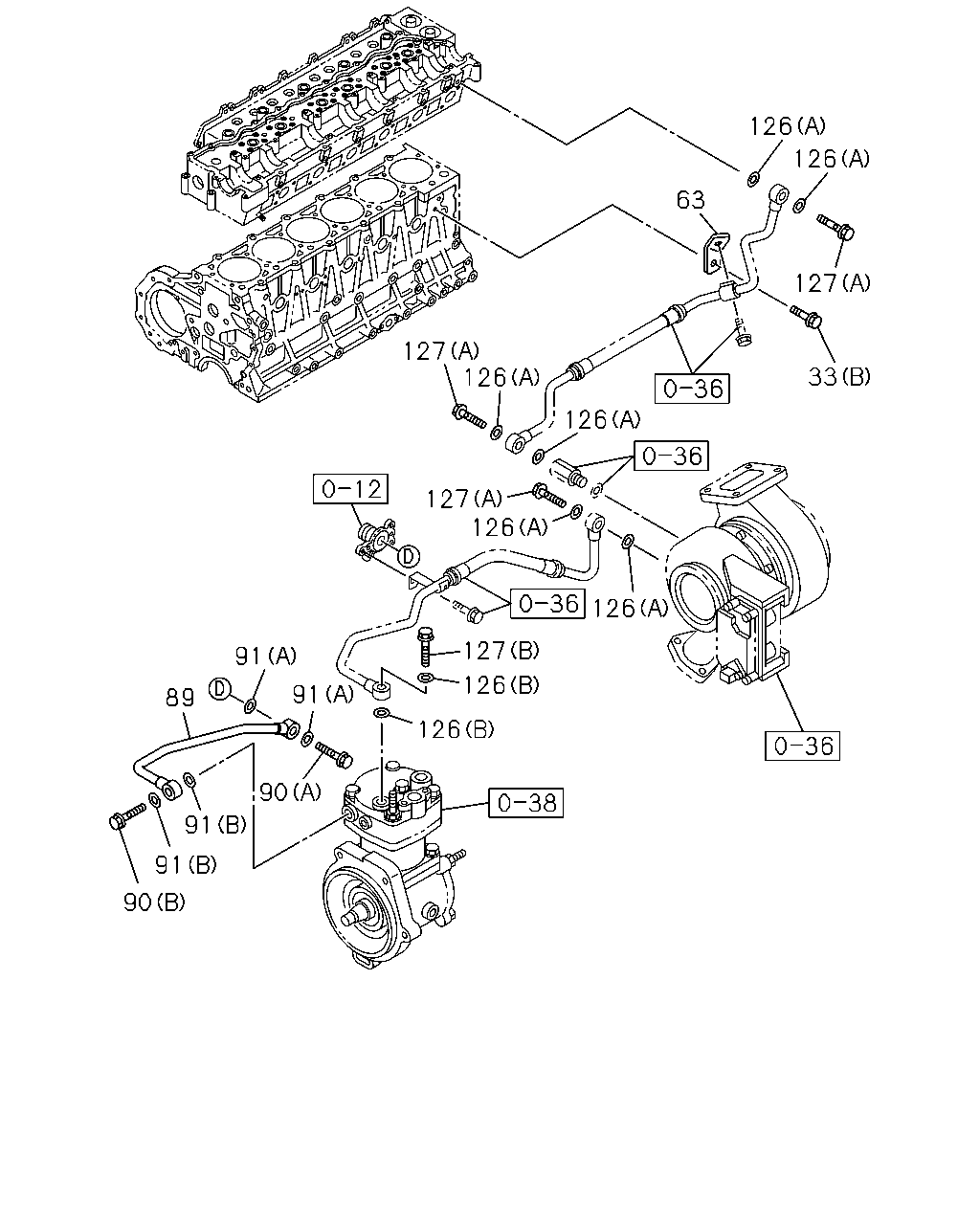

çizim 500302
126 126 63 127 33 126 126 127 127 127 126 126 126 126 90 91 91 89 91 91 90
BalonParca AdiParca NoAdetTipApplied Date A B
33 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1511- ● ●
33 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1511- ● ●
63 BRACKET; WATER PIPE 8-98046-784-0 01 1 1511- ● ●
89 PIPE; WATER,AIR CMPR,IN 8-97610-086-0 01 1 1511- ● ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT 		1-09675-193-0 01 1 1511- ● ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(B) M16X28 		8-94383-489-0 01 1 1511- ● ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2 		1-09630-086-0 02 1 1511- ● ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1511- ● ●
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2 		1-09630-086-0 02 1 1511- ● ●
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 		8-98251-345-0 06 1 1511- ● ●
127 BOLT; EYE
(A) M14X27 EYE-BOLT 		1-09675-193-0 03 1 1511- ● ●
127 BOLT; EYE
(B) M16X28 		8-94383-489-0 01 1 1511- ● ●
