9-01 — TOOLS (#169639) — 44 parça

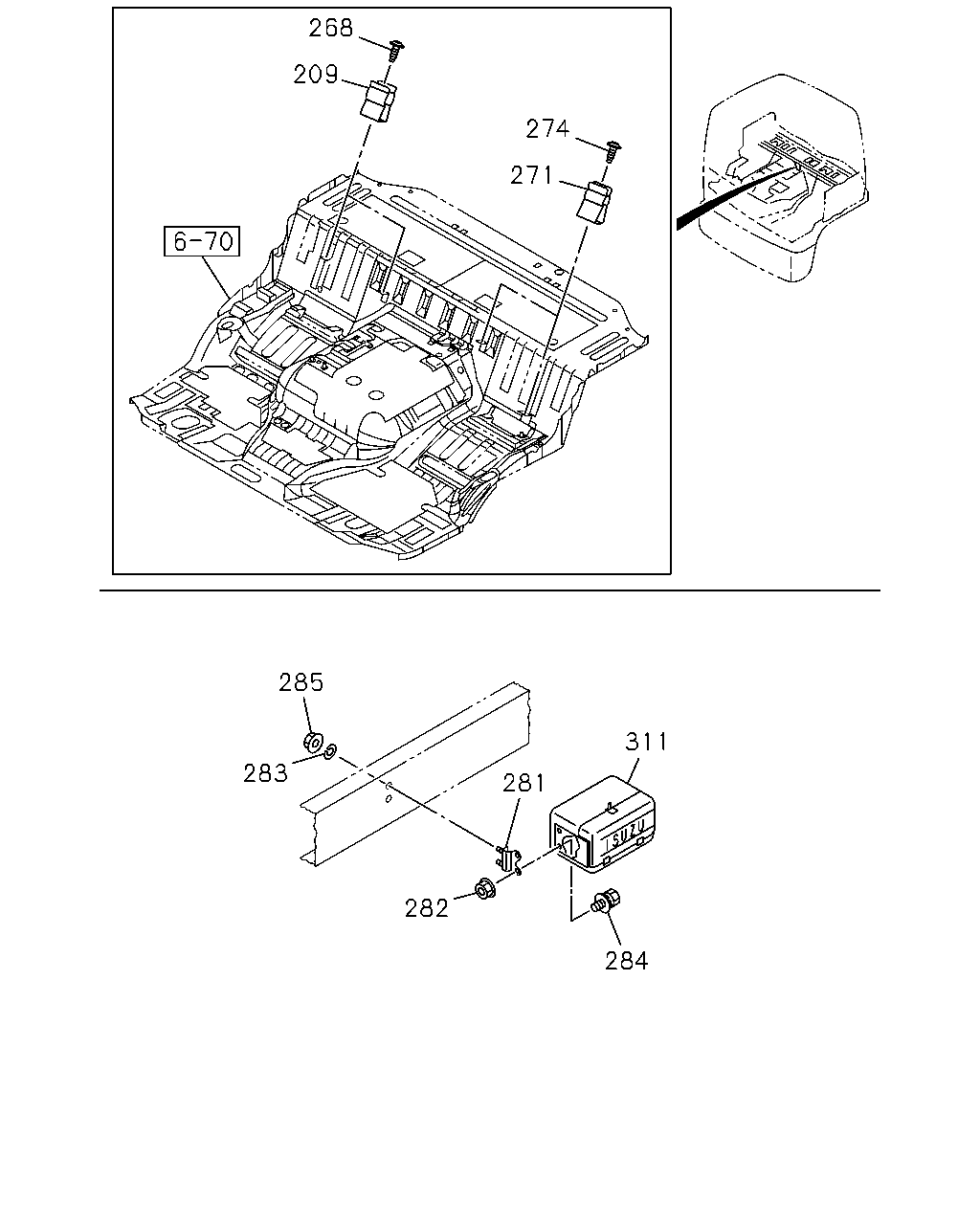

çizim 502012
268 209 274 271 285 283 281 311 282 284
BalonParca AdiParca NoAdetTipApplied Date A B
209 CLIP; JACK HANDLE 8-98053-799-0 02 1 1511- ● ●
268 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1511- ● ●
271 CLIP; TIRE HANGER 8-98053-800-0 02 1 1511- ● ●
274 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1511- ● ●
281 BRACKET; TOOL BOX
KEY LOCK TOOL<RC5> 		1-53459-665-2 02 1 1511- ● ●
282 NUT; BRKT
KEY LOCK TOOL<RC5> M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
283 WASHER; LK,BRKT
KEY LOCK TOOL<RC5> ID=10.2 		0-91510-510-0 04 1 1511- ● ●
284 BOLT; TOOL BOX
KEY LOCK TOOL<RC5> M10X20 FLANGE 		0-28651-020-0 04 1 1511- ● ●
285 NUT; TOOL BOX
KEY LOCK TOOL<RC5> M10 FLANGE 		0-91180-210-0 04 1 1511- ● ●
311 BOX ASM; TOOL
KEY LOCK TOOL<RC5> 		1-85561-006-3 01 1 1511- ● ●
çizim 503596
1 9 12 13 29 29 29 23 22 21 20 17 115 125 126 127 144 143
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER 9-23110-018-0 01 1 1511- ● ●
9 WRENCH; WHEEL PIN
B=33X30 L=450 		1-85111-033-1 01 1 1511- ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-98257-407-0 01 1 1511- ● ●
13 WRENCH; MONKEY
L=255 		8-98270-303-0 01 1 1511- ● ●
17 HAMMER 9-85121-406-0 01 1 1511- ● ●
20 WRENCH; 10X12
10X12 		0-95902-510-0 01 1 1511- ● ●
21 WRENCH; 14X17
14X17 		0-95902-514-0 01 1 1511- ● ●
22 WRENCH; 19X22
19X22 		0-95902-519-0 01 1 1511- ● ●
23 WRENCH; 24X27
24X27 		0-95902-524-0 01 1 1511- ● ●
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 1511- ● ●
29 DRIVER; SCREW
(B) <-> L=275 		8-98061-105-0 01 1 1511- ● ●
29 DRIVER; SCREW
(A) <+> L=190 		9-09595-522-0 01 1 1511- ● ●
115 PLIER 8-98282-845-0 01 1 1511- ● ●
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 1511- ● ●
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-1 01 1 1511- ● ●
127 WRENCH ASM; HUB BRG NUT
L=400 B=116 		8-98119-000-1 01 1 1511- ● ●
143 GUIDE; BOOT,TIE ROD END 1-85229-013-0 01 1 1511- ● ●
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-009-0 01 1 1511- ● ●
çizim 503635
153 151 154 156 163 163 163 160 164 186 192 193 208 237 230 227
BalonParca AdiParca NoAdetTipApplied Date A B
151 REMOVER; OIL BRK,FRT RETURN SPR
ID=16 		1-85237-002-0 01 1 1511- ● ●
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 1511- ● ●
154 SLEEPER; KING PIN 1-85238-003-0 01 1 1511- ● ●
156 PULLER; ANCHOR PIN 1-85210-025-0 01 1 1511- ● ●
160 REMOVER; NEEDLE BRG
L=220 		1-85238-001-0 01 1 1511- ● ●
163 TOOL; SETTING
(A) 		9-85221-231-0 01 1 1511- ● ●
163 TOOL; SETTING
MZW6P M/T(RSZ) (B) L=195 		1-85221-162-1 01 1 1511- ● ●
163 TOOL; SETTING
MZW6P M/T(RSZ) (C) L=150 		1-85221-163-0 01 1 1511- ● ●
164 GUIDE; SNAP RING PILOT BRG 1-85176-001-0 01 1 1511- ● ●
186 ADJUSTER; BRAKE 1-85269-008-0 01 1 1511- ● ●
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 1511- ● ●
193 JACK ASM
10TON 		8-97607-599-0 01 1 1511- ● ●
208 HANDLE; JACK
L=600 		8-98181-437-0 01 1 1511- ● ●
227 PUMP ASM; TIRE 9-85521-132-0 01 1 1511- ● ●
230 PUMP; GREASE 1-85556-007-5 01 1 1511- ● ●
237 BAG; TOOL 8-97130-902-1 01 1 1511- ● ●
