Isuzu WW
▶
TRUCKS
▶
FTR
▶
11716 - FTR AUST/NZ EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶
8-45 — HEATER PIPING
(#169629) — 34 parça
Tümü
A - FGR5MV
B - FGR5WV
◀

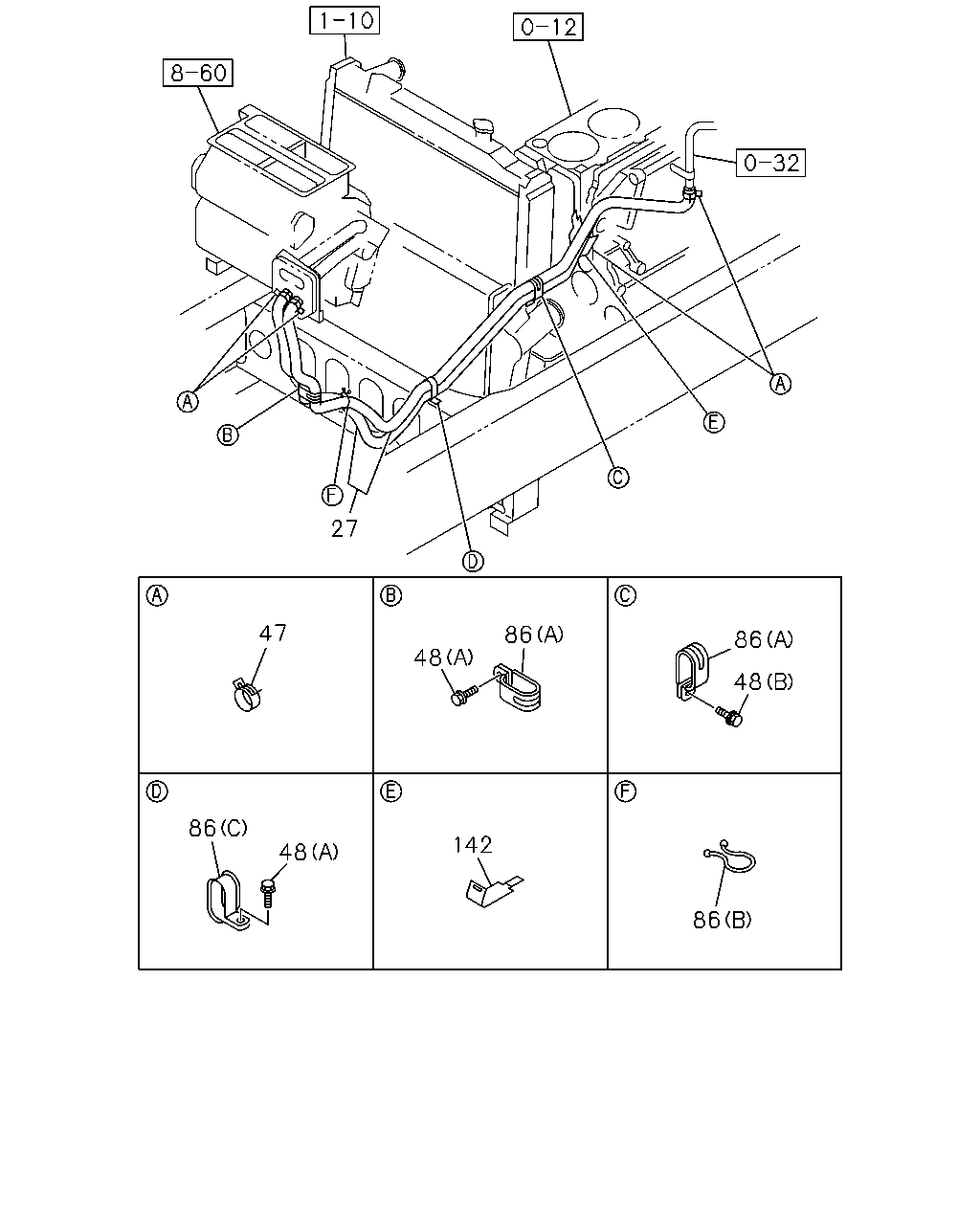

[845A] PIPING; DBL CAB (11 parça)

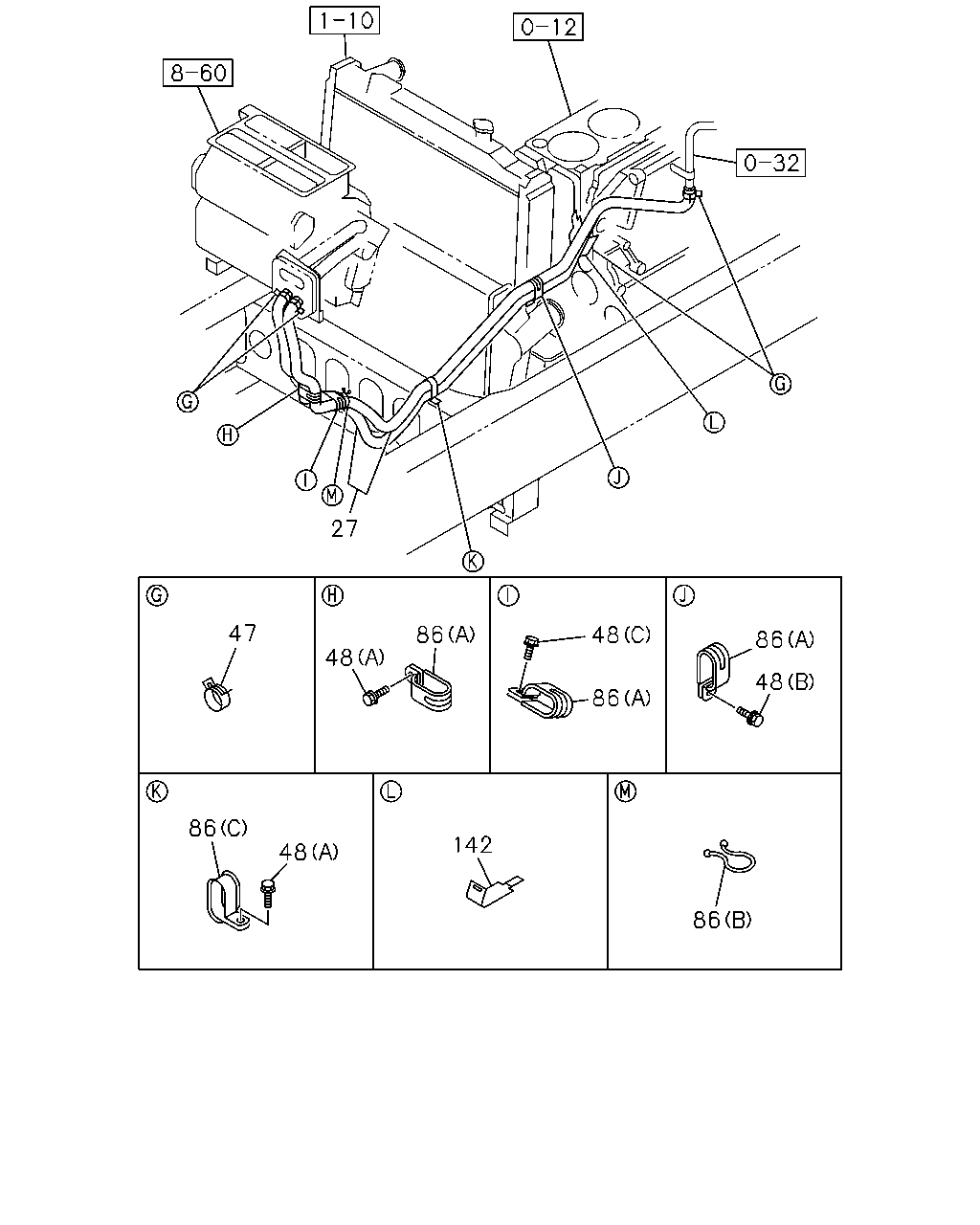

[845A] PIPING; SGL CAB (11 parça)
[845A] COMPONENT; WATER HOSE (12 parça)
▶
27
47
86
48
86
48
48
86
142
86
48
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
8-98163-393-0
01
1
1511-
●
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
8-98163-393-0
01
1
1511-
●
47
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
04
1
1511-
●
●
48
BOLT; CLIP FIX
(A) M8X25 FLANGE
0-28650-825-0
02
1
1511-
●
●
48
BOLT; CLIP FIX
(B) M8X16 W/LK&PL WASHER
1-09980-498-0
01
1
1511-
●
●
48
BOLT; CLIP FIX
(C) M8X16 FLANGE
0-28050-816-0
01
1
1511-
●
86
CLIP; HTR HOSE
EXC. HEATER & DEFROSTER(C41) (B)
8-94463-508-0
01
1
1511-
●
●
86
CLIP; HTR HOSE
(A) ID=24X2 L=25
1-09700-710-0
02
1
1511-
●
86
CLIP; HTR HOSE
(C)
8-98029-677-0
01
1
1511-
●
●
86
CLIP; HTR HOSE
(A) ID=24X2 L=25
1-09700-710-0
03
1
1511-
●
142
CLIP; BAND
L=170
8-98166-021-0
01
1
1511-
●
●
27
48
86
86
48
86
142
48
86
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
8-98163-393-0
01
1
1511-
●
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
8-98163-393-0
01
1
1511-
●
47
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
04
1
1511-
●
●
48
BOLT; CLIP FIX
(A) M8X25 FLANGE
0-28650-825-0
02
1
1511-
●
●
48
BOLT; CLIP FIX
(B) M8X16 W/LK&PL WASHER
1-09980-498-0
01
1
1511-
●
●
48
BOLT; CLIP FIX
(C) M8X16 FLANGE
0-28050-816-0
01
1
1511-
●
86
CLIP; HTR HOSE
EXC. HEATER & DEFROSTER(C41) (B)
8-94463-508-0
01
1
1511-
●
●
86
CLIP; HTR HOSE
(A) ID=24X2 L=25
1-09700-710-0
02
1
1511-
●
86
CLIP; HTR HOSE
(C)
8-98029-677-0
01
1
1511-
●
●
86
CLIP; HTR HOSE
(A) ID=24X2 L=25
1-09700-710-0
03
1
1511-
●
142
CLIP; BAND
L=170
8-98166-021-0
01
1
1511-
●
●
27
56
103
56
56
103
56
63
63
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
8-98163-393-0
01
1
1511-
●
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
8-98163-393-0
01
1
1511-
●
56
CLAMP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=22
8-97359-141-0
04
1
1511-
●
56
CLAMP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22
8-97359-141-0
04
1
1511-
●
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)
8-98117-223-0
01
1
1511-
●
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98117-223-0
01
1
1511-
●
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)
8-98117-224-0
01
1
1511-
●
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98117-224-0
01
1
1511-
●
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C)
8-98117-225-0
01
1
1511-
●
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)
8-98117-225-0
01
1
1511-
●
103
CONNECTOR; HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
9-09703-048-0
02
1
1511-
●
103
CONNECTOR; HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
9-09703-048-0
02
1
1511-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
